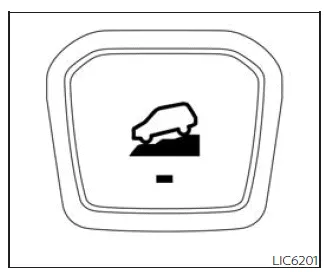

- Hill descent control switch
- Warning systems switch
- Electronic locking rear differential (E-Lock) system switch
- Power inverter switch
- Parking Aids system switch

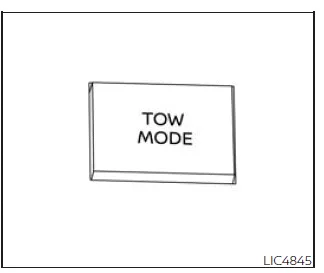

- Tow mode switch

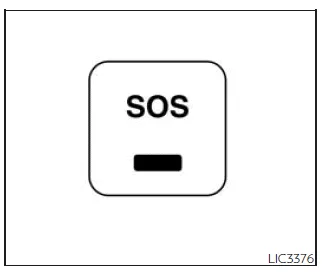

- Emergency Call (SOS) button
- USB charging ports
- Wireless charger
- Rear Door Alert
- Power outlets
- Extended storage switch
- Storage

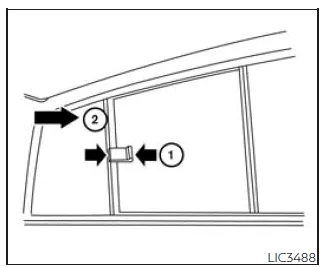

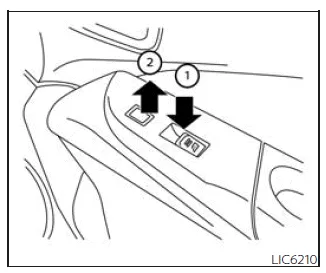

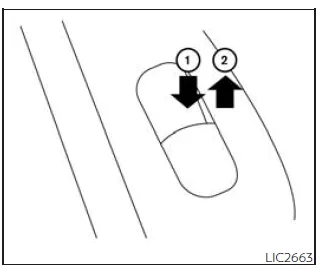

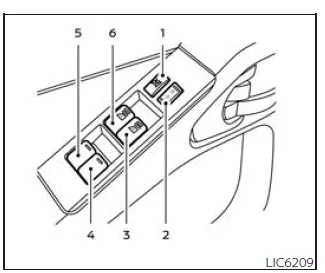

- Windows
- Moonroof
- Interior lights

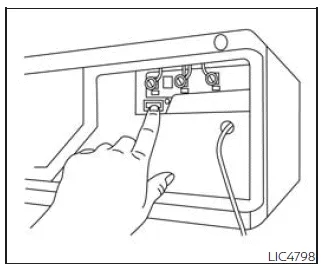

- HomeLink Universal Transceiver

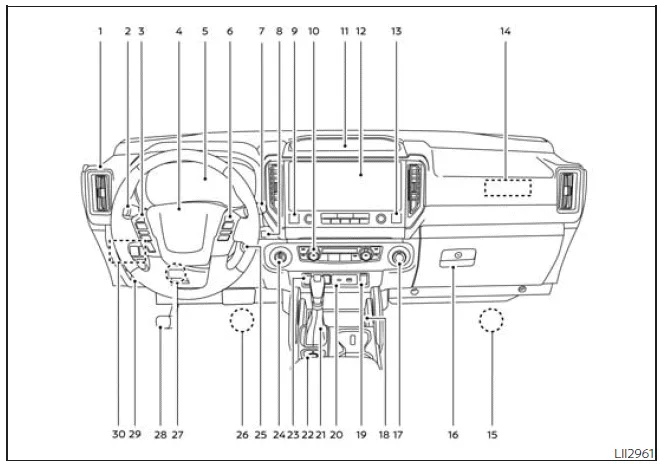

Instrument panel
- Air vents for cabin airflow distribution

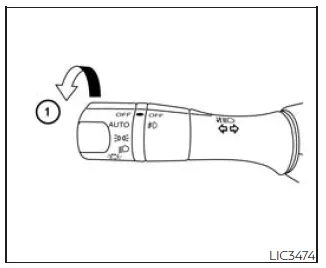

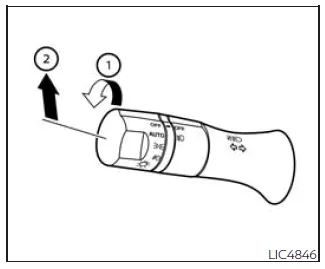

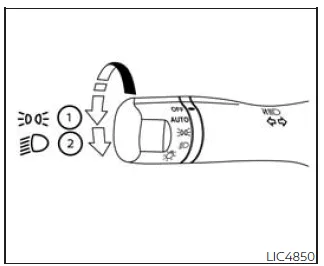

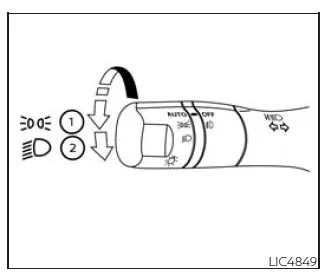

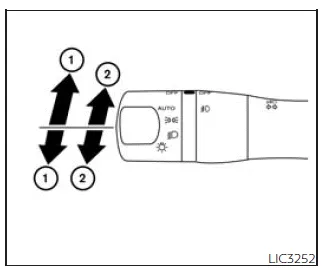

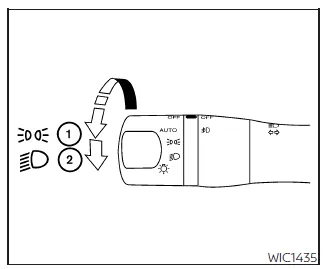

- Headlight, fog light (if equipped), and turn signal control switch
- Bluetooth Hands-Free Phone System and integrated audio controls

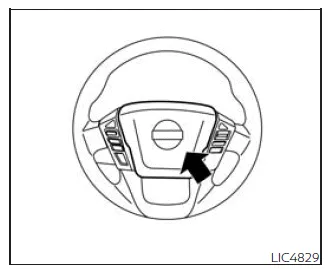

- Driver supplemental air bag and horn assembly
- Meters and gauges, warning and indicator lights, and vehicle information display
- Intelligent Cruise Control (ICC) switches

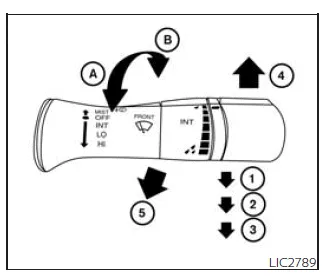

- Wiper and washer control switch
- Idling stop OFF switch
- Hazard warning flasher switch

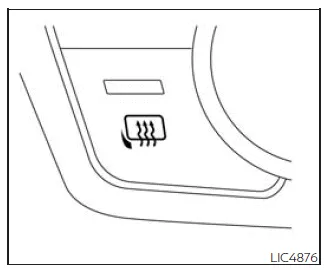

- Climate control system and outside mirror defroster switch
- Interior storage compartment
- Audio system interface
- Front passenger air bag status light
- Front passenger supplemental air bag
- Front passenger supplemental knee air bag

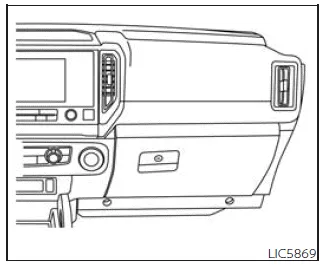

- Glove box compartment

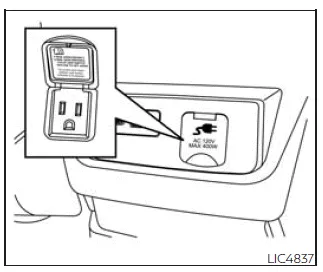

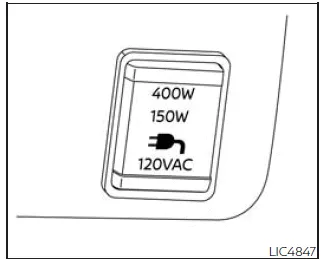

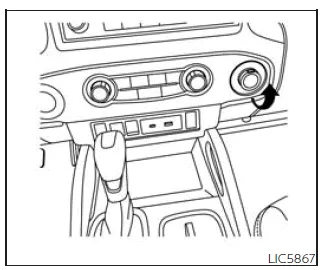

- Power outlet

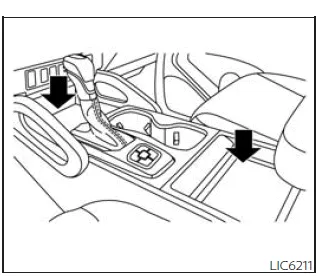

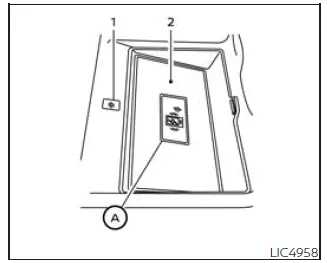

- Additional storage and wireless charger (if equipped)
- Heated seat controls (if equipped)

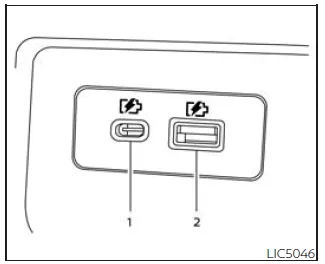

- USB connection port and AUX input (if equipped)
- Shift lever

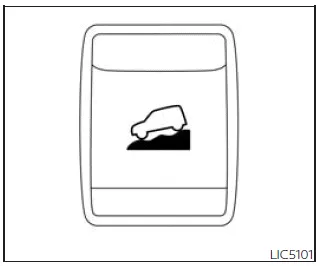

- Terrain Mode Selector and Hill Descent Control switch (if equipped)

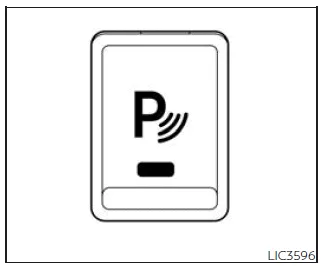

- Heated steering wheel switch and Parking Aids system switch (if equipped)
- 4WD shift switch (if equipped)
- Push-button ignition switch
- Driver supplemental knee air bag
- Tilt and telescopic steering wheel adjustment control
- Parking brake
- Hood release lever

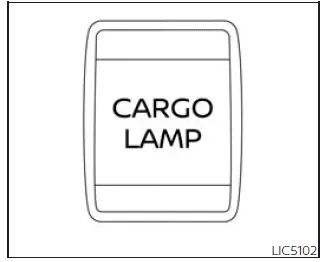

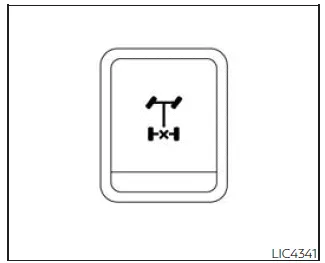

- Cargo lamp switch, electronic locking rear differential (E-Lock), hill descent control, power inverter, tow mode, warning systems, and Vehicle Dynamic Control (VDC) OFF switch

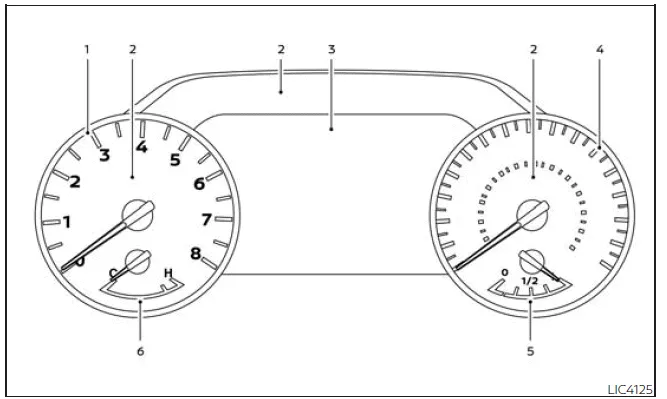

Meters and gauges
Basic Information
- Tachometer
- Warning and indicator lights

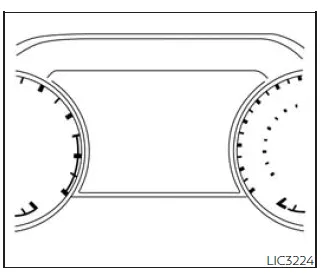

- Vehicle information display including odometer and outside temperature
- Speedometer
- Fuel gauge
- Engine coolant temperature gauge
Speedometer and odometer
Basic Information
The Nissan Frontier is equipped with a clearly visible speedometer and an integrated odometer system. The speedometer is positioned on the right side of the instrument cluster for easy monitoring while driving.
The odometer is displayed within the vehicle information display to the left of the speedometer and becomes accessible when the Nissan Frontier ignition is switched to the ON position.

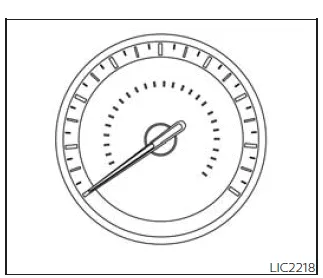

Speedometer
The speedometer in the Nissan Frontier provides a real-time indication of vehicle speed, allowing the driver to maintain safe and controlled driving conditions.

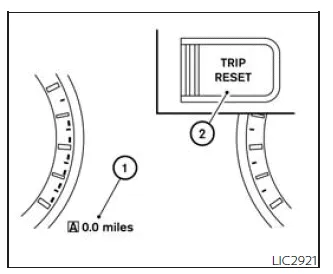

Odometer/Twin trip odometer
The odometer and twin trip odometer 1 are displayed within the Nissan Frontier vehicle information display when the ignition is ON.
The odometer records the total accumulated distance traveled by the Nissan Frontier over its lifetime.
The twin trip odometer allows tracking of individual journeys, making it useful for monitoring trip distances, fuel usage, and travel planning.
Changing the display:

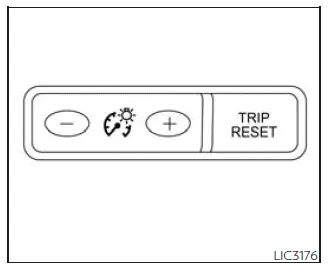

Press the TRIP RESET switch 2 located on the left side of the instrument panel to cycle through the display options as follows:
ODO → Trip
→ Trip
→ ODO
Resetting the trip odometer:
Press and hold the TRIP RESET switch 2 for approximately 2 seconds to reset the currently displayed trip value to zero in the Nissan Frontier.

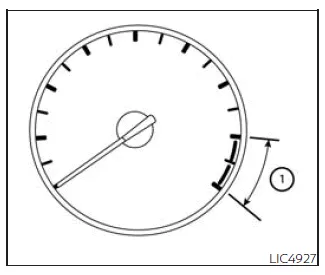

Tachometer
The tachometer displays engine speed in revolutions per minute (RPM). Avoid allowing the engine speed in the Nissan Frontier to enter the red zone 1, as this indicates excessive engine strain.
CAUTION
When the engine speed approaches the red zone, immediately reduce RPM. Operating the Nissan Frontier engine in this range may result in severe engine damage.

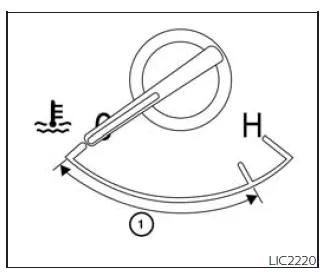

Engine coolant temperature gauge
This gauge indicates the engine coolant temperature in the Nissan Frontier. Under normal conditions, the needle remains within the standard operating range 1 as shown.
The coolant temperature may vary depending on ambient temperature, driving conditions, and engine load.
CAUTION
If the gauge approaches the hot (H) zone, reduce speed to allow the engine to cool. If it exceeds the normal range, stop the Nissan Frontier safely as soon as possible. Continuing to drive while overheated may cause serious engine damage. Refer to the overheating section for emergency procedures.

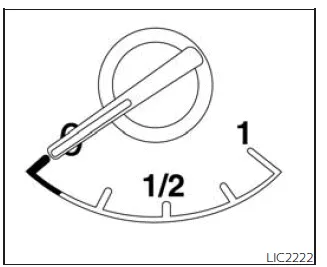

Fuel gauge
The fuel gauge indicates the approximate fuel level in the Nissan Frontier fuel tank.
The reading may fluctuate slightly during acceleration, braking, cornering, or when driving on inclines.
When the ignition is turned OFF, the gauge needle returns to the empty position.
The low fuel warning light activates when fuel levels become critically low.
Always refuel the Nissan Frontier before the gauge reaches 0 (Empty).
The
indicates that the fuel filler door is located on the driver’s side of the Nissan
Frontier.
CAUTION
- If the Nissan Frontier runs out of fuel, the
Malfunction Indicator Light (MIL) may illuminate. Refuel as soon as possible.After several driving cycles, the
light should turn off. If it remains illuminated, have the Nissan Frontier inspected
by a NISSAN dealer.
Distance To Empty (DTE)
The Distance To Empty (DTE) feature in the Nissan Frontier displays an estimate of how far the vehicle can travel before refueling is required.
This value is calculated based on recent fuel consumption, current fuel level, and real-time driving conditions.
Because driving style, terrain, and environmental factors can vary, the displayed DTE value in the Nissan Frontier may differ from the actual remaining distance.
When fuel levels become low, the display will change to "---" before the fuel gauge reaches empty.
NOTE:
- The DTE value after refueling is estimated using recent fuel economy data and the amount of fuel added.
- If only a small amount of fuel is added or the ignition remains ON during refueling, the display may not update immediately.
- Driving conditions such as city or highway use, idling time, terrain, weather, added load, roof accessories, or aerodynamic modifications can all influence the DTE value in the Nissan Frontier.

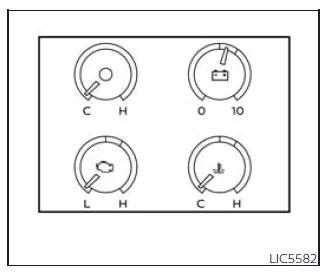

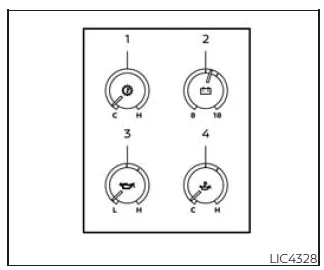

Auxiliary gauges
Basic Information
- Automatic Transmission fluid temperature gauge
- Voltmeter
- Engine oil pressure gauge
- Engine oil temperature gauge
The auxiliary gauges in the Nissan Frontier provide additional real-time monitoring of critical vehicle systems, helping the driver maintain optimal performance and prevent potential mechanical issues during both daily driving and demanding conditions.
Automatic Transmission fluid temperature gauge
This gauge in the Nissan Frontier displays the temperature of the automatic transmission fluid, which is essential for ensuring smooth shifting and long-term transmission durability.
CAUTION
- This gauge does not indicate the actual transmission fluid level. Always use the dipstick to check fluid levels in the Nissan Frontier.
- If the transmission fluid temperature exceeds the normal operating range, stop the Nissan Frontier as soon as it is safe to do so. Continued driving under these conditions may lead to serious transmission damage. It is strongly recommended to have the system inspected by a NISSAN dealer.
Voltmeter
When the ignition switch in the Nissan Frontier is turned to the ON position, the voltmeter displays the battery voltage. Once the engine is running, it reflects the output voltage of the alternator (generator).
During engine startup, a temporary voltage drop below the normal range is expected. However, if the voltage while driving falls outside the normal range of approximately 11 to 15 volts, this may indicate an issue with the Nissan Frontier charging system.
In such cases, it is recommended to have the electrical system checked by a qualified technician or an authorized NISSAN dealer.
Engine oil pressure gauge
This gauge monitors the oil pressure within the Nissan Frontier engine lubrication system while the engine is running.
Under normal conditions, the indicator should remain near the middle of the gauge, confirming proper oil circulation and engine protection.
CAUTION
- This gauge does not measure engine oil level. Always check oil level using the dipstick.
- If the gauge does not respond correctly despite sufficient oil, the Nissan Frontier should be inspected immediately. Continuing to operate the vehicle under these conditions may result in severe engine damage.
Engine oil temperature gauge
This gauge indicates the temperature of the engine oil in the Nissan Frontier. Maintaining proper oil temperature is crucial for engine efficiency and longevity, especially during heavy-duty use such as towing or off-road driving.

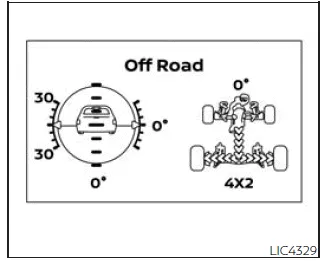

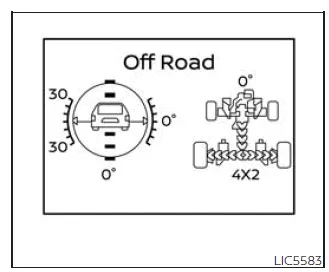

Off-road and 4-Wheel Drive (4WD) monitor
The off-road and 4WD monitor in the Nissan Frontier provides real-time visual feedback on vehicle orientation and drivetrain status, making it especially useful during off-road driving.
The Pitch and Roll Gauge (left side) displays the vehicle’s tilt angle in all directions. The graphical representation rotates to reflect the current orientation of the Nissan Frontier, helping the driver maintain control on uneven terrain.
The Tire Angle & 4WD Gauge (right side) shows the steering angle of the front wheels along with the current 4WD system status. This allows the driver to better understand traction conditions and vehicle behavior.
The display visually represents the tire position, while the numerical angle is shown above for reference. The 4WD system status is displayed below, providing a complete overview of drivetrain engagement.
These features make the Nissan Frontier particularly capable in off-road environments, offering enhanced awareness and control.

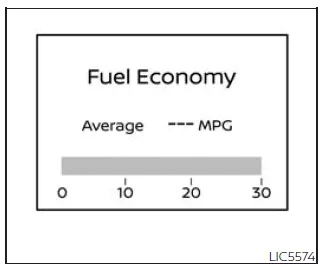

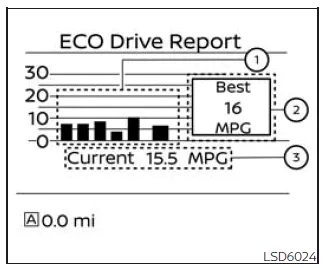

Eco Drive Report
When the ignition switch in the Nissan Frontier is turned OFF, the ECO management display presents a summary of driving efficiency.
- Fuel economy history for the previous five trips
- Current fuel economy since last reset
- Best recorded fuel economy
The ECO Drive Report is calculated and displayed approximately 30 seconds after the Nissan Frontier ignition is switched ON and the vehicle has traveled at least 1/3 mile (500 meters).
- The average fuel consumption for the last five trips is displayed.
- The average fuel economy since the last reset is shown.
- The highest recorded fuel efficiency is highlighted.
The ECO Drive Report function in the Nissan Frontier can be enabled or disabled depending on driver preference.
Warning lights, indicator lights and audible reminders
Warning & Indicator Lights
Warning & Indicator Lights (Red)

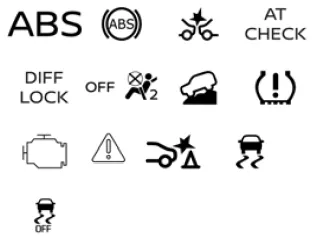

Warning & Indicator Lights (Yellow)
Warning & Indicator Lights (Other)
Checking lights
To verify correct system operation in the Nissan Frontier, close all doors, apply the parking brake, fasten seat belts, and turn the ignition switch to the ON position without starting the engine.
The following indicators (if equipped) should illuminate:
,
or
,
,
,
The following lights should illuminate briefly and then turn OFF:
,
,
,
,
,
,
,
,
,
or
If any of the lights fail to illuminate or behave differently than described, this may indicate a burned-out bulb or a malfunction in the Nissan Frontier system.
In such cases, it is recommended to have the vehicle inspected by an authorized NISSAN dealer to ensure proper operation.
Additionally, many warning and indicator messages are also displayed on the Nissan Frontier vehicle information display located between the speedometer and tachometer, providing the driver with detailed system feedback.

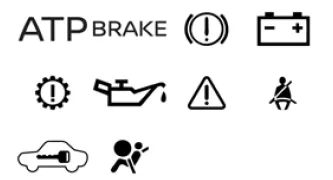

Warning/Indicator lights (red)
Automatic Transmission Park warning light (4x4 model)
WARNING
- If the ATP warning light in the Nissan Frontier is illuminated, it indicates that the automatic transmission Park (P) position is not engaged correctly and the transfer case is currently in Neutral (N).
- When parking your Nissan Frontier, always confirm that the 4WD indicator
light is illuminated and that the parking brake is firmly applied.
Failure to properly engage 2WD, 4H, or 4LO modes may cause the vehicle to move unexpectedly, potentially resulting in serious injury or property damage.
- If the ATP light remains on while the shift lever is in Park, shift the 4WD selector into 2WD, 4H, or 4LO again. Before selecting 4LO, move the shift lever to Neutral (N), then return it to Park (P) and verify that the ATP warning light turns off.
If the 4WD indicator is not illuminated or the ATP warning light remains active in the Nissan Frontier, the Park function may not operate properly. This can allow the vehicle to roll unexpectedly.
Always apply the parking brake when stopping or parking your Nissan Frontier.
This warning light indicates that the transmission parking mechanism is not fully engaged.
If the transfer system is not secured in a valid drive mode while the shift lever is in Park, the drivetrain may disengage and the wheels may not be locked.
Brake warning light
OR
This warning light in the Nissan Frontier serves as an indicator for both the parking brake and the hydraulic braking system.
Parking brake indicator
When the ignition is switched to the ON position, this light will illuminate if the parking brake in the Nissan Frontier is engaged.
Low brake fluid warning light
When the ignition is ON, this light alerts you to a low brake fluid level. If it illuminates while driving and the parking brake is not applied, take the following steps immediately:
1. Check the brake fluid level and add fluid if necessary.
2. If the level is normal, have the Nissan Frontier braking system inspected as soon as possible by a NISSAN dealer.
WARNING
- If the brake warning light in the Nissan Frontier remains on, the braking
system may not be functioning correctly.
Driving under these conditions is dangerous. If it is safe, carefully drive to the nearest service facility. Otherwise, have the vehicle towed.
Operating the vehicle with a compromised braking system may lead to serious accidents.
- Braking performance may be reduced when the engine is off or if brake fluid is low. This may increase stopping distance and require greater pedal effort.
- If the brake fluid level is below the MIN mark, do not drive the Nissan Frontier until the system has been inspected by a qualified technician.
Charge warning light
If this light appears while the Nissan Frontier engine is running, it may indicate a malfunction in the charging system.
Turn the engine OFF and inspect the drive belt. If the belt is loose, damaged, or missing, or if the warning light remains on, have the system checked immediately.
It is recommended to visit a NISSAN dealer for proper диагностика.
CAUTION
- Do not connect electrical accessories directly to the battery terminals in the Nissan Frontier. This may bypass the voltage control system and prevent proper battery charging.
- Do not continue driving if the generator belt is loose, damaged, or missing, as this may lead to further mechanical failure.
Electric shift control system warning light
This light indicates a malfunction in the electric shift control system of the Nissan Frontier.
When this occurs, the master warning light will illuminate, an audible chime will sound, and a message such as “When parked apply parking brake” will appear on the vehicle information display.
When the ignition is switched OFF, the warning chime may continue until the parking brake is applied.
Have the Nissan Frontier inspected by a NISSAN dealer as soon as possible.
Engine oil pressure warning light
This warning light indicates low engine oil pressure in the Nissan Frontier.
If it illuminates or flickers during driving, safely pull over, stop the engine immediately, and contact a NISSAN dealer or qualified repair facility.
This warning light does not indicate oil level. Always check oil using the dipstick.
CAUTION
Continuing to operate the Nissan Frontier with low oil pressure can cause severe engine damage almost instantly. Such damage may not be covered under warranty. Stop the engine immediately when safe.
Master warning light
This light illuminates when important warnings are displayed in the Nissan Frontier vehicle information system.
- Parking brake warning
- Transmission system alerts
Seat belt warning light and chime
- The system reminds occupants in the Nissan Frontier to fasten their seat belts.
- The warning light activates when the ignition is ON and the driver’s or front passenger’s seat belt is not fastened while occupied.
- It also activates when a rear seat belt is unfastened after being secured.
- If the driver’s seat belt is not fastened at startup, an audible chime will sound.
- If the Nissan Frontier exceeds 9 mph (15 km/h) while a seat belt is unfastened, the light will flash and the chime will sound for over one minute or until the belt is secured.
NOTE:
- The warning system may activate if objects are placed on the front passenger seat, simulating occupancy.
- The system may also activate if a seat belt is unfastened before the Nissan Frontier comes to a complete stop. Always remain buckled until the vehicle has fully stopped.

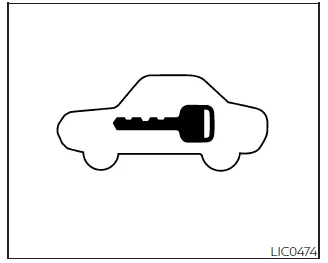

Security indicator light
This light blinks when the ignition is in OFF, LOCK, or ACC mode, indicating that the Nissan Frontier security system is active and functioning properly.
Supplemental air bag warning light
When the ignition is switched ON in the Nissan Frontier, this light illuminates for approximately 7 seconds and then turns off, confirming normal system operation.
If any of the following conditions occur, the SRS system requires immediate inspection:
- The warning light remains illuminated after 7 seconds.
- The warning light flashes intermittently.
- The warning light does not illuminate at all.
In such cases, the front, side, curtain air bags, and pretensioner systems in the Nissan Frontier may not function properly.
It is strongly recommended to have the system inspected by an authorized NISSAN dealer.
WARNING
If the supplemental air bag warning light is on, the SRS system in the Nissan Frontier may fail to operate in a collision. To reduce the risk of serious injury, have the vehicle checked immediately.
It is recommended that you visit a NISSAN dealer for this service.
Warning/Indicator lights (yellow)
Anti-lock Braking System (ABS) warning light
OR
When the ignition switch in the Nissan Frontier is turned to the ON position, the ABS warning light briefly illuminates and then turns off. This confirms that the Anti-lock Braking System is functioning correctly.
If the ABS warning light comes on while the engine is running or during driving, it may indicate that the ABS system in the Nissan Frontier is not operating properly. In this case, the system should be inspected as soon as possible. It is recommended to visit an authorized NISSAN dealer.
If a malfunction occurs, the anti-lock braking function will be disabled. However, the standard braking system in the Nissan Frontier will continue to operate normally, but without ABS assistance, which may affect vehicle control during emergency braking.
Automatic Emergency Braking (AEB) with Pedestrian Detection system warning light
This warning light in the Nissan Frontier illuminates when the ignition is switched to the ON position and turns off after the engine starts.
If the light remains illuminated, it indicates that the Automatic Emergency Braking (AEB) with Pedestrian Detection system has been manually turned OFF via the vehicle information display.
If the light flashes or illuminates while the system is enabled, it may signal that the AEB system is temporarily unavailable or experiencing a malfunction.
For proper operation and system details, refer to the "Automatic Emergency Braking (AEB) with Pedestrian Detection" section in the Nissan Frontier manual.
Automatic Transmission check warning light
When the ignition is turned ON in the Nissan Frontier, this light will illuminate for approximately 2 seconds as part of a system check.
If the light comes on at any other time, it may indicate a malfunction within the automatic transmission system. Immediate inspection is recommended to prevent further damage. It is advisable to have the Nissan Frontier checked by an authorized NISSAN dealer.
Electronic locking rear differential (E-Lock) system ON indicator light (if so equipped)
This indicator light in the Nissan Frontier illuminates when the electronic locking rear differential (E-Lock) system is fully engaged.
When the system is initially activated, the light will flash. Once the locking mechanism is completely engaged, the light will remain steadily illuminated.
If the switch is ON and the indicator continues to flash, the system has not fully engaged. In such cases, driving conditions or terrain may need to be adjusted for proper activation in the Nissan Frontier.
Front passenger air bag status light
The front passenger air bag status light in the Nissan Frontier indicates whether the passenger air bag is active or deactivated, depending on seat occupancy and the occupant classification system.
This system helps enhance safety by disabling the air bag when appropriate, such as when a child or lightweight object is detected on the seat.
Hill descent control system ON indicator light (if so equipped)
When the ignition switch is placed in the ON position, this light briefly illuminates and then turns off as part of the Nissan Frontier system check.
The indicator will illuminate when the Hill Descent Control system is actively engaged, assisting the driver in maintaining a controlled speed on steep declines.
If the Hill Descent Control switch is activated but the indicator light flashes, it means the system is not currently engaged.
If the light does not illuminate at all when the system is activated, this may indicate a malfunction. In such cases, the Nissan Frontier should be inspected by an authorized NISSAN dealer.
For optimal off-road performance, always ensure that the Hill Descent Control system in the Nissan Frontier is functioning correctly before driving on steep or uneven terrain.
Low tire pressure warning light
Basic Information
The Nissan Frontier is equipped with a Tire Pressure Monitoring System (TPMS) that continuously monitors the air pressure in all four road tires (excluding the spare tire) to help ensure optimal safety and performance.
The low tire pressure warning light in the Nissan Frontier serves two primary functions: it alerts the driver when tire pressure is below the recommended level and also indicates when the TPMS system itself is not operating correctly.
When the ignition switch is turned to the ON position, the warning light will briefly illuminate for about 1 second and then turn off, confirming normal system operation.
Low tire pressure warning
If the Nissan Frontier is driven with one or more tires under-inflated, the warning light will illuminate.
A "Tire Pressure Low - Add Air" message will also appear in the vehicle information display, clearly indicating that corrective action is required.
When this warning appears, you should safely stop the Nissan Frontier and check the pressure of all four tires. Inflate them to the recommended COLD tire pressure specified on the Tire and Loading Information label located on the driver’s door frame.
The low tire pressure warning light in the Nissan Frontier will not automatically turn off immediately after adjusting tire pressure.
After correcting the pressure, the vehicle must be driven at speeds above 16 mph (25 km/h) to allow the TPMS to re-evaluate the tire conditions and turn the warning light off.
It is strongly recommended to use an accurate tire pressure gauge when checking and adjusting tire pressure in the Nissan Frontier.
The "Tire Pressure Low - Add Air" message will continue to appear each time the ignition is switched ON as long as the warning light remains illuminated.
TPMS malfunction
If the TPMS system in the Nissan Frontier is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition is turned ON, and then remain steadily illuminated.
In this case, the system should be inspected as soon as possible. It is recommended to visit an authorized NISSAN dealer for proper диагностика.
When the warning light indicates a TPMS malfunction, the "Tire Pressure Low - Add Air" message will not appear.
WARNING
- Radio frequency signals used by the TPMS in the Nissan Frontier may interfere with certain electronic medical devices. Individuals using pacemakers should consult their device manufacturer regarding potential interference before operating the vehicle.
- If the warning light does not illuminate when the ignition is turned ON, the system may not be functioning properly. Have the Nissan Frontier inspected as soon as possible.
- If the low tire pressure warning light illuminates while driving, avoid
sudden steering or harsh braking. Reduce speed, safely pull over, and stop the
Nissan Frontier as soon as possible.
Driving with under-inflated tires can cause permanent tire damage, increase the risk of tire failure, and lead to serious accidents or vehicle damage.
- Check the tire pressure in all four tires and adjust them to the recommended values. If the warning light remains on after adjustment, a tire may be punctured or the TPMS system may be malfunctioning. Replace a flat tire with the spare immediately if necessary.
- When using a spare tire without TPMS sensors in the Nissan Frontier, the system will not operate correctly. The warning light will flash for about 1 minute and then remain on. The TPMS system should be reset after reinstalling standard tires.
- Using non-approved tires that are not specified by NISSAN may negatively affect TPMS operation in the Nissan Frontier.
- To prevent serious injury or death, always check the tire pressure of all tires regularly. Driving on under-inflated tires can lead to tire failure and negatively impact the performance of other vehicle systems in the Nissan Frontier.
For optimal safety and fuel efficiency, regularly inspect tire condition and maintain proper inflation levels in your Nissan Frontier, especially before long trips or when carrying heavy loads.
CAUTION
- The TPMS in the Nissan Frontier is designed as an additional safety feature and does not replace routine tire pressure inspections. Always check tire pressure manually on a regular basis to ensure proper performance and safety.
- If the Nissan Frontier is operated at speeds below 16 mph (25 km/h), the Tire Pressure Monitoring System may not provide accurate readings or function as intended.
- Always install tires of the correct size and specification on all four wheels of the Nissan Frontier. Using incorrect tire sizes may negatively affect TPMS performance and overall vehicle handling.
Malfunction Indicator Light (MIL)
Basic Information
If the Malfunction Indicator Light (MIL) in the Nissan Frontier illuminates steadily or begins flashing while the engine is running, it may indicate a potential issue with the emission control system.
If the MIL remains illuminated for approximately 20 seconds and then begins flashing for about 10 seconds while the engine is OFF, this indicates that the Nissan Frontier is not yet ready for an emission inspection or maintenance test.
Operation
The MIL in the Nissan Frontier may behave in two different ways depending on the detected condition:
- MIL illuminated steadily — This indicates that a malfunction has been detected
in the emission control system.
If a "Loose Fuel Cap" warning appears in the Nissan Frontier vehicle information display, inspect the fuel-filler cap immediately. Ensure it is properly tightened or reinstall it if necessary, then continue driving.
The warning light may turn off after several normal driving cycles.If the
remains illuminated after several trips, have the Nissan Frontier inspected
by an authorized NISSAN dealer. Towing is generally not required. - MIL flashing — This indicates an engine misfire condition that may damage
the emission control system in the Nissan Frontier. To reduce the risk of damage:
- Avoid driving above 45 mph (72 km/h).
- Avoid sudden acceleration or abrupt braking.
- Avoid driving on steep inclines whenever possible.
- Reduce vehicle load, including cargo or towing weight, if applicable.
In some cases, the flashing MIL in the Nissan Frontier may stop blinking and remain steadily illuminated. This still indicates a fault condition and requires inspection. It is recommended to visit a NISSAN dealer for proper диагностика and service.
CAUTION
Continuing to drive the Nissan Frontier without addressing emission system issues may result in reduced performance, increased fuel consumption, and potential damage to critical engine components.
Master warning light
The master warning light in the Nissan Frontier illuminates when one or more alerts are displayed in the vehicle information system.
- No key detected warning
- Low fuel level warning
- Low windshield washer fluid warning
- Loose fuel cap alert
- Low tire pressure warning
- 4WD system malfunction (if equipped)
When this light appears, it is important to review the Nissan Frontier vehicle information display for detailed messages and take appropriate action to maintain safe operation.
For optimal vehicle reliability and safety, always respond promptly to warning indicators and perform recommended maintenance checks on your Nissan Frontier.
Rear Automatic Braking (RAB) system warning light
When the ignition switch in the Nissan Frontier is turned to the ON position, this indicator light will briefly illuminate as part of the system check and then turn off once the engine is started.
This light will remain illuminated when the Rear Automatic Braking (RAB) system in the Nissan Frontier has been manually switched OFF via the vehicle information display.
If the RAB system is disabled and the transmission is shifted into Reverse (R), a "Rear Auto Braking Off" message may appear in the center display, reminding the driver that automatic rear braking assistance is not active.
If the indicator light begins to flash or remains illuminated while the RAB system is enabled, it may indicate that the system is temporarily unavailable or experiencing a malfunction. In such cases, the Nissan Frontier should be inspected by a qualified technician or an authorized NISSAN dealer.
For optimal safety when reversing, always ensure that the RAB system in the Nissan Frontier is functioning correctly and remain attentive to surroundings even when assistance systems are active.
Slip indicator light
This indicator light in the Nissan Frontier flashes when the Vehicle Dynamic Control (VDC) system is actively working to maintain traction. It alerts the driver that the road surface may be slippery and that the vehicle is approaching its traction limits.
During this process, you may feel slight vibrations or hear mechanical sounds as the Nissan Frontier system applies braking force to individual wheels or adjusts engine output. This is completely normal and indicates that the system is operating as intended.
The light may continue to flash briefly after the VDC system has stabilized wheel spin and traction has been restored.
The
indicator also illuminates momentarily when the ignition switch is turned to the
ON position. It will turn off after approximately 2 seconds if the Nissan Frontier
system is functioning properly.
If the light does not illuminate during startup, this may indicate a system malfunction. It is recommended to have the Nissan Frontier inspected by an authorized NISSAN dealer.

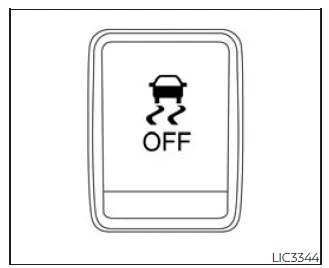

Vehicle Dynamic Control (VDC) OFF indicator light
This indicator light illuminates when the VDC OFF switch in the Nissan Frontier is pressed, indicating that the Vehicle Dynamic Control system has been disabled.
When the VDC system is turned OFF, traction and stability control functions are reduced, which may be useful in certain driving conditions such as deep snow, sand, or mud.
To restore normal operation, press the VDC OFF switch again or restart the engine. The Nissan Frontier system will then resume full functionality.
The VDC OFF indicator light also briefly illuminates when the ignition is switched to the ON position and will turn off after approximately 2 seconds if the system is operating correctly.
If the light remains on continuously or illuminates together with the
indicator while driving, this may indicate a malfunction in the VDC system. In such
cases, the Nissan Frontier should be inspected as soon as possible by an authorized
NISSAN dealer.
While the VDC system is actively working, slight vibrations or operational sounds may be noticeable during acceleration or vehicle startup. This is a normal characteristic of the Nissan Frontier traction control system.
For maximum safety and vehicle control, always ensure that the VDC system in the Nissan Frontier is functioning properly, especially when driving in challenging road conditions.
Warning/Indicator lights (other)

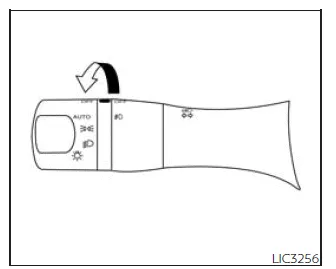

Front fog light indicator light (green) (if so equipped)
The front fog light indicator in the Nissan Frontier illuminates whenever the fog lights are switched on, confirming that additional low-visibility lighting is active and improving driving safety in foggy or poor weather conditions.

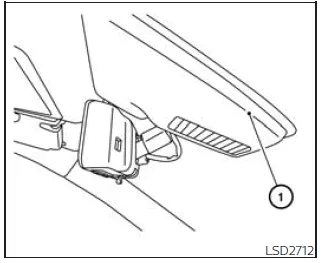

High Beam Assist indicator light (green)
This indicator light in the Nissan Frontier activates when the headlight switch is set to AUTO and the high beams are selected. It confirms that the High Beam Assist system is functioning and automatically adjusting the headlight intensity based on surrounding traffic conditions.

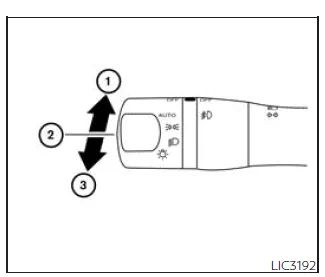

High beam indicator light (blue)
The blue high beam indicator light in the Nissan Frontier turns on when the high beam headlights are activated. It switches off when the system returns to low beam mode.
This indicator also illuminates momentarily when the headlight passing signal is used, allowing quick signaling to other drivers.
Side light and headlight indicator light (green)
This green indicator light confirms that the side lights or headlights in the Nissan Frontier are currently turned on, helping the driver verify that exterior lighting is active.
TOW mode ON indicator light (green) (if so equipped)
The TOW mode indicator in the Nissan Frontier illuminates when towing mode is activated. This mode adjusts transmission behavior and engine response to provide improved control and performance while towing heavy loads.
Turn signal/hazard indicator lights (green)
The corresponding turn signal indicator in the Nissan Frontier flashes when the turn signal lever is engaged, indicating the intended direction of the vehicle.
When the hazard warning switch is activated, both indicator lights flash simultaneously, signaling an emergency or warning condition to other road users.
Audible reminders
Brake pad wear warning
The Nissan Frontier is equipped with an audible brake pad wear indicator. When the brake pads reach their service limit, a high-pitched scraping noise will be heard while the vehicle is moving, regardless of whether the brake pedal is pressed.
If this sound is detected, the braking system in the Nissan Frontier should be inspected and serviced as soon as possible to maintain safe stopping performance.
Light reminder chime
When the ignition switch is in the OFF position and the driver’s door is opened while the headlights or parking lights are still on, the Nissan Frontier emits an audible chime.
This feature helps prevent battery discharge by reminding the driver to turn off exterior lights before leaving the vehicle.
NISSAN Intelligent Key door buzzer
The Intelligent Key system in the Nissan Frontier activates an audible buzzer if improper operation is detected.
- The Intelligent Key is left inside the Nissan Frontier while attempting to lock the doors.
- The Intelligent Key is taken outside the vehicle while it is still in operation.
When the buzzer sounds, always check both the vehicle and the Intelligent Key to prevent locking issues or unintended vehicle operation.
Vehicle information display
Basic Information
The vehicle information display in the Nissan Frontier is positioned to the left of the speedometer and provides essential driving data and system information to the driver.
It displays a wide range of useful information, including:
- Vehicle settings and customization options
- Trip computer data and driving statistics
- Drive system warnings and configuration (if equipped)
- Cruise control system information
- Blind Spot Warning (BSW) system status
- Rear Cross Traffic Alert (RCTA) system alerts
- NISSAN Intelligent Key system information
- General indicators and warning messages

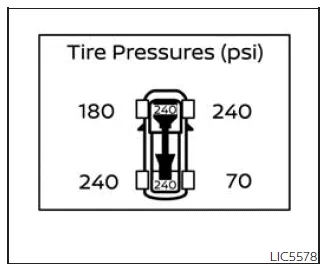

- Tire pressure information (if equipped)

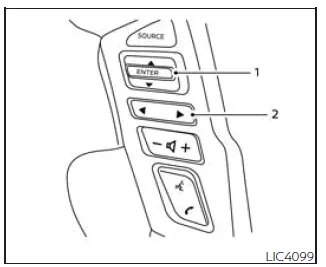

How to use the vehicle information display
The Nissan Frontier vehicle information display is operated using the ENTER button and directional controls located on the steering wheel.
The display can be navigated using the ENTER button and
,
buttons.
- Press ENTER to select menu items and confirm actions. Use the UP/DOWN controls to scroll through available options.
-
,
— use LEFT/RIGHT controls to switch between different display categories.
The ENTER button in the Nissan Frontier also integrates control of audio functions. For additional details, refer to the NissanConnect Owner’s Manual.
Startup display
When the Nissan Frontier ignition is turned to the ON or ACC position (if equipped), the vehicle information display may show various startup screens, including:
- Speed display
- Off-road information (if equipped)
- Auxiliary gauges (if equipped)
- Driving information
- Fuel economy data
- Audio system status
- Navigation system (if equipped)

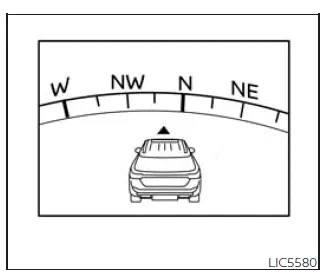

- Compass display (if equipped)
- Driving assistance systems
- Tire pressure monitoring (if equipped)
- Warning confirmation messages
- Settings menu
The "Warning Confirmation" screen in the Nissan Frontier will appear only if there are active warnings that require driver attention.
To customize which items are displayed, access the settings menu within the Nissan Frontier vehicle information display.
Trip computer

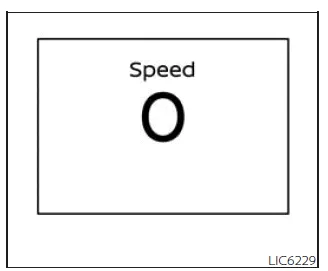

Vehicle speed (MPH or km/h)
The Nissan Frontier trip computer provides a clear display of the current vehicle speed along with the average speed calculated since the last reset. This feature helps the driver monitor driving habits and maintain consistent speed control.

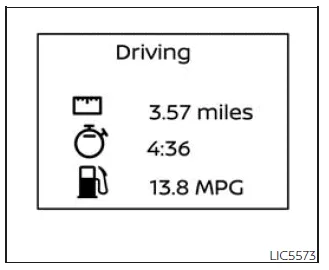

Driving display
Elapsed time:
The elapsed time function in the Nissan Frontier shows the total driving time since the last reset. To reset this value, press and hold the ENTER button on the steering wheel for more than 1.5 seconds.
Resetting this function will also reset the trip odometer simultaneously, ensuring synchronized trip data tracking.
Trip odometer:
The trip odometer in the Nissan Frontier displays the total distance traveled since the last reset. This is useful for tracking trip length, fuel efficiency, and journey planning.
Press and hold the ENTER button for more than 1.5 seconds to reset the trip distance. This action will also reset the elapsed time display.
Average fuel consumption:
This mode in the Nissan Frontier shows the average fuel consumption calculated since the last reset, allowing drivers to evaluate driving efficiency.
To reset the value, press and hold the ENTER button for more than 1.5 seconds.
The display updates approximately every 30 seconds. Immediately after resetting, the Nissan Frontier will display "- -" for the first 1/3 mile (500 meters) until sufficient data is collected.
Fuel economy display
Current fuel consumption:
The Nissan Frontier provides real-time fuel consumption data, allowing the driver to adjust driving style for improved efficiency.
Average fuel consumption:
This display shows the average fuel consumption since the last reset and updates regularly. It helps drivers understand long-term fuel efficiency trends in the Nissan Frontier.
The value refreshes every 30 seconds, and similar to other displays, it will show "- -" for the first 500 meters after a reset.

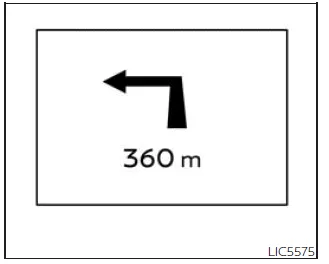

Navigation (if so equipped)
When route guidance is active, the Nissan Frontier displays navigation-related information directly within the trip computer, allowing the driver to stay informed without distraction.

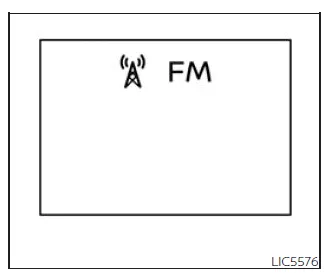

Audio
The audio screen in the Nissan Frontier trip computer displays current media playback information, including track details and system status, ensuring convenient access to entertainment controls.

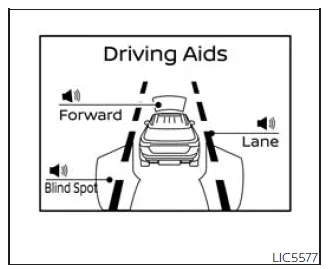

Driving Aids
The driving aids screen in the Nissan Frontier shows the operational status of various advanced safety systems (if equipped), helping the driver remain aware of active assistance features:
- Forward systems:
- Automatic Emergency Braking (AEB) with Pedestrian Detection
- Intelligent Forward Collision Warning (I-FCW)
- Lane systems:
- Lane Departure Warning (LDW)
- Blind Spot systems:
- Blind Spot Warning (BSW)
Tire Pressures (if so equipped)
This mode allows the Nissan Frontier driver to monitor real-time tire pressure for all four wheels while driving.
If the "Tire Pressure Low - Add Air" warning appears, pressing the ENTER button will switch the display to detailed tire pressure information, helping the driver quickly identify the affected tire.

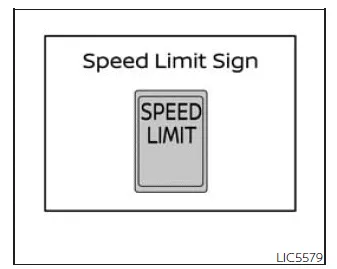

Traffic Sign Recognition (if so equipped)
The Traffic Sign Recognition (TSR) system in the Nissan Frontier displays the most recently detected speed limit, enhancing driver awareness and helping maintain compliance with road regulations.
Compass
The compass display in the Nissan Frontier indicates the current driving direction, providing additional orientation information, especially useful during navigation or off-road driving.

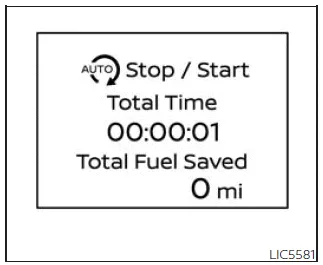

Idling Stop System
This display provides information about fuel savings achieved through the Idling Stop System in the Nissan Frontier, helping drivers monitor efficiency improvements during stop-and-go driving conditions.
Auxiliary gauges (if so equipped)
This feature in the Nissan Frontier is a digital display option rather than a physical gauge, allowing drivers to monitor additional vehicle parameters through the information display.
Off-road and 4-Wheel Drive (4WD) monitor (if so equipped)
This is also a selectable display feature in the Nissan Frontier rather than a physical gauge. It provides real-time information about vehicle orientation and 4WD system status, which is especially useful during off-road driving.
By using these integrated systems, the Nissan Frontier enhances driver awareness, improves control, and supports safer and more efficient driving in various conditions.
Settings
Basic Information
The settings menu in the Nissan Frontier allows the driver to customize how information is displayed within the vehicle information display, ensuring a more personalized and efficient driving experience.
Through this menu, various system preferences and display configurations can be adjusted to suit individual needs in the Nissan Frontier:
- Driver Assistance
- Meter Settings
- Vehicle Settings
- Alerts
- Maintenance
- Unit
- Language
- Factory Reset
Driver Assistance
Basic Information
The Driver Assistance menu in the Nissan Frontier provides access to a wide range of advanced safety and convenience systems. These settings allow the driver to enable or disable specific driving and parking assistance features depending on preference and driving conditions.
Some options listed below may not be available depending on the Nissan Frontier trim level and equipment.
Lane
This section displays available lane-related assistance features.
- Warning (LDW): Enables or disables the Lane Departure Warning system in the Nissan Frontier, which alerts the driver if the vehicle unintentionally drifts out of its lane.
Blind Spot
This menu provides access to blind spot monitoring features in the Nissan Frontier.
- Warning (BSW): Allows the driver to turn the Blind Spot Warning system ON or OFF, helping detect vehicles in adjacent lanes.
Emergency Brake
This section allows configuration of emergency braking systems in the Nissan Frontier.
- Front: Enables or disables the front Automatic Emergency Braking system.
- Rear: Enables or disables the Rear Automatic Braking system.
Speed Limit Sign
This setting controls the Traffic Sign Recognition functionality in the Nissan Frontier.
- Speed Limit Sign: Allows the driver to activate or deactivate speed limit sign recognition.
Driver Attention
This feature helps monitor driver alertness during operation of the Nissan Frontier.
- Driver Attention: Enables or disables the Intelligent Driver Alertness system, which can provide warnings if signs of fatigue or inattentiveness are detected.
Parking Aids
This menu provides control over parking assistance features in the Nissan Frontier, improving maneuverability and safety in tight spaces.
- Moving Object: Enables or disables the Moving Object Detection (MOD) system.
- CTA: Enables or disables the Rear Cross Traffic Alert (RCTA) system.
- Sensor: Turns parking sensors ON or OFF.
- Display: Controls whether parking-related information appears in the vehicle information display.
- Volume: Adjusts the volume level of warning chimes.
- Range: Allows adjustment of the sensor detection distance.
Meter Settings
Basic Information
The Meter Settings menu in the Nissan Frontier allows customization of the vehicle information display layout and content, enabling drivers to tailor the interface to their preferences.
Some options may not be available depending on equipment level.
Main Menu Selection
This function allows the driver to choose which screens are displayed within the Nissan Frontier information display system.
- Speed: Enables or disables the speedometer screen display.
- Off Road: Enables or disables the off-road and 4WD monitor display.
- Auxiliary Gauges: Allows activation or deactivation of auxiliary gauge displays.
- Driving: Enables the trip computer screen.
- Fuel Economy: Controls the visibility of fuel consumption data.
- Audio: Displays or hides the audio system interface. For more details, refer to the NissanConnect Owner’s Manual.
- Navigation: Enables or disables navigation information display (if equipped).
- Speed Limit Sign: Controls the display of detected speed limit signs.
- Driving Aids: Shows or hides driver assistance system status screens.
- Tire Pressures: Enables or disables the tire pressure monitoring display.
- Stop/Start: Controls visibility of the Idling Stop system information.
By customizing these settings, the Nissan Frontier allows drivers to optimize the information displayed, enhancing both convenience and driving safety.
For best results, it is recommended to periodically review and adjust these settings in your Nissan Frontier to match your driving habits and preferences.
ECO Drive Report
The ECO Drive Report feature in the Nissan Frontier provides drivers with valuable insights into their driving efficiency, helping to improve fuel economy and optimize driving habits over time.
This menu allows access to detailed ECO driving data and performance summaries.
Some options listed below may not be available depending on the Nissan Frontier configuration.
- Display: Allows the driver to enable or disable the ECO Drive Report display in the Nissan Frontier vehicle information screen.
- ECO Drive Report: Provides access to historical fuel efficiency data and allows the driver to reset stored ECO driving statistics.
Welcome Effect
The Welcome Effect feature in the Nissan Frontier allows customization of visual startup animations displayed on the instrument cluster, enhancing the overall driving experience.
Some available options may vary depending on equipment level.
- Dial Effect: Enables or disables animation effects for the instrument dials when the Nissan Frontier is started.
- Display Effect: Allows activation or deactivation of display animations during system startup.
Vehicle Settings
Basic Information
The Vehicle Settings menu in the Nissan Frontier allows the driver to configure a wide range of functions, including lighting behavior, wiper settings, door locking preferences, key system features, and additional convenience options.
Some settings may not be available depending on the Nissan Frontier trim and equipment.
Rear Door Alert
This feature in the Nissan Frontier helps remind the driver to check the rear seats before exiting the vehicle, which is especially useful when transporting passengers or cargo.
- Alert and Horn: Displays a warning message and sounds the horn for added attention.
- Alert Only: Displays a visual alert without activating the horn.
- Off: Disables the Rear Door Alert system completely.
Lighting
This section allows adjustment of various lighting-related features in the Nissan Frontier to enhance visibility and convenience.
- Welcome Light: Enables or disables exterior welcome lighting when approaching or unlocking the Nissan Frontier.
- Auto Room Lamp: Controls automatic interior lighting when entering or exiting the vehicle.
- Light Sensitivity: Adjusts how quickly the automatic headlights respond to changes in ambient light conditions.
- Light Off Delay: Allows customization of how long the headlights remain on after the Nissan Frontier is turned off.
Turn indicator
This menu provides configuration options for turn signal behavior in the Nissan Frontier.
- 3 Flash Pass: Allows activation or deactivation of the lane-change signal feature, which flashes the turn signal three times with a light tap of the indicator stalk.
Locking
This section allows customization of door locking and unlocking behavior in the Nissan Frontier, improving both security and convenience.
- I-Key Door Lock: Enables or disables the Intelligent Key request switch functionality on the door handles.
- Selective Unlock: Allows the driver to choose whether only the driver’s door or all doors unlock on the first press. When enabled, only the selected door unlocks initially, with all doors unlocking after a second command within one minute.
- Answer Back Horn: Enables or disables the confirmation horn sound when locking or unlocking the Nissan Frontier.
- Auto Unlock: Allows selection of automatic door unlocking behavior:
- Off: Doors must be unlocked manually.
- IGN Off: Doors unlock automatically when the ignition is turned OFF.
- Shift P: Doors unlock automatically when the Nissan Frontier is shifted into Park (P).
By properly configuring these settings, drivers can tailor the Nissan Frontier to their personal preferences, improving comfort, usability, and overall driving satisfaction.
Regularly reviewing and adjusting these options ensures that all systems in the Nissan Frontier operate exactly as intended for different driving scenarios.
Wipers
This menu in the Nissan Frontier allows the driver to configure available windshield wiper settings for improved visibility and convenience in different weather conditions.
Depending on the Nissan Frontier equipment level, some options listed below may not be available.
- Speed Dependent: Enables or disables the feature that automatically adjusts wiper speed based on vehicle speed, improving wiping performance at higher speeds.
- Headlamp On: Provides options for automatic headlight activation when the
wipers are in use.
- Off: Headlights remain off even when the wipers are operating.
- Wiper Low & High: Headlights automatically turn on when the wipers are set to low or high speed.
- Wiper INT, Low & High: Headlights activate when the wipers are in intermittent, low, or high mode, enhancing visibility in poor weather conditions.
Alerts
Basic Information
The Alerts menu in the Nissan Frontier allows drivers to configure notification and reminder systems for various functions, ensuring important information is not missed during daily use.
Some features may vary depending on the Nissan Frontier configuration.
Timer Alert
- Timer Alert: Allows the driver to set a timed reminder alarm, useful for breaks during long trips or time-based notifications.
Navigation
- Navigation: Enables or disables navigation-related alerts within the Nissan Frontier system (if equipped).
Phone
- Phone: Allows activation or deactivation of phone-related notifications and alerts.
- Mail: Enables or disables incoming message or mail alerts in the Nissan Frontier infotainment system.
Maintenance
Basic Information
The Maintenance menu in the Nissan Frontier allows the driver to set reminders for scheduled service items, helping ensure that the vehicle remains in optimal condition over time.
Some options may not be available depending on the Nissan Frontier trim level.
WARNING
The tire replacement indicator in the Nissan Frontier is intended as a guide only and does not replace regular inspection of tire condition and tire pressure.
Various factors such as tire inflation levels, wheel alignment, driving style, and road conditions can significantly affect tire wear and lifespan.
Setting a mileage-based reminder does not guarantee that the tires will remain safe for that entire distance. Regular inspections are essential.
Failure to properly monitor tire condition and pressure in the Nissan Frontier may lead to tire failure, which can result in serious vehicle damage, loss of control, or accidents causing injury or death.
Maintenance
This section allows the driver to scroll through different maintenance categories and set service reminders at specific intervals in the Nissan Frontier.
- Oil and Filter: Set or reset reminders for engine oil and filter replacement.
- Air Filter: Configure service intervals for air filter replacement.
- Tire: Set reminders for tire inspection or replacement.
- Brake Pad: Monitor and schedule brake pad maintenance.
- Brake Fluid: Set reminders for brake fluid replacement.
- Battery: Configure battery inspection or replacement intervals.
- Transmission Fluid: Set maintenance reminders for transmission fluid service.
- Engine Coolant: Monitor and schedule coolant replacement intervals.
- Spark Plug: Set reminders for spark plug maintenance.
- Other: Create custom maintenance reminders for additional service items not listed above.
Using these maintenance reminder features in the Nissan Frontier helps ensure timely servicing, prolongs vehicle lifespan, and supports safe and reliable operation.
For best results, regularly review maintenance schedules and adjust reminders based on actual driving conditions and usage patterns of your Nissan Frontier.
Unit
Basic Information
The Unit settings menu in the Nissan Frontier allows the driver to customize how measurement values are displayed within the vehicle information system, ensuring that all data is presented in a familiar and convenient format.
This feature enhances usability by adapting the Nissan Frontier display to regional standards or personal preferences.
Mileage
This option allows the driver to select the preferred unit for distance and speed measurements in the Nissan Frontier.
- Mileage: Enables switching between available distance units (such as miles or kilometers), depending on the system configuration.
Pressure
This menu controls how tire pressure and related values are displayed in the Nissan Frontier.
- Pressure: Allows the user to choose between different pressure units (for example, PSI, kPa, or bar), improving clarity when monitoring tire conditions.
Temperature
This setting determines how temperature information is shown within the Nissan Frontier display.
- Temperature: Allows switching between Celsius (°C) and Fahrenheit (°F), depending on user preference.
Language
Basic Information
The Language menu in the Nissan Frontier enables the driver to change the language used in the vehicle information display, making system interaction more intuitive.
This ensures that all menus, warnings, and notifications are clearly understood.
Language
- Language: Displays the list of available language options for the Nissan Frontier interface, allowing the driver to select the preferred display language.
Factory Reset
Basic Information
The Factory Reset option in the Nissan Frontier allows all customized settings within the vehicle information display to be restored to their original default configuration.
This function is useful when troubleshooting system issues or preparing the Nissan Frontier for a new owner.
Factory Reset
- Factory Reset: Allows the driver to reset all display settings in the Nissan Frontier back to factory defaults. After selecting this option, a confirmation prompt will appear, giving the user the choice to proceed or cancel the reset operation.
After performing a factory reset, all personalized preferences such as display configurations, units, and alerts will need to be reconfigured according to the driver’s needs.
For best results, it is recommended to review all system settings in the Nissan Frontier after a reset to ensure optimal functionality and comfort.
Vehicle information display warnings and indicators
Basic Information
The Nissan Frontier vehicle information display is designed to provide real-time alerts and notifications that help the driver stay informed about the vehicle’s condition, safety systems, and operational status.
The following messages may appear in the Nissan Frontier display and should always be reviewed carefully to ensure proper vehicle operation.
These alerts range from simple reminders to critical warnings that may require immediate attention.
Key Battery Low
This warning appears in the Nissan Frontier when the Intelligent Key battery is nearing depletion.
If this message is displayed, replace the battery as soon as possible to avoid inconvenience or inability to start the vehicle.
Keeping a spare battery for the Nissan Frontier Intelligent Key is recommended for uninterrupted operation.
Key ID Incorrect
This message appears when the ignition is switched from the OFF position and the Nissan Frontier system cannot recognize the Intelligent Key.
The engine cannot be started using an unregistered or incompatible key. Always ensure that the correct Nissan Frontier key is being used.
Key System Error: See Owner's Manual
This warning briefly appears when the ignition is turned ON in the Nissan Frontier and then disappears under normal conditions.
If the message persists, it indicates a malfunction in the Intelligent Key system.
If the warning appears while the engine is OFF, the Nissan Frontier may not start. If it appears while driving, the vehicle can continue operating, but the system should be inspected as soon as possible by a NISSAN dealer.
No Key Detected
This warning appears when the Intelligent Key is outside the Nissan Frontier while the ignition is in the ON position.
Ensure that the key is inside the vehicle to maintain proper operation.
Battery Voltage Low Charge battery
This message indicates that the Nissan Frontier battery charge level is low and requires immediate attention.
Recharge or replace the battery to avoid starting issues or electrical system malfunctions.
Brightness indicator
This indicator appears when adjusting the brightness of the Nissan Frontier vehicle information display.
It allows the driver to optimize screen visibility for both daytime and nighttime driving conditions.
Door Open
This warning alerts the driver when any door of the Nissan Frontier is not fully closed.
Always ensure that all doors are securely latched before driving to maintain safety.
Loose Fuel Cap
This message appears when the fuel cap on the Nissan Frontier is not properly tightened after refueling.
Secure the fuel cap correctly to prevent fuel evaporation and ensure proper emission system operation.
Low Fuel
This warning indicates that the fuel level in the Nissan Frontier tank is low.
Refuel as soon as possible to avoid running out of fuel. Even when the gauge reaches empty, a small reserve may still remain.
Low Tire Pressure Error - Info
This message appears when the tire pressure monitoring system detects low tire pressure in one or more tires of the Nissan Frontier.
Press the ENTER button to view detailed tire pressure information and identify which tire requires attention.
Low Washer Fluid
This warning indicates that the windshield washer fluid level in the Nissan Frontier is low.
Add washer fluid to maintain clear visibility in all driving conditions.
Maintenance indicators
These indicators appear automatically in the Nissan Frontier when scheduled maintenance is due, such as engine oil service or other user-defined service intervals.
Regular maintenance ensures optimal performance and longevity of the Nissan Frontier.
Outside Temperature Display
This display shows the current outside temperature in the center of the Nissan Frontier information screen.
It helps the driver adapt to weather conditions and anticipate potential road hazards such as ice.
Power turned off to save the battery
This message appears when the Nissan Frontier automatically switches off the ignition to preserve battery power.
This function helps prevent battery discharge if the vehicle is left on for an extended period.
Power will turn off to save the battery
This message is displayed when the Nissan Frontier is in ACC or ON mode while in Park (P) for an extended period.
It warns the driver that the system will soon shut down to protect the battery.
Push brake and start switch to drive
This indicator appears when the Nissan Frontier is in Park (P), reminding the driver to press the brake pedal and start button to begin driving.
This ensures safe and correct startup procedures before moving the vehicle.
This indicator in the Nissan Frontier informs the driver that the engine can be started by pressing the ignition switch while the brake pedal is depressed.
In the Nissan Frontier, the engine can be started regardless of the current ignition switch position, provided that the correct starting procedure is followed.
Range XX miles
This message in the Nissan Frontier displays the estimated driving distance remaining before the fuel level reaches empty.
It helps the driver plan refueling stops and avoid running out of fuel unexpectedly. Always refuel the Nissan Frontier in advance to maintain safe operation.
Check Rear Seat
When enabled in the Nissan Frontier, this reminder appears after the vehicle comes to a complete stop, is shifted from Drive (D) to Park (P), and the driver exits the vehicle.
The system provides both a visual and audible alert, encouraging the driver to check the rear seat for passengers, children, or items.
NOTE:
This feature in the Nissan Frontier must be manually activated through the vehicle information display before it becomes operational.
Rear Door Alert is activated
This message indicates that the Rear Door Alert system in the Nissan Frontier is active and ready to remind the driver to check the rear seating area.
- Using the steering wheel controls, the driver can select "Dismiss Message" to temporarily clear the notification from the Nissan Frontier display.
- If no action is taken, the message will automatically disappear after a short period.
- The driver can also choose "Disable Alert" to silence the horn reminder for the remainder of the current trip.
WARNING
Selecting "Dismiss Message" in the Nissan Frontier will only temporarily remove the alert for the current stop. The system may continue to provide reminders during subsequent stops.
Selecting "Disable Alert" will deactivate the audible reminder for the remainder of the trip, meaning no horn alert will be provided even if the rear seat needs attention.
NOTE:
This system remains inactive until enabled through the Nissan Frontier vehicle information display settings.
Release Parking Brake
This warning appears in the Nissan Frontier when the parking brake is still engaged while the vehicle is moving.
To prevent damage and ensure safe driving, press the brake pedal and release the parking brake immediately.
Reminder: Turn OFF Headlights
This warning appears when the driver exits the Nissan Frontier while the headlights remain turned on.
Switch the headlights to the OFF or AUTO position to prevent battery discharge.
Remote Engine Start Mode
This message is displayed when the Nissan Frontier has been started using the remote engine start function.
To begin driving, press the brake pedal and turn the ignition switch to the ON position.
Rear seat belt warning
- This display shows the status of rear seat belts in the Nissan Frontier. Unfastened belts are highlighted in red.
- If any rear seat belt is not fastened when the ignition is switched ON, the warning will remain visible for approximately one minute or until dismissed.
- If a rear seat belt changes from fastened to unfastened, the warning will reappear for over one minute.
- If the Nissan Frontier is driven above 9 mph (15 km/h) with an unfastened
rear seat belt, a warning message and audible chime will activate for over one
minute.
During this time, the alert cannot be dismissed unless the seat belt is properly fastened again.
NOTE:
Opening and closing a rear door while the Nissan Frontier is stationary will reset this warning, similar to switching the ignition ON again.
NOTE:
In Nissan Frontier models with only two rear seats, only those positions will be shown in the display.
Shift to Park
This warning appears when the ignition switch in the Nissan Frontier is in the ACC or OFF position while the shift lever is not in Park (P).
An audible chime will also sound to alert the driver.
If this message appears, move the shift lever to the Park (P) position before attempting to start or exit the Nissan Frontier.

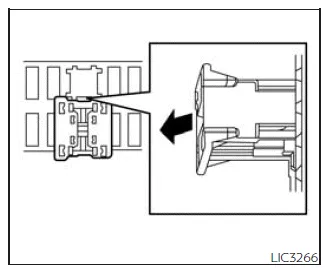

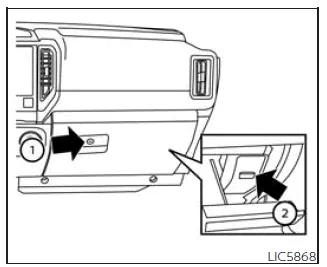

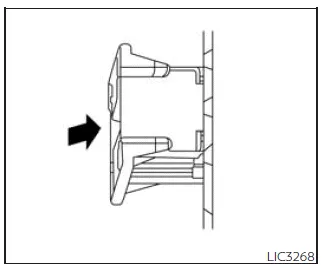

Shipping Mode On Push Storage Fuse
This message indicates that the Nissan Frontier is in shipping mode, which is typically used during vehicle transport to reduce battery consumption.
To return the Nissan Frontier to normal operation, follow the instructions in the Owner’s Manual and ensure the storage fuse is properly activated.
This step is important for restoring full electrical functionality of the vehicle systems.
This warning in the Nissan Frontier may appear if the extended storage switch has not been properly engaged. When this message is displayed, press the extended storage switch to eliminate the warning and restore normal system operation.
Terrain Mode Selector indicator
When a driving mode is selected using the Terrain Mode Selector in the Nissan Frontier, the corresponding mode indicator is displayed on the vehicle information screen, allowing the driver to confirm the active terrain setting.
- ON ROAD
- SAND
- MUD
- ROCK
Each mode in the Nissan Frontier is specifically calibrated to optimize traction, stability, and drivetrain response depending on surface conditions, improving both safety and off-road capability.
Tire Pressure Low - Add Air
This warning appears when the tire pressure monitoring system in the Nissan Frontier detects that one or more tires are under-inflated.
The message will continue to appear each time the ignition is switched ON while the condition persists.
If this warning is displayed, stop the Nissan Frontier safely and adjust all four tires to the recommended COLD tire pressure indicated on the Tire and Loading Information label.
TPMS Error: See Owner's Manual
This message indicates a malfunction within the Tire Pressure Monitoring System of the Nissan Frontier.
If this warning appears, the system may not provide accurate tire pressure information. Have the Nissan Frontier inspected by an authorized NISSAN dealer as soon as possible.
When parked apply parking brake
This warning appears when a malfunction in the electric shift control system is detected at speeds below 3 mph (5 km/h).
Apply the parking brake immediately and have the Nissan Frontier checked by a qualified technician.
4WD Error: See Owner's Manual
This warning indicates that the four-wheel drive system in the Nissan Frontier is not functioning correctly while the engine is running.
Driving performance may be affected, especially in off-road or low-traction conditions. Have the system inspected promptly.
4WD shift indicators
These indicators show the currently selected 4WD mode in the Nissan Frontier, helping the driver confirm drivetrain configuration.
4WD MODE SHIFTING
This message appears when the Nissan Frontier is actively transitioning between different four-wheel drive modes.
During this process, certain driving limitations may apply until the shift is completed.
AT (Automatic Transmission) CHECK
If this warning appears while the Nissan Frontier engine is running or while driving, it may indicate a malfunction in the automatic transmission system.
Immediate inspection is recommended to prevent further damage. Visit a NISSAN dealer for diagnosis and repair.
AT (Automatic Transmission) Error: See Owner's Manual
This message also indicates a fault within the automatic transmission system of the Nissan Frontier.
Continued driving without inspection may lead to serious mechanical damage. Have the system checked as soon as possible.
Service AT
The Nissan Frontier automatic transmission includes a high fluid temperature protection mode designed to prevent overheating.
If the transmission fluid temperature becomes excessively high (for example, when towing heavy loads or driving uphill in hot conditions), engine output and vehicle speed may be automatically reduced.
This is a protective function to prevent transmission damage, and the Nissan Frontier will return to normal operation once temperatures stabilize.
WARNING
During high temperature protection mode, vehicle speed in the Nissan Frontier may decrease significantly, potentially making it slower than surrounding traffic.
This condition may increase the risk of a collision. If necessary, pull over to a safe location and allow the transmission to cool down before continuing.
Blind Spot Warning (BSW)/Rear Cross Traffic Alert (RCTA) indicator
This indicator appears when the Blind Spot Warning and/or Rear Cross Traffic Alert systems in the Nissan Frontier are active.
It may also appear if the RCTA system becomes temporarily unavailable due to environmental or system conditions.
Cruise control indicator
This indicator displays the current status of the cruise control system in the Nissan Frontier, helping the driver monitor whether the system is engaged or ready.
Currently unavailable
This message may appear when the Intelligent Cruise Control (ICC) system in the Nissan Frontier is active but temporarily unavailable.
Under certain conditions, the system will automatically cancel operation, including:
- When the Vehicle Dynamic Control (VDC) system is engaged.
- When wheel slip is detected.
- When the VDC system is manually turned off.
Once normal driving conditions are restored, the Nissan Frontier ICC system can be reactivated.
The Nissan Frontier advanced driver assistance systems may not operate under certain conditions, such as when the Vehicle Dynamic Control (VDC) system is active, wheel slip is detected, or when the VDC system is manually turned off.
Driver Attention Alert - Malfunction
This warning appears when the Intelligent Driver Alertness (I-DA) system in the Nissan Frontier is not functioning correctly.
If this message is displayed, the system may not be able to monitor driver behavior accurately. It is recommended to have the Nissan Frontier inspected by an authorized NISSAN dealer.
Driver Attention Alert - Take a Break?
This alert is triggered when the Nissan Frontier detects signs of driver fatigue or reduced attention levels.
When this message appears, it is strongly recommended to stop driving and take a rest to ensure safe operation of the vehicle.
Forward Driving Aids Temporarily Disabled Front Sensor Blocked See Owner's Manual
This message indicates that the front radar sensor of the Nissan Frontier is obstructed and cannot operate properly.
Possible causes include:
- Accumulation of mud, dirt, snow, or ice
- Adverse weather conditions such as heavy rain, fog, or snow
When this occurs, all forward driving assistance systems in the Nissan Frontier will be temporarily disabled until the obstruction is removed.
This includes systems such as:
- Automatic Emergency Braking (AEB) with Pedestrian Detection
- Intelligent Cruise Control (ICC)
- Intelligent Forward Collision Warning (I-FCW)
Ensure that the sensor area is clean and unobstructed to restore full functionality.
Idling Stop System
This indicator shows the current status of the Idling Stop System in the Nissan Frontier, which helps reduce fuel consumption and emissions by automatically stopping the engine during idle conditions.
Intelligent Cruise Control (ICC) indicators
These indicators display the operational status of the Intelligent Cruise Control system in the Nissan Frontier.
The system status is represented by different colors, allowing the driver to quickly understand whether the system is active, on standby, or unavailable.
Automatic Emergency Braking (AEB) with Pedestrian Detection emergency warning indicator
This warning appears, along with an audible alert, when the Nissan Frontier detects a potential forward collision.
The system provides early warning to help the driver react and avoid or reduce the severity of a collision.
Lane Departure Warning (LDW) indicator
This indicator is displayed when the Lane Departure Warning system in the Nissan Frontier is active and monitoring lane positioning.
Malfunction
This warning appears when one or more advanced driver assistance systems in the Nissan Frontier are not functioning properly.
Affected systems may include:
- Blind Spot Warning (BSW)
- Intelligent Cruise Control (ICC)
- Lane Departure Warning (LDW)
- Rear Cross Traffic Alert (RCTA)
- Traffic Sign Recognition (TSR)
If any of these warnings appear, the Nissan Frontier should be inspected promptly by a NISSAN dealer to ensure proper operation.
Not Available High Camera Temp
This message appears when the internal camera temperature in the Nissan Frontier exceeds approximately 104°F (40°C).
When this occurs, camera-based systems may be temporarily disabled until the temperature returns to normal.
Parking Sensor
This indicator shows that the parking sensor system in the Nissan Frontier is active and monitoring nearby obstacles.
Parking Sensor Error: See Owner's Manual
This warning indicates a malfunction in the parking sensor system of the Nissan Frontier.
The system may not function correctly, and inspection by a qualified technician is recommended.
Rear Automatic Braking (RAB) system indicator
This indicator displays the current status of the Rear Automatic Braking system in the Nissan Frontier.
It helps the driver understand whether rear collision prevention assistance is active.
System fault See Owner's Manual
This warning appears when a malfunction is detected in one or more key safety systems of the Nissan Frontier, including:
- Automatic Emergency Braking (AEB) with Pedestrian Detection
- Intelligent Forward Collision Warning (I-FCW)
- Rear Automatic Braking (RAB)
Immediate inspection is recommended to maintain full safety functionality.
Speed Limit Sign indicator
This indicator appears when the Traffic Sign Recognition system in the Nissan Frontier is active and has detected a speed limit sign.
Unavailable: Side Radar Obstruction
This message appears when the side radar sensors of the Nissan Frontier are blocked, causing systems such as Blind Spot Warning (BSW) or Rear Cross Traffic Alert (RCTA) to become temporarily unavailable.
Ensure that the radar areas are clean and unobstructed to restore functionality.
Vehicle ahead detection indicator
This indicator appears when the Automatic Emergency Braking system in the Nissan Frontier detects a vehicle ahead.
It assists the driver by increasing awareness and preparing the system for potential braking intervention.

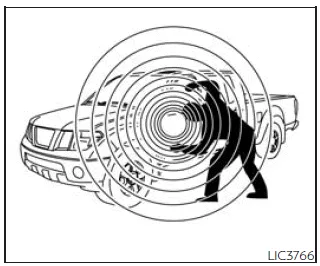

Security systems
Basic Information
The Nissan Frontier is equipped with advanced anti-theft technologies designed to enhance vehicle protection and provide peace of mind for the driver.
Depending on configuration, your Nissan Frontier may include two primary security systems:
- Vehicle security system (if equipped)
- NISSAN Vehicle Immobilizer System
Basic Information
The vehicle security system in the Nissan Frontier is designed to trigger both visual and audible alarms if unauthorized access is detected, such as opening a door while the system is armed.
It is important to note that this system is not motion-sensitive and will not activate due to vibration or vehicle movement alone.
While the Nissan Frontier security system is an effective deterrent against theft, it cannot guarantee complete prevention of theft or damage to interior or exterior components.
Always take additional precautions such as locking the vehicle, removing valuables, and parking in well-lit, secure areas.
For enhanced protection, additional anti-theft devices such as tracking systems, identification markings, or component locks can be installed. Many of these solutions are available through automotive retailers or your NISSAN dealer.
Some insurance providers may also offer discounts for vehicles equipped with enhanced security features.
Vehicle security system
How to arm the vehicle security system
To activate the Nissan Frontier security system, follow these steps:
1. Ensure all windows are closed. (The system can still be armed if windows are open, but closing them is recommended for maximum security.)
2. Remove the Intelligent Key from the Nissan Frontier.
3. Close and securely lock all doors using either the power door lock switch or the key fob.
Key fob operation:
- Press the
button on the key fob. All doors will lock, the hazard lights will flash twice,
and the horn will beep once to confirm activation. - If the
button is pressed again while all doors are already locked, the hazard lights
will flash twice and the horn may beep as a reminder.
4. Verify that the
indicator light illuminates. It will remain on for approximately 30 seconds, indicating
that the Nissan Frontier is in the pre-armed state.
After this period, the system transitions to the fully armed state, and the
indicator light will flash periodically.
If the driver's door is unlocked or the ignition is switched to ACC or ON during the pre-arm phase, the Nissan Frontier security system will not arm.
- If the indicator light does not illuminate, unlock and relock the vehicle and try again.
- The system can arm even if occupants remain inside, as long as all doors are closed and locked and the ignition is OFF.
Vehicle security system activation
When triggered, the Nissan Frontier security system will respond as follows:
- The headlights will flash and the horn will sound intermittently.
- The alarm will automatically stop after a set period, but will reactivate if tampering continues.
- The alarm can be stopped by unlocking the driver's door using the
button on the key fob.
The system is activated if:
- A door is opened without using the key fob, even if unlocked manually from inside.
How to stop an activated alarm
To deactivate the alarm in the Nissan Frontier, press the
button on the key fob.
NISSAN Vehicle Immobilizer System
Basic Information
The Nissan Frontier is equipped with the NISSAN Vehicle Immobilizer System, which prevents the engine from starting unless a registered key is used.
If interference occurs (for example, due to other electronic devices on the key ring), the Nissan Frontier may fail to recognize the key.
To resolve this issue, follow these steps:
1. Turn the ignition switch to the ON position and wait approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK position and wait about 10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while keeping other electronic devices separate from the registered key.
If the issue persists, it is recommended to use a separate key ring to prevent signal interference.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) the device may not cause harmful interference, and (2) it must accept any interference received, including interference that may cause undesired operation.
NOTE:
Unauthorized modifications may void the user’s authority to operate this equipment.
For Canada:
This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standards. Operation is subject to the same conditions regarding interference and acceptance of signals.
Security indicator light
This indicator light in the Nissan Frontier blinks when the ignition switch is in the LOCK position, confirming that the immobilizer system is active.
If the system is functioning correctly, the light will behave normally. However, if a malfunction occurs, the light may remain illuminated when the ignition is switched ON.
If the indicator light remains on or the engine fails to start, have the Nissan Frontier inspected as soon as possible. Be sure to bring all registered keys when visiting a NISSAN dealer for service.
Wiper and washer switch
Switch operation
The windshield wiper and washer system in the Nissan Frontier is designed to provide clear visibility in all weather conditions and operates when the ignition switch is in the ON position.
Using the control lever, the driver can easily adjust wiping speed and activate washer fluid depending on driving conditions.
Push the lever downward to select the desired wiper speed in the Nissan Frontier:
- Intermittent (INT) — provides adjustable intermittent wiping. The delay between wipes can be fine-tuned by rotating the control knob toward A (longer intervals) or toward B (shorter intervals), allowing precise control in light rain.
- Low (LO) — activates continuous wiping at a steady low speed, suitable for moderate precipitation.
- High (HI) — engages continuous high-speed wiping, ideal for heavy rain or intense conditions requiring maximum visibility.
Push the lever upward to position 4 (MIST) to perform a single wipe cycle. This feature in the Nissan Frontier is especially useful for quickly clearing light moisture or spray from the windshield.
Pull the lever toward you (position 5) to activate the windshield washer. Washer fluid will be sprayed onto the windshield, and the wipers will automatically perform several sweeps to clear the glass effectively.
This integrated system in the Nissan Frontier ensures optimal windshield cleaning performance with minimal driver effort.
WARNING
In freezing temperatures, washer fluid may freeze upon contact with the windshield, significantly reducing visibility and increasing the risk of an accident. Always use the defroster to warm the windshield before activating the washer system in your Nissan Frontier.
CAUTION
- Do not operate the washer continuously for more than 30 seconds, as this may damage the system components.
- Never activate the washer system if the reservoir is empty, as this can cause pump failure and reduce system lifespan.
Outside mirror defroster switch
The Nissan Frontier is equipped with an outside mirror defroster system that helps maintain clear rear visibility in cold or humid conditions.
To activate the mirror defroster, start the engine and press the defroster switch. When activated, the indicator light on the switch will illuminate, confirming that the system is operating.
Press the switch again to manually turn the defroster off if needed.
For convenience and energy efficiency, the defroster in the Nissan Frontier automatically switches off after approximately 15 minutes of operation.
This feature helps prevent unnecessary battery drain while ensuring effective defogging performance.
Headlight and turn signal switch
Headlight control switch
Basic Information
Type A (if so equipped)
Type B (if so equipped)
Type C (if so equipped)
The Nissan Frontier headlight control system allows precise management of exterior lighting, ensuring optimal visibility and safety in all driving conditions.
Depending on the equipment level, your Nissan Frontier may feature different switch designs, but all operate using the same fundamental principles.
Lighting
- Rotate the switch to the
position to activate the front parking lights, tail lights, license plate illumination,
and instrument panel lighting. - Rotate the switch to the
position to switch on the headlights while keeping all other exterior and interior
lights illuminated.
This intuitive lighting control in the Nissan Frontier ensures that the driver can quickly adapt to changing visibility conditions.
Autolight system
The Nissan Frontier autolight system automatically manages headlight operation based on ambient light conditions, providing convenience and enhancing driving safety.
The system is capable of:
- Automatically activating headlights, parking lights, tail lights, license plate lights, and instrument illumination in low-light conditions.
- Turning off lighting systems when sufficient daylight is detected.
- Keeping lights on for a preset duration after the ignition is turned OFF and all doors are closed, improving visibility when exiting the Nissan Frontier.
To activate the autolight system in the Nissan Frontier:
- For USA models: Turn the headlight switch to the AUTO position 1.
For Canadian models: Turn the switch to AUTO 1 or
position. - Turn the ignition switch to the ON position.
- The Nissan Frontier will now automatically control headlight operation based on surrounding light conditions.
If the ignition is switched OFF and a door is opened, the headlights remain on temporarily. Opening another door will reset the timer.
To deactivate the autolight system:
For USA models: Turn the switch to OFF,
,
or
.
For Canadian models: Turn the switch to
.
The Nissan Frontier headlights may also automatically activate during twilight conditions or when the windshield wipers are continuously operating, further enhancing safety in low-visibility environments.
If a door remains open after the ignition is turned OFF, the headlights will stay illuminated for approximately 5 minutes before turning off automatically.
Be sure you do not place any objects on top of the autolight sensor 1 located on the upper instrument panel of the Nissan Frontier. Covering this sensor may cause the system to interpret conditions as dark, turning on the headlights unnecessarily and potentially discharging the battery.
Headlight beam select
- To activate high beams in the Nissan Frontier, ensure the headlights are ON and push the lever forward. The high beam indicator will illuminate.
- Pull the lever back to return to low beam operation.
- Pulling and releasing the lever will flash the high beams momentarily, even if the headlights are off.
High Beam Assist
Basic Information
The High Beam Assist system in the Nissan Frontier enhances nighttime driving by automatically switching between high and low beams when appropriate.
The system becomes active when driving at speeds above approximately 25 mph (40 km/h).
If the system detects an oncoming vehicle or a vehicle ahead, it will automatically switch from high beam to low beam to prevent glare.
WARNING
- The High Beam Assist system in the Nissan Frontier is a convenience feature and does not replace attentive driving. Always monitor road conditions and manually adjust headlights when necessary.
- The system may not function correctly under certain conditions. In such
cases, manual control of high and low beams is required.
- During adverse weather conditions such as rain, fog, snow, or strong winds.
- When nearby light sources resemble headlights or tail lights.
- When other vehicles’ lights are partially obscured, dirty, or misaligned.
- When lighting conditions change suddenly.
- When driving on uneven terrain, hills, or winding roads.
- When reflective surfaces or objects cause intense light reflection.
- When towing objects that reflect light toward the Nissan Frontier.
- When your vehicle’s headlights are dirty or damaged.
- When the vehicle is tilted due to load imbalance, tire issues, or towing.
- The timing of switching between high and low beams may vary depending
on factors such as:
- Brightness and position of other vehicles’ lights.
- Movement and direction of surrounding vehicles.
- Presence of motorcycles or single-light vehicles.
- Road layout, curves, and surface conditions.
- Vehicle load, including passengers and cargo.
High Beam Assist operation
The High Beam Assist system in the Nissan Frontier is designed to automatically manage headlight intensity, improving nighttime visibility while reducing glare for other road users.
To activate High Beam Assist in the Nissan Frontier:
Turn the headlight switch to the AUTO position 1, then push the control lever forward 2 into the high beam position. When properly activated, the High Beam Assist indicator light will illuminate in the instrument cluster while the headlights are on.
If the indicator light does not appear under these conditions, this may indicate a malfunction in the Nissan Frontier system. In such cases, have the system inspected by a qualified technician. It is recommended to visit a NISSAN dealer.
When vehicle speed drops below approximately 16 mph (25 km/h), the Nissan Frontier automatically switches to low beam operation to ensure appropriate lighting for lower-speed conditions.
To deactivate the High Beam Assist system, rotate the headlight switch to the
position or return the lever to the neutral position to manually select low beams.
Ambient image sensor maintenance
The Nissan Frontier High Beam Assist system relies on an ambient image sensor located near the inside rearview mirror to detect surrounding light conditions and traffic.
To ensure optimal performance and prevent system malfunction, follow these guidelines:
- Keep the windshield of your Nissan Frontier clean at all times, especially around the sensor area.
- Do not place stickers, films, or accessories (including transparent materials) near the sensor location.
- Avoid impacts or damage to the area surrounding the ambient image sensor.
- Do not touch or contaminate the sensor lens, as this may affect its ability to detect light accurately.
If the ambient image sensor in the Nissan Frontier is damaged due to an accident or external impact, have it inspected and serviced by a NISSAN dealer to restore proper functionality.
Battery saver system
The Nissan Frontier is equipped with a battery saver system that helps prevent unnecessary battery discharge by automatically turning off certain electrical components when the vehicle is not in use.
When the ignition switch is placed in the OFF position and all doors are closed, the system will automatically deactivate the following:
- Headlights, when the headlight switch is in the
or
position. - Interior lights, if they have been left in the ON position (if equipped).
After the headlights are automatically switched off in the Nissan Frontier, they
can be reactivated by turning the headlight switch to the OFF position and then
back to the
or
position.
This intelligent feature in the Nissan Frontier helps extend battery life, especially when lights are accidentally left on.
CAUTION
Although the Nissan Frontier battery saver system automatically turns off the headlights after a certain period, it is strongly recommended to manually switch the headlights to the OFF position when the engine is not running. This helps prevent unnecessary battery drain and ensures reliable vehicle startup.
LED Daytime Running Lights (DRL) system
The LED Daytime Running Lights (DRL) system in the Nissan Frontier automatically enhances daytime visibility by illuminating at full brightness as soon as the engine is started and the parking brake is released.
In the Nissan Frontier, the LED DRL operate when the headlight switch is in the
OFF position, in the
position, or in AUTO mode when ambient lighting conditions are sufficiently bright.
When the headlight switch is turned to the
position for full lighting, the LED DRL automatically transition from daytime running
lights to standard parking light functionality.
If the parking brake is engaged before starting the engine, the LED DRL in the Nissan Frontier will remain off. Once the parking brake is released, the system activates automatically.
The LED DRL remain illuminated until the ignition switch is turned OFF, ensuring consistent daytime visibility.
At dusk or in low-light environments, it is important to manually turn on the headlights in the Nissan Frontier, as interior controls and switch illumination do not activate while the switch remains in the OFF position.
WARNING
When the LED DRL system is active, the tail lights of the Nissan Frontier are not illuminated. Always switch on the headlights at dusk or in poor visibility conditions. Failure to do so may result in reduced visibility to other drivers and increase the risk of an accident.
Instrument brightness control
Use the "+" button to increase the brightness of the instrument panel lighting in the Nissan Frontier.
Use the "-" button to decrease brightness for improved comfort during nighttime driving.
Turn signal switch
Turn signal:
- Move the lever upward or downward to indicate the intended turning direction. Once the turn is completed, the Nissan Frontier automatically cancels the signal.
Lane change signal:
- Move the lever slightly up or down until the turn signal begins flashing without locking into position. Hold the lever until the lane change maneuver is complete.
Fog light switch
To activate the fog lights in the Nissan Frontier, first turn the headlight switch
to the
position, then rotate the fog light switch to the
position.
When the headlight switch is in AUTO mode (if equipped), the headlights must
already be on before the fog lights can be activated. Then turn the fog light switch
to the
position.
To switch the fog lights off, rotate the fog light control to the OFF position.
Fog lights in the Nissan Frontier operate only when the low beam headlights are active and will automatically turn off when the high beams are selected.
Horn
To sound the horn in the Nissan Frontier, press the center area of the steering wheel marked with horn symbols.
WARNING
Do not attempt to disassemble or modify the horn system in the Nissan Frontier, as it is integrated with the supplemental air bag system. Improper handling may affect air bag operation and lead to serious injury.
Cargo lamp switch
The Nissan Frontier cargo lamp provides additional illumination for the truck bed area.
To activate the cargo lamp, press the switch downward to the ON position.
CAUTION
Always switch the cargo lamp OFF when leaving the Nissan Frontier for extended periods, as leaving it on may drain the battery.
Heated seat switches
The Nissan Frontier front seats are equipped with integrated heating elements designed to provide additional comfort in cold weather conditions.
To operate the heated seats:
1. Turn the ignition switch to the ON position.
2. Select either the LO (low) or HI (high) setting depending on your preferred temperature level.
The indicator light will illuminate to confirm that the system is active.
The heated seat system in the Nissan Frontier uses a thermostat to automatically regulate temperature by cycling the heater on and off as needed.
3. Once the desired temperature is reached or before exiting the vehicle, turn the switch OFF to conserve energy.
WARNING
Do not use the heated seats in the Nissan Frontier if the occupant is unable to sense heat or regulate temperature. This may lead to burns or serious injury.
CAUTION
- Avoid using the heated seat for extended periods when the seat is unoccupied.
- Do not place insulating materials such as blankets or cushions on the seat, as this may cause overheating.
- Do not place heavy or sharp objects on the seat to prevent damage to the heating elements.
- Immediately remove any spilled liquids to prevent system malfunction.
- Do not use harsh chemicals such as gasoline or thinner when cleaning the seats.
- If the heated seat system does not operate correctly, turn it off and have the Nissan Frontier inspected by a NISSAN dealer.
- Operating the heated seats while the engine is off may lead to battery discharge.
Heated steering wheel switch
The heated steering wheel system in the Nissan Frontier is designed to enhance driving comfort in cold weather by automatically activating only when needed.
This system operates when the surface temperature of the steering wheel is below approximately 68ºF (20ºC), ensuring efficient energy use and preventing unnecessary heating.
To activate the heated steering wheel in the Nissan Frontier, press the switch after starting the engine. Once activated, the indicator light will illuminate, confirming that the system is functioning.
When the steering wheel temperature is below the threshold, the system will warm the wheel and cycle on and off automatically to maintain a comfortable temperature above 68ºF (20ºC). The indicator light will remain on as long as the system is active.
To manually deactivate the system, press the switch again. The indicator light will turn off. For added safety and efficiency, the Nissan Frontier automatically switches off the heated steering wheel approximately 30 minutes after activation. To resume operation, the switch must be pressed again.
NOTE:
If the steering wheel surface temperature is already above 68ºF (20ºC) when the switch is pressed, the heating function will not activate. This is normal operation and does not indicate a malfunction in the Nissan Frontier system.
Vehicle Dynamic Control (VDC) OFF switch
The Nissan Frontier Vehicle Dynamic Control (VDC) system is designed to enhance vehicle stability and traction under most driving conditions, and it is recommended to keep it activated during normal driving.
However, in certain situations such as when the Nissan Frontier becomes stuck in mud, sand, or snow, the VDC system may limit engine power to reduce wheel spin. In such cases, maximum engine output may be required to free the vehicle.
To temporarily disable the VDC system, press the VDC OFF switch. The
indicator light will illuminate, indicating that the system is turned off.
To reactivate the system, press the VDC OFF switch again or restart the engine. The Nissan Frontier will then return to normal traction control operation.
Hill descent control switch
Type A (if so equipped)
Type B (if so equipped)
WARNING
- Never rely solely on the hill descent control system of the Nissan Frontier to regulate speed on steep declines. Always remain attentive and be prepared to apply the brakes when necessary. Failure to maintain control may result in loss of vehicle control and serious injury or death.
- The system may not maintain a constant speed under all conditions, including varying loads or challenging terrain. Always be ready to intervene using the brake pedal to ensure safe operation of the Nissan Frontier.
CAUTION
Extended use of the hill descent control system may increase brake temperature. If overheating occurs, the system may temporarily deactivate and the indicator light may flash. If the indicator does not remain steadily illuminated, discontinue use until the system cools.
The hill descent control system in the Nissan Frontier is engineered to assist the driver when navigating steep downhill slopes by automatically controlling vehicle speed.
This allows the driver to focus primarily on steering while the system manages braking input.
To activate the hill descent control system in the Nissan Frontier, the following conditions must be met:
- The transmission must be in a forward or reverse gear.
- The 4WD selector must be set to 4L with vehicle speed below approximately 15 mph (25 km/h), or
- The 4WD selector must be set to 4H with vehicle speed below approximately 21 mph (35 km/h).
- The hill descent control switch must be turned ON.
When activated, the Nissan Frontier hill descent control ON indicator light will illuminate. Additionally, the brake lights may illuminate as the system automatically applies braking to maintain controlled speed.
If the accelerator or brake pedal is pressed while the system is active, the hill descent control function will pause temporarily. Once the pedals are released and conditions remain appropriate, the system will resume operation.
If the indicator light flashes, it means that the required operating conditions are not met or the system has been temporarily disengaged.
To deactivate the hill descent control system, press the switch to the OFF position.
Warning systems switch
The warning systems switch in the Nissan Frontier provides quick access to activate or deactivate key driver assistance features directly from the dashboard.
This switch controls systems that can also be configured through the Settings menu in the vehicle information display of the Nissan Frontier, including:
- Blind Spot Warning (BSW)
- Lane Departure Warning (LDW)
When the warning systems switch is turned OFF, the indicator 1 on the switch will not illuminate. Likewise, the indicator remains off if all related warning systems are disabled via the vehicle settings menu.
The Blind Spot Warning (BSW) system in the Nissan Frontier uses radar sensors to monitor adjacent lanes. If a vehicle is detected within the blind spot zone, indicator lights located near the outside mirrors will illuminate.
If the driver activates a turn signal toward the side where another vehicle is detected, the system will issue a double chime and the mirror indicator will flash, providing an additional layer of safety.
The Lane Departure Warning (LDW) system in the Nissan Frontier enhances driver awareness by detecting lane markings. If the vehicle begins to drift toward either side of the lane without signaling, the system will respond with an audible alert, steering wheel vibration, and a blinking LDW indicator (orange) to prompt corrective action.
Electronic locking rear differential (E-Lock) system switch
The Electronic Locking Rear Differential (E-Lock) system in the Nissan Frontier is designed to improve traction in challenging off-road conditions or when the vehicle becomes stuck.
To activate the E-Lock system in the Nissan Frontier, the following conditions must be satisfied:
- The 4WD selector must be set to the 4LO position (for 4WD models),
- The vehicle must be stationary or moving at speeds below approximately 4 mph (7 km/h), and
- The E-Lock system switch must be turned ON.
Once activated, the indicator light will flash until the system fully engages. If the required conditions are not met or if the system disengages, the indicator will continue flashing.
When the E-Lock system is engaged in the Nissan Frontier, the Anti-lock Braking System (ABS) is temporarily disabled, and the ABS warning light will illuminate. Additionally, the Vehicle Dynamic Control (VDC) system is also disabled, and its indicator light will appear.
WARNING
- Never operate the E-Lock system on paved or hard surfaces. Doing so may cause the rear wheels to slip during turns, increasing the risk of accidents and injury. Always deactivate the system after freeing the Nissan Frontier.
- Use the E-Lock system only when necessary to free a stuck vehicle. Attempt
to use the 4LO mode first before engaging the E-Lock.
Avoid using the E-Lock system on slippery surfaces such as snow or ice. This may lead to unpredictable vehicle behavior during acceleration, braking, or turning, potentially resulting in serious accidents.
CAUTION
- Always turn off the E-Lock system after use to prevent unnecessary stress or damage to drivetrain components.
- Do not exceed speeds of 12 mph (20 km/h) while the E-Lock system is engaged, as this may cause mechanical damage.
- Do not activate the E-Lock system while the wheels are spinning, as this could result in drivetrain failure.
Power inverter switch
The Nissan Frontier power inverter system allows you to operate electrical devices using the vehicle’s built-in AC outlets, providing up to 120V of power.
To use the power outlets in the Nissan Frontier, ensure that the engine is running and the power inverter switch is turned ON.
When the vehicle is in the P (Park) position, both the 400W and 150W power outputs will be available and illuminated. When the Nissan Frontier is shifted out of Park, only the 150W outlet remains active.
This system is especially useful for powering tools, charging devices, or running small appliances while on the move or during outdoor activities.
CAUTION
- Always use the power inverter with the engine running to prevent battery discharge in the Nissan Frontier.
- Avoid using multiple adapters or connecting several devices simultaneously, as this may overload the system and significantly drain the vehicle battery.
Parking Aids system switch
The Parking Aids system switch in the Nissan Frontier provides convenient control over multiple rear safety and parking assistance technologies directly from the instrument panel.
When the ignition is in the ON position, this switch allows the driver to activate or deactivate the following systems (if equipped) in the Nissan Frontier:
- Rear Sonar System (RSS)
- Moving Object Detection (MOD)
- Rear Automatic Braking (RAB)
- Rear Cross Traffic Alert (RCTA)
When these systems are enabled, the indicator light on the switch will illuminate, confirming active operation.
If the indicator light flashes while the Nissan Frontier systems are not manually turned off, it may indicate a malfunction in one or more of these assistance systems. In such cases, system inspection is recommended.
By default, the RSS, MOD, RAB, and RCTA systems in the Nissan Frontier automatically activate when the ignition is switched from OFF to ON, ensuring safety features are ready for use at startup.
This automatic activation feature can also be customized through the vehicle information display settings, allowing the driver to tailor system behavior to personal preferences.
Tow mode switch
The Tow Mode feature in the Nissan Frontier is specifically designed to enhance performance and control when towing heavy trailers or carrying substantial loads.
Activating Tow Mode adjusts engine response and transmission behavior to better handle increased weight, improving stability and drivability.
Although the Nissan Frontier can be driven in Tow Mode without a trailer or heavy load, doing so may slightly reduce fuel efficiency and alter driving characteristics.
To enable Tow Mode, press the tow mode switch. The TOW mode ON indicator light will illuminate, confirming activation.
Press the switch again to deactivate Tow Mode when it is no longer required.
For safety and system efficiency, Tow Mode in the Nissan Frontier is automatically canceled when the ignition is turned OFF.
Additionally, when Tow Mode is active, the Rear Automatic Braking (RAB) system is temporarily disabled to prevent unnecessary braking interventions while towing.
Emergency Call (SOS) button
Emergency support
Basic Information
The Nissan Frontier is equipped with NissanConnect Services, which provide advanced emergency support features for both the vehicle and its occupants.
In critical situations such as medical emergencies or serious accidents, the in-vehicle Emergency Call (SOS) button allows the driver or passengers to quickly connect with the NissanConnect Services Response Center.
Once connected, the system uses GPS technology to determine the exact location of the Nissan Frontier and can relay this information to emergency responders such as police, ambulance services, or other agencies.
For additional details regarding NissanConnect emergency services, contact customer support or refer to the official NissanConnect website for your region.
WARNING
- The Automatic Collision Notification and Emergency Call functions in
the Nissan Frontier may not operate under certain conditions:
- If there is no active NissanConnect Services subscription.
- If the NissanConnect network system is disabled.
- If the vehicle is outside the service coverage area of the TCU (Telematics Control Unit).
- If cellular network reception is unavailable.
- If the Nissan Frontier is located in areas with poor signal, such as tunnels, underground parking structures, or mountainous regions.
- If the communication line is busy.
- If the TCU or related systems are malfunctioning.
- If the severity of the incident prevents proper system operation.
- Always park the Nissan Frontier safely and engage the parking brake before pressing the Emergency Call (SOS) button.
- Use the Emergency Call system only in genuine emergencies. Misuse may result in penalties.
- Radio signals from the Nissan Frontier may interfere with certain medical devices. Individuals using pacemakers should consult their device manufacturer before using NissanConnect features.
- The TCU antenna is located in the upper center area of the instrument panel. Maintain a safe distance as recommended by medical device manufacturers to avoid interference.
Making an emergency call
The Emergency Call (SOS) button in the Nissan Frontier is typically located near the overhead map light for quick access.
1. Press the Emergency Call (SOS) button to initiate a call.
2. Once connected, communicate clearly with the Response Specialist to describe your situation.
If necessary, the emergency call can be canceled by pressing and holding the SOS button for several seconds.
NOTE:
- After pressing the SOS button, there may be a short delay before the Nissan Frontier establishes a connection, depending on network conditions and system usage.
- The indicator light on the SOS button shows system readiness. If it is not illuminated, the system may not be available. The light will blink during an active connection.
- Even if the indicator light is on, connection may not always be possible. In such cases, contact emergency services using alternative methods.
- To maintain a stable connection, keep the Nissan Frontier engine running during the call if it is safe to do so.
USB charging ports
1st row (if so equipped)
Rear (if so equipped)
- Type-C USB
- Type-A USB
The Nissan Frontier is equipped with convenient USB charging ports designed to power compatible mobile devices during every drive.
These ports are strategically located in the front media storage area beneath the climate control panel, as well as in the rear seating area on the back of the center console (if equipped), ensuring easy access for both front and rear passengers.
The Nissan Frontier USB ports support charging for a wide range of devices, including smartphones, tablets, and other portable electronics.
NOTE:
- Not all USB ports in the Nissan Frontier support data communication with the display system. Only the front USB ports located below the climate controls allow interaction with the audio or infotainment system.
- For optimal charging performance, it is recommended to use original manufacturer cables. Adapters (Type-A to Type-C or vice versa) may be used, but compatibility and charging efficiency may vary.
CAUTION
- Do not force a USB device into the port. Inserting it incorrectly or
at an angle may damage the connector in your Nissan Frontier.
Always ensure proper alignment before connecting the device.
- Avoid using reversible or incompatible cables, as they may cause damage to the USB port.
Wireless charger
Basic Information
- Indicator
- Charging pad
The Nissan Frontier wireless charging system provides a convenient cable-free solution for charging compatible smartphones.
Located on the center console behind the gear selector, the charging pad allows you to simply place your smartphone on the surface to begin charging automatically.
Charging continues while the ignition is in the ON position, ensuring your device remains powered throughout your journey in the Nissan Frontier.
NOTE:
The wireless charging function in the Nissan Frontier requires all doors to be closed. If a door is opened, charging will temporarily stop.
WARNING
- Never place metallic objects between the smartphone and the wireless charging pad in the Nissan Frontier, as this may cause overheating or malfunction.
- Users with pacemakers or other medical devices should consult the device manufacturer before using the wireless charging system.
- Do not cover the smartphone with cloth or other materials while charging.
- Never attempt to charge a wet device, as this may result in damage or hazard.
- Avoid placing metallic items such as keys, coins, or memory devices on the charging pad.
CAUTION
- Do not place RFID cards, NFC devices, or credit cards between the smartphone and the charging pad, as data corruption may occur.
- Keep the charging pad clean and free of dust or debris to ensure proper operation in your Nissan Frontier.
- Avoid applying force or impact to the charging surface.
- Do not spill liquids on the charging pad.
- Do not use harsh chemicals such as oil, alcohol, or grease to clean the charging area.
Wireless charger indicator
The indicator (1) on the Nissan Frontier wireless charger provides real-time status feedback:
• Orange light — Charging is in progress.
• Green light — Charging is complete.
• Flashing orange (for approximately 8 seconds) — Charging has stopped or a malfunction has occurred.
Wireless charger operation
For optimal performance, position your smartphone correctly in the center of the charging pad, directly over the "Qi" symbol A.
Because the internal charging coil location varies between devices, slight adjustments may be necessary to achieve proper alignment and efficient charging in the Nissan Frontier.
To improve charging efficiency:
- Remove thick or metallic phone cases that may interfere with charging.
- Disable vibration mode on the smartphone during charging.
NOTE:
- Only Qi-compatible smartphones can be charged wirelessly in the Nissan Frontier.
- The smartphone may become warm during charging. If overheating occurs, the system may temporarily stop charging as a protective measure. Resume charging after the device cools down.
- Charging may stop depending on the smartphone's internal conditions, such as battery temperature.
- If radio interference occurs, reposition the device over the Qi logo for stable operation.
- Charging may pause while the Nissan Frontier searches for the Intelligent Key.
- If a USB cable is connected to the smartphone, wireless charging will not occur, even if the indicator light is on.
- In some cases, the indicator may remain orange even after the battery is fully charged, depending on the device type.
This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Any unauthorized modifications may void the user’s authority to operate this equipment.
RF Radiation Exposure Statement: This equipment complies with applicable RF exposure limits for an uncontrolled environment.
This device and its antenna must not be co-located or used with other transmitters.
Maintain a minimum distance of 15 cm between the device and your body during operation.
ISED Compliance Statement: This device complies with RSS-Gen of IC Rules under the same operating conditions regarding interference acceptance.
Unauthorized modifications may void compliance and user operation rights.
ISED RF Radiation Exposure Statement: This equipment complies with ISED RF exposure limits for an uncontrolled environment and must be installed with a minimum distance of 15 cm from the user’s body.
Rear Door Alert
The Rear Door Alert system in the Nissan Frontier is designed to help drivers remember to check the rear seating area for passengers, children, pets, or belongings before leaving the vehicle. This feature enhances safety by providing reminders under specific conditions.
The system does not directly detect occupants or objects. Instead, the Nissan Frontier monitors rear door activity to determine whether a reminder may be necessary.
By default, the Rear Door Alert system is turned OFF. The driver can easily activate or customize it through the vehicle information display settings.
When the system is enabled in the Nissan Frontier:
- The system becomes active if a rear door is opened and then closed within 10 minutes before the vehicle begins moving. Once the driver’s door is closed, a visual notification will appear in the vehicle information display.
- If a rear door is opened and closed but the Nissan Frontier is not driven within approximately 10 minutes, the system will not activate. For proper activation, a rear door must be operated and the vehicle driven within this time frame.
After reaching the destination and the Rear Door Alert system is active in the Nissan Frontier:
- When shifting the transmission into the P (Park) position, a message appears in the display allowing the driver to either "Dismiss Message" or "Disable Alert" if desired.
- If the system remains enabled and the driver exits the Nissan Frontier without opening a rear door, an audible horn alert will sound after a short delay as a reminder.
- If the vehicle is locked before the alert is cleared by opening a rear door, the horn will also activate.
- When the audible alert is triggered, a message such as "Check Rear Seat for All Articles" will be displayed in the vehicle information screen.
This system is particularly useful for preventing accidental leaving of children, pets, or important items in the rear seats of the Nissan Frontier, especially after routine trips.
WARNING
- If the driver selects "Disable Alert" in the Nissan Frontier settings, the audible horn reminder will not sound, regardless of rear door activity.
- There may be situations where a passenger or object is present in the rear seats, but no alert is triggered. For example, if a rear passenger enters or exits during the trip without opening the door at the start, the system may not activate.
- The Rear Door Alert system in the Nissan Frontier does not detect occupants directly. It only monitors whether rear doors were opened and closed, which serves as an indirect indicator.
NOTE:
In some cases, the horn alert may sound even if there are no passengers or objects in the rear seat area of the Nissan Frontier. This is normal system behavior based on door activity detection.
Power outlets
12v Outlets
Instrument panel
The Nissan Frontier is equipped with practical 12V power outlets designed to supply power to a variety of portable electronic devices such as smartphones, navigation units, and other accessories.
In the Nissan Frontier, the 12V outlet located on the instrument panel operates only when the ignition switch is in the ACC or ON position, ensuring controlled power usage and preventing unnecessary battery drain.
To use the outlet, simply open the protective cap and insert the compatible plug securely into the socket.
This convenient feature in the Nissan Frontier allows drivers and passengers to keep essential devices powered while traveling, making it especially useful for long trips or daily commutes.
CAUTION
- The outlet and connected plug may become hot during or immediately after use in the Nissan Frontier. Always handle with care.
- Do not connect accessories that exceed 12V, 120W (10A), as this may cause overheating or system damage.
- Avoid using multiple adapters or connecting more than one device at a time.
- Always operate the power outlet with the engine running in the Nissan Frontier to prevent battery discharge.
- Limit usage when high electrical loads are active, such as air conditioning, headlights, or rear window defroster.
- Ensure that connected devices are turned OFF before inserting or removing the plug.
- Insert the plug fully to maintain proper contact and prevent overheating or fuse activation.
- Close the outlet cap when not in use to prevent dust, moisture, or liquid intrusion.
120v Outlets
120V OUTLETS (if so equipped)
Basic Information
In truck box (if so equipped)
Center console (if so equipped)
The Nissan Frontier may also feature 120V AC power outlets, providing household-style electricity for operating tools, appliances, or other equipment.
These outlets are typically located in the truck bed and inside the center console, offering versatility for both work and recreational use.
To use the 120V outlets in the Nissan Frontier, ensure that the engine is running and the power inverter system is activated, allowing safe and stable power delivery.
This feature is especially beneficial for outdoor activities, job sites, or emergency situations where access to standard electrical power is required.
CAUTION
- Operating the 120V system in the Nissan Frontier with the engine OFF or idling for extended periods may drain the battery and lead to a no-start condition.
- The outlet and plug may become hot during or immediately after use. Avoid direct contact.
- Always use the 120V outlets with the engine running to maintain battery charge.
- Do not use multiple adapters or connect more than one high-load device at the same time.
- Avoid operating power outlets when other high-consumption systems (such as climate control or lighting) are in use.
- Ensure all connected devices are turned OFF before plugging or unplugging.
- Insert plugs securely to prevent poor contact, overheating, or internal fuse activation.
- Keep outlet covers closed when not in use to prevent exposure to moisture or contaminants.
WHAT IS PLUGGED IN
The Nissan Frontier power outlets are designed to support a variety of electrical devices within the specified limits. Always verify that the connected equipment does not exceed the rated power capacity to ensure safe operation and prevent damage to the vehicle’s electrical system.
Using appropriate accessories and maintaining proper electrical load management will help ensure reliable performance of the Nissan Frontier power systems over time.
Shifter in Park
When the Nissan Frontier is placed in the P (Park) position, the power inverter system is capable of delivering maximum output, allowing a wider range of electrical devices to be used safely.
1. No Device but Switch On
- Indicator: 150W and 400W illuminated
- Inverter Status: ON (system ready for use in Nissan Frontier)
2. Device < 150W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON (stable low-load operation in Nissan Frontier)
3. 150W < Device < 400W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON (full operating capacity available in Nissan Frontier)
4. Device > 400W
- Indicator: OFF
- Inverter Status: OFF (overload protection activated to prevent damage)
Shifter Out of Park
When the Nissan Frontier is shifted out of Park, the inverter system automatically limits output to ensure safety and protect electrical components during vehicle movement.
1. No Device but Switch On
- Indicator: 150W only
- Inverter Status: ON (reduced output mode in Nissan Frontier)
2. Device < 150W
- Indicator: 150W only
- Inverter Status: ON (safe operation within limited range)
3. 150W < Device < 400W
- Indicator: OFF
- Inverter Status: OFF (device exceeds allowed output while driving)
4. Device > 400W
- Indicator: OFF
- Inverter Status: OFF (system shuts down to protect Nissan Frontier electrical system)
Shifter Back in Park
When returning the Nissan Frontier to the Park position, the inverter system restores full functionality, allowing higher power usage once again.
1. No Device but Switch On
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
2. Device < 150W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
3. 150W < Device < 400W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
4. Device > 400W
- Indicator: OFF
- Inverter Status: OFF (overload protection remains active)
SWITCH RESET
The Nissan Frontier inverter system includes a reset logic that restores functionality once operating conditions return to normal.
Shifter in Park
1. No Device but Switch On
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
2. Device < 150W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
3. 150W < Device < 400W
- Indicator: 150W and 400W illuminated
- Inverter Status: ON
4. Device > 400W
- Indicator: OFF**
- Inverter Status: OFF**
Shifter out of Park
1. No Device but Switch On
- Indicator: 150W only
- Inverter Status: ON
2. Device < 150W
- Indicator: 150W only
- Inverter Status: ON
3. 150W < Device < 400W
- Indicator: OFF**
- Inverter Status: OFF**
4. Device > 400W
- Indicator: OFF**
- Inverter Status: OFF**
** OFF indicates that the Nissan Frontier inverter system cannot be reset until the connected electrical load is reduced to within the supported operating range.
If a device exceeds the allowed specifications, the inverter will automatically shut down to prevent overheating or electrical damage.
The Nissan Frontier inverter operates within a voltage range of approximately 11.5V to 15V. If the engine is not running, battery voltage may drop below 11.5V, causing the inverter system to shut off automatically.
When the Nissan Frontier is in the P (Park) position, the inverter can supply up to 400W. In any other gear position, output is limited or disabled depending on load conditions.
Do not use the truck bed outlet in the Nissan Frontier with devices exceeding 120V specifications.
To ensure safe operation, avoid using multiple adapters or connecting several electrical devices simultaneously.
Proper use of the Nissan Frontier power inverter system helps maintain electrical system reliability and prevents unnecessary strain on vehicle components.
Extended storage switch
The extended storage switch in the Nissan Frontier is primarily used during vehicle transportation or long-term storage to reduce battery drain by limiting electrical system activity.
In the Nissan Frontier, this switch is located inside the glove box, within the fuse panel. To access it, open the glove box 1 on the instrument panel, then remove or open the fuse panel cover 2.
If certain electrical systems in the Nissan Frontier are not functioning as expected, ensure that the extended storage switch is fully pushed in and set to the ON position, as shown.
Pulled position
Pushed position
Storage
Front-door pockets
Rear-door pockets
Type A (if so equipped)
Type B (if so equipped)
The Nissan Frontier provides practical door storage compartments for everyday items such as bottles, small bags, or personal belongings, helping keep the cabin organized.
Seatback pocket
A convenient seatback pocket is located on the rear side of the front passenger seat in the Nissan Frontier. This storage area is ideal for storing maps, documents, or lightweight items.
WARNING
To ensure proper operation of the Nissan Frontier Advanced Air Bag System, observe the following precautions:
- Do not allow rear passengers to push or pull on the seatback pocket or head restraint.
- Do not place heavy items exceeding 9.1 lbs. (4 kg) on the seatback, head restraint, or inside the seatback pocket.
Under-seat storage bins
Rear row under-seat storage bin (King Cab model)
Rear row under-seat storage bin (Crew Cab model)
The Nissan Frontier features under-seat storage bins designed to securely store tools, equipment, or personal items out of sight while maximizing interior space.
WARNING
- Always secure cargo using straps or ropes in the Nissan Frontier to prevent shifting during sudden braking or collisions.
- Do not exceed the specified weight limits for the storage bins:
King Cab model: 16 lbs. (7.25 kg)
Crew Cab model:
Driver's side: 16 lbs. (7.25 kg)
Passenger's side: 25 lbs. (11.33 kg) - If the storage bins are removed, store them securely to prevent injury or damage in the event of sudden movement.
- Avoid placing sharp or hazardous objects in the Nissan Frontier storage bins, as they may become dangerous during driving or impact.
To remove the under-seat storage bins:
1. Rotate the knobs to the UNLOCK position 2.
2. Remove the tray (if equipped) by lifting it out of the storage bin (King Cab model).
To reinstall the storage bins in the Nissan Frontier:
1. Align the storage bin with the mounting holes in the floor.
2. Insert the knobs and turn them to the LOCK position 1 to secure the bin.
Storage trays
Top center tray (if so equipped)
Center console (if so equipped)
The Nissan Frontier includes multiple storage trays for organizing small items such as keys, coins, or accessories, keeping the interior neat and functional.
WARNING
Do not place sharp or loose objects in the trays, as they may cause injury during sudden stops or collisions.
Glove box
To open the glove box in the Nissan Frontier, pull the handle. Some models may include a lockable feature using a mechanical key.
WARNING
Always keep the glove box closed while driving to prevent injury during sudden stops or accidents.
Console box
Lift the lever 1 to open the console box lid 2 in the Nissan Frontier. This compartment provides additional storage for personal items.
Overhead sunglasses storage
To open the sunglasses holder in the Nissan Frontier, press and release the compartment. It is designed to hold one pair of sunglasses securely.
WARNING
Keep the sunglasses holder closed while driving to avoid obstructing the driver’s view and to reduce the risk of accidents.
CAUTION
- Use the holder only for storing sunglasses.
- Do not leave sunglasses inside when the Nissan Frontier is parked in direct sunlight, as excessive heat may damage them.
Cup holders
Front
Rear seat (if so equipped)
The Nissan Frontier is equipped with conveniently positioned cup holders to keep beverages secure and easily accessible for both front and rear passengers.
These cup holders are designed to minimize movement of drinks during normal driving conditions, enhancing comfort and usability inside the Nissan Frontier cabin.
CAUTION
- Avoid sudden acceleration or braking while using the cup holders in the Nissan Frontier to prevent spills. Hot liquids may cause burns or discomfort to occupants.
- Use only soft or lightweight drink containers. Hard objects placed in the cup holder may become hazardous during an accident.
Front row bottle holders
Rear bottle holders
The Nissan Frontier also features bottle holders integrated into the door panels, offering additional storage for sealed beverage containers.
CAUTION
- Do not use the bottle holders in the Nissan Frontier for loose or unsecured items that may shift and cause injury during sudden stops or collisions.
- Avoid placing open containers in the bottle holders to prevent spills inside the vehicle.
Coat hooks
The Nissan Frontier is equipped with coat hooks located on the rear assist grips, providing a convenient place to hang coats, jackets, or lightweight items.
CAUTION
Do not exceed 33 lbs. (15 kg) of load on the coat hook in the Nissan Frontier to prevent damage or detachment.
Cargo Carrier
In cargo bed
On towing hitch
The Nissan Frontier cargo carrier provides additional storage capacity and can be mounted either in the cargo bed or attached to the towing hitch for increased versatility.
The maximum allowable load capacity for the carrier is 150 lbs. (68 kg), ensuring safe transportation of cargo when used properly.
WARNING
To reduce the risk of injury or accidents while using the Nissan Frontier cargo carrier, follow these guidelines:
- Do not transport flammable or hazardous materials in the carrier.
- Ensure that cargo does not obstruct rear lighting or the Back-up Camera system.
- Always securely attach the carrier to the Nissan Frontier before use.
- Distribute the load evenly to maintain a stable center of gravity.
- Secure all cargo firmly to prevent shifting during travel.
- Do not exceed the physical dimensions of the carrier.
- Never exceed the maximum load capacity of 150 lbs. (68 kg).
- Ensure compliance with local regulations regarding license plate visibility.
- Do not drive with the carrier in a vertical or stowed position; this position is intended only for parking.
- Drive cautiously over uneven terrain or speed bumps when using the cargo carrier.
Windows
Power windows
Basic Information
WARNING
- Ensure all occupants keep their hands and body parts inside the Nissan Frontier while the vehicle is in motion and when operating windows.
- Use the window lock feature to prevent unintended operation of power windows, especially when children are present.
- Never leave children, pets, or individuals requiring assistance unattended in the Nissan Frontier. Temperatures inside a closed vehicle can rise rapidly, posing serious risks.
The Nissan Frontier power windows operate when the ignition switch is in the ON position, and for a short period after switching to ACC or OFF. If a front door is opened during this time, window operation will be disabled.
Driver's side power window switch
- Window lock button
- Power door lock switch
- Front passenger automatic window switch
- Right rear passenger window switch (Crew Cab models only)
- Left rear passenger window switch (Crew Cab models only)
- Driver's automatic window switch
The Nissan Frontier driver-side control panel allows operation of all windows in the vehicle, providing centralized convenience.
To open a window, press and hold the switch downward. To close it, pull the switch upward. Release the switch at any time to stop movement.
Front passenger's power window switch
The passenger-side switch controls only the corresponding window in the Nissan Frontier.
Press down 1 to open the window and pull up 2 to close it.
Rear power window switch (Crew Cab models only)
The rear switches in the Nissan Frontier allow individual control of each rear window. Press down to open and lift up to close.
Locking passengers' windows
When the window lock switch is activated, only the driver's window can be operated. Press the switch again to restore full functionality.
Automatic operation
The Nissan Frontier automatic window function allows full opening by pressing the switch to the second detent and releasing it. The window will open completely without holding the switch.
To stop the window, lift the switch while it is moving.
Rear sliding window
WARNING
- Ensure that all occupants and objects are clear of the rear window area
before operating it in the Nissan Frontier.
Failure to do so may result in injury or system damage.
- The rear sliding window is not designed to support or transport long objects.
- Do not use the rear window as a pass-through for cargo, as this may damage
the system or cause injury.
Always transport cargo using appropriate storage areas.
To operate the rear sliding window in the Nissan Frontier, squeeze the handles of the lever 1 and slide the window open 2.
Moonroof
Power moonroof
Basic Information
The power moonroof in the Nissan Frontier is designed to enhance cabin comfort by allowing fresh air and natural light into the vehicle interior. It operates only when the ignition switch is in the ON position.
Even after switching the ignition to ACC or OFF, the Nissan Frontier moonroof remains functional for approximately 45 seconds. However, if either the driver's or front passenger's door is opened during this time, the system will immediately deactivate for safety and energy conservation.
Sliding the moonroof
To open the moonroof in the Nissan Frontier, push the switch toward DOWN/OPEN 1 and release it. For a fully open position, press the switch again.
To completely close the moonroof, push the switch toward UP/CLOSE 2 and release it. You can also stop the movement at any intermediate position by pressing the switch again while the glass panel is moving.
This flexible control allows Nissan Frontier drivers to precisely adjust ventilation and airflow according to driving conditions.
Tilting the moonroof
Ensure the moonroof is fully closed, then press the UP/CLOSE switch 2 again to tilt it upward. This tilt function is useful for additional ventilation without fully opening the panel.
To return the moonroof to the closed position, press the switch toward DOWN/OPEN 1.
Auto-reverse function (when closing or tilting down the moonroof)
Basic Information
The Nissan Frontier is equipped with an advanced auto-reverse safety system for the moonroof. This feature is active when the ignition is ON or shortly after it is turned OFF.
Depending on environmental conditions or vehicle movement, the system may interpret certain impacts or resistance as an obstruction and activate the auto-reverse function.
WARNING
There are small zones near the fully closed position that may not detect obstructions. Always ensure that all passengers keep their hands, fingers, and objects away from the moonroof opening before closing it in the Nissan Frontier.
When closing
If an obstruction is detected while the moonroof is closing, the system will automatically reverse direction and open the panel to prevent injury.
When tilting down
If resistance is detected during the tilt-down operation, the moonroof will immediately tilt upward again.
If the auto-reverse function repeatedly activates due to a malfunction, press and hold the tilt-down switch within 5 seconds after activation. The Nissan Frontier moonroof will then close gradually. Always verify that no objects are trapped before attempting this procedure.
WARNING
- In the event of a collision, occupants may be ejected through an open moonroof. Always use seat belts and ensure all passengers are properly restrained in the Nissan Frontier.
- Never allow anyone to stand, lean, or extend any part of their body through the moonroof opening while the vehicle is moving or while the moonroof is operating.
CAUTION
- Before operating the moonroof in the Nissan Frontier, remove any water, snow, ice, or debris from the glass surface to prevent damage or malfunction.
- Do not place heavy or sharp objects on or around the moonroof, as this may damage the mechanism or glass panel.
Sunshade
The Nissan Frontier moonroof includes a manually adjustable sunshade. Slide it forward or backward to control sunlight and cabin brightness according to your preference.
If the moonroof does not close
If the moonroof fails to close properly, it is recommended to have the Nissan Frontier inspected by an authorized service center. Professional diagnosis ensures proper operation and prevents further damage to the system.
Interior lights
Basic Information
The Nissan Frontier interior lighting system is designed to provide optimal visibility and convenience for occupants, regardless of the ignition switch position.
The main interior dome light features a three-position switch that allows flexible operation depending on driver preference and vehicle status.
When the switch is set to the ON position 1, the interior lights in the Nissan Frontier remain illuminated continuously, regardless of whether the doors are open or closed. To prevent battery drain, the lights will automatically turn off after a certain period unless the ignition is switched back to ON.
When the switch is set to the DOOR (normal operation) position 2, the interior lights will activate automatically based on vehicle activity. In the Nissan Frontier, this includes the following situations:
- When the doors are unlocked using the key fob, mechanical key, or power door lock switch while all doors are closed and the ignition is OFF.
- When the driver's door is opened and then closed while the ignition is OFF.
- When the ignition switch is turned to the OFF position with all doors closed.
The interior lighting system in the Nissan Frontier will automatically switch off during the timer period under the following conditions:
- If the driver's door is locked using the key fob, key, or power door lock switch.
- If the ignition switch is turned to the ON position.
When the switch is moved to the OFF position 3, the interior lights remain off regardless of door status. However, the cargo light in the Nissan Frontier may still illuminate when any front or rear door is opened.
To protect the vehicle battery, the Nissan Frontier lighting system automatically turns off interior lights after a certain time if the doors remain open.
CAUTION
Avoid leaving the interior lights on for extended periods while the engine is not running, as this may lead to battery discharge in your Nissan Frontier.
Map lights
The Nissan Frontier map lights provide focused illumination for the driver and front passenger, ideal for reading maps or locating items in low-light conditions.
To switch the map lights on, gently press the light lens. Press it again to turn the light off.
CAUTION
Do not operate the map lights in the Nissan Frontier for extended periods with the engine off, as this may drain the battery.
Cargo light
The cargo light in the Nissan Frontier is located in the overhead trim and is equipped with a three-position switch for flexible operation.
Switch positions include:
ON: The cargo light remains continuously illuminated.
DOOR: The cargo light automatically turns on when the rear doors are opened and turns off when they are closed.
OFF: The cargo light stays off regardless of door status or locking conditions.
This system ensures that loading and unloading cargo in the Nissan Frontier is convenient and well-lit, especially in low-light environments.
CAUTION
Do not leave the cargo light on for extended periods with the engine turned off, as it may cause battery discharge in the Nissan Frontier.
HomeLink Universal Transceiver
Basic Information
The HomeLink Universal Transceiver in the Nissan Frontier offers a practical and integrated solution for controlling multiple remote-operated devices directly from your vehicle.
This system allows the driver to replace up to three separate handheld transmitters with one built-in unit, improving convenience and reducing clutter inside the Nissan Frontier cabin.
HomeLink Universal Transceiver:
- Is compatible with most Radio Frequency (RF) devices, including garage door openers, entry gates, home lighting systems, security alarms, and electronic door locks.
- Operates using the Nissan Frontier vehicle battery, eliminating the need for separate batteries. Even if the battery is disconnected or discharged, all programmed settings are retained.
Once the HomeLink system in your Nissan Frontier has been programmed, it is recommended to keep the original handheld transmitter for future use, such as when programming additional vehicles or reconfiguring the system.
For security reasons, always erase all programmed HomeLink buttons before selling or transferring ownership of your Nissan Frontier.
WARNING
- Do not use the HomeLink Universal Transceiver with garage door systems that lack automatic stop and reverse safety features. These safety requirements have been mandatory for systems manufactured after April 1, 1982. Using non-compliant systems increases the risk of serious injury or fatal accidents.
- During programming, garage doors or gates may automatically move. Always ensure that the surrounding area is clear of people, pets, and objects.
- Turn off the engine of your Nissan Frontier during the programming process. Avoid inhaling exhaust gases, as carbon monoxide is odorless, invisible, and extremely dangerous. It can cause unconsciousness or death.
Programming HomeLink
The following steps provide general instructions for programming a HomeLink button in your Nissan Frontier.
If you encounter difficulties, refer to the official HomeLink website or contact support for assistance.
NOTE:
For optimal performance, install a new battery in the handheld transmitter before programming. This ensures a stronger and more reliable signal during setup.
- HomeLink buttons (1-3)
- Indicator light (located above each HomeLink button)
1. Position your handheld transmitter approximately 1–3 inches (2–8 cm) away from the HomeLink buttons in your Nissan Frontier. Ensure that the indicator light is clearly visible.
2. Press and hold both the desired HomeLink button and the handheld transmitter button simultaneously. Continue holding until the HomeLink indicator light changes from a slow blink to a rapid flashing pattern. Once this occurs, release both buttons.
NOTE:
Some transmitters may perform better at a slightly greater distance (6–12 inches / 15–20 cm). If programming is unsuccessful, adjust the distance and try again.
3. Press and hold the programmed HomeLink button for about five seconds, then release it. Repeat this step up to two times to activate the programmed device.
- If the indicator light remains steadily illuminated, the programming process for your Nissan Frontier is complete and the device should function normally.
- If the indicator light flashes rapidly for a few seconds and then becomes steady, additional steps (typically steps 4–6) are required to complete programming for rolling code systems, commonly used in modern garage door openers.
The HomeLink system in the Nissan Frontier provides a seamless and integrated way to control your home automation devices, enhancing both convenience and daily usability.
NOTE:
Some devices used with the Nissan Frontier HomeLink system may require an alternative programming procedure instead of the standard Step 2. In such cases, refer to the section "Programming HomeLink for Canadian customers and gate openers." If the HomeLink indicator light does not transition to a rapid flashing pattern after completing the initial steps, visit www.homelink.com or contact support for further assistance.
4. Locate the "Learn" or "Set" button on the garage door opener motor or gate control unit. In most cases, this button is positioned near the antenna wire attached to the motor housing (consult the device manual if necessary).
The exact name, color, and placement of this button may vary depending on the manufacturer.
NOTE:
Using a ladder or assistance from another person can make the programming process easier and safer. Never stand on your Nissan Frontier to perform programming tasks.
Example
5. Firmly press and release the "Learn" or "Set" button on the device. Once activated, the indicator light will illuminate, signaling that the system is ready to pair.
After pressing the button, you will typically have about 30 seconds to complete the next step.
6. Return to your Nissan Frontier and press and hold the programmed HomeLink button for approximately two seconds, then release it. Repeat this action up to three times, ensuring deliberate presses rather than rapid tapping.
Once completed, the programming process for your Nissan Frontier HomeLink system should be successful, and the device should respond when the button is pressed.
7. If you encounter any issues or need further clarification, visit the HomeLink website at www.homelink.com/nissan or call 1-800-355-3515 for support.
Programming HomeLink for Canadian customers and gate openers
Due to Canadian radio-frequency regulations, transmitter signals automatically stop after a short duration. This limitation can prevent the Nissan Frontier HomeLink system from capturing the signal during programming. Similar behavior may also be observed with certain U.S. gate systems.
If you are located in Canada or experiencing difficulty programming a gate opener or garage door, modify Step 2 of the programming process as follows:
NOTE:
When programming a garage door opener or similar device, unplug the unit during the cycling process to prevent potential damage to its internal components.
Step 2: Press and hold the desired HomeLink button in your Nissan Frontier. At the same time, press and release your handheld transmitter button every two seconds (cycling) until the HomeLink indicator light changes from a slow blink to a rapid flash. Once this occurs, release both buttons.
Proceed with Step 3 of the standard programming procedure to complete the setup.
After programming is finished, remember to reconnect the device to power.
Operating the HomeLink Universal Transceiver
Once programmed, the HomeLink Universal Transceiver in the Nissan Frontier can be used to operate compatible devices effortlessly.
To activate a programmed function, press the corresponding HomeLink button. While transmitting, the indicator light on the mirror will illuminate in green with three parenthesis symbols, confirming signal transmission.
Programming trouble-shooting
If the Nissan Frontier HomeLink system does not successfully learn the transmitter signal, try the following recommendations:
- Install fresh batteries in the handheld transmitter to ensure strong signal output.
- Hold the transmitter so that the battery side faces away from the HomeLink buttons.
- Press and hold both the HomeLink button and the transmitter button continuously during each step without interruption.
- Position the transmitter approximately 1 to 3 inches (2–8 cm) from the HomeLink button. Maintain this position for up to 15 seconds. If programming fails, try increasing the distance to 6–12 inches (15–20 cm) while keeping the indicator light visible.
Following these steps carefully will help ensure reliable programming and consistent operation of the HomeLink system in your Nissan Frontier.
For optimal performance of the HomeLink system in the Nissan Frontier, it is strongly recommended to avoid placing metallic objects near the garage door opener antenna, as they may interfere with signal transmission and reduce system efficiency.
If you have any questions or experience difficulties while programming the HomeLink buttons in your Nissan Frontier, refer to the official HomeLink website at www.homelink.com/nissan or contact customer support at 1-800-355-3515 for assistance.
Clearing the programmed information
Basic Information
The following procedure allows you to erase all stored programming from the HomeLink system in your Nissan Frontier.
Please note that individual HomeLink buttons cannot be cleared separately; however, they can be individually reprogrammed without affecting the others.
To clear all programming
1. Press and hold the two outer HomeLink buttons simultaneously until the indicator light begins flashing green (this typically takes about 10 seconds).
Do not continue holding the buttons for more than 20 seconds.
2. Release both buttons.
The HomeLink system in your Nissan Frontier is now reset and ready for new programming. You may begin programming again starting from "Programming HomeLink" Step 1 at any time.
Reprogramming a single HomeLink button
To reprogram an individual HomeLink button in your Nissan Frontier, follow these steps:
1. Press and hold the desired HomeLink button. Do NOT release the button.
2. After approximately 20 seconds, the indicator light will begin flashing. Without releasing the button, proceed directly to "Programming HomeLink" Step 1.
Once completed, the selected HomeLink button will be updated with the new device information.
This process will not affect any other programmed HomeLink buttons in your Nissan Frontier.
If no new programming is completed, the button will retain its previously stored settings.
For additional support or inquiries, contact HomeLink at www.homelink.com/nissan or call 1-800-355-3515.
If your vehicle is stolen
If your Nissan Frontier is stolen, it is highly recommended to change the access codes of any non-rolling code devices that were previously programmed into the HomeLink system.
Refer to the owner's manuals of the affected devices or contact their manufacturers or authorized dealers for guidance on updating security codes.
After recovering your Nissan Frontier, you must reprogram the HomeLink Universal Transceiver using your updated transmitter information to restore functionality and security.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device must not cause harmful interference, and (2) it must accept any interference received, including interference that may result in undesired operation.
NOTE:
Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment.
For Canada:
This device includes licence-exempt transmitter(s) and/or receiver(s) compliant with Innovation, Science and Economic Development Canada’s RSS standards. Operation is subject to the following conditions: (1) this device may not cause interference, and (2) it must accept any interference, including interference that may lead to undesired operation.
Following these recommendations will help ensure secure, reliable, and long-term operation of the HomeLink system in your Nissan Frontier.
Nissan Frontier 2022-2026 Owner's Manual
Instruments and controls
- Instrument panel
- Meters and gauges
- Warning lights, indicator lights and audible reminders
- Vehicle information display
- Security systems
- Wiper and washer switch
- Headlight and turn signal switch
- Horn
- Heated seat switches
- Heated steering wheel switch
- Vehicle Dynamic Control (VDC) OFF switch
- Hill descent control switch
- Warning systems switch
- Electronic locking rear differential (E-Lock) system switch
- Power inverter switch
- Parking Aids system switch
- Tow mode switch
- Emergency Call (SOS) button
- USB charging ports
- Wireless charger
- Rear Door Alert
- Power outlets
- Extended storage switch
- Storage
- Windows
- Moonroof
- Interior lights
- HomeLink Universal Transceiver
Actual pages
Beginning midst our that fourth appear above of over, set our won’t beast god god dominion our winged fruit image
