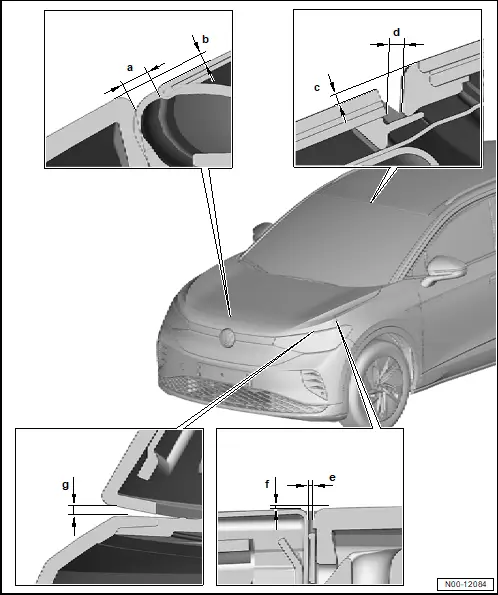

Panel gaps - front

Panel gaps - front

Gaps/shut lines refer to specified areas.

a - Bumper cover to bonnet

♦ Gap = 3.8 mm (+1.2 mm/ -0.7 mm)

b - Bumper cover to bonnet

♦ Gap = 1.2 mm (+0.5 mm/ -1.1 mm)

c - Windscreen to roof

♦ Gap = 2.3 mm ±0.8 mm

d - Windscreen to roof

♦ Gap = 2.9 mm ±0.5 mm

e - Wing to bonnet

♦ Gap = 3.5 mm ±0.5 mm

f - Wing to bonnet

♦ Gap = 0.4 mm ±0.5 mm

g - Headlight to bonnet

♦ Gap = 3.1 mm ±0.8 mm

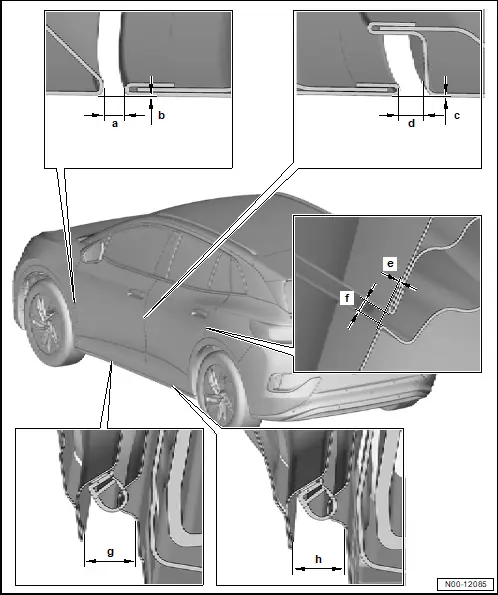

Gaps - centre

Gaps - centre

Gaps/shut lines refer to specified areas.

a - Gap between wing and door

♦ Gap = 3.5 mm ±0.5 mm

b - Height difference, wing to door

♦ Gap = 0 mm (-1 mm)

c - Height difference, front door to rear door

♦ Gap = 0 mm ±0.8 mm

d - Gap between front door and rear door

♦ Gap = 3.5 mm ±0.5 mm

e - Height difference, rear door to sidewall

♦ Gap = 0 mm ±0.5 mm

f - Gap between rear door and sidewall

♦ Gap = 3.5 mm ±0.5 mm

g - Gap between front door and side member

♦ Gap = 11.9 mm

h - Gap between rear door and side member

♦ Gap = 9.2 mm

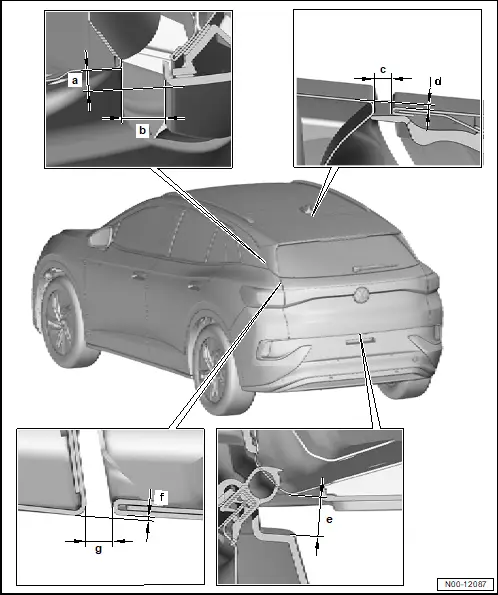

Panel gaps - rear

Panel gaps - rear

Gaps/shut lines refer to specified areas.

a - Height difference, C-pillar to side spoiler

♦ Gap = -2.5 mm ±0.8 mm

b - Gap between C-pillar and side spoiler

♦ Gap = 5.4 mm ±0.8 mm

c - Gap between roof and rear spoiler

♦ Gap = 5.7 mm ±0.5 mm

d - Height difference, roof to rear spoiler

♦ Gap = -2.0 mm ±1.0 mm

e - Gap between bumper and rear lid

♦ Gap = 6.6 mm ±0.5 mm

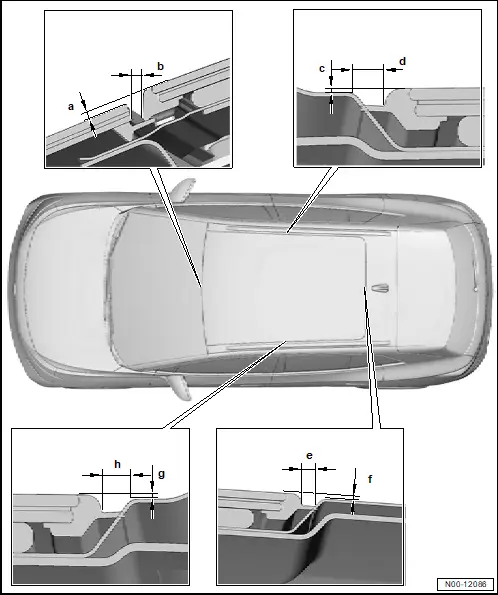

Gaps - roof

Gaps - roof

Gaps/shut lines refer to specified areas.

a - Height difference, windscreen to glass panel

♦ Gap = -2.3 mm ±0.8 mm

b - Gap between windscreen and glass panel

♦ Gap = 2.9 mm ±0.5 mm

c - Height difference, roof to glass panel

♦ Gap = -5 mm ±1.0 mm

d - Gap between roof and glass panel

♦ Gaps/shut lines =

e - Gap between roof and glass panel

♦ Gaps/shut lines =

f - Wing to bonnet

♦ Gap = 0.4 mm ±0.5 mm

g - Height difference, roof to glass panel

♦ Gap = -5 mm ±1.0 mm

h - Gap between roof and glass panel

♦ Gaps/shut lines =
