Volkswagen ID.3: Illustrated index

View from the front

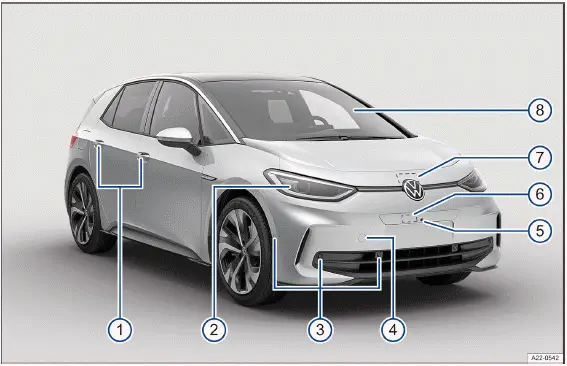

Volkswagen ID.3. Fig. 1 Overview of vehicle from the front.
Fig. 1 Overview of vehicle from the front.

  1. Door handles

  2. ID 3 Headlights

  3. Sensors for assistance systems

  4. Behind a cover: mount for towing eye

  5. Camera for assistance systems

  6. Behind a cover: Radar sensor for assistance systems

  7. Opening lever for the hood with the hood space underneath

  8. Volkswagen ID3 Windshield:

  • With VIN

  • With windshield wipers

  • With camera for assistance systems in the interior rearview mirror area

  • With rain/light sensor in the interior rearview mirror area

Rear view

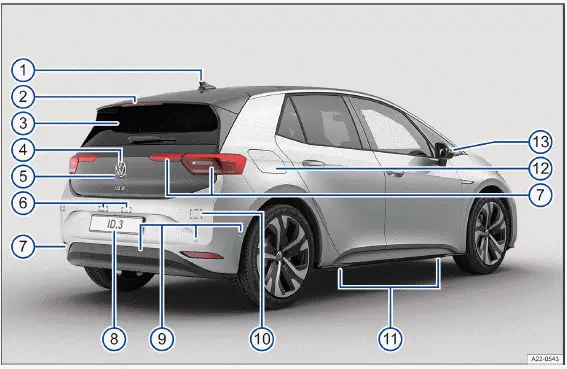

Volkswagen ID.3. Fig. 1 Rear vehicle overview.
Fig. 1 Rear vehicle overview.

  1. Roof antenna

  2. High-mounted brake light

  3. ID.3 Rear window:

  • With rear window defroster

  • With rear window wiper

  • With window antenna

  1. Volkswagen emblem for opening the trunk lid

  2. Volkswagen ID.3 Parking systems camera area

  3. Number plate light

  4. Taillights and reflectors

  5. Behind the license plate holder, which can be folded up: Bicycle rack mount

  6. Sensors for assistance systems

  7. Behind the bumper: radar sensor for assistance systems

  8. Mounting points for the vehicle jack

  9. Charging socket flap

  10. Volkswagen ID3 Outside mirrors

  • with Lane Change System (Side Assist) display

Driver door

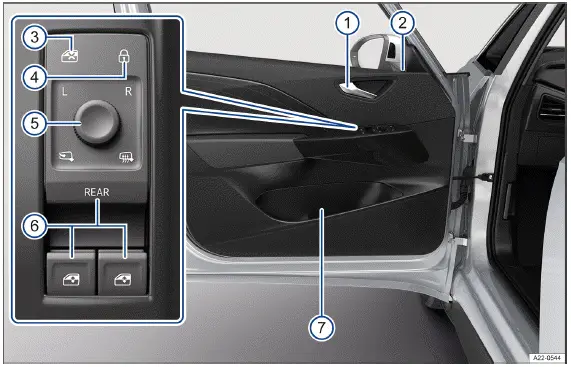

Volkswagen ID.3. Fig. 1 Driver door (left-hand drive vehicle): controls (right-hand drive vehicles are a mirror image).
Fig. 1 Driver door (left-hand drive vehicle): controls (right-hand drive vehicles are a mirror image).

  1. Volkswagen ID.3 Door handle

  2. Central locking indicator light

  3. Control panel for deactivating the rear power window switches

  4. Control panel for locking and unlocking the vehicle

  5. Knob for outside mirror positions and functions

  6. Buttons for operating the power windows

  7. ID.3 Storage compartment

  • With cup holder

  • With storage option for a reflective vest

Driver side

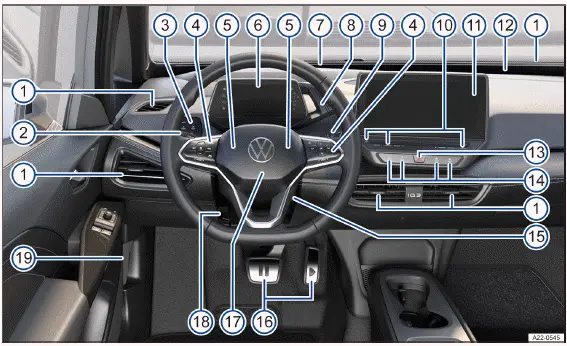

Volkswagen ID.3. Fig. 1 Driver side overview (left-hand drive vehicle).
Fig. 1 Driver side overview (left-hand drive vehicle).

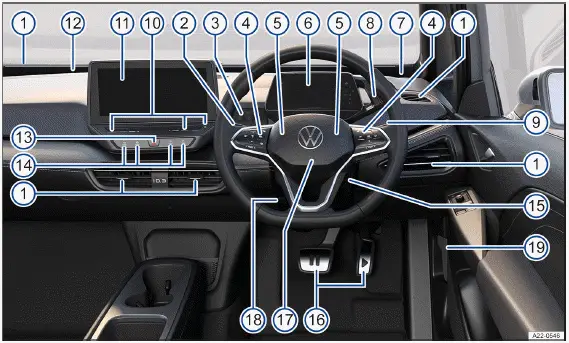

Volkswagen ID.3. Fig. 2 Driver side overview (right-hand drive vehicle).
Fig. 2 Driver side overview (right-hand drive vehicle).

  1. Vents

  2. Turn signal and high beam lever

  3. Volkswagen ID.3 Controls

  • For light functions

  • For window heating and ventilation

  1. Multi-function steering wheel controls

  • For driver assistance systems

  • For audio, navigation

  • For adjusting the volume

  • For voice operation activation (may not function depending on the equipment)

  • For switching between the ID. cockpit views

  1. ID.3 Horn

  2. ID. Cockpit

  • With warning and indicator lights and gear selector

  1. Head-up display

  2. Driving mode selector

  • With electronic parking brake button

  1. Volkswagen ID3 Windshield wiper/washer lever

  2. Controls

  • For switching the Infotainment system on and off

  • For the temperature setting of the air conditioner or the heating and fresh air system

  • For adjusting the volume

  1. Infotainment system

  2. ID. Light

  3. Control for switching the emergency flashers on or off

  4. Controls

  • For the air conditioning system, heating and fresh air system

  • for Driving Mode Selection

  • For driver assistance systems

  • For parking and maneuvering assist systems

  1. Starter button

  2. ID3 Pedals

  3. Installation location of driver's front airbag

  4. Lever for adjusting the steering wheel position

  5. Hood release lever

Center console

Volkswagen ID.3. Fig. 1 Overview of the lower section of the center console
Fig. 1 Overview of the lower section of the center console

  1. Storage compartment

  2. Volkswagen ID.3 Storage compartment

  • With cup holder

  • With area for vehicle keys during an emergency start

  1. Storage compartment

  2. ID.3 Storage compartment

  • with phone interface

  • With functionality for wireless charging in accordance with Qi

  1. Under a cover: Storage compartment

  • with USB sockets with charge function for external device rechargeable batteries

Passenger's side

Volkswagen ID.3. Fig. 1 Front passenger side (left-hand drive vehicle): Instrument panel overview (right-hand drive vehicle is the mirror image).
Fig. 1 Front passenger side (left-hand drive vehicle): Instrument panel overview (right-hand drive vehicle is the mirror image).

Volkswagen ID.3. Fig. 2 When the front passenger door is open (left-hand drive vehicle): Key switch in the instrument panel (righthand drive vehicle is mirror image).
Fig. 2 When the front passenger door is open (left-hand drive vehicle): Key switch in the instrument panel (righthand drive vehicle is mirror image).

  1. Installation location of the front passenger's airbag in the instrument panel

  2. Volkswagen ID.3 Vents

  3. Glove compartment:

  • With a button for opening

  1. Key switch for deactivating the front passenger's front airbag

Controls and displays in the headliner

Symbol - Meaning

- Controls for interior/reading lights .

- Touch panel for sunshade in the tilting and sliding panoramic sunroof

- Buttons for Emergency Call, Information Call and Roadside Assistance Call .

- Indicator light for front passenger's front airbag deactivation .
