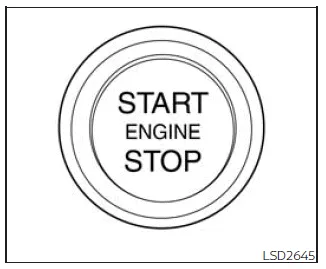

• Push-button ignition switch
• Starting the engine
• Driving the vehicle
• Parking brake

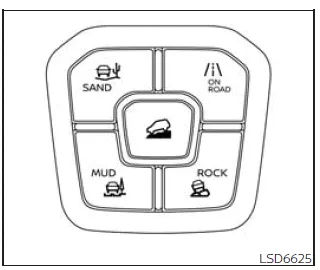

• Terrain Mode Selector

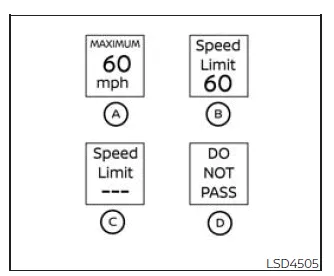

• Traffic Sign Recognition (TSR)
• Lane Departure Warning (LDW)

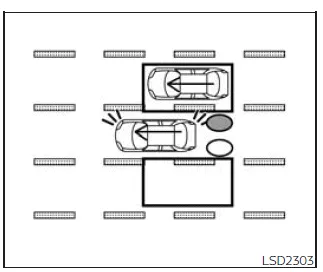

• Blind Spot Warning (BSW)

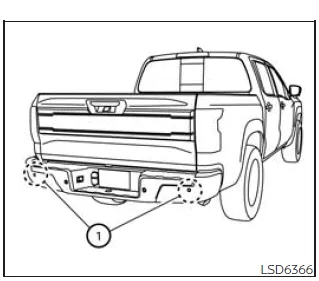

• Rear Cross Traffic Alert (RCTA)
• Intelligent Cruise Control (ICC)
• Rear Automatic Braking (RAB)
• Automatic Emergency Braking (AEB) with Pedestrian Detection

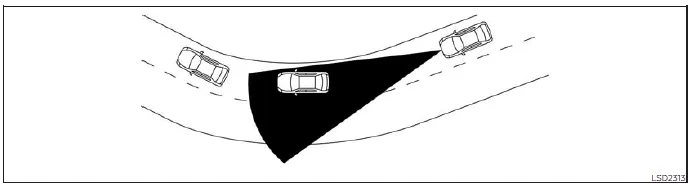

• Intelligent Forward Collision Warning (I-FCW)
• Intelligent Driver Alertness (I-DA)
• Break-in schedule
• Using 4-Wheel Drive (4WD)
• Electronic locking rear differential (E-Lock) system
• Parking/parking on hills
• Brake system
• Active Brake Limited Slip (ABLS) system
• Vehicle Dynamic Control (VDC) system
• Hill descent control system
• Hill start assist system
• Rear Sonar System (RSS)
• Idling Stop System
• Cold weather driving

Precautions when starting and driving

Basic Information

WARNING

• Never leave children, elderly passengers, or individuals requiring assistance unattended inside your Nissan Frontier.

  Pets must also never be left alone in the vehicle.

  Unsupervised occupants may accidentally operate controls or place themselves and others at risk. Additionally, during hot or sunny conditions, the interior temperature of a closed Nissan Frontier can rise rapidly, potentially leading to heatstroke, serious injury, or even fatal consequences for both people and animals.

• Always secure cargo properly using appropriate ropes, straps, or fastening systems when transporting items in your Nissan Frontier. Avoid stacking cargo above the seatback height.

  In the event of sudden braking, sharp maneuvers, or a collision, unsecured cargo may shift, creating a significant risk of injury to vehicle occupants.

Exhaust gas (carbon monoxide)

WARNING

• Do not inhale exhaust gases under any circumstances. Exhaust fumes contain carbon monoxide, a colorless, odorless, and highly toxic gas that can cause unconsciousness or death within a short period.
• If you suspect that exhaust fumes are entering the cabin of your Nissan Frontier, immediately open all windows fully and have the vehicle inspected by a qualified technician without delay.
• Never operate the engine of your Nissan Frontier in enclosed or poorly ventilated areas such as garages or confined spaces.
• Avoid leaving the engine running for extended periods while the vehicle is stationary, as this increases the risk of exhaust gas accumulation.
• Ensure that rear vents, doors, tailgate, and any cargo openings are securely closed while driving your Nissan Frontier to prevent exhaust gases from entering the passenger compartment.

  If it is necessary to drive with any of these openings partially open, take the following precautions to maintain proper ventilation:

  1. Open all windows to allow fresh air circulation.
  2. Set the air recirculation function to OFF and adjust the fan speed to a high setting to ensure continuous airflow through the cabin.
• If electrical wiring, towing cables, or additional equipment must pass through body seals (such as the tailgate area), always follow manufacturer recommendations to prevent exhaust gases from entering the Nissan Frontier cabin.
• The exhaust system and underbody of your Nissan Frontier should be inspected by a qualified technician under the following conditions:
  1. Whenever the vehicle is lifted for maintenance or servicing.
  2. If there is any suspicion that exhaust fumes are entering the interior.
  3. If you notice unusual sounds, vibrations, or changes in exhaust noise.
  4. After any collision or incident involving damage to the rear, underside, or exhaust system of the vehicle.
• If your Nissan Frontier is equipped with additional accessories such as a camper shell or other modifications, carefully follow the equipment manufacturer's guidelines to minimize the risk of carbon monoxide entering the passenger area.

Do not use or remain in these areas of your Nissan Frontier while the engine is running, even if the vehicle is stationary. Certain recreational or aftermarket equipment such as portable stoves, refrigerators, heaters, or similar devices

may produce carbon monoxide, which can accumulate quickly and create a dangerous environment inside or around the Nissan Frontier.

Three-way catalyst

The three-way catalyst in the Nissan Frontier is a critical emission control component integrated into the exhaust system. It is designed to significantly reduce harmful pollutants by converting exhaust gases through high-temperature chemical reactions.

Within the three-way catalyst, exhaust gases are subjected to elevated temperatures, allowing harmful emissions such as hydrocarbons, carbon monoxide, and nitrogen oxides to be minimized before being released into the atmosphere.

WARNING

The exhaust gases and all components of the exhaust system in your Nissan Frontier become extremely hot during operation. Always keep people, animals, and any flammable materials at a safe distance from these components to avoid burns or fire hazards.

Never park or stop your Nissan Frontier over combustible materials such as dry grass, leaves, paper, or cloth. Heat from the exhaust system may ignite these materials and lead to a fire.

CAUTION

• Use only unleaded fuel in your Nissan Frontier. Leaded gasoline can cause deposits that severely impair the effectiveness of the three-way catalyst and increase emissions.
• Ensure that your Nissan Frontier engine is properly maintained and tuned. Faults in ignition, fuel injection, or electrical systems may result in excessive fuel entering the exhaust system, which can cause the catalyst to overheat.

  If you experience engine misfires, reduced performance, or unusual operation, stop driving as soon as it is safe and have the vehicle inspected. It is recommended that you visit an authorized NISSAN dealer for proper diagnosis and repair.

• Avoid operating your Nissan Frontier with a very low fuel level. Running out of fuel may cause engine misfiring, which can damage the three-way catalyst.
• Do not excessively rev the engine while it is warming up, as this may negatively affect emission system components.
• Never attempt to start the Nissan Frontier by pushing or towing the vehicle, as this can lead to damage to the emission control system and other drivetrain components.

Tire Pressure Monitoring System (TPMS)

Basic Information

For optimal safety and performance of your Nissan Frontier, each tire — including the spare tire (if equipped) — should be inspected at least once a month when cold and inflated to the pressure specified by the manufacturer. These values are listed on the vehicle placard or tire inflation label. If your Nissan Frontier is equipped with tires that differ from the original size, ensure that the correct inflation pressure is determined and maintained for those specific tires.

Basic Information

Routine tire pressure checks are essential for maintaining the safety, efficiency, and durability of your Nissan Frontier. Always verify tire pressure when the tires are cold and adjust according to the recommended values to ensure proper vehicle operation and longevity.

As an additional safety feature, the Nissan Frontier is equipped with a Tire Pressure Monitoring System (TPMS). This system continuously monitors tire pressure and activates a warning indicator if one or more tires become significantly under-inflated.

When the low tire pressure warning light illuminates, you should stop driving as soon as it is safe to do so and check all tires. Inflate them to the recommended pressure immediately to prevent potential damage or unsafe driving conditions.

Operating your Nissan Frontier with under-inflated tires can lead to excessive heat buildup, increasing the risk of tire failure. It can also reduce fuel efficiency, accelerate tire wear, and negatively affect handling, braking, and overall vehicle stability.

It is important to understand that the TPMS is not a replacement for regular tire maintenance. The driver remains responsible for maintaining correct tire pressure, even if the system has not yet triggered a warning.

Your Nissan Frontier is also equipped with a TPMS malfunction indicator, which alerts you if the system itself is not functioning correctly.

This malfunction indicator shares the same warning light as the low tire pressure indicator.

If a system fault is detected, the warning light will flash for approximately one minute and then remain steadily illuminated. This pattern will repeat each time the vehicle is started until the issue is resolved.

When the TPMS malfunction indicator is active, the system may not accurately detect or report tire pressure issues. Malfunctions may occur for several reasons, including the installation of non-compatible tires or wheels that interfere with TPMS operation.

After replacing tires or wheels on your Nissan Frontier, always verify that the TPMS warning light operates correctly to ensure that the system continues to function as intended.

Additional information:

• When a wheel without a TPMS sensor is installed, such as a spare tire, the system will not monitor that tire's pressure.
• The TPMS in the Nissan Frontier activates only when the vehicle is driven above approximately 16 mph (25 km/h). It may not immediately detect rapid pressure loss, such as a sudden puncture.
• The low tire pressure warning light will not automatically turn off after adjusting tire pressure. Once the correct pressure is set, drive the vehicle above 16 mph (25 km/h) to allow the system to reset and turn off the warning light.
• The "Tire Pressure Low - Add Air" message will appear in the vehicle information display when low tire pressure is detected. This message will disappear once the issue is corrected and the warning light turns off.
• This warning message will reappear each time the ignition is turned ON if the issue has not been resolved.
• The "Tire Pressure Low - Add Air" message will not be displayed if the warning light is illuminated due to a TPMS system malfunction rather than actual low tire pressure.
• Tire pressure in your Nissan Frontier will naturally increase during driving due to heat and may vary depending on outside temperature. Do not reduce tire pressure immediately after driving, as this can result in under-inflation once the tires cool down.

Low ambient temperatures can significantly reduce the air pressure inside the tires of your Nissan Frontier. As temperatures drop, the air inside the tire contracts, which may lead to a noticeable decrease in tire pressure. This condition can trigger the low tire pressure warning light. If this indicator appears, promptly check the pressure of all four tires and adjust them as necessary to the recommended specifications.

The Tire and Loading Information label for your Nissan Frontier is located on the driver's side door opening and provides the correct cold tire pressure values.

WARNING

• Radio frequency signals generated by the Nissan Frontier TPMS may interfere with certain types of medical devices. Individuals using pacemakers or similar medical equipment should consult the device manufacturer regarding possible interference before operating the vehicle.
• If the low tire pressure warning light illuminates while driving your Nissan Frontier, avoid sudden steering inputs or hard braking. Gradually reduce speed, safely move to the side of the road, and stop the vehicle as soon as conditions allow.

  Driving on under-inflated tires can cause irreversible tire damage and significantly increase the risk of tire failure.

  This may also lead to severe vehicle damage, loss of control, and potentially serious accidents resulting in injury.

  Check all four tires immediately and inflate them to the specified COLD tire pressure listed on the Tire and Loading Information label. If a tire is punctured or flat, replace it with a spare tire as soon as possible.

• When a wheel without a TPMS sensor is used on the Nissan Frontier (such as a spare tire), or when tires/wheels are replaced, the TPMS may not function correctly. In such cases, the warning light will flash for approximately one minute and then remain illuminated. Have the system inspected and reset as soon as possible. It is recommended to visit a NISSAN dealer.
• Installing tires that do not meet Nissan specifications may interfere with the proper operation of the TPMS system in your Nissan Frontier.
• Avoid using liquid tire sealants or aerosol repair products inside the tires, as these substances can damage TPMS sensors and lead to system malfunction.
• To reduce the risk of serious injury or fatal accidents, always check tire pressure in all tires regularly, whether as part of routine maintenance or in response to a TPMS warning. Driving with incorrect tire pressure can compromise tire integrity and negatively affect other vehicle systems.

CAUTION

Do not apply metallic window films or install metal components (such as antennas) directly on the windows of your Nissan Frontier.

These materials can interfere with radio signals transmitted by the tire pressure sensors, potentially causing the TPMS to operate incorrectly or fail to detect pressure changes.

External electronic devices or radio transmitters may temporarily disrupt the operation of the TPMS in your Nissan Frontier, which can result in the low tire pressure warning light being triggered unnecessarily.

Examples of potential interference sources include:

• Nearby equipment or facilities operating on similar radio frequencies.
• Transmitters or communication devices being used inside or near the Nissan Frontier.
• Electronic equipment such as computers or DC/AC power converters operating in close proximity to the vehicle.

The low tire pressure warning light may also illuminate under the following conditions:

• If the Nissan Frontier is equipped with wheels or tires that do not include TPMS sensors.
• If TPMS components have been replaced but the sensor identification has not been properly registered in the system.
• If non-genuine or non-approved wheels are installed that are not specified by NISSAN.

FCC Notice:

For USA:

This equipment installed in your Nissan Frontier complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) the device must not generate harmful interference, and (2) it must accept any interference received, including interference that may result in unintended operation.

NOTE:

Any modifications or alterations not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment in the Nissan Frontier.

For Canada:

This device used in the Nissan Frontier includes license-exempt transmitter(s) and/or receiver(s) that comply with Innovation, Science and Economic Development Canada’s RSS standards. Operation is subject to the following conditions: (1) the device must not cause interference, and (2) it must accept any interference received, including interference that may lead to undesired operation.

TPMS with Easy-Fill Tire Alert

WARNING

After rotating the tires on your Nissan Frontier, do not rely on the Easy-Fill Tire Alert system to set the tire pressure. Always use a reliable tire pressure gauge and adjust the pressure according to the values listed on the Tire and Loading Information label.

The Nissan Frontier is equipped with a TPMS featuring Easy-Fill Tire Alert, which provides both visual and audible signals outside the vehicle. This system helps guide you when inflating under-inflated tires to the correct COLD tire pressure, improving convenience and safety.

Vehicle set-up

1. Park your Nissan Frontier on a flat, stable surface in a safe location.

2. Engage the parking brake and shift the transmission into the P (Park) position.

3. Turn the ignition switch to the ON position without starting the engine.

Ensure the vehicle remains stationary during this process.

Operation

1. Begin adding air to the tire that requires inflation.

2. Within a few seconds, the hazard warning lights on the Nissan Frontier will begin flashing, indicating that the system is actively monitoring pressure.

3. Once the correct pressure level is reached, the horn will sound once and the hazard lights will stop flashing, confirming proper inflation.

4. Repeat this procedure for each tire on your Nissan Frontier.

• If the tire pressure exceeds the recommended level by approximately 4 psi (30 kPa), the horn will sound and the hazard lights will flash three times. To correct this, briefly press the valve stem core to release air. When the correct pressure is achieved, a single horn beep will confirm it.
• If the hazard lights do not begin flashing within approximately 15 seconds of starting inflation, this indicates that the Easy-Fill Tire Alert system is not currently functioning.
• The Easy-Fill Tire Alert function in the Nissan Frontier may not operate under the following conditions:
  • Interference from external electronic devices or radio transmitters.
  • Insufficient air pressure from the inflation source.
  • A malfunction within the TPMS system.
  • Failure of the horn or hazard warning light system.
  • The tire pressure sensor ID is not properly registered in the system.
  • The battery of the tire pressure sensor is low.
• If the Easy-Fill Tire Alert does not operate due to signal interference, move the Nissan Frontier approximately 3 ft (1 m) forward or backward and attempt the procedure again.

If the Easy-Fill Tire Alert system is unavailable or not functioning correctly, always use a manual tire pressure gauge to ensure accurate tire inflation in your Nissan Frontier.

On-pavement and off-road driving precautions

Utility vehicles such as the Nissan Frontier have a noticeably higher risk of rollover compared to standard passenger vehicles.

Due to its increased ground clearance, the Nissan Frontier is engineered to handle both paved roads and off-road environments. This elevated design improves versatility but also raises the vehicle’s center of gravity compared to conventional cars.

One advantage of this design is improved road visibility, allowing drivers of the Nissan Frontier to better anticipate obstacles and changing driving conditions. However, this same design means the vehicle is not intended for high-speed cornering like low-profile passenger cars. Always avoid aggressive turning or sudden maneuvers at higher speeds.

Like all vehicles in this class, improper handling of the Nissan Frontier may lead to loss of control or rollover situations.

In rollover accidents, occupants who are not wearing seat belts are at a significantly higher risk of fatal injury compared to those who are properly restrained.

Avoiding collision and rollover

WARNING

Operating your Nissan Frontier in an unsafe or careless manner can result in loss of vehicle control, serious accidents, or rollover incidents.

Always remain attentive and practice defensive driving techniques when operating your Nissan Frontier.

Follow all traffic laws and avoid excessive speed, abrupt steering inputs, and aggressive cornering. These actions greatly increase the risk of losing control, especially in vehicles with higher centers of gravity.

Loss of control in the Nissan Frontier may result in collisions with other vehicles, roadside objects, or rollover events — particularly if the vehicle begins to slide sideways.

Never drive when fatigued, impaired, or under the influence of alcohol, medications, or drugs that may reduce alertness. Always wear your seat belt and ensure all passengers in your Nissan Frontier are properly restrained.

Seat belts play a critical role in minimizing injuries during collisions and rollovers.

In rollover crashes, individuals not wearing seat belts are far more likely to suffer fatal injuries than those who are properly secured.

Off-road recovery

While driving your Nissan Frontier, it is possible for one side of the vehicle to unintentionally leave the paved surface. If this occurs, follow these steps to safely regain control.

This procedure is a general guideline. Always adjust your actions based on road, vehicle, and traffic conditions.

1. Stay calm and avoid panic reactions.

2. Do not immediately apply the brakes.

3. Keep both hands firmly on the steering wheel and maintain a straight trajectory.

4. Gradually ease off the accelerator to reduce speed smoothly.

5. When conditions allow, gently guide the Nissan Frontier back toward the roadway. Avoid sudden steering corrections until speed has been sufficiently reduced.

6. Once safe, carefully steer back onto the road surface. When all tires are fully on the pavement, stabilize the vehicle within the correct lane.

• If returning to the roadway is unsafe due to traffic or terrain conditions, slowly bring the Nissan Frontier to a complete stop in a secure off-road location.

Rapid air pressure loss

A sudden loss of tire pressure, commonly referred to as a blowout, may occur if a tire is punctured or damaged — for example, by striking a curb or pothole. Driving with under-inflated tires can also contribute to this condition.

In the Nissan Frontier, rapid tire deflation can significantly affect vehicle stability and steering control, particularly at higher speeds.

To reduce the risk of sudden pressure loss, regularly inspect tires and maintain proper inflation levels.

If a blowout occurs while driving your Nissan Frontier, follow these steps to maintain control. This guidance is general and should be adapted to actual conditions.

WARNING

The following actions increase the risk of losing control of your Nissan Frontier during a sudden tire failure.

Loss of control can result in a serious accident, potentially causing injury or death.

• The vehicle may pull strongly toward the side of the damaged tire.
• Do not apply the brakes abruptly.
• Do not suddenly release the accelerator.
• Avoid sharp or sudden steering inputs.

1. Remain calm and maintain control of the Nissan Frontier.

2. Hold the steering wheel firmly with both hands and keep the vehicle traveling straight.

3. Gradually reduce speed by easing off the accelerator.

4. Carefully steer the vehicle toward a safe location away from traffic.

5. Apply the brakes gently to bring the Nissan Frontier to a controlled stop.

6. Activate the hazard warning lights and contact roadside assistance to replace the tire safely.

Drinking alcohol/drugs and driving

WARNING

Never operate your Nissan Frontier while under the influence of alcohol or drugs. Alcohol in the bloodstream significantly reduces coordination, slows reaction time, and impairs judgment, making driving extremely dangerous.

Driving after consuming alcohol greatly increases the risk of being involved in a serious accident that may result in injury or loss of life for you, your passengers, or others on the road.

In addition, alcohol can worsen injuries sustained during a crash, making outcomes far more severe.

NISSAN strongly promotes safe and responsible driving practices. However, the final decision rests with the driver. Every year, thousands of accidents are caused by impaired driving. Even when within legal limits, alcohol affects individuals differently, and many drivers underestimate its impact on their ability to control a vehicle such as the Nissan Frontier.

Always remember: drinking and driving do not mix. This applies equally to prescription medications, over-the-counter drugs, and illegal substances. Never drive your Nissan Frontier if your physical or mental condition is compromised in any way.

Driving safety precautions

Your Nissan Frontier is engineered for both on-road comfort and light off-road capability. However, it is not designed for extreme off-road conditions. Avoid driving through deep water, heavy mud, or terrain that exceeds the vehicle’s intended capabilities.

Keep in mind that 2-Wheel Drive versions of the Nissan Frontier have reduced traction and recovery ability compared to 4-Wheel Drive (4WD) models, especially in snow, mud, or uneven terrain.

Please carefully follow these important precautions when driving your Nissan Frontier:

WARNING

• Drive cautiously when off-road and avoid hazardous terrain. All occupants of the Nissan Frontier must remain seated and properly secured with seat belts at all times, especially when driving over uneven surfaces.
• Avoid driving across steep slopes. Instead, approach hills directly up or down. The Nissan Frontier, like all utility vehicles, is more prone to tipping sideways than forward or backward.
• Some slopes are too steep for any vehicle. Attempting to climb them may cause engine stall, while descending may result in loss of braking control. Driving across such slopes significantly increases rollover risk.
• Do not change gears while descending hills, as this can lead to loss of vehicle stability and control.
• Be extremely cautious when reaching the top of a hill. There may be unseen hazards such as drop-offs or obstacles.
• If your Nissan Frontier cannot reach the top of a hill or stalls, never attempt to turn around. This can cause rollover. Always reverse straight down in R (Reverse). Never rely solely on brakes in Neutral.
• Excessive braking on downhill slopes may overheat the brakes, reducing their effectiveness. Use engine braking and low gears to maintain safe speed.
• Loose cargo can shift during off-road driving. Always secure all items properly to prevent injury in the Nissan Frontier cabin.
• Do not overload the roof rack. Keep heavy items low and toward the front of the cargo area. Overloading raises the center of gravity and increases rollover risk.
• Use only tires specified for the Nissan Frontier. Larger or incompatible tires can negatively affect handling and safety.
• When driving off-road, hold the steering wheel properly. Do not place your thumbs inside the wheel, as sudden movement may cause injury.
• Ensure all occupants are wearing seat belts before driving.
• Always keep floor mats properly installed to prevent contact with hot surfaces.
• Reduce speed in strong crosswinds. The Nissan Frontier’s higher center of gravity makes it more sensitive to side winds.
• Do not exceed the traction limits of your tires, even when 4WD is engaged.
• On 4WD models, never lift two wheels off the ground and engage drive gears with the engine running. This may cause serious drivetrain damage or unexpected vehicle movement.
• Do not test a Nissan Frontier 4WD vehicle on a two-wheel dynamometer. Always inform service personnel that the vehicle is equipped with 4WD to avoid damage or accidents.
• Aggressive acceleration, sudden braking, or sharp steering may result in loss of control.
• Avoid high-speed cornering. Due to its design, the Nissan Frontier cannot safely handle turns at the same speeds as standard passenger vehicles.
• Always use identical tires on all four wheels. When driving on slippery surfaces, install chains on the rear wheels and proceed carefully.
• Inspect the brakes immediately after driving through water or mud to ensure proper operation.
• Avoid parking on steep inclines. The Nissan Frontier may roll unexpectedly, posing a risk of injury.
• Frequent maintenance is required after driving through deep sand, mud, or water reaching the wheel hubs.

Push-button ignition switch

Basic Information

WARNING

Never operate the push-button ignition switch of your Nissan Frontier while the vehicle is in motion, except in a true emergency. (The engine can be forced to stop if the ignition switch is pressed three times rapidly or pressed and held for more than 2 seconds.) If the engine shuts off while driving, you may lose control of the Nissan Frontier, which can result in a serious accident and severe injury.

In the Nissan Frontier, when the ignition switch is pressed without depressing the brake pedal, the system cycles through different ignition modes. Each press changes the vehicle status as follows:

• First press: switches to ACC (accessory mode).
• Second press: switches to ON (full electrical system activation).
• Third press: returns to OFF.

The ignition system of the Nissan Frontier is designed with automatic safety logic. When the ignition is in the OFF position, opening or closing any door will cause the system to automatically return to the LOCK position.

If the ignition switch cannot be turned to the OFF position, follow this safe recovery procedure for your Nissan Frontier:

1. Move the shift lever securely into the P (Park) position.

2. Press the ignition switch once — the system will change to the ON position.

3. Press the ignition switch again to switch the system to OFF.

The shift lever in the Nissan Frontier can only be moved out of the P (Park) position when the ignition is in the ON position and the brake pedal is firmly depressed.

If the vehicle battery is discharged, the ignition switch of the Nissan Frontier may remain locked in the LOCK position and cannot be changed.

Various system indicators and warning messages related to ignition operation may appear in the instrument cluster display of the Nissan Frontier to guide the driver.

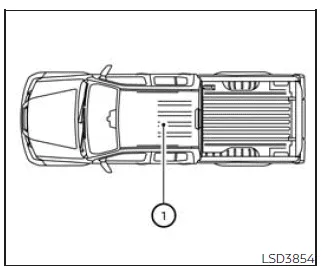

Operating range

The Intelligent Key system in the Nissan Frontier operates only when the key is within the defined operating range. This ensures both convenience and security when starting the engine.

If the Intelligent Key battery becomes weak or if strong electromagnetic interference is present, the effective operating range may be reduced, and the Nissan Frontier may not recognize the key properly.

When the Intelligent Key is inside the vehicle, even if it is not held by the driver, the engine of the Nissan Frontier can still be started by pressing the ignition button.

The valid operating range for engine start functionality is generally limited to the interior cabin area of the Nissan Frontier 1.

• The luggage compartment is typically outside the official detection zone, although in some cases the Intelligent Key may still function.
• If the Intelligent Key is placed on the dashboard, inside the glove box, door pockets, or storage compartments, signal detection may be inconsistent and the Nissan Frontier may not start reliably.
• If the Intelligent Key is located very close to the vehicle exterior, such as near a window or door, the system may still detect it and allow ignition operation.

For optimal reliability and safety, always keep the Intelligent Key within the passenger compartment and avoid placing it near electronic interference sources when operating your Nissan Frontier.

Push-button ignition switch positions

LOCK (Normal parking position)

In the Nissan Frontier, the LOCK position represents the standard parking mode, where the ignition system is fully secured and the vehicle cannot be operated. The ignition switch can only be locked in this position.

When carrying the Intelligent Key, pressing the ignition switch will unlock the system and allow it to transition to the ON position.

For added safety, the Nissan Frontier automatically returns the ignition switch to the LOCK state when any door is opened or closed while the ignition is in the OFF position, helping prevent unintended vehicle operation.

ACC (Accessories)

The ACC (Accessory) mode in the Nissan Frontier enables the use of electrical components such as the audio system, infotainment features, and power outlets without starting the engine.

To protect the battery, the Nissan Frontier is equipped with a battery saver function. This system automatically switches the ignition from ACC to OFF after a period of inactivity when the following conditions are met:

• All doors are fully closed.
• The shift lever is positioned in P (Park).
• Hazard warning lights are turned off.
• Turn signals are not active.

The battery saver feature will be interrupted if any of the following actions occur:

• Any door is opened.
• The shift lever is moved out of the P (Park) position.
• The ignition mode is changed manually.
• The hazard lights are activated.

ON (Normal operating position)

In the ON position, all electrical systems of the Nissan Frontier are fully activated, including engine control systems and onboard electronics. This is the standard mode used for normal vehicle operation.

Similar to ACC mode, the Nissan Frontier also includes a battery protection feature in ON mode when the engine is not running. After a certain period, the system will automatically switch to OFF if the following conditions are present:

• All doors are closed.
• The transmission is in P (Park).
• Hazard lights are off.
• Turn signals are not in use.

The battery saver system will be canceled if any of the following occur:

• A door is opened.
• The shift lever is moved out of P (Park).
• The ignition switch position is changed.
• The hazard lights are turned on.
• The turn signals are activated.

CAUTION

Do not leave your Nissan Frontier with the ignition switch in the ACC or ON position while the engine is off for extended periods. This can lead to battery discharge and may prevent the vehicle from starting.

OFF

The OFF position indicates that the engine of the Nissan Frontier has been turned off and the ignition system is no longer active. In this state, most electrical systems are disabled to preserve battery life.

Emergency engine shut off

In emergency situations while driving your Nissan Frontier, the engine can be shut down using the push-button ignition system by performing one of the following actions:

• Press the ignition switch rapidly three times within approximately 1.5 seconds, or
• Press and hold the ignition switch continuously for more than 2 seconds.

This function should only be used in critical situations, as shutting off the engine while driving can affect steering and braking performance.

Automatic engine shut-off

The Nissan Frontier is equipped with an automatic engine shut-off system designed to prevent unnecessary idling and reduce fuel consumption. If the engine is left running for an extended period while the vehicle is stationary, the system will automatically turn the engine off.

This function operates when:

• The shift lever is in P (Park) for automatic transmission models, or
• The transmission is in N (Neutral) with the parking brake engaged for manual transmission models.

During the final 30 seconds before shutdown, a notification will appear in the vehicle information display of the Nissan Frontier.

At this stage, the driver can choose one of the following options using the steering wheel controls:

• Select "OK" to confirm shutdown. If no selection is made, the system will automatically turn off the engine.
• Select "Disable" to temporarily prevent engine shutdown for the current driving session. This setting will reset after the engine is restarted.

NOTE:

• The idle timer will reset if the brake or accelerator pedal is pressed, delaying the automatic shut-off of the Nissan Frontier engine.
• The automatic engine shut-off feature will reactivate each time the engine is restarted.

NISSAN Intelligent Key battery discharge

If the battery in the NISSAN Intelligent Key of your Nissan Frontier becomes depleted, or if external conditions interfere with signal transmission, the engine can still be started by following the procedure below. This backup method ensures reliable operation of the Nissan Frontier even when the key battery is weak.

1. Place the shift lever securely in the P (Park) position.

2. Firmly press and hold the brake pedal.

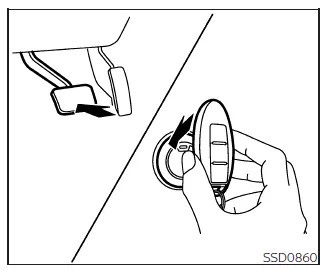

3. Touch the ignition switch directly with the Intelligent Key as illustrated. (A confirmation chime will sound.)

After completing step 3, pressing the ignition switch without depressing the brake pedal will switch the system to the ON position.

4. Within 10 seconds after the chime sounds, press the ignition switch while continuing to depress the brake pedal. The engine of your Nissan Frontier will start.

NOTE:

• When the Nissan Frontier is started using this emergency method or when the ignition is switched to ON, an Intelligent Key battery discharge warning may appear in the vehicle information display, even if the key is inside the vehicle. This is normal and does not indicate a malfunction.

  To clear the warning message, touch the ignition switch again with the Intelligent Key.

• If the Intelligent Key battery warning appears, replace the battery as soon as possible to ensure proper operation of your Nissan Frontier.

NISSAN Vehicle Immobilizer System

The Nissan Frontier is equipped with an advanced NISSAN Vehicle Immobilizer System designed to prevent unauthorized engine start. The engine will only start when a properly registered Intelligent Key is detected.

If the engine does not start even with a registered key — for example, due to signal interference from another key, electronic device, or payment transponder — follow this reset procedure:

1. Leave the ignition switch in the ON position for approximately 5 seconds.

2. Turn the ignition switch to the OFF or LOCK position and wait about 10 seconds.

3. Repeat steps 1 and 2.

4. Attempt to start the Nissan Frontier again, ensuring that any interfering device is kept separate from the Intelligent Key.

If the issue persists, it is recommended to keep the Intelligent Key on a separate key ring to minimize interference and ensure consistent recognition by the Nissan Frontier system.

Before starting the engine

• Ensure the area around your Nissan Frontier is clear of obstacles, people, and hazards.
• Regularly check fluid levels including engine oil, coolant, brake fluid, and windshield washer fluid — especially before long trips or refueling.
• Confirm that all windows, mirrors, and lighting elements are clean and unobstructed for optimal visibility.
• Inspect the tires for proper condition, wear, and correct inflation pressure to maintain safe handling of your Nissan Frontier.
• Verify that all doors are completely closed and securely latched.
• Adjust the driver’s seat, steering position, and head restraints for maximum comfort and control.
• Set the interior and exterior mirrors correctly to eliminate blind spots.
• Fasten your seat belt and ensure that all passengers in the Nissan Frontier are properly restrained.
• Check that all warning lights illuminate correctly when the ignition is switched to the ON position, confirming proper system operation.

Performing these checks before starting your Nissan Frontier enhances safety, improves vehicle reliability, and helps prevent unexpected issues during driving.

Starting the engine

Basic Information

1. Engage the parking brake firmly to secure your Nissan Frontier before starting.

2. Move the shift lever into the P (Park) or N (Neutral) position.

For safety and reliability, P (Park) is strongly recommended when starting the Nissan Frontier. The starter system is designed to function only when the transmission is in P (Park) or N (Neutral).

3. Press the ignition switch to place the system in the ON position.

Depress the brake pedal and then push the ignition switch to start the engine of your Nissan Frontier.

For immediate engine start, press and release the ignition switch while holding the brake pedal, regardless of the current ignition mode.

• If the Nissan Frontier engine is difficult to start in extremely cold conditions or during a restart, slightly depress the accelerator pedal (about one-third of its travel) while cranking. Release the pedal as soon as the engine starts.
• If the engine is flooded and does not start easily, fully depress the accelerator pedal and hold it down.

  Press the ignition switch to the ON position to crank the engine. After 5–6 seconds, stop cranking by returning the ignition switch to the LOCK position.

  Release the accelerator pedal, then attempt to start the engine again by pressing the brake pedal and pushing the ignition switch. If the Nissan Frontier engine starts but stalls, repeat the process carefully.

CAUTION

Do not operate the starter motor for more than 15 seconds at a time. If the Nissan Frontier engine does not start, switch the ignition to OFF and wait at least 10 seconds before trying again. Failure to follow this procedure may cause damage to the starter system.

4. Warm-up

After starting the Nissan Frontier, allow the engine to idle for at least 30 seconds. Avoid revving the engine immediately after startup.

Drive at moderate speeds for the first few minutes, especially in cold weather conditions, to allow proper lubrication and temperature stabilization.

In colder climates, it is recommended to let the engine run for 2–3 minutes before shutting it off again. Frequent short starts and stops may negatively affect starting performance and battery condition in your Nissan Frontier.

5. To stop the engine, shift the transmission into the P (Park) position and press the ignition switch to turn it OFF.

Depending on driving conditions, the Nissan Frontier engine may not shut off instantly after switching to OFF. A slight delay is normal and part of system operation.

NOTE:

The engine of the Nissan Frontier cannot be restarted within approximately 3 seconds after it has been turned off. This is a normal system protection feature.

NOTE:

To prevent battery discharge and potential starting issues in your Nissan Frontier, avoid the following situations:

1. Prolonged use or installation of electrical accessories (such as phone chargers, GPS units, or media devices) while the engine is off.

2. Infrequent vehicle use or repeated short-distance driving without sufficient engine run time.

Under these conditions, the battery may require periodic charging to maintain optimal performance and longevity.

Remote Engine Start

When your Nissan Frontier is started using the Remote Engine Start feature, the ignition system must be switched to the ON position before the transmission can be shifted out of P (Park).

To switch the ignition to ON, follow these steps:

1. Ensure that the Intelligent Key is inside the Nissan Frontier or on your person.

2. Press and hold the brake pedal.

3. Push the ignition switch once to place the system in the ON position.

Following these steps ensures that your Nissan Frontier is fully ready for safe driving operation after remote start.

Driving the vehicle

Engine protection mode

The Nissan Frontier is equipped with an advanced engine protection mode designed to help prevent engine damage when operating conditions become too extreme. This feature is especially important during demanding situations such as towing heavy loads, climbing steep inclines, or driving in very hot weather.

When the engine coolant temperature rises beyond a safe threshold, the Nissan Frontier will automatically activate this protection mode to reduce stress on the engine components. At this point, you may notice the following behavior:

• The engine coolant temperature gauge will move toward the H (high) position.
• The Nissan Frontier engine output may be reduced to limit heat generation.
• The air conditioning system may temporarily disable its cooling function to reduce engine load, although the blower fan will continue to operate.

As part of this protective strategy, engine performance and, in some cases, vehicle speed will decrease. While the accelerator pedal will still respond, the Nissan Frontier may not accelerate as expected due to the system prioritizing engine protection over performance.

During this condition, the transmission may automatically adjust by downshifting or upshifting at preset points to support cooling. Manual gear selection may also be used if equipped, allowing the driver to better control engine load.

Once driving conditions improve and the engine temperature returns to a normal range, the Nissan Frontier will gradually restore full engine power. The air conditioning system will also automatically resume normal cooling operation.

If the engine temperature remains elevated or the system does not return to normal operation, the Malfunction Indicator Light (MIL) may illuminate. If the light remains on, the Nissan Frontier does not necessarily require towing, but it should be inspected as soon as possible. It is recommended to have the vehicle checked by a NISSAN dealer to prevent further issues.

WARNING

Engine overheating in the Nissan Frontier can result in reduced power and lower vehicle speed. This may create dangerous situations, especially in traffic where surrounding vehicles are moving faster.

Drive with extreme caution if this condition occurs. If your Nissan Frontier cannot maintain a safe speed, carefully pull over to a safe location, stop the vehicle, and allow the engine to cool before continuing.

CAUTION

Operating the Nissan Frontier with the engine oil pressure warning light illuminated can cause severe and immediate engine damage. This type of damage is not covered under warranty. If this warning appears, stop the engine as soon as it is safe and investigate the issue before continuing to drive.

Regular maintenance, proper coolant levels, and avoiding excessive engine load will help ensure that the Nissan Frontier engine protection system operates effectively and prolongs engine life.

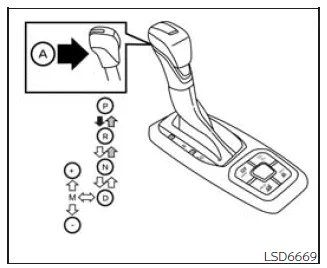

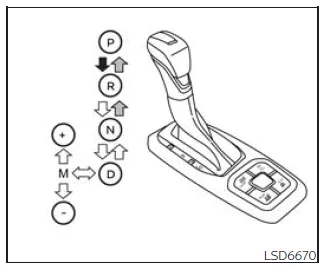

Automatic transmission (A/T)

Basic Information

WARNING

• When operating the Nissan Frontier, never press the accelerator pedal while shifting from P (Park) or N (Neutral) into R (Reverse) or D (Drive). Always keep the brake pedal firmly depressed until the gear change is fully completed. Failure to follow this procedure may result in loss of vehicle control and lead to a serious accident.
• During cold starts, the Nissan Frontier engine idle speed is higher than normal. Use extra caution when selecting a forward or reverse gear before the engine has reached operating temperature.
• Never shift into P (Park) or R (Reverse) while the Nissan Frontier is moving forward, and never shift into D (Drive) while the vehicle is reversing. Doing so may cause severe transmission damage or lead to a dangerous driving situation.
• Avoid sudden downshifting on slippery or low-traction surfaces. This may cause the Nissan Frontier to lose stability and result in loss of control.
• Except in emergency situations, do not shift into N (Neutral) while driving.

  Driving in Neutral may cause internal transmission damage and reduce vehicle control in your Nissan Frontier.

CAUTION

• When stopping your Nissan Frontier on an incline, do not hold the vehicle in place using the accelerator pedal. Always use the brake pedal to prevent unnecessary strain on the transmission system.

The automatic transmission in the Nissan Frontier is electronically managed to deliver optimal power output, smooth gear transitions, and efficient driving performance under various conditions.

To ensure long-term reliability and driving comfort, always follow the recommended operating procedures outlined for the Nissan Frontier transmission system.

Starting the vehicle

1. After starting the engine of your Nissan Frontier, press the brake pedal fully before attempting to move the shift lever from the P (Park) position.

2. Keep the brake pedal depressed and select the desired driving gear.

3. Gradually release the brake pedal and allow the Nissan Frontier to begin moving smoothly.

The automatic transmission system is designed so that the brake pedal MUST be depressed before shifting from P (Park) to any driving position when the ignition is in the ON state.

The shift lever in the Nissan Frontier cannot be moved out of P (Park) if the ignition switch is in the ACC, LOCK, or OFF position.

In extremely low temperatures, even if the ignition is ON, the shift lever may not move out of P (Park) until the engine is running properly.

Shifting

Basic Information

To operate the shift lever in the Nissan Frontier:

Press button A while depressing the brake pedal

Press button A to shift

Shift without depressing the brake pedal

Shifting

Once the Nissan Frontier engine is running, fully press the brake pedal and move the shift lever out of the P (Park) position to begin driving.

WARNING

If the Nissan Frontier engine is not running and the shift lever is in any position other than P (Park), always engage the parking brake. Failure to do so may cause the vehicle to roll unexpectedly, resulting in serious injury or property damage.

If the ignition switch of the Nissan Frontier is turned to the OFF position while the transmission is in N (Neutral) or any D (Drive) gear, the ignition cannot be switched to LOCK. To resolve this, move the shift lever back to P (Park), after which the ignition can be safely locked.

Proper use of the automatic transmission in your Nissan Frontier ensures smooth operation, prevents premature wear, and enhances overall driving safety.

P (Park)

CAUTION

To avoid unnecessary wear or damage to the transmission in your Nissan Frontier, engage the P (Park) position only when the vehicle has come to a complete and full stop.

In the Nissan Frontier, the P (Park) position is used whenever the vehicle is stationary, such as when parking or starting the engine. Always confirm that the vehicle is fully stopped before selecting this mode to ensure safe operation and long-term reliability.

The brake pedal must always be firmly pressed when shifting from N (Neutral) or any driving gear into P (Park).

When parking your Nissan Frontier on an incline, first apply the parking brake securely, then shift into the P (Park) position. This sequence helps reduce stress on the transmission system and improves overall safety.

R (Reverse)

CAUTION

To prevent transmission damage in your Nissan Frontier, always select the R (Reverse) position only after the vehicle has completely stopped.

Use the R (Reverse) gear to move the Nissan Frontier backward. Before shifting into reverse, ensure the vehicle is fully stationary and the brake pedal is pressed.

The brake pedal must be depressed when shifting from P (Park), N (Neutral), or any forward gear into R (Reverse) to ensure controlled and safe operation.

N (Neutral)

In this position, the Nissan Frontier transmission disengages both forward and reverse drive, allowing the vehicle to roll freely without engine power being transmitted to the wheels.

The engine can be started while in N (Neutral), and this position can also be used to restart the engine if it stalls while the Nissan Frontier is in motion. However, prolonged use of Neutral while driving is not recommended.

D (Drive)

This is the primary driving position for the Nissan Frontier and should be used for all standard forward driving conditions, providing smooth automatic gear changes for optimal performance and fuel efficiency.

Manual shift mode

Basic Information

The Nissan Frontier offers a manual shift mode that allows the driver to control gear selection more precisely. To activate this feature, move the shift lever sideways into the manual shift gate, then use the "+" or "-" positions to shift up or down manually.

When manual mode is active, the selected gear range is displayed on the instrument cluster. The displayed gear may vary depending on vehicle speed and driving conditions, ensuring optimal performance and drivetrain protection.

• In manual shift mode, the Nissan Frontier may delay gear changes if the current vehicle speed is not appropriate for the selected gear. The system will automatically adjust (upshift or downshift) once the correct speed range is reached, helping to prevent mechanical damage and maintain stability.
• The transmission will not automatically shift into a higher gear than the one selected manually. However, as the vehicle slows down, the Nissan Frontier will downshift automatically and eventually return to 1st gear before coming to a complete stop.

Gear selection progresses step-by-step as follows:

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5 ↔ M6 ↔ M7 ↔ M8 ↔ M9 ↔ D

M9 (Ninth)

This gear is ideal for highway driving in the Nissan Frontier, delivering efficient cruising performance at higher speeds.

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5 ↔ M6 ↔ M7 ↔ M8 ↔ M9

M9 will be shown on the gear position indicator within the instrument panel.

M8 (Eighth)

Use this gear for steady high-speed driving conditions in the Nissan Frontier, balancing performance and fuel efficiency.

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5 ↔ M6 ↔ M7 ↔ M8

M8 will be displayed on the vehicle’s gear indicator.

M7 (Seventh)

This range is suitable for moderate highway speeds, providing responsive acceleration and controlled engine performance in the Nissan Frontier.

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5 ↔ M6 ↔ M7

M7 will appear on the position indicator in the instrument cluster.

M6 (Sixth)

Use M6 for balanced driving situations where both performance and fuel efficiency are required, such as on open roads.

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5 ↔ M6

M6 will be indicated on the dashboard display.

M5 (Fifth)

This gear is particularly useful when driving uphill or downhill in the Nissan Frontier, as it enhances engine braking and provides better control over vehicle speed.

Shift progression:

M1 ↔ M2 ↔ M3 ↔ M4 ↔ M5

M5 will be visible on the gear indicator.

M4 (Fourth)

M4 is ideal for city driving or moderate speeds, offering improved control and smoother acceleration in varying traffic conditions for the Nissan Frontier.

Using manual shift mode in your Nissan Frontier not only enhances driving engagement but also allows better adaptation to terrain, towing, or specific driving preferences.

In the Nissan Frontier, lower manual gear ranges are especially useful for demanding driving situations such as steep inclines or when additional engine braking is required during descents.

Shift ranges can be selected step-by-step in the Nissan Frontier manual mode as follows:

M1 ↔ M2 ↔ M3 ↔ M4

M4 will be shown clearly on the gear position indicator in the instrument cluster of your Nissan Frontier.

M3 (Third)

This gear is ideal for moderate hill climbing or controlled engine braking when descending slopes in your Nissan Frontier, providing a balance between power and control.

Shift progression:

M1 ↔ M2 ↔ M3

M3 will be displayed on the position indicator within the Nissan Frontier dashboard.

M2 (Second)

Use M2 in the Nissan Frontier when additional traction or stronger engine braking is needed, especially on uneven terrain or steeper gradients.

Shift progression:

M1 ↔ M2

M2 will appear on the gear indicator in the instrument panel.

M1 (First)

This is the lowest gear and is designed for maximum torque and control in the Nissan Frontier. It is particularly useful when climbing very steep hills, driving slowly through deep snow, sand, or mud, or when maximum engine braking is required on sharp downhill sections.

M1 will be indicated on the gear display in the instrument cluster of your Nissan Frontier.

• For optimal performance and fuel efficiency in the Nissan Frontier, avoid driving at high speeds for extended periods in gears lower than M4, as this can increase fuel consumption and engine wear.

When shifting up

To move to a higher gear range in the Nissan Frontier, push the shift lever toward the + (up) position. This allows smooth and controlled gear progression.

When shifting down

To select a lower gear, move the shift lever toward the − (down) position. This is useful for increasing engine braking or preparing for acceleration.

(Shifts to a lower range.)

• The Nissan Frontier transmission will automatically downshift within the selected range as needed. For example, if M3 is selected, the system may shift between 3rd and 1st gear depending on driving conditions.
• Quickly moving the shift lever twice in the same direction allows the Nissan Frontier to shift through multiple gear ranges consecutively, providing faster response when needed.

When canceling the manual shift mode

To return the Nissan Frontier transmission to fully automatic operation, simply move the shift lever back to the D (Drive) position. This restores normal driving mode.

Starting

Accelerator downshift - in D (Drive) position -

For overtaking or climbing hills in the Nissan Frontier, fully depress the accelerator pedal. This triggers a downshift to a lower gear, delivering increased power based on the current vehicle speed.

High fluid temperature protection mode

The Nissan Frontier transmission is equipped with a high fluid temperature protection system. If transmission fluid temperature rises excessively — such as during towing heavy loads uphill in hot conditions — the system will automatically reduce engine output and, in some cases, vehicle speed to help protect the transmission from damage.

Although acceleration may feel limited, the Nissan Frontier can still be controlled using the accelerator pedal. As temperatures normalize, full performance will be gradually restored.

Fail-safe

If the Nissan Frontier is operated under extreme conditions, such as excessive wheel spin followed by sudden braking, the fail-safe system may activate to protect key components.

When this occurs, the Malfunction Indicator Light (MIL) may illuminate, indicating that the vehicle has entered fail-safe mode.

This behavior can occur even when all electrical systems are functioning correctly, as it is designed to prevent potential mechanical damage.

In such cases, turn the ignition switch to the OFF position and wait approximately 10 seconds.

Then switch the ignition back to ON. In most cases, the Nissan Frontier will return to normal operation. If normal function is not restored, the transmission should be inspected and serviced by a qualified technician. It is recommended to visit an authorized NISSAN dealer.

WARNING

When high fluid temperature protection mode or fail-safe mode is activated in the Nissan Frontier, vehicle speed may decrease significantly. This reduced speed may be lower than surrounding traffic, increasing the risk of an accident. Always remain alert, drive cautiously, and if necessary, pull over to a safe location to allow the transmission to cool or to seek professional assistance.

Parking brake

WARNING

• Always make sure the parking brake in your Nissan Frontier is completely released before driving. Driving with the brake engaged can lead to overheating, brake failure, and potentially serious accidents.
• Never attempt to release the parking brake from outside the Nissan Frontier, as this may result in unintended vehicle movement.
• The shift lever must never be used as a substitute for the parking brake. When parking your Nissan Frontier, always fully engage the parking brake to secure the vehicle.
• To reduce the risk of injury or fatal accidents, never leave children, individuals requiring assistance, or pets unattended inside your Nissan Frontier. Interior temperatures can rise rapidly, especially in warm weather, creating dangerous or life-threatening conditions.

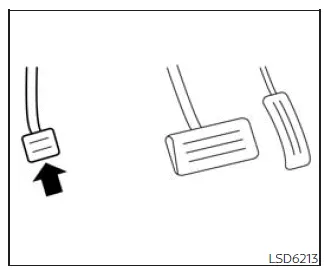

To engage the parking brake in your Nissan Frontier, press the pedal down firmly until it is fully set.

To release the parking brake safely:

1. Firmly press the foot brake pedal.

2. Move the shift lever into the P (Park) position.

3. Press the parking brake pedal again until it releases.

4. Before driving, confirm that the brake warning light has turned off to ensure the system is fully disengaged.

Terrain Mode Selector

Basic Information

The Nissan Frontier is equipped with a Terrain Mode Selector that allows the driver to optimize vehicle performance across a variety of road and off-road conditions. Multiple driving modes can be selected depending on terrain type and driving requirements.

To switch between modes, press the Terrain Mode Selector button. The Nissan Frontier system will automatically adjust traction, throttle response, and drivetrain behavior to match the selected terrain.

NOTE:

• When selecting a new terrain mode in the Nissan Frontier, the system may require a brief moment to engage. This delay is normal and does not indicate a malfunction.
• The system will default to ON ROAD mode each time the ignition is turned ON.
• Terrain modes are only available when the Nissan Frontier is operating in 4WD.
• Terrain modes cannot be activated while the vehicle is in TOW mode.

The currently selected mode is displayed in the vehicle information screen. A list of available modes will appear, allowing easy selection using the controls.

NOTE:

The display showing available terrain modes will automatically disappear after a few seconds. You can also manually clear the display using the steering wheel controls.

If the Terrain Mode Selector in your Nissan Frontier fails to switch modes while the ignition is ON, have the system inspected. It is recommended to visit an authorized NISSAN dealer.

WARNING

Do not focus on the Terrain Mode Selector or display while driving. Always maintain full attention on the road when operating your Nissan Frontier.

ON ROAD MODE

The symbol of this mode is .

This is the default driving mode for the Nissan Frontier and is optimized for everyday road use, providing balanced performance, fuel efficiency, and comfort.

ROCK MODE

WARNING

When ROCK mode is activated in the Nissan Frontier, the Vehicle Dynamic Control (VDC) system operates at a reduced level. This may affect stability control compared to ON ROAD mode. Drive carefully, especially on uneven or slippery surfaces.

CAUTION

Do not use ROCK mode on dry, paved roads. Doing so may overload the drivetrain, increase tire wear, and negatively impact fuel efficiency in your Nissan Frontier.

The symbol of this mode is .

ROCK mode enhances traction and control for navigating rocky terrain, uneven surfaces, and off-road obstacles with the Nissan Frontier.

Some vibration or braking sensation during tight cornering may occur in this mode. This is a normal characteristic and not a system fault.

MUD MODE

WARNING

In MUD mode, the VDC system operates with reduced intervention. The Nissan Frontier may behave differently than in ON ROAD mode. Exercise caution and avoid aggressive maneuvers on slippery terrain.

CAUTION

Avoid using MUD mode on hard, dry surfaces, as it can place unnecessary strain on the powertrain and lead to premature tire wear or reduced efficiency.

The symbol of this mode is .

MUD mode is specifically designed to improve traction and drivability on muddy roads, wet trails, and uneven surfaces, making the Nissan Frontier more capable in challenging off-road environments.

You may experience slight vibration or braking sensations when cornering in this mode. This is normal system behavior.

SAND MODE

WARNING

When SAND mode is selected in the Nissan Frontier, the VDC system is less restrictive. Always drive with caution, especially when maneuvering on loose or unstable surfaces.

CAUTION

Using SAND mode on solid paved roads can strain the drivetrain and reduce overall efficiency. Only use this mode in appropriate off-road conditions.

The symbol of this mode is .

SAND mode optimizes the Nissan Frontier for driving on loose surfaces such as deep sand, gravel, or dunes by adjusting throttle sensitivity and traction control.

Minor vibration or braking feedback may be noticeable during cornering. This is a normal characteristic of the system.

Traffic Sign Recognition (TSR)

Basic Information

The Traffic Sign Recognition (TSR) system in the Nissan Frontier is designed to assist the driver by detecting and displaying the most recently recognized speed limit and relevant road signs. Using a multi-sensing front camera mounted on the windshield near the interior rearview mirror, the Nissan Frontier continuously monitors road signs and presents this information clearly in the vehicle information display.

For Nissan Frontier models equipped with a navigation system, the displayed speed limit is calculated using a combination of real-time camera data and navigation database information. This ensures more accurate and consistent updates under varying driving conditions.

The detected information is always shown at the top of the vehicle information display, and depending on settings, it can also appear prominently in the central display area, allowing the driver to stay informed without distraction.

WARNING

The TSR system in the Nissan Frontier is intended solely as a driver assistance feature. It does not replace driver awareness, responsibility, or attention to road conditions. The system cannot prevent accidents caused by inattention or unsafe driving. Always remain alert and follow traffic laws at all times.

System operation

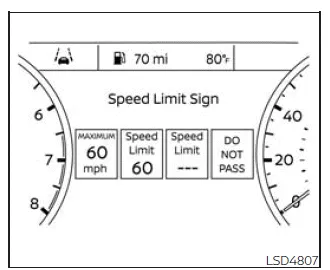

The Nissan Frontier TSR system is capable of identifying and displaying several types of traffic signs to support safer driving.

1. Speed limit sign detected (Canada)
2. Speed limit sign detected (USA)
3. No speed limit sign detected
4. "Do not pass" sign detected

CAUTION

• The TSR system in the Nissan Frontier is an aid to attentive driving. The driver must always observe road signs and comply with all applicable traffic laws.
• The system may not function correctly under certain conditions, including:
  • Poor visibility of road signs due to damage, fading, or adverse weather conditions.
  • Rain, snow, dirt, or debris on the windshield in front of the camera.
  • Reduced headlight performance caused by dirt or incorrect alignment.
  • Strong direct sunlight entering the camera (e.g., sunrise or sunset).
  • Sudden lighting changes, such as entering or exiting tunnels or passing under bridges.
  • Discrepancies between actual road conditions and navigation system data.
  • Passing vehicles such as trucks or buses displaying speed-related markings that may confuse the system.

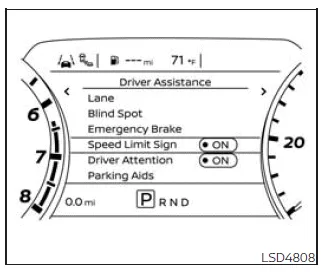

Turning the Traffic Sign Recognition (TSR) system on and off

To enable or disable the TSR system in your Nissan Frontier, follow these steps:

1. Press the button until the "Settings" menu appears in the vehicle information display.

Use the button to highlight "Driver Assistance," then press ENTER.

2. Select "Speed Limit Sign" and press ENTER again to switch the TSR system ON or OFF.

System temporarily unavailable

If your Nissan Frontier has been exposed to high temperatures (above approximately 104ºF / 40ºC), such as when parked in direct sunlight, the TSR system may temporarily deactivate. In this case, a message such as "Not Available High Camera Temp" will appear in the display.

Action to take:

Once the cabin and camera temperature return to normal levels, the TSR system in the Nissan Frontier will automatically resume operation without requiring any manual reset.

System malfunction

The TSR system in the Nissan Frontier shares its camera hardware with other driver assistance systems, such as the Lane Departure Warning (LDW) system. This camera is mounted near the interior rearview mirror and is essential for proper system functionality.

If a malfunction is detected, both TSR and related systems may be affected. In such cases, it is recommended to have your Nissan Frontier inspected by a qualified technician or an authorized NISSAN dealer to ensure proper operation and safety.

Lane Departure Warning (LDW)

Basic Information

WARNING

Failure to properly follow the instructions and safety guidelines for the LDW system in the Nissan Frontier may result in serious injury or even fatal accidents.

• The Lane Departure Warning (LDW) system in the Nissan Frontier is designed strictly as a driver assistance feature. It provides alerts when an unintentional lane departure is detected, but it does not actively steer the vehicle or prevent loss of control. The driver must remain attentive at all times, maintain proper lane positioning, and retain full control of the Nissan Frontier under all driving conditions.

The LDW system in the Nissan Frontier becomes active when driving at speeds of approximately 37 mph (60 km/h) or higher, and only when clear and visible lane markings are present on the road surface.

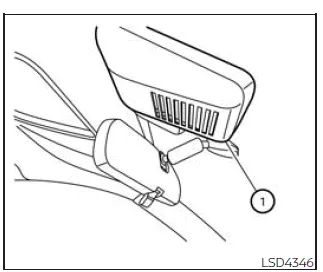

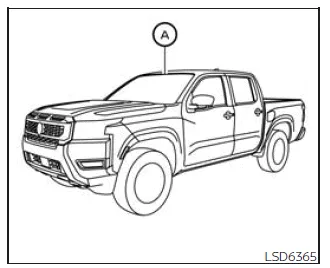

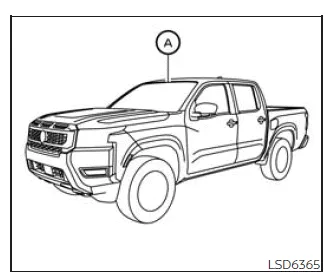

Using a forward-facing camera mounted above the interior rearview mirror, the Nissan Frontier continuously monitors lane markings and evaluates vehicle position relative to the lane boundaries.

If the system detects that the Nissan Frontier is unintentionally drifting out of its lane, it immediately alerts the driver through a visual indicator and a tactile steering wheel vibration, helping to prompt corrective action.

LDW system operation

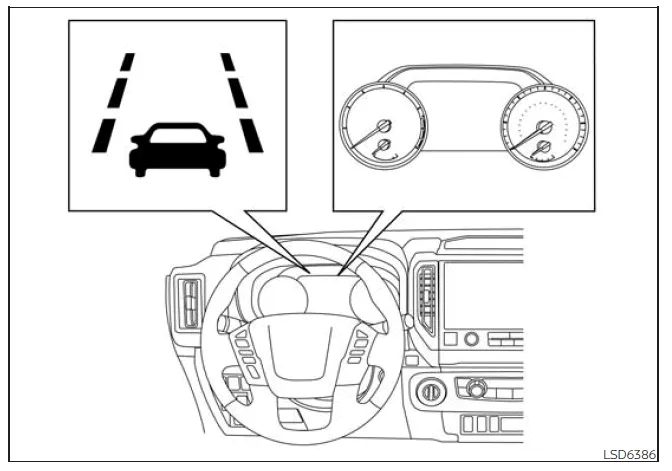

The LDW system in the Nissan Frontier actively monitors lane boundaries and provides real-time warnings when the vehicle begins to deviate from its lane at speeds above approximately 37 mph (60 km/h), provided the lane markings are clearly visible.

When the Nissan Frontier approaches either the left or right edge of the lane, the system will trigger a steering wheel vibration and the LDW indicator will flash on the instrument panel to alert the driver.

Once the Nissan Frontier is safely returned to the center of the lane, the warning signals will automatically cease.

This feature is particularly helpful during long highway drives, where driver fatigue may increase the risk of unintended lane departure.

How to enable/disable the LDW system

When the LDW system is enabled in the Nissan Frontier vehicle information display, it can be temporarily turned off using the warning systems switch.

To enable or disable the LDW system, follow these steps:

1. Press the button until "Settings" appears in the vehicle information display.

Use the button to select "Driver Assistance," then press the ENTER button.

2. Select "Lane" and confirm by pressing ENTER.

3. Choose "Warning (LDW)" and press ENTER again.

4. Use the Warning systems switch to turn the LDW system ON or OFF according to your preference.

NOTE:

• The Nissan Frontier will retain the current LDW settings even after the engine is turned off and restarted, ensuring consistent driver preferences.
• When the LDW system is activated, a white LDW indicator will illuminate in the vehicle information display, confirming that the system is ready for operation.

LDW system limitations

WARNING

The following outlines important limitations of the LDW system in the Nissan Frontier. Ignoring these warnings or misusing the system may result in serious injury or even fatal accidents.

• The Lane Departure Warning system in the Nissan Frontier does not function at speeds below approximately 37 mph (60 km/h), and it will not operate if lane markings cannot be clearly detected by the system.
• Avoid relying on the LDW system in the Nissan Frontier under the following conditions, as performance may be reduced or inaccurate:
  • In adverse weather conditions such as heavy rain, fog, or snow, where visibility is significantly reduced.
  • When driving on slippery surfaces like ice, snow, or wet roads that may affect vehicle stability.
  • On winding, uneven, or irregular road surfaces where lane markings are inconsistent.
  • In construction zones or areas with temporary lane changes or closures.
  • When traveling through temporary or poorly defined lanes.
  • On roads with unusually narrow lanes that may confuse the detection system.
  • When tire conditions are not optimal, such as worn tires, incorrect tire pressure, use of a spare tire, tire chains, or non-standard wheels installed on the Nissan Frontier.
  • When the vehicle is fitted with non-original suspension or braking components that may alter handling characteristics.
  • While towing a trailer or another vehicle, as this can affect system accuracy and vehicle behavior.
• The LDW system in the Nissan Frontier may also behave unpredictably or provide incorrect alerts under the following situations:
  • On roads with multiple lane markings, faded or poorly painted lines, non-standard markings, or lane markers obscured by water, dirt, or snow.
  • Where old or partially removed lane markings remain visible and may confuse the system.
  • On roads with sharp curves where lane tracking becomes more complex.
  • In areas with high visual contrast, such as shadows, standing water, snow patches, wheel ruts, or seams from road repairs, which may be mistakenly detected as lane lines.
  • When lanes merge, split, or change direction unexpectedly.
  • When the Nissan Frontier is not aligned properly within the lane or is traveling at an angle relative to the lane markers.
  • When following another vehicle too closely, which may block the camera’s view of the lane markings.
  • If the windshield area in front of the camera is obstructed by rain, snow, dirt, or any foreign objects.
  • When the headlights are dim due to contamination or improper alignment, reducing visibility for the system.
  • When intense light enters the camera lens, such as direct sunlight during sunrise or sunset.
  • When rapid changes in lighting occur, for example when entering or exiting tunnels or passing under bridges.

Understanding these limitations is essential for safe operation of the Nissan Frontier. The LDW system is designed to assist—not replace—the driver, and should always be used in combination with attentive and responsible driving habits.

System temporarily disabled

Under certain environmental conditions, the Lane Departure Warning system in the Nissan Frontier may be temporarily unavailable. For example, if the Nissan Frontier is parked for an extended period in direct sunlight and the interior temperature rises above approximately 104ºF (40ºC), the system may automatically deactivate to protect its components. In this case, the LDW indicator will flash in white and a message such as "Not Available High Camera Temp." will be displayed in the vehicle information screen. Once the cabin temperature decreases to a normal range, the LDW system in your Nissan Frontier will automatically resume normal operation without requiring any driver intervention.

In addition, the LDW system in the Nissan Frontier is intentionally designed not to issue warnings in specific situations, including:

• When the turn signal is activated and the vehicle is deliberately changing lanes in the indicated direction. The system will automatically reactivate approximately 2 seconds after the turn signal is switched off.
• When the vehicle speed drops below approximately 37 mph (60 km/h), at which point the LDW system is not active.

Once these conditions are no longer present and all required operating parameters are met, the LDW system in the Nissan Frontier will resume its normal monitoring and warning functionality.

System malfunction

If a malfunction is detected in the LDW system of the Nissan Frontier, the system will automatically deactivate to prevent incorrect warnings. In such cases, the LDW indicator will blink in yellow and a "Malfunction" message will appear in the vehicle information display. If this occurs, safely pull over to a secure location, bring the vehicle to a complete stop, shift into P (Park), and turn the ignition OFF. Then restart the engine. If the warning message persists, the system should be inspected as soon as possible. For optimal reliability and safety of your Nissan Frontier, it is strongly recommended to have the system checked by an authorized NISSAN dealer.

System maintenance

The LDW camera unit in the Nissan Frontier is positioned above the interior rearview mirror. Proper care and maintenance of this component are essential to ensure accurate system performance and to avoid potential malfunctions. To keep the LDW system operating efficiently in your Nissan Frontier, follow these important guidelines:

• Always keep the windshield area in front of the camera clean and free from dirt, snow, or condensation.
• Avoid placing stickers, films (including transparent ones), or installing accessories near the camera unit, as these may obstruct its field of view.
• Do not place reflective objects such as mirrors, metallic items, or bright paper on the dashboard, as reflected sunlight may interfere with the camera’s ability to detect lane markings correctly.
• Protect the camera area from impacts. Do not touch the camera lens or attempt to remove any screws or components of the unit.
• If the camera unit in your Nissan Frontier is damaged in an accident or shows signs of malfunction, have it inspected and serviced by a qualified technician at a NISSAN dealership.

Regular inspection and proper care of the LDW system components will help maintain reliable operation and enhance overall driving safety in the Nissan Frontier.

Blind Spot Warning (BSW)

Basic Information

WARNING

Failure to carefully follow all warnings and instructions regarding the Blind Spot Warning system in the Nissan Frontier may lead to serious injury or even fatal accidents.

• The BSW system in the Nissan Frontier is designed as a driver assistance feature and must never be considered a substitute for attentive driving. It does not prevent collisions with vehicles or obstacles. When changing lanes, always check mirrors, glance over your shoulder, and ensure the path is clear before maneuvering. Never rely solely on the Nissan Frontier BSW system.
• Avoid using the BSW system in your Nissan Frontier while towing a trailer or carrying oversized loads, as the radar sensors may not function correctly under these conditions.

The Blind Spot Warning system in the Nissan Frontier enhances driver awareness by detecting vehicles traveling in adjacent lanes, especially in areas that are difficult to see using mirrors alone. This advanced feature helps provide additional confidence when performing lane changes on highways or busy roads.

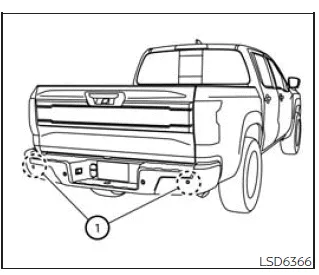

The Nissan Frontier BSW system utilizes radar sensors 1 strategically positioned near the rear bumper. These sensors continuously monitor surrounding traffic and identify vehicles approaching or traveling within adjacent lanes.

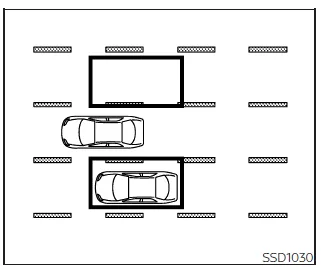

Detection zone

The detection area for the Nissan Frontier Blind Spot Warning system extends outward from each side mirror and covers approximately 10 ft (3.0 m) behind the rear bumper, as well as around 10 ft (3.0 m) to each side. This zone is designed to capture vehicles approaching from behind or traveling alongside your Nissan Frontier.

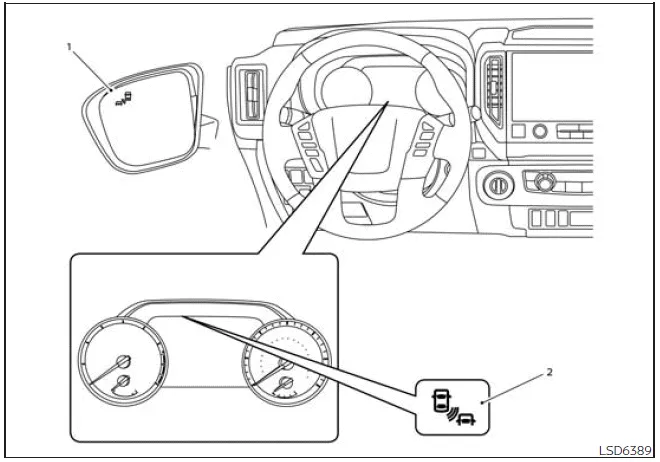

BSW system operation

1. Side BSW/RCTA Indicator Light
2. BSW Indicator

The Blind Spot Warning system in the Nissan Frontier becomes active when the vehicle speed exceeds approximately 20 mph (32 km/h). While driving, if another vehicle enters the monitored detection zone, the side BSW/RCTA indicator light (1) will illuminate steadily to alert the driver.

If the driver activates the turn signal while another vehicle is detected in the blind spot, the Nissan Frontier BSW system provides a stronger warning: an audible chime sounds twice, the side indicator light begins flashing, and the BSW warning indicator in the instrument cluster blinks in yellow. The indicator continues flashing until the adjacent vehicle exits the detection zone.

When the ignition switch of the Nissan Frontier is turned to the ON position, the side BSW/RCTA indicator light will briefly illuminate as part of the system self-check. The brightness of this indicator automatically adjusts based on ambient lighting conditions to ensure clear visibility during both day and night driving.

If a vehicle enters the blind spot after the turn signal has already been activated, the system will still alert the driver visually (flashing indicators), although no additional chime will be emitted in this scenario.

How to enable/disable the BSW system

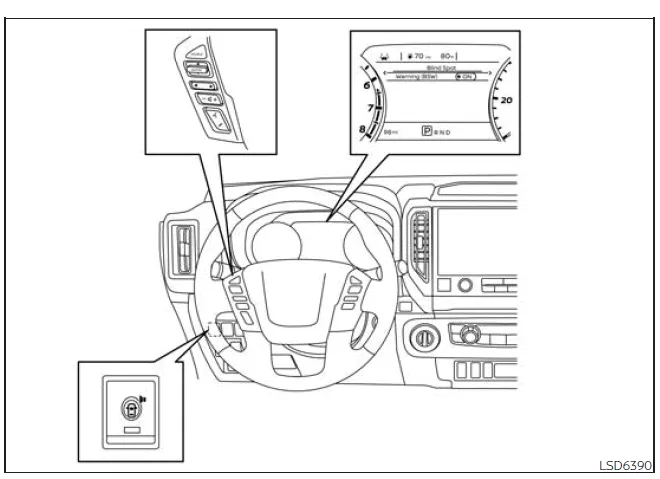

When the Blind Spot Warning system is enabled in the Nissan Frontier vehicle information display, it can be temporarily turned off using the warning systems switch. Follow these steps to configure the system:

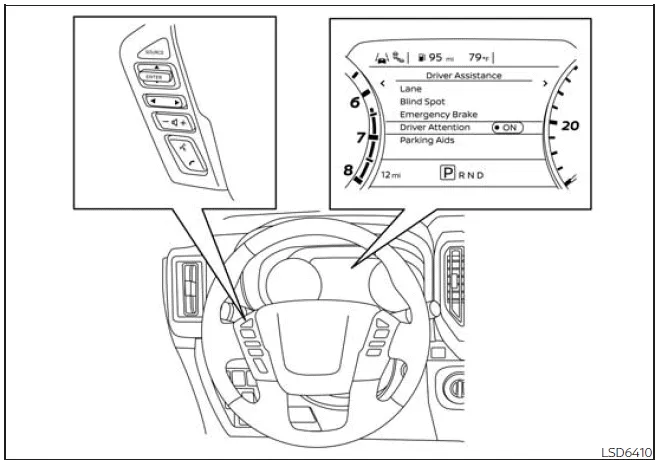

1. Press the button until "Settings" appears in the vehicle information display.

Use the button to select "Driver Assistance" and confirm by pressing ENTER.

2. Choose "Blind Spot" and press ENTER.

3. Select "Warning (BSW)" and press ENTER.

4. Press the Warning systems switch to turn the BSW system ON or OFF as desired.

NOTE:

• The selected BSW system settings in your Nissan Frontier are stored in memory and will remain active even after restarting the engine.
• When the BSW system is active, the BSW/RCTA indicator (white) will be displayed in the vehicle information screen, confirming that the system is ready to assist the driver.

For optimal performance of the Blind Spot Warning system in the Nissan Frontier, ensure that the rear bumper area where the radar sensors are located remains clean and free from dirt, snow, or heavy contamination, as this can affect detection accuracy.

BSW system limitations

WARNING

The following information outlines important limitations of the Blind Spot Warning system in the Nissan Frontier. Ignoring these limitations or relying solely on the system may result in serious injury or even fatal accidents. Always maintain full driver awareness and control.

• The BSW system in the Nissan Frontier cannot detect every vehicle or object under all possible driving conditions. It is intended as a support feature, not a replacement for attentive driving.
• The radar sensors of the Nissan Frontier may not detect certain types of objects or vehicles, including:
  • Pedestrians, cyclists, or animals.
  • Motorcycles, very low-profile vehicles, or vehicles with unusually high ground clearance.
  • Oncoming vehicles traveling in the opposite direction.
  • Vehicles already present in the detection zone when accelerating from a complete stop.
  • Vehicles merging into an adjacent lane at approximately the same speed as your Nissan Frontier.
  • Vehicles approaching rapidly from the rear.
  • Vehicles that your Nissan Frontier overtakes quickly.
  • Vehicles passing through the detection zone in a very short time.
  • Multiple vehicles traveling closely together, where those behind the first vehicle may not be detected accurately.
• The detection zone of the Nissan Frontier BSW system is calibrated for standard lane widths. On wider roads, vehicles in adjacent lanes may not be detected. On narrower roads, the system may mistakenly detect vehicles that are actually two lanes away.
• The radar sensors are designed to ignore stationary objects in most cases. However, objects such as guardrails, walls, vegetation, or parked vehicles may occasionally be detected. This behavior is considered normal for the Nissan Frontier BSW system.
• The ability of the Nissan Frontier radar sensors to detect vehicles may be reduced under certain environmental conditions, including:
  • Heavy rain, snow, or fog.
  • Road spray or water mist from other vehicles.
  • Ice, frost, snow, or dirt accumulation on the rear bumper area where the sensors are located.
• Avoid attaching stickers, applying additional paint, or installing accessories near the radar sensors on your Nissan Frontier, as this can interfere with proper detection performance.
• Excessive ambient noise, such as loud audio systems or open windows, may prevent you from hearing the BSW warning chime clearly.

BSW driving situations

Basic Information

• Indicator on
• Indicator off
• Indicator flashing

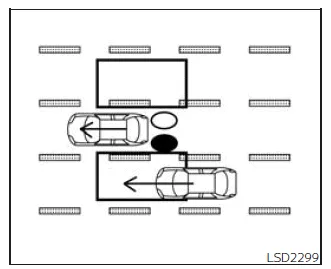

Another vehicle approaching from behind

Illustration 1 - Approaching from behind

Illustration 1 demonstrates how the Blind Spot Warning system in the Nissan Frontier reacts when a vehicle enters the detection zone from behind in an adjacent lane. In this situation, the side BSW/RCTA indicator light will illuminate steadily, alerting the driver to the presence of another vehicle.

NOTE:

• The Nissan Frontier BSW system may not always detect vehicles that are approaching at high speed from behind, especially if they enter the detection zone suddenly.

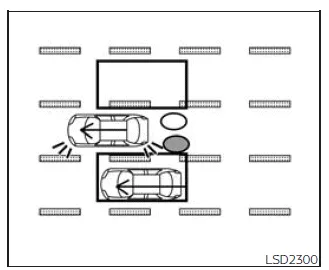

Illustration 2 - Approaching from behind

Illustration 2 further highlights another typical scenario where a vehicle moves quickly into the blind spot area of the Nissan Frontier. In such cases, the warning indicators may activate only briefly, reinforcing the importance of always checking mirrors and surroundings manually before changing lanes.

Understanding these limitations and typical driving scenarios will help you use the Nissan Frontier Blind Spot Warning system more effectively and safely in real-world driving conditions.

Illustration 2: When the driver of the Nissan Frontier activates the turn signal while another vehicle is already present within the blind spot detection zone, the Blind Spot Warning system responds with both visual and audible alerts. Specifically, the system emits two warning chimes, and both the side BSW/RCTA indicator light and the yellow BSW indicator in the instrument display begin to flash, clearly signaling that a lane change is unsafe.

NOTE:

• The radar sensors installed in the Nissan Frontier may not reliably detect vehicles that are approaching rapidly from behind, especially if they enter the detection zone abruptly.
• If the turn signal is activated before another vehicle enters the detection zone, the Nissan Frontier BSW system will still trigger visual warnings (flashing indicators), but no audible chime will be produced when the vehicle is later detected.

Overtaking another vehicle

Illustration 3 - Overtaking another vehicle

Illustration 3: When driving the Nissan Frontier and overtaking another vehicle, the side BSW/RCTA indicator light will illuminate if the overtaken vehicle remains within the blind spot detection area for approximately two seconds or longer. This ensures that the driver is aware of vehicles lingering alongside the truck during passing maneuvers.

Illustration 4 - Overtaking another vehicle

Illustration 4: If the driver of the Nissan Frontier activates the turn signal while overtaking and another vehicle is still present within the detection zone, the system will again issue a dual warning—two audible chimes along with flashing side indicator lights and a blinking yellow BSW warning in the display—indicating that changing lanes at that moment may be unsafe.

NOTE:

• When overtaking multiple vehicles in succession, the Nissan Frontier Blind Spot Warning system may only detect the first vehicle. Additional vehicles traveling closely behind it may not be recognized immediately.
• The radar sensors may fail to detect slower-moving vehicles if the Nissan Frontier passes them quickly, reducing the time they remain within the detection zone.
• If the turn signal is activated before a vehicle enters the blind spot area, the system will provide visual warnings only, without sounding a chime once detection occurs.

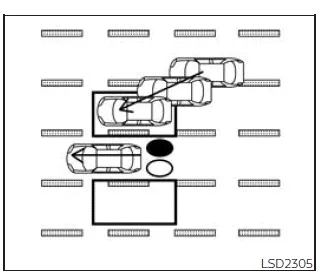

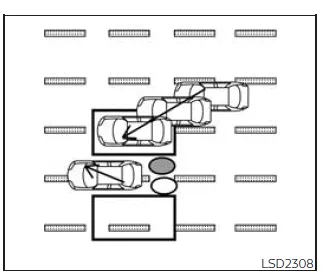

Illustration 5 - Entering from the side

Entering from the side

Illustration 5: The Blind Spot Warning system in the Nissan Frontier detects vehicles entering the detection zone from either side. When such a vehicle is identified, the side BSW/RCTA indicator light illuminates steadily to alert the driver of its presence.

Illustration 6 - Entering from the side

Illustration 6: If the driver activates the turn signal in the Nissan Frontier while another vehicle is present in the detection zone from the side, the system will issue a warning through two chimes and flashing indicators, reinforcing that it is not safe to change lanes at that moment.

NOTE:

• If the turn signal is activated before a vehicle enters the detection zone, the Nissan Frontier system will provide only visual alerts without an audible warning once detection occurs.
• The radar sensors may have difficulty detecting a vehicle traveling at approximately the same speed as your Nissan Frontier when it enters the blind spot area, which is why visual checks remain essential.

Understanding these real-world scenarios helps drivers use the Nissan Frontier Blind Spot Warning system more effectively, ensuring safer lane changes and improved overall driving awareness.

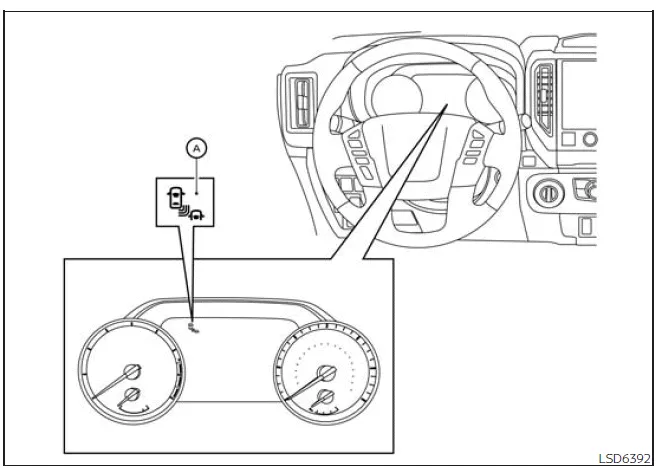

System temporarily unavailable

Basic Information

In certain situations, the Blind Spot Warning system in the Nissan Frontier may become temporarily unavailable. When the system detects that the radar sensors are obstructed, it will automatically deactivate to prevent inaccurate alerts. In such cases, a message such as "Unavailable Side Radar Obstruction" will appear in the vehicle information display, and the BSW/RCTA indicator (white) will blink A, notifying the driver of the condition.

The Nissan Frontier BSW system will remain inactive until the obstruction or environmental condition is resolved. This safety measure ensures that the system only operates when accurate detection is possible.

Temporary interference may be caused by environmental factors such as heavy rain, road spray, mist, or fog. Additionally, physical obstructions like ice, snow, frost, or dirt buildup around the rear bumper area can block the radar sensors and affect system performance.

NOTE:

If the Blind Spot Warning system in the Nissan Frontier is not functioning, the Rear Cross Traffic Alert (RCTA) system (if equipped) will also be disabled, since both systems rely on the same radar sensors.

Action to take:

Once the obstruction is cleared or environmental conditions improve, the Nissan Frontier BSW system will automatically return to normal operation without requiring manual intervention.

Malfunction

If a malfunction occurs in the Nissan Frontier Blind Spot Warning system, the system will switch off automatically to prevent incorrect warnings. A system malfunction message will appear in the vehicle information display along with the BSW/RCTA indicator illuminated in orange.

NOTE:

When the BSW system is disabled due to a malfunction, the RCTA system will also be unavailable.

Action to take:

If a malfunction message is displayed, safely stop the Nissan Frontier in an appropriate location, shift the transmission into P (Park), turn the engine off, and then restart it. If the warning message remains after restarting, the system should be inspected by a qualified technician. For best results, it is recommended to visit an authorized NISSAN dealer.

System maintenance

Basic Information

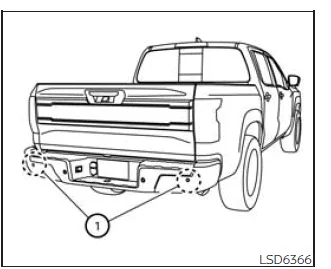

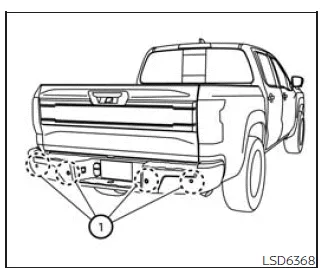

The Nissan Frontier is equipped with two radar sensors 1 located near the rear bumper, which are essential for the proper operation of both the Blind Spot Warning and Rear Cross Traffic Alert systems. Keeping this area clean and unobstructed is critical for maintaining system accuracy.

Environmental conditions such as water spray, fog, or snow may temporarily reduce radar effectiveness. Likewise, accumulation of dirt, ice, or frost on the sensor surfaces can block signals and prevent proper detection.

Regularly inspect and clean the rear bumper area of your Nissan Frontier to ensure that the radar sensors remain unobstructed. Remove any debris, buildup, or contaminants that could interfere with system operation.

Do not apply stickers, coatings, or additional paint near the radar sensor areas, and avoid installing accessories that may interfere with radar signal transmission.

Avoid impacts or damage to the rear bumper area where the sensors are installed. If the Nissan Frontier has been involved in a collision or the sensor area appears damaged, have it inspected by a NISSAN dealer to ensure continued safe operation.

Radio frequency statement

For USA

This device installed in the Nissan Frontier complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

CAUTION TO USERS

Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate the equipment.

For Canada

This equipment in the Nissan Frontier contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standards. Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired operation.

Radiofrequency radiation exposure information:

This equipment complies with RF exposure limits set for an uncontrolled environment. To maintain compliance, the device should be installed and operated with a minimum distance of 20 cm between the radiator and any person.

Rear Cross Traffic Alert (RCTA)

Basic Information

WARNING

Ignoring the safety precautions and proper usage guidelines for the Rear Cross Traffic Alert system in the Nissan Frontier may lead to serious injury or even fatal accidents.

• The RCTA system in the Nissan Frontier is intended as a supplemental driver assistance feature and must never replace safe driving practices. When reversing, always check mirrors, look over your shoulder, and ensure the path is clear. Do not rely solely on the Nissan Frontier RCTA system to detect hazards.

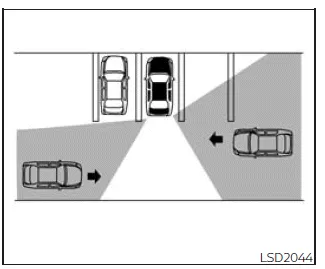

The Rear Cross Traffic Alert system in the Nissan Frontier is designed to assist drivers when backing out of parking spaces. It actively monitors cross traffic approaching from both the left and right sides and provides alerts to enhance awareness in situations with limited visibility.

RCTA system operation

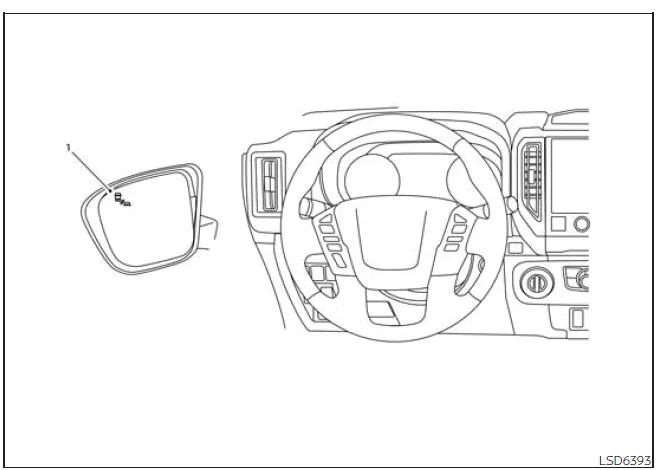

1. Side BSW/RCTA Indicator Light

The Nissan Frontier RCTA system becomes active when the transmission is shifted into R (Reverse) and the vehicle speed remains below approximately 5 mph (8 km/h). This ensures that the system operates specifically during low-speed reversing maneuvers.

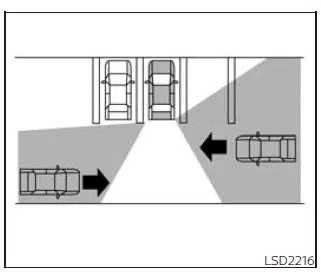

When the radar sensors detect a vehicle approaching from either side, the Nissan Frontier will emit a single audible chime and activate a flashing side BSW/RCTA indicator light on the corresponding side, warning the driver of potential cross traffic.

The Nissan Frontier RCTA system uses radar sensors 1 located on both sides of the rear bumper. These sensors are capable of detecting approaching vehicles from a distance of up to approximately 66 ft (20 m), providing early warnings to the driver.

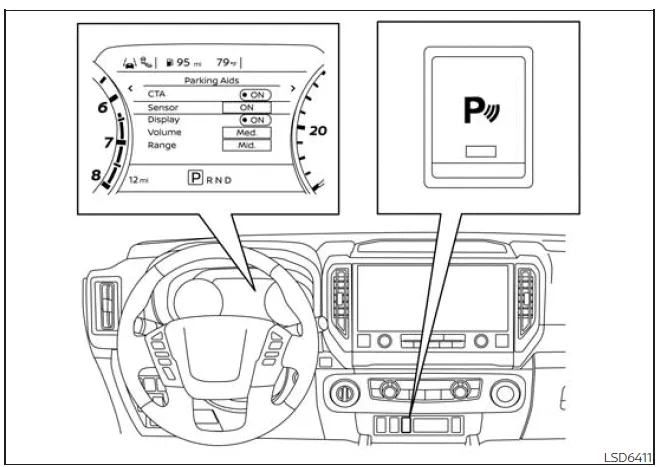

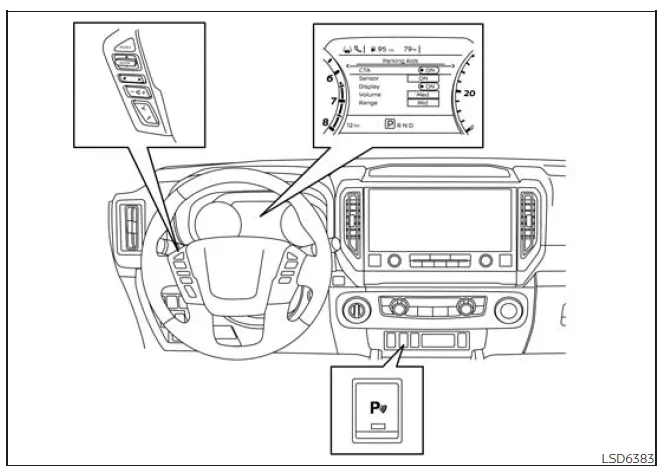

How to enable/disable the RCTA system

When the RCTA system is enabled in the Nissan Frontier vehicle information display, it can be temporarily turned off using the Parking Aids system switch. This allows the driver to customize system behavior based on driving conditions.

To enable or disable the RCTA system in your Nissan Frontier, follow these steps:

1. Press the button until "Settings" appears in the display.

Use the button to navigate to "Driver Assistance" and press ENTER.

2. Select "Parking Aids" and confirm with ENTER.

3. Choose "CTA" and press ENTER to switch the system ON or OFF.

4. Use the Parking Aids system switch to activate or deactivate the system as needed.

NOTE:

The Nissan Frontier retains the RCTA system settings even after the engine is turned off and restarted, ensuring consistent driver preferences.

RCTA system limitations

WARNING

The following limitations apply to the Rear Cross Traffic Alert system in the Nissan Frontier. Failure to recognize these limitations may increase the risk of accidents and injury.

• Always visually check your surroundings before reversing. The Nissan Frontier radar sensors are designed to detect moving vehicles and may not identify all objects, including:
  • Pedestrians, bicycles, motorcycles, animals, or small objects such as children's toys.
  • Vehicles moving faster than approximately 19 mph (30 km/h).
  • Vehicles moving slower than approximately 5 mph (8 km/h).
• The Nissan Frontier radar sensors may not detect approaching vehicles under certain conditions, including:

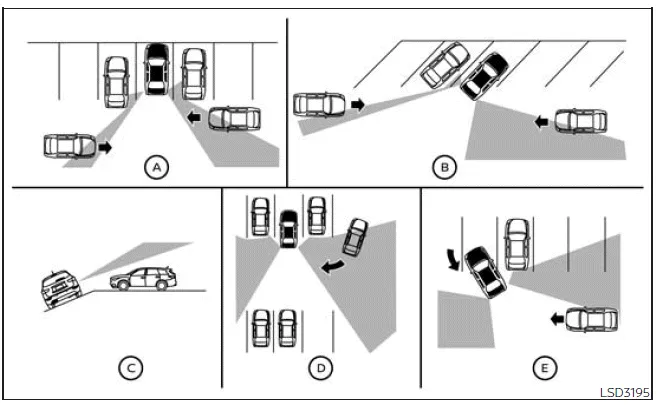

  • Illustration A: When a nearby parked vehicle blocks the radar signal.
  • Illustration B: When parked at an angle in a parking space.
  • Illustration C: When parked on a slope or inclined surface.
  • Illustration D: When another vehicle turns into the same driving lane or aisle.
  • Illustration E: When the angle between vehicles is too narrow for accurate detection.
• Detection performance of the Nissan Frontier RCTA system may be reduced in the following conditions:
  • Severe weather such as rain, snow, or fog.
  • Road spray from nearby vehicles.
  • Accumulation of ice, frost, dirt, or debris on the rear bumper sensors.
• Avoid placing stickers, accessories, or additional coatings near the radar sensors, as these can interfere with system performance.
• Loud background noise, such as high audio volume or open windows, may prevent the driver from hearing the RCTA warning chime.

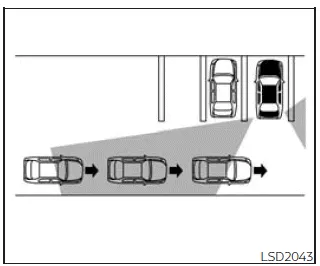

Illustration 1

Illustration 2

NOTE:

When multiple vehicles approach consecutively (Illustration 1) or from opposite directions (Illustration 2), the Nissan Frontier RCTA system may only provide an audible warning for the first detected vehicle. Subsequent vehicles may not trigger additional chimes, so continuous visual checks remain essential.

The Nissan Frontier RCTA system is a valuable assistance feature, but understanding its limitations ensures safer reversing and improved driver awareness in real-world conditions.

System temporarily unavailable

Basic Information

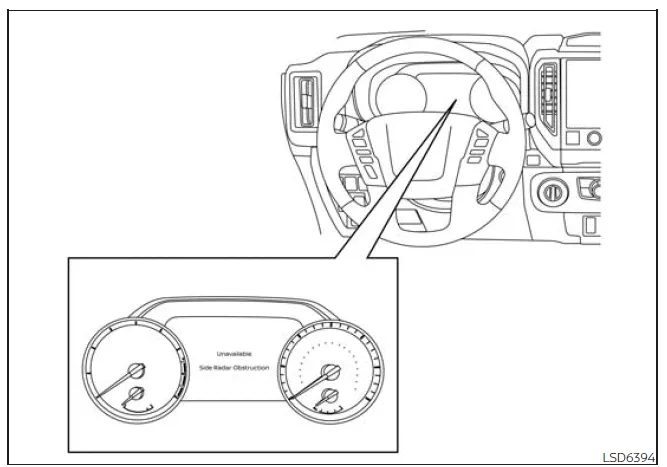

In the Nissan Frontier, if the radar sensors detect any obstruction or interference, the system will automatically deactivate to prevent inaccurate operation. In such cases, a message such as "Unavailable Side Radar Obstruction" will be displayed in the vehicle information screen to inform the driver.

The Nissan Frontier driver assistance systems, including BSW and RCTA, will remain unavailable until the interfering conditions are resolved and normal sensor functionality is restored.

Temporary environmental factors such as splashing water, heavy mist, dense fog, or road spray can block the radar sensors and interrupt system performance in the Nissan Frontier.

In addition, physical obstructions like snow, ice, frost, or accumulated dirt on the rear bumper area may also prevent proper detection by the Nissan Frontier radar sensors.

NOTE:

If the Blind Spot Warning (BSW) system in the Nissan Frontier becomes inoperative, the Rear Cross Traffic Alert (RCTA) system will also be disabled, as both systems rely on the same radar sensors.

Action to take:

Once the obstruction or environmental interference is cleared, the Nissan Frontier systems will automatically return to normal operation without requiring driver intervention.

Malfunction

If the Nissan Frontier RCTA system detects an internal malfunction, it will shut down automatically and display a system warning message in the vehicle information display.

NOTE:

As with temporary unavailability, if the BSW system stops functioning, the RCTA system in the Nissan Frontier will also be disabled simultaneously.

Action to take:

Safely stop the Nissan Frontier in an appropriate location, shift the transmission into P (Park), turn the engine off, and then restart it. If the warning message persists, have the system inspected by a qualified technician. It is strongly recommended to visit an authorized NISSAN dealer to ensure proper diagnosis and repair.

System maintenance

Basic Information

The Nissan Frontier is equipped with two radar sensors 1 located near the rear bumper, which are responsible for the operation of both the BSW and RCTA systems. Keeping this area clean is essential for reliable system performance.

Environmental factors such as rain, fog, or water spray may temporarily affect the Nissan Frontier radar sensors, while buildup of snow, ice, frost, or dirt can physically block them.

Regularly inspect and clean the sensor areas on your Nissan Frontier to ensure optimal functionality and consistent detection accuracy.

Avoid placing stickers, transparent films, accessories, or additional paint near the radar sensors, as this may interfere with signal transmission and reduce system effectiveness.

Do not hit, modify, or damage the rear bumper area where the radar sensors are installed. If damage occurs due to a collision, it is recommended that the Nissan Frontier be inspected by a qualified NISSAN dealer.

Radio frequency statement

For USA

This device installed in the Nissan Frontier complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

CAUTION TO USERS

Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment in the Nissan Frontier.

Radio frequency statement

For USA

This device installed in the Nissan Frontier complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

CAUTION TO USERS

Unauthorized modifications to the Nissan Frontier electronic systems could result in loss of compliance and operational authority.

Intelligent Cruise Control (ICC)

Basic Information

1. ICC switch

WARNING

Ignoring the safety precautions and proper usage guidelines for the ICC system in the Nissan Frontier may lead to serious injury or even fatal accidents.

• The Intelligent Cruise Control (ICC) system in the Nissan Frontier is designed solely as a driver assistance feature. It does not replace attentive driving and is not intended to prevent collisions. The driver must remain fully alert, maintain control of the vehicle, and continuously monitor traffic conditions.
• Always follow posted speed limits when operating the Nissan Frontier and never set the cruise speed higher than legally permitted or safe for road conditions.
• Use the ICC system in the Nissan Frontier only under appropriate traffic and road conditions.

  Carefully read and understand the Owner’s Manual before using this feature. Relying entirely on the ICC system instead of active driving can lead to dangerous situations. The system is not capable of reacting to all emergency scenarios.

  The driver must always be prepared to brake or steer as necessary, especially in unpredictable traffic situations.

• When using the conventional (fixed speed) cruise control mode in the Nissan Frontier, the system does not provide warnings if you approach another vehicle too closely. It is essential to maintain a safe following distance at all times to avoid potential collisions.

The Intelligent Cruise Control system in the Nissan Frontier is engineered to automatically maintain a selected following distance from the vehicle ahead within a speed range of approximately 0 to 90 mph (0 to 144 km/h), depending on conditions, while respecting the preset speed selected by the driver.

The driver can set the desired cruising speed between approximately 20 and 90 mph (30 to 144 km/h), allowing the Nissan Frontier to adapt smoothly to highway and traffic conditions.

When no vehicle is detected ahead, the Nissan Frontier will maintain the preset cruising speed, providing a comfortable and consistent driving experience.

The Nissan Frontier ICC system offers two distinct operating modes:

• Vehicle-to-vehicle distance control mode: This mode automatically adjusts speed to maintain a safe distance from the vehicle ahead while driving up to the selected speed.
• Conventional (fixed speed) cruise control mode: This mode allows the Nissan Frontier to travel at a constant speed without automatically adjusting for traffic ahead.

Use the ICC switch A in the Nissan Frontier to toggle between these two cruise control modes based on your driving needs.

Once a specific cruise control mode is activated in the Nissan Frontier, it cannot be switched directly to another mode. To change modes, first turn the system off by pressing the ICC switch A, then turn it back on and select the desired mode again.

Always verify the active mode and settings using the Nissan Frontier instrument display before driving to ensure proper system operation.

How to select the cruise control mode

Selecting the vehicle-to-vehicle distance control mode: To activate this mode in the Nissan Frontier, briefly press and release the ICC switch A.

Selecting the conventional (fixed speed) cruise control mode: To switch to this mode in the Nissan Frontier, press and hold the ICC switch A for more than approximately 1.5 seconds.

For optimal performance of the Nissan Frontier ICC system, always ensure that sensors are clean and unobstructed, and be ready to intervene manually whenever necessary.

Vehicle-to-vehicle distance control mode

In the Nissan Frontier, the vehicle-to-vehicle distance control mode of the Intelligent Cruise Control (ICC) system is designed to automatically maintain a preset following distance from the vehicle ahead. The system continuously adapts to the speed of the leading vehicle and adjusts your Nissan Frontier accordingly, or maintains the selected cruising speed when the lane ahead is clear.

This advanced feature enhances driving comfort in the Nissan Frontier by assisting the driver during steady highway travel or moderate traffic conditions, particularly when following vehicles moving in the same direction and lane.

If the front radar sensor 1 in the Nissan Frontier detects a slower-moving vehicle ahead, the system will automatically reduce speed to maintain the selected distance, ensuring smoother and safer following behavior.

The Nissan Frontier ICC system controls engine throttle and can apply braking force (up to approximately 40% of total braking capacity) when necessary to regulate speed and maintain spacing.

Vehicle-to-vehicle distance control mode operation

The vehicle-to-vehicle distance control mode in the Nissan Frontier is engineered to automatically adjust speed based on traffic flow and maintain a consistent gap between your vehicle and the one ahead. It can reduce speed as needed and, if the leading vehicle comes to a stop, the Nissan Frontier will decelerate to a complete stop within system limits.

However, it is important to note that the ICC system in the Nissan Frontier is limited to approximately 40% of the total braking force. This means that in situations requiring rapid deceleration, the driver must intervene by braking manually.

The Nissan Frontier ICC system is most effective in conditions where traffic moves at relatively stable speeds or changes gradually. If another vehicle suddenly cuts into your lane or the vehicle ahead brakes sharply, the system may not react quickly enough to maintain a safe distance.

In such situations, the Nissan Frontier will alert the driver with an audible warning and visual indicators on the display, prompting immediate driver action to ensure safety.

The system will automatically cancel operation and sound a warning if the vehicle speed drops below approximately 15 mph (25 km/h) and no vehicle is detected ahead. It will also deactivate if the vehicle exceeds the maximum set cruise speed.

The following functions are managed by the vehicle-to-vehicle distance control mode in the Nissan Frontier:

• When no vehicle is detected ahead, the Nissan Frontier maintains the driver-selected cruising speed. The adjustable speed range typically falls between approximately 20 and 90 mph (30 to 144 km/h).
• When a vehicle is detected ahead, the Nissan Frontier automatically adjusts speed to maintain the selected following distance. If the leading vehicle slows down or stops, the system will decelerate your vehicle accordingly, potentially bringing it to a complete stop within system capabilities.

For optimal safety and performance, always monitor traffic conditions when using the Nissan Frontier ICC system and be prepared to take control whenever necessary.

If the Nissan Frontier ICC system determines that the vehicle has come to a complete stop, it will automatically cancel operation and emit a warning chime to notify the driver.

When the vehicle ahead in the Nissan Frontier leaves its lane or is no longer detected, the vehicle-to-vehicle distance control mode will smoothly accelerate and return to the previously set cruising speed.

The Intelligent Cruise Control (ICC) system in the Nissan Frontier is not designed to detect or respond effectively to stationary objects or very slow-moving vehicles. Therefore, drivers must remain attentive and manually control the vehicle when approaching situations such as traffic congestion, toll booths, or stopped traffic.

While driving the Nissan Frontier on highways at a preset speed, if a slower vehicle is detected ahead, the ICC system will automatically reduce speed to maintain the selected following distance. Once the lane ahead becomes clear—such as when the leading vehicle exits or changes lanes—the Nissan Frontier will accelerate back to the preset speed.

During this automatic acceleration, the driver should stay alert and maintain full control of the Nissan Frontier, as rapid changes in traffic conditions may require immediate intervention.

On winding roads or steep inclines, the Nissan Frontier may not consistently maintain the preset speed due to system limitations. In such cases, manual speed control by the driver is necessary to ensure safe operation.

Under normal conditions, the ICC system in the Nissan Frontier continuously adjusts speed—either accelerating or decelerating—based on the behavior of the vehicle ahead, providing a smoother and more relaxed driving experience.

However, the driver must take over when additional acceleration is needed, such as during lane changes. Press the accelerator pedal to safely increase speed when required.

Likewise, if the vehicle ahead brakes suddenly or another vehicle merges into your lane, you must apply the brakes manually to maintain a safe following distance. The Nissan Frontier ICC system is a supportive feature, but it cannot replace driver awareness and quick decision-making.

Always remain vigilant and ready to react when using the Nissan Frontier Intelligent Cruise Control system, especially in dynamic or unpredictable traffic environments.

Vehicle-to-vehicle distance control mode switches

Basic Information

The Intelligent Cruise Control (ICC) system in the Nissan Frontier is conveniently operated using the ICC main switch and four dedicated control buttons, all ergonomically positioned on the steering wheel for easy access while driving.

1. CANCEL switch:

Instantly deactivates the ICC system in the Nissan Frontier, allowing the driver to regain full manual control.

2. ACCEL/RES switch:

Restores the previously set cruising speed or gradually increases the set speed in small increments for fine adjustments.

3. COAST/SET switch:

Sets the desired cruising speed or reduces the current speed step-by-step for precise control.

4. ICC switch:

Acts as the master control to activate or deactivate the Nissan Frontier Intelligent Cruise Control system.

5. DISTANCE switch:

This control allows the driver to adjust the following distance between the Nissan Frontier and the vehicle ahead:

• Long – for increased safety margin
• Middle – for balanced driving conditions
• Short – for closer following in steady traffic

Vehicle-to-vehicle distance control mode display and indicators

The Nissan Frontier ICC system information is displayed in the instrument cluster, positioned between the speedometer and tachometer for clear visibility.

1. This indicator shows the current ICC system status based on color:

• ICC system ON indicator (gray): Confirms that the Nissan Frontier ICC system is activated but not yet set.
• ICC system SET indicator (green): Indicates that a cruising speed has been selected and the system is actively controlling the vehicle.
• ICC system warning (yellow): Alerts the driver to a malfunction or issue requiring attention.

2. Set vehicle speed indicator: Displays the selected cruising speed.

In Nissan Frontier Canadian models, this value is shown in km/h for regional compliance.

3. Set distance indicator: Shows the currently selected following distance using the distance control switch.

Operating vehicle-to-vehicle distance control mode

To activate cruise control in the Nissan Frontier, briefly press and release the ICC switch A. The ICC system ON indicator (gray), along with the set distance and speed indicators B, will illuminate, indicating standby mode.

To set the desired cruising speed in the Nissan Frontier, accelerate to the preferred speed, then press and release the COAST/SET switch C. The ICC system SET indicator (green), along with the vehicle detection indicator, set distance indicator, and speed display B, will activate. Once set, remove your foot from the accelerator—the Nissan Frontier will maintain the selected speed automatically.

If the COAST/SET switch is pressed under the following conditions, the Nissan Frontier ICC system cannot be activated, and the set speed indicator will flash for approximately 2 seconds:

• Vehicle speed is below approximately 20 mph (30 km/h) and no vehicle is detected ahead
• The shift lever is not in D (Drive) or Manual mode
• The parking brake is engaged
• The brake pedal is being pressed

If the Nissan Frontier ICC system is unable to activate due to the following conditions, a warning message will be displayed:

• The Vehicle Dynamic Control (VDC) system is turned off (to use ICC, enable VDC and reset the system by turning ICC off and on again)
• The VDC system is actively operating
• Wheel slip is detected (ensure stable traction before activating ICC)

1. System set display with vehicle ahead
2. System set display without vehicle ahead

For optimal performance of the Nissan Frontier ICC system, ensure proper driving conditions and always monitor system indicators to confirm correct operation.

The driver of the Nissan Frontier selects the desired cruising speed according to current road and traffic conditions. Once set, the Intelligent Cruise Control (ICC) system maintains this speed in a manner similar to traditional cruise control, provided no vehicle is detected ahead in the same lane. The selected speed is clearly displayed in the Nissan Frontier instrument cluster for continuous driver awareness.

Vehicle detected ahead

When the Nissan Frontier detects a vehicle traveling ahead, the ICC system automatically adjusts speed by reducing engine power and applying braking as needed. This allows the Nissan Frontier to match the speed of the leading vehicle while maintaining the driver-selected following distance for improved safety and comfort.

NOTE:

• When the ICC system in the Nissan Frontier applies braking, the brake lights will illuminate to alert vehicles behind you.
• During automatic braking, you may notice operational sounds. This is a normal characteristic of the Nissan Frontier system and does not indicate a malfunction.

When a vehicle is detected ahead, the vehicle detection indicator will illuminate, confirming that the Nissan Frontier ICC system is actively tracking traffic.

At the same time, the Nissan Frontier display will show both the set cruising speed and the selected following distance, providing clear feedback to the driver.

Vehicle ahead not detected

If the vehicle ahead is no longer detected, the Nissan Frontier ICC system will smoothly accelerate the vehicle back to the previously set cruising speed. Once the target speed is reached, the system will maintain it automatically.

When no vehicle is detected, the vehicle detection indicator in the Nissan Frontier will turn off, signaling open road conditions.

If another vehicle enters the lane while the Nissan Frontier is accelerating or operating under ICC control, the system will immediately adjust speed to maintain the appropriate distance.

If no vehicle is detected and the Nissan Frontier speed drops below approximately 15 mph (25 km/h), the ICC system will automatically cancel operation.

While overtaking another vehicle in the Nissan Frontier, the set speed indicator A may flash if the actual vehicle speed temporarily exceeds the preset value. Once the lane ahead is clear, the vehicle detection indicator will turn off. After releasing the accelerator pedal, the Nissan Frontier will return to the previously set cruising speed.

Even when the Nissan Frontier ICC system is active, the driver can press the accelerator pedal at any time to achieve quicker acceleration when needed, such as during overtaking maneuvers.

How to change the set vehicle speed

To cancel the preset cruising speed in the Nissan Frontier, use one of the following methods:

• Press the CANCEL switch. The set speed indicator will change to gray.
• Lightly press the brake pedal. The set speed indicator will turn gray and the system will deactivate.
• Press the ICC switch to turn the system off. All Nissan Frontier ICC indicators will switch off.

To increase the cruising speed in the Nissan Frontier, use one of the following methods:

• Press the accelerator pedal until reaching the desired speed, then press and release the COAST/SET switch.
• Press and hold the ACCEL/RES switch.

  The set speed will increase in increments of approximately 5 mph (5 km/h).

• Press and quickly release the ACCEL/RES switch. Each press increases the speed by approximately 1 mph (1.6 km/h).

To decrease the cruising speed in the Nissan Frontier, use one of the following methods:

• Lightly apply the brake pedal until reaching the desired speed, then press and release the COAST/SET switch.
• Press and hold the COAST/SET switch.

  The set speed will decrease by approximately 5 mph (5 km/h).

• Press and quickly release the COAST/SET switch. Each press reduces the speed by approximately 1 mph (1.6 km/h).

To resume the previously set speed in the Nissan Frontier, press and release the ACCEL/RES switch. The system will restore the last stored cruising speed once the vehicle exceeds approximately 20 mph (30 km/h).

For best results, always monitor traffic conditions and be prepared to manually adjust speed when using the Nissan Frontier Intelligent Cruise Control system.

How to change the set distance to the vehicle ahead

In the Nissan Frontier, the following distance to the vehicle ahead can be adjusted at any time—either while the Intelligent Cruise Control (ICC) system is in standby mode or actively controlling speed—depending on current traffic and driving conditions. This flexibility allows the Nissan Frontier driver to tailor the driving experience for both comfort and safety.

Each time the distance switch A is pressed, the selected following distance will cycle through three preset levels: long, medium, and short, before returning to long again. This intuitive system in the Nissan Frontier ensures quick adjustments without distraction.

Approximate distance at 60 mph (100 km/h) [ft (m) ]

1. Distance: Long

• 200 (60)

2. Distance: Middle

• 150 (45)

3. Distance: Short

• 90 (30)
• The following distance in the Nissan Frontier dynamically adjusts according to vehicle speed.

  At higher speeds, the system automatically increases the gap to enhance safety and provide sufficient braking distance.

• The selected distance setting remains stored even after the Nissan Frontier engine is turned off and restarted, ensuring consistent driver preferences.

Approach warning

If the Nissan Frontier approaches a vehicle ahead too quickly—such as when that vehicle brakes suddenly or another vehicle merges into your lane—the ICC system will alert the driver with an audible chime and a visual warning on the display. In such situations, the driver must immediately reduce speed by applying the brake pedal to maintain a safe distance.

• The warning chime is activated.
• The vehicle ahead detection indicator flashes.

However, in certain situations, the Nissan Frontier ICC warning chime may not activate even when the distance is short. Examples include:

• When both vehicles are traveling at similar speeds and the distance remains constant.
• When the vehicle ahead accelerates, increasing the gap.
• When another vehicle merges very close to your Nissan Frontier.

The warning chime will also not sound under the following conditions:

• When approaching stationary or very slow-moving vehicles.
• When the driver presses the accelerator pedal, temporarily overriding the Nissan Frontier ICC system.

NOTE:

The Nissan Frontier ICC system may occasionally detect roadside objects or vehicles in adjacent lanes, which can trigger warnings or cause slight speed adjustments. This behavior is more likely on winding roads, narrow lanes, hills, or when entering and exiting curves. In such cases, the driver should maintain full control and manually manage the distance to the vehicle ahead.

Additionally, sensor performance in the Nissan Frontier may be influenced by driving behavior (such as steering input or lane positioning) as well as environmental or vehicle conditions (for example, if the vehicle has sustained damage or is operating in heavy traffic).

Automatic cancellation

The Nissan Frontier ICC system will automatically deactivate and emit a warning chime under the following conditions:

• When no vehicle is detected ahead and the Nissan Frontier speed drops below approximately 15 mph (25 km/h).
• When the system determines that the vehicle has come to a complete stop.
• When the shift lever is moved out of the D (Drive), Manual mode, or L (Low) range.
• When the parking brake is engaged.
• When the Vehicle Dynamic Control (VDC) system is turned off.
• When the VDC system is actively intervening.
• When sensor visibility is impaired due to dirt, snow, or other obstructions.
• When wheel slip is detected.
• When the radar signal is temporarily interrupted.

For optimal performance of the Nissan Frontier ICC system, always ensure sensors are clean and remain attentive to surrounding traffic conditions.

Vehicle-to-vehicle distance control mode limitations

WARNING

The following section outlines important limitations of the Intelligent Cruise Control (ICC) system in the Nissan Frontier. Ignoring these limitations or relying too heavily on the system may lead to dangerous situations, including serious injury or fatal accidents.

• The Nissan Frontier ICC system is designed primarily for use on straight, dry highways with light and steady traffic. It is not intended for use in dense urban environments, stop-and-go traffic, or highly congested roads where constant manual intervention is required.
• The system does not automatically adapt to changing road conditions. For safe operation in the Nissan Frontier, use ICC only in stable driving environments. Avoid activating the system on roads with sharp curves, slippery surfaces such as ice or snow, or during adverse weather conditions like heavy rain or fog.
• Due to inherent system limitations, the Nissan Frontier ICC must never be relied upon as a substitute for attentive driving. It cannot compensate for driver distraction, poor visibility, or sudden hazards. Always be prepared to reduce speed manually using the brake pedal to maintain a safe following distance.
• If the vehicle ahead comes to a complete stop, the Nissan Frontier will decelerate and may stop within system limits.

  Once a full stop is detected, the system will cancel and emit a warning chime. The driver must immediately press the brake pedal to keep the vehicle stationary and maintain control.

• Always stay attentive and ready to take over vehicle control. In certain driving situations, the Nissan Frontier ICC system may not maintain the selected speed or distance accurately due to environmental or traffic variables.
• The system may fail to detect vehicles ahead under specific conditions. To reduce the risk of accidents, do not use the Nissan Frontier ICC system in the following situations:
  • Heavy traffic or roads with sharp curves
  • Slippery surfaces such as snow, ice, or wet roads
  • Severe weather conditions including rain, fog, or snow
  • When non-recommended tires or wheels are installed
  • When dirt, snow, or debris covers the radar sensor area
  • On steep downhill slopes where vehicle speed may exceed the set speed and braking may overheat
  • On roads with frequent elevation changes (uphill/downhill)
  • When traffic flow is inconsistent with frequent acceleration and braking
  • In areas with interference from other radar sources
• Do not use the Nissan Frontier ICC system while towing a trailer, as detection capability may be compromised.
• Unexpected objects or vehicles entering the sensor detection zone may trigger sudden automatic braking. Always remain alert and avoid using ICC in environments where unpredictable conditions are likely.

The radar sensor in the Nissan Frontier ICC system may not detect the following:

• Stationary or very slow-moving vehicles
• Pedestrians or obstacles in the roadway
• Oncoming traffic within the same lane
• Motorcycles or vehicles traveling offset within the lane

The system relies on reflected signals from vehicles ahead. If these signals are weak or absent, the Nissan Frontier ICC system may fail to maintain the correct following distance.

Examples of situations where detection may be reduced include:

• Snow, spray, or dirt affecting sensor visibility
• Towing a trailer or additional equipment
• Heavy cargo loading in the rear of the Nissan Frontier affecting vehicle angle

The Nissan Frontier ICC system continuously monitors sensor functionality. If the radar sensor becomes blocked or contaminated, the system may deactivate automatically.

If the sensor is obstructed by ice, dirt, or transparent materials, the system may fail to detect objects correctly and may not cancel as expected. In such cases, the vehicle may not maintain a safe following distance.

Regular inspection and cleaning of the radar sensor area is essential to ensure proper operation of the Nissan Frontier ICC system.

The detection range of the radar sensor is limited. For accurate operation, the vehicle ahead must remain within the detection zone.

Vehicles may temporarily leave this zone due to lane positioning. Motorcycles or smaller vehicles may not be detected if they are not centered within the lane. Similarly, vehicles merging into your lane may not be detected until they are fully aligned.

If this occurs, the Nissan Frontier ICC system may issue a warning by flashing indicators and sounding a chime. The driver must immediately take control and adjust the following distance manually.

On winding, narrow, hilly, or construction-affected roads, the Nissan Frontier radar system may detect vehicles in adjacent lanes or temporarily lose detection of the vehicle ahead. This may result in unexpected acceleration or deceleration.

Sensor performance may also vary depending on driving behavior, such as steering input or lane positioning, as well as vehicle condition.

If such behavior occurs, the Nissan Frontier ICC system may generate unexpected warnings. The driver must remain attentive and manually control the distance to ensure safe driving at all times.

System temporarily unavailable

The following situations describe when the Intelligent Cruise Control (ICC) system in the Nissan Frontier may become temporarily unavailable. In these cases, the Nissan Frontier ICC system may not disengage as expected and may be unable to maintain the selected following distance from the vehicle ahead, requiring immediate driver attention.

Condition A

Under the following circumstances, the Nissan Frontier ICC system will automatically cancel operation. A warning chime will sound, and the system cannot be reactivated until the issue is resolved:

• When the Vehicle Dynamic Control (VDC) system is switched off
• When the VDC system is actively intervening
• When no vehicle is detected ahead and the Nissan Frontier speed drops below approximately 15 mph (25 km/h)
• When the system determines that the vehicle has come to a complete stop
• When the shift lever is not in D (Drive), Manual mode, or L (Low) range
• When the parking brake is engaged
• When wheel slip is detected
• When specialized terrain modes such as ROCK, MUD, or SAND are selected (if equipped)
• When the radar signal is temporarily disrupted

Action to take

Once normal conditions are restored, switch the Nissan Frontier ICC system off using the ICC control, then reactivate it to resume normal operation.

Condition B

In adverse weather conditions such as heavy rain, fog, or snowfall, the front radar sensor of the Nissan Frontier may become obstructed. In such cases, the ICC system will automatically deactivate.

A warning chime will sound and the message:
"Forward Driving Aids Temporarily Disabled Front Sensor Blocked See Owner's Manual"
will appear in the vehicle information display.

Action to take

Once visibility improves and the obstruction is removed, the Nissan Frontier ICC system will automatically resume operation. If the warning message remains visible, have the system inspected by a qualified technician. Visiting an authorized Nissan service center is recommended.

Condition C

If the radar sensor area located on the front bumper or emblem of the Nissan Frontier is covered with dirt, snow, ice, or other debris, the ICC system will deactivate automatically to prevent inaccurate operation.

A warning chime will sound, and the same system warning message will be displayed.

Action to take

Safely stop the Nissan Frontier, shift into P (Park), and turn off the engine. Carefully clean the radar sensor area to remove any obstruction, then restart the vehicle. If the warning persists, professional inspection is required.

Condition D

While driving in areas with minimal roadside features—such as long bridges, open desert terrain, snow-covered regions, or roads bordered by long walls—the Nissan Frontier radar system may have difficulty detecting objects accurately. This may trigger a temporary system shutdown.

A warning chime will sound and the system message will appear.

Action to take

Once normal driving conditions return, turn the Nissan Frontier ICC system off and then back on to restore operation.

Condition E

If the Nissan Frontier ICC system detects an internal malfunction, a warning chime will sound, and the ICC system warning light (orange) will illuminate. The system message will also appear in the vehicle information display.

Action to take

Park the Nissan Frontier in a safe location, turn off the engine, and restart it. Attempt to reactivate the ICC system. If the system cannot be set or the warning indicator remains illuminated, the system may be malfunctioning.

If this occurs, the vehicle can still be driven normally; however, it is strongly recommended to have the Nissan Frontier inspected by an authorized service center to ensure safe operation.

NOTE:

When the Nissan Frontier ICC system is temporarily unavailable, the conventional cruise control mode may still be used as an alternative for maintaining speed on suitable roads.

System maintenance

Basic Information

The Intelligent Cruise Control (ICC) sensor in the Nissan Frontier is mounted at the front of the vehicle, typically integrated into the front bumper or emblem area. This sensor plays a critical role in detecting vehicles ahead and maintaining a safe following distance, so proper care is essential for reliable system performance.

To ensure the Nissan Frontier ICC system operates accurately and consistently, follow these important maintenance guidelines:

• Always keep the sensor area on the front bumper/emblem clean and free of dirt, snow, ice, or debris. Even minor contamination can reduce detection accuracy.
• Avoid any impact or physical damage to the sensor area. Even small dents or misalignment may affect the functionality of the Nissan Frontier ICC system.
• Do not place stickers, including transparent films, or install aftermarket accessories near the sensor. These may interfere with radar signals and cause malfunction.
• Avoid mounting metallic objects such as brush guards, grille guards, or decorative accessories near the sensor area, as they may disrupt radar operation.
• Do not modify, repaint, or remove the front bumper without proper guidance. Any customization of the Nissan Frontier front bumper should be performed by qualified technicians. It is strongly recommended to consult a NISSAN dealer before making modifications.

Regular inspection of the Nissan Frontier sensor area is highly recommended, especially after driving in harsh weather or off-road conditions, to maintain optimal ICC system performance and safety.

Radio frequency statement

FCC Notice

USA

This device installed in the Nissan Frontier complies with Part 15 of the FCC Rules and applicable Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits established for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 30 cm between the radiator and the human body.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

FCC Notice

Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment.

CANADA

This device installed in the Nissan Frontier also complies with Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with applicable radiation exposure limits for an uncontrolled environment.

A minimum distance of 30 cm must be maintained between the Nissan Frontier sensor system and any person.

This transmitter must not be co-located or operated together with any other antenna or transmitter.

FCC Notice

Unauthorized modifications to this Nissan Frontier system may void the user's authority to operate the equipment.

Conventional (fixed speed) cruise control mode

Basic Information

The conventional (fixed speed) cruise control mode in the Nissan Frontier allows the driver to maintain a constant driving speed within a range of approximately 25 to 90 mph (40 to 144 km/h) without the need to continuously press the accelerator pedal. This feature is especially useful for long highway journeys, helping reduce driver fatigue and providing a smoother driving experience in the Nissan Frontier.

WARNING

• In the conventional cruise control mode of the Nissan Frontier, the system does not monitor the distance to the vehicle ahead and does not provide any warning if you are approaching another vehicle too closely.
• It is essential to constantly monitor the distance to vehicles ahead. Failure to do so may result in a collision, as the Nissan Frontier system will not automatically react to traffic conditions in this mode.
• Always verify the current settings in the ICC display before and during use to ensure the Nissan Frontier cruise control is operating as intended.
• Do not activate the conventional cruise control mode in the Nissan Frontier under the following conditions:
  • When it is difficult to maintain a steady speed
  • In heavy traffic or traffic with frequent speed changes
  • On winding, curvy, or steep roads
  • On slippery surfaces such as rain, snow, or ice
  • In areas with strong crosswinds
• Using cruise control in unsuitable conditions may lead to loss of vehicle control and increase the risk of an accident.

Conventional (fixed speed) cruise control switches

1. CANCEL switch:
Instantly deactivates the Nissan Frontier cruise control system.

2. ACCEL/RES switch:
Resumes the previously set speed or increases the speed in small increments for precise control.

3. COAST/SET switch:
Sets the desired cruising speed or gradually decreases the speed.

4. ICC switch:
Main control switch used to activate or deactivate the cruise control system in the Nissan Frontier.

Conventional (fixed speed) cruise control mode display and indicators

The Nissan Frontier displays cruise control information in the vehicle information display, providing clear feedback about system status.

1. Cruise indicator:
Indicates the current state of the system using different colors:

• Cruise control ON indicator (gray): Shows that the Nissan Frontier cruise control system is activated but not yet set.
• Cruise control SET indicator (green): Confirms that a cruising speed has been successfully set.
• Cruise control warning (yellow): Indicates a malfunction or issue with the system that requires attention.

2. Set vehicle speed indicator:
Displays the currently selected cruising speed. In Canadian Nissan Frontier models, this value is shown in km/h.

Operating conventional (fixed speed) cruise control mode

To activate the conventional cruise control mode in the Nissan Frontier, press and hold the ICC switch for approximately 1.5 seconds or longer.

Once activated, the ICC indicator will briefly appear and then switch to the conventional cruise control display. The Nissan Frontier system is now ready for you to set your preferred cruising speed. Pressing the ICC switch again will fully deactivate the system. Additionally, turning the ignition switch to the OFF position will automatically disable cruise control.

To switch between modes, press the ICC switch briefly for distance-based cruise control or press and hold it to return to conventional cruise control mode. This allows flexible control depending on your driving needs in the Nissan Frontier.

CAUTION

To prevent unintended activation of cruise control in the Nissan Frontier, always ensure that the ICC switch is turned off when the system is not in use.

For optimal safety and comfort, always remain attentive and ready to take manual control of the Nissan Frontier, even when cruise control is active.

To establish a cruising speed in the Nissan Frontier, first accelerate the vehicle smoothly until reaching your desired speed. Then press the COAST/SET C switch and release it. Once activated, the cruise indicator changes to green, and the selected speed is displayed in the instrument cluster. At this point, you can remove your foot from the accelerator pedal, and the Nissan Frontier will automatically maintain the set speed for a more relaxed driving experience.

• When overtaking another vehicle, simply press the accelerator pedal. After completing the maneuver and releasing the pedal, the Nissan Frontier will automatically return to the previously set cruising speed.
• On steep inclines or declines, the Nissan Frontier may not be able to maintain the selected speed consistently.

  In such situations, the driver should manually control acceleration or braking to ensure safe and stable vehicle operation.

To cancel the preset cruising speed in the Nissan Frontier, use one of the following methods:

1. Press the CANCEL switch. The set speed indicator will turn off.

2. Lightly press the brake pedal. The cruise control will disengage immediately.

3. Turn off the ICC system. Both the cruise indicator and speed display will be deactivated.

To increase the cruising speed in the Nissan Frontier, choose one of the following methods:

1. Press the accelerator pedal until the desired speed is reached, then press and release the COAST/SET switch.

2. Press and hold the ACCEL/RES switch until the desired speed is achieved, then release it.

3. Press and quickly release the ACCEL/RES switch. Each press increases the set speed by approximately 1 mph (1.6 km/h), allowing fine adjustments.

To decrease the cruising speed, use one of the following options:

1. Gently tap the brake pedal until the desired lower speed is reached, then press the COAST/SET switch.

2. Press and hold the COAST/SET switch until the Nissan Frontier slows down to the preferred speed, then release it.

3. Press and quickly release the COAST/SET switch. Each press reduces the set speed by approximately 1 mph (1.6 km/h) for precise control.

To resume the previously stored speed, press and release the ACCEL/RES switch. The Nissan Frontier will return to the last set cruising speed once the vehicle speed exceeds approximately 25 mph (40 km/h).

System temporarily disabled

The Nissan Frontier cruise control system will automatically deactivate and emit a warning chime under the following conditions:

• When the vehicle speed drops more than approximately 8 mph (13 km/h) below the set speed
• When the shift lever is not in D (Drive) or manual shift mode
• When the parking brake is engaged
• When the Vehicle Dynamic Control (VDC) system activates, including traction control
• When wheel slip is detected

If the Nissan Frontier cruise control system encounters a malfunction, a warning chime will sound and the cruise indicator will change color to orange, signaling that attention is required.

Action to take

If the cruise indicator turns orange, safely pull over, place the shift lever into P (Park), and turn off the engine. After restarting the Nissan Frontier, resume driving and attempt to reactivate the system.

If the system cannot be reactivated or the warning indicator remains illuminated, this may indicate a malfunction. Although the Nissan Frontier can still be driven under normal conditions, it is strongly recommended to have the vehicle inspected by an authorized NISSAN dealer to ensure proper operation and safety.

For best results, always remain attentive and ready to manually control the Nissan Frontier, even when cruise control is engaged.

Rear Automatic Braking (RAB)

Basic Information

WARNING

Failure to follow the instructions and safety recommendations for proper use of the RAB system in the Nissan Frontier may lead to serious injury or even fatal accidents.

• The Rear Automatic Braking (RAB) system in the Nissan Frontier is designed as an additional safety feature to assist the driver. However, it is not a substitute for safe and attentive driving practices.

  Always check your surroundings carefully by using mirrors and physically turning your head before and while reversing. Never depend solely on the Nissan Frontier RAB system to avoid obstacles.

  Ultimately, the driver of the Nissan Frontier is fully responsible for maintaining awareness, controlling the vehicle, and ensuring safe maneuvering at all times.

• The Nissan Frontier RAB system has inherent limitations and may not function effectively in every situation or environment.
• External conditions such as heavy rain, snow, fog, or ultrasonic interference (for example, from automatic car washes, air brake systems on trucks, or construction equipment) can impact the performance of the Nissan Frontier RAB system. These conditions may lead to reduced effectiveness or unintended activation.

The Rear Automatic Braking (RAB) system in the Nissan Frontier is specifically engineered to assist the driver when reversing by detecting obstacles directly behind the vehicle and helping to reduce the risk of a collision.

NOTE:

The sonar detection feature in the Nissan Frontier can be temporarily disabled if needed; however, the RAB system itself will continue to function independently to provide braking assistance.

RAB system operation

Basic Information

1. RAB system warning light and indicator display
2. Steering wheel controls (left side)
3. Center display interface

In the Nissan Frontier, the RAB system becomes active when the shift lever is placed in the R (Reverse) position and the vehicle is moving at speeds below approximately 9 mph (15 km/h).

When the Nissan Frontier detects a potential collision with an object behind the vehicle while reversing, several warnings are triggered simultaneously. The RAB warning indicator flashes in the instrument cluster, a red visual alert appears on the center display (for models equipped with the Intelligent Around View Monitor), and an audible warning sounds three times to alert the driver.

If the driver does not react in time, the Nissan Frontier RAB system will automatically apply the brakes to help prevent or mitigate the collision. After automatic braking is applied, the driver must press and hold the brake pedal to maintain stopping force and keep the vehicle stationary.

NOTE:

• The brake lights of the Nissan Frontier will illuminate automatically when braking is performed by the RAB system.
• Some noise may be heard during automatic braking. This is normal operation and does not indicate a malfunction of the Nissan Frontier system.

Turning the RAB system on/off

Follow these steps to enable or disable the Rear Automatic Braking (RAB) system in your Nissan Frontier:

1. Press the button until "Settings" appears in the vehicle information display. Then press the ENTER button. Use the button to select "Driver Assistance," and confirm by pressing ENTER.

2. Choose "Emergency Brake" from the menu and press ENTER.

3. Select "Rear" and press ENTER to switch the Nissan Frontier RAB system on or off.

4. Use the Parking Aids system switch to quickly activate or deactivate the system when needed.

When the Nissan Frontier RAB system is turned off, the RAB warning indicator will illuminate to inform the driver that the feature is currently disabled.

NOTE:

The Rear Automatic Braking (RAB) system in the Nissan Frontier will automatically reactivate the next time the engine is started, ensuring that this important safety feature is available for every drive.

RAB system limitations

WARNING

The following section outlines important operational limitations of the Rear Automatic Braking (RAB) system in the Nissan Frontier. Ignoring these limitations or failing to follow the safety instructions may result in serious injury, property damage, or even fatal accidents.

• When your Nissan Frontier approaches an obstacle while the accelerator or brake pedal is already being pressed, the RAB system may not activate immediately or may respond with a delay. In some situations, depending on vehicle condition, driving behavior, surrounding traffic, weather, or road surface, the system may not function effectively. Never rely solely on the Nissan Frontier RAB system — apply the brake manually whenever needed.
• If it becomes necessary to override the RAB system in your Nissan Frontier, firmly press the accelerator pedal to regain full control.
• Always visually confirm the area behind your Nissan Frontier before and during reversing. The RAB system is designed primarily to detect stationary obstacles and may not detect:
  • Moving objects
  • Low-profile obstacles
  • Narrow or thin objects
  • Wedge-shaped items
  • Objects extremely close to the rear bumper (less than approx. 1 ft / 30 cm)
  • Suddenly appearing obstacles
  • Thin materials such as wires, ropes, or chains
• The Nissan Frontier RAB system may fail to detect certain obstacles such as:
  • Objects positioned high above ground level
  • Objects offset from the direct rear path of the vehicle
  • Soft materials (e.g., snow or foam-like surfaces) that absorb ultrasonic signals
• The Nissan Frontier RAB system may not function properly under the following conditions:
  • When sonar sensors are covered with rain, snow, ice, dirt, or debris
  • When loud environmental noise interferes with sensor signals
  • When obstacles are positioned at an angle relative to the rear of the vehicle
• The system may also activate unintentionally in situations such as:
  • Driving near tall grass or vegetation
  • Passing close to structures like walls, parking gates, toll booths, or narrow tunnels
  • Driving over bumps, raised surfaces, or manhole covers
  • Moving through hanging objects like banners or curtains
  • Snow or ice accumulation behind the Nissan Frontier
  • Nearby ultrasonic signals from other vehicles or devices
• After the automatic braking function has been triggered once, it will not activate again for the same obstacle during the same reversing sequence.
• The braking intervention of the Nissan Frontier RAB system is limited in duration. The driver must always press the brake pedal to maintain stopping force and ensure complete control.
• The Nissan Frontier RAB system performance may be reduced or inconsistent in the following situations:
  • Driving in adverse weather conditions such as rain, fog, or snow
  • Driving on steep inclines or declines
  • When vehicle posture changes (e.g., after driving over bumps)
  • Driving on slippery surfaces
  • Sharp steering inputs or tight turning maneuvers
  • When snow chains are installed
  • Using non-genuine Nissan Frontier wheels or tires
  • When brakes are cold or less effective due to moisture (e.g., after washing the vehicle or driving through water)
• For safety reasons, it is recommended to turn OFF the Nissan Frontier RAB system in the following scenarios to prevent unintended activation:
  • When the vehicle is being towed
  • When transported on a flatbed truck
  • When using a chassis dynamometer
  • When driving on extremely uneven surfaces
  • When towing another object or trailer (if equipped)
  • When suspension components are modified or replaced with non-genuine Nissan parts (this may affect vehicle height and sensor accuracy)
  • When accessories such as bike racks or cargo carriers block the rear sensors
• Excessive interior or exterior noise, such as loud audio systems or open windows, may prevent the driver from hearing the warning chime of the Nissan Frontier RAB system.

Additional note: The Nissan Frontier RAB system is designed to assist but not replace driver awareness. For maximum safety, always combine system assistance with proper driving habits, especially when reversing in crowded or unpredictable environments.

System malfunction

If a malfunction is detected in the Rear Automatic Braking (RAB) system of your Nissan Frontier, the system will automatically deactivate to prevent incorrect operation. At the same time, the RAB warning indicator will illuminate, and a message such as "System fault See Owner's Manual" will appear in the vehicle information display, clearly informing the driver that the Nissan Frontier requires attention.

Action to take

If this warning appears in your Nissan Frontier, immediately bring the vehicle to a safe stop in an appropriate location. Turn off the engine completely and then restart it to check whether the issue resolves. If the warning light remains on after restarting, this indicates that the RAB system requires professional inspection. It is strongly recommended to have your Nissan Frontier checked by an authorized NISSAN dealer to ensure proper system functionality and safety.

NOTE:

If the Nissan Frontier RAB system becomes temporarily unavailable rather than fully malfunctioning, the warning light may blink instead of staying continuously illuminated. This usually indicates temporary conditions affecting system operation rather than a permanent fault.

System maintenance

To ensure the Rear Automatic Braking (RAB) system in your Nissan Frontier continues to operate accurately and reliably, it is essential to follow these maintenance recommendations:

• Always keep the parking sensors 1 on your Nissan Frontier clean and free from dirt, snow, ice, or debris.
• If the sensors become dirty, gently clean them using a soft cloth. Avoid using abrasive materials or applying excessive pressure, as this may damage the sensitive components of the Nissan Frontier sensor system.
• Do not expose the parking sensors 1 or their surrounding areas to strong impacts. Avoid hitting curbs or obstacles that could affect sensor alignment. If the Nissan Frontier has been involved in a collision and the sensor area is damaged or deformed, have the system inspected as soon as possible by a qualified technician.
• Do not remove, modify, or disassemble the parking sensors under any circumstances, as this may lead to incorrect operation of the Nissan Frontier RAB system.
• Avoid installing stickers (including transparent films), protective covers, or aftermarket accessories near the parking sensors 1, as these may interfere with signal transmission and reduce detection accuracy.

Additional recommendation: Regular visual inspection of the rear bumper area on your Nissan Frontier can help prevent unexpected system errors and ensure that the RAB system performs optimally in real-world driving situations.

Automatic Emergency Braking (AEB) with Pedestrian Detection

Basic Information

WARNING

Failure to follow the safety instructions and proper usage guidelines for the Automatic Emergency Braking (AEB) with Pedestrian Detection system in the Nissan Frontier may result in serious injury, severe accidents, or even fatal consequences.

• The AEB with Pedestrian Detection system in the Nissan Frontier is designed as an advanced driver-assistance feature and should only be considered a supplemental aid. It does not replace the driver’s responsibility to remain attentive and maintain full control of the vehicle at all times.

  This system cannot compensate for unsafe driving behavior, distraction, or aggressive driving. Always operate your Nissan Frontier with caution and awareness of surrounding traffic conditions.

• The Nissan Frontier AEB with Pedestrian Detection system may not operate effectively in all traffic, weather, or road conditions, including situations with limited visibility or complex driving environments.

The Automatic Emergency Braking (AEB) with Pedestrian Detection system in the Nissan Frontier is engineered to assist the driver in reducing the likelihood or severity of frontal collisions. It detects vehicles ahead in the same lane as well as pedestrians in the vehicle’s path and provides timely warnings and braking assistance.

In the Nissan Frontier, the AEB system relies on a forward-facing radar sensor located at the front of the vehicle B to measure the distance to vehicles ahead. For pedestrian detection, the system uses an additional camera mounted behind the windshield A, allowing enhanced recognition of people in the driving path.

AEB with Pedestrian Detection system operation

1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection emergency warning indicator
3. AEB with Pedestrian Detection system warning light

The Nissan Frontier AEB system activates at speeds above approximately 3 mph (5 km/h). The pedestrian detection function operates within a range of approximately 6 to 37 mph (10 to 60 km/h), providing additional safety in urban and residential driving conditions.

When the Nissan Frontier detects a potential frontal collision, the system initially alerts the driver through visual warnings (yellow indicator) and audible signals. If the driver responds by braking quickly but the system determines that a collision risk remains, the AEB system increases braking force automatically to assist in stopping the vehicle more effectively.

If no driver action is detected, the Nissan Frontier AEB system escalates the warning by issuing a second, more urgent alert (red and white flashing indicators along with a louder chime). If the accelerator pedal is released, the system will apply partial braking. Should the collision risk become imminent, stronger automatic braking is applied to reduce impact severity or potentially avoid the collision entirely.

During operation, you may hear braking-related sounds in your Nissan Frontier. This is normal and confirms that the AEB system is actively functioning.

NOTE:

The brake lights of the Nissan Frontier will illuminate whenever braking is performed by the AEB with Pedestrian Detection system, ensuring that following drivers are alerted.

Depending on the speed of the Nissan Frontier, the distance to the vehicle or pedestrian ahead, and external conditions such as road surface and weather, the system may either help avoid a collision entirely or significantly reduce its severity.

If the driver is actively steering, accelerating, or braking, the Nissan Frontier AEB system may respond later or may not activate at all, as it prioritizes driver input.

Automatic braking intervention will be canceled under the following conditions:

• When the driver turns the steering wheel to avoid the obstacle.
• When the accelerator pedal is pressed.
• When no vehicle or pedestrian is detected ahead.

If the Nissan Frontier AEB system brings the vehicle to a complete stop, it will hold the vehicle stationary for approximately 2 seconds before gradually releasing the brakes, allowing the driver to take over control.

Additional note: For optimal performance of the Nissan Frontier AEB system, always ensure that the front radar sensor and windshield camera area are clean and unobstructed, as dirt or debris can significantly reduce detection accuracy.

Turning the AEB with Pedestrian Detection system ON/OFF

Follow the steps below to activate or deactivate the Automatic Emergency Braking (AEB) with Pedestrian Detection system in your Nissan Frontier. This feature allows you to customize safety assistance according to your driving preferences while maintaining full control of the vehicle.

1. Press the button repeatedly until the "Settings" menu appears in the vehicle information display of your Nissan Frontier.

Use the button to scroll and select "Driver Assistance," then confirm your selection by pressing the ENTER button.

2. In the Driver Assistance menu, choose "Emergency Brake" and press ENTER to access the braking system settings.

3. Select "Front" and press the ENTER button again to turn the AEB with Pedestrian Detection system in your Nissan Frontier either ON or OFF, depending on your preference.

When the AEB with Pedestrian Detection system is disabled in the Nissan Frontier, a corresponding warning indicator will illuminate on the instrument panel to notify the driver that this safety feature is currently inactive.

NOTE:

• The Automatic Emergency Braking (AEB) with Pedestrian Detection system in the Nissan Frontier automatically reactivates each time the engine is restarted, ensuring that this important safety feature is available by default.
• The Intelligent Forward Collision Warning (I-FCW) system is integrated with the AEB system in the Nissan Frontier.

  This means there is no separate menu option for I-FCW in the vehicle display. If the AEB system is turned off, the I-FCW functionality will also be disabled simultaneously, which may reduce overall forward collision awareness.

Additional recommendation: For maximum safety when driving your Nissan Frontier, it is advisable to keep the AEB with Pedestrian Detection system enabled at all times, especially in urban environments where unexpected obstacles or pedestrians may appear.

AEB with Pedestrian Detection system limitations

WARNING

The following section outlines critical limitations of the Automatic Emergency Braking (AEB) with Pedestrian Detection system in the Nissan Frontier. Ignoring these limitations or relying solely on the system instead of proper driving awareness may result in serious injury, severe accidents, or even fatal consequences.

• The Nissan Frontier AEB with Pedestrian Detection system cannot reliably identify every vehicle or pedestrian in all possible driving situations. Detection capability depends heavily on environmental and operational conditions.
• The system in the Nissan Frontier is not capable of detecting certain objects or road users, including:
  • Small or non-standard pedestrians (for example, children, seated individuals, people using scooters, skateboards, or wheelchairs, or those not in an upright walking posture).
  • Animals of any size.
  • Road debris, cargo, or obstacles lying on the roadway.
  • Oncoming or crossing traffic.
  • Vehicles with unclear shapes or partially obscured rear profiles.
  • Stationary parked vehicles.
• The Nissan Frontier AEB system has specific performance limitations:
  • The system may not respond to stationary vehicles when approaching speeds exceed approximately 50 mph (80 km/h).
  • Pedestrian detection is limited to speeds between approximately 6 mph (10 km/h) and 37 mph (60 km/h).
• The Nissan Frontier AEB with Pedestrian Detection system may fail to detect vehicles or pedestrians properly under the following conditions:
  • Poor visibility environments such as rain, snow, fog, dust, sandstorms, smoke, or heavy road spray.
  • When the radar sensor or windshield camera is covered by dirt, ice, snow, condensation, or other materials.
  • When strong light sources (such as direct sunlight or high beams) interfere with the camera, or when sudden lighting changes occur (e.g., entering tunnels).
  • Driving in low-light or nighttime conditions where visibility is reduced or lighting systems are insufficient.
  • If the camera alignment is incorrect or obstructed.
  • Driving on steep hills, winding roads, uneven terrain, or unpaved surfaces.
  • Interference from external radar signals or electronic devices.
  • Rapid vehicle movements such as sudden steering, lane changes, acceleration, or braking.
  • Use of non-genuine Nissan Frontier tires or wheels, which may affect system calibration.
  • When objects or pedestrians move unpredictably or enter the path suddenly at close range.
  • When the detected object is outside the direct forward path of the Nissan Frontier.
  • When the speed difference between your vehicle and another is minimal.
  • When pedestrians are partially obscured or visually unclear due to clothing, accessories, or posture.
  • When there is low contrast between a pedestrian and the surrounding environment.
  • Within approximately 15 seconds after engine start.
  • When vehicles ahead have unusual shapes, extreme height differences, or carry irregular loads (e.g., motorcycles).
  • When objects or pedestrians are near reflective surfaces, shadows, or traffic signs.
  • When multiple pedestrians are grouped closely together.
  • When pedestrians are hidden behind vehicles or other objects.
  • While towing a trailer or another vehicle.
• The overall effectiveness of the Nissan Frontier AEB system may be reduced in the following situations:
  • Driving on slippery or low-traction surfaces.
  • Driving on steep inclines or declines.
  • When the vehicle is heavily loaded, especially in the rear seating or cargo area.
• The Nissan Frontier AEB system continuously performs internal checks of its radar and camera sensors; however, it may not always detect partial obstructions such as snow, ice, or stickers. Drivers should regularly inspect and clean these areas to maintain optimal performance.
• In certain traffic or road conditions, the system may apply braking unexpectedly. If acceleration is required to maintain safe operation, press the accelerator pedal to override the Nissan Frontier AEB system.
• The system may mistakenly interpret patterns, shadows, reflections, or lights as vehicles or pedestrians, especially if they resemble typical shapes or sizes.
• The Nissan Frontier AEB system may continue to operate even when a vehicle ahead is turning left or right, which may lead to unnecessary alerts or braking.
• The system may activate when overtaking or passing another vehicle, particularly if the detected object remains within the sensor field.
• Depending on road layout—such as curves, intersections, construction zones, or lane changes—the system may temporarily respond to oncoming vehicles or roadside objects.

Additional recommendation: To ensure reliable operation of the Nissan Frontier AEB with Pedestrian Detection system, always keep sensors clean, maintain proper vehicle condition, and combine system assistance with attentive and responsible driving.

WARNING

The following information describes important operational limitations of the AEB with Pedestrian Detection system in the Nissan Frontier. Failure to understand and follow these limitations while driving the Nissan Frontier may significantly increase the risk of accidents, serious injury, or fatal consequences.

• The Nissan Frontier AEB with Pedestrian Detection system may respond to various objects and situations that are not actual collision threats, including but not limited to:
  • Objects located near the roadside, such as traffic signs, guardrails, parked vehicles, motorcycles, or pedestrians.
  • Pedestrians detected while driving through narrow streets, tight urban areas, or confined spaces.
  • Pedestrians who briefly step into or move toward the driving lane, for example when avoiding obstacles on the shoulder.
  • Overhead objects such as low bridges, hanging signs, or structural elements that may fall within the sensor field.
  • Surface-level objects such as railroad tracks, drainage grates, or metal plates embedded in the road.
  • Objects commonly found in enclosed environments such as parking garages, including beams, pillars, and structural supports.
  • Pedestrians or motorcycles approaching or entering the lane from nearby positions.
  • Vehicles, pedestrians, motorcycles, or objects traveling in adjacent lanes or very close to the Nissan Frontier.
  • Pedestrians approaching from the opposite direction.
  • Natural roadside elements such as trees or large vegetation that may be interpreted as obstacles.
• On slippery or low-traction surfaces such as wet roads, snow, or ice, the braking distance of the Nissan Frontier will increase. Even if the AEB system activates, it may not be able to stop the vehicle in time to avoid a collision.
• High levels of background noise inside or outside the Nissan Frontier (for example, loud audio systems, open windows, or external environmental noise) may interfere with the audible warning signals, reducing the driver's ability to hear critical alerts from the system.

Additional recommendation: While the Nissan Frontier AEB with Pedestrian Detection system is designed to enhance driving safety, it should always be used as a support feature only. Drivers must remain attentive, maintain full control of the vehicle, and be prepared to react immediately in all driving situations.

System temporarily unavailable

Condition A:

Under certain environmental or operational conditions, the Nissan Frontier AEB with Pedestrian Detection system may temporarily deactivate. In these situations, the system warning light will blink and the system will automatically switch off to prevent incorrect operation.

• The windshield area in front of the camera is fogged, iced, or obstructed.
• Intense light sources, such as direct sunlight or headlights, are shining toward the front camera.
• The interior temperature of the Nissan Frontier exceeds approximately 104ºF (40ºC), especially after prolonged exposure to direct sunlight.
• The camera detection zone on the windshield is continuously covered with dirt, dust, or debris.

Action to take:

Once these conditions are resolved, the Nissan Frontier AEB with Pedestrian Detection system will automatically resume normal operation. Ensure the windshield area is clean and clear for optimal performance.

NOTE:

If the windshield area near the camera is fogged or frozen, it may take some time for visibility to be restored even after activating the air conditioning system. If contamination persists, it is recommended to have the Nissan Frontier inspected by an authorized dealer.

Condition B:

The Nissan Frontier AEB system may also be disabled if the front radar sensor detects interference from other radar sources, such as nearby vehicles or external equipment operating on similar frequencies.

Action to take:

When the interference is no longer present, the Nissan Frontier system will automatically restore its functionality without driver intervention.

Condition C:

Severe weather conditions such as heavy rain, dense fog, or snowfall may obstruct the front radar sensor of the Nissan Frontier. In such cases, the system will deactivate, the warning light will illuminate, and a message such as "Forward Driving Aids Temporarily Disabled Front Sensor Blocked See Owner's Manual" will appear in the display.

Action to take:

Once visibility improves and the sensor is no longer obstructed, the warning message will disappear. If the message remains, have the Nissan Frontier inspected by a qualified technician.

Condition D:

If the radar sensor located in the front bumper of the Nissan Frontier is blocked by dirt, snow, ice, or any obstruction, the system will be disabled automatically and display the same warning message.

Action to take:

Safely stop the Nissan Frontier, shift to P (Park), turn off the engine, and clean the sensor area thoroughly. Restart the engine afterward. If the warning persists, professional inspection is required.

Condition E:

When driving in environments with minimal surrounding structures—such as long bridges, open deserts, snow-covered terrain, or roads alongside extended walls—the system may temporarily display a sensor blockage warning even without a physical obstruction.

Action to take:

Once normal driving conditions resume, manually re-enable the system if necessary. This behavior is typical and does not indicate a fault in the Nissan Frontier.

Condition F:

If the Vehicle Dynamic Control (VDC) system is turned off, the automatic braking function of the Nissan Frontier AEB with Pedestrian Detection system will be disabled. Only visual and audible warnings will remain active.

The system warning light (orange) will illuminate to indicate this condition.

Action to take:

Reactivating the VDC system will automatically restore full functionality of the Nissan Frontier AEB system.

NOTE:

If the Nissan Frontier AEB with Pedestrian Detection system becomes inactive, the Intelligent Forward Collision Warning (I-FCW) system will also be disabled.

System malfunction

If a malfunction occurs within the Nissan Frontier AEB with Pedestrian Detection system, it will automatically shut down, emit an audible warning, and illuminate the orange warning indicator. Additionally, the message "System fault See Owner's Manual" will appear in the vehicle information display.

Action to take

If this warning appears, safely stop the Nissan Frontier, turn off the engine, and restart it. If the warning indicator remains illuminated, the system requires professional диагностика. It is strongly recommended to visit an authorized NISSAN service center for inspection and repair to ensure continued safe operation.

System maintenance

Basic Information

In the Nissan Frontier, the radar sensor (B) is installed at the front of the vehicle, while the camera unit (A) is positioned on the upper section of the windshield. These components work together to ensure accurate operation of the AEB with Pedestrian Detection system and must remain unobstructed for optimal performance.

To maintain proper functionality of the Nissan Frontier AEB with Pedestrian Detection system, carefully follow these guidelines:

• Always keep the front bumper/emblem sensor area and the windshield camera zone clean and free from dirt, snow, ice, or debris.
• Avoid impacts or damage to the areas surrounding the radar sensor and windshield camera, as even minor deformation may affect system accuracy.
• Do not place stickers (including transparent films) or install accessories near the sensors, as this may block signals and lead to system malfunction in the Nissan Frontier.
• Avoid mounting metallic objects such as brush guards or protective bars near the radar sensor, as these can interfere with signal transmission.
• Do not place reflective objects such as mirrors, glossy paper, or metallic items on the dashboard, since reflected sunlight may reduce the camera’s ability to detect vehicles or pedestrians.
• Do not modify, repaint, or remove the front bumper. For any customization or repair work, it is strongly recommended to consult an authorized NISSAN dealer to ensure system integrity.

Additional recommendation: Regular inspection and cleaning of the sensor areas will significantly improve the reliability of the Nissan Frontier safety systems, especially in harsh weather or dusty environments.

Radio frequency statement

FCC Notice

USA

This device complies with Part 15 of the FCC Rules as well as Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits established for an uncontrolled environment.

This equipment must be installed and operated with a minimum distance of 30 cm between the radiator and the body of any person.

This transmitter must not be co-located or used in conjunction with any other antenna or transmitter.

FCC Notice

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CANADA

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits established for an uncontrolled environment.

This equipment must be installed and operated with a minimum distance of 30 cm between the radiator and the body of any person.

This transmitter must not be co-located or used together with any other antenna or transmitter.

FCC Notice

Unauthorized changes or modifications may void the user's authority to operate this equipment.

Intelligent Forward Collision Warning (I-FCW)

Basic Information

WARNING

Failure to properly follow the instructions and safety precautions for using the I-FCW system in the Nissan Frontier may result in serious injury or even death.

• The I-FCW system is designed to assist the driver by providing early warnings of potential collisions, but it cannot prevent accidents. The driver of the Nissan Frontier must always remain attentive, maintain full control of the vehicle, and drive responsibly at all times.

The Nissan Frontier Intelligent Forward Collision Warning (I-FCW) system is designed to alert the driver when a second vehicle ahead in the same lane suddenly slows down. This additional layer of awareness can help the driver react earlier to changing traffic conditions.

The system uses a front-mounted radar sensor (1) to continuously monitor the distance and relative speed of vehicles ahead in the same lane. By analyzing traffic flow, the Nissan Frontier I-FCW system can detect sudden deceleration beyond the immediately preceding vehicle and provide timely warnings to the driver.

Additional note: The I-FCW system in the Nissan Frontier is most effective in moderate to high-speed traffic where multiple vehicles are traveling in sequence. However, it should always be used as a supplemental safety feature and not as a substitute for attentive driving.

I-FCW system operation

1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection system warning light

The Intelligent Forward Collision Warning (I-FCW) system in the Nissan Frontier is designed to operate at speeds above approximately 3 mph (5 km/h). It continuously monitors traffic conditions ahead to enhance driver awareness and reaction time.

When the Nissan Frontier detects a potential forward collision risk—especially involving sudden deceleration of vehicles ahead—the system alerts the driver by flashing the vehicle-ahead detection indicator and emitting an audible warning tone. This early warning allows the driver to respond more quickly and safely.

Additional note: The Nissan Frontier I-FCW system is particularly effective in multi-vehicle traffic situations, where it can detect braking beyond the immediately preceding vehicle, offering an extra layer of anticipation for the driver.

Turning the I-FCW system on/off

Follow the steps below to enable or disable the I-FCW system in the Nissan Frontier:

1. Press the button until "Settings" appears in the vehicle information display.

Use the button to select "Driver Assistance," then press the ENTER button.

2. Select "Emergency Brake" and confirm with ENTER.

3. Select "Front" and press ENTER again to turn the system ON or OFF.

When the I-FCW system is deactivated, the AEB with Pedestrian Detection warning light in the Nissan Frontier will illuminate as an indication.

NOTE:

• The I-FCW system in the Nissan Frontier automatically reactivates each time the engine is restarted.
• The I-FCW system is integrated with the AEB with Pedestrian Detection system. There is no separate menu option for I-FCW. If the AEB system is turned off, the I-FCW system will also be disabled.

I-FCW system limitations

Illustration A

WARNING

The following limitations apply to the Nissan Frontier I-FCW system. Failure to consider these limitations during operation may lead to serious injury or even fatal accidents.

• The Nissan Frontier I-FCW system cannot detect every vehicle or object under all driving conditions.
• The radar sensor does not recognize certain objects, including:
  • Pedestrians, animals, or stationary obstacles on the roadway
  • Oncoming vehicles traveling in the opposite direction
  • Vehicles crossing the path of the Nissan Frontier
• (Illustration A) The system may not operate correctly when the vehicle ahead is narrow, such as a motorcycle or similar vehicle.
• The radar sensor may fail to detect vehicles ahead under certain conditions, including:
  • Heavy rain, snow, or poor weather conditions
  • When towing a trailer or heavy load
  • When the radar sensor is obstructed by dirt, ice, or snow
  • Interference from other radar-emitting devices
  • Road spray from surrounding traffic
  • Driving inside tunnels or enclosed spaces
  • (Illustration B) When the vehicle ahead is being towed
  • (Illustration C) When the following distance is too short and the radar beam is partially blocked
  • (Illustration D) When driving on steep downhill slopes or sharp curves
• The Nissan Frontier system performs automatic sensor checks within defined limits. However, certain obstructions such as stickers, ice, or accumulated debris may not be detected by the system, which can reduce its ability to warn the driver effectively. Regular inspection and cleaning of the sensor area are essential.
• High ambient noise levels inside or outside the Nissan Frontier may interfere with the audible warning signals, making them difficult to hear.

Illustration B

Illustration C

Illustration D

Additional recommendation: The Nissan Frontier I-FCW system should always be considered a supportive safety feature. Drivers must remain attentive, maintain safe following distances, and be prepared to react manually in all traffic situations.

System temporarily unavailable

Condition A

In certain situations, the Nissan Frontier Intelligent Forward Collision Warning (I-FCW) system may temporarily deactivate if the front radar sensor detects interference from external radar sources. This interference can prevent the system from accurately identifying vehicles ahead.

When this occurs, the AEB with Pedestrian Detection system warning light (orange) will illuminate, indicating that the Nissan Frontier I-FCW system is not currently available.

Action to take

Once the interfering conditions are no longer present, the Nissan Frontier I-FCW system will automatically resume normal operation without requiring driver input.

Condition B

Adverse weather conditions such as heavy rain, dense fog, or snowfall may obstruct the front radar sensor of the Nissan Frontier. In such cases, the I-FCW system will be automatically disabled, and the warning light will illuminate. Additionally, the message "Forward Driving Aids Temporarily Disabled Front Sensor Blocked See Owner's Manual" will appear in the vehicle information display.

Action to take:

When weather conditions improve and the radar sensor is no longer obstructed, the warning message will disappear, and the Nissan Frontier system will return to normal operation. If the warning persists, it is recommended to have the vehicle inspected by an authorized NISSAN dealer.

Condition C

If the radar sensor located in the front bumper of the Nissan Frontier becomes covered with dirt, snow, ice, or any other obstruction, the I-FCW system will automatically deactivate. The warning light will illuminate and the same sensor blockage message will be displayed.

Action to take:

Safely stop the Nissan Frontier, shift the transmission into P (Park), and turn off the engine. Clean the radar sensor area thoroughly, then restart the engine. If the warning message remains, the system should be inspected by a qualified technician.

Condition D

When driving in environments with minimal surrounding structures—such as long bridges, open desert roads, snow-covered areas, or roads bordered by continuous walls—the Nissan Frontier I-FCW system may temporarily display a sensor blockage warning even if no physical obstruction exists.

Action to take:

Once normal road conditions return, the system can be reactivated automatically or manually if necessary. This behavior is typical and does not indicate a malfunction.

NOTE:

If the AEB with Pedestrian Detection system in the Nissan Frontier becomes inactive, the I-FCW system will also be disabled, as both systems are integrated and share common sensors.

System malfunction

If a malfunction occurs within the Nissan Frontier I-FCW system, it will automatically shut down, and an audible warning will sound. The AEB with Pedestrian Detection warning light (orange) will illuminate, and the message "System fault See Owner's Manual" will be displayed in the vehicle information screen.

Action to take

If this warning appears, immediately stop the Nissan Frontier in a safe location, turn off the engine, and restart it. If the warning light remains illuminated after restarting, the system requires professional diagnosis. It is strongly recommended to visit an authorized NISSAN dealer to ensure proper functionality and safety.

Additional recommendation: Regularly cleaning the radar sensor area and avoiding exposure to extreme environmental conditions will help maintain the reliability and performance of the Nissan Frontier I-FCW system.

System maintenance

Basic Information

In the Nissan Frontier, the primary radar sensor (1) responsible for forward safety systems is installed at the front section of the vehicle. Proper care of this sensor is essential to ensure consistent and accurate operation of advanced driver assistance features.

To maintain optimal performance of the Nissan Frontier safety systems, always follow these recommendations:

• Keep the sensor area on the front bumper or emblem clean at all times, free from dirt, snow, ice, or debris that may block detection.
• Avoid any physical impact or damage to the area surrounding the sensor, as even minor deformation may affect the system’s accuracy.
• Do not place stickers, films, or any objects (including transparent materials) near the sensor zone, as this may interfere with signal transmission and lead to malfunction.
• Avoid installing metallic accessories such as brush guards or protective bars near the sensor, as they can disrupt radar performance in the Nissan Frontier.
• Do not modify, repaint, or remove the front bumper. If customization or repair is required, it is strongly recommended to consult an authorized NISSAN dealer to ensure system integrity is preserved.

Additional recommendation: Regular inspection and gentle cleaning of the sensor area will help maintain the reliability of the Nissan Frontier driver assistance systems, especially after driving in harsh weather or off-road conditions.

Radio frequency statement

FCC Notice

USA

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits established for an uncontrolled environment.

This equipment must be installed and operated with a minimum distance of 30 cm between the radiator and the body of any person.

This transmitter must not be co-located or used together with any other antenna or transmitter.

FCC Notice

Changes or modifications not expressly approved by the responsible compliance authority may void the user’s authority to operate this equipment.

CANADA

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standards.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits established for an uncontrolled environment.

This equipment must be installed and operated with a minimum distance of 30 cm between the radiator and the body of any person.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

FCC Notice

Unauthorized modifications or changes may void the user’s authority to operate this equipment.

Intelligent Driver Alertness (I-DA)

Basic Information

WARNING

Ignoring the guidelines and safety instructions for correct use of the Intelligent Driver Alertness (I-DA) system in the Nissan Frontier may lead to serious injury or even fatal consequences.

• The I-DA system in the Nissan Frontier functions only as a driver support feature that warns about possible fatigue or reduced attention. It does not take control of the vehicle, steer, or prevent accidents.
• The system cannot detect driver fatigue or distraction in every possible situation or driving condition.
• The driver remains fully responsible for:
  • maintaining full attention at all times,
  • operating the Nissan Frontier safely,
  • keeping the vehicle properly within the lane,
  • retaining full control of steering and speed,
  • avoiding driving when tired or fatigued,
  • minimizing distractions such as mobile phone use or other activities.

The Intelligent Driver Alertness (I-DA) system in the Nissan Frontier is designed to help recognize signs of driver fatigue or reduced concentration and provide timely alerts.

This system continuously analyzes driving behavior, including steering inputs and patterns over time. By comparing current behavior with previously established driving patterns, the Nissan Frontier I-DA system can detect deviations that may indicate reduced alertness. When such changes are identified, both visual and audible alerts are triggered to recommend that the driver take a break.

Intelligent Driver Alertness system operation

If the Nissan Frontier system determines that driver attention is decreasing or fatigue is likely, a message such as “Take a break?” will appear in the vehicle information display, accompanied by an audible alert when driving speeds exceed approximately 37 mph (60 km/h).

The system continuously monitors driver behavior and may issue multiple alerts during a single trip if necessary, helping to maintain safe driving conditions in the Nissan Frontier.

The monitoring process resets whenever the ignition is switched OFF and then back ON, allowing the system to recalibrate and reassess the driver’s behavior from the beginning of each trip.

How to enable/disable the Intelligent Driver Alertness (I-DA) system

To activate or deactivate the I-DA system in your Nissan Frontier, follow these steps:

1. Press the button until "Settings" appears in the vehicle information display.

Use the button to navigate to "Driver Assistance," then press the ENTER button.

2. Select "Driver Attention" and confirm with the ENTER button to switch the system ON or OFF.

NOTE:

The selected setting for the Nissan Frontier I-DA system is retained even after the engine is restarted, ensuring consistent driver assistance preferences.

Intelligent Driver Alertness (I-DA) system limitations

Basic Information

WARNING

The following limitations apply to the I-DA system. Failure to understand and consider these limitations when driving the Nissan Frontier may result in serious injury or death.

• The I-DA system may not function correctly or may fail to issue alerts under the following conditions:
  • Driving on uneven or damaged road surfaces, including potholes.
  • Strong crosswinds affecting vehicle stability.
  • Sporty or aggressive driving styles with rapid acceleration or sharp cornering.
  • Frequent changes in speed or repeated lane changes.
• The system will not provide warnings in these situations:
  • When vehicle speed is below approximately 37 mph (60 km/h).
  • During very short periods of inattention.
  • In cases of sudden or momentary distractions, such as dropping an object.

Additional note: Environmental conditions and driving style variations can influence how accurately the Nissan Frontier I-DA system evaluates driver attention, so it should always be used as a supportive feature rather than a primary safety mechanism.

System malfunction

If a malfunction occurs in the Nissan Frontier Intelligent Driver Alertness system, a warning message will appear in the vehicle information display, and the system will automatically deactivate to prevent incorrect operation.

Action to take

If a malfunction warning appears, safely pull over, shift the Nissan Frontier into P (Park), turn off the engine, and then restart it. If the warning message persists after restarting, have the system inspected by an authorized NISSAN dealer to ensure proper functionality.

Break-in schedule

CAUTION

During the initial 1,200 miles (2,000 km) of operating your Nissan Frontier, it is essential to follow specific break-in guidelines to achieve optimal engine performance, long-term durability, and improved fuel efficiency. Neglecting these recommendations may lead to premature engine wear, reduced performance, and decreased reliability of your Nissan Frontier over time.

• Avoid maintaining a constant driving speed for extended periods, whether high or low, and do not allow the engine of your Nissan Frontier to exceed 4,000 rpm.
• Refrain from full-throttle acceleration in any gear to ensure proper engine component seating.
• Avoid aggressive or rapid starts, especially during the early break-in phase.
• Minimize hard braking whenever possible to allow braking components to properly bed in.
• Do not tow a trailer during the first 500 miles (805 km), as this may place excessive strain on the engine, drivetrain, and other critical systems of the Nissan Frontier.

Fuel efficient driving tips

By applying the following practical fuel-saving techniques, you can maximize the efficiency and performance of your Nissan Frontier while also reducing fuel consumption and wear on vehicle components.

1. Use Smooth Accelerator and Brake Pedal Application

• Avoid sudden acceleration and abrupt stops to maintain consistent energy use.
• Operate the accelerator and brake pedals smoothly and progressively whenever possible in your Nissan Frontier.
• Maintain steady driving speeds and utilize coasting when safe to reduce fuel usage and improve efficiency.

2. Maintain Constant Speed

• Anticipate traffic flow ahead to reduce unnecessary braking and acceleration.
• Adjust your speed to align with traffic signals, minimizing full stops and improving fuel economy.
• Keeping a consistent speed helps reduce fuel consumption and enhances overall driving comfort in the Nissan Frontier.

3. Use Air Conditioning (A/C) at Higher Vehicle Speeds

• At speeds below 40 mph (64 km/h), opening windows may be more efficient due to lower engine load.
• At speeds above 40 mph (64 km/h), using the air conditioning system is generally more efficient because open windows increase aerodynamic drag.
• Using the air recirculation mode inside the Nissan Frontier cabin reduces the cooling demand and improves A/C efficiency.

4. Drive at Economical Speeds and Distances

• Adhering to speed limits and keeping speeds below approximately 60 mph (97 km/h), where permitted, can significantly improve fuel efficiency by reducing air resistance.
• Maintaining a safe distance from other vehicles helps avoid unnecessary braking and sudden acceleration.
• Observing traffic conditions ahead allows smoother speed adjustments and reduces fuel consumption in your Nissan Frontier.
• Selecting the appropriate gear for current road conditions ensures efficient engine operation and better fuel economy.

Additional recommendation: Regular maintenance, proper tire pressure, and avoiding excessive vehicle load further enhance the fuel efficiency and longevity of your Nissan Frontier, especially after the break-in period is complete.

5. Use Cruise Control

• Utilizing cruise control in your Nissan Frontier during highway driving helps maintain a consistent speed and reduces unnecessary fuel consumption.
• Cruise control is especially beneficial on long, flat roads, where it can significantly improve fuel efficiency and driving comfort in the Nissan Frontier.

6. Plan for the Shortest Route

• Use navigation systems or maps to select the most efficient route, saving both time and fuel when driving your Nissan Frontier.
• Planning ahead also helps avoid traffic congestion, which can negatively impact fuel economy.

7. Avoid Idling

• Turn off the engine of your Nissan Frontier when it is safe and practical during stops longer than 30–60 seconds to conserve fuel and reduce emissions.
• Excessive idling not only wastes fuel but also contributes to unnecessary engine wear over time.

8. Buy an Automated Pass for Toll Roads

• Using an automated toll pass allows Nissan Frontier drivers to pass through toll stations without stopping, maintaining a steady speed and improving fuel efficiency.
• This also enhances driving convenience and reduces overall travel time.

9. Winter Warm Up

• Limit engine idling during cold weather to preserve fuel economy in your Nissan Frontier.
• Modern engines typically require no more than 30 seconds of idle time after start-up to circulate oil effectively.
• The Nissan Frontier reaches optimal operating temperature faster when driven moderately rather than left idling.

10. Keeping your Vehicle Cool

• Whenever possible, park your Nissan Frontier in shaded or covered areas to reduce interior heat buildup.
• Before driving, open the windows briefly to release hot air, which reduces the load on the air conditioning system and improves efficiency.

Increasing fuel economy

• Ensure your Nissan Frontier engine is properly maintained and tuned for optimal performance.
• Always follow the recommended maintenance schedule to preserve efficiency and reliability.
• Maintain correct tire pressure, as underinflated tires increase rolling resistance, accelerate wear, and reduce fuel economy.
• Keep wheel alignment properly adjusted, since misalignment can negatively affect handling and increase fuel consumption.
• For Nissan Frontier models equipped with 4x4, use 4H or 4L modes only when necessary, as four-wheel drive operation can decrease fuel efficiency.
• Use engine oil with the recommended viscosity to ensure proper lubrication and optimal engine performance.

Additional recommendation: Reducing unnecessary cargo weight and removing unused roof accessories can further improve fuel efficiency and driving dynamics of your Nissan Frontier.

Using 4-Wheel Drive (4WD)

Basic Information

WARNING

• For Nissan Frontier vehicles equipped with 4WD, never attempt to lift only two wheels off the ground while the engine is running and engage any drive or reverse gear. This can lead to severe drivetrain damage or unexpected vehicle movement, potentially causing serious injury or costly repairs.
• Do not test your Nissan Frontier on a 2-wheel dynamometer or similar equipment designed for two-wheel-drive vehicles, even if the other wheels are elevated. Always inform testing personnel that your vehicle is equipped with a 4WD system.

  Using incorrect testing equipment may result in drivetrain failure or unintended vehicle movement, which could lead to serious damage or personal injury.

CAUTION

• Avoid driving your Nissan Frontier in 4H or 4LO mode on dry, paved roads. Operating 4WD on hard surfaces may cause unnecessary drivetrain strain, increased tire wear, additional noise, and reduced fuel efficiency.

  If a 4WD warning message appears in the vehicle information display while driving on dry roads:

  • When in 4H mode, switch back to 2WD.
  • When in 4LO mode, bring the vehicle to a complete stop, depress the brake pedal, shift the transmission into N (Neutral), and then switch to 2WD.
• If the warning message remains active after switching modes, have your Nissan Frontier inspected promptly. It is recommended to visit an authorized NISSAN dealer.

Transfer case shifting procedures

Basic Information

The Nissan Frontier part-time 4WD system offers three selectable drive modes — 2WD, 4H, and 4LO — allowing you to adapt the vehicle’s performance to varying road and terrain conditions efficiently.

2WD or 4WD shift procedure:

2WD (REAR WHEELS DRIVEN)

Use conditions: Ideal for everyday driving on dry, paved roads, delivering optimal fuel efficiency and reduced drivetrain wear in your Nissan Frontier.

4WD shift procedure:

• Operate the 4WD selector switch.
• Switch between 2WD and 4H as needed; the 4WD indicator will confirm engagement.
• It is NOT necessary to shift the transmission into N (Neutral) during this operation.
• Always perform the switching process while driving straight to ensure smooth engagement.

4H (FOUR WHEELS DRIVEN)

Use conditions: Designed for driving on loose, slippery, or uneven surfaces such as gravel, sand, mud, or snow, where enhanced traction is required.

4WD shift procedure:

• Turn the 4WD switch to select 4H.
• The indicator confirms when the Nissan Frontier transfer case is properly engaged.
• No need to shift the transmission to N (Neutral) during this operation.
• Ensure the vehicle is traveling straight for a smooth transition between modes.

4H (N (NEUTRAL) POSITION)

The 4LO indicator may flash during the transition process.

Before shifting out of the N (Neutral) position, wait until the 4LO indicator remains steadily illuminated. This confirms that the transfer case in your Nissan Frontier has fully engaged the selected mode.

If the vehicle is shifted into gear before the indicator stabilizes, the transfer gears may not engage properly, may produce grinding noise, or could remain stuck in Neutral, potentially leading to mechanical damage.

Additional recommendation: For optimal longevity of the Nissan Frontier 4WD system, regularly inspect drivetrain components and switch between modes periodically (when conditions allow) to ensure proper lubrication and system readiness.

Use conditions:

• In the Nissan Frontier, selecting N (Neutral) in the transfer case disengages the automatic transmission parking mechanism, which allows the vehicle to move freely. Always ensure the vehicle is properly secured when using this mode.
• Avoid leaving the transfer case in N (Neutral) for extended periods, as this may lead to unintended vehicle movement.
• When shifting into or out of 4LO in your Nissan Frontier, the ignition switch must be in the ON position and the engine must be running. This ensures the 4WD system and indicators function correctly. If these conditions are not met, the shift will not occur and no indicator lights will be displayed.

4WD shift procedure:

1. Bring the Nissan Frontier to a complete stop.

2. Firmly press the brake pedal and move the shift lever to the N (Neutral) position.

3. While keeping the brake pedal depressed, press and rotate the 4WD selector switch to either 4LO or 4H.

• THE TRANSFER CASE IN THE NISSAN FRONTIER WILL NOT SHIFT BETWEEN 4H AND 4LO (OR 4LO TO 4H) UNLESS THE VEHICLE IS FULLY STOPPED, THE BRAKE PEDAL IS DEPRESSED, AND THE TRANSMISSION IS IN N (NEUTRAL).
• Confirm that the 4LO indicator illuminates after selecting 4LO. The indicator light will also activate when 4LO mode is successfully engaged.

4LO (N (NEUTRAL) POSITION)

The 4LO indicator may blink during the transition process in your Nissan Frontier.

Before shifting the transmission out of N (Neutral), wait until the 4LO indicator remains steadily illuminated. This confirms that the transfer case has fully engaged the selected mode. Engaging a gear prematurely may cause gear grinding, incomplete engagement, or leave the transfer case stuck in Neutral.

Use conditions:

• In this state, the Nissan Frontier transfer case disconnects the drivetrain from the transmission, allowing the vehicle to roll freely.
• Do not operate or leave the vehicle unattended while the transfer case is in N (Neutral).
• Ensure the ignition is ON and the engine is running when switching between 4LO modes so that all system indicators operate properly.

4WD shift procedure:

1. Stop the vehicle completely.

2. Depress the brake pedal and shift the transmission into N (Neutral).

3. While holding the brake, operate the 4WD selector switch to choose 4LO or 4H.

• THE TRANSFER CASE OF THE NISSAN FRONTIER REQUIRES THE VEHICLE TO BE STOPPED AND IN NEUTRAL BEFORE SHIFTING BETWEEN LOW AND HIGH RANGE MODES.
• Verify that the 4LO indicator light turns on after selecting low-range mode. The indicator confirms proper engagement.

4LO (FOUR WHEELS DRIVEN)

The 4LO indicator remains steadily illuminated when the Nissan Frontier is fully engaged in low-range four-wheel drive mode.

Use conditions: This mode is designed for situations requiring maximum torque and traction, such as steep inclines, rocky terrain, deep sand, mud, or other demanding off-road environments where the Nissan Frontier excels.

4WD shift procedure:

1. Stop the vehicle.

2. Press the brake pedal and shift into N (Neutral).

3. While maintaining brake pressure, turn the 4WD selector to 4LO or 4H as required.

• THE NISSAN FRONTIER TRANSFER CASE WILL NOT ENGAGE LOW RANGE UNLESS ALL CONDITIONS (STOPPED VEHICLE, BRAKE APPLIED, NEUTRAL GEAR) ARE MET.
• Ensure that the 4LO indicator illuminates properly. The indicator light confirms that the system is engaged and ready for use.

Additional recommendation: When using 4LO in your Nissan Frontier, drive at low speeds and avoid sharp turns on high-traction surfaces to protect drivetrain components and ensure maximum off-road performance.

If a 4WD warning message appears in the vehicle information display of your Nissan Frontier, follow the steps below to restore proper transfer case operation and ensure safe driving conditions.

1. Turn the ignition switch to the OFF position to stop the engine.

2. Restart the engine of your Nissan Frontier.

- Confirm that the 4WD warning message has disappeared from the display. If the warning remains active, have the system inspected as soon as possible. It is recommended that you visit an authorized NISSAN dealer for professional diagnostics.

3. Apply the parking brake firmly, press the brake pedal, and shift the transmission into the N (Neutral) position.

4. While keeping the brake pedal depressed, rotate the 4WD selector switch to the desired drive mode.

- Always wait until the transfer case has fully completed the shift before moving the transmission out of the N (Neutral) position to prevent drivetrain damage in your Nissan Frontier.

When the Nissan Frontier is switched into 4LO mode, the Vehicle Dynamic Control (VDC) system is automatically disabled, and the VDC OFF indicator light will illuminate.

The transfer case control switch allows the driver to select between 2WD, 4H, and 4LO depending on terrain and driving conditions. This electronic system ensures smooth and precise engagement of the appropriate drivetrain mode in the Nissan Frontier.

The 4WD selector dial electronically manages transfer case operation. Rotate the switch to transition between 2WD, 4H, and 4LO modes seamlessly.

To engage or disengage 4LO, the Nissan Frontier must be completely stationary. The transmission must be shifted into N (Neutral), and the brake pedal must be pressed. Then press and rotate the selector switch to activate 4LO.

WARNING

• When parking your Nissan Frontier, always apply the parking brake before shutting off the engine. Ensure the 4WD indicator is illuminated correctly and that the Automatic Transmission Park (ATP) warning light is off. Failure to do so may result in unintended vehicle movement, even when the transmission is in P (Park).
• The 4LO indicator must stop flashing and remain steadily illuminated (or turn off, depending on mode) before shifting into any gear. Shifting while the indicator is blinking may cause unexpected vehicle movement or incomplete engagement.

CAUTION

• Never attempt to switch between 4LO and 4H while the Nissan Frontier is in motion.
• The 4H mode provides improved traction; however, excessive speed should be avoided. High speeds can increase fuel consumption, raise drivetrain temperatures, and potentially damage components.

  Driving above approximately 62 mph (100 km/h) in 4H is not recommended for the Nissan Frontier.

• The 4LO mode delivers maximum torque and traction for demanding conditions. Do not exceed speeds of approximately 31 mph (50 km/h) to avoid mechanical stress or damage.

WARNING

• Always secure your Nissan Frontier with the parking brake before turning off the engine, and verify that all drivetrain indicators show correct engagement to prevent unintended movement.
• Do not shift out of N (Neutral) while the 4LO indicator is blinking. Wait until it stabilizes to ensure proper engagement of the transfer case.

CAUTION

• Switching between drive modes should only be done under proper conditions to protect the Nissan Frontier drivetrain.
• When driving straight, you may switch between 2WD and 4H smoothly. However, always ensure road conditions justify the selected mode.

Additional recommendation: Regularly inspect your Nissan Frontier 4WD system and use appropriate drive modes based on terrain to extend component life, improve efficiency, and maintain optimal performance.

Do not operate the 4WD selector switch of your Nissan Frontier while turning the steering wheel or when reversing, as this may cause improper engagement or drivetrain stress.

Avoid switching between 2WD and 4H while descending steep slopes. Instead, rely on engine braking and select lower automatic transmission gears (M1 or M2) to maintain safe control of your Nissan Frontier.

Never engage or change the 4WD mode while the rear wheels are spinning, as this can damage drivetrain components in your Nissan Frontier.

Driving your Nissan Frontier in 4H or 4LO on dry, paved roads is not recommended. Doing so may lead to excessive tire wear, increased noise, and unnecessary fuel consumption. Under such conditions, always use 2WD for optimal efficiency.

At low ambient temperatures, shifting between 4H and 4LO may be delayed, and the 4LO indicator may blink. After driving for a short period and warming up the drivetrain, the Nissan Frontier will allow proper shifting between these modes.

When operating your Nissan Frontier on rough or uneven terrain:

• Select either 4H or 4LO depending on the severity of road conditions.
• Drive cautiously and adapt your speed to match the terrain to maintain traction and control.

If your Nissan Frontier becomes stuck:

• Switch to 4H or 4LO to maximize traction.
• Place rocks, boards, or other firm materials under the tires to improve grip.
• Utilize the Electronic Locking Rear Differential (E-Lock), if equipped, to enhance traction.
• Gently rock the vehicle by alternating between forward and reverse gears.
• If stuck deeply in mud or snow, reinforce traction with additional materials under the tires.

  Repeat recovery techniques carefully. In some cases, tire chains may significantly improve traction and help free your Nissan Frontier.

CAUTION

• Avoid excessive wheel spin. Spinning tires may dig deeper into soft surfaces, making recovery more difficult.
• Do not shift gears while the engine is running at high speeds, as this may result in mechanical damage or system malfunction.

4WD shift switch operations

• Select the appropriate drive mode (2WD, 4H, or 4LO) based on driving conditions to ensure optimal performance of your Nissan Frontier.
• If the 4WD switch is operated during acceleration, deceleration, or while turning, or if the ignition is turned off while in 4H or 4LO, a slight jolt may be felt. This is a normal characteristic of the Nissan Frontier drivetrain.
• You may also hear mechanical sounds when the system engages or disengages. These noises are normal and indicate proper operation.

CAUTION

• When driving straight, you may switch between 2WD and 4H safely.

  However, never operate the 4WD selector while turning or reversing your Nissan Frontier.

• Avoid shifting modes while descending steep hills. Always rely on engine braking and lower gears for safe downhill control.
• Do not attempt to switch drive modes when the rear wheels are slipping or spinning.
• Before shifting from 2WD to 4H, ensure that the vehicle speed of your Nissan Frontier does not exceed approximately 62 mph (100 km/h) to prevent drivetrain damage.
• Never switch between 4H and 4LO while the vehicle is in motion. Always come to a complete stop before engaging 4LO.

4WD shift indicator

The 4WD indicator display in your Nissan Frontier provides real-time information about the currently selected drive mode. Always confirm that the desired mode is properly engaged before continuing your journey to ensure safety and optimal drivetrain performance.

Additional recommendation: Regularly monitor the behavior of your Nissan Frontier 4WD system, especially when driving off-road, to ensure consistent traction, prevent unnecessary wear, and maintain long-term reliability.

After turning the ignition switch to the ON position, the indicator in your Nissan Frontier should extinguish within approximately one second, confirming that the system check has been completed successfully.

While the engine of your Nissan Frontier is running, the 4WD shift indicator will clearly display the currently selected drive mode, allowing the driver to monitor drivetrain status in real time.

• The 4WD shift indicator may briefly illuminate or change state while switching between drive modes. Once the transition is complete, the indicator will remain steadily lit to confirm the selected mode in your Nissan Frontier.
• If a 4WD warning message appears in the vehicle information display, the 4WD shift indicator may turn off, indicating that the system has detected an issue requiring attention.

CAUTION

If the 4WD shift indicator on your Nissan Frontier unexpectedly switches to 2WD when the selector is set to 4H in low temperature conditions, this may indicate improper engagement or a potential malfunction in the drivetrain system. If the indicator does not return to normal operation and a warning message appears, have the system inspected immediately. It is strongly recommended to visit an authorized NISSAN dealer for proper diagnostics and service.

Warning message

The warning message may illuminate or blink when a malfunction is detected in the 4-Wheel Drive system of your Nissan Frontier.

• Warning message in Vehicle information display
  4WD Error: See Owner's Manual

The 4WD warning notification appears within the instrument cluster of your Nissan Frontier. It briefly illuminates when the ignition is turned ON and typically disappears shortly after the engine starts. However, if a malfunction occurs while driving, the warning message may remain continuously illuminated or begin flashing to alert the driver.

When this warning appears, the 4WD shift indicator will turn off, signaling that the system may no longer be operating correctly. Additionally, significant differences in tire diameter between the front and rear wheels can trigger the warning message to blink slowly (approximately once every two seconds), which may affect the performance of the Nissan Frontier 4WD system.

In such situations, switch the 4WD system back to 2WD mode and avoid driving at high speeds until the issue is resolved.

CAUTION

• If the warning message appears during driving or shortly after stopping your Nissan Frontier, have the vehicle inspected as soon as possible. Continued operation without inspection may worsen the issue.

  Always consult an authorized NISSAN dealer to ensure proper repair and safe operation.

• Avoid switching between 4H and 4LO when the 4WD warning message is active, as this may lead to further drivetrain complications in your Nissan Frontier.
• If the warning message is displayed, the vehicle may automatically revert to 2WD mode even if the selector remains in 4H.

  Exercise extreme caution, as the expected traction of the Nissan Frontier may not be available. In such cases, the 4WD system may fail to engage entirely due to internal faults.

• Do not operate your Nissan Frontier in 4H or 4LO on dry, paved roads. Doing so may cause excessive tire wear, increased noise, and reduced fuel efficiency.

  If a warning appears while driving on dry surfaces:

  • When in 4H, switch the system back to 2WD.
  • When in 4LO, bring the vehicle to a complete stop, shift the transmission to N (Neutral) while holding the brake pedal, and then switch to 2WD.
• If the warning message persists after following these steps, have your Nissan Frontier checked immediately.

  Professional inspection by a NISSAN dealer is highly recommended to avoid further damage.

• Continuing to drive with an active 4WD warning message may result in serious damage to the transfer case and other drivetrain components of your Nissan Frontier.

Additional recommendation: Regularly inspect tire sizes and pressures on your Nissan Frontier, as mismatched tires can interfere with the proper operation of the 4WD system and may trigger warning messages.

Electronic locking rear differential (E-Lock) system

The electronic locking rear differential (E-Lock) system in the Nissan Frontier is designed to significantly improve traction in challenging driving conditions and should only be used when the vehicle is stuck or at risk of becoming immobilized. This advanced feature enhances off-road capability and is especially useful in mud, sand, or uneven terrain where standard traction may not be sufficient.

The system works by electronically locking both rear wheels together, forcing them to rotate at the same speed regardless of traction differences. This allows the Nissan Frontier to maintain forward momentum even when one wheel loses grip. It is particularly helpful in situations where the vehicle cannot be freed using the 4LO (4-Wheel Drive Low) mode alone, making it an essential tool for serious off-road driving.

When additional traction is required, activate the E-Lock system by pressing the dedicated switch to the ON position. For complete operational details, refer to "Electronic locking rear differential (E-Lock) system switch" in your Nissan Frontier manual. Once the system is fully engaged, an indicator light on the instrument panel will remain illuminated, confirming activation. At this point, both rear wheels will be mechanically linked, delivering maximum traction and stability.

During engagement, it is normal for the rear wheels to momentarily slip or shift slightly as the locking mechanism synchronizes. The E-Lock system will only engage at low speeds, typically up to approximately 4 mph (7 km/h). Once the Nissan Frontier is no longer stuck and normal traction is restored, the system must be turned off to resume regular driving conditions safely.

It is important to note that when the E-Lock system is activated, certain safety systems are temporarily disabled. The Anti-Lock Braking System (ABS) will be deactivated, and the ABS warning light will illuminate. Additionally, the Vehicle Dynamic Control (VDC) system is also disabled, and the indicator light illuminates when the E-Lock system is on. This behavior is normal and ensures that the locking differential can operate without electronic interference.

WARNING

• Never leave the E-Lock system activated when driving on paved or hard surfaces in your Nissan Frontier. Doing so may cause the rear wheels to lose traction during turns, potentially resulting in loss of control, accidents, and serious personal injury. Always switch the system off immediately after freeing the vehicle.
• Use the E-Lock system strictly for recovering a stuck vehicle. Always attempt to use the 4LO mode first before engaging the E-Lock system in your Nissan Frontier.

  Never activate the E-Lock system on slippery road surfaces such as snow or ice. Using the system under these conditions may lead to unpredictable vehicle behavior during acceleration, deceleration, or turning, increasing the risk of accidents and severe injuries.

• Carefully follow all warnings provided for the Nissan Frontier E-Lock system. Failure to do so may result in loss of steering control and stability, which can lead to dangerous driving situations.

CAUTION

• After using the E-Lock system in your Nissan Frontier, always switch it OFF promptly to avoid potential damage to drivetrain components caused by prolonged use.
• Do not exceed speeds of 12 mph (20 km/h) while the E-Lock system is engaged. Driving at higher speeds may cause serious damage to the drivetrain.
• Avoid activating the E-Lock system while the tires are spinning. This may result in mechanical stress and possible damage to the drivetrain components of your Nissan Frontier.

Parking/parking on hills

WARNING

• Never park the Nissan Frontier over flammable materials such as dry grass, paper, or cloth. Hot exhaust components can ignite these materials and cause a fire hazard.
• Proper parking procedures for the Nissan Frontier require both the parking brake to be firmly applied and the transmission shifted into the P (Park) position.

  Failure to follow these steps may allow the vehicle to move unexpectedly or roll away, increasing the risk of accidents. Always ensure the shift lever is fully engaged in P and cannot be moved without pressing the brake pedal.

• Never leave the engine of your Nissan Frontier running while the vehicle is unattended, even for a short period.
• Do not leave children alone inside the Nissan Frontier. They may unintentionally operate switches or controls, potentially causing the vehicle to move or leading to dangerous situations.
• To reduce the risk of injury or fatal incidents caused by unintended vehicle operation, never leave children, individuals requiring assistance, or pets unattended in the Nissan Frontier. Interior temperatures can rise rapidly, especially in warm weather, creating life-threatening conditions within minutes.

1. Firmly engage the parking brake to secure the Nissan Frontier in place.

2. Shift the transmission into the P (Park) position to prevent any unintended movement.

3. When parking the Nissan Frontier on an incline, always turn the wheels appropriately to reduce the risk of rolling into traffic. Follow the recommended positioning shown in the illustration.

• HEADED DOWNHILL WITH CURB A : Turn the front wheels toward the curb and slowly move the Nissan Frontier forward until the tire gently contacts the curb.
• HEADED UPHILL WITH CURB B : Turn the wheels away from the curb and carefully reverse the Nissan Frontier until the rear tire lightly touches the curb.
• HEADED UPHILL OR DOWNHILL, NO CURB C : Angle the wheels toward the side of the road so that if the Nissan Frontier begins to roll, it will move away from traffic instead of into it.

4. Turn the ignition switch to the LOCK position to fully secure the vehicle.

NOTE:

When the Nissan Frontier is stationary for short periods, such as at traffic lights, the Idling Stop System may temporarily shut off the engine to improve efficiency. However, when parking the vehicle for longer durations, always switch off the ignition completely to ensure safety and prevent unnecessary fuel consumption.

Power steering

The Nissan Frontier is equipped with a power-assisted steering system that uses a hydraulic pump driven by the engine to reduce steering effort and enhance driving comfort.

If the engine stops running or if the drive belt fails, the steering system will continue to function mechanically, allowing the driver to maintain control of the Nissan Frontier.

However, significantly more force will be required to turn the steering wheel, especially during low-speed maneuvers or tight turns, which may affect handling if the driver is unprepared.

WARNING

If the engine is turned off or stops while driving the Nissan Frontier, power steering assistance will no longer be available. Steering will become much heavier and require increased physical effort, which could lead to reduced control in critical situations.

Brake system

Basic Information

The brake system in the Nissan Frontier is engineered with dual independent hydraulic circuits to enhance safety and reliability. This design ensures that even if one circuit fails, the Nissan Frontier will still retain braking capability on two wheels, allowing the driver to maintain a level of control and safely bring the vehicle to a stop.

Brake precautions

Using the brakes

While driving the Nissan Frontier, avoid keeping your foot resting on the brake pedal. This habit can cause excessive heat buildup in the braking system, accelerate brake pad wear, and negatively impact fuel efficiency. Proper brake usage not only extends component life but also ensures consistent braking performance.

To minimize brake wear and prevent overheating, especially in the Nissan Frontier when traveling downhill or on long descents, reduce speed in advance and shift into a lower gear. Engine braking helps relieve stress on the brake system. Overheated brakes can significantly reduce stopping power and may lead to dangerous loss of vehicle control.

WARNING

• When driving the Nissan Frontier on slippery surfaces such as wet roads, ice, or loose gravel, exercise caution when braking, accelerating, or downshifting. Sudden inputs may cause the wheels to lose traction, potentially resulting in skidding and accidents.
• If the engine is not running or is switched off while driving the Nissan Frontier, the brake booster will not function.

  This will require significantly greater force on the brake pedal to slow or stop the vehicle.

Wet brakes

After washing the Nissan Frontier or driving through water, the brake components may become wet. This can temporarily reduce braking efficiency, increase stopping distance, and may cause the vehicle to pull slightly to one side during braking.

To restore proper braking performance, drive at a safe speed and apply the brakes gently several times to generate heat and dry the components. Continue this process until normal braking response returns. Avoid high-speed driving until the braking system in your Nissan Frontier is fully effective again.

Parking brake break-in

For optimal performance of the parking brake in the Nissan Frontier, a break-in procedure may be required if braking effectiveness decreases or after replacing brake shoes, drums, or rotors. Proper break-in ensures maximum holding force and long-term reliability.

This procedure is outlined in the official service manual. For best results and safety, it is recommended to have this service performed by an authorized Nissan dealer familiar with the Nissan Frontier braking system.

Anti-lock Braking System (ABS)

Basic Information

WARNING

• The Anti-lock Braking System (ABS) in the Nissan Frontier is an advanced safety feature designed to help maintain steering control during hard braking, particularly on slippery surfaces. However, it cannot compensate for unsafe driving behavior. Stopping distances may still be longer on wet, icy, gravel, or snow-covered roads, and when using tire chains. Always keep a safe following distance and drive responsibly.
• The condition and type of tires installed on the Nissan Frontier play a crucial role in braking performance.
  • Always install tires of the specified size and type on all four wheels to maintain proper balance and braking efficiency.
  • When using a spare tire, ensure it matches the specifications listed on the Tire and Loading Information label for the Nissan Frontier.

The Anti-lock Braking System (ABS) in the Nissan Frontier is designed to actively regulate braking force and prevent the wheels from locking during sudden or emergency braking situations, as well as when driving on slippery or uneven road surfaces. By continuously monitoring the rotational speed of each wheel, the system intelligently adjusts brake fluid pressure to ensure optimal grip and stability at all times.

By preventing wheel lock-up, the ABS system in the Nissan Frontier helps the driver retain full steering control even under heavy braking. This greatly reduces the risk of skidding, loss of control, or spinning, especially on wet, icy, or loose road conditions, enhancing overall driving safety and confidence.

Using the system

Press the brake pedal firmly and maintain consistent pressure when braking the Nissan Frontier.

Apply steady and continuous force to the brake pedal without pumping it. The ABS system will automatically modulate braking pressure to prevent wheel lock-up. While braking, continue steering the Nissan Frontier as needed to safely avoid obstacles and maintain your intended path.

WARNING

Do not pump the brake pedal in the Nissan Frontier. Pumping can interfere with ABS operation and may increase stopping distance, reducing braking effectiveness in critical situations.

Self-test feature

The Nissan Frontier ABS system consists of advanced components including electronic sensors, hydraulic valves, an electric pump, and an onboard control module. This system performs an automatic self-diagnostic check every time the engine is started and the vehicle begins moving at low speed, whether forward or in reverse.

During this self-test, you may hear a brief mechanical sound such as a "clunk" or feel a slight pulsation through the brake pedal. This is a normal function of the Nissan Frontier ABS system and confirms that all components are operating correctly.

If the system detects a malfunction, it will automatically deactivate ABS functionality and illuminate the ABS warning light on the instrument panel. In this case, the standard braking system will continue to operate, but without anti-lock assistance.

If the ABS warning light remains on after the self-test or comes on while driving the Nissan Frontier, the system should be inspected as soon as possible. It is strongly recommended to have the vehicle checked by an authorized Nissan dealer to ensure proper safety and performance.

Normal operation

The ABS system in the Nissan Frontier becomes active at speeds above approximately 3 - 6 mph (5 - 10 km/h), depending on road conditions and traction levels.

When the system detects that one or more wheels are approaching a lock-up condition, it rapidly adjusts brake pressure through the actuator. This process happens many times per second and mimics rapid brake application far faster than a driver could achieve manually.

As a result, you may feel pulsations in the brake pedal, hear mechanical noises from under the hood, or notice slight vibrations through the vehicle. These sensations are completely normal and indicate that the ABS system in the Nissan Frontier is functioning correctly. However, such feedback also serves as a reminder that road conditions may be hazardous, and additional caution should be exercised while driving.

Active Brake Limited Slip (ABLS) system

• The Active Brake Limited Slip (ABLS) system in the Nissan Frontier is designed to enhance traction by automatically applying brake force to a slipping wheel and transferring power to the wheel on the same axle with better grip. This intelligent braking intervention helps the Nissan Frontier maintain forward motion on uneven, loose, or slippery surfaces where traction is compromised.
• On Nissan Frontier models equipped with 4-Wheel Drive, the ABLS system functions in both 4H and 4LO modes.

  When 4WD is engaged, the ABLS system actively manages traction across both front and rear axles, improving off-road capability and stability. In contrast, on 2-Wheel Drive Nissan Frontier models, the system operates only on the drive axle, ensuring efficient power distribution where it is needed most.

• The ABLS system in the Nissan Frontier is continuously active and requires no driver input. However, under certain operating conditions, the system may temporarily deactivate automatically to protect components. Even in such cases, normal braking performance remains unaffected. Additionally, the ABLS system continues to function independently even when the Vehicle Dynamic Control (VDC) system is switched off.
• The ABLS system will not engage if both wheels on the same drive axle lose traction simultaneously, as there is no stable wheel available to transfer torque to.

WARNING

• While the ABLS system in the Nissan Frontier improves traction, it cannot eliminate the risk of accidents caused by sudden steering inputs, excessive speed, or unsafe driving behavior. Always reduce speed and exercise extra caution when driving on slippery or unstable surfaces, especially when cornering.
• Do not modify the suspension system of your Nissan Frontier.

  If components such as shock absorbers, springs, struts, stabilizer bars, bushings, or wheels are not approved by Nissan or are excessively worn, the ABLS system may not function correctly.

  This may negatively impact handling performance and could trigger the slip indicator warning light.

• If brake components such as pads, rotors, or calipers are not Nissan-approved or are significantly worn, the ABLS system in the Nissan Frontier may operate improperly, and the slip indicator light may illuminate.
• Using non-recommended wheels or tires on the Nissan Frontier can interfere with proper ABLS operation and may also cause the slip indicator warning light to turn on.

Vehicle Dynamic Control (VDC) system

Basic Information

The Vehicle Dynamic Control (VDC) system in the Nissan Frontier is an advanced stability control feature that continuously monitors driver inputs and vehicle behavior using a network of sensors. These sensors track parameters such as steering angle, wheel speed, and vehicle motion to help ensure optimal control and stability in a wide range of driving conditions.

Under specific driving situations, the Nissan Frontier VDC system actively supports the driver by performing several key functions designed to enhance traction, handling, and overall vehicle stability:

• It automatically adjusts brake pressure on individual wheels to reduce slip on a spinning wheel, allowing engine power to be redirected to the wheel with better traction on the same axle.
• It regulates both braking force and engine output to minimize wheel spin depending on vehicle speed, effectively acting as a traction control system in the Nissan Frontier.
• If the 4WD transfer case is shifted into 4LO mode, the indicator light will come on and the VDC system will be turned off, as this mode is intended for low-speed off-road conditions where maximum traction is required.
• The system also independently controls brake pressure at each wheel and adjusts engine output to help the driver maintain control of the Nissan Frontier in challenging conditions such as:
  • Understeer, when the vehicle does not follow the intended steering direction despite increased steering input.
  • Oversteer, when the rear of the vehicle begins to slide or rotate due to road conditions or excessive speed.

The VDC system in the Nissan Frontier is designed to assist the driver in maintaining stability and control, but it cannot eliminate the risk of losing control in all situations. Safe driving practices remain essential at all times.

When the VDC system is actively intervening, the indicator light in the instrument panel flashes. When this occurs, consider the following:

• The road surface may be slippery, or the system is actively correcting vehicle motion to keep the Nissan Frontier on the intended path.
• You may notice pulsation in the brake pedal or hear mechanical noise or vibration from the engine compartment. These are normal signs that the VDC system is functioning correctly.
• Adjust your driving speed and style according to current road conditions to maintain safe control of the Nissan Frontier.

If a malfunction is detected within the system, the indicator light will come on in the instrument panel. In this case, the VDC system will automatically deactivate.

The VDC OFF switch allows the driver to manually disable the VDC system. When switched off, the indicator light, RAB warning light, and the AEB with Pedestrian Detection system warning light illuminate, indicating that these systems are deactivated.

Even when the VDC OFF switch is used, the Nissan Frontier still retains a limited traction function. The system can continue to reduce wheel slip by applying braking force to a spinning wheel and transferring torque to the opposite wheel. In such cases, the indicator light flashes if this occurs. All other VDC-related stability functions remain disabled, and the indicator light will not flash.

The VDC system in the Nissan Frontier automatically resets and reactivates when the ignition is turned OFF and then back to the ON position, ensuring the system is ready for normal operation.

Additionally, the onboard control module includes a self-diagnostic function that checks system performance each time the engine is started and the vehicle begins moving slowly in either direction. During this test, you may hear a brief "clunk" sound or feel a slight vibration in the brake pedal. This is a normal indication that the Nissan Frontier VDC system is operating correctly.

WARNING

• The VDC system in the Nissan Frontier is designed to assist in maintaining vehicle stability but cannot prevent accidents caused by aggressive steering, excessive speed, or unsafe driving practices. Always reduce speed and exercise caution, especially when driving on slippery or uneven surfaces.
• Do not modify the suspension system of your Nissan Frontier.

  If suspension components such as shock absorbers, springs, struts, stabilizer bars, bushings, or wheels are not Nissan-approved or are severely worn, the VDC system may not function properly. This can negatively affect handling performance and may cause the indicator light may flash or the indicator light may illuminate.

• If brake components such as pads, rotors, or calipers are not Nissan-approved or are excessively worn, the VDC system in the Nissan Frontier may malfunction, and both the and indicator lights may illuminate.
• If engine-related control components are not Nissan-approved or are heavily deteriorated, both the and indicator lights may illuminate.
• When driving on steeply banked roads or extreme inclines, the Nissan Frontier VDC system may not operate correctly, and the indicator light may flash or the indicator light may illuminate. Avoid driving under such conditions.
• When operating the Nissan Frontier on unstable surfaces such as turntables, ferries, elevators, or ramps, the indicator light may flash or the indicator light may illuminate. This is normal behavior and does not indicate a malfunction.

After operating the Nissan Frontier on unstable or moving surfaces, always restart the engine once the vehicle is back on solid ground. This allows the Vehicle Dynamic Control (VDC) system to reset and resume normal operation, ensuring optimal stability and safety.

If wheels or tires that are not approved or recommended by Nissan are installed on the Nissan Frontier, the VDC system may not function correctly. In such cases, the indicator light may flash or the indicator light may illuminate, signaling reduced system performance.

The VDC system in the Nissan Frontier is designed to assist with stability, but it cannot replace proper winter driving equipment. Always use appropriate winter tires or tire chains when driving on snow-covered or icy roads to ensure maximum traction and safety.

Brake force distribution

When braking the Nissan Frontier while cornering, the system intelligently adjusts and distributes braking force to each of the four wheels. This optimization is based on the turning radius and vehicle dynamics, helping maintain stability, reduce body roll, and improve control during curved braking situations.

WARNING

• The Vehicle Dynamic Control system in the Nissan Frontier is engineered to assist the driver in maintaining stability, but it cannot prevent accidents caused by sudden steering inputs, excessive speed, or unsafe driving behavior. Always reduce speed and drive with increased caution, especially on slippery or uneven road surfaces.
• Do not modify the suspension system of your Nissan Frontier.

  If suspension components such as shock absorbers, struts, springs, stabilizer bars, bushings, or wheels are not Nissan-approved or are significantly worn, the VDC system may not operate properly. This can negatively affect handling performance and may cause the indicator light may flash or the indicator light may illuminate.

• If brake system components such as pads, rotors, or calipers are not Nissan-approved or are excessively worn, the VDC system in the Nissan Frontier may not function correctly. In this case, both the and indicator lights may illuminate.
• If engine control components are not Nissan-approved or are heavily deteriorated, both the and indicator lights may illuminate, indicating possible system malfunction.
• When driving the Nissan Frontier on extremely steep or highly banked surfaces, such as sharp inclines or angled corners, the VDC system may not operate as intended. In such cases, the indicator light may flash or the indicator light may illuminate. Avoid driving under these extreme conditions whenever possible.
• When operating the Nissan Frontier on unstable platforms such as ferries, elevators, ramps, or rotating surfaces, the indicator light may flash or the indicator light may illuminate. This is normal behavior and does not indicate a malfunction.

  Once the Nissan Frontier returns to a stable driving surface, restart the engine to reset the system and restore full functionality.

• If wheels or tires that are not Nissan-approved are used on the Nissan Frontier, the VDC system may not function properly. In such cases, the indicator light may flash or the indicator light may illuminate.
• The VDC system in the Nissan Frontier is not a replacement for proper winter driving equipment. Always equip the vehicle with suitable winter tires or chains when driving in snow or icy conditions to maintain safe handling and braking performance.

Hill descent control system

WARNING

• Never depend entirely on the hill descent control system of the Nissan Frontier to regulate vehicle speed when driving down steep slopes. Always remain attentive and maintain full control of the vehicle. If necessary, reduce speed manually by applying the brake pedal. Extra caution is required when driving on icy, muddy, or extremely steep terrain, as failure to properly control speed may result in loss of control, serious injury, or even fatal consequences.
• The hill descent control system in the Nissan Frontier may not maintain a consistent speed under all driving conditions or vehicle loads. Always be ready to apply the brakes manually. Ignoring this precaution could lead to collisions or severe personal injury.

The hill descent control system in the Nissan Frontier is specifically designed to assist the driver when descending steep inclines at speeds below approximately 15–21 mph (25–35 km/h). This system is particularly useful in off-road situations where engine braking alone, even in 4H or 4LO mode, is insufficient to safely control the vehicle’s speed.

By automatically applying the brakes, the Nissan Frontier hill descent control system maintains a steady and controlled descent. This allows the driver to focus on steering and navigating obstacles while reducing the need for constant brake or accelerator input, improving overall driving confidence on challenging terrain.

- When additional braking assistance is needed on steep downhill surfaces, activate the hill descent control system by pressing the designated switch in the Nissan Frontier.

If either the accelerator or brake pedal is pressed while the hill descent control system is active, the system will temporarily disengage. Once the pedals are released, the system will automatically resume operation, provided that all required conditions are met.

For optimal performance when descending steep grades in the Nissan Frontier, ensure that the hill descent control system is activated and select a lower gear such as 2 (Second gear) or 1 (Low gear). This combination enhances engine braking and improves vehicle stability.

Hill start assist system

WARNING

• Do not rely solely on the hill start assist system in the Nissan Frontier to prevent rollback when starting on an incline. Always remain alert and keep your foot on the brake pedal when necessary.

  Particular care should be taken on steep, icy, or muddy slopes. Failure to properly control the vehicle may result in unintended backward movement, increasing the risk of accidents and serious injury.

• The hill start assist system is not intended to hold the Nissan Frontier stationary for extended periods on a hill. Always keep the brake pedal engaged when stopped on an incline. Failure to do so may allow the vehicle to roll backward and cause a collision.
• The effectiveness of the hill start assist system may vary depending on load and road conditions.

  Always be prepared to apply the brakes manually to prevent rollback. Neglecting this may result in loss of control or serious personal injury.

When the Nissan Frontier is stopped on an incline, the hill start assist system automatically maintains brake pressure for a short period. This provides the driver with enough time to transition from the brake pedal to the accelerator without the vehicle rolling backward.

The hill start assist system in the Nissan Frontier operates automatically when the following conditions are met:

• The shift lever is engaged in either a forward or reverse gear.
• The vehicle is completely stationary on an incline while the brake pedal is pressed.

The system holds the vehicle in place for up to approximately 2 seconds.

After this period, the Nissan Frontier may begin to roll if the accelerator is not applied, and the hill start assist function will disengage.

The hill start assist system will not activate if the transmission is in N (Neutral) or P (Park), or when the vehicle is positioned on a flat surface.

Rear Sonar System (RSS)

Basic Information

The Rear Sonar System (RSS) in the Nissan Frontier is designed to assist the driver by emitting audible alerts when obstacles are detected near the rear bumper. This feature enhances parking safety by providing real-time feedback about nearby objects, helping reduce the risk of accidental contact.

When the "DISPLAY" key is activated in the Nissan Frontier, a sonar visualization automatically appears on the touchscreen, providing a clear graphical representation of detected obstacles. In addition, a supplementary sonar status view is shown in the vehicle information display, giving the driver enhanced situational awareness during parking and low-speed maneuvers.

WARNING

• The RSS in the Nissan Frontier is intended as a driver assistance feature only and must not be relied upon as a replacement for careful and attentive parking.
• The driver remains fully responsible for ensuring safety when parking or maneuvering the Nissan Frontier.

  Always visually check surroundings and confirm that it is safe before proceeding.

• It is essential to understand the operational limits of the Nissan Frontier RSS system.

  The color-coded sonar indicators and distance guide lines displayed in the rear view correspond to different distances from detected objects and should be interpreted carefully.

• Environmental conditions such as heavy rain, snow, or interference from ultrasonic sources like automatic car washes, compressed-air brakes, or construction equipment may affect system performance, potentially causing reduced accuracy or false alerts.
• This system is specifically designed to help detect larger stationary objects and minimize the risk of damage to the Nissan Frontier during parking.
• The RSS system may not detect smaller or moving objects. Always drive slowly and remain cautious. Objects located very close to the bumper, below it, or on the ground may not be detected.
• The system may have difficulty detecting certain materials or shapes, including soft objects like snow or cloth, transparent objects such as glass, thin items like wires or ropes, and irregular or wedge-shaped obstacles.

If the rear bumper of the Nissan Frontier is damaged, misaligned, or deformed, the sonar detection area may be affected. This can lead to inaccurate distance measurements or false warnings, reducing the effectiveness of the RSS system.

CAUTION

• Loud ambient noise, such as high audio volume or open windows, may interfere with your ability to hear the RSS warning tones in the Nissan Frontier.
• Ensure that the sonar sensors located on the Nissan Frontier bumper remain clean and unobstructed.

  Avoid using sharp tools when cleaning the sensors. Accumulated dirt, snow, or ice can reduce system accuracy and detection capability.

System operation

The Nissan Frontier RSS provides both visual and audible alerts when obstacles are detected behind the vehicle while the shift lever is in the R (Reverse) position.

The system automatically deactivates when the Nissan Frontier exceeds speeds of approximately 6 mph (10 km/h) and reactivates when the vehicle slows down below this threshold.

If an obstacle is detected only by a corner sensor and its distance remains unchanged, the intermittent warning tone will stop after approximately 3 seconds. The tone will also stop once the obstacle moves away from the vehicle.

When an object is initially detected, a green indicator appears and blinks while an intermittent tone sounds. As the Nissan Frontier approaches the object, the indicator changes to yellow and the blinking frequency increases. When the vehicle is very close to the object, the indicator turns red and remains steady, accompanied by a continuous warning tone.

When the rear corner of the Nissan Frontier approaches an obstacle, the corner sonar indicator A is displayed. When the center rear area gets close to an object, the center sonar indicator B appears, providing precise positional feedback.

The Nissan Frontier system indicators A will activate and remain visible as the vehicle continues to move closer to an obstacle, helping the driver make accurate and safe parking adjustments.

How to enable/disable the RSS

The Rear Sonar System (RSS) in the Nissan Frontier is automatically activated whenever the ignition is switched to the ON position and the shift lever is placed into R (Reverse). This ensures that the system is ready to assist the driver during parking without requiring manual activation each time.

To customize or disable the RSS system in the Nissan Frontier, follow these steps through the vehicle information display:

1. Press the button until "Settings" appears in the vehicle information display.

Use the button to select "Driver Assistance," then press ENTER to confirm.

2. Navigate to "Parking Aids" and press ENTER.

3. Select "Sensor" and press ENTER to switch the Nissan Frontier sonar system on or off as desired.

• Select "Display" to enable or disable the sonar visualization on the screen.
• Select "Range" to adjust detection sensitivity to "Near," "Mid," or "Far," depending on your driving preference.
• Select "Volume" to set the warning tone level to "High," "Medium," or "Low" for optimal audibility.

4. Press the Parking Aids system switch to quickly toggle the RSS system on or off in the Nissan Frontier.

Sonar limitations

WARNING

The following limitations apply to the Nissan Frontier sonar system. Failure to understand and follow these limitations may result in serious injury or damage.

• The RSS system in the Nissan Frontier is automatically disabled at speeds above approximately 6 mph (10 km/h) and reactivates when the speed decreases.
• Adverse weather conditions or external ultrasonic interference—such as automatic car washes, compressed-air brakes, or construction equipment—may affect system accuracy, potentially causing false alerts or reduced detection capability.
• The system is not designed to detect all objects, particularly small or moving ones. Always drive slowly and remain alert, as objects beneath the bumper or on the ground may not be detected.
• The Nissan Frontier RSS may not detect certain materials or shapes, including soft objects like snow or fabric, thin objects such as wires or chains, and irregular or wedge-shaped items.
• Objects approached at speeds above approximately 3 mph (5 km/h) or moving at certain angles may not be reliably detected by the system.
• Avoid placing stickers, accessories, or any materials over the sonar sensors, as this can significantly reduce system effectiveness.

System temporarily unavailable

When the Nissan Frontier detects that the sonar sensors are blocked, the RSS system will automatically deactivate to prevent inaccurate readings.

The system will remain unavailable until the obstruction is removed or the environmental conditions improve.

Temporary blockage may occur due to water splashes, fog, or condensation. Additionally, buildup of ice, frost, mud, or dirt on the sensors can interfere with proper operation of the Nissan Frontier sonar system.

Action to take:

Once the obstruction or environmental interference is cleared, the RSS system in the Nissan Frontier will automatically resume normal operation without requiring manual reset.

System maintenance

The sonar sensors 1 are installed in the rear bumper of the Nissan Frontier and must be kept clean and unobstructed at all times for proper performance.

Temporary environmental conditions such as water spray, fog, or road debris may block the sensors and affect detection accuracy.

Accumulations of ice, frost, or dirt can also interfere with the system. Regular inspection and cleaning are essential to maintain reliable operation of the Nissan Frontier RSS.

Always check for and remove any objects or buildup around the sensors.

Do not apply stickers, protective films, additional paint, or accessories near the sonar sensors, as this may disrupt signal transmission.

Avoid striking or damaging the bumper area where the sensors are located. If the Nissan Frontier has been involved in a collision or if the sensor area is damaged, it is strongly recommended to have the system inspected by an authorized Nissan dealer.

Idling Stop System

Basic Information

The Idling Stop System in the Nissan Frontier is an intelligent fuel-saving technology designed to automatically reduce unnecessary fuel consumption, exhaust emissions, and engine noise during stops. This system enhances efficiency, especially in urban driving conditions where frequent stops occur.

• When the Nissan Frontier comes to a complete stop, the engine is automatically switched off to conserve fuel and minimize emissions.
• As soon as the driver releases the brake pedal to continue driving, the engine automatically restarts, allowing seamless and uninterrupted operation.

WARNING

If the Nissan Frontier begins to move at approximately 1 mph (2 km/h) or more—such as on a downhill slope—while the engine is temporarily stopped by the Idling Stop System, the engine will automatically restart. Immediately press the brake pedal to maintain control of the vehicle and prevent potential accidents.

CAUTION

• At the end of your trip, always turn off the engine of the Nissan Frontier completely by switching the ignition to the OFF position and locking the vehicle as usual. This action ensures that all electrical systems are properly shut down.

  Failure to do so may result in battery discharge and reduced vehicle reliability.

• Before opening the hood or performing any maintenance on the Nissan Frontier, always place the ignition switch in the OFF position. The engine may restart automatically if the system is active, which could lead to serious injury.

NOTE:

The Idling Stop System in the Nissan Frontier may not activate under certain operating conditions. These include, but are not limited to, the following situations:

• When the Nissan Frontier is operating in TOW mode.
• When the 4LO mode is engaged. (The system will reactivate after approximately 4 hours following ignition OFF. It will also reset after battery reconnection.)
• When specific terrain modes such as ROCK, MUD, or SAND are selected via the Terrain Mode Selector (if equipped).
• When the engine continues to idle without the vehicle being driven after startup.
• When engine coolant temperature is below optimal operating range.
• When battery charge level or battery temperature is low.
• When the Nissan Frontier is in motion.
• When brake booster vacuum pressure is insufficient.
• When the hood is open while the engine is running or started.
• When the driver's seat belt is not fastened.
• When the driver's door is open.
• When the steering wheel is actively turned or has been rotated significantly (approximately 45 degrees or more) while stopped.
• When the Idling Stop System indicator flashes:

  - If it flashes rapidly (about twice per second), check whether the hood is open. In this case, the engine will remain in a normal stopped state and should be restarted manually using the ignition switch.

  - If it flashes slowly (about once every 2 seconds), the Nissan Frontier should be inspected by an authorized Nissan dealer as soon as possible, as this may indicate a system malfunction.

• When the climate control system is actively using the front defroster or when fan speed is not set to OFF.
• When the front or rear window defroster is activated.
• When the interior temperature of the Nissan Frontier is below approximately 68°F (20°C) or above approximately 86°F (30°C). (If the air conditioning is turned off, the system may still operate.)
• When the air conditioning fan is set to maximum speed.
• When the Idling Stop OFF switch is activated.
• When electrical power demand is high.
• When driving at high altitudes.
• When the accelerator pedal is pressed.
• When the transmission is not in D (Drive).
• When the brake pedal is not firmly depressed.
• When the Nissan Frontier is stopped on a steep incline or decline.

NOTE:

In the Nissan Frontier, the engine will not automatically restart—even if the brake pedal is released—while the Idling Stop System is active under the following condition:

• When the engine hood is open, as a safety precaution to prevent unintended engine operation.

NOTE:

The activation of the Idling Stop System in the Nissan Frontier may be delayed under certain conditions, including:

• When the vehicle battery is partially discharged or not fully charged.
• When ambient temperatures are extremely low or high, affecting system efficiency.
• After the battery has been replaced or disconnected for an extended period and then reconnected, as the system requires recalibration.

NOTE:

When the Idling Stop System indicator illuminates in the Nissan Frontier, the engine may automatically restart if one or more of the following conditions occur:

• The driver's seat belt is unfastened or the driver's door is opened.
• The battery voltage drops due to increased electrical load from systems such as headlights, climate control, or devices connected to the 12V outlet.
• The vehicle begins moving at a speed greater than approximately 1 mph (2 km/h).
• The rear window defroster is activated.
• The interior temperature of the Nissan Frontier falls below approximately 68°F (20°C).
• The interior temperature exceeds approximately 86°F (30°C). (If the air conditioning is turned off, the system may still function.)
• The front defroster is turned on.
• More than approximately 3 minutes have passed since the Idling Stop System was engaged.
• The accelerator pedal is pressed.
• The steering wheel is turned or adjusted.

  (Steering effort may temporarily increase during this time, which is normal and not a malfunction in the Nissan Frontier.)

• The battery capacity is low.
• Electrical power demand is high.
• The Nissan Frontier is operating in TOW or 4LO mode.
• Terrain modes such as ROCK, MUD, or SAND are selected (if equipped).
• The shift lever is not in the D (Drive) position.
• The Idling Stop OFF switch has been activated.

NOTE:

The following condition will prevent the Nissan Frontier Idling Stop System from automatically restarting the engine. In this case, manual engine start using the ignition switch is required:

• The engine hood is open.

Use the Idling Stop System in the Nissan Frontier primarily during short stops, such as at traffic lights, to improve fuel efficiency and reduce emissions. However, if the vehicle is expected to remain stationary for an extended period, it is recommended to switch off the engine completely for optimal performance and battery preservation.

When the engine is stopped by the Idling Stop System, climate control functions such as heating, cooling, and dehumidification may be temporarily suspended. To maintain continuous cabin comfort in the Nissan Frontier, you can disable the system using the Idling Stop OFF switch when necessary.

Retrograde movement control function

This feature in the Nissan Frontier is designed to minimize backward rolling when starting on an incline while the Idling Stop System is active. It briefly maintains brake pressure as the driver transitions from the brake pedal to the accelerator, improving control and confidence when moving off on hilly terrain.

Idling Stop System display

The operational status of the Idling Stop System in the Nissan Frontier can be conveniently monitored through the vehicle information display, allowing the driver to stay fully informed about system activity and efficiency benefits.

Idling Stop System indicator

This indicator appears when the Idling Stop System in the Nissan Frontier is actively engaged, confirming that the engine has been automatically stopped to conserve fuel and reduce emissions.

Idling Stop System ON or OFF

Whenever the Idling Stop System is manually enabled or disabled using the Idling Stop OFF switch in the Nissan Frontier, a confirmation message is displayed, ensuring the driver is aware of the current system status.

Fuel saved and engine stop time

The Nissan Frontier provides detailed feedback on system efficiency through this display mode, which includes:

• The estimated amount of fuel saved each time the Idling Stop System automatically shuts off the engine.
• The cumulative duration during which the engine has remained stopped due to the Idling Stop System.

The total fuel savings and overall engine stop time can also be reviewed at any time in the Nissan Frontier vehicle information display, offering useful insight into driving efficiency.

Auto start deactivation

If the engine stops while the Idling Stop System is active but cannot automatically restart, a warning message will appear in the Nissan Frontier display to alert the driver of this condition.

System fault

This notification indicates a malfunction within the Idling Stop System of the Nissan Frontier. In such cases, it is strongly recommended to have the system inspected by an authorized Nissan dealer to ensure proper functionality and safety.

Idling Stop guidance display (further depressing the brake pedal)

When the Nissan Frontier is stationary and the Idling Stop System screen is active, a guidance message may appear if the brake pedal is not pressed firmly enough to activate the system.

To enable the Idling Stop System, apply additional pressure to the brake pedal. This guidance is displayed when the fuel saved and engine stop time screen is selected.

The message will disappear under the following conditions:

• The Idling Stop System activates successfully.
• The Nissan Frontier begins to move.

Idling Stop guidance display (detection of the steering operation)

If steering input is detected while the Nissan Frontier is stopped, the Idling Stop System may be temporarily disabled, and a corresponding guidance message will be displayed.

This indicates that steering wheel movement has priority over engine stop functionality. The message appears when the efficiency display is active and disappears once normal conditions are restored or the vehicle starts moving.

Idling Stop guidance display (placing priority on the air conditioner)

When climate control functions such as cooling, heating, or dehumidifying are prioritized in the Nissan Frontier, the Idling Stop System may be temporarily deactivated. A guidance message will inform the driver that maintaining cabin comfort has taken precedence over fuel-saving operation.

This message will disappear once the system conditions allow the Idling Stop System to reactivate or when the vehicle resumes movement.

Idling Stop OFF switch

The Idling Stop System in the Nissan Frontier can be temporarily disabled by pressing the Idling Stop OFF switch. Pressing the switch again or restarting the engine will automatically reactivate the system.

• When the Idling Stop System is turned off while the engine is running, the engine will no longer stop automatically during the drive.
• If the system is deactivated after the engine has already been stopped by the Idling Stop System, the engine will restart immediately (if conditions allow) and will remain running for the rest of the journey.

NOTE:

• A confirmation message indicating whether the Idling Stop System is ON or OFF will briefly appear in the Nissan Frontier display after pressing the switch.
• The Idling Stop System automatically resets to ON each time the ignition is turned OFF and then back ON.
• It is recommended to disable the Idling Stop System when towing with the Nissan Frontier to ensure consistent engine operation.

Cold weather driving

Freeing a frozen door lock

To prevent door locks on your Nissan Frontier from freezing during cold weather, it is recommended to apply a suitable de-icing solution directly into the keyhole. If the lock is already frozen, gently warm the key before inserting it or use the remote keyless entry system (if equipped) to unlock the vehicle without forcing the mechanism.

Antifreeze

During winter months, especially when temperatures are expected to drop below 32ºF (0ºC), it is essential to check the antifreeze level and concentration in your Nissan Frontier. Proper antifreeze protection ensures that the engine cooling system remains operational and prevents freezing or internal damage.

Battery

Cold temperatures can significantly affect battery performance in the Nissan Frontier. If the battery is not fully charged, the electrolyte may freeze, potentially causing permanent damage. Regular inspection and maintenance of the battery will help ensure reliable starting and optimal efficiency in extreme weather conditions.

Draining of coolant water

If the Nissan Frontier is to be parked outdoors without antifreeze in freezing temperatures, the entire cooling system, including the engine block, should be drained. Always refill the system with the proper coolant mixture before operating the vehicle again to avoid severe engine damage.

Tire equipment

1. SUMMER tires are engineered for optimal performance on dry roads, but their effectiveness is greatly reduced in snow and ice. When driving a Nissan Frontier in winter conditions, it is strongly recommended to install MUD & SNOW or ALL-SEASON tires on all four wheels for improved traction and stability. Consult a Nissan dealer for correct specifications.

2. Studded tires may be used for additional grip on icy roads, depending on local regulations. Always verify legal restrictions before installing them. Keep in mind that studded tires may offer reduced performance on wet or dry pavement compared to non-studded winter tires.

Skid and traction performance of studded snow tires on non-icy surfaces may be inferior compared to standard winter tires.

3. Tire chains can also be used to enhance traction in severe winter conditions when driving the Nissan Frontier.

Special winter equipment

For safe winter driving in the Nissan Frontier, it is advisable to carry essential equipment in the vehicle:

• An ice scraper and a stiff brush for clearing snow and frost from windows and wiper blades.
• A strong, flat board to provide stable support for a jack on snow or soft ground.
• A shovel to help free the Nissan Frontier if it becomes stuck in deep snow.
• Extra windshield washer fluid suitable for low temperatures.

Driving on snow or ice

WARNING

• Driving on wet ice, freezing rain, or extremely cold snow significantly reduces traction. The Nissan Frontier may lose grip easily under these conditions. Avoid driving on untreated icy roads whenever possible.
• Always accelerate, decelerate, and shift gears smoothly. Sudden inputs may cause the drive wheels to lose traction and lead to skidding.
• Increase stopping distances and begin braking earlier than usual when driving on snow or ice.
• Maintain a greater following distance from other vehicles to allow adequate reaction time.
• Be alert for hidden ice patches, especially in shaded areas.

  If ice is visible ahead, slow down before reaching it. Avoid braking or steering abruptly while driving over icy surfaces.

• Do not use cruise control when driving the Nissan Frontier on slippery roads.
• Ensure that snow does not accumulate around the exhaust pipe, as this may trap dangerous exhaust gases beneath the vehicle.

Engine block heater

The engine block heater in the Nissan Frontier is designed to assist with starting the engine in extremely cold conditions by warming the engine coolant in advance.

It is recommended to use the engine block heater when outside temperatures fall below 20ºF (-7ºC) to improve engine performance and reduce wear during cold starts.

WARNING

• Never use the engine block heater of the Nissan Frontier with an ungrounded electrical outlet or a 2-pronged adapter. This may result in serious electrical shock.
• Always disconnect and properly store the heater cord before starting the engine to prevent damage and potential injury.
• Use a heavy-duty 3-wire, 3-pronged extension cord rated for at least 10 amps.

  Ensure the cord is connected to a Ground Fault Interrupt (GFI) protected 110-volt AC outlet.

  Failure to follow these precautions may lead to fire hazards or electric shock.

To properly use the engine block heater in the Nissan Frontier:

1. Turn the engine off completely.

2. Open the hood and locate the engine block heater cord.

3. Connect the heater cord to a grounded extension cord.

4. Plug the extension cord into a GFI-protected 110-volt AC outlet.

5. Allow the heater to operate for 2–4 hours, depending on ambient temperature, to adequately warm the engine coolant.

6. Before starting the Nissan Frontier, disconnect the cord and store it securely away from moving parts.

CAUTION

Using the engine block heater while the Nissan Frontier is parked at a steep angle (front higher than rear by 5 degrees or more) may cause damage to the heater and affect its operation.
