Keys

NISSAN Intelligent Key

Basic information

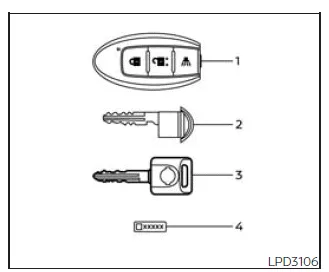

Type A (if so equipped)

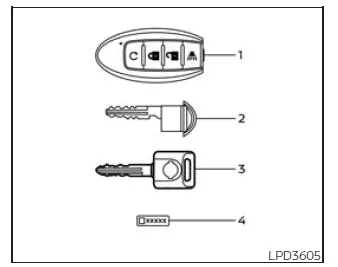

Type B (if so equipped)

1. Two Intelligent Keys
2. Mechanical key
3. Master key
4. Key number plate

The Nissan Frontier is equipped with the advanced Intelligent Key system, which allows secure and convenient vehicle access and operation without the need for traditional key insertion.

Your Nissan Frontier can only be operated using Intelligent Keys that are properly registered to its Intelligent Key system and the NISSAN Vehicle Immobilizer System. These systems work together to provide enhanced theft protection and ensure that only authorized keys can start the vehicle.

Never leave these keys inside the Nissan Frontier.

Up to four Intelligent Keys can be registered to a single Nissan Frontier. When adding new keys, all existing keys must be presented to a NISSAN dealer, as the system will erase previously stored data during registration and reprogram all keys simultaneously.

A key number plate is included with your Nissan Frontier keys. Record this number and store it in a safe place, such as your wallet — never inside the vehicle. This number is essential if all keys are lost and replacements are required.

NISSAN does not retain records of key numbers, so it is critical to keep your key number plate secure and accessible.

If at least one key remains available, duplication can be performed without the key number. However, if all keys are lost, the key number becomes necessary to create replacements.

CAUTION

The following conditions may damage the Intelligent Key used with your Nissan Frontier:

• Avoid exposing the Intelligent Key to water or saltwater, as moisture can damage internal electronic components.
• Do not drop the Intelligent Key or subject it to strong impacts.
• Do not strike the key against hard surfaces.
• Do not attempt to modify or alter the Intelligent Key.
• If the Intelligent Key becomes wet, dry it immediately and thoroughly.
• Do not leave the Intelligent Key in areas exceeding 140ºF (60ºC), such as inside a parked vehicle in hot weather.
• Avoid attaching the Intelligent Key to magnetic key holders.
• Keep the Intelligent Key away from strong electromagnetic sources such as televisions, audio systems, or personal computers.

  If an Intelligent Key for your Nissan Frontier is lost or stolen, it is strongly recommended to have its ID erased from the vehicle system by a NISSAN dealer to prevent unauthorized use.

Mechanical key

The Nissan Frontier Intelligent Key also includes a built-in mechanical key for emergency use.

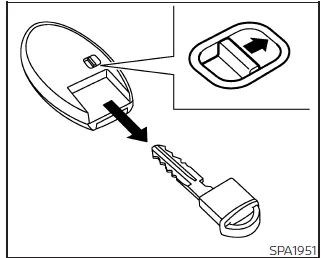

To remove the mechanical key, release the lock knob located on the back of the Intelligent Key.

To reinstall it, insert the key fully until the lock mechanism clicks securely into place.

The mechanical key can be used to manually lock or unlock the driver’s door, tailgate, and glove box (if equipped) in situations where electronic access is unavailable.

CAUTION

Always ensure that the mechanical key is properly secured inside the Intelligent Key housing when not in use.

Valet hand-off (if so equipped)

When handing over your Nissan Frontier to a valet, it is important to protect your personal belongings by limiting access to certain compartments.

Provide the valet with the Intelligent Key only, while retaining the mechanical key and master key for yourself.

To secure the glove box during valet service, follow these steps:

1. Remove the mechanical key from the Intelligent Key.

2. Lock the glove box using the mechanical key or master key.

3. Hand over only the Intelligent Key to the valet and keep the remaining keys with you.

NISSAN Vehicle Immobilizer System keys

Additional or replacement keys for the Nissan Frontier Immobilizer System can be obtained as follows:

If you still have an existing key, duplication is possible without the key number. However, all keys must be presented to a NISSAN dealer for proper registration.

The Nissan Frontier Immobilizer System supports up to four keys. During registration, all previously stored key codes are erased, and only the keys present during the process will remain valid.

Any virtual key accessories (if equipped) must also be re-registered during this process.

Any key not included during registration will no longer be able to start your Nissan Frontier.

CAUTION

Do not expose immobilizer system keys to water or saltwater. The embedded transponder is sensitive to moisture and may fail if damaged.

Proper care and handling of your Nissan Frontier keys will ensure long-term reliability, security, and seamless vehicle operation.

Doors

Basic information

In the Nissan Frontier, once the doors are secured using any of the available locking methods, they cannot be opened from either the inside or outside door handles. To gain access, the doors must first be unlocked using the appropriate control.

WARNING

• Always ensure that all doors of your Nissan Frontier are locked while driving. In combination with properly fastened seat belts, this significantly enhances safety by reducing the risk of occupants being ejected during an accident. It also prevents children or passengers from accidentally opening doors and helps deter unauthorized access.
• Before opening any door, always check for approaching vehicles, cyclists, or pedestrians to avoid potential collisions.
• Never leave children, individuals requiring assistance, or pets unattended inside your Nissan Frontier. Unintended operation of vehicle systems or rising interior temperatures can lead to serious injury or even fatal consequences, especially on warm days.

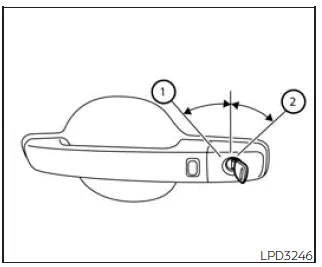

Locking with key

Driver's side

To lock the door of your Nissan Frontier using the mechanical key, turn the key toward the rear of the vehicle 2. This action secures the door but does not activate the vehicle’s security system.

To fully arm the security system, press the button on the Intelligent Key.

To unlock the door, turn the mechanical key toward the front of the vehicle 1. This will unlock only the selected door and will not deactivate the security system.

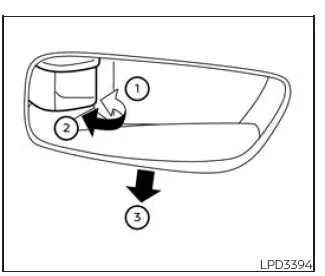

Locking with inside lock knob

Inside lock

To lock a door without using a key in your Nissan Frontier, slide the inside lock knob to the lock position 1 and then close the door.

To unlock the door manually, move the lock knob to the unlock position 2.

For front doors, you can also pull the door handle once to unlock and a second time to open the door, offering added convenience during everyday use.

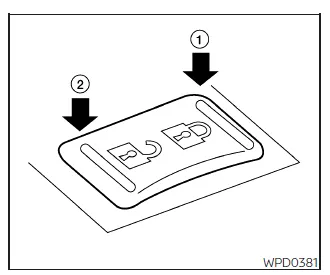

Locking with power door lock switch

To lock all doors simultaneously without using a key, press the power door lock switch (located on either the driver’s or front passenger’s door) to the lock position 1.

When using this method in your Nissan Frontier, always confirm that the Intelligent Key is not left inside the vehicle.

To unlock all doors, press the same switch to the unlock position 2.

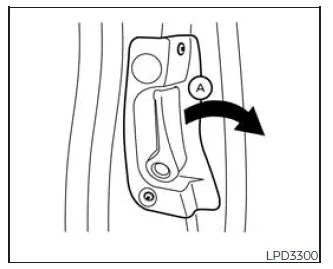

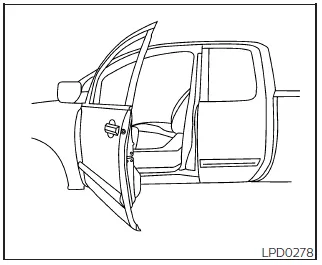

Rear doors (King Cab models)

1. Open the driver’s or front passenger’s door.

2. From outside the Nissan Frontier, pull the rear door handle A toward you.

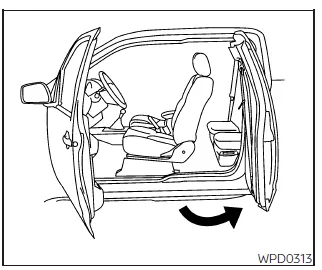

3. Open the rear door to the desired position for passenger entry or cargo access.

Automatic door locks

• In the Nissan Frontier, all doors automatically lock when the vehicle reaches approximately 15 mph (24 km/h), enhancing safety during driving.
• All doors will automatically unlock when the transmission is shifted into P (Park) or when the ignition is turned OFF, depending on the selected configuration in the “Vehicle Settings” menu.

NOTE:

The automatic door unlock behavior in your Nissan Frontier can be customized through the vehicle information display settings to match your personal preferences.

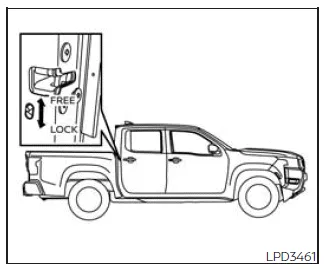

Child safety rear door lock

The child safety lock system in the Nissan Frontier is designed to prevent rear doors from being opened from the inside, offering additional protection for children during travel.

These safety levers are located on the edge of the rear doors and can be easily adjusted.

When the lever is set to the LOCK position, the rear door can only be opened from the outside of the Nissan Frontier.

Using this feature is highly recommended when transporting children to enhance overall passenger safety.

NISSAN Intelligent Key system

Basic information

WARNING

• Radio frequency signals emitted by the Intelligent Key in your Nissan Frontier may interfere with certain types of electronic medical devices. Individuals using devices such as pacemakers should consult the manufacturer of their medical equipment to understand any potential risks before using the system.
• The Intelligent Key for the Nissan Frontier transmits radio signals whenever its buttons are pressed.

  According to aviation safety guidelines, these signals may interfere with aircraft communication and navigation systems. For this reason, do not operate the Intelligent Key while onboard an aircraft.

  When traveling, ensure that the buttons are not accidentally pressed while the key is stored in your luggage or carry-on items.

• Always place the transmission in the P (Park) position and engage the parking brake when parking your Nissan Frontier, entering or exiting the vehicle, or loading cargo.

  Failure to do so may result in unintended vehicle movement, which could cause serious injury, damage, or unsafe situations.

The Intelligent Key system in the Nissan Frontier provides convenient access by allowing you to lock and unlock doors remotely or by using the request switch (if equipped), without removing the key from your pocket or bag. This enhances everyday usability and security.

However, the performance of the Nissan Frontier Intelligent Key system can be influenced by environmental conditions, signal interference, and surrounding electronic devices.

Before using the Intelligent Key system in your Nissan Frontier, carefully review the following information to ensure proper and reliable operation.

CAUTION

• Always carry the Intelligent Key with you when operating your Nissan Frontier to ensure uninterrupted functionality.
• Never leave the Intelligent Key inside the Nissan Frontier when exiting the vehicle, as this may lead to unintended access or locking issues.

The Intelligent Key in your Nissan Frontier both transmits and receives low-power radio signals. These signals enable communication between the key and the vehicle, allowing seamless locking, unlocking, and starting functions.

Because the system relies on radio frequency signals, certain external factors may affect its performance. The following conditions may interfere with proper operation:

• Operating near sources of strong electromagnetic radiation, such as television towers, power plants, or broadcasting stations.
• Carrying or using wireless communication devices, including mobile phones, walkie-talkies, or CB radios.
• When the Intelligent Key is in direct contact with metal objects or covered by metallic materials, which can block signal transmission.
• When other remote-control devices operating on similar frequencies are used nearby.
• When the Intelligent Key is placed close to electronic equipment such as personal computers or other digital devices.
• Parking your Nissan Frontier near electronic parking meters or similar devices that emit radio signals.

If you experience issues with the Intelligent Key system in your Nissan Frontier under these conditions, adjust your surroundings or switch to using the mechanical key as an alternative.

The battery life of the Intelligent Key varies depending on usage patterns and environmental conditions, but it typically lasts around two years under normal use. When the battery becomes weak, it should be replaced promptly to maintain proper operation.

When the battery level is low, a "Key Battery Low" warning will appear in the Nissan Frontier’s vehicle information display, alerting you to replace the battery soon.

Because the Intelligent Key can continuously receive radio signals, storing it near devices that emit strong electromagnetic waves (such as TVs or computers) may reduce battery life more quickly.

Additionally, ensure that the main vehicle battery in your Nissan Frontier remains properly charged, as a depleted battery may affect system performance.

Your Nissan Frontier supports registration of up to four Intelligent Keys. If you need additional keys, or if a key is lost or damaged, it is recommended to visit an authorized NISSAN dealer for proper programming and registration.

Proper care and understanding of the Intelligent Key system will help ensure long-term reliability, convenience, and security for your Nissan Frontier.

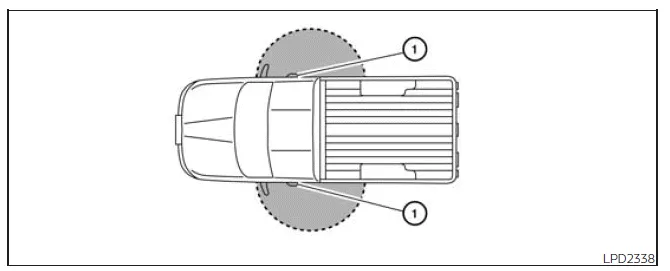

Operating range

The Intelligent Key system in the Nissan Frontier operates only when the key is within a defined proximity to the request switch 1 (if equipped). This proximity-based functionality allows convenient locking and unlocking without removing the key from your pocket or bag.

However, the effective operating range of the Nissan Frontier Intelligent Key can be influenced by several factors. If the key battery is weak or if strong electromagnetic interference is present, the system’s range may decrease, and functionality may become inconsistent.

Under normal conditions, the operating range is approximately 31.5 inches (80 cm) from each request switch 1 (if equipped), providing reliable access when approaching or leaving your Nissan Frontier.

If the Intelligent Key is positioned too close to the door glass, handle, or surrounding metallic surfaces, the request switch may not respond correctly. This is due to signal distortion or reduced communication between the key and the vehicle.

It is also important to understand that when the Intelligent Key is within range of your Nissan Frontier, any person can press the request switch to lock or unlock the doors, even if they are not carrying the key. For this reason, always remain aware of your surroundings when using the system.

Door locks/unlocks precaution

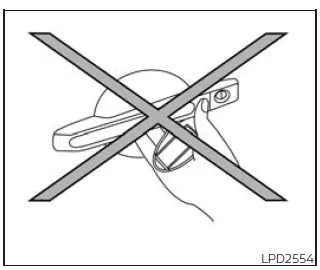

• Do not press the door handle request switch while holding the Intelligent Key directly against or very close to the handle, as shown in the illustration. In the Nissan Frontier, extremely close proximity may prevent the system from correctly detecting that the key is outside the vehicle.
• After locking the doors using the request switch, always verify that the doors are securely locked by gently pulling the handle. This ensures that your Nissan Frontier is properly secured.
• To avoid accidentally leaving the Intelligent Key inside the Nissan Frontier, always confirm that the key is in your possession before locking the doors.
• Do not pull the door handle before pressing the request switch. If this occurs, the door may unlock but will not open. Release the handle and pull it again after unlocking to properly open the door.

Understanding the correct operating range and handling precautions of the Intelligent Key system will help ensure smooth, reliable, and secure use of your Nissan Frontier in everyday driving situations.

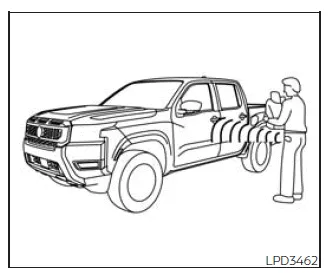

NISSAN Intelligent Key Operation

Basic information

The Nissan Frontier Intelligent Key system is designed to provide seamless and convenient access to your vehicle without the need to physically handle the key. As long as the Intelligent Key is within range, you can lock or unlock the doors while it remains in your pocket or bag.

When carrying the Intelligent Key, the Nissan Frontier allows you to operate all door locks simply by pressing the door handle request switch (if equipped), making everyday use faster and more intuitive.

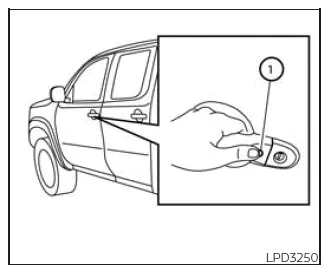

Locking doors

Basic information

1. Ensure the shift lever of your Nissan Frontier is in the P (Park) position, the ignition is set to LOCK, and confirm that you have the Intelligent Key with you.

2. Close all doors securely before proceeding.

3. Press any door handle request switch 1 (if equipped) while carrying the Intelligent Key within the operating range.

4. All doors of the Nissan Frontier will lock simultaneously.

5. The hazard warning lights will flash twice and an audible buzzer will sound twice, confirming that the vehicle has been successfully locked.

NOTE:

• The request switches (if equipped) on all doors of the Nissan Frontier can be disabled by turning OFF the "I-Key Door Lock" option in the "Vehicle Settings" menu within the vehicle information display.
• The doors will not lock if the request switch is pressed while any door is open. However, if one door is closed while others remain open, pressing the request switch may still lock all doors.
• The system is designed to prevent accidental lock-in: if the Intelligent Key is detected inside the Nissan Frontier, the doors will not lock and a warning beep will sound. However, if another Intelligent Key is used externally, the doors can still be locked.

WARNING

After locking your Nissan Frontier using the request switch, always verify that all doors are securely locked by pulling on the door handles.

Failure to confirm proper locking may result in unintended unlocking, which can compromise the safety and security of your vehicle.

CAUTION

• When locking the Nissan Frontier using the request switch, always ensure the Intelligent Key is in your possession to prevent accidentally leaving it inside the vehicle.
• The request switch will only function when the Intelligent Key is correctly detected by the vehicle’s system.

Lockout protection

The Nissan Frontier is equipped with an intelligent lockout protection feature designed to prevent you from accidentally locking the Intelligent Key inside the vehicle.

If the driver’s door is open, the doors are locked, and the Intelligent Key is detected inside the Nissan Frontier, the system will automatically unlock all doors once the driver’s door is closed.

This added safeguard enhances convenience and ensures that you are not locked out of your Nissan Frontier, even in situations where the key is unintentionally left inside.

Understanding and properly using the Intelligent Key operation features will help you maximize both convenience and security when operating your Nissan Frontier.

NOTE:

When using the Intelligent Key system in the Nissan Frontier, the doors may not lock properly if the Intelligent Key is held in the same hand that is pressing the request switch (if equipped). For optimal performance, place the Intelligent Key in your pocket, bag, or hold it in your other hand to ensure accurate signal detection.

CAUTION

The lockout protection system in your Nissan Frontier may not function correctly under the following conditions:

• When the Intelligent Key is placed on top of the instrument panel, where signal detection may be inconsistent.
• When the Intelligent Key is stored inside the glove box or other enclosed storage compartments.
• When the Intelligent Key is left in door pockets, where it may not be properly detected by the system.
• When the Intelligent Key is positioned near or inside metallic objects or materials that may block or interfere with signal transmission.

Unlocking doors

1. Make sure you are carrying the Intelligent Key with you when approaching your Nissan Frontier.

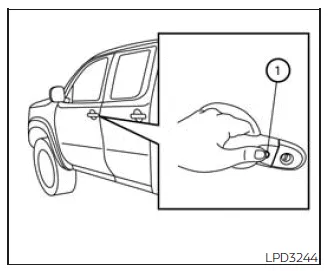

2. Press any door handle request switch 1 (if equipped).

3. The door corresponding to the pressed request switch will unlock. The hazard indicator lights will flash once, and an external buzzer will sound once to confirm the action.

4. Press the request switch again within approximately 60 seconds to unlock all remaining doors of the Nissan Frontier.

NOTE:

• If the "Selective Unlock" setting in your Nissan Frontier is turned OFF via the "Vehicle Settings" menu, all doors will unlock with a single press of the request switch.
• The request switches (if equipped) on the Nissan Frontier can be disabled through the "I-Key Door Lock" option in the vehicle information display settings.

If a door handle is pulled at the same moment the unlocking process is initiated, the door may not open immediately.

In such cases, return the handle to its original position and pull it again. If the door still does not unlock, press the request switch once more to complete the unlocking process.

For added security, all doors of the Nissan Frontier will automatically relock within one minute if none of the following actions are performed:

• Opening any door.
• Pressing the ignition switch.

Using the interior lights

When the doors of your Nissan Frontier are unlocked, the interior lighting system will illuminate for a short period, provided the interior light switch is set to the DOOR position.

This feature enhances visibility and convenience when entering the vehicle in low-light conditions.

The interior lights can be turned off before the timer expires by performing any of the following actions:

• Switching the ignition to the ON position.
• Locking the Nissan Frontier using the Intelligent Key.
• Manually setting the interior light switch to the OFF position.

Proper understanding of these unlocking functions and lighting behaviors will help you use your Nissan Frontier more efficiently while maintaining safety and convenience in everyday situations.

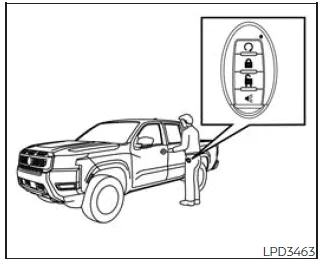

How to use the remote keyless entry function

Basic information

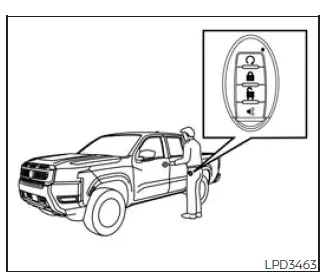

The remote keyless entry system of the Nissan Frontier allows you to conveniently control all door locks using the Intelligent Key’s remote functions. This feature enhances both usability and security, enabling quick access to your Nissan Frontier without direct contact with the vehicle.

The system typically operates within a range of up to 33 ft (10 m) from the Nissan Frontier. However, the effective distance may vary depending on environmental conditions, signal interference, and surrounding obstacles.

The remote keyless entry function in the Nissan Frontier may not operate correctly under the following conditions:

• When the Intelligent Key is outside the specified operating range.
• When one or more doors are open or not securely closed.
• When the Intelligent Key battery is weak or fully discharged.

CAUTION

When locking your Nissan Frontier using the Intelligent Key, always ensure the key is not left inside the vehicle to prevent unintended lockout situations.

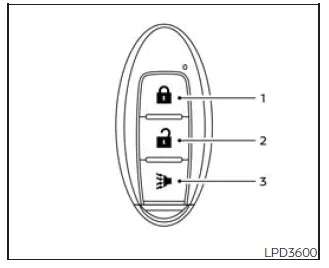

Type A (if so equipped)

1. (lock) button
2. (unlock) button
3. (panic) button

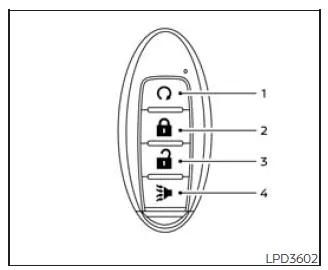

Type B (if so equipped)

1. (remote engine start) button
2. (lock) button
3. (unlock) button
4. (panic) button

Locking doors

1. Ensure the ignition switch of your Nissan Frontier is in the LOCK position.

2. Confirm that all doors are fully closed.

3. Press the button on the Intelligent Key.

4. The hazard lights will flash twice and the horn will beep once to confirm the action.

5. All doors of the Nissan Frontier will lock simultaneously.

WARNING

After locking your Nissan Frontier using the Intelligent Key, always verify that all doors are securely locked by pulling the handles. Failure to do so may result in unintended unlocking and reduced vehicle security.

Unlocking doors

1. Press the button on the Intelligent Key.

2. The hazard indicator lights will flash once and the driver’s door will unlock.

3. Press the button again within 60 seconds to unlock all doors.

NOTE:

The Selective Unlock function in the Nissan Frontier can be customized through the "Vehicle Settings" menu in the vehicle information display.

If no further action is taken, all doors will automatically relock within approximately 60 seconds unless one of the following occurs:

• Any door is opened.
• The ignition switch is pressed.

Using the interior lights

When unlocking your Nissan Frontier, the interior lights will illuminate temporarily if the light switch is set to the DOOR position, improving visibility when entering the vehicle.

You can turn off the interior lights immediately by:

• Switching the ignition to the ON position.
• Locking the doors using the Intelligent Key.
• Setting the interior light switch to the OFF position.

Opening window(s) (if so equipped)

The Intelligent Key system in the Nissan Frontier allows you to remotely open windows equipped with automatic operation.

Ensure that all doors are closed and the Intelligent Key is outside the vehicle.

To open the windows, press and hold the button for more than 3 seconds after unlocking the doors.

The windows will continue to open while the button is held down.

Release the button to stop the operation at any time.

• The Nissan Frontier Intelligent Key cannot be used to close windows remotely.
• All doors will remain unlocked during this operation.

Using the panic alarm

If you feel unsafe near your Nissan Frontier, you can activate the panic alarm by pressing and holding the button for more than 0.5 seconds.

The alarm system and headlights will activate to attract attention and deter potential threats.

The panic alarm will stop automatically after a short period or immediately when any button on the Intelligent Key is pressed.

Answer back horn feature

The Nissan Frontier allows customization of the answer back horn feature for locking and unlocking confirmation.

When disabled, the hazard lights will flash twice when locking, and no horn or light confirmation will occur when unlocking.

NOTE:

If you change the horn or light confirmation settings using the Intelligent Key, the updated configuration will be displayed in the vehicle information display after cycling the ignition. You can also adjust this setting directly through the Nissan Frontier system menu.

To deactivate:

Press and hold the and buttons for at least 4 seconds. The hazard lights will flash three times to confirm deactivation.

To activate:

Press and hold the and buttons again for at least 4 seconds. The hazard lights will flash once and the horn will sound once to confirm activation.

Note that disabling the confirmation horn does not affect the vehicle alarm system.

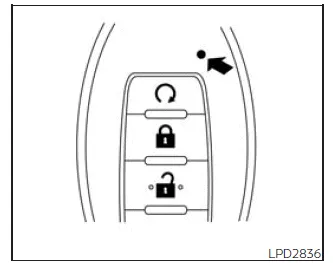

Intelligent Key button operation light

The indicator light on the Intelligent Key of your Nissan Frontier flashes when any button is pressed. This confirms that the key has transmitted a signal, although it does not guarantee that the vehicle has responded.

Always visually or audibly confirm that your Nissan Frontier has executed the intended command.

If the indicator light does not illuminate, the Intelligent Key battery may be depleted and should be replaced.

Warning signals

The Nissan Frontier is equipped with audible and visual warning signals to prevent unintended vehicle operation and enhance theft protection.

If a chime sounds or a warning message appears, carefully inspect both the vehicle and the Intelligent Key to identify and resolve the issue.

These alerts are designed to help ensure safe, secure, and reliable operation of your Nissan Frontier at all times.

Troubleshooting guide

Carefully verify the location of all Intelligent Keys registered to your Nissan Frontier. If another Intelligent Key is located inside the vehicle or within close proximity, the system may behave differently than expected, potentially affecting locking, unlocking, or engine start operations.

• When stopping the engine, the “Shift to Park” warning appears on the display and a continuous interior chime is heard.
  • The shift lever may not be fully engaged in the P (Park) position. Move the shift lever firmly into P (Park) to ensure proper operation in your Nissan Frontier.
• When opening the driver’s door to exit the Nissan Frontier, a “Door Open” warning is displayed and a continuous interior chime sounds.
  • The ignition switch may still be in the ACC position. Switch it to the ON position or close the driver’s door to stop the warning.
• When closing the door after exiting the Nissan Frontier, a “No Key Detected” warning appears, the exterior chime sounds three times, and the interior chime sounds for several seconds.
  • The ignition switch may still be in the ACC or ON position. Turn the ignition switch to OFF before leaving the vehicle.
• When exiting and closing the door, a Rear Door Alert warning appears, accompanied by horn signals or a “Check Rear Seat for All Articles” message.
  • The Rear Door Alert system in your Nissan Frontier may be active.

    Inspect the rear seat area, remove any items if necessary, press the OK button to dismiss the warning, or open and close a rear door to deactivate the alert.

• When closing the door after exiting the Nissan Frontier, a “Shift to Park” warning appears and both interior and exterior chimes sound continuously.

  Possible Cause: The ignition switch may still be in the ACC or OFF position while the shift lever is not in P (Park).

  Ensure the shift lever is securely placed in P (Park) and turn the ignition switch to OFF.

• When closing the door with the interior lock knob set to LOCK, the exterior chime sounds for several seconds and all doors unlock automatically.
  • The Intelligent Key may still be inside the Nissan Frontier. Always carry the key with you when exiting the vehicle.
• When pressing the door handle request switch or the button to lock the doors, an exterior chime sounds for about 2 seconds.
  • The Intelligent Key may be detected inside the Nissan Frontier. Remove the key from the cabin before attempting to lock the vehicle.
• When pressing the ignition switch to start the engine, a “Key Battery Low” message appears.
  • The Intelligent Key battery may be depleted. Replace it with a new battery to restore proper operation of your Nissan Frontier.
• When pressing the ignition switch, a “No Key Detected” warning appears and the interior chime sounds three times.
  • The Intelligent Key may not be inside the Nissan Frontier. Ensure it is within the vehicle before attempting to start the engine.
• When pressing the ignition switch, a “Key System Error” message appears.
  • This indicates a possible malfunction of the Intelligent Key system in your Nissan Frontier. It is recommended to have the system inspected by a qualified Nissan dealer.

Remote Engine Start

Basic information

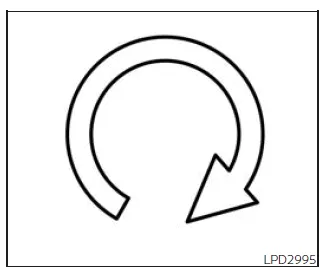

The button is available on the Intelligent Key if your Nissan Frontier is equipped with the Remote Engine Start feature. This function allows you to start the engine remotely from outside the vehicle, enhancing convenience and comfort in both cold and hot weather conditions.

When using Remote Engine Start in the Nissan Frontier, several systems may operate automatically to improve cabin comfort:

• Vehicles equipped with manual climate control will resume the last used heating or cooling settings.
• Vehicles with automatic climate control may automatically select heating or cooling based on current cabin and outside temperatures, optimizing interior comfort before you enter the Nissan Frontier.

Be aware that local laws and regulations may restrict or prohibit the use of Remote Engine Start. In some regions, the vehicle must remain within the driver’s line of sight, or engine idling time may be limited, especially in non-extreme weather conditions.

Always verify applicable local regulations before using Remote Engine Start in your Nissan Frontier.

Additionally, environmental factors such as signal interference, obstacles, or low Intelligent Key battery levels may affect the performance and range of the Remote Engine Start system.

Proper maintenance of the Intelligent Key and awareness of surroundings will help ensure reliable operation of the Remote Engine Start feature in your Nissan Frontier.

Remote Engine Start operating range

WARNING

• To reduce the risk of serious injury or death caused by unintended vehicle operation in your Nissan Frontier, never leave children, individuals requiring assistance, or pets unattended inside the vehicle. In warm conditions, the interior temperature of a closed Nissan Frontier can rise rapidly to dangerous levels, posing a significant health risk.
• Never activate the Remote Engine Start system of the Nissan Frontier in enclosed or poorly ventilated areas such as garages. Engine exhaust contains carbon monoxide, a colorless and odorless gas that can cause unconsciousness or fatal injury.

CAUTION

If the Intelligent Key battery is weak or if strong radio signals are present nearby, the operating range of the Nissan Frontier Intelligent Key may be reduced, potentially affecting Remote Engine Start performance.

The Remote Engine Start function in the Nissan Frontier is only available when the Intelligent Key is within its designated operating range.

The maximum operating distance for Remote Engine Start is approximately 197 ft (60 m) from the vehicle under optimal conditions.

Remote starting the vehicle

To remotely start your Nissan Frontier, follow these steps carefully:

1. Point the Intelligent Key directly toward your Nissan Frontier.

2. Press the button to lock all doors securely.

3. Within 5 seconds, press and hold the button until the turn signals flash and the tail lamps illuminate.

If the Nissan Frontier is not within your direct line of sight, hold the button for at least 2 seconds to initiate the process.

When the engine starts remotely, the following actions will occur in your Nissan Frontier:

• The parking lights will switch on and remain illuminated while the engine is running.
• The doors will stay locked, and the climate control system may automatically activate based on prior settings.
• The engine will run for approximately 10 minutes.
• You can repeat the procedure once to extend operation by an additional 10 minutes.

Before driving the Nissan Frontier, press and hold the brake pedal and switch the ignition to the ON position.

Extending engine run time

The Remote Engine Start duration in the Nissan Frontier can be extended once by repeating the activation steps.

• The initial 10-minute run cycle begins when Remote Engine Start is activated.
• The second 10-minute period starts immediately after repeating the Remote Engine Start procedure.
• For example, if the engine has been running for 5 minutes and an extension is triggered, total run time becomes 15 minutes.
• Only one extension is allowed per ignition cycle in the Nissan Frontier.

A maximum of two Remote Engine Start operations (or one start plus one extension) are permitted before the ignition cycle must be reset.

To reset the system, switch the ignition to ON and then back to OFF.

Canceling a Remote Engine Start

You can cancel Remote Engine Start in your Nissan Frontier by performing any of the following actions:

• Aim the Intelligent Key at the vehicle and press until the parking lights turn off.
• Activate the hazard warning lights.
• Turn the ignition ON and then OFF.
• Allow the preset engine run time to expire.
• Open the engine hood.
• Shift the transmission out of the P (Park) position.
• Trigger the vehicle alarm due to unauthorized entry.
• Press the ignition switch without the Intelligent Key inside the Nissan Frontier.
• Press the ignition switch with the Intelligent Key present but without pressing the brake pedal.

Conditions the Remote Engine Start will not work

The Remote Engine Start function in the Nissan Frontier will not operate under the following conditions:

• The ignition switch is already in the ON position.
• The hood is not securely closed.
• The hazard warning lights are active.
• The engine is still running (wait at least 6 seconds after stopping).
• The button is not held long enough (minimum 2 seconds).
• The button is not pressed within 5 seconds after locking the doors.
• The brake pedal is pressed.
• The doors are not fully closed and locked.
• The Key System Error warning is displayed.
• The vehicle alarm is triggered.
• The Remote Engine Start limit (two uses per cycle) has been reached.
• The transmission is not in the P (Park) position.
• An Intelligent Key is detected inside the Nissan Frontier.

In some cases, the Nissan Frontier may display warnings or indicators in the vehicle information display when Remote Engine Start is unavailable or interrupted.

Understanding these conditions ensures reliable operation and helps you fully utilize the Remote Engine Start feature of your Nissan Frontier safely and efficiently.

Hood

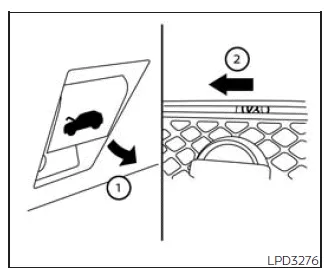

1. Pull the hood release handle 1 located beneath the driver-side instrument panel of your Nissan Frontier. The hood will lift slightly to indicate that the primary latch has been released.

2. Move to the front of the Nissan Frontier, locate the secondary safety lever 2 under the hood edge, and push it to the side using your fingertips as illustrated. Then carefully raise the hood fully.

When closing the hood on your Nissan Frontier, lower it gently and ensure that it is securely latched. Always confirm proper engagement by lightly pressing down on the hood.

WARNING

• Always make sure the hood of your Nissan Frontier is completely closed and securely latched before driving. Failure to do so may cause the hood to open unexpectedly while driving, leading to reduced visibility and a potential accident.
• If you notice steam or smoke coming from the engine compartment of your Nissan Frontier, do not attempt to open the hood. Doing so may result in serious burns or injury.

Fuel-filler door

Fuel-filler cap

Basic information

The fuel system of your Nissan Frontier is designed for safe and efficient refueling. Proper handling of fuel and the fuel-filler cap is essential to maintain performance, safety, and emission system integrity.

WARNING

• Gasoline is highly flammable and can become explosive under certain conditions. Improper handling may result in serious injury or fire. Always turn off the engine of your Nissan Frontier before refueling and avoid smoking or open flames near the vehicle.
• Do not continue fueling after the pump nozzle automatically shuts off. Overfilling the tank may cause fuel overflow, which can lead to hazardous situations including fire.
• Only use a genuine fuel-filler cap designed for the Nissan Frontier. It includes a built-in safety valve necessary for correct fuel and emission system operation. Using an incorrect cap may lead to system malfunction and trigger the Malfunction Indicator Light (MIL).
• Never attempt to start your Nissan Frontier by pouring fuel into the throttle body.
• Do not fill portable fuel containers inside the vehicle or trailer. Static electricity can ignite fuel vapors. To minimize risk:
  • Always place the container on the ground while filling.
  • Avoid using electronic devices during refueling.

CAUTION

• Do not use fuel containing more than 15% ethanol in your Nissan Frontier, as it may damage engine components and fuel system parts.
• If the fuel-filler cap is not properly tightened, the "Loose Fuel Cap" warning may appear in the vehicle information display after several driving cycles. Ignoring this warning may result in the Malfunction Indicator Light (MIL) illuminating.
• An improperly secured fuel cap may also trigger the Malfunction Indicator Light (MIL). If this occurs:

  Tighten or reinstall the cap and continue driving your Nissan Frontier. The light should turn off after several trips. If it remains on, have the vehicle inspected by a Nissan dealer.

• If fuel spills onto the body of your Nissan Frontier, rinse it off immediately with water to prevent paint damage.

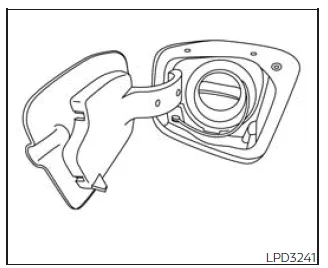

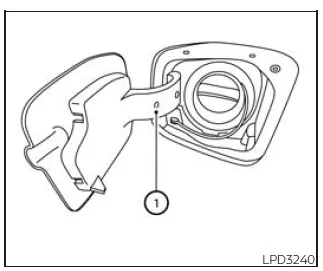

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclockwise to remove it from your Nissan Frontier.

2. Secure the cap by looping the tether strap around the hook 1 during refueling.

To install the fuel-filler cap:

1. Insert the cap straight into the filler neck of your Nissan Frontier.

2. Turn it clockwise until you hear a distinct click, indicating proper sealing.

Loose Fuel Cap warning

The "Loose Fuel Cap" warning message may appear in the Nissan Frontier vehicle information display if the cap is not properly tightened after refueling. This message may take several driving cycles to appear.

To clear the warning:

1. Remove and reinstall the fuel-filler cap correctly as soon as possible.

2. Tighten the cap until a single click is heard to ensure a proper seal.

Following these steps will help maintain proper operation of your Nissan Frontier fuel system and prevent unnecessary warning indicators.

Steering wheel

Basic information

WARNING

• Never attempt to adjust the steering wheel of your Nissan Frontier while the vehicle is in motion. Doing so may cause loss of control and significantly increase the risk of an accident.
• Do not position the steering wheel too close to your body. In the Nissan Frontier, the driver air bag deploys with considerable force. Sitting too close, leaning forward, or being out of position increases the likelihood of serious injury or even fatal consequences during a collision. Always sit upright, keep a safe distance from the steering wheel, and use your seat belt properly.

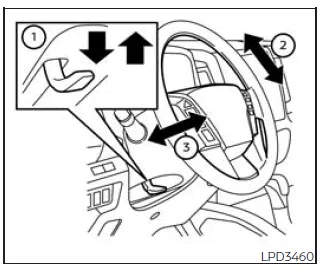

Tilt and telescopic operation

Push the lock lever 1 downward to unlock the steering column of your Nissan Frontier.

• Adjust the steering wheel vertically (up or down) in direction 2 until the desired driving position is achieved.
• Adjust the steering wheel forward or backward in direction 3 for optimal reach and comfort.

Once the correct position is set, pull the lock lever 1 upward firmly to secure the steering wheel in place. Always ensure it is fully locked before driving your Nissan Frontier.

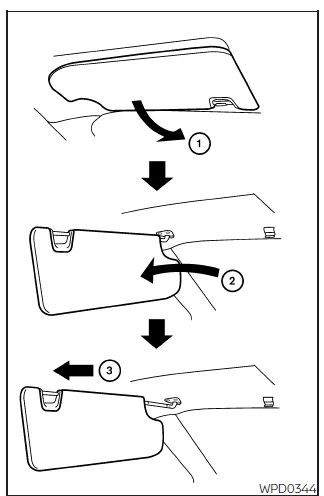

Sun visors

Basic information

1. To reduce glare from the front while driving your Nissan Frontier, pull the sun visor 1 downward.

2. To block sunlight from the side, detach the visor from the center mount and rotate it toward the side window 2.

3. Extend the visor extension 3 as needed to improve coverage and visibility.

CAUTION

• Always retract the visor extension before returning the sun visor to its original position to avoid damage.
• Do not forcefully pull the visor extension downward, as this may damage the mechanism in your Nissan Frontier.

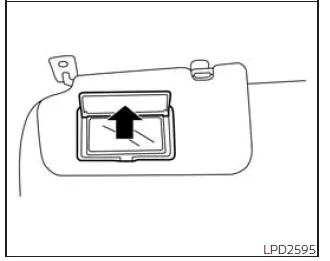

Vanity mirrors

To use the vanity mirror (if equipped) in your Nissan Frontier, lower the sun visor and open the mirror cover. On some models, the mirror is illuminated automatically when opened, providing improved visibility in low-light conditions.

Mirrors

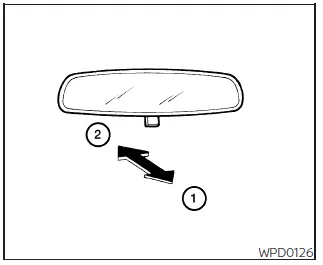

Manual anti-glare rearview mirror

Switch to the night position 1 to minimize glare from headlights of vehicles behind you when driving your Nissan Frontier at night.

Use the day position 2 during daylight hours for maximum rearward visibility.

WARNING

Use the anti-glare (night) position only when necessary, as it reduces the clarity of the rear view in your Nissan Frontier.

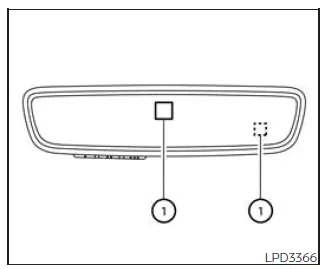

Automatic anti-glare rearview mirror

The interior mirror in the Nissan Frontier automatically dims in response to bright headlights from vehicles behind you. This feature activates when the ignition switch is in the ON position and enhances nighttime driving comfort.

NOTE:

Avoid placing objects over the sensors 1 or applying cleaning agents directly to them. This may reduce sensor sensitivity and lead to improper automatic dimming operation in your Nissan Frontier.

Outside mirrors

Basic information

WARNING

• Do not adjust the outside mirrors while driving your Nissan Frontier, as this may result in loss of control and increase the risk of an accident.
• Objects seen in the passenger-side mirror of the Nissan Frontier are closer than they appear. Always use the inside mirror and glance over your shoulder to accurately judge distance before changing lanes.

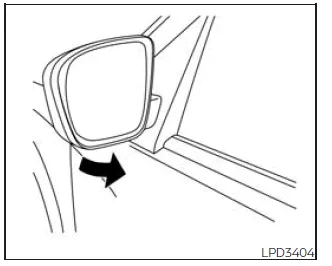

Manual folding outside mirrors

Fold the outside mirrors of your Nissan Frontier by gently pulling them toward the door. This is useful when parking in tight spaces or to prevent damage.

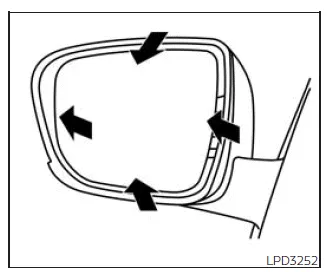

Manual control type (if so equipped)

The mirrors on your Nissan Frontier can be manually adjusted in multiple directions to achieve optimal rear visibility.

Electric control type (if so equipped)

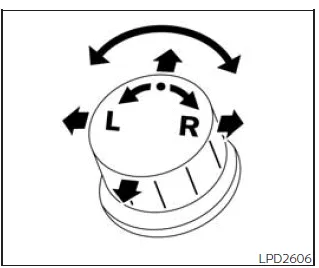

The electric mirror adjustment system in the Nissan Frontier operates when the ignition is in the ACC or ON position.

Select either the left or right mirror using the control dial, then adjust its position for a clear rear view.

Return the control dial to the neutral (center) position after adjustment to prevent unintended movement.

Heated mirrors (if so equipped)

Certain Nissan Frontier models include heated outside mirrors, which help remove frost, ice, or condensation. This feature improves visibility and driving safety in cold or humid weather conditions.

Using these mirror adjustments correctly ensures better awareness of your surroundings and enhances overall driving safety in your Nissan Frontier.

Truck box

Tailgate

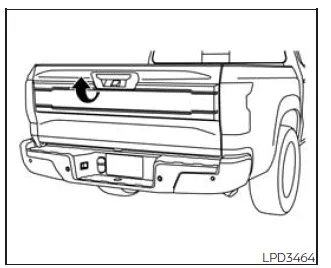

Opening the tailgate

To open the tailgate on your Nissan Frontier, lift the tailgate handle upward and carefully lower it. The integrated support cables will hold the tailgate securely in the open position, allowing safe and convenient access to the truck bed.

When closing the tailgate of the Nissan Frontier, raise it gently and ensure both latches engage completely. Always confirm that the tailgate is properly locked before driving to prevent accidental opening.

Never operate your Nissan Frontier with the tailgate in the lowered position unless it is equipped with a Nissan Bed Extender (or equivalent) in the extended configuration.

WARNING

• Never allow passengers to ride in the cargo area of the Nissan Frontier or on the rear seat when it is folded down. These areas are not designed for passenger safety and lack proper restraints, which can lead to severe injury or fatal consequences during sudden stops or collisions.
• Transporting people in the truck bed of a Nissan Frontier is extremely dangerous. In the event of an accident, occupants in these areas are at a significantly higher risk of serious injury or death.
• Do not permit anyone to occupy areas of the vehicle that are not equipped with proper seating and seat belts.
• Ensure that all occupants in your Nissan Frontier are seated correctly and wearing seat belts at all times for maximum protection.

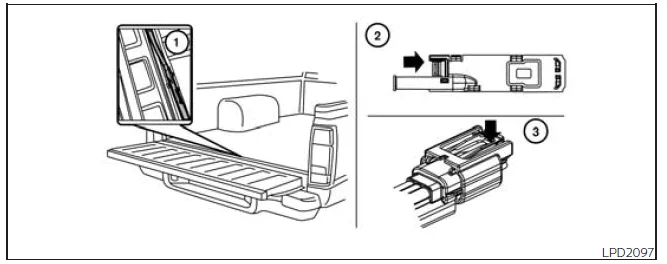

Disconnecting the rear camera

Before removing the tailgate of your Nissan Frontier, the rearview camera system must be safely disconnected. Follow these steps carefully to avoid damage:

1. Open the tailgate to access the rear camera connector bracket 1 located along the rear sill.

2. Remove the connector bracket 2 by pressing the locking tab inward (as illustrated) and gently pulling the bracket free.

3. Disconnect the chassis wiring harness 3 by pressing its locking tab and separating the connectors. Hold the connector firmly to prevent it from falling into the sill area.

4. Retrieve the protective chassis plug and bracket from the glove box and connect them to the chassis wiring harness. This prevents contamination of electrical terminals, which could otherwise cause malfunction of the rear camera system in your Nissan Frontier.

5. Reinstall the bracket securely into the sill.

6. Take the tailgate-side plug from the glove box and attach it to the tailgate wiring harness to protect it from dirt, moisture, and debris.

7. Proceed with tailgate removal. For detailed steps, refer to the section "Removing the tailgate" for your Nissan Frontier.

Removing the tailgate

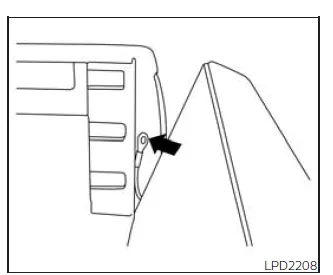

1. Release both tailgate support cables from their mounting points.

CAUTION

• The tailgate of the Nissan Frontier is heavy. It is strongly recommended that two people handle removal or installation to prevent injury or damage. Always maintain a firm grip and avoid dropping it.
• After disconnecting the support cables, do not allow the tailgate to rest against the bumper, as this may cause scratches or structural damage.

Proper handling of the tailgate and rear camera components will help maintain the durability and functionality of your Nissan Frontier, especially during frequent loading, unloading, or accessory installation.

2. Hold the tailgate of your Nissan Frontier at approximately a 15-degree angle to properly align it with the hinge system.

3. Carefully pull the tailgate outward from the left-side hinge at a slight angle, maintaining control to avoid sudden movement.

4. Once disengaged from the left hinge, the tailgate of the Nissan Frontier will slide out smoothly from the right-side hinge.

Installing the tailgate

1. Position the tailgate of your Nissan Frontier and insert it into the right-side hinge first, ensuring correct alignment.

2. Then guide the opposite side into the left-side hinge until it is properly seated.

3. While continuing to hold the tailgate at about a 15-degree angle, reattach the tailgate support cables securely on both sides.

4. Gently raise and close the tailgate, making sure it is firmly latched and properly aligned with the truck box of your Nissan Frontier.

Connecting the rear camera

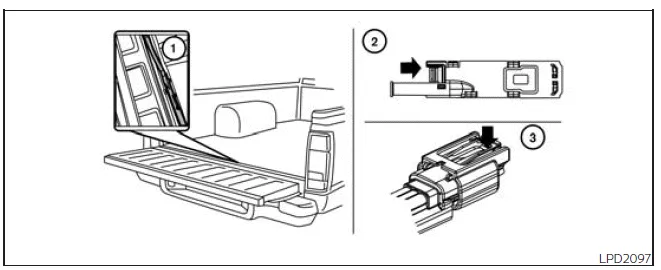

After reinstalling the tailgate on your Nissan Frontier, the rearview camera system must be reconnected correctly to ensure proper operation:

1. With the tailgate still open, verify that the tailgate wiring harness is not hanging loosely or positioned below the tailgate edge.

2. Remove the connector bracket 2 from the rear sill by pressing the locking tab inward and gently pulling the bracket apart.

3. Disconnect the temporary chassis plug and bracket from the chassis wiring harness 3. Store these components safely in the glove box of your Nissan Frontier.

4. Disconnect the protective tailgate plug from the tailgate wiring harness and place it in a secure location such as the glove box.

5. Connect the tailgate wiring harness directly to the chassis wiring harness, ensuring a firm and secure connection.

6. Reinstall and secure the rear camera connector bracket 1 back into the rear sill to prevent movement or disconnection.

7. Close the tailgate of your Nissan Frontier carefully and confirm that it is fully locked.

Locking the tailgate

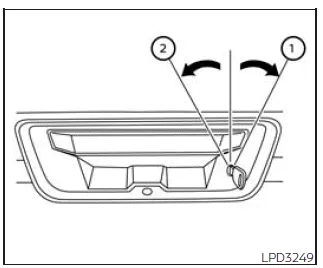

To secure the tailgate of your Nissan Frontier, insert the key and turn it toward the passenger side of the vehicle 1. To unlock, rotate the key toward the driver side 2. Always confirm that the tailgate is locked to protect your cargo.

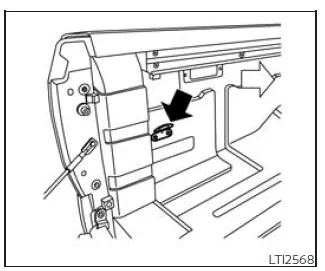

Tie down hooks

For added practicality, the Nissan Frontier truck bed is equipped with durable tie-down hooks located at each corner of the cargo box.

These hooks are designed to help secure loads effectively and prevent cargo movement during transport.

• Ensure that cargo weight in your Nissan Frontier is evenly distributed between the front and rear axles to maintain stability and proper handling.
• Always fasten all cargo using appropriate ropes, straps, or securing devices to prevent shifting, sliding, or tipping during driving.

WARNING

Always secure cargo properly in your Nissan Frontier using suitable restraints. Unsecured items may move unexpectedly during sudden braking or a collision, increasing the risk of personal injury or vehicle damage.

Proper loading and securing techniques will enhance safety, improve vehicle control, and help you get the most out of your Nissan Frontier truck box functionality.
