NissanConnect Owner's Manual

QR code (U.S. only)

Access the digital NissanConnect Owner's Manual for your Nissan Frontier by scanning the QR code shown above (U.S. only), or refer to the printed manual supplied with your vehicle, if equipped. The Nissan Frontier NissanConnect system provides comprehensive information and advanced features designed to enhance convenience, connectivity, and driving experience.

The NissanConnect system in your Nissan Frontier includes detailed guidance on the following features:

• NissanConnect Services Powered By SiriusXM for enhanced connectivity and remote features
• Integrated navigation system (if equipped) for route planning and real-time updates
• Audio system controls and media playback options
• Apple CarPlay integration for seamless smartphone connectivity
• Android Auto compatibility for expanded app usage
• Bluetooth Hands-Free Phone system for safe communication
• Vehicle information display and system monitoring
• Customization of various system settings
• Voice recognition for hands-free control
• General system operation and functionality of your Nissan Frontier

Safety Note

WARNING

• Do not attempt to disassemble, alter, or modify the Nissan Frontier infotainment system. Unauthorized modifications may result in system malfunction, fire hazards, or electric shock.
• If the system in your Nissan Frontier exhibits abnormal behavior such as freezing, delayed response, or loss of sound, discontinue use immediately. Continued operation under such conditions may lead to safety risks including fire or electrical issues.
• If foreign objects enter the system, liquid is spilled, or unusual smoke or odors are detected, stop using the system at once.

  It is strongly recommended to have your Nissan Frontier inspected by an authorized NISSAN dealer. Ignoring these warning signs may result in serious hazards including fire or electrical failure.

• Always park your Nissan Frontier safely and apply the parking brake before viewing or interacting with the touchscreen display to avoid driver distraction.

Do not operate the Nissan Frontier system in extreme temperatures below −4ºF (−20ºC) or above 158ºF (70ºC), as this may lead to system malfunction or reduced performance.

Safety Information

WARNING

• Always operate the Nissan Frontier system only when the vehicle is safely parked and the parking brake is engaged. Using the system while driving may distract the driver and increase the risk of a serious accident.
• Remain attentive to driving conditions at all times. If the system responds slowly, do not focus on the display—keep your attention on the road. Distracted driving in a Nissan Frontier may lead to severe injury or fatal accidents.
• Be aware that certain features such as text messaging, social media integration, and Text-to-Speech may be restricted by local laws. Always verify regulations before using these functions in your Nissan Frontier.
• When the Nissan Frontier engine is running while parked, ensure the vehicle is in a well-ventilated area to prevent carbon monoxide buildup.

  Carbon monoxide is a colorless, odorless gas that can cause unconsciousness or death. Always follow these precautions:

  • Engage the parking brake.
  • Never leave children, pets, or vulnerable individuals inside the vehicle.
  • Do not leave the Nissan Frontier unattended while the engine is running.

USB memory device, iPod and Bluetooth audio player

WARNING

Do not connect, disconnect, or operate USB devices or Bluetooth audio systems while driving your Nissan Frontier. Doing so may divert your attention from the road and increase the likelihood of an accident.

RearView Monitor

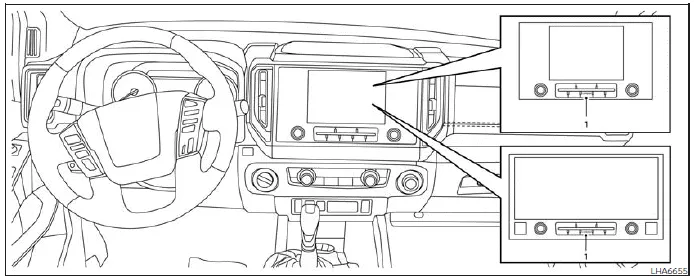

Basic Information

1. CAMERA button

WARNING

• Failure to follow proper operating procedures of the Nissan Frontier RearView Monitor system may result in serious injury or death.
• The RearView Monitor is intended as an aid only and does not replace safe driving practices. Always check surroundings by turning your head, using mirrors, and ensuring the path is clear before reversing your Nissan Frontier.
• This system is designed to assist in detecting large stationary objects behind the vehicle and to help prevent damage, but it may not detect all obstacles.
• Guidelines displayed on the Nissan Frontier monitor are for reference only and are accurate only on level surfaces. Actual distances may differ from what is shown on the screen.

CAUTION

When cleaning the rear camera of your Nissan Frontier, avoid scratching the lens. Use a soft cloth to gently remove dirt, snow, or debris.

The RearView Monitor system in the Nissan Frontier automatically activates when the shift lever is placed into the R (Reverse) position, providing a clear view behind the vehicle.

While in reverse, pressing the CAMERA button allows you to switch between different guideline display modes for improved visibility and parking assistance.

Even when the RearView Monitor is active, the audio system of your Nissan Frontier will continue to operate, allowing uninterrupted listening while maneuvering.

This combination of safety features and advanced technology helps make reversing and parking your Nissan Frontier more convenient and secure.

RearView Monitor system operation

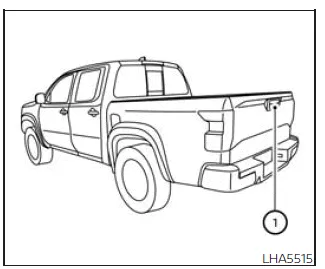

The RearView Monitor system in your Nissan Frontier utilizes a rear-mounted camera positioned just above the license plate on the tailgate 1. This camera provides a live video feed to assist the driver when reversing, improving visibility and overall maneuvering safety.

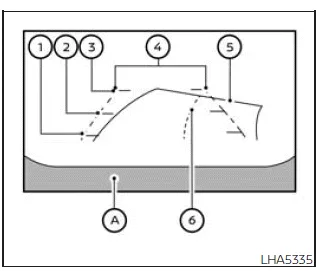

How to read the displayed lines

With the ignition switch in the ON position, shift the transmission of your Nissan Frontier into R (Reverse) to activate the RearView Monitor system. The display will show guiding lines to help estimate distance and vehicle width during reversing.

Difference between predicted and actual distances

Basic Information

The guide lines displayed on the Nissan Frontier monitor are intended as approximate visual references. Due to terrain variations such as slopes or uneven surfaces, the actual position of objects may differ from what appears on the screen. Always confirm surroundings by direct observation when reversing your Nissan Frontier.

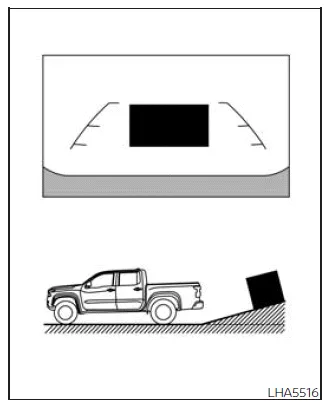

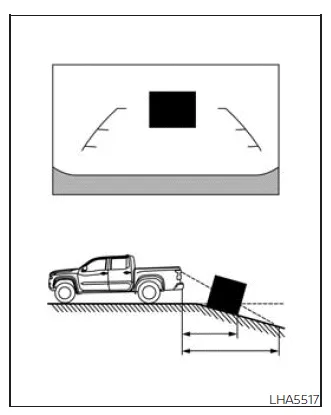

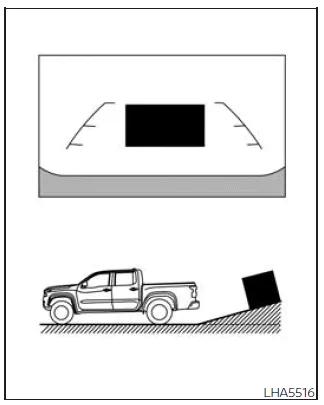

Backing up on a steep uphill

When reversing uphill in your Nissan Frontier, the guide lines may appear closer than the actual distance. Objects located on the incline are farther away than they seem on the display.

Backing up on a steep downhill

When backing downhill, the guide lines displayed in the Nissan Frontier appear farther than the real distance. Objects on the slope are actually closer than they appear on the monitor.

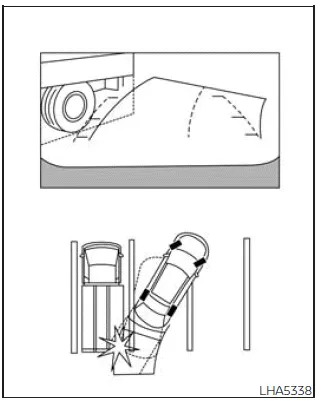

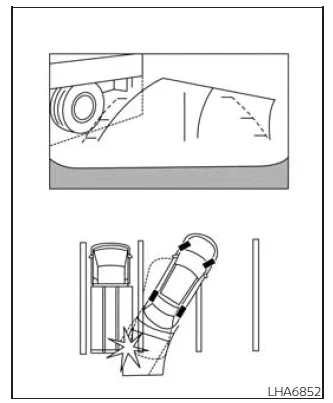

Backing up near a projecting object

The Nissan Frontier display may suggest that the vehicle will clear an obstacle; however, if the object extends into the vehicle's path, contact may still occur. Always verify physical clearance when reversing.

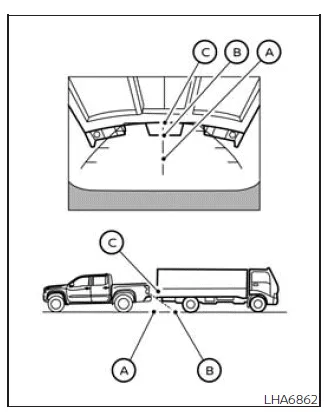

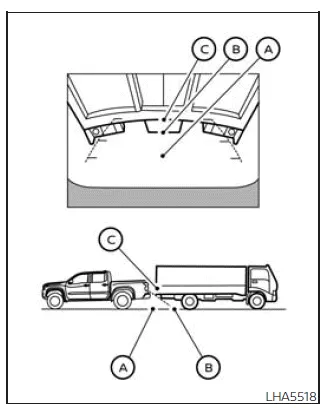

Backing up behind a projecting object

Although position C may appear farther away than position B on the Nissan Frontier display, it may actually be at the same distance as position A. This visual distortion can lead to misjudgment, so always rely on direct observation in addition to the monitor.

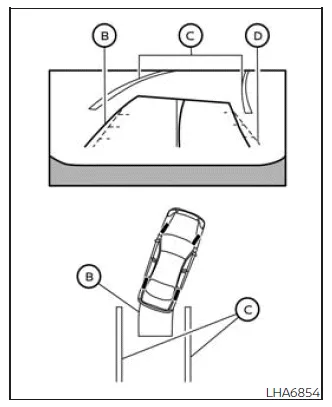

How to park with predicted course lines

WARNING

• If your Nissan Frontier is equipped with tires of a different size than recommended, the predicted course lines may be inaccurate.
• On slippery or snow-covered roads, the predicted path shown on the Nissan Frontier display may differ from the actual vehicle trajectory.
• If the vehicle battery has been disconnected or discharged, the predicted course lines may not display correctly.

  If this occurs, perform the following steps to recalibrate the system:

  • Turn the steering wheel fully from one lock position to the other while the engine is running.
  • Drive your Nissan Frontier in a straight line for at least 5 minutes.
• Turning the steering wheel while the ignition is in the ACC position may also cause incorrect guide line display.

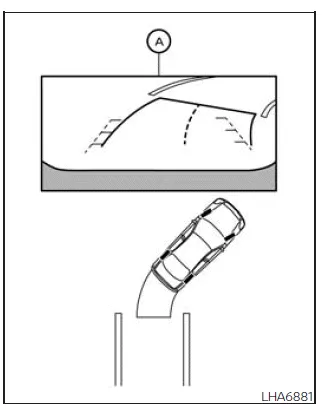

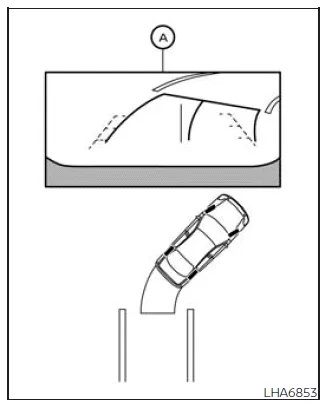

1. Before parking your Nissan Frontier, visually confirm that the selected parking space is clear and safe.

2. Shift into R (Reverse), and the rear view image will appear on the screen A.

3. Slowly reverse your Nissan Frontier, adjusting the steering wheel so that the predicted course lines B align with the intended parking space C.

4. Continue maneuvering until the vehicle width guide lines D are parallel with the parking boundaries, ensuring proper alignment.

5. Once the Nissan Frontier is fully positioned within the parking space, shift to P (Park) and engage the parking brake.

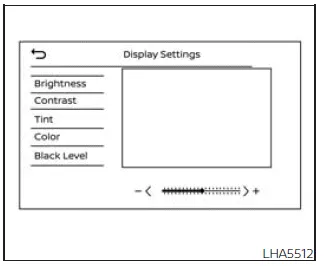

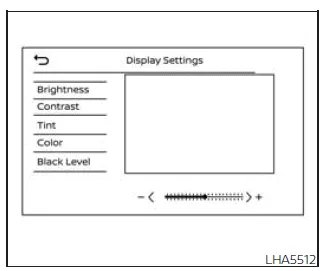

Adjusting the screen

1. Press the CAMERA button on your Nissan Frontier interface.

2. Select the "Display Settings" option on the screen.

3. Choose from available settings such as "Brightness", "Contrast", "Tint", "Color", or "Black Level".

4. Adjust each parameter using the "+" or "-" controls on the touchscreen to suit your viewing preference.

NOTE:

Never attempt to adjust display settings while driving your Nissan Frontier, as it may distract you and compromise safety.

How to turn on and off predicted course lines

To enable or disable predicted course lines while your Nissan Frontier is in the P (Park) position:

1. Press the CAMERA button.

2. Tap the "Predicted Course Lines" option to toggle the feature ON or OFF.

While in R (Reverse), you can also press the CAMERA button to switch between predicted course lines and center guide line (if equipped).

This advanced RearView Monitor functionality enhances precision parking and maneuverability, making everyday driving of your Nissan Frontier safer and more convenient.

RearView Monitor system limitations

WARNING

The following outlines the functional limitations of the RearView Monitor system in your Nissan Frontier. Failure to understand and operate the vehicle within these limitations may result in serious injury or even death.

• The RearView Monitor in the Nissan Frontier cannot eliminate all blind spots and may not display every object behind the vehicle.
• Areas directly below the bumper and around its corners are outside the camera’s viewing range.

  Small objects close to the ground or near the bumper may not be visible on the display.

• Due to the wide-angle lens used in the Nissan Frontier camera system, objects may appear farther away than they actually are.
• Images shown on the RearView Monitor appear reversed compared to what is seen in mirrors, which may affect perception.
• The displayed guide lines should only be used as a reference.

  Their accuracy may vary depending on passenger load, fuel level, vehicle position, road conditions, and incline.

• Always ensure the tailgate of your Nissan Frontier is fully closed and securely latched before reversing.
• Do not place any objects on or near the rearview camera, as it is mounted on the tailgate and may be obstructed.
• When washing your Nissan Frontier, avoid directing high-pressure water at the camera.

  This may cause water intrusion, condensation inside the lens, malfunction, fire hazard, or electrical issues.

• Do not hit or apply force to the camera unit. The camera in the Nissan Frontier is a precision component and damage may result in malfunction or safety risks.

The following conditions are considered normal operating characteristics of the Nissan Frontier RearView Monitor and do not indicate a malfunction:

• In extremely high or low temperatures, the display may not show objects clearly.
• Strong direct sunlight or glare on the Nissan Frontier camera may reduce visibility or image clarity.
• Vertical streaks may appear on the screen due to strong reflected light from the bumper or surroundings.
• The display may flicker under fluorescent lighting conditions.
• Colors shown on the monitor may differ slightly from real-life object colors.
• In low-light or nighttime conditions, objects may appear less distinct.
• There may be a slight delay when switching between camera views.
• If dirt, rain, or snow accumulates on the Nissan Frontier camera lens, visibility may be reduced. Always clean the lens for optimal performance.
• Do not apply wax directly to the camera lens. If wax is present, remove it using a soft cloth with a mild cleaning solution, then wipe dry.

System maintenance

CAUTION

• Do not use harsh chemicals such as alcohol, benzine, or thinner when cleaning the camera of your Nissan Frontier, as these substances may cause discoloration or damage.
• Avoid scratching or damaging the camera lens, as this may negatively affect the monitor image and system performance.

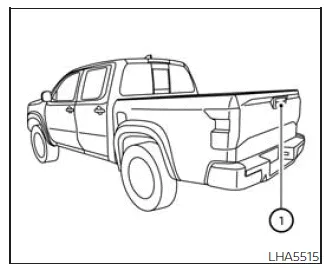

If dirt, rain, or snow accumulates on the rear camera 1 of your Nissan Frontier, the display image may become unclear. Clean the camera carefully using a soft cloth dampened with a diluted mild detergent, and then wipe it dry with a clean cloth.

Regular maintenance of the RearView Monitor system ensures reliable performance and helps maintain optimal visibility when reversing your Nissan Frontier.

Intelligent Around View Monitor

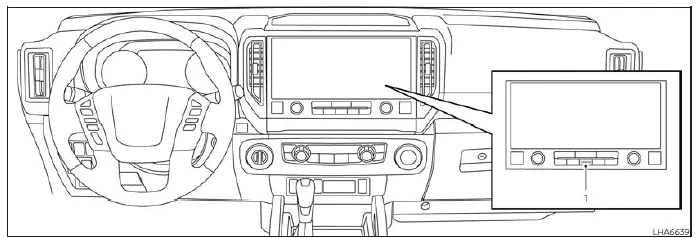

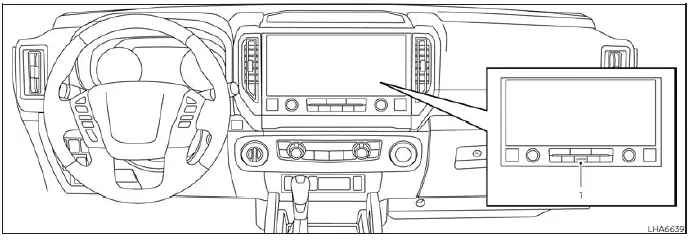

Basic Information

1. CAMERA button

WARNING

• Failure to follow the instructions and safety guidelines for the Intelligent Around View Monitor system in your Nissan Frontier may result in serious injury or even death.
• The Intelligent Around View Monitor in the Nissan Frontier is designed as a driver assistance feature only and must not be relied upon as a substitute for careful driving.

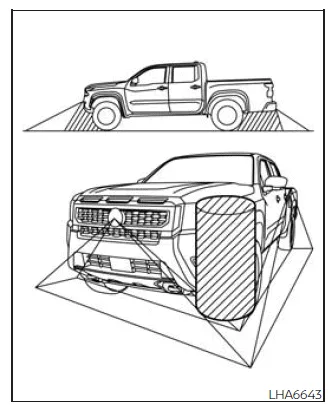

  There are areas around the vehicle—especially near the four corners—where objects may not be visible in the bird’s-eye, front, or rear camera views. Always visually check your surroundings before moving the vehicle and operate at low speeds.

• The driver of the Nissan Frontier remains fully responsible for safe vehicle operation, particularly during parking maneuvers and low-speed driving situations.

CAUTION

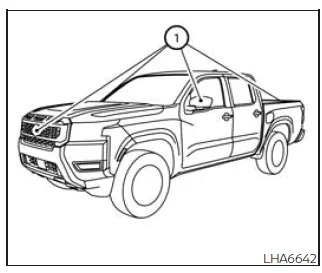

When cleaning the cameras of your Nissan Frontier, avoid scratching the lenses. Use only a soft cloth to remove dirt, snow, or debris to maintain clear visibility and proper system function.

The Intelligent Around View Monitor system in the Nissan Frontier is engineered to assist drivers during parking situations such as parallel parking, tight-space maneuvering, and low-speed navigation.

The system provides a multi-angle display of the vehicle surroundings using a split-screen layout, allowing the driver to better understand the vehicle’s position relative to nearby objects.

Depending on driving conditions and system status, not all camera views may be available at all times in your Nissan Frontier.

Available views:

• Front view
  A wide-angle view (approximately 150 degrees) of the area in front of your Nissan Frontier, useful for forward maneuvering and avoiding obstacles.
• Rear view
  A similar wide-angle (approximately 150 degrees) rear-facing image to assist when reversing the Nissan Frontier.
• Bird's-eye view
  A simulated top-down perspective showing the surroundings of the Nissan Frontier, providing enhanced spatial awareness during parking.
• Front-side view
  A detailed view of the area near the front passenger-side wheel, helping to detect curbs or obstacles when navigating tight spaces.

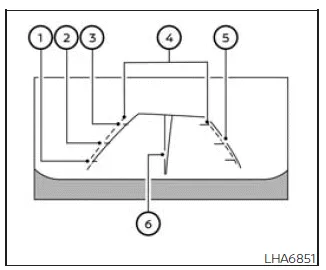

• Rear-wide view
  An extended rear view (approximately 180 degrees) that improves visibility of cross traffic or obstacles behind the Nissan Frontier.

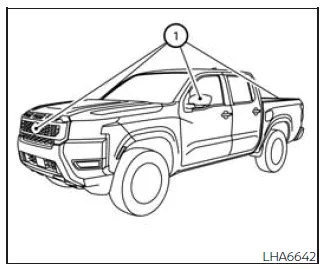

The Intelligent Around View Monitor system in your Nissan Frontier uses multiple strategically positioned cameras to generate these views. Cameras are installed in the front grille, beneath the outside mirrors, and on the tailgate 1, working together to provide a comprehensive visual overview of the vehicle's surroundings.

This advanced camera system significantly enhances driver confidence and safety when maneuvering the Nissan Frontier in confined areas, while still requiring full driver attention and awareness at all times.

Intelligent Around View Monitor system operation

Basic Information

In the Nissan Frontier, the Intelligent Around View Monitor system becomes active when the ignition switch is in the ON position and the shift lever is moved into the R (Reverse) position. This allows the driver to immediately access enhanced visibility around the vehicle for safer maneuvering.

When the system is initially activated and the bird’s-eye view appears on the display, a flashing red icon (if equipped) may be shown. This indicates that the sonar assistance system in the Nissan Frontier is active and working in conjunction with the camera system to detect nearby obstacles.

If the CAMERA button is pressed while the shift lever is not in the R (Reverse) position, the display in the Nissan Frontier will automatically return to the previously selected screen after approximately 3 minutes. This ensures that the system does not remain active unnecessarily and helps reduce driver distraction.

Available views

Basic Information

WARNING

• The distance guide lines and vehicle width markers displayed in the Nissan Frontier should only be used as general references, particularly when the vehicle is on a flat, paved surface. The perceived distance on the screen may differ from the actual distance to objects.
• Always treat the bird’s-eye view and guide lines as supportive tools only. Their accuracy can be affected by passenger load, cargo weight, fuel level, vehicle position, road surface, and incline conditions.
• If your Nissan Frontier is equipped with tires of a different size than factory specifications, the predicted path lines and bird’s-eye display may become inaccurate.
• When driving uphill, objects shown in the monitor may appear farther away than they actually are. Conversely, when descending, objects may appear closer than in reality.
• Images displayed in the rear view of the Nissan Frontier may appear reversed compared to what you see in mirrors or direct observation.
• Always use mirrors and direct visual checks in addition to the monitor to accurately judge distances and surroundings.
• On slippery or snow-covered roads, there may be discrepancies between the predicted course lines and the actual path of the Nissan Frontier.
• The displayed vehicle width and trajectory lines are intentionally wider than the actual dimensions to provide a safety margin.
• The guide lines may appear slightly offset because the rear camera in the Nissan Frontier is not mounted exactly at the center of the vehicle.

Front and rear view

Front view

Rear view

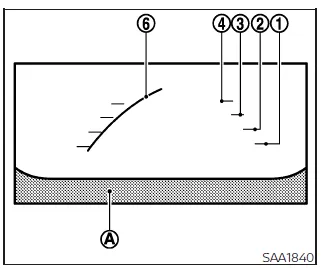

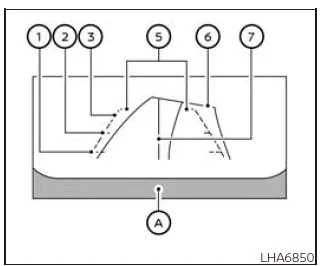

The display in the Nissan Frontier includes guiding lines that help indicate the approximate width of the vehicle and the distance to surrounding objects. These lines are referenced relative to the vehicle body line A and provide a helpful visual framework during parking and low-speed maneuvers.

Distance guide lines:

These lines represent approximate distances from the Nissan Frontier:

• Red line 1 : approximately 1.5 ft (0.5 m)
• Yellow line 2 : approximately 3 ft (1 m)
• Green line 3 : approximately 7 ft (2 m)
• Green line 4 : approximately 10 ft (3 m) (if so equipped)

Vehicle width guide lines 5

These lines indicate the approximate width of the Nissan Frontier, helping the driver align the vehicle accurately while reversing or maneuvering in tight spaces.

Predicted course lines 6

The predicted path lines dynamically show the expected trajectory of the Nissan Frontier based on the current steering wheel position. As the steering wheel is turned, these lines adjust accordingly, providing a real-time visualization of the vehicle’s projected movement. When the steering wheel is centered, these lines are not displayed.

Center guide line 7

This line marks the centerline of the Nissan Frontier, helping the driver maintain proper alignment with parking spaces or road boundaries.

The front camera view in the Nissan Frontier is automatically disabled when the vehicle speed exceeds approximately 6 mph (10 km/h), as the system is primarily intended for low-speed maneuvering and parking assistance.

NOTE:

For optimal performance of the Intelligent Around View Monitor in your Nissan Frontier, always ensure that all camera lenses are clean and unobstructed. Dirt, snow, or water droplets can significantly reduce image clarity and affect system accuracy.

When the Nissan Frontier display shows the front camera view and the steering wheel is turned up to approximately 90 degrees from the straight-ahead position, both the left and right predicted course lines 6 are visible to help guide the vehicle.

When the steering angle exceeds roughly 90 degrees, only the predicted course line on the opposite side of the turn will remain visible, providing a clearer indication of the intended path of the Nissan Frontier.

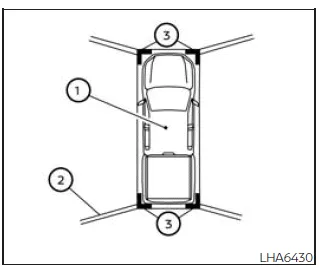

Bird's-eye view

The bird’s-eye view in the Nissan Frontier provides a simulated overhead perspective of the vehicle and its surroundings, helping the driver accurately assess positioning and alignment when parking or maneuvering in tight environments.

The vehicle icon 1 represents the current position of the Nissan Frontier. Keep in mind that distances displayed in the bird’s-eye view may not perfectly match real-world distances, and objects may appear farther away than they actually are.

Areas that cannot be captured by the camera system 2 are displayed as dark or black zones on the screen.

When the ignition switch is turned to the ON position, these non-visible zones 2 are briefly highlighted in yellow for approximately 3 seconds after the bird’s-eye view is activated, helping the driver recognize potential blind spots.

Additionally, the corners of the non-visible areas are marked in red and will flash for the first few seconds 3, reminding the driver to exercise caution when maneuvering the Nissan Frontier.

WARNING

• Objects shown in the bird’s-eye view of the Nissan Frontier may appear farther away than their actual distance.
• Tall objects such as curbs, walls, or nearby vehicles may appear misaligned or may not display correctly at the seam between camera views.
• Objects positioned above the camera field of view cannot be displayed by the system.
• If the camera alignment changes due to impact or external factors, the bird’s-eye image may become distorted or misaligned.
• Lines on the ground may appear bent or offset where camera images merge, and this distortion may increase with distance from the Nissan Frontier.

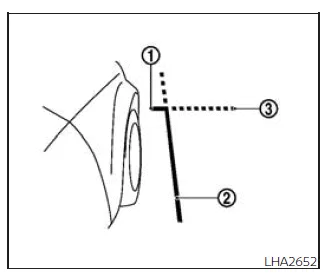

Front-side view

Guiding lines

The front-side view in the Nissan Frontier provides a detailed image of the area near the front passenger-side wheel, assisting with precise positioning near curbs or obstacles.

Guiding lines are displayed on the monitor to indicate both the approximate width and front boundary of the Nissan Frontier.

The front-of-vehicle line 1 marks the forward-most point of the vehicle.

The side-of-vehicle line 2 represents the approximate total width of the Nissan Frontier, including the side mirrors.

The extended guide lines 3 for both the front and side boundaries are displayed as green dotted lines, helping the driver better judge clearance when maneuvering.

Rear-wide view

Rear-wide view

The rear-wide view in the Nissan Frontier expands the field of vision to approximately 180 degrees, allowing the driver to monitor a much broader area behind the vehicle, including blind spots on both sides.

This view is especially useful when backing out of parking spaces or driveways where cross-traffic visibility is limited.

Unlike other camera modes, the rear-wide view does not display predicted course lines, focusing instead on maximizing visibility.

Distance guide lines

These lines indicate approximate distances from the Nissan Frontier:

• Red line 1 : approximately 1.5 ft (0.5 m)
• Yellow line 2 : approximately 3 ft (1 m)
• Green line 3 : approximately 7 ft (2 m)

Vehicle width guide lines 4

These lines help visualize the width of the Nissan Frontier when reversing, assisting in aligning the vehicle within confined spaces.

Predicted course lines 5

The predicted trajectory lines dynamically adjust based on steering wheel input, showing the expected path of the Nissan Frontier. These lines move as the steering angle changes and disappear when the steering wheel is centered.

Center guide line 6

This line indicates the center of the Nissan Frontier, helping the driver maintain proper alignment when reversing or parking.

For best results, always combine the camera system with direct observation and mirror use to ensure maximum safety while operating the Nissan Frontier.

Difference between predicted and actual distances

Basic Information

In the Nissan Frontier, the on-screen guidelines and their projected positions on the ground are intended only as general references. Because of camera perspective and environmental factors, objects located on inclines, declines, or extending outward may appear at distances that differ from their actual position relative to the vehicle.

When reversing the Nissan Frontier, always verify surroundings by turning your head, checking mirrors, or exiting the vehicle if necessary. The camera system is an aid, not a replacement for direct observation.

Backing up on a steep uphill

When reversing the Nissan Frontier uphill, the displayed distance and width guide lines will appear closer than the actual distance. As a result, objects positioned on the slope may be farther away than they seem on the monitor.

Backing up on a steep downhill

When backing the Nissan Frontier downhill, the guidelines will appear farther away than the real distance. This means objects may actually be closer than they appear on the display, requiring extra caution.

Backing up near a projecting object

Even if the Nissan Frontier appears to clear an object on the display, the vehicle may still make contact if that object extends into the actual reversing path. Always account for overhanging or protruding elements.

Backing up behind a projecting object

On the display, position C may appear farther away than position B. However, in reality, position C is at the same distance as position A. When reversing the Nissan Frontier, contact may occur if an object extends into the vehicle’s actual path, even if it appears clear on the monitor.

How to park with predicted course lines

WARNING

• If non-standard tire sizes are installed on the Nissan Frontier, the predicted course lines may not accurately represent the vehicle’s path.
• On slippery or snow-covered roads, the actual trajectory of the Nissan Frontier may differ from the predicted course lines shown on the display.
• If the vehicle battery has been disconnected or discharged, the predicted course lines may be inaccurate.

  If this occurs, perform the following recalibration steps:

  • Turn the steering wheel fully from one lock position to the other while the engine is running.
  • Drive the Nissan Frontier straight for at least 5 minutes.
• If the steering wheel is turned while the ignition is in the ACC position, the predicted course lines may not display correctly.

1. Carefully inspect the parking area to ensure it is safe before maneuvering the Nissan Frontier.

2. When the shift lever is moved into R (Reverse), the rear camera view A will appear on the display.

3. Slowly reverse the Nissan Frontier while adjusting the steering wheel so that the predicted course lines B align with the parking space C.

4. Continue steering until the vehicle width guide lines D are parallel with the boundaries of the parking space C, ensuring proper alignment.

5. Once the Nissan Frontier is fully positioned within the parking space, shift into P (Park) and apply the parking brake securely.

How to switch the display

With the ignition switch in the ON position, press the CAMERA button or shift into R (Reverse) to activate the Intelligent Around View Monitor in the Nissan Frontier.

The system displays different split-screen layouts depending on the gear position. Pressing the CAMERA button allows the driver to cycle through the available views.

If the shift lever is in R (Reverse), the available views include:

• Rear view with bird’s-eye view
• Rear view with front-side view
• Rear-wide view

If the Nissan Frontier is in P (Park) or D (Drive), the system offers:

• Front view with bird’s-eye view
• Front view with front-side view

The display will automatically exit the Intelligent Around View Monitor when:

• The Nissan Frontier is shifted into D (Drive) and exceeds approximately 6 mph (10 km/h).
• Another display screen is selected by the driver.

Off-road mode

When the Nissan Frontier is placed in 4LO mode using the 4WD selector, the Intelligent Around View Monitor adjusts its display behavior:

• Activating 4LO will automatically display the front view combined with the front-side view.
• If the ignition is turned ON while already in 4LO, the same split view will appear immediately.
• If the bird’s-eye view is active, the right portion of the screen will switch to the front-side view when entering 4LO.

While in off-road mode, the system will not revert to the previous screen until approximately 3 minutes after exiting the 4LO setting.

Adjusting the screen

1. Select the "Settings" option on the display.

2. Tap the "Camera" menu.

3. Choose "Display Settings".

4. Select one of the adjustable parameters: "Brightness", "Contrast", "Tint", "Color", or "Black Level".

5. Adjust the selected parameter using the "+" or "-" controls on the touchscreen.

NOTE:

Never adjust the Intelligent Around View Monitor display settings while driving the Nissan Frontier. Always ensure the vehicle is stationary and the parking brake is applied before making adjustments.

Intelligent Around View Monitor system limitations

Basic Information

WARNING

The following section outlines important limitations of the Intelligent Around View Monitor system in the Nissan Frontier.

Failure to properly understand and follow these limitations while operating the Nissan Frontier may result in serious injury or even fatal accidents.

• Do not rely on the Intelligent Around View Monitor in your Nissan Frontier when the outside mirrors are folded or not in their normal driving position. Also ensure that the tailgate is fully closed before using the system.
• The perceived distance between objects shown on the Nissan Frontier display may differ from the actual distance. Always verify visually.
• The camera system of the Nissan Frontier is positioned on the front grille, side mirrors, and above the rear license plate. Never place objects, accessories, or coverings that may obstruct these cameras.
• When cleaning the Nissan Frontier with high-pressure water, avoid directing the spray at the cameras. Water intrusion may cause condensation, malfunction, electrical hazards, or even fire.
• Do not strike or impact the cameras. They are precision components, and damage may lead to system malfunction or safety risks such as electrical failure.

The Intelligent Around View Monitor in the Nissan Frontier has certain blind zones and does not detect or warn about all moving objects. For example, objects located below the bumper or directly on the ground may not be visible in front or rear views. In bird’s-eye mode, tall objects near the seams of camera stitching may not appear correctly.

The following behaviors are normal operating characteristics of the Nissan Frontier system and do not indicate a malfunction:

• There may be a slight delay when switching between camera views.
• In extremely hot or cold temperatures, the display may not clearly show surrounding objects.
• Direct sunlight or strong light sources shining into the camera can reduce image clarity.
• The screen may flicker under fluorescent lighting conditions.
• The color of objects on the Nissan Frontier display may differ slightly from real-life appearance.
• In low-light conditions, objects may appear less distinct or with altered color representation.
• There may be variations in sharpness between different camera angles in the bird’s-eye view.
• Do not apply wax to camera lenses. If wax residue is present, clean it using a soft cloth with a mild diluted cleaner, followed by drying with a clean cloth.

System temporarily unavailable

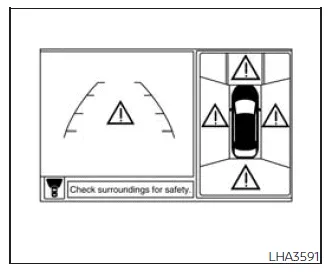

If a “!” warning icon appears on the display of your Nissan Frontier, it indicates that the Intelligent Around View Monitor has detected an abnormal condition. While this does not affect basic driving capability, it is recommended to have the system inspected as soon as possible.

For proper diagnostics and repair, it is recommended that you visit an authorized NISSAN dealer.

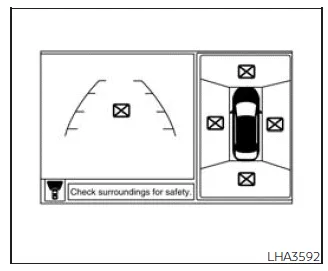

If an “[X]” symbol appears on the Nissan Frontier display, the camera system may be experiencing temporary electronic interference from nearby devices or environmental conditions. Although this does not immediately affect vehicle operation, frequent occurrences should be checked by a qualified technician.

It is recommended that you visit a NISSAN dealer for inspection if this condition persists.

System maintenance

CAUTION

• Do not use alcohol, benzine, or paint thinner to clean the cameras of your Nissan Frontier, as these substances may damage the surface and cause discoloration.
• Avoid physically damaging the cameras, as this may negatively impact the display and overall system functionality.

If dirt, rain, or snow accumulates on any of the cameras 1, the Intelligent Around View Monitor in the Nissan Frontier may not display objects clearly. Clean each camera carefully using a soft cloth dampened with a mild diluted cleaning solution, then dry with a clean cloth.

Regular inspection and maintenance of the camera system will help ensure optimal performance and safety when using the Intelligent Around View Monitor in your Nissan Frontier.

Moving Object Detection (MOD)

Basic Information

1. CAMERA button

WARNING

• Failure to follow all safety instructions regarding the Moving Object Detection (MOD) system in the Nissan Frontier may lead to serious injury or even fatal accidents.
• The MOD system in the Nissan Frontier is designed as a support feature only and does not replace safe driving practices.

  Always check your surroundings visually, use mirrors, and turn your head to ensure the area is clear before maneuvering the vehicle.

• The system automatically deactivates when the vehicle exceeds approximately 6 mph (10 km/h) and reactivates at lower speeds.
• The MOD system is not intended to detect stationary objects around the Nissan Frontier.

The Moving Object Detection system in the Nissan Frontier helps alert the driver to moving objects around the vehicle, especially in situations such as reversing out of a parking space, navigating tight parking lots, or exiting garages.

The system uses advanced image-processing technology based on the camera feeds displayed on the screen to identify motion around the Nissan Frontier and provide timely alerts.

MOD system operation

The MOD system in the Nissan Frontier operates when the shift lever is in D (Drive), N (Neutral), R (Reverse), or P (Park), provided the vehicle speed is approximately 6 mph (10 km/h) or lower.

Front and bird's-eye views

Rear and bird's-eye views

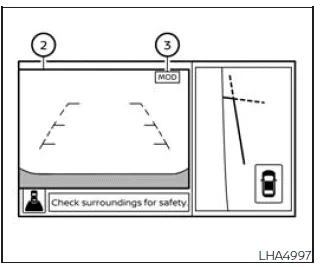

Front and front-side views

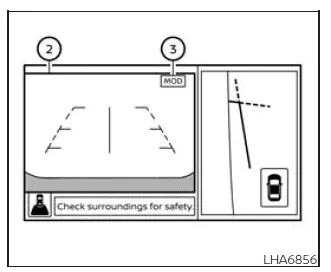

Rear and front-side views

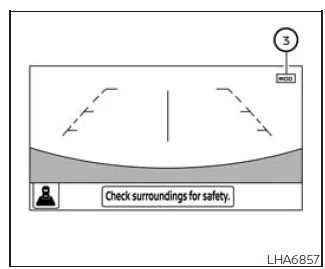

Rear-wide view

The Moving Object Detection system in the Nissan Frontier functions under the following conditions when camera views are active:

• When the shift lever is in P (Park) or N (Neutral) and the Nissan Frontier is stationary, the MOD system detects motion in the bird’s-eye view. The system will not operate if either front door is open. Additionally, if the outside mirrors are folding, unfolding, or stowed, detection accuracy may be reduced.
• When the Nissan Frontier is in D (Drive) and traveling below approximately 6 mph (10 km/h), the MOD system monitors movement in the front view.
• When the shift lever is in R (Reverse) and the vehicle speed is below approximately 6 mph (10 km/h), the MOD system detects moving objects in the rear view. The system will not function if the tailgate is open.

The MOD system does not detect moving objects in the front-side camera view, and no MOD icon will be displayed in that mode.

When the Nissan Frontier MOD system identifies movement near the vehicle, an audible chime will sound, and a yellow frame will appear around the area where motion is detected. This frame will remain visible as long as the system continues to detect movement.

NOTE:

If the Rear Cross Traffic Alert (RCTA) system is active and emitting a warning chime, the MOD system will temporarily suppress its own audible alert.

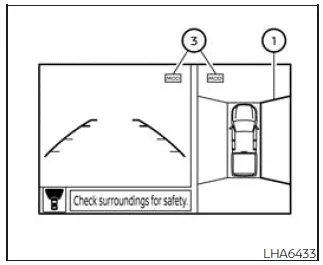

In bird’s-eye view mode, a yellow frame 1 will appear around the specific camera feed (front, rear, left, or right) where movement is detected around the Nissan Frontier.

In front and rear view modes, the yellow frame 2 will highlight the detected moving object within the corresponding camera image.

A blue MOD icon 3 indicates that the system is active in the current view. A gray icon indicates that the MOD system is inactive for that specific camera mode.

If the MOD system is turned off, the MOD icon will not appear on the display.

Turning MOD on and off

Some Nissan Frontier models allow the Moving Object Detection system to be enabled or disabled through the vehicle settings.

To turn the MOD system on or off:

1. Press the or button on the steering wheel to open the "Settings" menu.

2. Use the controls to select "Driver Assistance", then press ENTER.

3. Navigate to "Parking Aids" and press ENTER.

4. Toggle the "Moving Object" option ON or OFF using the ENTER button.

You can also enable or disable the MOD system in the Nissan Frontier using the Parking Aids system switch (if equipped), providing quick access without navigating through the menu.

This feature enhances driver awareness in dynamic environments but should always be used together with attentive driving and full environmental awareness when operating the Nissan Frontier.

MOD system limitations

WARNING

The following limitations apply to the Moving Object Detection (MOD) system in the Nissan Frontier. Failure to understand and follow these limitations may result in serious injury, collision, or even fatal consequences.

• Do not rely on the MOD system in the Nissan Frontier when towing a trailer, as system accuracy and functionality may be significantly reduced.
• Loud ambient noise, such as high audio volume or open windows, may prevent the driver from hearing the system warning chime.
• The effectiveness of the Nissan Frontier MOD system depends heavily on environmental conditions and surrounding objects, including:
  • Low contrast between the background and moving objects, making detection difficult.
  • Flashing or flickering light sources that may confuse the system.
  • Strong light exposure such as direct sunlight or headlights from other vehicles.
  • Improper camera alignment, for example when mirrors are folded or repositioned.
  • Contamination on the camera lens such as dirt, water droplets, or snow.
  • Objects that appear stationary on the display despite movement in reality.
• The Nissan Frontier MOD system may mistakenly detect movement from water droplets, exhaust smoke, shadows, or similar visual disturbances.
• Detection accuracy may vary depending on the speed, direction, size, and distance of moving objects around the Nissan Frontier.
• If the vehicle has been involved in an accident or the camera mounting area is damaged or misaligned, the detection zone may shift, reducing system accuracy.
• In extreme temperature conditions, the display may not clearly show objects. This is a normal limitation and not a system malfunction.

For best results, always keep the Nissan Frontier camera lenses clean and unobstructed, and never rely solely on the MOD system when maneuvering in tight or complex environments.

NOTE:

The MOD system icon in the Nissan Frontier may change from blue to orange under the following conditions:

• When a system malfunction is detected.
• When internal component temperatures become excessively high (icon may blink).
• When the rearview camera is blocked or obstructed (icon may blink).

If the MOD indicator remains orange, it is recommended to have the Nissan Frontier inspected by a qualified NISSAN dealer as soon as possible.

System maintenance

CAUTION

• Do not clean the Nissan Frontier camera lenses using alcohol, benzine, or thinner, as this may cause discoloration or damage.
• Avoid scratching or impacting the camera units, as this may negatively affect the monitor image and system performance.

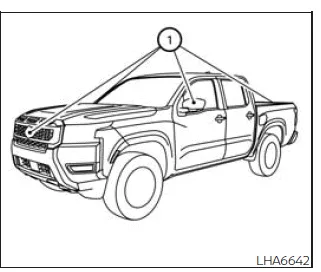

If dirt, rain, or snow accumulates on any of the Nissan Frontier cameras 1, system performance may be reduced. Clean the cameras using a soft cloth lightly dampened with a mild cleaning solution, then wipe dry.

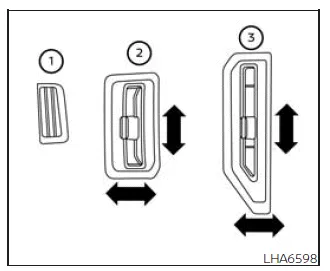

Vents

The airflow direction in the Nissan Frontier can be adjusted for the driver and front passenger using the side vents 2 and center vents 3 by moving the vent sliders or adjusting the vent assemblies.

The defrost vents 1, located above the dashboard, are fixed and cannot be adjusted or closed, ensuring consistent airflow to the windshield for improved visibility.

Heater and air conditioner (manual)

Basic Information

WARNING

• The air conditioning system in the Nissan Frontier operates only when the engine is running. Ensure the engine is on for proper cooling performance.
• Never leave children, vulnerable adults, or pets unattended inside the Nissan Frontier.

  They may accidentally operate vehicle controls or be exposed to dangerously high temperatures inside the cabin, especially on hot days, potentially resulting in serious injury or death.

• Avoid using air recirculation mode for extended periods, as it may cause the cabin air to become stale and lead to window fogging, reducing visibility.

NOTE:

• Odors from both inside and outside the Nissan Frontier may accumulate within the air conditioning system and enter the cabin through the vents.
• To minimize odors, it is recommended to disable air recirculation mode before parking the Nissan Frontier, allowing fresh air to circulate through the system.

Regular use and proper ventilation will help maintain a comfortable and fresh interior environment in the Nissan Frontier.

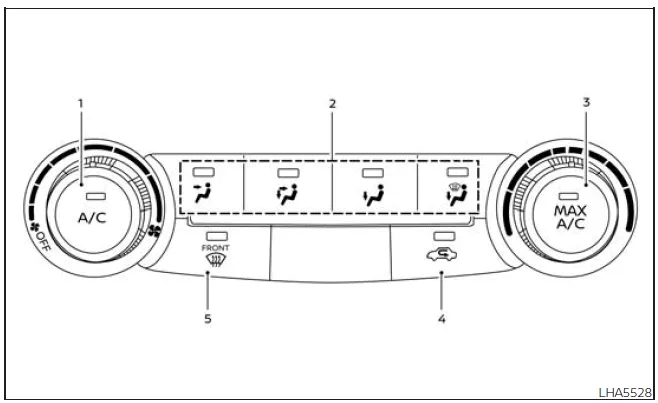

Controls

Basic Information

The manual climate control system in the Nissan Frontier is designed for intuitive operation, allowing the driver to precisely adjust airflow, temperature, and ventilation modes to maintain optimal cabin comfort in all driving conditions.

1. Fan speed control dial / system OFF dial / A/C (air conditioning) button
2. Air flow control buttons
3. Temperature control dial / MAX A/C button
4. Air recirculation button
5. Front windshield defrost button

Fan speed control dial

The fan speed control dial in the Nissan Frontier allows you to activate the ventilation system and adjust airflow intensity according to your preference. Increasing the fan speed improves airflow circulation and enhances cooling or heating efficiency.

Fan speed control dial - OFF mode

When the dial is set to the OFF position, the system fan stops operating and the air recirculation indicator will illuminate automatically.

To introduce fresh air into the Nissan Frontier cabin while in OFF mode, press the air recirculation button to deactivate recirculation mode. In this condition, airflow direction can still be adjusted using the mode buttons.

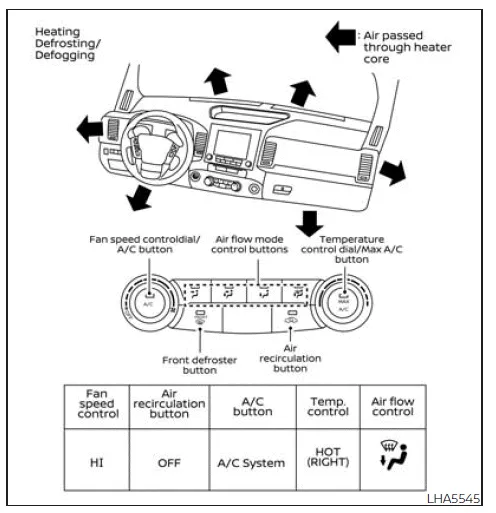

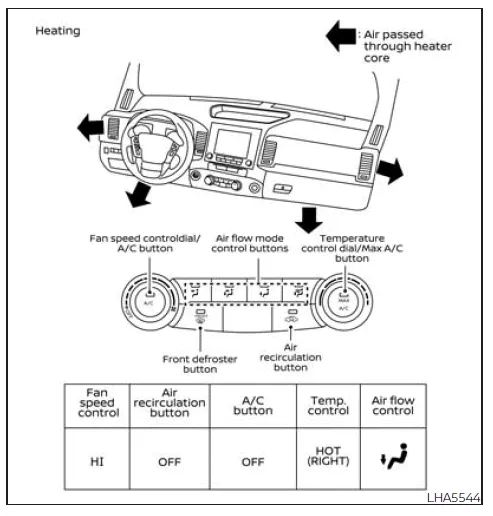

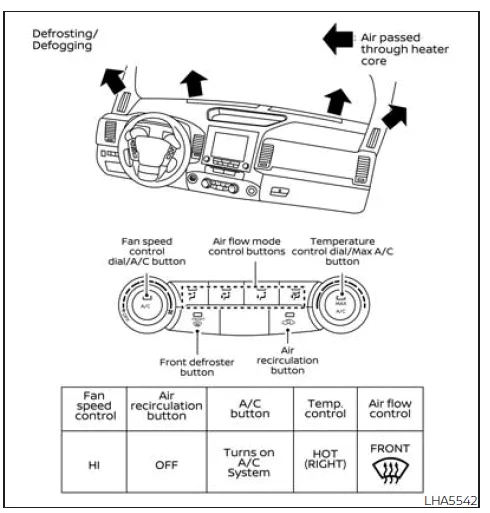

Air flow control buttons

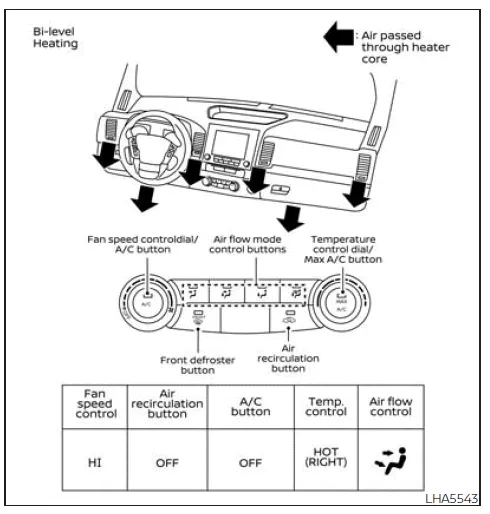

The airflow buttons in the Nissan Frontier allow you to direct air to specific areas of the cabin, ensuring personalized comfort for both driver and passengers.

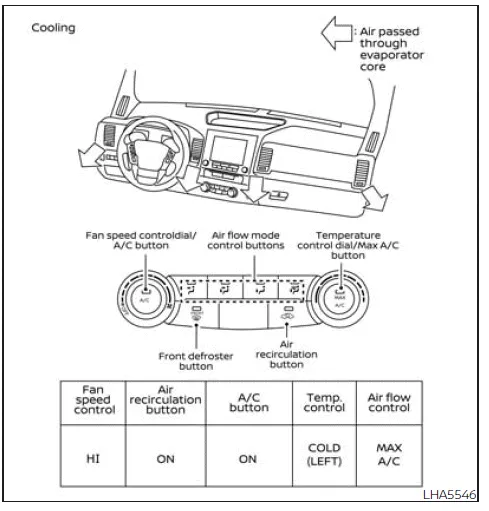

MAX A/C - Provides maximum cooling performance by directing high-volume cold air through the center and side vents.

- Air is directed through the center and side vents.

- Air flows through both upper vents and foot outlets.

- Air is primarily directed to the foot area with partial side vent airflow.

- Air is distributed between defroster and foot outlets.

- Air is mainly directed to the windshield defroster outlets.

Temperature control dial

The temperature control dial in the Nissan Frontier enables precise adjustment of cabin temperature. Rotate the dial to the left for cooler air or to the right for warmer air, depending on comfort requirements and weather conditions.

Air recirculation button

ON position (Indicator light on)

When activated, the Nissan Frontier recirculates interior air within the cabin, helping maintain temperature and reduce the intake of outside pollutants.

Use the button in the following situations:

• Driving in dusty or polluted environments.
• Preventing outside fumes from entering the Nissan Frontier cabin.
• Achieving maximum cooling performance with the air conditioning system.

When the outside temperature exceeds approximately 70ºF (21ºC), the Nissan Frontier system may automatically activate recirculation mode to improve efficiency and reduce energy consumption.

To return to fresh air intake mode, simply press the recirculation button again.

OFF position (Indicator light off)

When fresh air intake is required, press the recirculation button until the indicator turns off. This allows outside air to enter the Nissan Frontier cabin.

If window fogging occurs, activate the front windshield defrost function to restore visibility.

A/C (air conditioner) button

To operate the air conditioning system in the Nissan Frontier:

Start the engine, adjust the fan speed to the desired level, and press the A/C button.

To deactivate the system, press the button again.

The air conditioning system in the Nissan Frontier operates only while the engine is running.

Heater operation

Heating

This mode directs warm air primarily to the lower part of the cabin, improving comfort during colder conditions while also supplying some airflow to the windshield for defogging.

1. Press the button to switch off air conditioning.

The indicator on the button will turn off.

2. Select the appropriate airflow mode using the control button.

3. Adjust the fan speed using the dial.

4. Set the desired temperature between medium and maximum heat.

Ventilation

This mode allows fresh outside air to circulate through the Nissan Frontier cabin via the side and center vents, providing natural airflow without active cooling.

1. Press the button to deactivate air conditioning.

The indicator on the button will turn off.

2. Select airflow direction using the button.

3. Adjust airflow intensity using the fan speed dial.

This setup ensures continuous airflow and improved comfort when driving the Nissan Frontier in moderate weather conditions.

5. Adjust the temperature control dial in your Nissan Frontier to a position between medium and cool to achieve a comfortable cabin climate, especially during warm weather conditions.

• For rapid cooling inside the Nissan Frontier when outside temperatures are high, press the button to activate recirculation mode. This allows the system to reuse cooled air for faster temperature reduction. Be sure to return the to the OFF position after initial cooling to maintain fresh airflow.
• The indicator light on the button will switch off once normal operation resumes. For maximum cooling performance, you can also enable the MAX A/C mode available in the Nissan Frontier.

Dehumidified heating

This mode in the Nissan Frontier is designed to simultaneously warm the cabin while removing excess moisture from the air, improving comfort and visibility.

1. Press the button to switch off standard air conditioning.

The indicator light on the button will turn off.

2. Select the desired airflow direction using the air flow control button.

3. Adjust airflow intensity with the fan speed control dial.

4. Press the button to activate air conditioning support for dehumidification.

5. Set the temperature dial in your Nissan Frontier to the preferred level for a warm and comfortable interior.

Dehumidified defogging

This Nissan Frontier mode efficiently clears condensation from windows while reducing humidity inside the cabin for improved visibility.

1. Press the front defroster button.

2. Adjust the airflow using the fan speed control dial.

When the or positions are selected, the Nissan Frontier automatically activates the air conditioning compressor to remove moisture.

The A/C system will continue operating until the dial is turned OFF, the system is manually disabled, or the engine is switched off.

Even if A/C was previously turned off, selecting a defrost mode such as will automatically re-enable the compressor to ensure proper defogging performance.

In front defrost or foot/defrost mode, the A/C indicator light may remain off even though the compressor is running.

Manual A/C deactivation is not available in this mode. Even if the indicator turns off, the Nissan Frontier system continues operating the compressor to maximize defogging efficiency.

This process removes moisture from the air, helping clear the windshield faster. The mode automatically switches to fresh air intake to further enhance visibility.

3. Adjust the temperature control dial to your desired comfort level.

Operating tips

• Keep all windows closed while using the air conditioning system in your Nissan Frontier to maintain efficiency.
• After parking under direct sunlight, drive for several minutes with windows open to release trapped hot air.

  Then close the windows so the Nissan Frontier air conditioning system can cool the cabin more quickly and effectively.

• Operate the air conditioning system for at least 10 minutes once a month to maintain proper lubrication and prevent internal damage.
• A light mist from the vents may appear in hot and humid conditions. This is normal and indicates rapid cooling.
• If the engine coolant temperature rises above normal, turn off the air conditioner to reduce engine load and prevent overheating.

Air flow charts

The diagrams below illustrate the optimal button and dial configurations in the Nissan Frontier for achieving maximum heating, cooling, or defrosting performance.

The air recirculation ( ) button should always remain OFF when using heating or defrosting modes to ensure fresh air intake.

Heater and air conditioner (automatic)

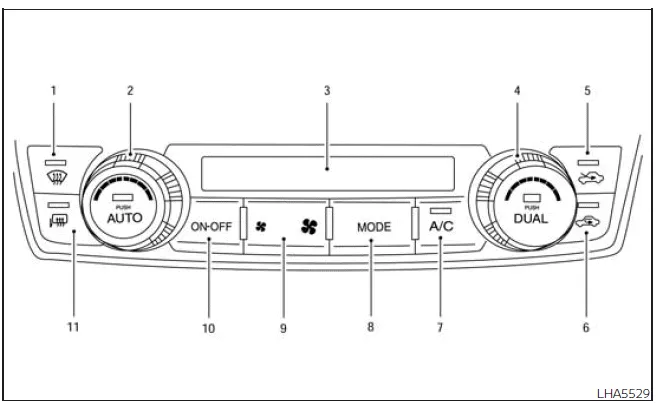

Basic Information

1. Front defroster button
2. Temperature control dial (driver's side)/ AUTO button — allows automatic climate regulation in the Nissan Frontier cabin
3. Display screen — shows current climate settings, temperature, and airflow status
4. Temperature control dial (passenger's side)/DUAL button — enables independent passenger temperature control in the Nissan Frontier
5. Fresh air intake button
6. Air recirculation button
7. A/C (air conditioner) button — activates cooling and dehumidifying functions
8. MODE (manual air flow control) button — allows manual adjustment of airflow distribution
9. Fan speed control buttons
10. ON-OFF button — turns the Nissan Frontier climate control system on or off
11. Outside mirror defroster switch (if so equipped)

WARNING

• The air conditioning cooling function in the Nissan Frontier operates only while the engine is running. Ensure the engine is active to maintain proper cooling performance.
• Never leave children, vulnerable adults, or pets unattended inside your Nissan Frontier.

  Extreme interior temperatures can develop rapidly, especially on hot days, potentially leading to severe injury or fatal consequences.

  Unintentional operation of vehicle controls may also result in harm to occupants or others nearby.

• Avoid using air recirculation mode for extended periods in the Nissan Frontier, as this may cause stale cabin air and increase the likelihood of window fogging.

NOTE:

Odors from both inside and outside the Nissan Frontier can accumulate within the air conditioning system and may enter the cabin through the air vents. Regular ventilation and proper use of fresh air mode can help minimize this effect.

When the engine is temporarily stopped by the Idling Stop System, activating the front defroster in the Nissan Frontier will automatically restart the engine to maintain visibility and safety.

While the engine is running, engaging either the front defroster or the outside mirror defroster will prevent the Idling Stop System from shutting the engine off, ensuring continuous operation of essential climate functions.

If the interior temperature of the Nissan Frontier exceeds approximately 86 ºF (30 ºC), the Idling Stop System will be temporarily disabled to prioritize cooling performance. However, if the air conditioning is turned off, normal Idling Stop operation may resume.

When the engine is stopped by the Idling Stop System, heating and cooling efficiency may be reduced. To restore full climate control performance in the Nissan Frontier, press the Idling Stop OFF switch to restart the engine.

Under certain operating conditions, the blower speed may automatically decrease to prevent sudden bursts of excessively hot or cold air. Once normal engine operation resumes, the fan speed setting will return to its previous level, ensuring consistent comfort in the Nissan Frontier cabin.

Automatic operation

Cooling or heating (auto)

The automatic climate control system in the Nissan Frontier is designed for year-round use, providing consistent cabin comfort without constant manual adjustments. In AUTO mode, the system intelligently regulates temperature, airflow distribution, and fan speed to maintain the selected climate setting efficiently.

1. Press the AUTO button to activate automatic climate control in the Nissan Frontier.

2. Rotate the temperature control dial to the left or right to select your preferred cabin temperature.

Both driver and passenger can enjoy individualized comfort. Press the DUAL button to enable independent temperature zones. Then adjust the passenger-side temperature dial to achieve the desired setting for the front passenger.

• For optimal performance in the Nissan Frontier, it is recommended to set the temperature to approximately 75ºF (24ºC) under normal driving conditions.
• The system will automatically maintain the selected temperature inside the passenger compartment.

  Airflow direction, fan speed, and A/C operation are all controlled automatically by the Nissan Frontier climate system for maximum efficiency and comfort.

  The A/C indicator reflects the last user setting. In this mode, the indicator light may remain off even though the air conditioning compressor is actively operating in the background.

  If the A/C button is manually pressed, the indicator light may turn off; however, the Nissan Frontier system can still automatically engage the compressor when needed to maintain the target temperature.

• In hot and humid environments, a light mist may appear from the vents due to rapid cooling. This is a normal condition and indicates proper operation of the Nissan Frontier air conditioning system.

Heating

Use this mode when heating is required without prioritizing cooling. The Nissan Frontier will automatically adjust airflow and fan speed to maintain the desired temperature.

1. Press the AUTO button.

2. Turn the temperature control dial to the left or right to select the desired cabin warmth.

Driver and passenger temperatures can still be adjusted independently by activating the DUAL mode. Rotate the passenger-side dial to fine-tune comfort for each occupant in the Nissan Frontier.

• The interior temperature will be automatically regulated by the Nissan Frontier system.

  Air distribution and fan speed are optimized automatically for efficient heating performance.

• Avoid setting the temperature lower than the outside ambient temperature, as this may reduce system efficiency and performance.
• This mode is not recommended if the windows begin to fog, as additional dehumidification may be required.

Dehumidified defrosting or defogging

1. Press the defroster control button to activate the system. The indicator light will illuminate, confirming operation.

2. The Nissan Frontier system will automatically increase the blower to approximately speed level 5 to enhance defogging performance.

Fan speed can be manually adjusted using the fan control buttons. For faster and more aggressive defogging, increase the airflow using the control to levels 6 or 7.

During this mode, the Nissan Frontier may automatically activate the air conditioning system to remove moisture from the air, ensuring improved visibility and safer driving conditions.

For best results, it is recommended to allow fresh air intake during defrosting, as this helps prevent window fogging and maintains clear glass surfaces.

3. Rotate the temperature control dial in your Nissan Frontier to the left or right until the desired cabin temperature is reached, ensuring a comfortable driving environment in all weather conditions.

• To rapidly clear ice or frost from the exterior of the windows in the Nissan Frontier, press the fan speed control button and set it to the maximum level. This significantly increases airflow and accelerates defrosting performance.
• Once the windshield becomes clear, press the AUTO button to return the Nissan Frontier climate system to automatic mode, where it will resume maintaining optimal cabin conditions.
• When the control is activated, the air conditioning system in the Nissan Frontier is automatically engaged. This function removes moisture from the air, improving defogging efficiency.

  Under these conditions, the A/C indicator light may remain off if it was previously disabled, even though the compressor continues to operate in the background.

  Manual deactivation of the A/C system is not available in this mode, as the Nissan Frontier prioritizes visibility and safety.

  Additionally, the air recirculation mode will automatically switch off, allowing fresh outside air to enter the cabin and further enhance windshield clearing performance.

Remote Engine Start with Intelligent Climate Control (if so equipped)

Vehicles equipped with automatic climate control and Remote Engine Start in the Nissan Frontier may automatically activate heating or cooling functions based on both outside temperature and cabin conditions.

During remote start operation, the climate control system adjusts settings automatically to prepare a comfortable interior before the driver enters the Nissan Frontier.

While this mode is active, the climate control display and buttons will remain temporarily inactive until the ignition switch is turned to the ON position.

When remote defrost mode is engaged, additional features such as the outside mirror defroster (if equipped) and the heated steering wheel (if equipped) may also activate automatically to improve comfort and visibility.

Voice Recognition logic (if so equipped)

When using voice commands in the Nissan Frontier, the climate control system may automatically reduce both front and rear (if equipped) fan speeds. This ensures clearer voice recognition and improves system responsiveness.

If necessary, fan speed can still be manually adjusted using the decrease and increase buttons to maintain the desired airflow level while interacting with the system.

This intelligent adjustment allows the Nissan Frontier to balance cabin comfort with advanced voice control functionality, providing a more seamless and user-friendly driving experience.

Manual operation

Fan speed control

Use the fan speed control buttons to manually adjust airflow intensity inside the Nissan Frontier cabin, allowing you to fine-tune ventilation based on personal comfort and driving conditions.

To restore automatic fan regulation, simply press the AUTO button and the Nissan Frontier climate system will resume intelligent control of airflow.

When switching from AUTO to manual fan adjustment, the airflow direction (such as floor, vent, bi-level, or defrost) may still change automatically. To lock the airflow direction in a fixed position, press the MODE button and select the desired outlet manually.

Temperature control dial

The temperature control dial in the Nissan Frontier allows precise adjustment of outlet air temperature. Turn the dial to the left for cooler air or to the right for warmer air.

Both driver and passenger zones can be adjusted independently, ensuring personalized comfort for all occupants in the Nissan Frontier.

Air recirculation

Press the air recirculation button to circulate cabin air within the vehicle. This mode is particularly useful in the Nissan Frontier under the following conditions:

• When driving on dusty or unpaved roads.
• To prevent exhaust fumes or unpleasant odors from entering the cabin.
• To maximize cooling performance when using the Nissan Frontier air conditioning system.

Press the AUTO button to return to automatic climate control operation.

The air recirculation mode cannot be activated when the system is operating in mode, as fresh air intake is required for proper defogging.

When the outside temperature exceeds approximately 70ºF (21ºC), the Nissan Frontier may automatically enable recirculation mode to improve efficiency and reduce power consumption. To exit this mode, press the fresh air intake button.

In Floor/Defrost mode, recirculation can be temporarily used to block external odors; however, for optimal windshield clearing, it is recommended to disable recirculation whenever possible.

Fresh air intake

Press the fresh air intake button to allow outside air to enter the Nissan Frontier cabin, improving air quality and ventilation.

Automatic intake air control

In AUTO mode, the Nissan Frontier automatically manages the intake air source, switching between fresh air and recirculated air depending on environmental conditions and temperature.

When outside temperatures exceed approximately 70ºF (21ºC), the system may default to recirculation mode to improve cooling efficiency. To switch back to fresh air, press the intake button — the recirculation indicator will turn off and the fresh air indicator will illuminate.

To manually control intake air, press the fresh air intake button. To return to automatic intake control:

If the fresh air indicator is illuminated, press and hold the fresh air intake button for approximately 2 seconds. The indicators will flash twice, confirming automatic mode activation.

If the air recirculation icon is active, press and hold either the air recirculation button or the AUTO button for about 2 seconds. Both air recirculation and fresh air intake indicators will flash, confirming automatic intake control.

When OFF mode is selected, the intake door defaults to recirculation. To allow fresh air while OFF, press the fresh air intake button.

The airflow MODE can still be adjusted in OFF mode, provided intake is set to fresh air.

A/C (air conditioner) button

Start the engine, adjust the fan speed control buttons to the desired level, and press the button to activate the air conditioner in the Nissan Frontier.

To turn off the system, press the button again.

In AUTO mode, the Nissan Frontier air conditioning system may operate even if the button indicator is off, especially near freezing temperatures.

The air conditioning system in the Nissan Frontier functions only when the engine is running.

Air flow control

Press the MODE button to manually select airflow direction and control where air is distributed within the Nissan Frontier cabin.

- Air flows through center and side vents.

- Air flows through center vents and foot outlets.

- Air flows primarily to the foot area.

- Air flows to both defroster and foot outlets.

To turn system off

Press the ON-OFF button to completely disable the Nissan Frontier climate control system.

Operating tips

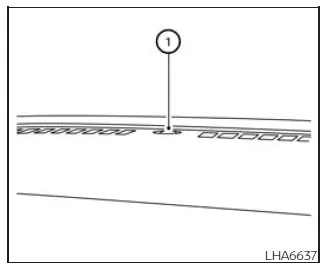

The sunload sensor (if equipped), located at the top center of the Nissan Frontier dashboard, helps regulate cabin temperature automatically. Ensure that this sensor remains unobstructed for accurate operation.

• When operating in AUTO mode under low temperature conditions, the system may temporarily switch to defrost mode for approximately 2 minutes and 30 seconds. This is normal behavior.

  Once the engine coolant warms up, airflow will return to foot mode and normal operation will resume.

• In moderate or warm conditions, the Nissan Frontier may briefly switch intake settings to allow fresh air into the cabin. You may notice temporary airflow from foot or demist vents for up to 15 seconds. This is not a malfunction and ensures optimal air quality.
• Keep all windows closed when using the air conditioning system in the Nissan Frontier to maximize efficiency.
• If the airflow does not match the selected mode, press the mode button to reselect the desired configuration.
• Short bursts of airflow from foot outlets may occur when changing modes — this is normal system operation.
• When the ignition is switched ON, the system may briefly direct airflow to the foot outlets for several seconds to purge residual hot air from the Nissan Frontier HVAC system.

Servicing air conditioner

The air conditioning system in your Nissan Frontier is filled with an advanced, environmentally responsible refrigerant specifically developed to reduce impact on the atmosphere while maintaining high cooling efficiency.

This refrigerant is designed to be ozone-friendly and does not contribute to ozone layer depletion.

Proper servicing of the Nissan Frontier air conditioning system requires specialized equipment and approved lubricants. Using incorrect refrigerants or oils can result in serious damage to system components, reduced performance, and costly repairs.

For this reason, it is strongly recommended to have your Nissan Frontier air conditioning system serviced by an authorized NISSAN dealer or a qualified technician who uses the correct tools and materials.

WARNING

The air conditioning system operates under high pressure. To prevent injury, all service and maintenance work must be performed only by trained professionals with appropriate equipment.

Antenna

Roof Mounted Antenna

The antenna on the Nissan Frontier is mounted toward the rear section of the vehicle roof to ensure optimal signal reception for radio and communication systems.

CAUTION

• Accumulation of ice on the Nissan Frontier antenna can reduce radio signal quality. Carefully remove any ice to restore proper reception.
• When clearing snow from the roof, avoid applying excessive force to the antenna.

  Excessive pressure may damage the antenna or deform the roof panel.

• When using a high-pressure car wash, keep the nozzle at a safe distance from the antenna to avoid damaging seals or causing leaks.
• Roof cargo may interfere with radio signals in the Nissan Frontier. To maintain optimal reception, avoid placing objects near the antenna whenever possible.

Car phone or CB radio

When installing a CB radio, ham radio, or mobile phone system in your Nissan Frontier, it is essential to follow proper installation guidelines. Improper setup may interfere with the vehicle’s electronic systems, including engine management and onboard controls.

WARNING

• Using a mobile phone while driving can distract the driver and reduce attention to road conditions.

  In many regions, the use of handheld devices while driving is restricted or prohibited by law.

• If communication is necessary while driving your Nissan Frontier, it is strongly recommended to use a hands-free system. Always prioritize safe vehicle operation.
• If full attention cannot be maintained, safely pull over and stop the vehicle before using communication devices.

CAUTION

• Position antennas as far away as possible from electronic control units in the Nissan Frontier.
• Maintain a minimum distance of 8 in (20 cm) between antenna wiring and vehicle harnesses. Avoid routing wires alongside electrical systems.
• Adjust the antenna standing-wave ratio according to the manufacturer’s recommendations to ensure proper performance.
• Properly ground the CB radio chassis to the vehicle body to prevent electrical interference.
• For best results and safety, consult a NISSAN dealer when installing communication equipment in your Nissan Frontier.

iPod/iPhone

The terms "Made for iPod", "Made for iPhone", and "Made for iPad" indicate that an accessory has been specifically engineered to connect with Apple devices and meets Apple’s performance and compatibility standards.

Apple does not assume responsibility for the operation of third-party accessories or their compliance with safety regulations.

Using such accessories in your Nissan Frontier may influence wireless performance depending on device compatibility and environmental conditions.

iPad, iPhone, iPod classic, iPod nano, iPod shuffle, and iPod touch are registered trademarks of Apple Inc. in the United States and other countries. Lightning is also a trademark of Apple Inc.
