Recommended fluids/lubricants and capacities

Basic information

The following specifications for the Nissan Frontier represent approximate service capacities.

Actual refill quantities may vary slightly depending on conditions and service procedures. When servicing your Nissan Frontier, always follow the detailed steps provided in the "Do-it-yourself" section to determine the exact and correct refill levels for optimal performance.

Fuel

For complete fuel requirements and recommendations for the Nissan Frontier, refer to the dedicated "Fuel recommendation" section.

• Capacity (approximate)
  • Metric Measure: 80 L
  • US Measure: 21-1/8 gal
  • Imperial Measure: 17-5/8 gal

Engine oil drain and refill

• For the Nissan Frontier, Genuine "NISSAN Motor Oil 0W-20 SP" (or an equivalent high-quality oil) is strongly recommended to ensure maximum engine protection and efficiency.
• If this oil is unavailable, a full synthetic 0W-20 SP GF-6A engine oil may be used as an alternative.

  Using oil that does not meet these specifications may negatively affect engine performance and durability, and such damage may not be covered under the Nissan Frontier New Vehicle Limited Warranty.

with oil filter change

• Capacity (approximate)
  • Metric Measure: 5 L
  • US Measure: 5-1/4 qt
  • Imperial Measure: 4-3/8 qt

without oil filter change

• Capacity (approximate)
  • Metric Measure: 4.7 L
  • US Measure: 5 qt
  • Imperial Measure: 4-1/8 qt

Engine coolant with reservoir

• Use pre-mixed Genuine NISSAN Long Life Antifreeze/Coolant (blue) or an equivalent coolant suitable for the Nissan Frontier.
• Capacity (approximate)
  • Metric Measure: 12 L
  • US Measure: 3-1/8 gal
  • Imperial Measure: 2-5/8 gal

Automatic transmission fluid (ATF)

• Use Genuine NISSAN Matic P ATF or a fully compatible equivalent for your Nissan Frontier.
• To maintain proper transmission operation, Nissan Frontier vehicles should only use approved fluids. Mixing incompatible fluids can lead to transmission damage, which may not be covered under warranty.

Transfer case oil (AWD)

• Genuine NISSAN ATF D3M or an equivalent fluid is required for the Nissan Frontier transfer case.
• Using incorrect oil may result in reduced drivability, premature wear, or serious damage to drivetrain components. Such damage is not covered by warranty.
• Capacity (approximate)
  • Metric Measure: 1.5 L
  • US Measure: 1-5/8 qt
  • Imperial Measure: 1-3/8 qt

Front final drive oil

• Use Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or an equivalent conventional oil for the Nissan Frontier.
• Mixing non-approved fluids may damage the final drive system and reduce vehicle longevity.
• Capacity (approximate)
  • Metric Measure: 0.85 L
  • US Measure: 1-3/4 qt
  • Imperial Measure: 1-1/2 qt

Rear final drive oil

• Use Genuine NISSAN Differential Oil Hypoid Super-CS GL-5 75W-90 or an equivalent for the Nissan Frontier rear differential.
• Incorrect fluid selection may result in premature wear or damage and is not covered by warranty.

  Always use high-quality, compatible lubricants to ensure smooth drivetrain operation in your Nissan Frontier.

• Capacity (approximate)
  • Metric Measure: 2.01 L
  • US Measure: 4-1/4 qt
  • Imperial Measure: 3-1/2 qt

Power steering fluid (PSF)

• Use Genuine NISSAN PSF-II or equivalent fluid designed for Nissan Frontier steering systems.
• Using incorrect fluid may result in improper steering performance or system damage.

Brake fluid

• Use Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent DOT 3 specification fluid for safe braking performance in your Nissan Frontier.

*2: Available in mainland U.S.A. through a NISSAN dealer.

Multi-purpose grease

• NLGI No. 2 (Lithium Soap base) is recommended for general lubrication tasks on the Nissan Frontier.

Air conditioning system refrigerant

• HFO-1234yf (R-1234yf) refrigerant is required for the Nissan Frontier air conditioning system.

Air conditioning system oil

• Use Genuine NISSAN A/C System Oil Type NDOIL12 (PAG) or an equivalent approved oil to maintain system efficiency and durability.

Windshield-washer fluid

• Use Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or an equivalent solution suitable for all-season use in the Nissan Frontier.
• Capacity (approximate)
  • Metric Measure: 4.3 L
  • US Measure: 1-1/4 gal
  • Imperial Measure: 1 gal

Fuel recommendation

Basic information

For optimal performance and efficiency of your Nissan Frontier, always use unleaded regular gasoline with a minimum octane rating of 87 AKI (Anti-Knock Index), equivalent to a Research Octane Number (RON) of 91. Using the correct fuel type helps ensure smooth engine operation, improved fuel economy, and long-term durability of your Nissan Frontier engine.

CAUTION

• Only Nissan Frontier vehicles specifically labeled with an E-85 fuel filler door are designed to operate on E-85 fuel. Using E-85 in vehicles not designed for it can result in serious fuel system damage.
• Using fuel that does not meet the specified requirements may negatively impact the emission control system and could affect warranty coverage for your Nissan Frontier.
• Never use leaded gasoline under any circumstances, as it will permanently damage the catalytic converter.
• Do not use fuel containing more than 15% ethanol. The Nissan Frontier is not engineered to operate with high ethanol blends.

  Using fuel with excessive ethanol content may lead to reduced performance, increased emissions, and damage to fuel system components.

  Such damage is not covered under the Nissan Frontier New Vehicle Limited Warranty.

• Avoid fuels containing the octane enhancer methylcyclopentadienyl manganese tricarbonyl (MMT).

  Fuels with MMT may reduce engine performance and negatively affect emission systems. Since not all fuel pumps clearly indicate MMT content, consult your fuel provider if unsure.

• Government regulations require ethanol-blended fuel pumps to display orange and black labeling indicating ethanol percentage. Always verify before fueling your Nissan Frontier.

Gasoline specifications

NISSAN recommends selecting gasoline that meets World-Wide Fuel Charter (WWFC) standards whenever available. These specifications were developed to enhance emission control, fuel quality, and engine performance. Using high-quality fuel in your Nissan Frontier contributes to cleaner combustion and longer engine life.

Reformulated gasoline

Reformulated gasoline is designed to reduce harmful emissions and improve environmental performance. Nissan Frontier vehicles are fully compatible with such fuels, and their use is encouraged where available.

Gasoline containing oxygenates

Some gasoline blends include oxygenates such as ethanol, MTBE (Methyl Tert-butyl Ether), or methanol. These additives are intended to improve combustion efficiency but may not always be clearly labeled.

If you are unsure about the composition of the fuel, consult your service station before refueling your Nissan Frontier.

If oxygenated fuel is used, follow these guidelines to protect your Nissan Frontier fuel system and maintain proper operation:

• The gasoline must remain unleaded and meet the recommended octane rating.
• Oxygenate content (excluding methanol blends) should not exceed 15%.
• If methanol is present, it must not exceed 5% and must include proper corrosion inhibitors and cosolvents.

  Improper methanol blends may cause fuel system corrosion, reduced performance, or starting issues.

If you experience engine hesitation, stalling, or difficulty starting after using oxygenated fuel, switch immediately to a non-oxygenated or lower-blend fuel suitable for your Nissan Frontier.

Always refuel carefully to avoid spilling gasoline.

Spilled fuel can damage painted surfaces and degrade exterior finishes on your Nissan Frontier.

E-15 fuel

E-15 fuel contains approximately 15% ethanol and 85% gasoline. It should only be used in vehicles specifically designed for E-15 operation.

Standard Nissan Frontier models are not designed for E-15 unless explicitly stated. Always verify compatibility before use.

E-85 fuel

E-85 fuel contains approximately 85% ethanol and is intended exclusively for Flexible Fuel Vehicles (FFV).

The Nissan Frontier is not designed to operate on E-85 fuel. Using E-85 may result in severe engine and fuel system damage.

Fuel containing MMT

MMT (methylcyclopentadienyl manganese tricarbonyl) is an octane-enhancing additive that is not recommended for Nissan Frontier vehicles.

Fuel containing MMT can negatively affect engine performance, emission control systems, and long-term reliability.

Aftermarket fuel additives

NISSAN strongly discourages the use of aftermarket fuel additives such as injector cleaners, octane boosters, or intake cleaners in the Nissan Frontier.

These products may contain aggressive solvents that can damage internal engine components and fuel system parts.

Octane rating tips

Using gasoline with a lower octane rating than recommended may cause persistent engine knocking ("spark knock"). This knocking sound indicates improper combustion and can lead to severe engine damage if ignored. If knocking persists in your Nissan Frontier, have the vehicle inspected by a qualified technician or a NISSAN dealer.

Improper ignition timing can also result in knocking, overheating, or excessive fuel consumption. If any of these issues occur, immediate inspection is recommended to prevent further damage to your Nissan Frontier.

Occasional light knocking during acceleration or uphill driving is normal and not harmful.

This indicates that the engine is operating efficiently under load and extracting maximum fuel energy in your Nissan Frontier.

Engine oil and oil filter recommendations

Selecting the correct oil

Choosing the proper engine oil for your Nissan Frontier is critical to achieving long engine life, smooth operation, and optimal performance under all driving conditions. The correct oil grade, quality, and viscosity directly affect engine protection, fuel efficiency, and overall reliability.

For complete specifications, refer to the "Recommended fluids/lubricants and capacities" section. Nissan Frontier engines are designed to perform best with energy-conserving oils, which help reduce internal friction and improve fuel economy.

Always select engine oils that meet the requirements of the American Petroleum Institute (API) certification or the International Lubricant Standardization and Approval Committee (ILSAC), along with the proper SAE viscosity rating.

These approved oils feature the API certification mark clearly displayed on the container. Using oil without this certification may result in increased engine wear or serious damage in your Nissan Frontier.

Oil additives

NISSAN does not recommend the use of aftermarket oil additives for the Nissan Frontier. When the correct engine oil is used and maintenance intervals are properly followed, additional additives are unnecessary and may even be harmful.

Engine oil that is contaminated, degraded, or previously used must never be reused, as it may contain harmful particles that can damage engine components.

Oil viscosity

Engine oil viscosity changes depending on temperature. Therefore, selecting the correct viscosity for your Nissan Frontier should be based on the expected operating climate before the next oil change interval.

Using oil with incorrect viscosity may lead to insufficient lubrication, increased engine wear, or overheating, potentially causing severe engine damage.

Selecting the correct oil filter

Your Nissan Frontier is equipped with a high-quality Genuine NISSAN oil filter specifically designed to maintain proper oil flow and filtration efficiency.

When replacing the oil filter, always use a Genuine NISSAN oil filter or an equivalent that meets OEM specifications. This ensures that contaminants are effectively removed and that the engine remains properly protected.

Change intervals

The oil and oil filter replacement intervals for your Nissan Frontier are determined based on the use of specified oil types and filters. Using substandard oil or filters, or extending service intervals beyond recommendations, can significantly reduce engine life and may lead to serious mechanical damage.

Any damage caused by improper maintenance practices, incorrect oil viscosity, or the use of non-approved filters is not covered under the Nissan Frontier New Vehicle Limited Warranty.

Your Nissan Frontier engine is factory-filled with high-quality engine oil. It is not necessary to change the oil before the first scheduled maintenance interval unless operating conditions demand it.

NISSAN strongly recommends using Genuine NISSAN parts or equivalent components that meet or exceed original specifications. Using inferior parts may negatively impact performance and warranty coverage.

For best results, consult a NISSAN dealer when selecting oil, filters, or other service components for your Nissan Frontier.

Driving conditions play a significant role in determining oil service intervals. Under certain conditions, more frequent oil and filter changes may be required to maintain peak Nissan Frontier performance:

• Frequent short-distance driving, especially in cold weather
• Operation in dusty or sandy environments
• Extended engine idling periods
• Towing trailers or carrying heavy loads
• Stop-and-go city driving or heavy traffic conditions

For detailed maintenance intervals and schedules, refer to the "Maintenance and schedules" section of this manual to ensure your Nissan Frontier remains in optimal working condition.

Air conditioner system refrigerant and oil recommendations

The air conditioning system in your Nissan Frontier is specifically engineered to operate with the refrigerant HFO-1234yf (R-1234yf) and Genuine NISSAN A/C system oil Type ND-OIL12 (PAG), or fully compatible equivalents that meet the same strict specifications.

CAUTION

Using any refrigerant or oil other than those specified for the Nissan Frontier can lead to severe and irreversible damage to the air conditioning system. In such cases, complete replacement of system components may be required.

The refrigerant HFO-1234yf (R-1234yf) used in your Nissan Frontier is environmentally friendly and does not deplete the ozone layer. However, due to regulatory requirements, this refrigerant must be properly recovered and recycled during servicing.

Servicing of the Nissan Frontier air conditioning system must only be performed by trained and certified technicians in accordance with SAE J2845 standards to ensure safety and system integrity.

Authorized NISSAN dealers have the proper equipment and expertise to recover, recycle, and recharge the refrigerant safely. Only new evaporators certified to SAE J2842 standards should be installed when replacement is necessary.

Never attempt to repair or reuse a leaking or damaged evaporator from another vehicle. For the Nissan Frontier, only new, certified components should be installed to guarantee performance, safety, and long-term reliability.

For any air conditioning system maintenance or repair, it is strongly recommended to visit an authorized NISSAN dealer to ensure correct procedures are followed.

Specifications

Engine

• Model
  • 3.8L 6-cylinder engine (VQ38DD engine model) – engineered for the Nissan Frontier
• Type
  • Gasoline engine, 4-stroke cycle, DOHC configuration
• Cylinder arrangement
  • V6 layout, 60º angle for optimized balance and performance
• Bore x Stroke
  • Metric: 95.5 mm x 88.4 mm
  • US: 3.760 in x 3.480 in
• Displacement
  • Metric: 3,799 cm³
  • US: 231.8 cu in
• Firing order: 1-2-3-4-5-6
• Idle speed

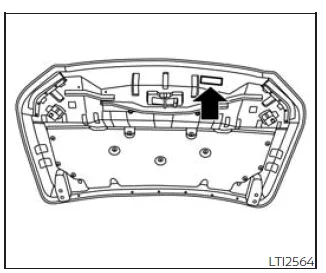

  Refer to the emission control label located under the hood of your Nissan Frontier.
• A/T in N (Neutral)
  Refer to the emission control label under the hood.
• Ignition timing (B.T.D.C. at idle)
  Refer to the emission control label under the hood.
• CO % at idle
  Refer to the emission control label under the hood.
• Spark plug
  • FXE22HR-11
• Spark plug gap (Nominal)
  • Metric: 1.1 mm
  • US: 0.043 in
• Camshaft operation
  • Timing chain system for durability and reduced maintenance

This spark ignition system complies with the Canadian ICES-002 standard.

Wheels and tires

Wheels

• Steel wheel
  • Offset – Metric: 30 mm
  • Offset – US: 1.18 in
  • Size – 16 x 7JJ
• Aluminum wheel
  • Offset – Metric: 30 mm
  • Offset – US: 1.18 in
  • Size – 16 x 7J
• Aluminum wheel
  • Offset – Metric: 30 mm
  • Offset – US: 1.18 in
  • Size – 17 x 7.5J

Tire sizes

• P265/70R16
• 265/65R17
• 265/70R17

Spare tire

• Steel 16" – Full-size configuration
• Steel 16" – P265/70R16
• Steel 17" – Full-size configuration

Dimensions and weights

Overall length:

• Short wheelbase
  • Metric: 5,338.1 mm
  • US: 210.2 in
• Long wheelbase
  • Metric: 5,692.1 mm
  • US: 224.1 in

Overall width:

• Without mirrors
  • Metric: 1,853.5 mm
  • US: 73.0 in
• Without mirrors (with over fenders)
  • Metric: 1,896.5 mm
  • US: 74.7 in
• With mirrors
  • Metric: 2,135.3 mm
  • US: 84.1 in

Overall height:

Crew Cab models

S with Short wheelbase

• 2WD
  • Metric: 1,823.5 mm
  • US: 71.8 in
• 4WD
  • Metric: 1,838.4 mm
  • US: 72.4 in

SV with Short wheelbase

• 2WD
  • Metric: 1,814.7 mm
  • US: 71.4 in
• 4WD
  • Metric: 1,829.6 mm
  • US: 72.0 in

SV with Convenience package and SL (Short wheelbase)

• 2WD
  • Metric: 1,814.7 mm
  • US: 71.4 in
• 4WD
  • Metric: 1,829.6 mm
  • US: 72.0 in

PRO-X and PRO-4X (Short wheelbase)

• 2WD
  • Metric: 1,837 mm
  • US: 72.3 in
• 4WD
  • Metric: 1,852.6 mm
  • US: 72.9 in

SV with Long wheelbase

• 2WD
  • Metric: 1,809.8 mm
  • US: 71.3 in
• 4WD
  • Metric: 1,825.7 mm
  • US: 71.9 in

SV with Convenience package and SL (Long wheelbase)

• 2WD
  • Metric: 1,809.8 mm
  • US: 71.3 in
• 4WD
  • Metric: 1,825.7 mm
  • US: 71.9 in

PRO-4X with Long wheelbase

• 4WD
  • Metric: 1,848.7 mm
  • US: 72.8 in

King Cab models

S

• 2WD
  • Metric: 1,815.6 mm
  • US: 71.5 in
• 4WD
  • Metric: 1,831.5 mm
  • US: 72.1 in

SV

• 2WD
  • Metric: 1,807.6 mm
  • US: 71.2 in
• 4WD
  • Metric: 1,823.5 mm
  • US: 71.8 in

SV with Convenience package

• 2WD
  • Metric: 1,807.6 mm
  • US: 71.2 in
• 4WD
  • Metric: 1,823.5 mm
  • US: 71.8 in

PRO-4X

• 4WD
  • Metric: 1,845.8 mm
  • US: 72.7 in

Track width:

• Front and rear
  • Metric: 1,570 mm
  • US: 61.8 in

Wheelbase:

• Short wheelbase
  • Metric: 3,200 mm
  • US: 126.0 in
• Long wheelbase
  • Metric: 3,550 mm
  • US: 139.8 in

Gross vehicle weight rating:

• Refer to the certification label inside your Nissan Frontier.

Gross axle weight rating:

• Front and rear
  • Refer to the certification label inside your Nissan Frontier.

When traveling or registering in another country

When planning to operate your Nissan Frontier in a different country, it is essential to first verify that the locally available fuel meets the requirements of your vehicle’s engine. The Nissan Frontier is designed to run on unleaded gasoline of a specific octane rating, and using fuel that does not meet these specifications may lead to reduced performance, knocking, or even serious engine damage.

Always ensure that suitable unleaded fuel is available before traveling with your Nissan Frontier. Avoid regions where compliant fuel cannot be guaranteed, as improper fuel quality may negatively affect engine longevity and efficiency.

If you intend to register your Nissan Frontier in another country, state, province, or region, you may be required to modify the vehicle to comply with local regulations. These adjustments may include emission system changes, lighting modifications, or safety compliance upgrades.

Keep in mind that emission standards and safety regulations vary widely across jurisdictions, meaning that vehicle specifications for the Nissan Frontier may differ depending on location.

Ultimately, the responsibility for vehicle transportation, compliance modifications, and registration lies with the vehicle owner. Nissan is not liable for any complications or inconveniences that may arise during this process.

Vehicle identification

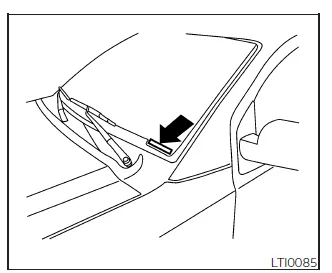

Vehicle Identification Number (VIN) plate

The VIN plate is mounted on your Nissan Frontier as illustrated. This unique number serves as the primary identification for your vehicle and is required for registration, insurance, and ownership verification.

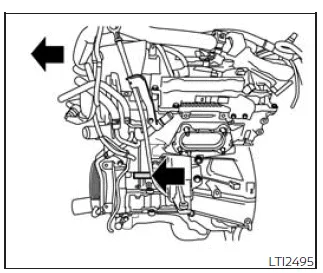

Engine serial number

3.8L 6 cylinder (VQ38DD engine model)

The engine serial number is stamped directly onto the engine block. This identifier is important for service records, parts compatibility, and technical documentation specific to your Nissan Frontier.

F.M.V.S.S./C.M.V.S.S. certification label

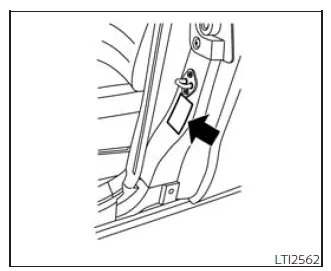

Type A (if so equipped)

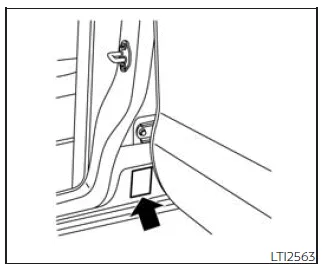

Type B (if so equipped)

The certification label required by Federal/Canadian Motor Vehicle Safety Standards (F.M.V.S.S./C.M.V.S.S.) is affixed as shown. It provides critical data including GVWR, GAWR, production date, VIN, and other regulatory information. Carefully review this label when needed for compliance or service purposes.

Emission control information label

This label is located on the underside of the hood and contains essential emissions-related specifications for your Nissan Frontier, ensuring compliance with environmental standards.

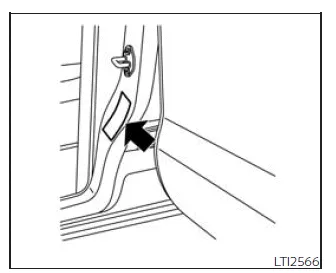

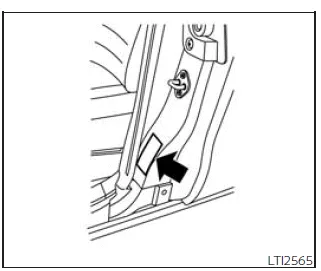

Tire and Loading Information label

Type A (if so equipped)

Type B (if so equipped)

The Tire and Loading Information label displays the recommended cold tire pressure and load capacity for your Nissan Frontier. This information is crucial for maintaining safety, tire longevity, and optimal driving performance.

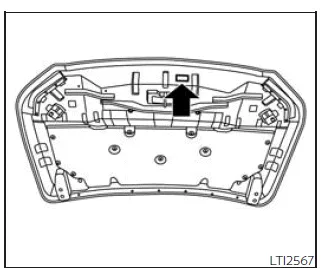

Air conditioner specification label

This label, also located under the hood, provides detailed information about the air conditioning system specifications used in the Nissan Frontier.

Air Conditioner Specification Label Symbols

Caution symbol

• Reference
  • ISO 7000 0434

Air Conditioning System symbol

(MAC)

• Reference
  • ISO 2575 D01

MAC System Lubricant Type symbol

(PAG-POE)

Requires Registered Technician to Service MAC System symbol

Flammable Refrigerant symbol

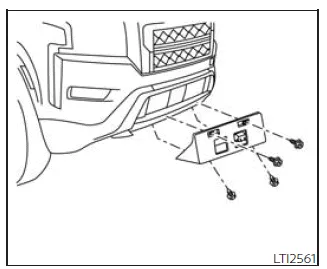

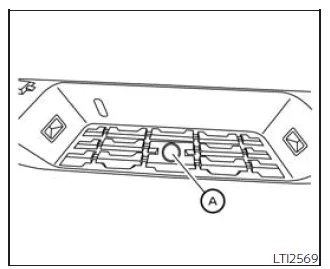

Installing front license plate

Follow the steps below to properly install the front license plate on your Nissan Frontier, ensuring a secure fit and compliance with local regulations:

1. Position the license plate bracket against the lower front finisher panel. The bracket is designed to align precisely with the molded guide points on the Nissan Frontier. Secure the bracket using the four supplied self-tapping screws.

2. Attach the license plate to the bracket using two M6-14 mm bolts.

License plate bolt tightening torque: 3.8 - 4.7 ft-lbs (5.10 - 6.37 N·m)

Vehicle loading information

Proper loading of your Nissan Frontier is essential for maintaining vehicle stability, safety, and optimal performance. Always ensure that cargo weight and distribution remain within the specified limits indicated on the Tire and Loading Information label. Overloading or improper weight distribution can negatively affect braking, handling, and suspension performance, especially during long-distance driving or off-road use.

Basic information

WARNING

• Never allow passengers to ride in the cargo bed or on rear seats that are folded down in your Nissan Frontier. In the event of a collision, individuals in these areas without proper restraint systems are at significantly higher risk of serious injury or fatal consequences.
• Traveling inside the cargo area of a Nissan Frontier is extremely hazardous.

  In an accident, occupants in these positions are far more likely to suffer severe injuries or worse.

• Ensure that all occupants are seated only in designated seating positions equipped with proper seat belts.
• Always confirm that every passenger in your Nissan Frontier is securely seated and using their seat belt correctly before driving.

Terms

Before loading your Nissan Frontier, it is essential to understand the following key terms related to vehicle weight and capacity. Proper knowledge of these concepts helps ensure safe operation and optimal performance:

• Curb Weight – the actual weight of your Nissan Frontier including all standard and optional equipment, fluids, emergency tools, and spare tire. This value does not include passengers or cargo.
• GVW (Gross Vehicle Weight) – the total weight of the vehicle including curb weight plus passengers and cargo.
• GVWR (Gross Vehicle Weight Rating) – the maximum allowable combined weight of the Nissan Frontier, including passengers, cargo, towing load, and all installed equipment. This value is listed on the certification label.
• GAWR (Gross Axle Weight Rating) – the maximum permissible load for each axle (front and rear).

  This information is provided on the certification label of your Nissan Frontier.

• GCWR (Gross Combined Weight Rating) – the maximum total weight of the Nissan Frontier, including passengers, cargo, and any attached trailer.
• Vehicle Capacity Weight / Load Limit – the maximum allowable combined weight of passengers and cargo.

  This value includes trailer tongue weight when towing and is displayed on the Tire and Loading Information label.

• Cargo capacity – the remaining allowable weight for cargo after subtracting the weight of all passengers from the total load limit.

Vehicle load capacity

Basic information

Before operating a fully loaded Nissan Frontier, always verify that the total vehicle weight does not exceed the specified Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR). These limits are critical for maintaining safe handling and preventing excessive wear or mechanical failure.

The GVWR and GAWR values can be found on the certification label affixed to your Nissan Frontier.

Never exceed the maximum allowable load indicated as "combined weight of occupants and cargo" on the Tire and Loading Information label.

Additionally, ensure that the number of passengers does not exceed the seating capacity specified on the same label.

To calculate the total load, add together the weight of all passengers and the weight of all cargo. This ensures your Nissan Frontier operates within safe limits.

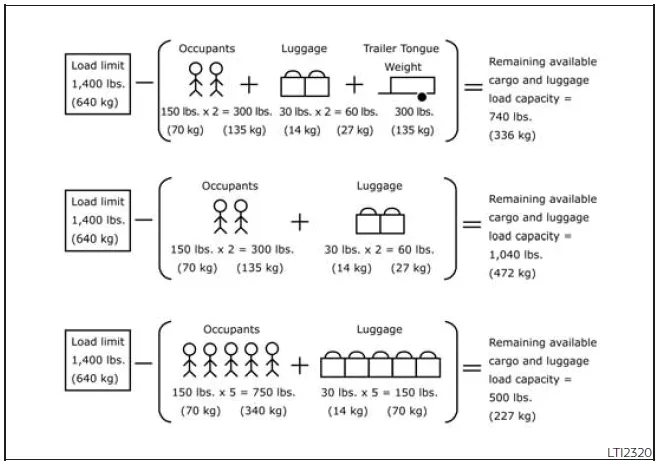

Example

Steps For Determining Correct Load Limit

1. Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs." on your Nissan Frontier label.

2. Calculate the total weight of all occupants.

3. Subtract the passenger weight from the maximum allowable weight (XXX kg or lbs).

4. The remaining value represents the available cargo capacity. For example, if the maximum is 1400 lbs and five passengers weigh 150 lbs each, the available cargo capacity is 650 lbs (1400 - 750).

5. Confirm that the total weight of cargo and luggage does not exceed this calculated capacity.

6. If towing with your Nissan Frontier, remember that trailer tongue weight must be included in the total load and will reduce available cargo capacity.

Before driving, always double-check that your Nissan Frontier remains within GVWR and GAWR limits and that tire pressures are properly adjusted for the load.

Securing the load

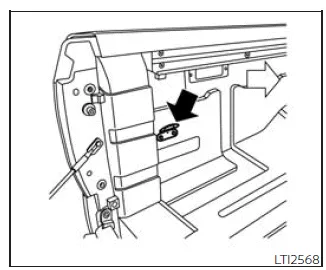

Your Nissan Frontier is equipped with tie-down hooks (if equipped) located at each corner of the truck bed. These are designed to help secure cargo and prevent movement during transit.

WARNING

• Always secure cargo properly using straps, ropes, or tie-downs to prevent shifting during driving. Avoid stacking cargo above seatback height, as unsecured items can become dangerous projectiles during sudden stops or collisions.
• Never exceed the GVWR or GAWR limits of your Nissan Frontier. Overloading can damage vehicle components, increase tire wear, negatively affect handling, and potentially result in loss of control or serious injury.

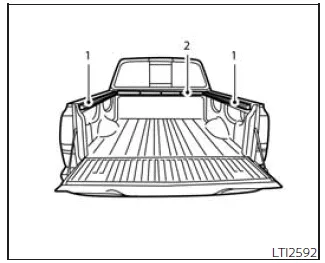

Utili-track channel system

1. Side channels
2. Header channel

WARNING

• Always install and securely tighten the tie-down cleats in the Utili-track system of your Nissan Frontier. Never attach ropes or straps directly to the channel rails. Improper installation or misuse can result in unsecured cargo, which may shift during sudden braking or a collision and cause serious injury.
• Ensure all cargo in your Nissan Frontier is firmly secured using appropriate straps or ropes to prevent movement. Unsecured loads significantly increase the risk of injury in emergency situations.

The Utili-track channel system in the Nissan Frontier is designed to provide maximum flexibility when securing cargo. It allows you to reposition tie-down cleats along the truck bed to match the size and shape of your load, ensuring optimal stability and safety.

For proper operation, each tie-down cleat must be correctly seated within the channel notches. If the cleat is not aligned and fully engaged, it will not sit flush and cannot be tightened securely. The center bolt should be tightened by hand within a torque range of 20–40 in-lbs (2.27–4.6 N·m) to ensure reliable fixation.

During long trips with your Nissan Frontier, periodically inspect each cleat to confirm that the center bolt remains tight and that cargo remains securely fastened.

Installation procedure:

1. Slide the side channels out from the rear of the Nissan Frontier truck bed.

Store the channels safely to prevent damage.

2. Completely loosen the center bolt on the tie-down cleat.

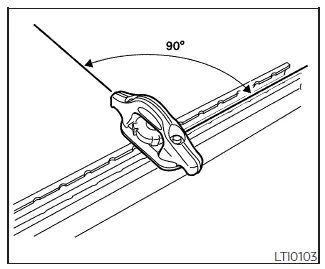

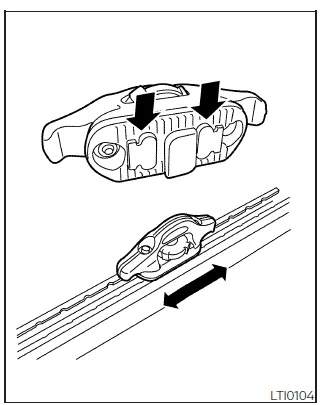

3. Insert the cleat into the channel at a perpendicular angle as shown. Rotate it clockwise by 90° and slide it to the desired position within the Nissan Frontier bed.

4. Adjust the cleat so that the locking tabs on the underside fully engage with the channel detents.

5. Ensure there is no gap between the cleat base and the channel surface. Tighten the center bolt by hand within the specified torque range.

CAUTION

• Install only one cleat per section of the Utili-track channel in your Nissan Frontier.

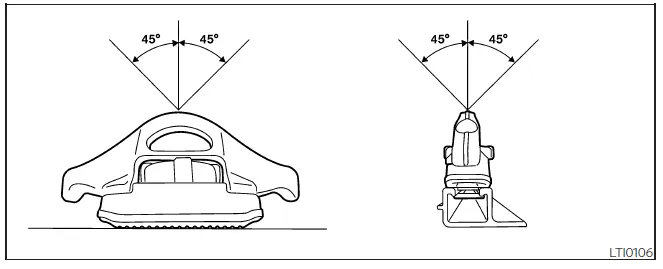

• Avoid applying loads at angles greater than 45° or exceeding 150 lbs (204 N·m) for header/floor channels and 200 lbs (271 N·m) for side channels. Exceeding these limits may damage the truck bed or channel system.

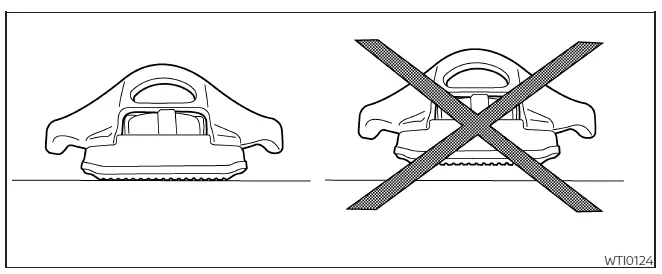

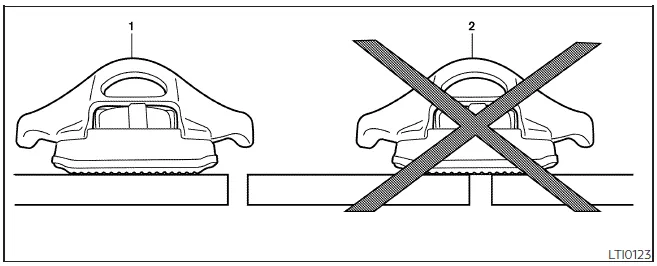

1 correct installation, 2 incorrect installation

WARNING

Do not mount accessories across the gap between the front and rear side channels of your Nissan Frontier.

Ignoring this guideline may compromise the rear structural integrity during certain impact conditions and could lead to serious injury.

Loading tips

• Always ensure that the total vehicle weight of your Nissan Frontier does not exceed the GVWR or GAWR values specified on the certification label.
• Do not overload either axle beyond its GAWR limit, as this can indirectly cause the total GVWR to be exceeded and affect vehicle stability.

WARNING

• Secure all cargo carefully using appropriate tie-down methods. Avoid stacking cargo above seatback height, as shifting loads can become dangerous during sudden stops.
• Never exceed the maximum allowable weight limits of your Nissan Frontier. Overloading can damage components, increase stopping distance, and negatively impact handling.
• Excessive load can shorten tire lifespan, reduce braking efficiency, and create unsafe driving conditions, potentially resulting in accidents. Damage caused by overloading is not covered under warranty.

Measurement of weights

To maintain proper balance in your Nissan Frontier, always secure loose items to prevent shifting during driving. After loading, visit a certified scale and measure both front and rear axle weights individually.

Each axle load must remain within its designated GAWR limit. Additionally, the combined axle loads must not exceed the GVWR of your Nissan Frontier. These values are clearly indicated on the vehicle certification label.

If any limit is exceeded, redistribute or remove cargo accordingly to ensure safe and compliant operation of your Nissan Frontier.

Truck-camper loading information

Basic information

Do not use a slide-in camper with your Nissan Frontier.

This restriction is important because the Nissan Frontier is not engineered to support the structural load distribution and center of gravity changes caused by slide-in camper installations. Attempting to install one may compromise vehicle stability, safety systems, and chassis integrity.

Special Body vehicles

Some Nissan Frontier models may be modified with commercial bodies or specialized camper configurations. However, these configurations fall outside the scope of this Owner’s Manual.

For accurate operating procedures and safety recommendations, always consult the documentation provided by the body manufacturer when using a modified Nissan Frontier.

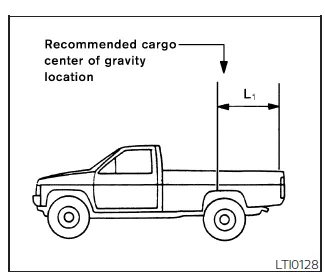

Location for center of gravity

The diagram above illustrates the recommended cargo center of gravity position for the Nissan Frontier. Maintaining the correct center of gravity is essential for optimal handling, braking performance, and overall vehicle stability.

King Cab:

Short wheelbase models without bedliner/tailgate liner:

  L1 = 41.1 in (1,045 mm)

Short wheelbase models with bed liner/tailgate liner (SV/PRO-4X with comfort and convenience package):

  L1 = 40.5 in (1,028 mm)

Crew Cab:

Short wheelbase models without bedliner/tailgate liner:

  L1 = 41.1 in (1,045 mm)

Short wheelbase models with bedliner/tailgate liner (SV/PRO-4X with comfort and convenience package):

  L1 = 40.5 in (1,028 mm)

Long wheelbase models:

  L1 = 40.6 in (1,032 mm)

WARNING

• Improper cargo placement in your Nissan Frontier can create hazardous driving conditions. Loads positioned too far toward the rear may reduce steering control, while loads placed too far forward can overload the front axle.
• Overloading or incorrectly distributing weight can negatively impact handling, braking efficiency, and overall vehicle performance, increasing the risk of accidents.

Vehicle load weight capacity

The payload capacity specified on the Tire and Loading Information label indicates the maximum allowable combined weight of passengers, installed accessories, and cargo for your Nissan Frontier.

Before operating a fully loaded Nissan Frontier, always verify that the total weight does not exceed the Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR). These limits are critical for maintaining safe vehicle operation.

Additionally, ensure all tires are inflated to the recommended pressure to support the load properly and maintain handling stability.

Towing a trailer

Basic information

WARNING

• Improperly loaded trailers or excessive trailer weight can significantly affect the handling, braking, and stability of your Nissan Frontier, potentially resulting in serious accidents.
• Never tow a trailer when the TEMPORARY FULL SIZE spare tire is installed on your Nissan Frontier.
• If you own a Nissan Frontier Crew Cab SV Long Wheelbase model, do not remove or replace the factory-installed trailer hitch. Doing so:
  • May create a risk of overheating or structural failure in the event of a collision.
  • Can cause the vehicle to fall out of compliance with applicable safety regulations.

CAUTION

• Avoid towing a trailer or carrying heavy loads with your Nissan Frontier during the first 500 miles (805 km). This break-in period is essential to prevent premature wear or damage to engine and drivetrain components.
• During the initial 500 miles (805 km) of towing, do not exceed 50 mph (80 km/h) and avoid aggressive acceleration. Gradual operation allows the Nissan Frontier to adapt to increased load conditions safely.

Your Nissan Frontier is primarily designed for transporting passengers and cargo. When towing a trailer, additional stress is placed on critical systems such as the engine, transmission, suspension, steering, and braking components.

To ensure safe towing practices, always use properly rated towing equipment and follow manufacturer recommendations specific to the Nissan Frontier.

A detailed NISSAN Towing Guide (U.S. only) is available online at www.nissanusa.com. This guide provides comprehensive information about towing capacity, required equipment, and best practices for safe trailer operation.

Following these guidelines will help maintain the reliability, safety, and performance of your Nissan Frontier even under demanding towing conditions.

Maximum load limits

Maximum trailer loads

When towing with your Nissan Frontier, it is essential that the total trailer load never exceeds the limits specified in the "Towing Load/Specification" chart provided for this vehicle.

The total trailer load is defined as the combined weight of the trailer itself plus any cargo carried within it. Proper calculation of this value is critical for maintaining safe towing performance with your Nissan Frontier.

• When towing a trailer weighing 3,500 lbs. (1,587 kg) or more, your Nissan Frontier must be equipped with a trailer braking system to ensure safe stopping capability.

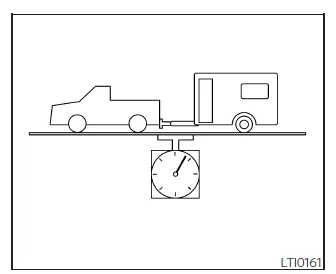

The maximum Gross Combined Weight Rating (GCWR) for your Nissan Frontier must also remain within the specified limits outlined in the towing specifications.

The GCWR represents the total combined weight of your Nissan Frontier (including passengers, cargo, and accessories) plus the full trailer load. Exceeding this rating or using incorrect towing equipment can significantly reduce vehicle control, braking efficiency, and overall performance.

Keep in mind that towing capability in a Nissan Frontier depends not only on weight limits but also on real-world driving conditions. Factors such as terrain, road surface, and driving environment can all influence safe towing capacity.

For example, while your Nissan Frontier may handle maximum loads on flat highways, reduced traction environments—such as wet boat ramps or loose gravel—may require significantly lighter loads for safe operation.

Ambient temperature is another critical factor. Towing heavy loads in high heat or on steep inclines can strain the engine and cooling system. In such situations, the Nissan Frontier may activate engine protection mode, reducing power output to prevent overheating. As a result, vehicle speed may decrease under load.

Careful trip planning is strongly recommended. Always consider load weight, environmental conditions, and route characteristics when towing with your Nissan Frontier.

WARNING

Engine overheating can lead to reduced engine output and lower driving speeds. This may place your Nissan Frontier below the flow of surrounding traffic, increasing the risk of a collision. If safe speeds cannot be maintained, pull over in a secure location, allow the engine to cool, and resume driving only when normal operation is restored.

CAUTION

Damage caused by improper towing practices or exceeding load limits is not covered under the Nissan Frontier warranty.

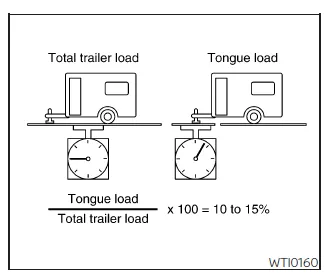

Tongue load

When using either a weight-carrying or weight-distributing hitch on your Nissan Frontier, maintain the trailer tongue load within 10–15% of the total trailer weight, unless otherwise specified by the trailer manufacturer.

It is important that the tongue load also remains within the maximum limits indicated in the towing specifications for your Nissan Frontier. If the tongue load becomes too high or too low, redistribute the cargo within the trailer to restore proper balance.

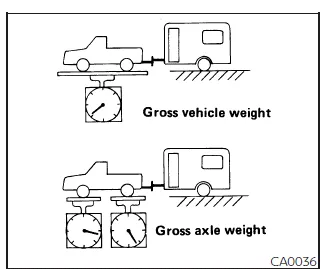

Maximum Gross Vehicle Weight (GVW)/maximum Gross Axle Weight (GAW)

The Gross Vehicle Weight (GVW) of your Nissan Frontier must never exceed the Gross Vehicle Weight Rating (GVWR) listed on the F.M.V.S.S./C.M.V.S.S. certification label.

GVW includes the total weight of the unloaded Nissan Frontier plus passengers, cargo, hitch equipment, trailer tongue load, and any additional accessories installed on the vehicle.

In addition, the load on each axle must remain within the Gross Axle Weight Rating (GAWR) limits. Both front and rear axle loads should be carefully monitored to prevent uneven weight distribution and mechanical stress.

It is also important to understand that towing capacity ratings for the Nissan Frontier are calculated using a base vehicle configuration. Adding passengers, cargo, or optional equipment reduces the available towing capacity and allowable tongue weight.

For optimal safety and performance, always account for these additional loads and ensure your Nissan Frontier remains within all specified weight limits before towing.

To ensure safe towing with your Nissan Frontier, both the vehicle and trailer must be weighed and verified against all critical limits, including GVWR, Front GAWR, Rear GAWR, Gross Combined Weight Rating (GCWR), and maximum towing capacity.

Accurate weight measurements for your Nissan Frontier setup can be obtained using platform-style scales commonly available at truck stops, highway weigh stations, construction supply centers, or recycling facilities.

To calculate the remaining payload capacity available for trailer tongue weight on your Nissan Frontier, follow this step-by-step method:

1. Locate the GVWR value displayed on the F.M.V.S.S./C.M.V.S.S. certification label of your Nissan Frontier.

2. Weigh your Nissan Frontier on a scale with all passengers, cargo, and equipment typically present during towing.

3. Subtract the measured vehicle weight from the GVWR. The result represents the maximum allowable tongue load for your Nissan Frontier.

To determine the available towing capacity for your Nissan Frontier, use the following procedure:

1. Identify the GCWR value from the "Towing Load/Specification" chart provided for your Nissan Frontier.

2. Subtract the actual loaded vehicle weight from the GCWR. The remaining value is the maximum trailer weight your Nissan Frontier can safely tow under current conditions.

To calculate the Gross Trailer Weight, weigh the fully loaded trailer, including all cargo and installed equipment, as it would be used during normal towing. Confirm that this value does not exceed the trailer’s rated capacity or the calculated towing capacity of your Nissan Frontier.

Additionally, measure the load on both the front and rear axles of your Nissan Frontier. Ensure that neither axle exceeds its respective Gross Axle Weight Rating (GAWR) as listed on the certification label. If limits are exceeded, redistribute or reduce the load accordingly to maintain safe operation.

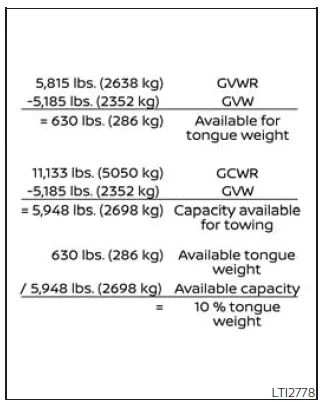

Example:

• Measured Gross Vehicle Weight (GVW) of Nissan Frontier including passengers, cargo, and hitch: 5,185 lbs. (2,352 kg).
• Gross Vehicle Weight Rating (GVWR) from certification label: 5,815 lbs. (2,638 kg).
• Gross Combined Weight Rating (GCWR) from specification chart: 11,133 lbs. (5,050 kg).
• Maximum trailer towing capacity from specification chart: 6,100 lbs. (2,767 kg).

The actual towing capacity of your Nissan Frontier may be lower than the maximum specified value due to the weight of passengers, cargo, and optional equipment inside the vehicle.

Always maintain the trailer tongue weight within 10–15% of the total trailer weight or within the limits recommended by the trailer manufacturer for your Nissan Frontier setup.

If the tongue load becomes too high, redistribute cargo within the trailer to achieve proper balance. Never exceed the maximum tongue weight specified in the towing chart, even if calculations suggest a higher allowable value. Conversely, if the tongue load falls below 10%, reduce the overall trailer weight to maintain stability.

As a best practice, always double-check that all calculated and measured values for your Nissan Frontier remain within the specified limits before driving. Proper weight distribution is essential for safe handling, braking performance, and long-term durability of your vehicle.

Towing load/specification

WARNING

The towing capacities listed for your Nissan Frontier are intended as general guidelines only and must not be considered absolute limits under all conditions.

The actual towing capability of your Nissan Frontier is influenced by multiple factors, including factory-installed options, dealer-installed equipment, passenger count, and cargo weight. To determine the real towing capacity, it is essential to weigh both the Nissan Frontier and the trailer as described in this manual. Never exceed the stated maximum towing capacity, GCWR, or GVWR listed on the F.M.V.S.S./C.M.V.S.S. certification label, as doing so can compromise safety and may result in serious injury or significant vehicle damage.

King Cab models:

2WD

• Maximum Payload
  • Metric Measure: 735 kg
  • US Measure: 1,620 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,243 kg
  • US Measure: 7,150 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 324.3 kg
  • US Measure: 715 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

4WD

• Maximum Payload
  • Metric Measure: 658 kg
  • US Measure: 1,450 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,175 kg
  • US Measure: 7,000 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 317.5 kg
  • US Measure: 700 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

Crew Cab - Short wheel base models:

2WD

• Maximum Payload
  • Metric Measure: 676 kg
  • US Measure: 1,490 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,207 kg
  • US Measure: 7,071 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 320.7 kg
  • US Measure: 707 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

4WD

• Maximum Payload
  • Metric Measure: 603 kg
  • US Measure: 1,330 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,157 kg
  • US Measure: 6,960 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 315.7 kg
  • US Measure: 696 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

Crew Cab - Long wheel base models: 2WD

• Maximum Payload
  • Metric Measure: 635 kg
  • US Measure: 1,400 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,139 kg
  • US Measure: 6,920 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 313.9 kg
  • US Measure: 692 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

4WD

• Maximum Payload
  • Metric Measure: 544 kg
  • US Measure: 1,200 lbs.
• Maximum Towing Capacity*1, *2, *3
  • Metric Measure: 3,066 kg
  • US Measure: 6,760 lbs.
• Maximum Tongue Load*2, *3
  • Metric Measure: 306.6 kg
  • US Measure: 676 lbs.
• Maximum Gross Combined Weight Rating
  • Metric Measure: 5,425 kg
  • US Measure: 11,960 lbs.

*1:

• The towing capacity of the Nissan Frontier is calculated using the SAE J2807 standard. Keep in mind that additional passengers, cargo, or optional accessories will reduce the available towing capacity.
• When towing more than 3,500 lbs. (1,587 kg), your Nissan Frontier must be equipped with a trailer braking system to ensure safe braking performance.
• NISSAN strongly recommends using a tandem-axle trailer when towing loads exceeding 3,000 lbs. (1,361 kg) for improved stability and control.

*2: When using the Genuine NISSAN step bumper as a ball mount on your Nissan Frontier, the towing capacity is limited to 3,500 lbs. (1,588 kg) with a maximum tongue load of 350 lbs. (158 kg).

*3: For towing loads exceeding 5,000 lbs. (2,268 kg), the use of a weight-distributing hitch system is highly recommended to maintain proper balance and handling of your Nissan Frontier.

For optimal safety and performance, always match your towing setup to the specific configuration of your Nissan Frontier and verify all weight limits before driving.

Towing safety

Basic information

WARNING

If your Nissan Frontier is a Crew Cab SV Long Wheelbase model, the factory-installed trailer hitch must never be removed or replaced under any circumstances.

• Altering or removing the original hitch can create a significant risk of a thermal event, potentially leading to severe injury or even fatal consequences in the event of a collision.
• Such modifications may also render your Nissan Frontier non-compliant with Federal Motor Vehicle Safety Standards, affecting both safety and legal requirements.

Trailer hitch

For other Nissan Frontier configurations, the vehicle may be equipped with an optional trailer towing package. This package typically includes a heavy-duty, receiver-type frame-mounted hitch engineered to support the full towing capability of the Nissan Frontier when used with appropriate towing equipment.

Always select a ball mount and hitch ball that meet or exceed the required towing ratings for your specific trailer. Genuine NISSAN towing components are strongly recommended, as they are specifically designed to match the performance and safety standards of your Nissan Frontier.

If your Nissan Frontier is not equipped with a factory towing package, it is critical to verify the towing limits of the installed bumper hitch or aftermarket receiver. Using an improperly rated hitch can compromise safety and performance.

Ensure that the trailer hitch is securely fastened to the vehicle structure. A properly installed hitch helps minimize trailer sway and improves stability, especially in challenging conditions such as crosswinds, uneven road surfaces, or when being passed by large vehicles.

WARNING

Every component of the towing system has its own specific weight rating, and these limits must never be exceeded.

Even if your Nissan Frontier is capable of towing a higher load, exceeding the rating of the hitch components can result in serious injury, equipment failure, or property damage.

Hitch ball

Selecting the correct hitch ball is essential for safe towing with your Nissan Frontier:

• The required hitch ball size is typically stamped on the trailer coupler and may also be marked on the top of the hitch ball itself.
• Always choose a hitch ball that matches the trailer weight class and complies with your Nissan Frontier towing specifications.
• The diameter of the hitch ball shank must correspond precisely to the hole in the ball mount. It should not be more than 1/16 inch smaller than the mount opening.
• The threaded portion of the hitch ball must be long enough to ensure proper installation, with at least two threads visible beyond the lock washer and securing nut.

Ball mount

The hitch ball is mounted onto the ball mount, which is then inserted into the receiver hitch on your Nissan Frontier. Selecting the correct class of ball mount is essential based on trailer weight. Additionally, the mount should position the trailer so that it remains level with the ground, ensuring balanced load distribution and improved towing stability.

Nissan Frontier towing setup illustration for safe hitch and trailer alignment

Bumper towing

The Genuine NISSAN step bumper installed on the Nissan Frontier is designed with provisions for mounting a trailer hitch ball. It supports towing loads up to 3,500 lbs. (1,588 kg), making it suitable for lighter trailers.

To install a hitch ball on the step bumper, carefully remove the designated center cutout section and securely mount the hitch ball according to the manufacturer's instructions. Proper installation ensures safe and reliable towing performance.

Weight carrying hitches

A weight-carrying hitch, also referred to as a "dead weight" hitch, is engineered to support the full trailer tongue weight and gross trailer load directly on the hitch assembly. This type of setup is commonly used for lighter towing applications with the Nissan Frontier, where additional weight distribution systems are not required.

For enhanced safety and long-term durability, always verify that all towing components used with your Nissan Frontier are correctly rated, properly installed, and regularly inspected before each trip.

Weight distribution hitch

This towing setup, commonly referred to as a "load-leveling" or "equalizing" hitch, is designed to enhance stability when towing with your Nissan Frontier. It uses spring bars connected between the hitch assembly and the trailer frame to evenly distribute the trailer tongue weight across the vehicle’s chassis.

In many situations, a vehicle like the Nissan Frontier may not be able to safely support the entire tongue weight directly at the rear axle. By redistributing part of that load toward the front axle, a weight distribution hitch improves steering response, braking performance, and overall driving balance. This is especially important when towing heavier trailers or driving at highway speeds.

For Nissan Frontier models, a Class IV weight-distributing hitch system is strongly recommended when towing trailers exceeding 5,000 lbs. (2,268 kg). Always consult both the trailer manufacturer and towing equipment supplier to confirm compatibility and correct usage.

NOTE:

Using a weight-distributing hitch system may influence the performance of trailers equipped with surge brakes. If your trailer uses such a braking system, verify compatibility with the hitch, trailer, and brake manufacturers before installation to avoid improper braking behavior.

Carefully follow the manufacturer’s instructions when installing and adjusting the weight distribution hitch system on your Nissan Frontier. Proper setup is critical for safe towing performance.

General setup guidelines include:

1. Park your unloaded Nissan Frontier on a flat, level surface.

With the ignition switched ON and all doors closed, allow the vehicle to settle for several minutes to achieve its natural ride height.

2. Measure the height of fixed reference points at the center of both the front and rear bumpers.

3. Attach the trailer and adjust the equalizer bars so that the front bumper height remains within 0 to 0.5 inches (0 to 13 mm) of the original measurement taken earlier. The rear bumper should not exceed its initial reference height.

WARNING

The weight-distributing hitch must be correctly adjusted so that the rear bumper does not rise above the original unloaded reference height when the trailer is attached.

Failure to properly adjust the system on your Nissan Frontier can result in unstable handling characteristics, reduced control, and an increased risk of accidents, potentially leading to serious injury or property damage.

Sway control device

External factors such as sudden steering inputs, strong crosswinds, or turbulence from passing vehicles can cause trailer sway. To minimize these effects, sway control devices can be installed on your Nissan Frontier towing setup.

If you choose to use such a device, consult a qualified towing equipment specialist to ensure compatibility with your Nissan Frontier, hitch configuration, trailer design, and braking system. Proper installation and adjustment are essential for optimal performance.

Always follow the manufacturer’s recommendations when installing and operating sway control systems.

Class I hitch

Class I towing equipment, including the receiver, ball mount, and hitch ball, is suitable for light-duty towing with a maximum trailer weight of up to 2,000 lbs. (907 kg). This option may be used for smaller trailers when operating your Nissan Frontier under minimal load conditions.

Class II hitch

Class II towing systems can handle trailers up to 3,500 lbs. (1,587 kg). The Genuine NISSAN step bumper installed on many Nissan Frontier models is classified within this category and is suitable for moderate towing needs.

Class III hitch

Class III hitch equipment is designed for heavier towing applications, supporting trailer weights up to 5,000 lbs. (2,268 kg). This configuration is commonly used with mid-sized trailers and provides enhanced durability for your Nissan Frontier.

Class IV hitch

For maximum towing capability, Class IV hitch systems are rated for trailers up to 10,000 lbs. (4,535 kg). When towing loads exceeding 5,000 lbs., the use of a weight-distributing hitch system is highly recommended to maintain proper load balance, vehicle control, and safety when operating your Nissan Frontier.

For optimal towing safety and performance, always ensure that all components used with your Nissan Frontier are correctly matched, professionally installed, and regularly inspected before each journey.

Your Nissan Frontier may be equipped with a Class IV trailer hitch system that is rated for up to 10,000 lbs. (4,535 kg). However, it is important to understand that the actual towing capability of your Nissan Frontier is limited to the maximum trailer weight specified in the official "Towing Load/Specification" chart for your specific model and configuration.

Even if the hitch hardware itself has a higher rating, exceeding the vehicle’s approved towing limits can negatively affect performance, safety, and durability. Always follow the Nissan Frontier towing specifications to ensure optimal operation and long-term reliability.

CAUTION

• For towing loads above 2,000 lbs. (907 kg), specially designed hitches with reinforced frame mounting points are required. Genuine NISSAN towing components for the Nissan Frontier are available through authorized dealers and are engineered for proper fit and performance.
• The trailer hitch must not interfere with or be attached to the impact-absorbing bumper system, as this could compromise safety and structural integrity.

WARNING

• Never use axle-mounted hitches on your Nissan Frontier, as they can cause serious handling issues and potential structural damage.
• Avoid modifying essential vehicle systems such as the exhaust or braking system to install towing equipment. Such alterations can reduce safety and void warranties.
• To minimize injury risk and prevent additional damage in the event of a rear collision, remove the ball mount from the receiver when it is not in use.
• Inspect all trailer hitch mounting bolts regularly to ensure they remain securely tightened and free from corrosion or wear.

Tire pressures

• When towing with your Nissan Frontier, always inflate the vehicle’s tires to the recommended cold tire pressure listed on the Tire and Loading Information label for safe and stable operation.
• Ensure that trailer tires are in proper condition and meet the manufacturer’s specifications for size, load rating, and inflation pressure to maintain safe towing performance.

Safety chains

Always connect appropriate safety chains between your Nissan Frontier and the trailer. These chains should be crossed underneath the trailer tongue and securely attached to the hitch assembly rather than the bumper or axle.

If the hitch ball is mounted on the bumper, the chains may be attached to the bumper structure. Leave enough slack in the chains to allow for smooth turning, but not so much that they drag on the ground.

Trailer lights

CAUTION

When connecting trailer lighting to the Nissan Frontier electrical system, always use a commercially available powered module or converter.

This module draws power directly from the vehicle battery while using the existing tail, brake, and turn signal circuits as control signals. The converter must not draw more than 15 milliamps from the vehicle’s lighting circuits. Using an incorrect or overloaded module can damage the Nissan Frontier electrical system.

Consult a qualified trailer equipment specialist to obtain and install the proper wiring components for your Nissan Frontier.

Trailer lighting must comply with all applicable local and federal regulations. For proper installation and connection, it is recommended to visit a NISSAN dealer or a professional trailer service provider.

Nissan Frontier models equipped with the factory towing package include a 7-pin trailer connector. For vehicles without this package, a flat 4-pin connector is available. If your trailer uses a different connector type, an appropriate adapter will be required and can be purchased from automotive or towing supply retailers.

Trailer brakes

If your trailer is equipped with its own braking system, ensure it meets all relevant regulations and is correctly installed and maintained for safe operation.

Nissan Frontier vehicles fitted with a 7-pin connector are pre-wired to support a trailer brake controller. For proper installation, it is recommended to use a compatible adapter harness available through a NISSAN dealer.

For maximum safety, always verify that all towing components on your Nissan Frontier—including brakes, lights, wiring, and hitch hardware—are properly installed, fully functional, and compliant with all applicable standards before each trip.

WARNING

Under no circumstances should a trailer braking system be connected directly to the brake system of your Nissan Frontier.

When towing with your Nissan Frontier, any trailer with a total weight of 3,500 lbs. (1,587 kg) or more must be equipped with its own independent braking system. In many regions, local regulations require trailer brakes at even lower weight thresholds. Always verify and comply with all applicable laws in the areas where you intend to operate your Nissan Frontier.

There are several types of trailer braking systems available, each designed for specific towing requirements and trailer configurations.

Surge Brakes – In this system, the brake actuator is mounted on the trailer tongue and connected hydraulically to each trailer wheel. When the Nissan Frontier slows down, the trailer’s forward momentum compresses the actuator, automatically applying the trailer brakes.

Hydraulic surge brakes are commonly found on rental trailers and marine trailers. These systems operate independently and do not require any electrical or hydraulic connection between the trailer and the Nissan Frontier for brake activation.

Electric Trailer Brakes – These systems are controlled electronically via a brake controller installed in the Nissan Frontier. The controller sends a signal to activate the trailer brakes proportionally based on braking force.

If your trailer is equipped with electric brakes, refer to the section on installing and using an electric trailer brake controller to ensure proper setup and safe operation.

For maximum safety, always have a qualified towing equipment specialist verify that the trailer braking system is properly installed, adjusted, and functioning correctly before towing with your Nissan Frontier.

Electric trailer brake controller

Trailers fitted with electric braking systems often require an aftermarket brake controller to be installed in the Nissan Frontier. This device ensures smooth and proportional braking performance between the vehicle and the trailer.

A Genuine NISSAN jumper harness is available and specifically engineered for seamless integration when installing an aftermarket brake controller in your Nissan Frontier.

Always follow the brake controller manufacturer’s instructions carefully during installation to guarantee safe and reliable operation.

Pre-towing tips

• Ensure your Nissan Frontier remains level when a trailer is attached, whether loaded or unloaded. An abnormal nose-up or nose-down position may indicate improper tongue weight, excessive load, or suspension issues that must be corrected before driving.
• Secure all cargo inside the trailer to prevent shifting during transit, which can affect stability and handling.
• Position the cargo as low as possible within the trailer to maintain a low center of gravity and improve control.
• Distribute the load properly: approximately 60% of the total weight should be placed toward the front half of the trailer and 40% toward the rear, while maintaining side-to-side balance.
• Each time you connect a trailer to your Nissan Frontier, inspect the hitch connection, verify tire pressures (both vehicle and trailer), check trailer lighting functionality, and ensure all lug nuts are properly tightened.
• Confirm that your rearview mirrors meet all legal visibility requirements. If necessary, install extended towing mirrors before driving your Nissan Frontier.
• Measure the total height of your Nissan Frontier and trailer combination to avoid clearance issues when passing under structures such as bridges or parking entrances.

Trailer towing tips

To become familiar with how your Nissan Frontier behaves while towing, practice driving maneuvers such as turning, braking, and reversing in a safe, open area free from traffic. Towing significantly changes vehicle dynamics, including steering response and braking distance.

• Always secure cargo within the trailer to prevent load movement while driving.
• Lock the trailer coupler securely using a safety pin or lock to prevent accidental detachment.
• Avoid sudden acceleration, harsh braking, or abrupt starts to maintain control of your Nissan Frontier and trailer.
• Minimize sharp turns and rapid lane changes, as these can destabilize the trailer.
• Maintain a moderate and consistent driving speed for improved safety and fuel efficiency.
• When reversing, place one hand at the bottom of the steering wheel and move it in the direction you want the trailer to go. Make small, controlled adjustments and reverse slowly.
• If possible, have a second person assist by guiding you when backing up your Nissan Frontier with a trailer attached.

Proper preparation and careful driving techniques will help ensure safe and efficient towing performance with your Nissan Frontier in all driving conditions.

When parking your Nissan Frontier with a trailer attached, always secure both the vehicle and trailer wheels using wheel chocks. Parking on an incline should be avoided whenever possible; however, if it cannot be avoided, follow the proper procedure below to ensure safety and prevent damage.

CAUTION

Do not shift the transmission of your Nissan Frontier into the P (Park) position before securing the wheels and applying the parking brake, as this may result in transmission damage.

1. Firmly press and hold the brake pedal.

2. Have an assistant place wheel blocks securely on the downhill side of both the Nissan Frontier and the trailer tires.

3. Slowly release the brake pedal until the vehicle weight is fully supported by the wheel blocks.

4. Apply the parking brake securely.

5. Shift the transmission of your Nissan Frontier into the P (Park) position.

6. Confirm that the 4WD system (if equipped) is properly engaged in 2WD, 4H, or 4LO, and ensure that the ATP warning light is OFF. If any indicator is flashing or illuminated, return the transmission to P (Park) and adjust the 4WD selector accordingly.

7. Turn off the engine.

To resume driving:

1. Start your Nissan Frontier engine.

2. Press and hold the brake pedal.

3. Shift the transmission into the desired gear.

4. Release the parking brake.

5. Move forward slowly until both the Nissan Frontier and trailer are clear of the wheel blocks.

6. Apply the brake pedal again.

7. Have an assistant remove and store the wheel blocks safely.

• When descending hills with a trailer, the additional weight pushing against your Nissan Frontier can reduce stability. To maintain control, reduce speed and shift to a lower gear instead of relying solely on the brakes.

Using engine braking helps minimize brake overheating and improves overall vehicle control during long downhill drives.

• If the engine coolant temperature increases significantly, refer to the overheating instructions for your Nissan Frontier to prevent engine damage.
• Towing with your Nissan Frontier will increase fuel consumption compared to normal driving conditions.
• Avoid towing any trailer during the first 500 miles (805 km) of vehicle operation to allow proper engine and drivetrain break-in.
• For the first 500 miles (805 km) of towing, do not exceed 50 mph (80 km/h) to reduce stress on vehicle components.
• Service your Nissan Frontier more frequently when towing, following the recommendations outlined in the maintenance schedule section of this manual.
• When turning, remember that the trailer wheels track closer to the inside of the turn than the vehicle wheels. Take wider turns to prevent the trailer from contacting curbs or obstacles.
• Be aware that crosswinds and uneven road surfaces can negatively affect the handling of your Nissan Frontier and trailer combination. Passing large vehicles may also create wind turbulence, requiring additional steering corrections.

If the trailer begins to sway while towing with your Nissan Frontier, take the following steps immediately:

1. Gradually lift your foot off the accelerator pedal and allow the vehicle to decelerate naturally while maintaining a straight steering direction.

This action helps stabilize both the Nissan Frontier and the trailer combination without introducing additional forces.

- Do not attempt to counteract trailer sway by steering sharply or applying the brakes, as this may worsen the instability and lead to loss of control.

Maintaining calm, controlled driving inputs and proper towing setup will significantly improve safety and handling when operating your Nissan Frontier with a trailer.

2. Once the trailer sway has subsided, carefully and smoothly apply the brakes, then guide your Nissan Frontier and trailer combination off the roadway to a safe location.

3. After stopping, inspect the trailer load and redistribute the cargo if necessary to achieve proper balance as outlined in this Nissan Frontier towing section.

• Exercise extra caution when overtaking other vehicles.

  Passing while towing with your Nissan Frontier requires significantly more distance than normal driving. Always account for the additional length of the trailer to ensure it has fully cleared the vehicle you are passing before returning to your lane.

• Shift to a lower transmission gear when descending steep or extended grades. This allows your Nissan Frontier to use engine braking, reducing reliance on the brake system.
• Avoid prolonged or excessive brake application, as this can lead to brake overheating and reduced stopping performance, especially when towing with your Nissan Frontier.
• Maintain a greater following distance to allow for increased stopping time when towing a trailer. Anticipate traffic conditions and apply brakes gradually.
• NISSAN recommends avoiding the use of cruise control when towing with your Nissan Frontier, as it may not respond appropriately to changing load and terrain conditions.
• Always comply with local speed limits and regulations specific to vehicles towing trailers, as these may vary depending on location.
• After the first 50 miles (80 km) of towing, and at every rest stop thereafter, inspect the hitch connection, trailer wiring, and wheel lug nuts to ensure everything remains secure on your Nissan Frontier setup.
• When launching a boat, ensure that the water level does not rise above the exhaust outlet or rear bumper of your Nissan Frontier to prevent potential damage.
• Disconnect the trailer lighting system before backing the trailer into water to avoid electrical damage or bulb failure.

When towing a trailer, final drive gear oil should be replaced and transmission oil/ fluid should be changed more frequently.

For additional information, refer to the "Do-it-yourself" section in this manual for your Nissan Frontier.

Tow mode (if so equipped)

When towing heavy loads with your Nissan Frontier, activating tow mode is strongly recommended. To engage this feature, press the TOW MODE switch; the indicator light will illuminate to confirm activation. Press the switch again to deactivate tow mode. The system automatically resets when the ignition is turned off.

Tow mode enhances the towing performance of your Nissan Frontier by adjusting transmission behavior and improving control under load conditions.

Key tow mode features include:

• Grade Logic – Optimizes transmission shift patterns when climbing inclines, ensuring smoother power delivery and improved efficiency while towing with your Nissan Frontier.
• Downhill Speed Control (DSC) – Automatically downshifts the transmission when descending slopes, helping maintain a controlled speed and reducing brake usage when towing heavy loads.

Operating your Nissan Frontier in tow mode without a trailer or with a light load will not cause damage. However, it may result in slightly reduced fuel efficiency and altered driving characteristics, such as more frequent gear changes.

When towing a trailer, final drive gear oil should be replaced and transmission oil/ fluid should be changed more frequently.

For additional information, see the "Do-it-yourself" section of this manual for proper maintenance procedures for your Nissan Frontier.

Flat towing your vehicle

Flat towing - 4WD with automatic transmission

Transporting a vehicle behind a motorhome or recreational vehicle is commonly referred to as flat towing, dinghy towing, or “four-down” towing. However, when it comes to the Nissan Frontier equipped with 4WD and an automatic transmission, this method is not permitted.

CAUTION

• DO NOT flat tow a Nissan Frontier 4WD model with an automatic transmission.
• Flat towing or using a vehicle dolly in this configuration can cause severe internal transmission damage due to insufficient lubrication during towing.

Flat towing - 2WD with automatic transmission

Flat towing, also known as dinghy towing, is sometimes used when towing a vehicle behind a motorhome. However, special precautions must be followed when towing a Nissan Frontier equipped with a 2WD automatic transmission.

CAUTION

• Failure to follow the proper towing procedures may result in significant transmission damage to your Nissan Frontier.
• Always tow the vehicle in a forward direction; towing backward is strictly prohibited.
• Never tow an automatic transmission Nissan Frontier with all four wheels on the ground, as this will lead to internal damage due to lack of lubrication.

To safely tow a Nissan Frontier with an automatic transmission, a properly rated vehicle dolly must be used to lift the drive wheels off the ground. Always follow the dolly manufacturer’s instructions to ensure correct setup and prevent mechanical issues.

Automatic Transmission

When towing any Nissan Frontier equipped with an automatic transmission, the use of a vehicle dolly supporting the drive wheels is mandatory. This prevents damage to internal components and ensures safe transportation.

NOTE:

If the battery of your Nissan Frontier is fully discharged, the transmission cannot be manually shifted into different positions, which may complicate towing procedures.

Uniform tire quality grading

DOT (Department of Transportation) tire quality grading standards apply to all passenger vehicle tires, including those used on the Nissan Frontier. These grades supplement federal safety requirements and provide comparative performance information.

Tire quality grades are typically located on the tire sidewall, positioned between the tread shoulder and the maximum section width. A typical marking may appear as follows:

Treadwear 200 Traction AA Temperature A

Treadwear

The treadwear rating indicates the expected wear rate of a tire under controlled testing conditions on a government-approved course. For instance, a tire rated at 150 is expected to last one and a half times longer than a tire rated at 100 under identical test conditions.

However, actual tread life on your Nissan Frontier will vary depending on driving habits, road conditions, maintenance practices, and environmental factors such as climate and terrain.

Traction AA, A, B and C

Traction grades, ranging from highest to lowest (AA, A, B, and C), represent a tire’s ability to stop on wet surfaces under controlled test conditions. These evaluations are conducted on asphalt and concrete surfaces to determine braking performance.

A tire rated C may provide lower traction performance compared to higher-rated options, which could affect stopping distances on wet roads when driving your Nissan Frontier.

WARNING

The traction rating applies only to straight-line braking tests and does not reflect performance during acceleration, cornering, hydroplaning resistance, or peak traction scenarios.

Temperature A, B and C

Temperature ratings (A, B, and C) measure a tire’s resistance to heat buildup and its ability to dissipate heat under controlled laboratory conditions. Excessive heat can degrade tire materials, shorten tire lifespan, and increase the risk of sudden failure.

All tires used on your Nissan Frontier must meet at least the minimum performance requirements defined by Federal Motor Vehicle Safety Standards. Ratings of B and A indicate superior heat resistance compared to the baseline requirement.

WARNING

The temperature rating is valid only when tires are properly inflated and not overloaded. Driving at excessive speeds, operating with under-inflated tires, or carrying excessive loads can lead to dangerous heat buildup and potential tire failure.

For optimal safety and performance, always select high-quality tires that meet or exceed the recommended specifications for your Nissan Frontier, and regularly inspect them for wear, damage, and correct inflation.

Reporting safety defects

For USA

If you suspect that your Nissan Frontier has a defect that could increase the risk of an accident or lead to injury or even loss of life, it is critical to take immediate action. You should promptly notify the National Highway Traffic Safety Administration (NHTSA) while also informing NISSAN about the issue to ensure proper tracking and resolution.

When NHTSA receives multiple similar complaints regarding vehicles such as the Nissan Frontier, it may initiate a formal investigation. If a safety defect is identified across a group of vehicles, the agency may require a recall and corrective action. However, NHTSA does not intervene in individual disputes between you, your dealer, or NISSAN.

To contact NHTSA, you can call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-888-275-9171), visit http://www.safercar.gov, or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE, Washington, D.C. 20590. Additional vehicle safety resources are also available online.

You may also contact NISSAN directly regarding your Nissan Frontier by reaching their Consumer Affairs Department toll-free at 1-800-NISSAN-1 for further assistance and support.

For Canada

If you believe your Nissan Frontier has a safety-related defect that could result in an accident, injury, or fatality, you should immediately notify Transport Canada in addition to contacting NISSAN.

Transport Canada reviews submitted complaints and may launch an investigation if recurring issues are identified. Should a safety defect be confirmed, the authority may request that NISSAN initiate a recall campaign. Similar to the U.S. system, Transport Canada does not mediate individual disputes between vehicle owners, dealerships, or manufacturers.

You can reach Transport Canada's Defect Investigations and Recalls Division toll-free at 1-800-333-0510, or submit a report online at:

http://www.tc.gc.ca/eng/motorvehiclesafety/menu.htm (English)

http://www.tc.gc.ca/fra/securiteautomobile/menu.htm (French)

Mail correspondence can be sent to:

Transport Canada Motor Vehicle Safety Investigations Laboratory
80 Noel Street Gatineau, QC J8Z0A1

Additional road safety information is available via the Road Safety Information Centre at 1-800-333-0371 or online at www.tc.gc.ca/roadsafety (English) and www.tc.gc.ca/securiteroutiere (French).

To report safety concerns about your Nissan Frontier, contact the NISSAN Consumer Information Centre toll-free at 1-800-387-0122.

Readiness for Inspection/Maintenance (I/M) test

WARNING

A Nissan Frontier equipped with Four-Wheel Drive (4WD) must never be tested on a two-wheel dynamometer or similar equipment commonly used for emissions testing. Always inform testing personnel that your vehicle is a 4WD model before testing begins. Improper testing equipment can cause severe transmission damage or unexpected vehicle movement, potentially resulting in serious injury or vehicle damage.

Depending on local regulations, your Nissan Frontier may be required to meet a “ready condition” before undergoing an Inspection/Maintenance (I/M) emissions test.

This “ready condition” is achieved when the vehicle has been driven through specific driving cycles. In most cases, regular everyday driving of your Nissan Frontier will naturally set the system to this state.

However, if the battery has been disconnected or a powertrain component has been repaired, the system may revert to a “not ready” status.

Before proceeding with an emissions test, verify the readiness condition. Turn the ignition switch to the ON position without starting the engine. If the Malfunction Indicator Light (MIL) remains steady for approximately 20 seconds and then begins blinking for about 10 seconds, the system is “not ready.” If the MIL does not blink after this period, the system is “ready.”

If needed, it is recommended to visit a NISSAN dealer to properly prepare your Nissan Frontier for testing and ensure compliance with emission standards.

Emission control system warranty

Your Nissan Frontier is protected by comprehensive emission-related warranties designed to ensure long-term environmental compliance and engine performance.

For USA

1. Emission Defects Warranty

2. Emissions Performance Warranty

Full warranty details are provided in the Warranty Information Booklet included with your Nissan Frontier. If your booklet is missing, you can request a replacement by contacting:

• Nissan North America, Inc.
  Consumer Affairs Department
  P.O. Box 685003
  Franklin, TN 37068-5003

For Canada

Emission Control System Warranty

Detailed warranty information is included in your vehicle’s Warranty Information Booklet. If unavailable, a replacement can be requested from:

• Nissan Canada Inc.
  5290 Orbitor Drive
  Mississauga, Ontario, L4W 4Z5

Maintaining your Nissan Frontier in accordance with recommended service schedules not only ensures optimal performance but also helps preserve your emission warranty coverage and long-term vehicle reliability.

Event Data Recorders (EDR)

The Nissan Frontier is equipped with an Event Data Recorder (EDR), an advanced onboard system designed to capture critical information in specific situations such as collisions or near-collision events. The primary purpose of this system is to help engineers and safety specialists better understand how the Nissan Frontier’s systems perform under real-world conditions, particularly during incidents like airbag deployment or impact with road obstacles. The EDR typically records data for a brief period, generally up to 30 seconds surrounding the event.

Within the Nissan Frontier, the EDR is capable of recording important operational data, including:

• How key vehicle systems were functioning at the time of the event;
• Whether the driver and passengers were properly using their seat belts;
• The extent to which the accelerator and/or brake pedals were applied;
• The vehicle’s speed during the event;
• Audio or conversations are not recorded by the system.

The collected data plays an essential role in reconstructing incidents and improving vehicle safety technologies in models like the Nissan Frontier. It is important to note that the EDR only activates in significant crash-related situations. During normal operation of the Nissan Frontier, no data is stored, and no personal identifying information such as name, age, gender, or location is recorded. However, in certain cases, authorities such as law enforcement may combine EDR data with other information obtained during accident investigations.

Accessing EDR data requires specialized diagnostic equipment and physical access to the Nissan Frontier or its EDR system. While NISSAN and authorized dealers can retrieve this data, other parties with appropriate tools—such as law enforcement—may also access it if legally permitted.

In general, EDR data from the Nissan Frontier will only be accessed with the permission of the vehicle owner or lessee, unless otherwise required or allowed under applicable laws. This ensures a balance between safety analysis and data privacy.

Owner's Manual/Service Manual order information

For the Nissan Frontier, Genuine NISSAN Service Manuals are available for both current and previous model years. These manuals provide detailed, factory-level service and repair information and are the same technical resources used by certified NISSAN technicians. In addition, official Owner’s Manuals for the Nissan Frontier can also be purchased, offering comprehensive guidance on vehicle operation and maintenance.

For USA

To check current pricing and availability of Genuine NISSAN Service Manuals for your Nissan Frontier, visit: www.nissan-techinfo.com

For official Owner’s Manuals and additional resources for the Nissan Frontier, go to: https://www.nissanusa.com

For Canada

To purchase a Genuine NISSAN Service Manual or Owner’s Manual for your Nissan Frontier, contact your nearest authorized NISSAN dealer. For assistance in locating a dealer or obtaining contact details, call the NISSAN Information Center at 1-800-387-0122, where a bilingual representative will help you with your request.
