Front power seat adjustment

Operating tips

• The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

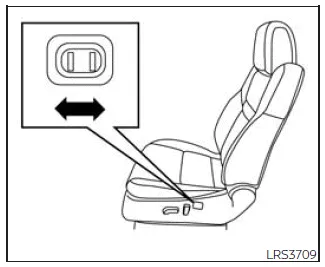

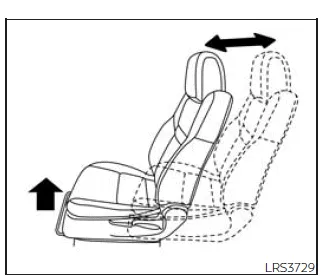

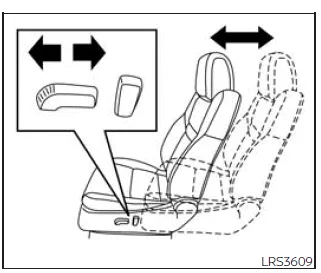

Forward and backward

Moving the switch as shown will slide the seat forward or backward to the desired position.

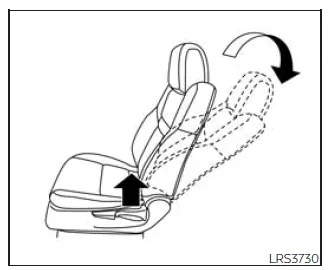

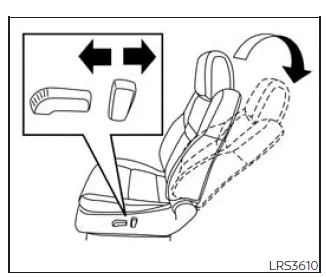

Reclining

Move the recline switch as shown until the desired angle is obtained.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. Also, the seatback can be reclined to allow occupants to rest when the vehicle is parked.

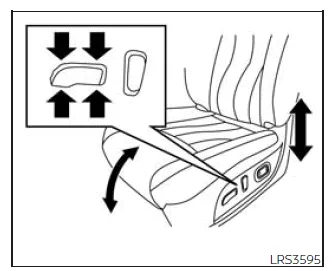

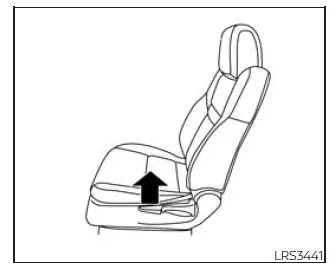

Seat lifter and tilt (driver's seat)

Move the front part of the switch as shown to adjust the angle of the seat cushion.

Move the back part of the switch as shown to adjust the height of the seat.

Lumbar support (driver's seat)

The lumbar support feature provides adjustable lower back support to the driver.

Push the switch as shown to adjust the seat lumbar area.

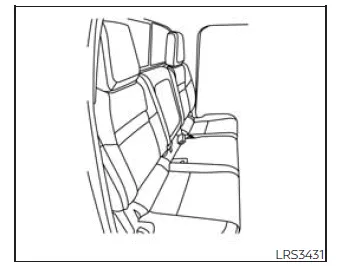

Rear bench seat

The rear bench seat is non-adjustable.

However, the seats can be folded up and folded to lay flat.

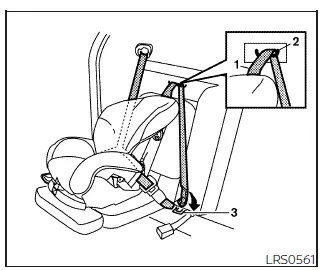

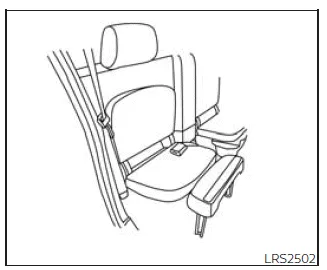

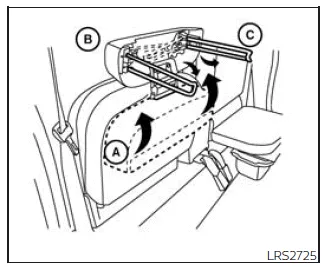

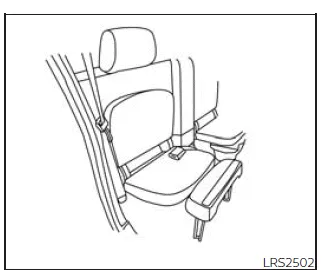

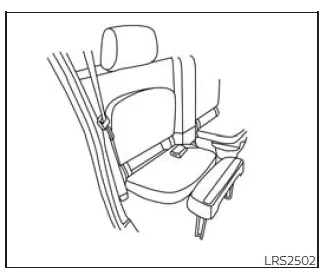

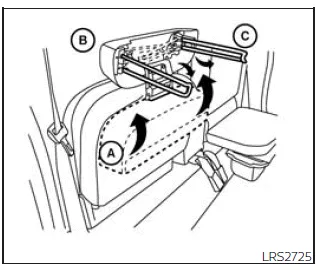

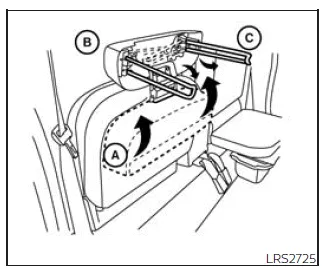

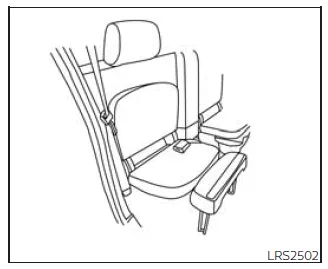

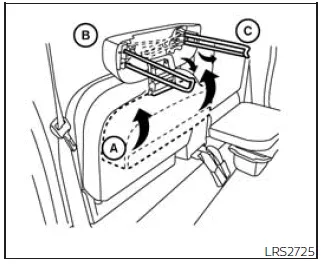

Jump seat

WARNING

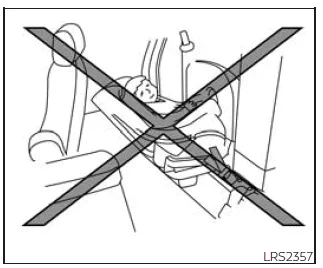

• Do not use a child restraint in the driver's side jump seat. This seating position is not suitable for child restraint installation. A child restraint can be installed in the passenger's side jump seat when the seat extension is unfolded from the seat base.

• When folding the jump seat, be careful not to squeeze your finger between the seat cushion and the body side.

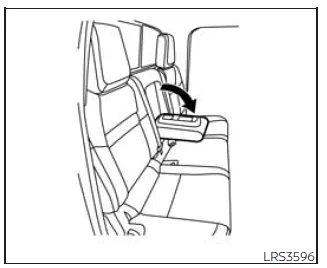

Armrest

The rear bench seat comes equipped with an armrest. Pull the armrest down as shown.

Flexible seating

Basic Information

WARNING

• Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed.
• Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts.

  Be sure everyone in your vehicle is in a seat and using a seat belt properly.

• Do not allow more than one person to use the same seat belt.
• Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats.
  • Make sure that the seat path is clear before moving the seat.
  • Be careful not to allow hands or feet to get caught or pinched in the seat.
• Head restraints/headrests should be adjusted properly as they may provide significant protection against injury in an accident. Always replace and adjust them properly if they have been removed for any reason.
• If the head restraints/headrests are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident.
• When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.
• Properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks.

  In a sudden stop or collision, unsecured cargo could cause personal injury.

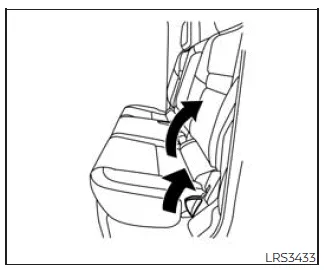

Folding the rear bench seat up (if so equipped)

To fold the rear bench seat up:

1. Lift up on the lever, located on the side of the seat, while lifting the front of the seat cushion up.

2. Fold the bottom of the seat cushion toward the back of the vehicle until it locks in place.

3. Repeat this process to raise and secure the seat cushion on the other side of the vehicle for maximum storage capacity.

To return the rear bench seat to a seating position, reverse the process. Make sure to properly push the seat cushion down into place.

WARNING

• When the vehicle is being used to carry cargo, properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.
• Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts.

  Be sure everyone in your vehicle is in a seat and using a seat belt properly.

  Never ride in the rear seat unless the seat bottom cushions are in place and latched.

• When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

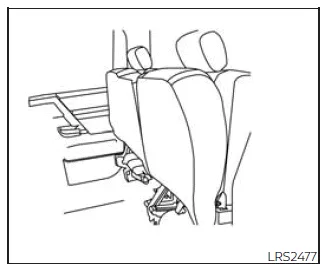

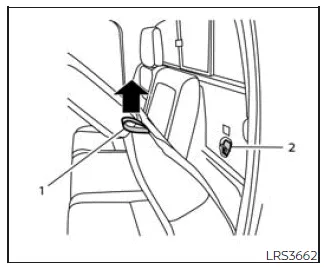

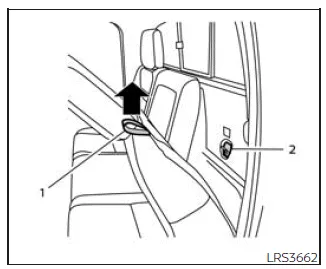

Folding the rear bench seat down (if so equipped)

1. Pull strap
2. Child restraint anchor points

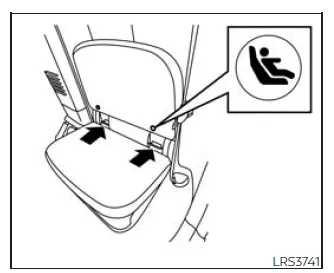

The rear bench seatback can be tilted forward to access the child restraint anchor point locations or the jacking equipment.

To tilt the seatback forward, pull the pull strap up and tilt the seatback. The child restraint anchor points can be accessed behind the rear bench seatback. The jacking equipment can be accessed from behind the passenger's side seatback.

WARNING

Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury or death in an accident or sudden stop.

Head restraints/headrests

Basic Information

WARNING

Head restraints/headrests in the Nissan Frontier are an essential part of the vehicle’s safety system and work together with seat belts and airbags. They are specifically designed to help reduce the risk of neck injuries, such as whiplash, especially during rear-end collisions.

For maximum protection in the Nissan Frontier, head restraints/headrests must always be properly adjusted according to the recommendations in this section. After another driver or passenger uses the seat, always check and readjust the position if necessary.

Do not attach accessories or objects to the head restraint/headrest posts, and never operate the vehicle if the head restraint/headrest has been removed. If it has been removed for any reason, it must be reinstalled correctly and securely before the seat is used again. Failure to follow these guidelines may significantly reduce safety effectiveness and increase the risk of serious injury or death in the Nissan Frontier.

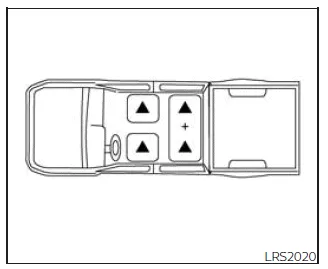

Crew Cab

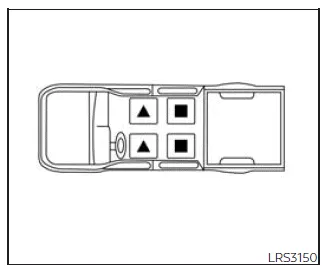

King Cab

The illustrations above show the seating positions in the Nissan Frontier that are equipped with head restraints or headrests.

Indicates that the seating position is equipped with a head restraint.

Indicates that the seating position is equipped with a headrest.

+ Indicates that the seating position is not equipped with a head restraint or headrest (if applicable).

• Your Nissan Frontier may include integrated, adjustable, or fixed head restraints/headrests depending on the trim and seat configuration.
• Adjustable head restraints/headrests are equipped with multiple locking notches on the support stalks, allowing precise positioning for different occupants.
• Non-adjustable head restraints/headrests feature a single locking notch that secures them firmly to the seat structure.
• Proper Adjustment:
  • For adjustable versions, position the head restraint/headrest so that the center aligns approximately with the middle of your ears for optimal protection in the Nissan Frontier.
  • If your ears are positioned above this level, raise the head restraint/headrest to its highest possible position to maintain safety.
• If the head restraint/headrest has been removed, always ensure it is correctly reinstalled and securely locked before using that seating position in the Nissan Frontier.

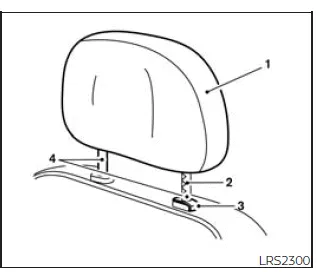

Adjustable head restraint/headrest components

1. Removable head restraint/headrest
2. Multiple locking notches for height adjustment
3. Lock knob for secure positioning
4. Support stalks connecting the head restraint to the seat

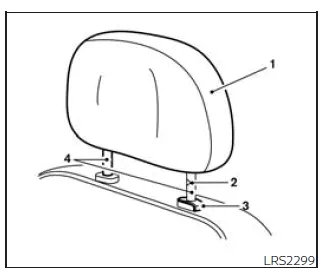

Non-adjustable head restraint/headrest components

1. Removable head restraint/headrest
2. Single locking notch
3. Lock knob
4. Stalks

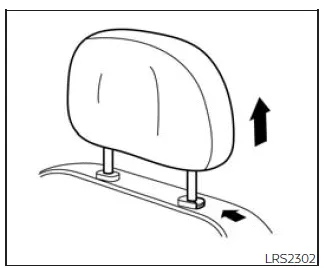

Remove

Follow these steps to safely remove the head restraint/headrest from your Nissan Frontier:

1. Pull the head restraint/headrest upward until it reaches the highest position.

2. Press and hold the lock knob firmly.

3. Carefully lift and remove the head restraint/headrest from the seat.

4. Store the removed head restraint/headrest in a secure location inside the Nissan Frontier to prevent it from becoming a hazard.

5. Always reinstall and correctly adjust the head restraint/headrest before allowing anyone to use that seat.

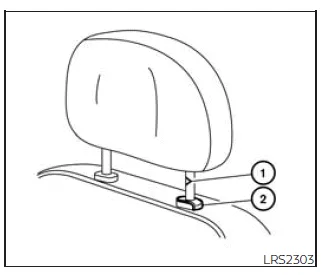

Install

1. Align the head restraint/headrest stalks with the corresponding holes in the seat. Ensure proper orientation. The stalk with the notch must align with the hole containing the lock knob.

2. Press and hold the lock knob while pushing the head restraint/headrest downward into position.

3. After installation, adjust the head restraint/headrest properly before using the seat in the Nissan Frontier.

Adjust

Basic Information

For adjustable head restraints/headrests

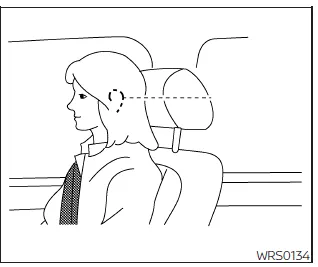

Adjust the head restraint/headrest so that its center aligns with the center of your ears. This positioning provides optimal protection in the Nissan Frontier during a collision.

If your ears are above the recommended level, raise the head restraint/headrest to its highest setting.

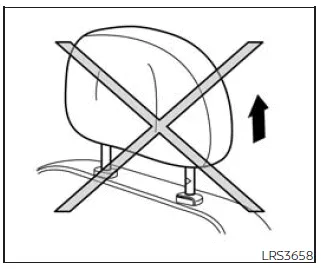

For non-adjustable head restraint/headrest

Ensure that the head restraint/headrest is securely locked in place by verifying that the lock knob is engaged in the notch before driving the Nissan Frontier.

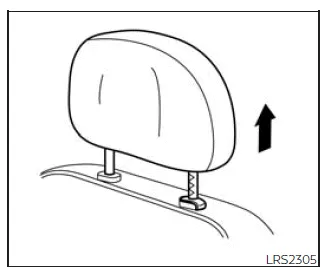

Raise

To raise the head restraint/headrest, simply pull it upward until the desired height is reached. Always confirm that it locks securely into position.

Make sure the lock mechanism is engaged before driving the Nissan Frontier to ensure proper safety performance.

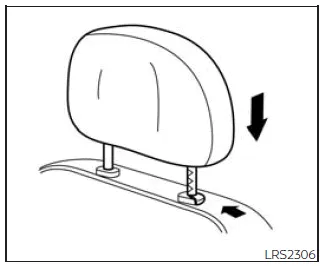

Lower

To lower the head restraint/headrest, press and hold the lock knob while pushing it downward to the desired position.

Ensure that the head restraint/headrest is firmly locked before operating the Nissan Frontier to maintain maximum occupant safety.

Seat belts

Precautions on seat belt usage

When the seat belt in your Nissan Frontier is worn correctly, adjusted securely, and the occupant is seated upright with their back fully against the seat and both feet placed on the floor, the risk of injury or fatal consequences in a collision can be significantly reduced. Proper seat belt use works together with the advanced safety systems of the Nissan Frontier, including airbags, to provide maximum protection.

NISSAN strongly recommends that every driver and passenger fasten their seat belt at all times, regardless of seating position, even when the vehicle is equipped with supplemental restraint systems such as airbags. Consistent seat belt usage in the Nissan Frontier is one of the most effective ways to enhance safety during any journey.

Most U.S. states and Canadian provinces or territories legally require that seat belts be worn at all times when a vehicle is in motion.

WARNING

• Every occupant in the Nissan Frontier must wear a seat belt at all times. Children should always be seated in the rear seats and secured using an appropriate child restraint system designed for their size and age.

WARNING

• The seat belt in your Nissan Frontier must always be adjusted to fit snugly against the body. A loose seat belt may reduce the effectiveness of the restraint system and increase the likelihood of serious injury or death in an accident.

WARNING

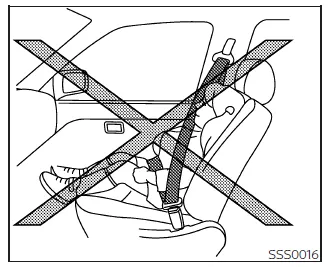

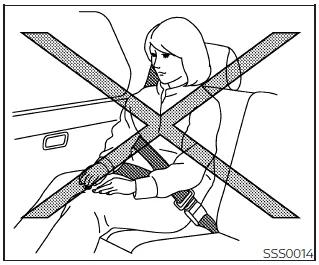

• Always position the shoulder belt over your shoulder and across the center of your chest.

  Never place the belt behind your back, under your arm, or across your neck.

  The belt should rest comfortably away from your face and neck without slipping off your shoulder.

• The lap belt must be positioned as low and snug as possible across the hips, not the waist. A belt worn too high increases the risk of internal injuries during a collision in the Nissan Frontier.
• Ensure that the seat belt tongue is securely inserted into the correct buckle to prevent accidental release.
• Never wear a seat belt that is twisted or improperly routed, as this can reduce its protective function.
• Do not allow multiple passengers to share a single seat belt. Each person in the Nissan Frontier must use their own properly functioning restraint system.
• Do not exceed the number of available seat belts in the vehicle. Each seating position in the Nissan Frontier is designed for one occupant only.
• If the seat belt warning light remains illuminated or the warning chime continues after all occupants have fastened their seat belts and all doors are closed, it may indicate a system malfunction. Have the system inspected as soon as possible. It is recommended to visit an authorized NISSAN dealer.
• Do not modify or alter the seat belt system in your Nissan Frontier. Avoid adding accessories or making adjustments that could change the belt routing or tension. Such modifications can compromise safety and may lead to serious injury.
• Once seat belt pretensioners have been activated during a collision, they must be replaced along with the retractor mechanism. These components are not reusable. Service should be performed by a qualified NISSAN dealer.
• After any collision, all seat belt assemblies—including retractors, anchors, and hardware—must be carefully inspected.

  It is strongly recommended to have this inspection carried out by a NISSAN dealer.

  NISSAN advises replacing all seat belt assemblies that were in use during a collision, unless the impact was minor and no visible damage is present and proper function is confirmed. Even unused belts should be inspected and replaced if any malfunction or damage is detected.

• All child restraint systems and their mounting hardware should also be inspected after a collision. Always follow the manufacturer's inspection and replacement guidelines.

  If any damage is found, the child restraint system must be replaced to ensure continued safety in the Nissan Frontier.

Seat belt warning light and chime

The seat belt warning light and audible chime in the Nissan Frontier are designed to actively remind the driver and passengers to fasten their seat belts before and during travel. This intelligent safety feature combines both visual and sound alerts to ensure that all occupants remain properly restrained, significantly improving overall safety in the Nissan Frontier.

The warning system will activate under several conditions, helping to prevent unsafe driving situations. These alerts are part of the comprehensive safety system engineered for the Nissan Frontier to reduce the risk of injury in the event of sudden braking or a collision.

• If the driver's seat belt is not fastened when operating the Nissan Frontier.
• If the front passenger seat is occupied and the seat belt is not fastened within approximately 7 seconds after the ignition switch is turned to the ON position.
• If objects or pressure on the front passenger seat cause the system to detect the seat as occupied, even without a passenger, triggering the seat belt reminder in the Nissan Frontier.
• If any rear passenger seat belt changes from a fastened to an unfastened state while the vehicle is in use.

For additional information, refer to the following sections in the Nissan Frontier manual:

• "Seat belt warning light and chime"
• "Rear seat belt warning"

Under certain conditions, the seat belt warning system in the Nissan Frontier may activate even when the front passenger seat is unoccupied. This is due to the sensitivity of the occupant detection system.

• Heavy items such as bags or equipment placed on the front passenger seat.
• External force applied to the seat, such as pushing or pulling.
• Objects stored underneath the front passenger seat.
• Items lodged between the seat cushion and center console or between the seat and the door.
• Objects hanging from the seat or placed in the seatback pocket.
• A child restraint system or object pressing against the rear of the seatback.

The rear seat belt reminder system in the Nissan Frontier may also activate even when no passengers are present, especially if the seat belts have been previously engaged and then released.

Pregnant women

NISSAN strongly recommends that pregnant women always wear seat belts while traveling in the Nissan Frontier. For maximum safety, the seat belt should be worn snugly, with the lap belt positioned as low as possible across the hips, never across the abdomen.

The shoulder belt should be placed across the chest and over the shoulder, avoiding contact with the neck or face. The belt must never be routed over the abdominal area, as this could increase the risk of injury. Pregnant occupants should consult their healthcare provider for personalized guidance when using seat belts in the Nissan Frontier.

Injured persons

NISSAN advises that injured individuals continue to use seat belts when traveling in the Nissan Frontier, as proper restraint remains critical for safety. However, depending on the nature of the injury, special precautions may be required.

It is strongly recommended that injured occupants consult a medical professional for specific advice on how to safely wear a seat belt while minimizing discomfort and avoiding further injury when traveling in the Nissan Frontier.

Three-point type seat belt with retractor

Basic Information

WARNING

• Every driver and passenger in the Nissan Frontier must always wear a seat belt. Proper seat belt usage is essential for safety, and children must be seated in the rear seats using an appropriate child restraint system designed for their size and age.

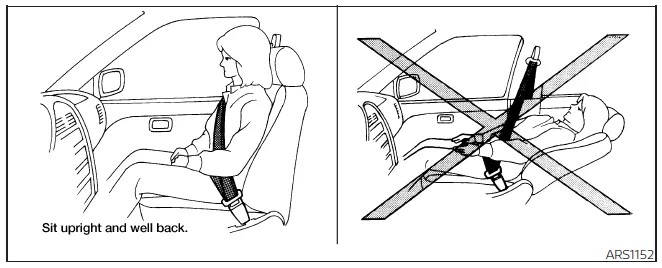

• Never ride in the Nissan Frontier with the seatback reclined while the vehicle is moving. This position is unsafe because the shoulder belt will not rest properly against your body. In the event of a collision, you may be thrown forward, increasing the risk of severe neck or upper body injuries.

  You may also slide beneath the lap belt, which can result in serious internal injuries due to improper restraint positioning.

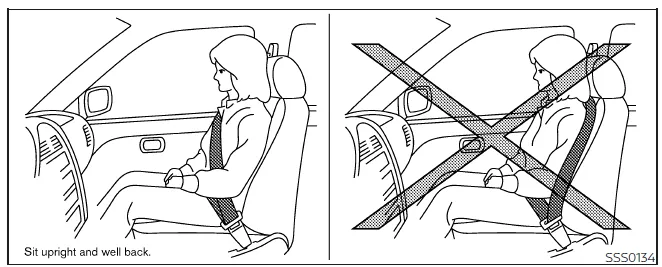

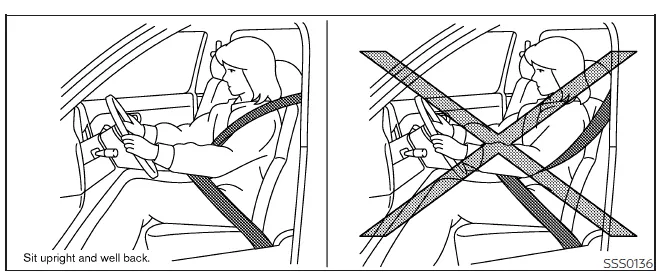

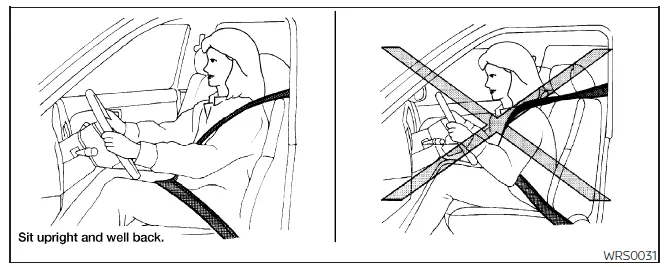

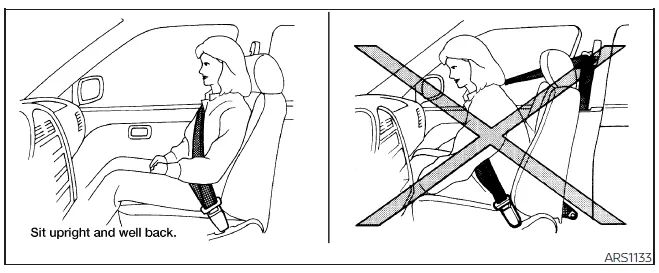

• For maximum protection in the Nissan Frontier, always sit upright with your back firmly against the seat, both feet on the floor, and ensure that the seat belt is correctly adjusted to fit snugly across your body.
• Do not allow children to play with seat belts. Many seating positions in the Nissan Frontier are equipped with Automatic Locking Retractor (ALR) functionality. If a seat belt wraps around a child’s neck while ALR mode is engaged, it can tighten and cause serious injury or even death, even if the vehicle is stationary.

  If this occurs, immediately unbuckle the seat belt to release the child. If the belt cannot be released, carefully cut the belt using an appropriate tool such as scissors or a knife.

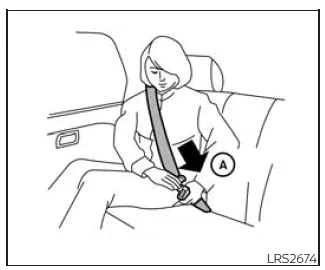

Fastening the seat belts

1. Adjust the seat to a comfortable and safe position. For Nissan Frontier King Cab models, ensure the jump seat is properly opened before fastening the seat belt.

2. Slowly pull the seat belt out of the retractor and insert the latch plate (tongue) into the buckle A until you hear and feel it securely click into place.

• The retractor system in the Nissan Frontier is designed to lock automatically during sudden stops or collisions.

  When pulled slowly, the seat belt allows limited movement, providing comfort while maintaining safety.

• If the seat belt cannot be pulled out from its fully retracted position, pull it firmly once and then release it.

  After that, pull the belt out smoothly to extend it normally.

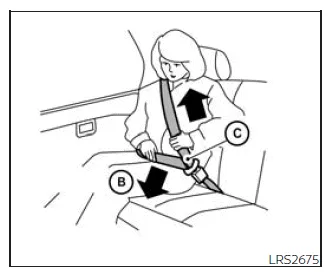

3. Position the lap belt low and snug across your hips B as illustrated. This positioning is critical for proper restraint in the Nissan Frontier.

4. Pull the shoulder belt portion toward the retractor to remove any slack C. Ensure the belt runs over your shoulder and across the center of your chest for optimal protection.

The three-point seat belts in the Nissan Frontier—including those in the front passenger seat, rear seats, and jump seat—are equipped with two operating modes:

• Emergency Locking Retractor (ELR)
• Automatic Locking Retractor (ALR)

The ELR mode allows the seat belt to extend and retract freely during normal driving, giving occupants comfort and flexibility. However, it automatically locks the belt during sudden deceleration or impact to restrain the occupant securely in the Nissan Frontier.

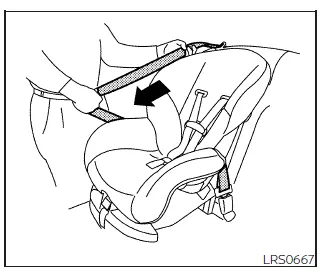

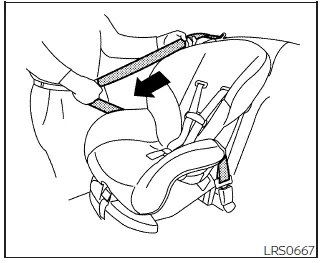

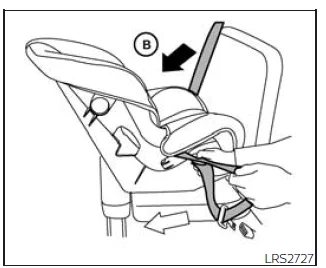

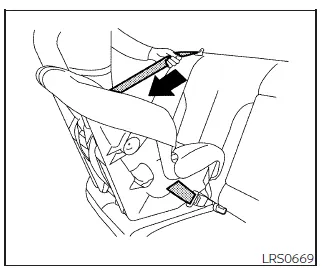

The ALR mode is specifically designed for securing child restraint systems. When activated, the seat belt locks and cannot be extended further until it is fully retracted after being unbuckled.

Once the seat belt is completely retracted, it automatically returns to ELR mode for normal use in the Nissan Frontier.

The ALR mode should only be used when installing child restraints. It should not be used for normal occupant restraint, as it may cause excessive tension and discomfort. Additionally, improper use of ALR mode may affect the operation of the front passenger air bag system in the Nissan Frontier.

WARNING

When fastening seat belts in the Nissan Frontier, always ensure that the seatbacks are fully secured and locked in the upright position. If the seatbacks are not properly latched, occupants may be at increased risk of injury during sudden stops or collisions.

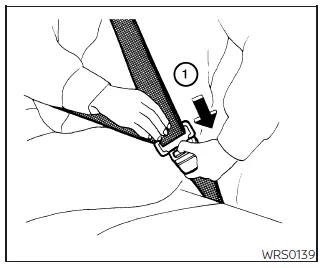

Unfastening the seat belts

To release the seat belt in your Nissan Frontier, press the release button located on the buckle 1. Once disengaged, the seat belt will automatically retract smoothly back into the retractor mechanism. This automatic retraction system helps keep the interior of the Nissan Frontier neat and ensures the belt is ready for the next use.

Always guide the belt back gently to avoid twisting or damaging the webbing, which could affect long-term performance and safety.

Checking seat belt operation

The seat belt retractors in the Nissan Frontier are engineered with dual locking mechanisms to provide maximum protection in different driving conditions. These systems ensure that the belt restrains occupants effectively during sudden movements or impacts.

• When the seat belt is pulled quickly out of the retractor, triggering an immediate locking response
• When the Nissan Frontier experiences rapid deceleration, such as during emergency braking or a collision
• To verify correct operation, grasp the shoulder belt and pull it sharply forward. The retractor should lock instantly and prevent further extension of the belt.

If the retractor does not lock during this test, the seat belt system may not function properly. It is strongly recommended to have the system inspected by a qualified technician. Visiting an authorized NISSAN dealer is the safest way to ensure proper seat belt performance in your Nissan Frontier.

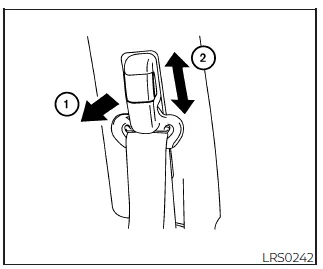

Shoulder belt height adjustment (front seats)

The shoulder belt anchor in the Nissan Frontier can be adjusted vertically to suit different driver and passenger heights, ensuring both comfort and optimal protection.

To adjust the height, pull the adjustment button 1 outward and move the shoulder belt anchor to the desired position 2. The belt should pass over the center of your shoulder, not touching your neck or face, and should not slip off your shoulder.

After positioning, release the button and ensure the anchor locks securely into place. Proper adjustment is essential for maximizing the effectiveness of the seat belt system in the Nissan Frontier.

WARNING

• After adjusting the shoulder belt height in the Nissan Frontier, always release the adjustment button and verify that the anchor is securely locked by attempting to move it up and down.
• If the shoulder belt is not correctly positioned, the effectiveness of the restraint system may be reduced, increasing the risk of serious injury during an accident.

Seat belt extenders

If the standard seat belt in the Nissan Frontier does not fit properly due to body size or seating position, a compatible seat belt extender is available. This extender increases the length of the belt by approximately 8 inches (200 mm) and can be used for the driver or front passenger seat.

For proper compatibility and safety, it is recommended to consult an authorized NISSAN dealer when purchasing a seat belt extender for your Nissan Frontier.

WARNING

• Only genuine NISSAN seat belt extenders, manufactured by the same supplier as the original seat belts, should be used in the Nissan Frontier.
• Passengers who can safely use the standard seat belt should not use an extender. Unnecessary use may reduce safety and increase the risk of injury in an accident.
• Never use seat belt extenders to secure child restraint systems. Improper installation could result in serious injury or death in the Nissan Frontier during a collision or sudden stop.

Seat belt maintenance

• To clean the seat belt webbing in your Nissan Frontier, use a mild soap solution or a cleaner suitable for upholstery or carpets. Gently wipe the belt with a cloth and allow it to air dry in a shaded area. Do not retract the belt until it is completely dry.
• If debris accumulates in the shoulder belt guide, the belt may retract more slowly. Clean the guide using a dry, soft cloth to maintain smooth operation.
• Regularly inspect all seat belt components in the Nissan Frontier, including buckles, latch plates, retractors, wiring, and anchor points. If you notice looseness, fraying, cuts, or any visible damage, the entire seat belt assembly should be replaced immediately to ensure safety.

Child safety

Basic Information

WARNING

Never allow children to play with seat belts in the Nissan Frontier. Many seating positions are equipped with Automatic Locking Retractor (ALR) seat belts. If a belt becomes wrapped around a child’s neck while ALR mode is engaged, it may tighten automatically and cause serious injury or even death. This dangerous situation can occur even when the Nissan Frontier is parked.

If a child becomes entangled, immediately unbuckle the seat belt to release them. If the belt cannot be unfastened, it must be cut using an appropriate tool such as scissors or a knife to ensure the child’s safety.

Children require constant supervision and proper protection from adults. They must always be correctly restrained when traveling in the Nissan Frontier.

In addition to the guidance provided in this Nissan Frontier manual, further information on child safety can be obtained from healthcare professionals, educators, government road safety authorities, and community safety programs.

Since every child is unique in size and development, it is essential to choose the most appropriate method of transportation and restraint for each individual child when traveling in the Nissan Frontier.

There are three primary types of child restraint systems:

• Rear-facing child restraint
• Forward-facing child restraint
• Booster seat

The correct restraint system depends on the child’s age, weight, and height. Generally, infants up to approximately 1 year old and weighing less than 20 lbs (9 kg) should always be secured in a rear-facing child restraint system when riding in the Nissan Frontier.

Forward-facing child restraints are designed for children who have outgrown rear-facing seats and are at least 1 year old. Booster seats are intended for older children who no longer fit forward-facing restraints but still require assistance to properly position the seat belt.

WARNING

Infants and young children require specialized protection. Standard seat belts in the Nissan Frontier may not fit properly on smaller occupants.

The shoulder belt may sit too close to the face or neck, and the lap belt may not rest securely across the hips. In a collision, an improperly fitted seat belt can lead to severe or fatal injuries. Always use an appropriate child restraint system in the Nissan Frontier.

All U.S. states and Canadian provinces or territories mandate the use of approved child restraint systems for infants and young children.

A child restraint in the Nissan Frontier can be secured using either the LATCH (Lower Anchors and Tethers for Children) system or the vehicle’s seat belt system, depending on the seat and restraint design.

NISSAN strongly recommends that all children and pre-teens ride in the rear seats of the Nissan Frontier (especially in Crew Cab models), as this location provides the highest level of protection.

This recommendation is particularly important because the Nissan Frontier is equipped with front passenger air bags, which may pose a risk to children if they are seated in the front.

Infants

Infants should always be placed in a rear-facing child restraint system for as long as possible, and at least until they reach 1 year of age. This position provides optimal support for the head, neck, and spine in the Nissan Frontier.

NISSAN recommends selecting a child restraint that complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Always ensure that the chosen seat is compatible with your Nissan Frontier and follow the manufacturer’s installation and usage instructions carefully.

Small children

Children older than 1 year and weighing at least 20 lbs (9 kg) should remain in a rear-facing child restraint as long as possible, up to the maximum height or weight limit specified by the manufacturer.

Once they outgrow rear-facing restraints, they should transition to a forward-facing child restraint equipped with a harness system. Always follow the manufacturer’s guidelines regarding height and weight limits when using child restraints in the Nissan Frontier.

NISSAN recommends using only certified child restraints that meet applicable safety standards and are properly installed in the Nissan Frontier.

Larger children

Children should continue to use a forward-facing restraint with a harness until they reach the maximum allowable size for that system.

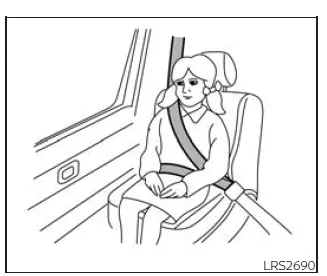

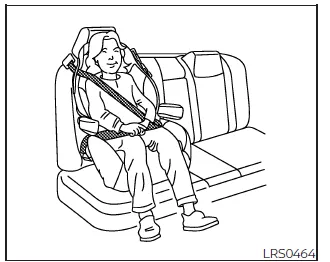

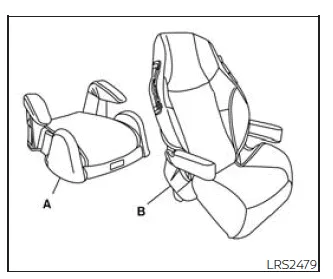

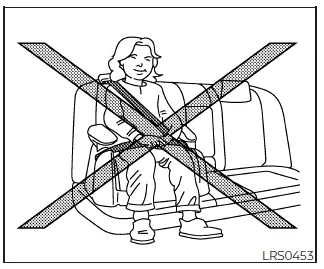

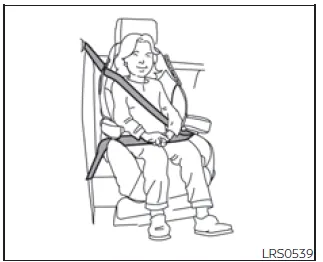

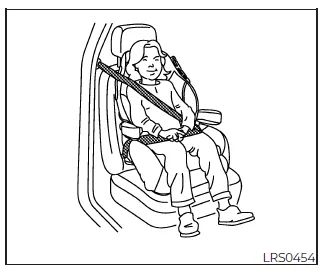

After outgrowing the harness system, children should use a booster seat to ensure proper seat belt positioning in the Nissan Frontier. The booster seat elevates the child so that the shoulder belt crosses the chest correctly and the lap belt rests securely on the hips.

The shoulder belt must never cross the neck or face, and the lap belt must not ride on the abdomen. Proper belt positioning is essential for safety in the Nissan Frontier.

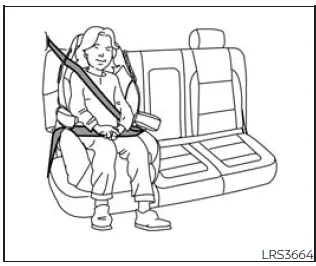

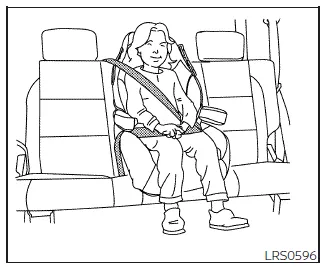

A booster seat may only be used in seating positions equipped with a three-point seat belt. Always verify that the booster seat is certified to meet applicable safety standards and fits properly in your Nissan Frontier.

Once the child grows enough for the seat belt to fit correctly without a booster—meaning the shoulder belt sits properly across the chest and the lap belt rests on the hips—the booster seat may no longer be required.

A booster seat should continue to be used until the child can successfully pass the following seat belt fit test:

• Does the child sit with their back and hips fully against the Nissan Frontier seatback?
• Can the child sit upright without slouching?
• Do the child’s knees bend naturally over the seat edge with feet flat on the floor?
• Does the seat belt fit correctly (lap belt low across hips and shoulder belt across the chest and shoulder)?
• Is the head restraint/headrest properly adjusted for the child?
• Can the child remain seated correctly throughout the entire trip?

If the answer to any of these questions is “no,” the child should continue using a booster seat with a three-point seat belt in the Nissan Frontier.

NOTE:

Local regulations may vary depending on your region. Always check applicable laws and requirements to ensure that your child is using the correct restraint system when traveling in the Nissan Frontier.

WARNING

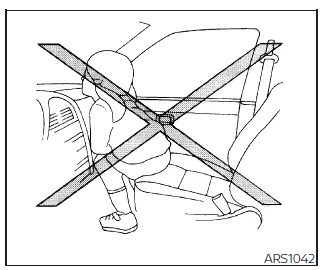

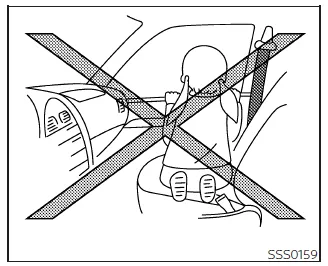

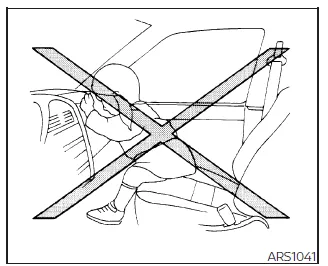

Never allow a child to stand, kneel, or ride unrestrained on any seat or in the cargo area of the Nissan Frontier. In the event of sudden braking or a collision, this can result in serious injury or death.

Child restraints

Precautions on child restraints

WARNING

• Failure to properly install and use a child restraint system in the Nissan Frontier can result in serious injury or death during sudden braking or a collision. Always strictly follow all safety instructions and manufacturer guidelines.
  • Never install a rear-facing child restraint in the driver's side rear seating position of the Nissan Frontier.
  • Do not install forward-facing child seats or booster seats if the base extends beyond the front edge of the seat cushion, as this may compromise stability and safety.
  • Always install and use the child restraint exactly as instructed by the manufacturer. Improper installation in the Nissan Frontier can significantly reduce effectiveness.

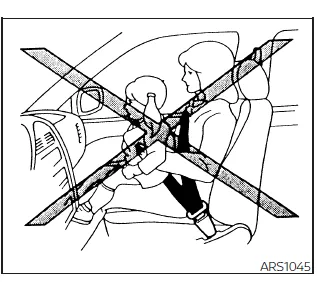

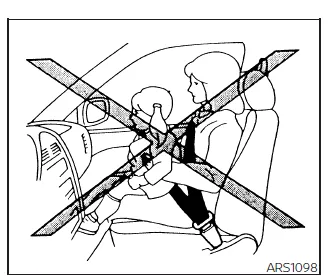

  • Never hold a child on your lap while the Nissan Frontier is in motion. In the event of a collision, even a strong adult cannot restrain a child safely.
  • Never use a single seat belt for more than one occupant. Each child must have their own properly installed restraint system.
  • NISSAN strongly recommends installing all child restraints in the rear seats of the Nissan Frontier. Studies confirm that rear seating positions offer greater protection for children.

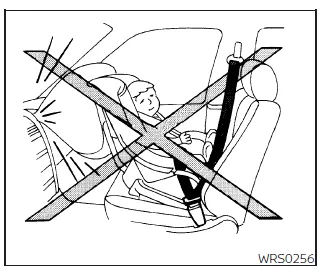

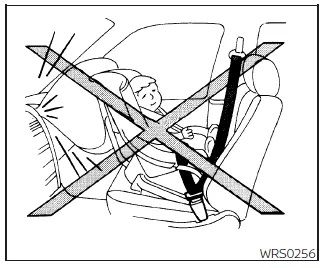

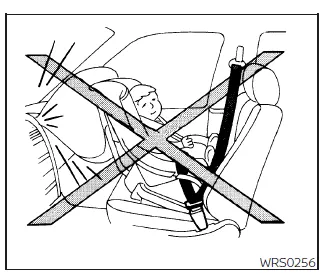

  • Even with the advanced airbag system in the Nissan Frontier, never place a rear-facing child restraint in the front passenger seat. Deployment of the airbag can cause severe injury or death.
  • Always select a child restraint that is compatible with both your child’s size and the Nissan Frontier seating configuration.
  • Child restraint anchor points in the Nissan Frontier are designed exclusively for properly installed child restraints. They must never be used for securing adult seat belts, cargo, or any other equipment.

    Misuse of anchor points can damage the anchorage system and compromise the safety of the child restraint, potentially leading to serious injury in an accident.

  • Never use child restraint anchor points for purposes other than securing child restraints.

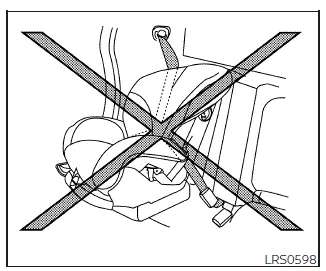

  • Child restraints with top tether straps should not be installed in the front passenger seat in Nissan Frontier King Cab models.
  • After installing a child restraint, ensure that the seatback remains as upright as possible for maximum stability and safety.
  • Infants and children must always be secured in an appropriate child restraint system when traveling in the Nissan Frontier.
• When a child restraint is not in use, it must still be secured using the LATCH system or a seat belt. In the Nissan Frontier, unsecured objects can become dangerous during sudden stops or collisions.

CAUTION

A child restraint left inside a closed Nissan Frontier can become extremely hot. Always check the seating surface and buckle temperature before placing a child in the seat to prevent burns or discomfort.

This Nissan Frontier is equipped with a universal child restraint anchoring system known as LATCH (Lower Anchors and Tethers for Children). Many modern child restraints are designed with connectors that attach directly to these anchors for secure installation.

If your child restraint is not compatible with the LATCH system, the vehicle’s seat belt system can be used to safely install the child seat in the Nissan Frontier.

Various manufacturers provide child restraint systems suitable for different ages, weights, and sizes. When selecting a child restraint for your Nissan Frontier, consider the following important factors:

• Choose only a child restraint certified to meet Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.
• Test the child restraint in your Nissan Frontier to confirm compatibility with the seat shape and seat belt system.
• Ensure the restraint fits your child properly. Adjust all straps and components according to the manufacturer’s recommendations for height and weight.
• If the combined weight of the child and the restraint is less than 65 lbs (29.5 kg), either the LATCH system or the vehicle seat belt may be used (but never both simultaneously).
• If the combined weight exceeds 65 lbs (29.5 kg), the child restraint must be installed using the vehicle’s seat belt instead of the lower anchors.
• Always follow the detailed installation and usage instructions provided by the child restraint manufacturer when using it in the Nissan Frontier.

All U.S. states and Canadian provinces or territories legally require that infants and small children be secured in an approved child restraint system whenever the vehicle is in motion. Canadian regulations also require that forward-facing child restraints use a top tether strap connected to the designated anchor point in the Nissan Frontier.

LATCH (Lower Anchors and Tethers for CHildren) system

Basic Information

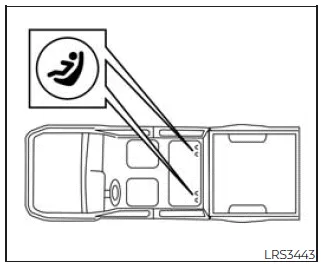

LATCH system lower anchor locations (Crew Cab models)

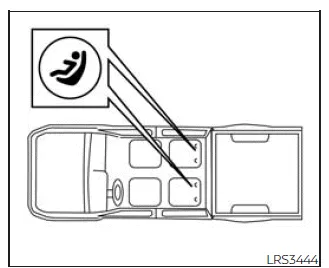

LATCH system lower anchor locations (King Cab models)

Your Nissan Frontier is equipped with dedicated anchor points designed specifically for use with LATCH-compatible child restraint systems. This system, also commonly known as ISOFIX, allows secure installation of child seats without relying on the standard vehicle seat belts.

In the Nissan Frontier, the LATCH system simplifies installation and improves consistency when securing child restraints. However, if the combined weight of the child and the restraint exceeds 65 lbs (29.5 kg), the vehicle’s seat belt must be used instead of the lower anchors.

Always carefully follow both the Nissan Frontier manual and the child restraint manufacturer’s instructions to ensure proper installation and maximum safety.

The LATCH lower anchor points in the Nissan Frontier are located only in the rear outboard seating positions. Never attempt to install a child restraint in the center rear seat using LATCH anchors, as this will not provide proper support or safety.

LATCH lower anchor

WARNING

Improper use or incorrect installation of child restraints in the Nissan Frontier may result in severe injury or death in the event of a sudden stop or collision.

• Attach LATCH-compatible child restraints only to the designated anchor points shown in the Nissan Frontier diagrams.
• Do not attempt to secure a child restraint in the center rear seating position using LATCH anchors, as proper installation cannot be achieved.

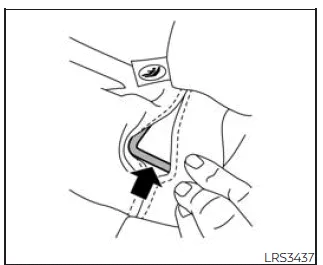

• Before installation, check the anchor area by inserting your fingers to ensure there are no obstructions such as seat belt webbing or seat cushion material. Obstructed anchors may prevent correct installation in the Nissan Frontier.

Child restraint anchor points in the Nissan Frontier are engineered exclusively to handle forces generated by properly installed child seats.

They must never be used to secure adult seat belts, cargo, or other equipment. Misuse can damage the anchors, leading to improper restraint installation and increasing the risk of serious injury or death during a collision.

LATCH lower anchor location

LATCH locations (King Cab models)

LATCH locations (Crew Cab models)

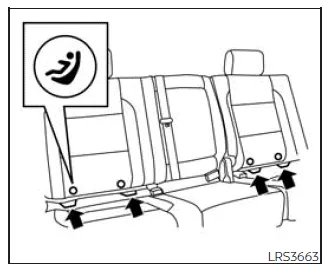

LATCH locations (Crew Cab models)

The LATCH anchors in the Nissan Frontier are positioned as illustrated above. Labels on the seatback help you quickly identify the anchor locations for safe and correct installation.

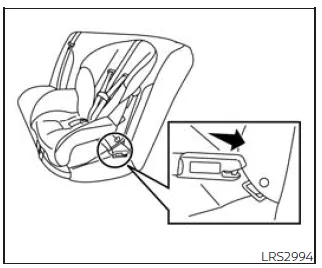

Installing child restraint LATCH lower anchor attachments

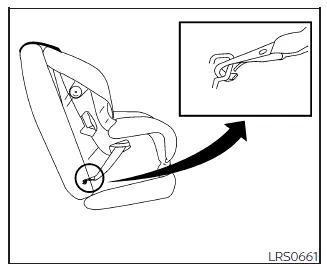

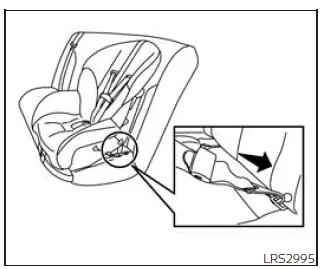

LATCH webbing-mounted attachment

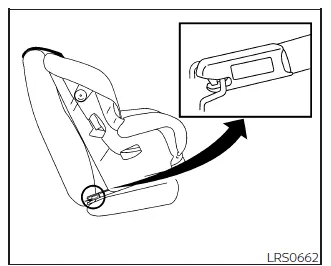

LATCH rigid-mounted attachment

LATCH-compatible child restraints designed for the Nissan Frontier include either rigid connectors or flexible webbing attachments. These connect directly to the anchor points for a secure fit.

Before installation, confirm that your child restraint is labeled as LATCH-compatible. This information can be found on the product label or in the manufacturer’s instructions.

When installing a child seat in the Nissan Frontier, always follow both the vehicle manual and the child restraint manufacturer’s instructions carefully to ensure maximum protection.

Top tether anchor

WARNING

• Do not allow cargo to interfere with the top tether strap when it is connected in the Nissan Frontier. Always secure cargo properly to prevent contact with the tether strap, as damage may compromise child safety in a collision.
• Top tether and LATCH anchor points in the Nissan Frontier are designed solely for child restraint systems.

  They must never be used for adult seat belts, harnesses, or securing cargo.

  Improper use may damage the anchorage system, resulting in incorrect installation and increased risk of injury or death during an accident.

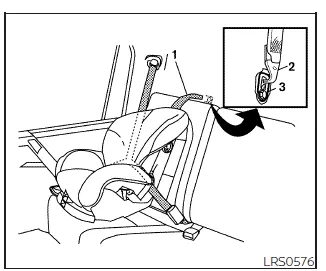

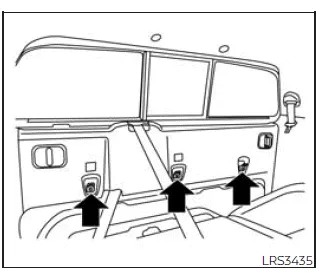

Rear bench seat (Crew Cab models)

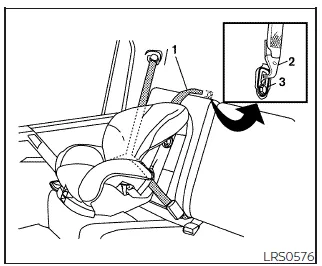

Top tether anchor point locations

In Nissan Frontier Crew Cab models, the top tether anchor points are located behind the rear bench seat, beneath the rear window, as shown in the illustration.

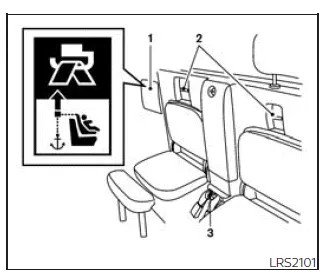

Jump seats (King Cab models - passenger side shown)

1. Cover plate
2. Routing bracket
3. Anchor point

• In Nissan Frontier King Cab models, the anchor point is located on the floor between the jump seat belt buckles in the center of the vehicle.

The anchor point is positioned on the floor between the jump seat belt buckles, while the routing bracket is located behind the cover plate beneath the rear window above the jump seat. Always ensure proper routing of the tether strap when installing a child restraint in the Nissan Frontier.

Rear-facing child restraint installation using LATCH (Crew Cab models)

In the Nissan Frontier, the LATCH system provides a secure and convenient way to install rear-facing child restraints. However, the lower anchors must not be used if the combined weight of the child and the child restraint exceeds 65 lbs. (29.5 kg). In such cases, the vehicle’s seat belt must be used instead to properly secure the child restraint.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions carefully to ensure correct installation and maximum safety for your child.

Follow these steps to properly install a rear-facing child restraint in the rear seats of the Nissan Frontier using the LATCH system:

1. Carefully position the child restraint on the rear seat of the Nissan Frontier, ensuring it is aligned properly with the seating surface.

Always follow the child restraint manufacturer’s instructions for correct positioning and orientation.

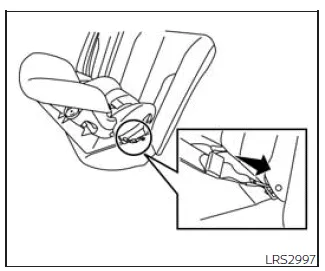

Rear-facing webbing-mounted - step 2

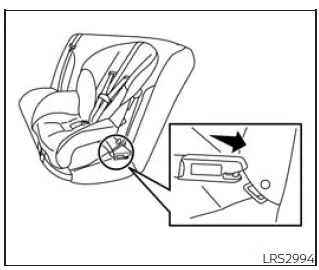

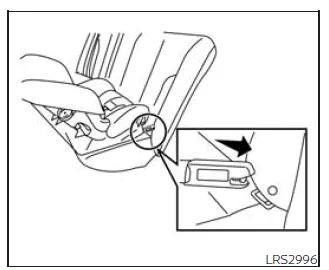

Rear-facing rigid-mounted - step 2

2. Attach the child restraint connectors to the LATCH lower anchors in the Nissan Frontier.

Ensure that each attachment clicks securely into place and that the connectors are properly aligned with the anchor points.

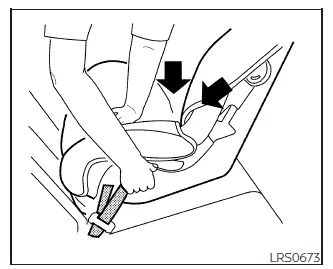

Rear-facing - step 3

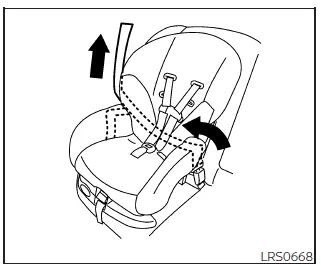

3. For child restraints equipped with webbing-mounted attachments, remove all slack from the straps. Firmly press down and back on the child restraint using your hand to compress the Nissan Frontier seat cushion and seatback while tightening the straps. This ensures a tight and secure fit.

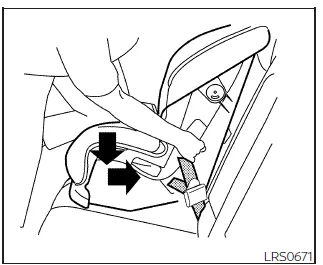

Rear-facing - step 4

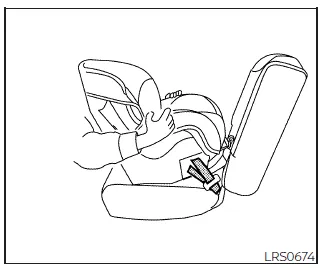

4. After installation, always test the child restraint before placing your child inside. Hold the restraint near the LATCH attachment path and attempt to move it side to side. In the Nissan Frontier, the seat should not move more than 1 inch (25 mm).

Additionally, pull the restraint forward to verify that it remains securely anchored. If there is excessive movement, tighten the attachments further or reposition the child restraint.

If the child restraint cannot be properly secured, try a different seating position in the Nissan Frontier or install it using the vehicle’s seat belt instead. Not all child restraints are compatible with every vehicle seat design.

5. Before every trip, check that the child restraint in your Nissan Frontier is securely installed. If any looseness is detected, repeat steps 2 through 4 to ensure proper safety.

For added safety, periodically recheck the installation, especially after long trips or if the seat has been adjusted. Proper installation in the Nissan Frontier is critical for protecting your child in all driving conditions.

Rear-facing child restraint installation using LATCH - jump seat (King Cab models)

WARNING

• If a child restraint system is not correctly installed in the Nissan Frontier, it may fail to provide proper protection, resulting in serious injury or death during a sudden stop or collision.

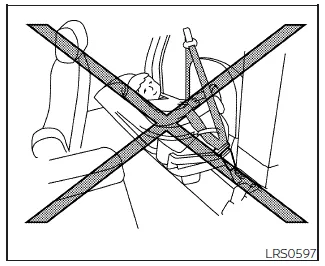

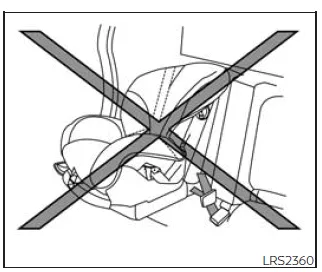

  • Never install a rear-facing child restraint on the driver's side jump seat in the Nissan Frontier.
  • Do not install a child restraint on the passenger-side jump seat unless the seat extension is fully unfolded and properly secured.

WARNING

• To safely install a rear-facing child restraint on the passenger-side jump seat in the Nissan Frontier, the front passenger seat must be moved completely forward and the seatback placed in an upright or forward-tilted position.

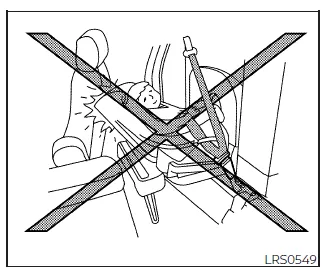

  • The front passenger seat must not be used while a rear-facing child restraint is installed behind it on the jump seat. Failure to follow this precaution may result in serious injury during a sudden stop or collision.

Do not use the lower LATCH anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, the vehicle’s seat belt must be used instead of the lower anchors.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s installation instructions to ensure safe and correct usage.

Follow these steps to install a rear-facing child restraint on the jump seat in the Nissan Frontier:

Full open seating position

1. To access the jump seat extension (passenger side only) A, pull upward B to unfold the extension. Then deploy the support legs C and lower the jump seat until it reaches the fully open seating position in the Nissan Frontier.

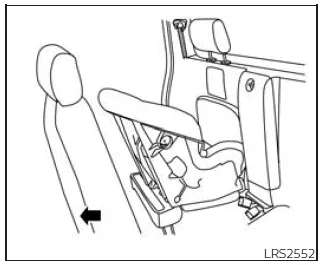

Rear-facing - step 2

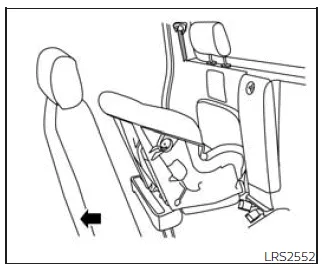

2. Move the front passenger seat fully forward and adjust the seatback to an upright or forward-tilted position. Place the child restraint on the jump seat. The orientation of the restraint will depend on its type and the size of the child. Always follow the manufacturer’s instructions when installing the child restraint in the Nissan Frontier.

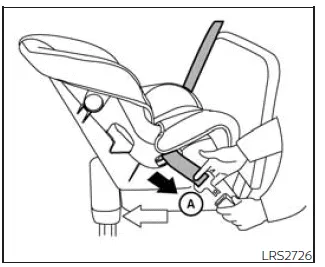

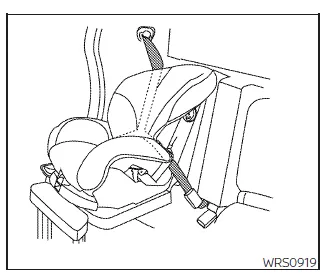

3. Carefully position the child restraint on the seat, ensuring it sits flat and stable.

Always follow the child restraint manufacturer’s guidelines for correct placement and alignment.

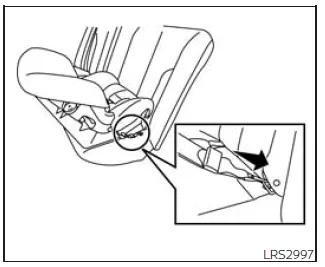

Rear-facing webbing-mounted - step 4

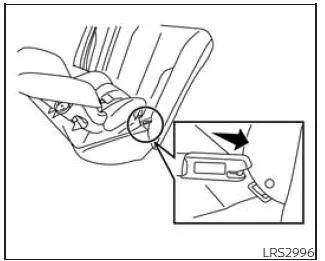

Rear-facing rigid-mounted - step 4

4. Attach the child restraint connectors to the LATCH lower anchors in the Nissan Frontier. Ensure each connector is properly secured and locked into place.

Check the attachment points carefully to confirm that the connectors are fully engaged with the anchors.

Rear-facing - step 5

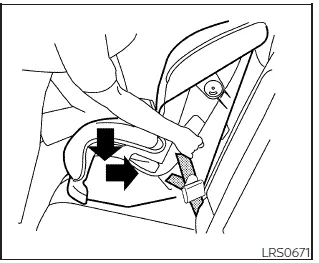

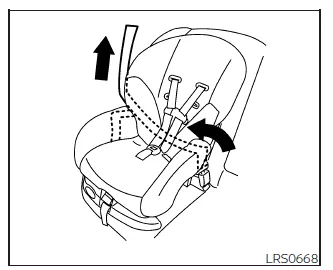

5. For restraints with webbing-mounted attachments, remove any slack from the straps. Press firmly downward and rearward in the center of the child restraint to compress the seat cushion and seatback of the Nissan Frontier while tightening the straps to achieve a secure fit.

Rear-facing - step 6

6. After installation, always test the stability of the child restraint before placing your child inside. Hold the restraint near the LATCH attachment path and attempt to move it side to side. In the Nissan Frontier, the movement should not exceed 1 inch (25 mm).

Also pull the restraint forward to ensure it remains firmly secured. If excessive movement is detected, tighten the attachments or reposition the seat.

If the restraint cannot be securely installed, consider using a different seating position or installing it with the vehicle’s seat belt. Not all child restraints are compatible with every seat configuration in the Nissan Frontier.

7. Before each use, verify that the child restraint is securely installed. If any looseness is detected, repeat steps 1 through 6 to ensure maximum safety in the Nissan Frontier.

For optimal protection, periodically recheck the installation, especially after adjusting seats or after long trips. Proper installation is essential to ensure the safety of children in the Nissan Frontier under all driving conditions.

Rear-facing child restraint installation using the seat belts (Crew Cab models)

WARNING

When installing a child restraint in the Nissan Frontier using the vehicle seat belt, the three-point seat belt must be switched into Automatic Locking Retractor (ALR) mode. This mode is specifically designed to securely hold child restraints in place.

If ALR mode is not properly engaged, the child restraint in the Nissan Frontier may remain loose or unstable, increasing the risk of tipping or movement. This can lead to serious injury or even death in the event of a sudden stop or collision. Improper installation may also affect the operation of the front passenger air bag system.

Do not use the LATCH lower anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, always use the vehicle’s seat belt for installation.

Always follow both the Nissan Frontier manual and the child restraint manufacturer’s instructions carefully to ensure proper installation and maximum safety.

Follow these steps to correctly install a rear-facing child restraint in the rear seats of the Nissan Frontier using the seat belt system:

Rear-facing - step 1

1. Rear-facing child restraints must always be installed in the rear seating area of the Nissan Frontier and must never be used in the front passenger seat. Position the child restraint securely on the seat, ensuring it is aligned correctly.

Always follow the child restraint manufacturer’s instructions regarding placement and orientation.

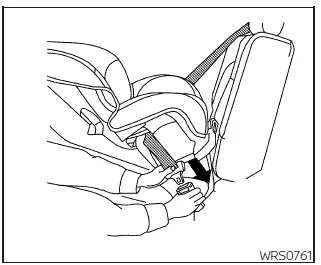

Rear-facing - step 2

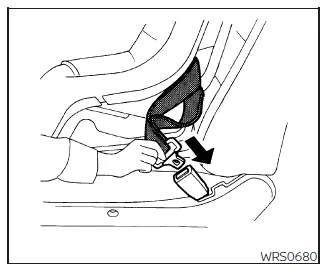

2. Route the seat belt through the designated path in the child restraint, then insert the latch plate into the buckle until you hear a click indicating it is securely fastened.

Make sure the belt routing matches the instructions provided by the child restraint manufacturer for proper installation in the Nissan Frontier.

Rear-facing - step 3

3. Pull the shoulder belt completely out of the retractor. This action activates the ALR mode (child restraint mode) in the Nissan Frontier. The system will automatically switch back to ELR mode once the belt is fully retracted.

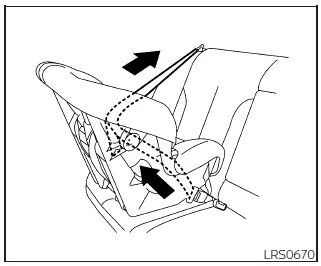

Rear-facing - step 4

4. Allow the seat belt to retract slowly while pulling upward on the shoulder portion to remove slack. This ensures the belt tightens securely around the child restraint.

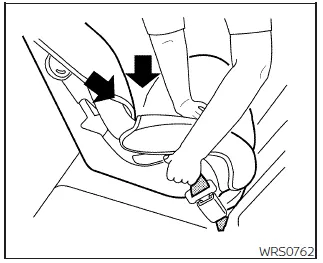

Rear-facing - step 5

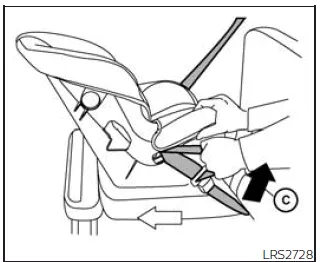

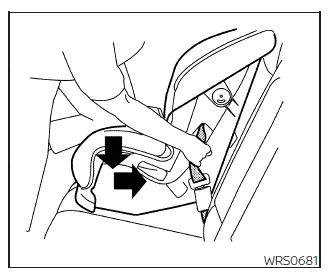

5. Remove any remaining slack by pressing firmly downward and rearward in the center of the child restraint. This compresses the Nissan Frontier seat cushion and seatback while tightening the seat belt for a secure installation.

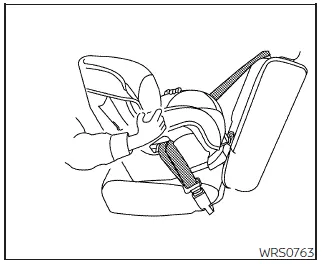

Rear-facing - step 6

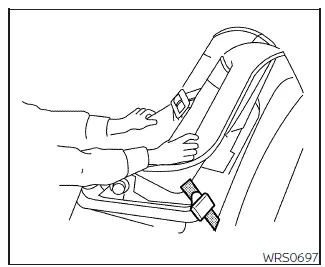

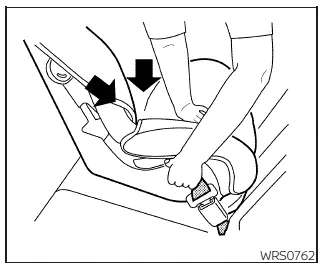

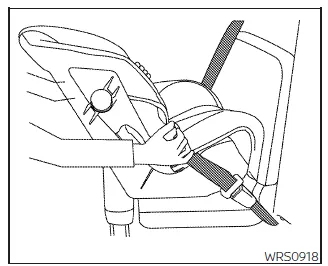

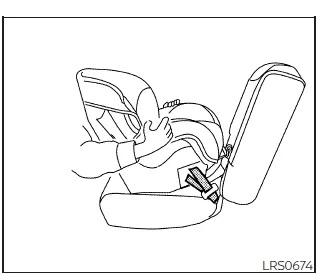

6. After installation, always test the stability of the child restraint before placing your child inside. Hold the restraint near the seat belt path and attempt to move it side to side. In the Nissan Frontier, movement should not exceed 1 inch (25 mm).

Pull the restraint forward as well to ensure it remains firmly secured. If excessive movement is detected, tighten the belt further or reposition the restraint.

If the child restraint cannot be properly secured, try a different seating position or a different restraint model. Not all child restraints fit every seating configuration in the Nissan Frontier.

7. Before each trip, verify that the child restraint is securely installed. If the seat belt is not properly locked, repeat steps 3 through 6 to ensure correct installation.

After removing the child restraint and allowing the seat belt to fully retract, the ALR mode (child restraint mode) in the Nissan Frontier will automatically disengage and return to normal operation.

For added safety, it is recommended to periodically recheck the installation, especially after long trips or adjustments to the seating position. Proper installation in the Nissan Frontier is essential to ensure maximum protection for your child in all driving conditions.

Rear-facing child restraint installation using the seat belts - jump seat (King Cab models)

WARNING

• When installing a rear-facing child restraint in the Nissan Frontier using the vehicle seat belt, the three-point seat belt must be switched into Automatic Locking Retractor (ALR) mode. This mode ensures the child restraint is securely held in place.

  Failure to activate ALR mode may result in an improperly secured child restraint, which could tip or move during a sudden stop or collision, increasing the risk of serious injury. Incorrect installation may also affect the operation of the front passenger air bag system in the Nissan Frontier.

• If a child restraint system is not properly installed in the Nissan Frontier, it may not provide adequate protection, potentially leading to severe injury or death in the event of an accident.
  • Never install a rear-facing child restraint on the driver's side jump seat.
  • Do not install a child restraint on the passenger-side jump seat unless the seat extension is fully unfolded and properly locked into position.

WARNING

• To safely install a rear-facing child restraint on the passenger-side jump seat in the Nissan Frontier, the front passenger seat must be moved fully forward, and the seatback must be positioned upright or tilted forward.
  • The front passenger seat must not be used while a rear-facing child restraint is installed behind it. Ignoring this precaution may result in serious injury during sudden braking or a collision.

Do not use the lower anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, always use the vehicle’s seat belt to secure the child restraint.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions carefully to ensure proper installation and maximum safety.

Follow these steps to install a rear-facing child restraint on the passenger-side jump seat in the Nissan Frontier:

Full open seating position

1. To access the jump seat extension A on the passenger side, pull upward B to unfold the extension. Then deploy the support legs C and lower the jump seat until it reaches the fully open seating position in the Nissan Frontier.

Rear-facing - step 2

2. Move the front passenger seat completely forward and adjust the seatback to an upright or forward-tilted position. Carefully place the rear-facing child restraint onto the jump seat, ensuring proper alignment.

Always follow the child restraint manufacturer’s instructions regarding positioning and seat belt routing when installing in the Nissan Frontier.

3. Route the seat belt through the designated path in the child restraint and insert the latch plate into the buckle until it clicks securely into place.

4. Pull the shoulder belt fully out to activate ALR mode, then allow the belt to retract while removing all slack. Press firmly downward and rearward on the child restraint to compress the Nissan Frontier seat cushion while tightening the belt.

5. After installation, test the stability of the child restraint. Hold it near the belt path and attempt to move it side to side. Movement should not exceed 1 inch (25 mm) in the Nissan Frontier.

6. Pull the restraint forward to confirm it remains securely fixed. If looseness is detected, tighten the belt further or reposition the seat.

7. Before every trip, check that the child restraint is securely installed. If necessary, repeat the installation steps to ensure maximum safety in the Nissan Frontier.

For additional safety, periodically inspect the installation, especially after seat adjustments or extended use. Proper installation in the Nissan Frontier is essential to ensure effective protection for your child under all driving conditions.

2. Move the front passenger seat in the Nissan Frontier fully forward to create sufficient space for safe installation. Then adjust the front seatback to an upright or slightly forward-tilted position. Carefully place the child restraint onto the jump seat. The correct orientation of the child restraint will depend on its design and the size of the child. Always follow the child restraint manufacturer’s instructions to ensure proper positioning and maximum safety in the Nissan Frontier.

Rear-facing - step 3

3. Route the seat belt latch plate through the designated belt path of the child restraint and insert it into the buckle until you hear and feel a secure click A. This confirms that the belt is properly engaged.

Ensure that the belt routing follows the exact instructions provided by the child restraint manufacturer, as correct routing is essential for proper installation in the Nissan Frontier.

Rear-facing - step 4

4. Pull the shoulder portion of the seat belt fully outward B until it reaches its maximum extension. At this point, the seat belt retractor in the Nissan Frontier switches to Automatic Locking Retractor (ALR) mode, which is specifically designed for securing child restraints. The system will return to normal ELR mode once the belt is completely retracted.

Rear-facing - step 5

5. Allow the seat belt to retract gradually. While doing so, pull upward on the shoulder belt C to eliminate any slack. This step ensures that the child restraint is held firmly in place within the Nissan Frontier.

Rear-facing - step 6

6. Remove any remaining slack by pressing firmly downward and rearward in the center of the child restraint. This compresses the Nissan Frontier seat cushion and seatback, allowing the belt to tighten securely around the restraint.

Rear-facing - step 7

7. After installation, always test the child restraint before placing your child inside. Hold the restraint near the seat belt path and push it side to side. In the Nissan Frontier, movement should not exceed 1 inch (25 mm).

Also pull the restraint forward to verify that it is securely held in place. If excessive movement is detected, tighten the seat belt further or reposition the restraint.

If the child restraint cannot be properly secured, try a different seating position or a different restraint model. Not all child restraints are compatible with every seating configuration in the Nissan Frontier.

8. Before each trip, confirm that the child restraint is securely installed. If the seat belt is not properly locked, repeat steps 3 through 7 to ensure maximum safety in the Nissan Frontier.

After removing the child restraint and allowing the seat belt to fully retract, the ALR mode (child restraint mode) will automatically disengage and return to standard operation in the Nissan Frontier.

For added safety, it is recommended to periodically recheck the installation, especially after adjusting seats or after extended use. Proper installation in the Nissan Frontier is essential to ensure reliable protection for your child in all driving conditions.

Forward-facing child restraint installation using LATCH (Crew Cab models)

Basic information

In the Nissan Frontier, the LATCH system provides a secure and reliable method for installing forward-facing child restraints in the rear seating positions. However, the lower anchors must not be used if the combined weight of the child and the child restraint exceeds 65 lbs. (29.5 kg). In such cases, the vehicle’s seat belt system must be used instead to ensure proper installation and safety.

Always carefully follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions to achieve a correct and secure installation.

Follow these steps to install a forward-facing child restraint in the rear seats of the Nissan Frontier using the LATCH system:

1. Position the child restraint securely on the rear seat of the Nissan Frontier, ensuring that it sits flat against the seat surface.

Always follow the child restraint manufacturer’s recommendations regarding positioning and orientation.

Forward-facing webbing-mounted - step 2

Forward-facing rigid-mounted - step 2

2. Attach the child restraint connectors to the LATCH lower anchors in the Nissan Frontier. Ensure that each connector is firmly secured and properly engaged.

Check the connection points carefully to confirm that the attachments are fully locked into place.

If the child restraint is equipped with a top tether strap, route it correctly and attach it to the designated tether anchor point in the Nissan Frontier.

Do not install a child restraint that requires a top tether strap in a seating position that is not equipped with a tether anchor.

3. The back of the child restraint should rest firmly against the vehicle seatback. This ensures stability and proper positioning in the Nissan Frontier.

If necessary, adjust or temporarily remove the head restraint/headrest to achieve a proper fit. If removed, store it securely and reinstall it once the child restraint is no longer in use.

If the seating position does not have an adjustable head restraint or if it interferes with installation, consider using a different seating position or selecting a compatible child restraint for the Nissan Frontier.

Forward-facing - step 4

4. For restraints with webbing-mounted attachments, remove any slack from the straps. Press firmly downward and rearward in the center of the child restraint—using your knee if necessary—to compress the Nissan Frontier seat cushion and seatback while tightening the straps for a secure fit.

5. Tighten the top tether strap according to the manufacturer’s instructions to eliminate any remaining slack and improve stability in the Nissan Frontier.

Forward-facing - step 6

6. After installation, always test the child restraint before placing your child inside. Hold the restraint near the LATCH attachment path and attempt to move it side to side. In the Nissan Frontier, movement should not exceed 1 inch (25 mm).

Also pull the restraint forward to verify that it is securely anchored. If excessive movement is detected, tighten the attachments further or reposition the seat.

If the restraint cannot be properly secured, try another seating position or a different child restraint model. Not all restraints are compatible with every seating configuration in the Nissan Frontier.

7. Before every trip, confirm that the child restraint is securely installed. If any looseness is detected, repeat steps 3 through 6 to ensure maximum safety in the Nissan Frontier.

Anchor point access

1. Pull strap
2. Anchor points

Installing top tether strap (rear bench seat for Crew Cab models)

To access the tether anchor points behind the rear bench seat in the Nissan Frontier, tilt the seatback forward by pulling the strap located behind it.

Rear bench seat (Crew Cab models)

1. Top tether strap
2. Tether strap
3. Tether anchor point

Before securing the child restraint with the LATCH lower anchors in the Nissan Frontier, follow these steps:

1. If necessary, raise or remove the head restraint/headrest to correctly position the top tether strap. Store the head restraint securely and reinstall it when the child restraint is removed.

2. Route the top tether strap as shown to ensure proper alignment.

3. Attach the tether strap securely to the tether anchor point.

4. Return the seatback to its locked position.

5. Refer back to the installation steps and tighten the tether strap fully to ensure maximum stability.

If you have any questions or require assistance when installing a top tether strap in your Nissan Frontier, it is recommended to consult an authorized NISSAN dealer for professional support.

Forward-facing child restraint installation using LATCH - jump seat (King Cab models)

Basic information

WARNING

• If a child restraint system is not properly installed in the Nissan Frontier, it may not provide adequate protection, increasing the risk of serious injury or death during a sudden stop or collision.
  • Do not install a child restraint on the passenger-side jump seat unless the seat extension is fully unfolded and securely positioned.
  • For forward-facing child restraints and booster seats, do not install the restraint if its base extends beyond the front edge of the driver-side seat cushion, as this may compromise stability and safety in the Nissan Frontier.

Do not use the LATCH lower anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, use the vehicle’s seat belt system instead to ensure proper installation.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions carefully to achieve a safe and secure installation.

Follow these steps to install a forward-facing child restraint on the jump seat in the Nissan Frontier:

Full open seating position

1. To access the passenger-side jump seat extension A, pull upward B to unfold the extension. Then deploy the support legs C and lower the seat into the fully open seating position in the Nissan Frontier.

2. Position the child restraint on the jump seat, ensuring it sits flat and stable against the seat surface.

Always follow the child restraint manufacturer’s instructions regarding positioning and orientation.

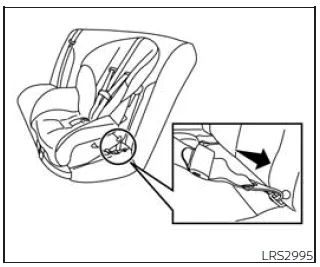

Forward-facing webbing-mounted - step 3

Forward-facing rigid-mounted - step 3

3. Attach the child restraint connectors to the LATCH lower anchors in the Nissan Frontier. Ensure that the connectors are securely locked into place and properly aligned with the anchor points.

Check each connection carefully to confirm proper engagement.

If the child restraint includes a top tether strap, route it correctly and attach it to the designated tether anchor point.

Do not install child restraints that require a top tether strap in seating positions without a tether anchor in the Nissan Frontier.

4. The back of the child restraint should rest firmly against the vehicle seatback to ensure stability.

If necessary, adjust or remove the head restraint/headrest to achieve proper fit. Store the removed head restraint securely and reinstall it once the child restraint is removed.

If the head restraint cannot be adjusted and interferes with proper installation, use a different seating position or select a compatible child restraint for the Nissan Frontier.

Forward-facing - step 5

5. For child restraints with webbing-mounted attachments, remove all slack from the straps. Press firmly downward and rearward in the center of the child restraint—using your knee if necessary—to compress the Nissan Frontier seat cushion and seatback while tightening the straps.

6. Tighten the top tether strap according to the manufacturer’s instructions to eliminate any remaining slack and enhance stability.

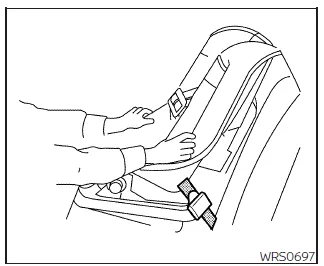

Forward-facing - step 7

7. After installation, always test the child restraint before placing your child inside. Hold the restraint near the LATCH attachment path and attempt to move it side to side. In the Nissan Frontier, the restraint should not move more than 1 inch (25 mm).

Pull the restraint forward as well to ensure it remains securely anchored. If excessive movement is detected, tighten the attachments or reposition the seat.

If the restraint cannot be properly secured, try a different seating position or a different child restraint model. Not all restraints fit every configuration in the Nissan Frontier.

8. Before each trip, verify that the child restraint is securely installed. If any looseness is detected, repeat steps 1 through 7 to ensure maximum safety.

Jump seat (King Cab models)

1. Top tether strap
2. Routing bracket
3. Tether anchor point

Installing top tether strap - jump seat (King Cab models)

WARNING

• Do not attach the top tether strap to the routing bracket in the Nissan Frontier. The strap must be secured only to the designated tether anchor point. Incorrect attachment can significantly increase the risk of injury in a collision.
• Child restraint anchor points in the Nissan Frontier are designed exclusively for properly installed child restraints.

  They must never be used for securing adult seat belts, cargo, or other equipment. Misuse may damage the anchorage system and compromise safety.

The top tether strap must always be used when installing a forward-facing child restraint with LATCH lower anchors in the Nissan Frontier.

First, secure the child restraint using the LATCH lower anchors in the rear seating position.

1. Remove the cover plate to access the top tether strap routing bracket for the jump seat.

2. Route the top tether strap through the routing bracket as illustrated.

3. Attach the tether strap securely to the designated tether anchor point.

4. Refer back to the installation steps and tighten the tether strap fully to ensure maximum stability.

If you have any questions regarding top tether strap installation in your Nissan Frontier, it is recommended to consult an authorized NISSAN dealer for professional assistance.

Forward-facing child restraint installation using the seat belts - front passenger and rear bench seat (Crew Cab models)

Basic information

WARNING

When installing a forward-facing child restraint in the Nissan Frontier using the vehicle seat belt, the three-point seat belt must be switched into Automatic Locking Retractor (ALR) mode. This mode ensures that the child restraint is securely held in place and prevents movement during driving.

If ALR mode is not properly engaged, the child restraint may become loose or unstable. This can result in serious injury or death during a sudden stop or collision. Incorrect installation may also interfere with the proper operation of the front passenger air bag system in the Nissan Frontier.

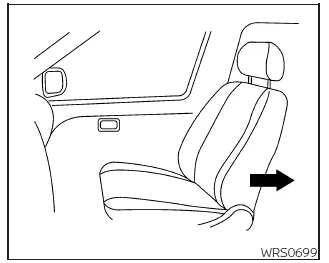

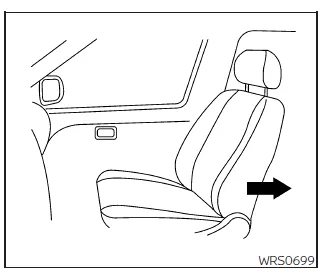

Forward-facing (front passenger seat) - step 1

Do not use the LATCH lower anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, the vehicle’s seat belt must be used instead to ensure a secure installation.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions carefully for proper installation.

Follow these steps to install a forward-facing child restraint using the seat belt system in the rear seats or, if necessary, in the front passenger seat of the Nissan Frontier:

1. If installation in the front passenger seat is unavoidable, the child restraint must be forward-facing only. Move the front passenger seat to its rearmost position to maximize distance from the air bag.

Rear-facing child restraints must never be installed in the front seat of the Nissan Frontier.

2. Place the child restraint on the seat, ensuring it is properly aligned and positioned.

Always follow the child restraint manufacturer’s instructions regarding placement and orientation.

The back of the child restraint should be firmly supported against the seatback of the Nissan Frontier.

If necessary, adjust or remove the head restraint/headrest to achieve a proper fit. Store any removed components securely and reinstall them when the child restraint is no longer in use.

If the head restraint interferes with correct installation and cannot be adjusted, use a different seating position or a compatible child restraint designed for the Nissan Frontier.

Forward-facing - step 3

3. Route the seat belt through the designated path in the child restraint and insert the latch plate into the buckle until it clicks securely into place.

Ensure proper belt routing according to the child restraint manufacturer’s instructions for safe installation in the Nissan Frontier.

If the child restraint is equipped with a top tether strap, route it correctly and attach it to the tether anchor point (rear seat installation only).

Do not install a child restraint that requires a top tether strap in a seating position without a tether anchor in the Nissan Frontier.

Forward-facing - step 4

4. Pull the shoulder belt completely outward until it reaches full extension. This activates ALR mode (child restraint mode) in the Nissan Frontier. The system will return to normal ELR mode once the belt is fully retracted.

Forward-facing - step 5

5. Allow the seat belt to retract slowly while pulling upward on the shoulder portion to remove slack and tighten the belt securely around the child restraint.

Forward-facing - step 6

6. Remove any remaining slack by pressing firmly downward and rearward in the center of the child restraint using your knee. This compresses the Nissan Frontier seat cushion and ensures a tight, secure installation.

7. Tighten the top tether strap according to the manufacturer’s instructions to eliminate any remaining slack and improve stability.

Forward-facing - step 8

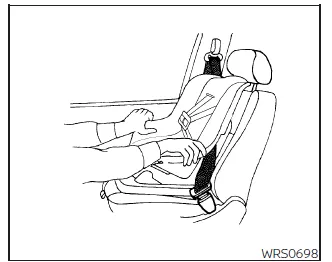

8. After installation, test the child restraint before placing your child inside. Hold it near the seat belt path and push side to side. In the Nissan Frontier, movement should not exceed 1 inch (25 mm).

Also pull the restraint forward to confirm it is securely held in place. If excessive movement is detected, tighten the seat belt or reposition the restraint.

If necessary, try a different seating position or a different child restraint model. Not all restraints are compatible with every seating configuration in the Nissan Frontier.

9. Before every trip, confirm that the child restraint is properly secured. If the seat belt is not locked, repeat steps 3 through 8.

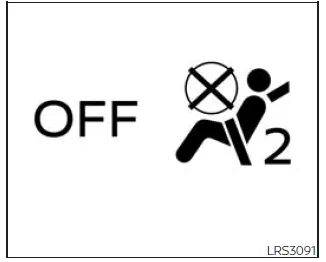

Forward-facing - step 10

10. If the child restraint is installed in the front passenger seat, turn the ignition switch to the ON position. Verify that the front passenger air bag status light is illuminated. If the light does not illuminate, refer to the appropriate section and move the child restraint to another seating position.

Have the system inspected if necessary. It is recommended to consult an authorized NISSAN dealer to ensure proper operation.

After the child restraint is removed and the seat belt is fully retracted, ALR mode (child restraint mode) in the Nissan Frontier will automatically disengage.

Anchor point access

1. Pull strap
2. Anchor points

Installing top tether strap (rear bench seat for Crew Cab models)

To access the tether anchor points behind the rear bench seat in the Nissan Frontier, tilt the seatback forward by pulling the strap located behind it.

Rear bench seat (Crew Cab models)

1. Top tether strap
2. Tether strap
3. Tether anchor point

The top tether strap must always be used when installing a forward-facing child restraint with the seat belt system in the Nissan Frontier.

First, secure the child restraint using the vehicle seat belt.

1. If necessary, raise or remove the head restraint/headrest to properly position the tether strap. Store removed components securely and reinstall them when the child restraint is removed.

2. Route the top tether strap as illustrated.

3. Attach the tether strap securely to the designated anchor point.

4. Return the seatback to the locked position.

5. Refer back to the installation steps and tighten the tether strap fully to ensure maximum stability.

If you have any questions regarding installation in your Nissan Frontier, it is recommended to visit an authorized NISSAN dealer for professional assistance.

Forward-facing child restraint installation using the seat belts - front passenger and jump seats (King Cab models)

Basic information

WARNING

• When installing a forward-facing child restraint in the Nissan Frontier using the vehicle seat belt, the three-point seat belt must be switched into Automatic Locking Retractor (ALR) mode. This mode ensures that the child restraint is securely held in place during driving.

  If ALR mode is not properly engaged, the child restraint may become loose or unstable. This can result in serious injury or death during sudden braking or a collision. Improper installation may also interfere with the operation of the front passenger air bag system in the Nissan Frontier.

• If a child restraint is not correctly installed in the Nissan Frontier, it may not provide adequate protection, increasing the risk of serious injury or fatal consequences in an accident.
  • Do not install a child restraint on the passenger-side jump seat unless the seat extension is fully unfolded and securely locked into position.
  • For forward-facing child seats and booster seats, do not install the restraint if its base extends beyond the front edge of the driver-side seat cushion, as this may compromise stability and safety in the Nissan Frontier.

Do not use the LATCH lower anchors in the Nissan Frontier if the combined weight of the child and the child restraint exceeds 65 lbs (29.5 kg). In such cases, the vehicle’s seat belt must be used instead to ensure a secure installation.

Always follow both the Nissan Frontier owner’s manual and the child restraint manufacturer’s instructions carefully to guarantee proper installation and maximum safety.

Follow these steps to install a forward-facing child restraint using the seat belt system in the jump seats (King Cab models) or, if necessary, in the front passenger seat of the Nissan Frontier:

Forward-facing (front passenger seat) - step 1

1. If installation in the front passenger seat is unavoidable, the child restraint must be forward-facing only. Move the seat to the rearmost position to maximize distance from the air bag system in the Nissan Frontier.

Rear-facing child restraints must never be installed in the front passenger seat of the Nissan Frontier.

Forward-facing (jump seat for King Cab models) - step 2

Full open seating position

2. To prepare the passenger-side jump seat in the Nissan Frontier, pull upward on the extension A to unfold it. Then deploy the support legs C and lower the seat into the fully open seating position.

Forward-facing - step 3

3. Place the child restraint on the seat, ensuring it sits flat and stable. The back of the child restraint must rest firmly against the seatback of the Nissan Frontier.

Always follow the child restraint manufacturer’s instructions for correct positioning and orientation.

If necessary, adjust or remove the head restraint/headrest to achieve proper fit. Store any removed components securely and reinstall them after the child restraint is removed.

If the head restraint interferes with proper installation and cannot be adjusted, use a different seating position or a compatible child restraint designed for the Nissan Frontier.

Forward-facing - step 4

4. Route the seat belt through the designated belt path in the child restraint and insert the latch plate into the buckle until it clicks securely into place.

Ensure proper routing according to the child restraint manufacturer’s instructions for safe installation in the Nissan Frontier.

If equipped, route the top tether strap and attach it to the designated tether anchor point.

Do not install child restraints requiring a top tether strap in seating positions without a tether anchor.

Forward-facing - step 5

5. Pull the shoulder belt fully outward until it reaches its maximum length. This activates ALR mode (child restraint mode) in the Nissan Frontier. The system will return to ELR mode once the belt is fully retracted.

Forward-facing - step 6

6. Allow the seat belt to retract while pulling upward on the shoulder portion to remove any slack and ensure a tight fit.

Forward-facing - step 7

7. Remove any remaining slack by pressing firmly downward and rearward in the center of the child restraint using your knee. This compresses the Nissan Frontier seat cushion and ensures the restraint is tightly secured.

8. Tighten the top tether strap according to the manufacturer’s instructions to remove any remaining slack and improve overall stability.

Forward-facing - step 9

9. After installation, always test the child restraint before placing your child inside. Hold the restraint near the seat belt path and attempt to move it side to side. In the Nissan Frontier, movement should not exceed 1 inch (25 mm).

Pull the restraint forward as well to confirm that it is securely anchored. If excessive movement is detected, tighten the belt further or reposition the restraint.

If necessary, try a different seating position or a different child restraint model. Not all restraints are compatible with every seating configuration in the Nissan Frontier.

10. Before each trip, verify that the child restraint is securely installed. If the seat belt is not properly locked, repeat steps 3 through 9.

Forward-facing - step 11

11. If the child restraint is installed in the front passenger seat, turn the ignition to the ON position and check that the front passenger air bag status light is illuminated. If it is not illuminated, move the child restraint to another seating position and have the system checked by an authorized NISSAN dealer.

After removing the child restraint and allowing the seat belt to fully retract, ALR mode (child restraint mode) in the Nissan Frontier will automatically disengage.

Jump seat (King Cab models)

1. Top tether strap
2. Routing bracket
3. Tether anchor point

Installing top tether strap - jump seat (King Cab models)

WARNING

• Do not attach the top tether strap to the routing bracket in the Nissan Frontier. The strap must only be secured to the designated tether anchor point. Incorrect attachment can significantly increase the risk of injury in a collision.
• Child restraint anchor points in the Nissan Frontier are designed exclusively for properly installed child restraints.

  They must never be used for securing adult seat belts, cargo, or other equipment, as misuse can damage the anchorage system and compromise safety.

The top tether strap must always be used when installing a forward-facing child restraint with the seat belt system in the Nissan Frontier.

First, secure the child restraint using the vehicle seat belt.

1. Remove the cover plate to access the routing bracket.

2. Route the top tether strap through the routing bracket as shown.

3. Attach the tether strap securely to the designated anchor point.

4. Refer back to the installation steps and tighten the tether strap fully to ensure maximum stability.

If you have any questions regarding installation in your Nissan Frontier, it is recommended to visit an authorized NISSAN dealer for professional assistance.

Booster seats

Basic Information

For proper installation and safe use of a booster seat in the Nissan Frontier, carefully follow the instructions provided in this section as well as those from the booster seat manufacturer. Correct installation is essential to ensure maximum protection for your child during every trip.

Precautions on booster seats

WARNING

If a booster seat and seat belt are not used correctly in the Nissan Frontier, the risk of serious injury or death in a sudden stop or collision increases significantly.

• Ensure that the shoulder belt is positioned away from the child’s face and neck and that the lap belt rests low across the hips, never across the stomach.
• Never place the shoulder belt behind the child’s back or under the arm, as this can reduce protection and increase injury risk in the Nissan Frontier.
• A booster seat must only be used in a seating position equipped with a lap/shoulder (three-point) seat belt system.

1. Low back booster seat
2. High back booster seat

Booster seats are available in a variety of sizes and designs from different manufacturers. When selecting a booster seat for your Nissan Frontier, consider the following important factors:

• Select only a booster seat that is certified to comply with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.
• Test the booster seat in your Nissan Frontier to ensure compatibility with the seat shape and seat belt system.
• Ensure that the child’s head is properly supported. The vehicle seatback or booster seat must reach at least the center of the child’s ears. If using a low back booster seat and the vehicle seatback is too low, a high back booster seat should be used in the Nissan Frontier.
• Place the child in the booster seat and adjust all components to confirm proper fit. Always follow the manufacturer’s recommended procedures for safe use.

All U.S. states and Canadian provinces or territories require that infants and small children be properly restrained in an approved child restraint system at all times while the vehicle is in motion.

The instructions in this section apply to booster seat installation in both the rear seats and the front passenger seat of the Nissan Frontier.

Booster seat installation - front passenger seat (all models) and rear seat (Crew Cab models)

WARNING

To reduce the risk of injury, never use the lap/shoulder belt in Automatic Locking Retractor (ALR) mode when securing a booster seat in the Nissan Frontier. The seat belt must remain in normal operating mode.

Follow these steps to install a booster seat in the rear seat or front passenger seat of the Nissan Frontier:

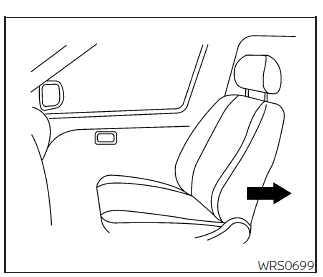

1. If installation in the front passenger seat is necessary, move the seat to its rearmost position to maximize the distance from the air bag system.

Front passenger position

Rear center position

Rear outboard position

2. Position the booster seat securely on the vehicle seat. It must always be installed facing forward.

Always follow the booster seat manufacturer’s instructions for correct placement in the Nissan Frontier.

3. Ensure that the booster seat is stable and properly positioned.

If necessary, adjust or remove the head restraint/headrest to achieve the correct fit. Store any removed components safely and reinstall them when the booster seat is removed.

If the seating position lacks an adjustable head restraint or it interferes with proper installation, use another seating position or select a compatible booster seat for the Nissan Frontier.

4. Position the lap portion of the seat belt low and snug across the child’s hips. Follow the booster seat manufacturer’s instructions for correct belt routing.

5. Pull the shoulder belt toward the retractor to remove slack. The belt should lie across the center of the child’s shoulder and chest, not touching the neck or face.

6. Follow all seat belt usage instructions outlined in the section “Three-point type seat belt with retractor” to ensure safe operation in the Nissan Frontier.

7. If the booster seat is installed in the front passenger seat, turn the ignition to the ON position and check the front passenger air bag status light . The light may or may not illuminate depending on the size of the child and the type of booster seat used.

Booster seat installation - jump seat (King Cab models)

WARNING

• If a booster seat is not properly installed in the Nissan Frontier, the child may be seriously injured or killed in a sudden stop or collision.
  • Do not install a booster seat if its base extends beyond the front edge of the seat cushion, as this may reduce stability.
  • Do not install a booster seat on the passenger-side jump seat unless the seat extension is fully unfolded and securely positioned.
• Never use the seat belt in ALR mode when securing a booster seat in the Nissan Frontier, as this may lead to improper belt tension and reduced safety.

Follow these steps to install a booster seat in the jump seats of the Nissan Frontier:

1. To access the passenger-side jump seat extension A, pull upward B to unfold it. Then deploy the support legs C and lower the seat into the fully open seating position in the Nissan Frontier.

2. Place the booster seat on the jump seat in a forward-facing position.

Always follow the booster seat manufacturer’s instructions for correct installation.

3. Ensure the booster seat is stable and properly positioned on the Nissan Frontier seat.

If necessary, adjust or remove the head restraint/headrest to achieve proper fit. Store removed components safely and reinstall them when the booster seat is no longer in use.

If proper installation cannot be achieved, use another seating position or a different booster seat model compatible with the Nissan Frontier.

4. Position the lap belt low across the child’s hips and ensure it fits snugly.

5. Pull the shoulder belt to remove slack and ensure it is positioned correctly across the shoulder and chest.

6. Follow all seat belt safety instructions outlined in the Nissan Frontier manual to ensure maximum protection.

Supplemental Restraint System (SRS)

Precautions on SRS

Basic Information

This section of the Nissan Frontier manual provides essential safety information about the Supplemental Restraint System (SRS), which is designed to work together with seat belts to enhance occupant protection during certain types of collisions.

The SRS in the Nissan Frontier includes the following key components:

• Driver and front passenger front-impact supplemental air bags (NISSAN Advanced Air Bag System)
• Front seat-mounted side-impact supplemental air bags
• Roof-mounted curtain side-impact and rollover supplemental air bags
• Driver and front passenger supplemental knee air bags
• Seat belts equipped with pretensioners (front and rear outboard seating positions)

Supplemental front-impact air bag system

The NISSAN Advanced Air Bag System in the Nissan Frontier is designed to help reduce the force of impact to the head and chest of the driver and front passenger during certain frontal collisions. It operates in conjunction with seat belts to provide enhanced protection.

Front seat-mounted side-impact supplemental air bag system

This system is engineered to help protect the chest area of the driver and front passenger in certain side-impact collisions. In the Nissan Frontier, these side air bags deploy on the side where the vehicle experiences impact.

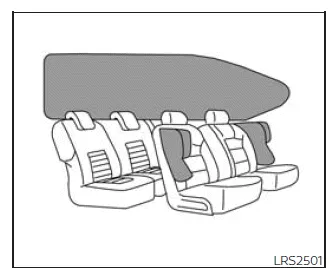

Roof-mounted curtain side-impact and rollover supplemental air bag system

The curtain air bag system in the Nissan Frontier is designed to provide additional head protection for occupants in both front and rear outboard seating positions. In side collisions, the curtain air bags deploy on the impacted side. In rollover situations, they are designed to inflate and remain deployed for a short duration to help protect occupants.

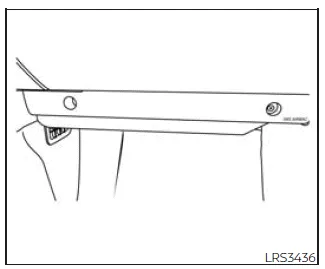

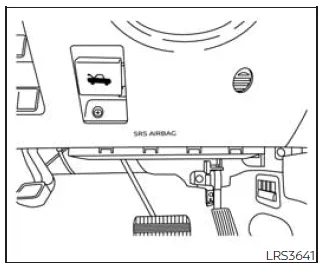

Driver and front passenger supplemental knee air bags

These air bags help reduce impact forces to the lower body area, specifically the knees, of the driver and front passenger during certain collisions in the Nissan Frontier.

The Supplemental Restraint System in the Nissan Frontier is not a replacement for seat belts. Instead, it is designed to supplement the protection provided by properly worn seat belts. All occupants must always wear seat belts and maintain a proper seating position at a safe distance from the steering wheel, instrument panel, and doors.

The supplemental air bags in the Nissan Frontier operate only when the ignition switch is in the ON position.

After turning the ignition ON, the supplemental air bag warning light will illuminate and then turn off after approximately 7 seconds if the system is functioning correctly.

WARNING

• The front air bags in the Nissan Frontier typically do not deploy during side impacts, rear impacts, rollover events, or minor frontal collisions. Always wear your seat belt to reduce the risk of injury in all types of accidents.
• The front passenger front air bag and knee air bag will not deploy if the passenger air bag status light is illuminated or if the front passenger seat is unoccupied.
• Seat belts and front air bags are most effective when you are seated upright and positioned well back in the seat.

  The front air bags deploy with significant force. Even with the advanced system in the Nissan Frontier, improper seating—such as leaning forward, sitting sideways, or being out of position—can greatly increase the risk of serious injury or death. Always maintain proper posture and wear your seat belt correctly.

• The seat belt buckle sensors in the Nissan Frontier detect whether occupants are properly restrained. The system evaluates collision severity and seat belt usage to determine appropriate air bag deployment. Failure to wear a seat belt correctly increases the risk of injury.
• The front passenger seat includes an occupant classification system with weight sensors that may deactivate the front passenger air bag and knee air bag under certain conditions. Improper seating position or failure to wear a seat belt can increase injury risk.
• Always keep your hands on the outer rim of the steering wheel. Placing your hands inside the wheel can increase the risk of injury if the air bag deploys.

WARNING

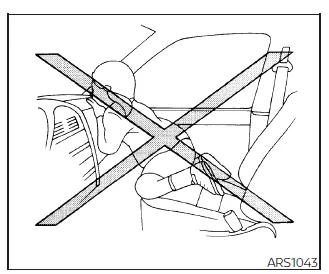

• Never allow children to ride unrestrained in the Nissan Frontier. Do not allow them to lean out of windows or sit in unsafe positions. Holding a child in your arms is not a safe alternative and may result in serious injury in an accident.

WARNING

• Children are at high risk of injury if not properly restrained when air bags deploy. In the Nissan Frontier, all children should be seated in the rear seats and secured using appropriate child restraint systems whenever possible.

WARNING

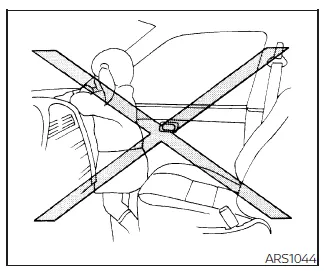

• Even with the advanced air bag system in the Nissan Frontier, never install a rear-facing child restraint in the front passenger seat.

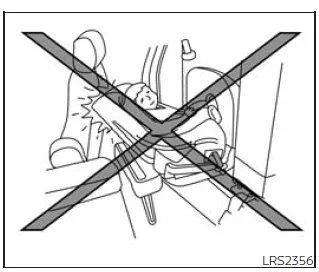

  If the front air bag deploys, it can cause severe or fatal injuries to the child.

Do not lean against the door.

WARNING

Front seat-mounted side-impact air bags and roof-mounted curtain air bags:

• These air bags in the Nissan Frontier generally do not deploy during frontal impacts, rear impacts, or minor side collisions. Always wear seat belts to reduce injury risk.

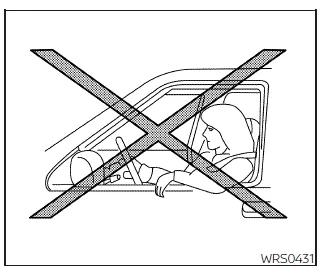

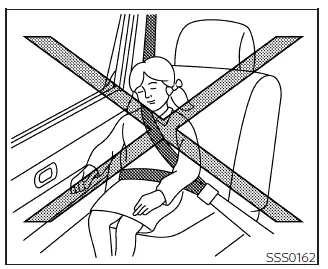

Do not lean against doors or windows.

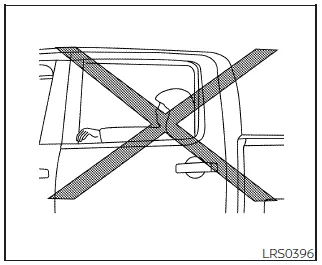

Do not lean against doors or windows.

WARNING

• The seat belts, side air bags, and curtain air bags in the Nissan Frontier are most effective when occupants are seated upright with their backs against the seatback.

  These systems deploy with significant force. Do not allow hands, legs, or faces near the side air bag areas or roof rails. Passengers should not lean against doors or extend body parts outside the vehicle.

WARNING

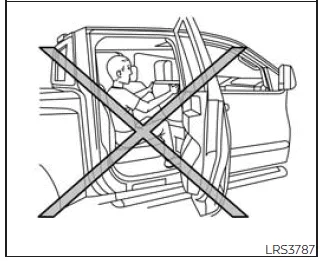

• Rear seat passengers in the Nissan Frontier should never hold onto the front seatback. If a side air bag deploys, serious injury may occur. Children must always be properly restrained.

  Examples of unsafe seating positions are illustrated above.

• Do not install seat covers on front seatbacks, as they may interfere with proper deployment of side air bags in the Nissan Frontier.

NISSAN Advanced Air Bag System (front seats)

Basic Information

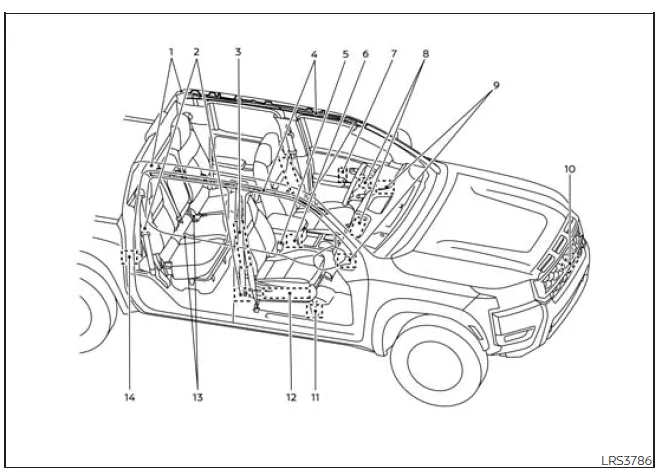

1. Roof-mounted curtain side-impact and rollover supplemental air bag inflators
2. Seat belt with pretensioners (front and rear outboard seating positions)
3. Front seat-mounted side-impact supplemental air bag modules
4. Roof-mounted curtain side-impact and rollover supplemental air bags
5. Front seat belt buckle switches
6. Air bag Control Unit (ACU)
7. Front door satellite sensors (driver and passenger sides)
8. Supplemental front-impact air bag modules
9. Driver and front passenger supplemental knee air bags
10. Crash zone sensor
11. Occupant classification system control unit
12. Occupant classification sensors (weight sensors)
13. Rear seat belt buckle switches
14. Additional satellite sensors (if equipped)

WARNING

To ensure correct and reliable operation of the passenger-side NISSAN Advanced Air Bag System in the Nissan Frontier, always follow these important precautions.

• Do not allow passengers in the rear seats to push or pull on the front seatback pocket, as this may interfere with sensor readings.
• Avoid placing heavy objects exceeding 9.1 lbs (4 kg) on the seatback, head restraint, or inside the seatback pocket in the Nissan Frontier.
• Ensure that nothing is pressing against the rear of the front passenger seatback, including child restraints or stored items on the floor.
• Do not place any objects under the front passenger seat, as this may affect the occupant classification system.
• Make sure there are no objects positioned between the seat cushion and the center console or between the seat cushion and the door.
• If installing a forward-facing child restraint in the front passenger seat of the Nissan Frontier, ensure it does not contact the instrument panel. Contact with the panel may cause the system to incorrectly detect occupancy and allow air bag deployment when it should be suppressed.
• Always verify system status using the front passenger air bag status indicator light.
• If the air bag status light does not operate as described, have the occupant classification system inspected. It is recommended to visit an authorized NISSAN dealer.
• Until proper system operation is confirmed, all passengers should be seated in the rear seats of the Nissan Frontier whenever possible.
• Do not adjust the front passenger seat so that it contacts the rear seat. This may trigger a system malfunction and cause warning lights to illuminate.

This Nissan Frontier is equipped with the advanced air bag system for both driver and front passenger seats. The system is engineered to comply with U.S. safety standards and is also approved for use in Canada. All warnings and instructions in this manual must be followed to ensure proper system operation.

The driver air bag is located in the center of the steering wheel, while the front passenger air bag is mounted in the dashboard above the glove box. In the Nissan Frontier, these air bags are designed to deploy in higher-severity frontal collisions, although deployment may occur in other types of impacts with similar force levels.

It is important to understand that visible vehicle damage does not always indicate whether the air bag system has functioned correctly.

The NISSAN Advanced Air Bag System in the Nissan Frontier continuously monitors input from multiple sensors, including the crash zone sensor and the Air bag Control Unit (ACU), to determine when deployment is necessary.

Deployment decisions are based on collision severity, seat belt usage, and—on the passenger side—the occupant classification system.

Depending on crash conditions, only one front air bag may deploy. This is normal and does not indicate a malfunction.

The front passenger air bag and supplemental knee air bag in the Nissan Frontier may automatically deactivate under certain conditions. This depends on the detected weight on the seat and how the seat belt is used. When these air bags are deactivated, the front passenger air bag status light will illuminate.

If the seat is empty, the light may remain off even though the air bag is disabled.

If you have any concerns about the air bag system in your Nissan Frontier, it is recommended to consult an authorized NISSAN dealer. If modifications are required due to medical or physical conditions, NISSAN can also provide guidance.

When an air bag deploys in the Nissan Frontier, a loud noise may occur followed by the release of smoke. This smoke is not harmful and does not indicate fire. However, it may cause temporary irritation, so occupants should avoid inhaling it and seek fresh air if necessary.

Air bags, in combination with properly worn seat belts, help reduce impact forces on the upper body. While they can significantly improve safety and reduce injury severity, they may also cause minor abrasions or injuries during deployment.

It is important to note that front air bags do not restrain the lower body. Therefore, proper seat belt use remains essential in the Nissan Frontier.

Even with the advanced system, occupants should always sit upright and maintain as much distance as practical from the steering wheel and instrument panel. Because air bags deploy rapidly, being too close can increase the risk of injury.

After deployment, front air bags in the Nissan Frontier deflate quickly.

The front air bags operate only when the ignition switch is in the ON position.

After switching the ignition ON, the supplemental air bag warning light will illuminate and then turn off after approximately 7 seconds if the system is functioning correctly.

Front passenger air bag and status light

WARNING

In the Nissan Frontier, the front passenger air bag and the front passenger supplemental knee air bag are designed to automatically switch OFF under specific conditions. It is essential to understand how this system operates to ensure maximum safety.

Proper use of the seat, seat belt, and child restraint systems in the Nissan Frontier is critical. Failure to follow all safety instructions in this manual may increase the risk of serious injury or death in the event of an accident.

Status light

The front passenger seat in the Nissan Frontier is equipped with an advanced occupant classification system that uses weight sensors to determine whether the air bag should be activated or deactivated.

The system continuously monitors the load applied to the seat and automatically turns the front passenger air bag and the front passenger supplemental knee air bag ON or OFF accordingly.

The current status is displayed by the front passenger air bag status light located on the instrument panel.

After switching the ignition of the Nissan Frontier to the ON position, the status light will illuminate for approximately 7 seconds and then either turn OFF or remain illuminated depending on the detected seat condition.

The system operates as follows:

Condition: Empty front passenger seat

• Passenger Air Bag Status Light : ON (illuminated)
• Front Passenger Air Bag and Front Passenger Supplemental Knee Air Bag Status: INHIBITED (disabled)

Condition: Bag, child, child restraint, or small adult in front passenger seat

• Passenger Air Bag Status Light : ON (illuminated)
• Front Passenger Air Bag and Front Passenger Supplemental Knee Air Bag Status: INHIBITED (disabled)

Condition: Adult in the front passenger seat

• Passenger Air Bag Status Light : OFF (not illuminated)
• Front Passenger Air Bag and Front Passenger Supplemental Knee Air Bag Status: ACTIVATED

In the Nissan Frontier, certain objects placed on the front passenger seat may also influence the system’s behavior. Items of sufficient weight can cause the system to classify the seat as occupied and adjust the air bag status accordingly.

Front passenger air bag

The front passenger air bag and the front passenger supplemental knee air bag in the Nissan Frontier are designed to automatically deactivate under specific conditions, in accordance with U.S. safety regulations. When these air bags are turned OFF, they will not deploy in a collision.

The driver air bag and other air bag systems in the Nissan Frontier operate independently and are not affected by the passenger classification system.

The primary purpose of this system is to reduce the risk of injury to certain occupants, particularly children, by preventing unnecessary air bag deployment when it could cause harm.

The occupant classification system in the Nissan Frontier uses weight-based sensors to determine whether a passenger is present and to estimate their size.

For example, if a properly secured child approximately the size of a one-year-old is seated in the front passenger seat, the system is designed to deactivate the front passenger air bag and knee air bag.

For larger children, the system may or may not deactivate the air bags depending on the child’s size, weight, and the type of child restraint being used.

After installing a child restraint in the Nissan Frontier, always turn the ignition to the ON position and check the front passenger air bag status light:

• If the light is illuminated, the air bag system is OFF and will not deploy.
• If the light is not illuminated, the air bag is active and may deploy in a collision.

For maximum safety, it is strongly recommended that children be seated in the rear seats of the Nissan Frontier whenever possible.

If you have any concerns about the operation of the air bag system in your Nissan Frontier, it is recommended to consult an authorized NISSAN dealer for professional inspection and guidance.

The front passenger seat belt sensors in the Nissan Frontier are designed to detect whether the seat belt is properly fastened, providing essential input for the overall safety system.

Using data from the occupant classification sensor, which measures the weight applied to the seat, the NISSAN Advanced Air Bag System in the Nissan Frontier determines whether the front passenger air bag and the front passenger supplemental knee air bag should automatically be turned OFF or remain active in accordance with safety regulations.

Adult occupants in the Nissan Frontier who are seated correctly—upright, centered in the seat, and wearing the seat belt properly—should not cause the system to deactivate the front passenger air bag or the supplemental knee air bag. However, in the case of smaller adults, the system may occasionally switch OFF depending on detected weight and seating posture.

If an occupant is not sitting properly—for example, leaning forward, sitting on the edge of the seat, or being out of position—the sensors in the Nissan Frontier may interpret this incorrectly and deactivate the air bag system. For optimal protection, always sit upright with your back against the seatback and ensure the seat belt is correctly fastened.

NISSAN strongly recommends that all children and pre-teens ride in the rear seats of the Nissan Frontier, where the risk of injury is significantly lower. Appropriate child restraints and booster seats should always be installed in the rear seating area whenever possible.

If it becomes absolutely necessary to place a child restraint in the front passenger seat of the Nissan Frontier, the occupant classification system is designed to function as described above and deactivate the air bag system under specific conditions. However, improper installation of a child restraint or failure to use the seat belt correctly—including not engaging ALR mode—can allow the restraint to shift or tip during a sudden stop or collision. This may also result in unintended air bag deployment, increasing the risk of injury.

When the front passenger seat in the Nissan Frontier is unoccupied, the system is designed to prevent air bag deployment in a crash. However, heavy objects placed on the seat may be detected by the weight sensors, potentially causing the system to activate the air bag.

Other unusual situations—such as a child standing on the seat or multiple occupants sharing the same seat—may also interfere with system detection and lead to unintended air bag activation. Always ensure that all passengers in the Nissan Frontier are seated properly and secured with seat belts or appropriate restraints.

By observing the front passenger air bag status light in the Nissan Frontier, you can monitor when the front passenger air bag and the supplemental knee air bag are automatically turned OFF while the seat is occupied.

If an adult is seated in the front passenger seat but the status light remains illuminated—indicating that the air bag system is OFF—it may suggest that the occupant is either a smaller adult, not seated correctly, or not using the seat belt properly.

If a child restraint must be used in the front passenger seat, the front passenger air bag status light in the Nissan Frontier may or may not illuminate depending on the child’s size and the type of restraint used.

If the status light is not illuminated—indicating that the air bag may deploy in a collision—it could mean that the child restraint is not installed correctly or that the seat belt is not being used properly. Always verify that the child restraint is securely installed, the seat belt is correctly fastened, and the occupant is properly positioned.

If the status light does not behave as expected, reposition the child restraint or occupant to a rear seat in the Nissan Frontier to ensure maximum safety.

If the front passenger air bag status light fails to illuminate even when you believe the child restraint, seat belt, and occupant are correctly positioned, the system may be detecting the seat as unoccupied. In this case, the air bag is already OFF.

An authorized NISSAN dealer can verify system status using specialized diagnostic tools. Until proper operation is confirmed, it is strongly recommended to move the occupant or child restraint to a rear seating position in the Nissan Frontier.

For additional safety, periodically check the seating position and ensure that no objects interfere with the sensors under or around the seat. Proper awareness of how the system operates in the Nissan Frontier can significantly enhance occupant protection.

The NISSAN Advanced Air Bag System in the Nissan Frontier requires a short period of time to recognize and process any changes in the front passenger seat status. For example, when a fully grown adult exits the front passenger seat, the air bag status light may briefly change from OFF to ON and then return to OFF after a few seconds.

This behavior is completely normal for the Nissan Frontier and does not indicate any malfunction of the system. The delay allows the sensors to accurately reassess the seat condition and update the air bag status accordingly.

If a malfunction occurs within the front passenger air bag system of the Nissan Frontier, the supplemental air bag warning light , located in the instrument cluster, will begin to flash. If this happens, the system should be inspected immediately. It is strongly recommended to visit an authorized NISSAN dealer for proper диагностика and repair.

Normal operation

For the occupant classification system in the Nissan Frontier to correctly determine the passenger’s status based on weight, it is essential to follow the guidelines below. Proper conditions ensure accurate sensor readings and optimal air bag performance.

Precautions

• Ensure that no objects weighing more than 9.1 lbs (4 kg) are hanging from the seat or placed inside the seatback pocket of the Nissan Frontier.
• Make sure that no child restraint or object is pressing against the rear of the front passenger seatback, as this can affect sensor readings.
• Confirm that rear passengers are not pushing or pulling on the back of the front passenger seat in the Nissan Frontier.
• Ensure that the front passenger seat or seatback is not forced against any object located behind it on the seat or floor.
• Check that no objects are placed underneath the front passenger seat, as this may interfere with the occupant classification system.

Steps

1. Adjust the front passenger seat in the Nissan Frontier as described in the "Seats" section of the manual. Sit upright with your back fully against the seatback and centered on the seat cushion, with both feet comfortably resting on the floor.

2. Make sure there are no objects placed on your lap, as this may affect the weight detection system in the Nissan Frontier.

3. Fasten the seat belt properly, following the instructions provided in the "Seat belts" section of this manual.

4. Remain seated in this correct position for approximately 30 seconds before driving, allowing the Nissan Frontier system to accurately classify the front passenger.

5. Verify correct classification by checking the front passenger air bag status light on the instrument panel.

NOTE:

The occupant classification system in the Nissan Frontier locks the detected passenger status while the vehicle is in motion. Therefore, it is crucial to ensure correct classification before starting to drive.

Additionally, the system may reassess the occupant’s weight when the vehicle comes to a stop (for example, at a traffic light or stop sign). During such moments, passengers should remain properly seated to maintain accurate system operation.

Troubleshooting

If you suspect that the front passenger air bag status light in your Nissan Frontier is not functioning correctly, consider the following:

If the light is ON while an adult is seated in the front passenger seat:

• The occupant may be classified as a small adult. In this case, the system is operating as intended, and the front passenger air bag and supplemental knee air bag remain deactivated.

NOTE:

If the occupant is not a small adult, incorrect readings may be caused by the following conditions that interfere with the Nissan Frontier weight sensors:

• The occupant is not seated upright, not leaning fully against the seatback, or not centered on the seat cushion.
• A child restraint or other object is pressing against the rear of the seatback.
• A rear passenger is pushing or pulling on the front passenger seat.
• The front seat or seatback is forced against an object located behind it.
• An object is placed underneath the front passenger seat.
• An object is positioned between the seat cushion and the center console or between the seat cushion and the door.

For optimal safety in the Nissan Frontier, always ensure that the seating area is free from obstructions and that all occupants maintain proper seating posture. Regular checks of the system behavior can help ensure that the air bag system functions correctly in all driving conditions.

If the Nissan Frontier is in motion, safely bring the vehicle to a complete stop before taking any further action. Carefully review and correct any of the conditions listed above. After making the necessary adjustments, restart the Nissan Frontier and allow approximately one minute for the system to reset and re-evaluate the passenger seat status.

NOTE:

During system initialization in the Nissan Frontier, a self-check procedure is performed. As part of this process, the front passenger air bag status light will illuminate for approximately 7 seconds before updating its final status.

If the light remains ON after this process, the front passenger seat should not be used. The Nissan Frontier should be inspected as soon as possible by a qualified специалист. It is strongly recommended to visit an authorized NISSAN dealer for proper diagnosis and repair.

If the light is OFF with a small adult, child or child restraint occupying the front passenger seat.

This situation in the Nissan Frontier may be caused by conditions that interfere with the accuracy of the weight-based occupant classification system:

• The small adult or child is not seated properly—such as not sitting upright, not leaning against the seatback, or not centered on the seat cushion with feet resting on the floor.
• The child restraint is incorrectly installed and does not follow the procedures outlined in the "Child restraints" section of the Nissan Frontier manual.
• An object weighing more than 9 lbs (4 kg) is hanging on the seat or placed inside the seatback pocket.
• A child restraint or other object is pressing against the rear of the seatback.
• A rear passenger is pushing or pulling on the back of the front passenger seat.
• The front passenger seat or seatback is forced against an object located behind it.
• An object is placed underneath the front passenger seat, interfering with sensor operation.
• An object is positioned between the seat cushion and the center console, affecting weight detection.

If the Nissan Frontier is moving, stop the vehicle safely before correcting these conditions. After adjustments are made, restart the vehicle and wait approximately one minute for the system to recalibrate.

NOTE:

Each time the Nissan Frontier is restarted, the system performs a diagnostic check. During this time, the front passenger air bag status light will illuminate for about 7 seconds before updating to reflect the current seat condition.

If the light remains OFF after the system check—even when a small adult, child, or child restraint is present—the occupant or child restraint should be relocated to a rear seating position. The Nissan Frontier should then be inspected as soon as possible by an authorized NISSAN dealer.

If the light is OFF with no front passenger and no objects on the front passenger seat, the Nissan Frontier should be checked immediately. It is recommended to visit a NISSAN dealer as soon as possible to ensure proper system operation.

Other supplemental front-impact air bag precautions

WARNING

• Do not place any objects on the steering wheel pad or on the instrument panel of the Nissan Frontier. Additionally, never place objects between any occupant and the steering wheel or dashboard. In the event of air bag deployment, such objects may become dangerous projectiles and cause serious injury.
• Immediately after deployment, components of the front air bag system in the Nissan Frontier may become extremely hot. Avoid touching these components to prevent burns.
• No unauthorized modifications should be made to any components or wiring of the Nissan Frontier supplemental air bag system.

  This includes any actions that could trigger accidental deployment or compromise system integrity.

• Do not alter the electrical system, suspension, or front-end structure of the Nissan Frontier. Such modifications may negatively affect the proper functioning of the air bag system.
• Any tampering with the front air bag system—including covering the steering wheel, modifying the instrument panel, or installing additional trim around air bag components—may result in serious injury.
• Removing or modifying the front passenger seat in the Nissan Frontier may interfere with the air bag system and lead to unsafe operation.
• Do not install seat covers or add materials to the front passenger seat unless they are specifically designed to be compatible with the Nissan Frontier air bag system. Objects placed under the seat or between seat components may disrupt the occupant classification sensor.
• No unauthorized changes should be made to the seat belt system, as it is directly integrated with the air bag system in the Nissan Frontier. Tampering may result in serious personal injury.
• All maintenance or modifications involving the air bag system should be performed by a qualified technician. It is strongly recommended to visit a NISSAN dealer for any service related to the SRS or electrical systems.
• A damaged or cracked windshield in the Nissan Frontier should be replaced immediately by a qualified repair facility, as it may affect the proper deployment and function of the air bag system.

*The SRS wiring harness connectors in the Nissan Frontier are color-coded in yellow and orange for easy identification and safe handling.

When selling or transferring ownership of your Nissan Frontier, it is important to inform the new owner about the presence and operation of the front air bag system. Be sure to direct them to the relevant sections of this Owner’s Manual so they can fully understand the safety features and proper usage.

Front seat-mounted side-impact supplemental air bag and roof-mounted curtain side-impact and rollover supplemental air bag systems

In the Nissan Frontier, the side-impact air bags are integrated into the outer sides of the front seatbacks, while the curtain air bags are installed along the side roof rails above the windows. All instructions, warnings, and precautions provided in this manual must be strictly followed to ensure proper operation and maximum safety.

The side air bags and curtain air bags in the Nissan Frontier are designed to deploy primarily during higher-severity side collisions. However, they may also activate in other types of impacts if the forces involved are similar to those experienced in severe side collisions. These systems deploy on the side of the vehicle where the impact occurs, although in some situations they may not deploy depending on collision conditions.

The curtain air bags in the Nissan Frontier are also engineered to deploy in certain rollover scenarios or near-rollover events. In some cases, extreme vehicle movements—such as those encountered during aggressive off-road driving—may also trigger curtain air bag deployment.

It is important to understand that visible vehicle damage does not necessarily indicate whether the side air bags or curtain air bags in the Nissan Frontier have operated correctly.

When the side air bags or curtain air bags deploy, occupants may hear a loud noise followed by the release of a cloud-like substance. This is normal and does not indicate a fire. The substance is not harmful, but inhaling it should be avoided as it may cause temporary irritation or discomfort. Occupants with respiratory conditions should move to fresh air as soon as possible.

In the Nissan Frontier, side air bags work in conjunction with seat belts to help reduce the impact force to the chest and pelvic area of front occupants. Curtain air bags provide additional protection by helping to reduce impact forces to the head of occupants seated in both the front and rear outboard seating positions.

These systems can significantly reduce the risk of serious injury and may help save lives. However, it is important to note that deployment of side or curtain air bags may still cause minor injuries such as abrasions or bruising. Additionally, these air bags do not provide restraint for the lower body, making proper seat belt use essential in the Nissan Frontier.

For maximum effectiveness, occupants in the Nissan Frontier must always wear their seat belts correctly and sit upright with their backs against the seatback. The driver and front passenger should maintain as much distance as practical from the side air bag modules, while rear passengers should sit away from the doors and roof rails.

Because side and curtain air bags deploy rapidly, being too close to these areas at the moment of deployment can increase the risk of injury. The side air bags in the Nissan Frontier deflate quickly after deployment, helping to reduce the risk of secondary injury.

For enhanced safety, always ensure that no objects, accessories, or seat covers interfere with the deployment zones of the side or curtain air bags in the Nissan Frontier.

In the Nissan Frontier, the curtain air bags are designed to remain inflated for a short duration after deployment in order to provide continued protection during the critical moments following a collision or rollover event.

The side air bags and curtain air bags in the Nissan Frontier operate only when the ignition switch is in the ON position.

After switching the ignition to the ON position, the supplemental air bag warning light will illuminate as part of the system check. In a properly functioning Nissan Frontier, this light will turn off after approximately 7 seconds, confirming that the system is operational and ready.

WARNING

• Do not place any objects near the outer seatback area of the front seats in the Nissan Frontier. Additionally, never place items such as umbrellas, bags, or accessories between the front door panel and the front seat. In the event of side air bag deployment, these objects may be propelled with force and cause serious injury.
• Immediately after deployment, components of the side air bag and curtain air bag systems in the Nissan Frontier may become extremely hot. Avoid touching these parts, as doing so may result in burns or injury.
• No unauthorized modifications should be made to the wiring or components of the side air bag and curtain air bag systems in the Nissan Frontier. Such changes may damage the system or cause accidental deployment.
• Do not modify the electrical system, suspension components, or side body panels of the Nissan Frontier.

  These alterations may negatively affect the proper operation of the curtain air bag system and compromise safety performance.

• Any tampering with the side air bag system may lead to serious personal injury. For example, do not install seat covers, padding, or additional trim materials around the front seatbacks that could interfere with air bag deployment in the Nissan Frontier.
• All maintenance or repair work involving the side air bag and curtain air bag systems in the Nissan Frontier should be performed by qualified technicians. It is strongly recommended to visit an authorized NISSAN dealer for any service in these areas.

  The SRS wiring harnesses must not be modified, disconnected, or tampered with. Additionally, do not use unauthorized electrical testing equipment or probing devices on these systems, as this may cause malfunction or unintended deployment.

* The SRS wiring harness or connectors in the Nissan Frontier are colored yellow or orange for easy identification and safe handling.

When selling or transferring ownership of your Nissan Frontier, it is important to inform the new owner about the presence and operation of the side air bag and curtain air bag systems. Be sure to guide them to the relevant sections of this Owner’s Manual so they can fully understand these critical safety features.

For enhanced safety awareness, regularly check that no accessories or aftermarket modifications interfere with the air bag deployment zones in your Nissan Frontier, as this ensures optimal protection in all driving conditions.

Driver and front passenger supplemental knee air bag

Driver's side

Passenger's side

In the Nissan Frontier, the supplemental knee air bag is positioned beneath the steering column on the driver’s side and within the lower dashboard (knee bolster) on the front passenger side. All safety instructions, warnings, and precautions described in this manual must be strictly followed to ensure proper system performance.

The knee air bag in the Nissan Frontier is engineered to deploy primarily during higher-severity frontal collisions. However, it may also activate in other types of impacts if the forces involved are comparable to a severe frontal crash. In some collisions, the system may not deploy depending on impact conditions.

It is important to note that visible vehicle damage does not always indicate whether the knee air bag system in the Nissan Frontier has operated correctly.

When the knee air bag deploys, occupants may hear a loud noise followed by the release of a smoke-like substance. This is normal system operation and does not indicate a fire. The substance is not harmful, but inhalation should be avoided as it may cause temporary irritation. Individuals with respiratory conditions should seek fresh air immediately.

The knee air bag in the Nissan Frontier is designed to help absorb and reduce impact forces on the lower body, particularly the knees of the driver and front passenger. This can significantly reduce the risk of serious injury during a collision.

However, as with all air bag systems, deployment may result in minor injuries such as abrasions or bruising. Unlike other air bags, the knee air bag provides additional restraint specifically for the lower body region.

The knee air bag inflates extremely quickly in order to provide immediate protection. Because of this rapid deployment, being too close to the air bag module at the time of inflation may increase the risk of injury. After deployment, the knee air bag in the Nissan Frontier will either deflate quickly or remain inflated briefly depending on the situation.

The knee air bag operates only when the ignition switch is placed in the ON position.

After switching the ignition ON, the supplemental air bag warning light will illuminate and then turn off after approximately 7 seconds if the system in the Nissan Frontier is functioning properly.

WARNING

• Do not place any objects between the knee bolster and the driver’s or front passenger’s seat in the Nissan Frontier. In the event of deployment, such objects may be propelled with force and cause serious injury.
• Immediately after deployment, components of the knee air bag system may become extremely hot. Avoid touching them to prevent burns.
• No unauthorized modifications should be made to the wiring or components of the knee air bag system in the Nissan Frontier, as this may cause damage or unintended deployment.
• Do not alter the vehicle’s electrical system or suspension system, as such changes may negatively affect proper operation of the knee air bag system.
• Tampering with the knee air bag system may result in serious personal injury. For example, do not modify the knee bolster or install additional trim materials around the knee air bag area in the Nissan Frontier.
• All maintenance or repair work related to the knee air bag system should be performed by qualified technicians. It is strongly recommended to visit an authorized NISSAN dealer.

  The SRS wiring harnesses must not be modified or disconnected, and unauthorized electrical testing equipment must not be used on the system.

*The SRS wiring harness or connectors in the Nissan Frontier are color-coded yellow or orange for easy identification.

When selling or transferring ownership of your Nissan Frontier, it is important to inform the new owner about the knee air bag system and direct them to the appropriate sections of this Owner’s Manual for full understanding.

Seat belt with pretensioner(s) (front and rear outboard seats)

WARNING

• The pretensioner system in the Nissan Frontier cannot be reused after activation. It must be replaced as a complete unit, including the retractor and buckle.
• If the vehicle is involved in a collision and the pretensioners are not activated, the system should still be inspected and, if necessary, replaced. It is recommended to visit a NISSAN dealer for this service.
• No unauthorized modifications should be made to any components or wiring of the pretensioner system in the Nissan Frontier, as this may result in accidental activation or system failure.
• All work involving the pretensioner system should be performed by qualified specialists. Installation of electrical equipment should also be carried out by an authorized NISSAN dealer.
• If disposal of pretensioners or scrapping of the Nissan Frontier is required, this must be handled by a qualified facility or NISSAN dealer. Improper disposal may result in serious injury.

The pretensioner system in the Nissan Frontier is designed to activate in conjunction with the supplemental air bag system during certain types of collisions. Working together with the seat belt retractor, the pretensioners tighten the seat belts to help secure occupants more effectively at the moment of impact.

The pretensioners are integrated within the seat belt retractor assembly and function in the same manner as conventional seat belts during normal use.

When the pretensioners activate, a loud noise may be heard along with the release of a smoke-like substance. This is normal and does not indicate a fire. The smoke is not harmful, but inhalation should be avoided. Individuals with respiratory sensitivities should move to fresh air promptly.

After activation, load limiters (if equipped) allow controlled release of the seat belt webbing to reduce the force exerted on the occupant’s chest, improving safety in the Nissan Frontier.

The supplemental air bag warning light is used to indicate potential malfunctions in the pretensioner system.

If the warning light signals a malfunction, the system should be inspected immediately. It is strongly recommended to have the Nissan Frontier checked by an authorized NISSAN dealer.

When selling your Nissan Frontier, always inform the new owner about the pretensioner system and guide them to the relevant sections in this Owner’s Manual to ensure proper understanding and safe operation.

Supplemental air bag warning labels

1. SRS Air bag warning labels
   The warning labels in the Nissan Frontier are positioned on the surface of the sun visors for clear visibility to both driver and passenger.

Important safety warning labels related to the supplemental front-impact air bag system are strategically placed throughout the Nissan Frontier, as illustrated above. These labels are designed to remind occupants of critical safety precautions at all times.

WARNING

Never install or use a rear-facing child restraint in a seating position that is protected by an active air bag in front of it in the Nissan Frontier. If the air bag deploys, it can cause severe injury or even death to the child.

Supplemental air bag warning light

Basic Information

The supplemental air bag warning light in the Nissan Frontier, indicated by the symbol , is located within the instrument panel. This light continuously monitors the operational status of the air bag systems, seat belt pretensioners, and all associated wiring circuits.

When the ignition switch in the Nissan Frontier is turned to the ON position, the warning light will illuminate for approximately 7 seconds and then turn off. This indicates that the system is functioning correctly.

If any of the following conditions occur, the air bag and pretensioner systems in the Nissan Frontier may require immediate attention:

• The supplemental air bag warning light remains illuminated beyond the initial 7-second check.
• The warning light flashes intermittently while driving.
• The warning light does not illuminate at all when the ignition is turned ON.

Under these circumstances, the front air bags, side air bags, curtain air bags, or pretensioner systems in the Nissan Frontier may not function as intended in a collision. Immediate inspection and repair are required. It is strongly recommended to visit an authorized NISSAN dealer.

WARNING

If the supplemental air bag warning light in the Nissan Frontier remains illuminated, it may indicate that one or more safety systems will not operate correctly in the event of an accident. To reduce the risk of injury to yourself and others, have the vehicle inspected without delay.

It is recommended that you visit a NISSAN dealer for this service.

Repair and replacement procedure

In the Nissan Frontier, the front air bags, side air bags, curtain air bags, and seat belt pretensioners are designed for one-time deployment only. After activation, these components must be replaced as complete units.

As a reminder, the supplemental air bag warning light may remain illuminated after deployment (unless damaged), indicating that the system requires service. All affected components in the Nissan Frontier should be inspected, repaired, or replaced as soon as possible by qualified professionals.

Whenever maintenance or repair work is performed on the Nissan Frontier, it is essential to inform the technician about the presence of air bag systems and pretensioners. Additionally, always ensure that the ignition switch is in the LOCK position before any work is carried out under the hood or inside the vehicle.

WARNING

• Once a front air bag, side air bag, or curtain air bag has deployed in the Nissan Frontier, the air bag module will no longer function and must be replaced. Likewise, any activated pretensioners must also be replaced as part of the system.

  It is strongly recommended to visit a NISSAN dealer for this service.

  These components cannot be repaired and must be replaced entirely to restore proper safety functionality.

• The air bag systems and pretensioners in the Nissan Frontier should be thoroughly inspected after any damage to the front or side areas of the vehicle. Professional inspection by a NISSAN dealer is recommended.
• If disposal of air bag components or pretensioner systems is required, or if the Nissan Frontier is to be scrapped, this must be handled by qualified специалисты. Improper disposal procedures may result in serious personal injury.
• After any impact to the Nissan Frontier from any direction, the Occupant Classification System (OCS) must be checked to ensure it is still functioning correctly.

  This inspection should be carried out even if no air bags were deployed during the incident.

  Failure to verify proper OCS operation may result in incorrect air bag deployment, which could lead to serious injury or death.

For maximum safety, always monitor warning indicators and follow recommended maintenance procedures to ensure that all SRS components in the Nissan Frontier remain in optimal working condition.

Warning and indicator lightsSeats
