Hazard warning flasher switch

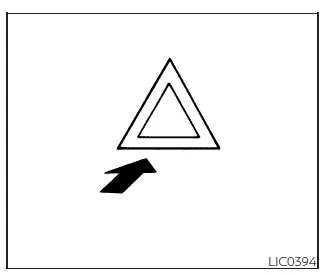

The hazard warning flasher switch in the Nissan Frontier is designed to alert other drivers when your vehicle must stop or remain stationary due to an emergency situation. When activated, all turn signal lights flash simultaneously, increasing the visibility of your Nissan Frontier and helping to prevent potential collisions.

Use this function whenever the Nissan Frontier is stopped on the roadside, in hazardous conditions, or when your vehicle may pose a risk to other traffic. Proper use of the hazard lights ensures that surrounding drivers are aware of your presence and can react accordingly.

WARNING

• When stopping the Nissan Frontier in an emergency, always move the vehicle as far off the roadway as possible to reduce the risk of accidents.
• Avoid using the hazard warning flashers while driving at normal speeds on highways. Only use them when unavoidable conditions require driving significantly slower than surrounding traffic, making your Nissan Frontier a potential hazard.
• Keep in mind that turn signals will not function while the hazard warning flashers are activated in the Nissan Frontier, which may limit communication with other drivers.

The hazard warning flashers on the Nissan Frontier can be operated regardless of the ignition switch position, allowing them to function even when the engine is turned off.

Be aware that in some regions, the use of hazard warning flashers while the vehicle is in motion may be restricted or prohibited by law.

Emergency engine shut off

In critical situations where it is necessary to stop the engine of the Nissan Frontier immediately while driving, the following emergency procedures can be used:

• Quickly press the push-button ignition switch three times in rapid succession (within approximately 1.5 seconds), or
• Press and hold the push-button ignition switch continuously for more than 2 seconds.

These emergency shutdown methods allow the Nissan Frontier engine to be turned off swiftly in dangerous situations. However, use this function only when absolutely necessary, as shutting off the engine while driving may result in loss of power steering and brake assist, making the vehicle more difficult to control.

Flat tire

Tire Pressure Monitoring System (TPMS)

The Nissan Frontier is equipped with an advanced Tire Pressure Monitoring System (TPMS) that continuously checks the air pressure in all road tires (excluding the spare). This system is designed to enhance safety by alerting the driver when tire pressure drops below the recommended level.

If the low tire pressure warning light illuminates and the message "Tire Pressure Low - Add Air" appears in the vehicle information display, it indicates that one or more tires on your Nissan Frontier are significantly under-inflated. When driving at speeds above approximately 16 mph (25 km/h), the TPMS actively monitors pressure and provides real-time alerts if a problem is detected.

WARNING

• Radio frequency signals from the TPMS in the Nissan Frontier may interfere with certain medical devices. Individuals using pacemakers or similar equipment should consult the device manufacturer regarding possible interference before operating the vehicle.
• If the low tire pressure warning light comes on while driving the Nissan Frontier, avoid sudden steering inputs or hard braking. Gradually reduce speed, pull over to a safe location, and stop the vehicle as soon as possible.

  Driving with under-inflated tires can lead to overheating, tire damage, or even tire failure.

  This may result in serious vehicle damage, loss of control, or accidents causing severe injury.

  Check the tire pressure on all four tires and adjust them to the recommended COLD pressure listed on the Tire and Loading Information label. Once corrected, the warning light should turn off.

  If the warning light remains on while driving, a tire may be punctured or the TPMS in the Nissan Frontier may be malfunctioning.

  If a flat tire is confirmed, replace it with the spare tire immediately. If all tires appear properly inflated, have the system inspected by an authorized Nissan dealer.

• When using a spare tire that is not equipped with TPMS, the system will not function properly. The warning light will flash for approximately one minute and then remain illuminated. Have the TPMS reset and the original tires serviced as soon as possible.
• Installing non-approved tires on the Nissan Frontier may interfere with proper TPMS operation and reduce system accuracy.
• Do not use liquid sealants or aerosol tire inflators inside the tires, as these may damage the TPMS sensors and cause system malfunction.

Changing a flat tire

Basic information If you experience a flat tire with your Nissan Frontier, follow these essential safety steps:

Stopping the vehicle

1. Carefully steer the Nissan Frontier off the roadway and away from traffic.

2. Activate the hazard warning flashers to alert other drivers.

3. Park on a firm, level surface, apply the parking brake, and shift the transmission into P (Park).

4. Turn off the engine completely.

5. Open the hood to increase visibility and signal to others that assistance may be required.

6. Ensure all passengers exit the Nissan Frontier and move to a safe location away from traffic and the vehicle.

WARNING

• Always confirm that the parking brake is fully engaged and the transmission is securely in P (Park) before attempting to change a tire on the Nissan Frontier.
• Never attempt to change a tire on a slope, icy surface, or unstable ground.

  This can be extremely dangerous and may lead to the vehicle slipping or falling.

• Do not attempt to change a tire when traffic is passing close by. Wait for professional roadside assistance if conditions are unsafe.

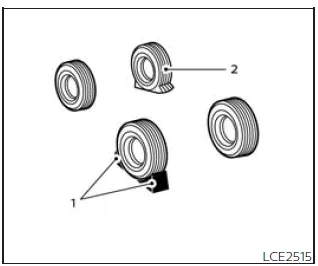

Blocking wheels

1. Blocks
2. Flat tire

To prevent the Nissan Frontier from rolling while being lifted with a jack, place solid wheel blocks both in front of and behind the tire located diagonally opposite the flat tire.

WARNING

Always secure the vehicle by properly blocking the wheels, as failure to do so may result in unexpected movement and serious personal injury.

Getting the spare tire and tools (King Cab models)

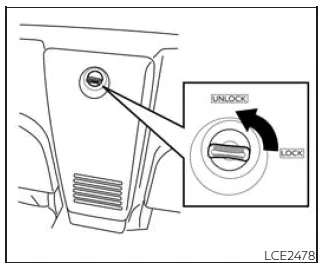

The tool storage compartment in the Nissan Frontier is conveniently positioned between the two rear jump seats, allowing quick and organized access to essential tools during emergency situations.

1. Rotate the locking knob from the locked position to the unlocked position, then carefully remove the cover of the tool storage compartment in your Nissan Frontier.

2. Release the securing strap and take out the tool bag, which contains the necessary equipment for tire replacement.

3. To remove the jack, first collapse it by inserting the wheel nut wrench into the jack screw at the top. Turn the wrench counterclockwise until the mechanism loosens. Then continue loosening it manually until the jack is completely free from its mount.

4. Carefully remove the jack from its storage location in the Nissan Frontier.

5. To reinstall the jack and tools, simply follow the above steps in reverse order, ensuring everything is securely fastened.

Getting the spare tire and tools (Crew Cab models)

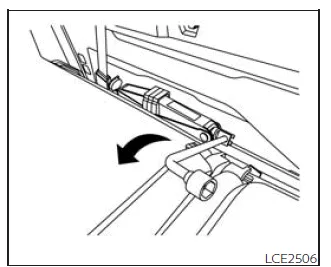

In Nissan Frontier Crew Cab models, the tool kit and jack are stored behind the rear bench seat for convenient access.

1. Remove the head restraints and fold the rear bench seat forward to expose the storage area.

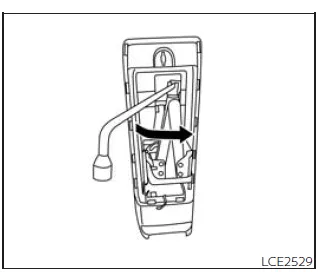

2. Take out the tool bag and locate the wheel-nut wrench needed for jack operation.

3. Collapse the jack by inserting the wheel-nut wrench into the jack screw and turning it toward you until it becomes loose.

Then continue loosening the screw manually until the jack is completely released.

4. Remove the jack from behind the seat in your Nissan Frontier.

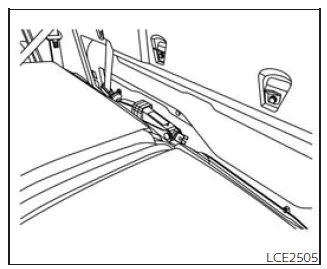

5. To reinstall, reverse the removal steps and ensure all components are securely positioned.

Getting the spare tire and tools (All models)

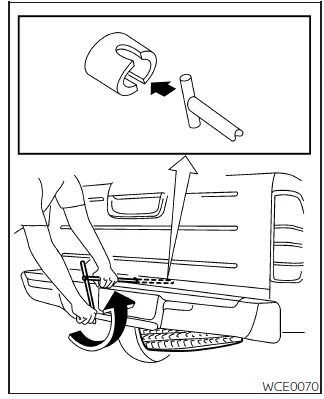

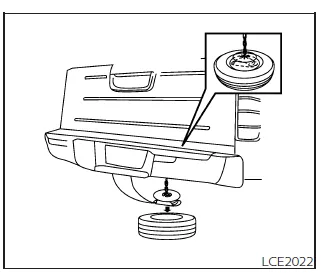

1. Insert the T-shaped end of the jacking rod into the corresponding opening of the spare tire winch on the Nissan Frontier. Apply steady pressure to keep it engaged and rotate the rod counterclockwise to lower the spare tire.

2. Once the spare tire is fully lowered, reach beneath the rear of the Nissan Frontier, detach the retaining chain, and carefully slide the tire out.

3. For reinstallation, remove the center cap and thread the retaining chain through the wheel. Ensure the rubber spacer is properly centered before lifting. Then rotate the winch clockwise using the jacking rod to raise the tire back into position.

NOTE:

Inspect the rubber spacer every six years and replace it if necessary. It is recommended to have this maintenance performed by an authorized Nissan dealer to ensure proper fitment and safety.

CAUTION

• Always ensure that the spare tire support plate is properly centered on the wheel before lifting it back into position on your Nissan Frontier.
• Failure to use the spacer correctly may cause the retaining chain to become lodged in the wheel nut openings, complicating removal in the future.

Removing bolt-on wheel caps (if so equipped)

CAUTION

Do not attempt to remove wheel caps or covers using your hands, as this may result in injury. Always follow the correct procedure.

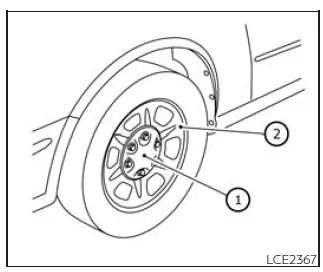

The wheel cap 1 on the Nissan Frontier is secured by the wheel nuts and is separate from the wheel 2 itself.

To remove the wheel cap, first ensure the vehicle is safely lifted and supported with the jack, then remove the wheel nuts. Once the tire is clear of the ground, the wheel cap can be safely detached.

Take care to avoid scratching or damaging the surface of the wheel or cap during removal.

Jacking up vehicle and removing the damaged tire

WARNING

• Never place any part of your body under the Nissan Frontier when it is supported only by the jack. If access underneath is required, always use appropriate safety stands.
• Only use the jack supplied with your Nissan Frontier. It is specifically designed for this vehicle and should not be used on other vehicles.
• Always position the jack at the designated lifting points on the Nissan Frontier. Using incorrect points may cause damage or instability.
• Do not raise the vehicle higher than necessary to remove the tire.
• Never place blocks under or on top of the jack to increase height, as this can lead to instability.
• Do not start or run the engine while the Nissan Frontier is supported by a jack, as the vehicle may move unexpectedly.
• Ensure all passengers exit the vehicle before lifting it.
• Never run the engine with any wheel off the ground, as this can cause the Nissan Frontier to move and result in injury.

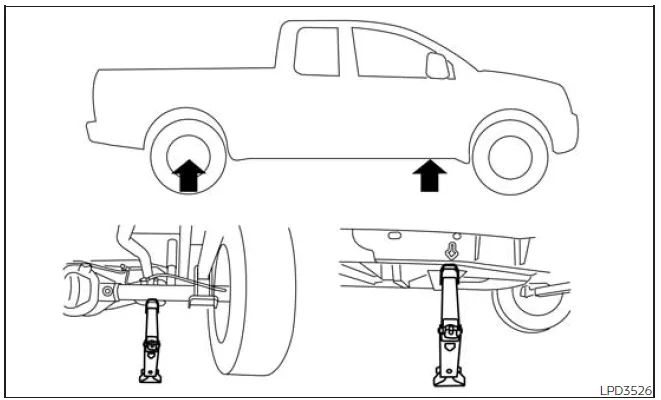

Always refer to the diagram provided for your Nissan Frontier to identify the correct jack placement points and lifting areas specific to your vehicle model and jack type. Proper positioning is essential to ensure stability and prevent damage during the lifting process.

Carefully review the warning label attached to the jack and follow all instructions before attempting to lift the Nissan Frontier.

1. Slightly loosen each wheel nut by turning it counterclockwise using the wheel nut wrench. Turn each nut approximately one to two rotations, but do not remove them until the tire is lifted off the ground.

2. Position the jack directly beneath the designated jack-up point as shown in the illustration, ensuring the top of the jack is firmly seated against the vehicle’s lifting point.

Align the jack head precisely under the arrow marking on the Nissan Frontier frame or rear support area as indicated.

Always place the jack on a solid, flat surface to maintain proper balance and safety during lifting.

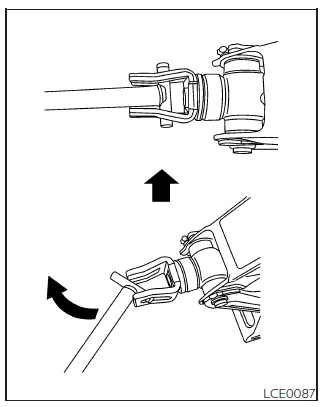

3. Insert the assembled jacking rod securely into the jack mechanism as illustrated.

4. Carefully operate the jack by holding the lever and rod firmly, raising the Nissan Frontier until the affected tire is completely off the ground.

5. Fully remove the loosened wheel nuts and take off the damaged tire.

Installing the spare tire

The spare tire provided with the Nissan Frontier is intended strictly for temporary emergency use.

1. Before installing the spare tire, clean any dirt, mud, or debris from the contact surfaces between the wheel and hub to ensure proper seating.

2. Carefully mount the spare tire onto the hub and tighten the wheel nuts by hand until they are snug.

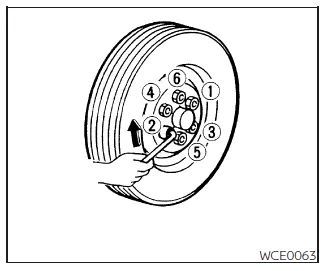

3. Using the wheel nut wrench, tighten the wheel nuts in a crisscross (star) pattern as illustrated ( 1 , 2 , 3 , 4 , 5 , 6 ) to ensure even pressure distribution.

4. Gradually lower the Nissan Frontier until the tire makes contact with the ground. Then firmly tighten all wheel nuts again in the same sequence using the wrench. Once completed, lower the vehicle completely.

WARNING

• Using incorrect wheel nuts or failing to properly tighten them on your Nissan Frontier may cause the wheel to loosen or detach while driving.

  This can result in serious accidents or injury.

• Never apply oil or grease to wheel studs or nuts, as this may cause them to loosen over time.
• After driving approximately 620 miles (1,000 km), retighten the wheel nuts to ensure they remain properly secured.

As soon as possible, use a torque wrench to tighten the wheel nuts to the specified torque value.

 Wheel nut tightening torque: 98 ft-lb (133 N·m)

The wheel nuts on your Nissan Frontier must always be maintained at the specified torque. It is recommended to check and retighten them during regular maintenance intervals.

Adjust tire pressure to the COLD pressure.

COLD pressure: After the Nissan Frontier has been parked for at least 3 hours or driven less than 1 mile (1.6 km).

The correct COLD tire pressure values are listed on the Tire and Loading Information label located on the driver’s door frame.

5. After completing the tire replacement, securely store all jacking tools and properly stow the flat tire underneath the Nissan Frontier.

WARNING

• Ensure that the spare tire and all tools are safely secured after use. Loose equipment inside the Nissan Frontier can become dangerous in the event of sudden braking or a collision.
• Remember that the spare tire is intended for temporary use only and should be replaced with a full-size tire as soon as possible.

Jump starting

To start the engine of your Nissan Frontier using a booster battery, it is essential to carefully follow the correct procedure and safety precautions outlined below. Proper jump starting ensures safe operation and helps prevent damage to the electrical system.

WARNING

• Improper jump starting of the Nissan Frontier may cause a battery explosion, which can result in severe injury or even death. It may also lead to significant vehicle damage.
• Highly explosive hydrogen gas is always present around the battery.

  Keep all open flames, sparks, and smoking materials away from the battery area at all times.

• Battery acid is extremely corrosive. Avoid contact with eyes, skin, clothing, or painted surfaces. In case of contact, immediately rinse the affected area thoroughly with clean water.
• Keep the battery and related components out of reach of children at all times.
• Always use a 12-volt booster battery when jump starting the Nissan Frontier. Using an incorrect voltage may damage the vehicle’s electrical system.
• When working near the battery, wear appropriate eye protection and remove any metal jewelry such as rings or bracelets. Avoid leaning directly over the battery during the process.
• Never attempt to jump start a frozen battery, as it may rupture or explode, causing serious injury.
• The Nissan Frontier is equipped with an automatic engine cooling fan that may activate at any time. Keep hands, tools, and clothing away from moving components.

WARNING

Strictly follow the correct jump starting procedure below.

Failure to do so may result in damage to the Nissan Frontier charging system and increase the risk of personal injury.

1. If using another vehicle as the booster source, position both vehicles so that their batteries are close enough for cable connection.

Ensure the two vehicles do not come into physical contact.

2. Apply the parking brake on both vehicles. Place the Nissan Frontier transmission in P (Park) and switch off all unnecessary electrical systems such as lights, climate control, and audio.

3. Turn the ignition switch of the Nissan Frontier to the LOCK or OFF position.

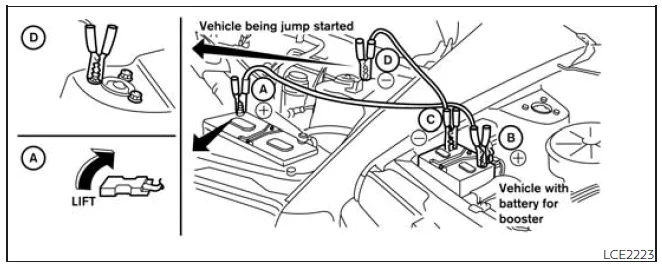

4. Connect the jumper cables in the proper order as shown in the illustration ( A , B , C , D ).

CAUTION

• Always connect the positive (+) terminal to the positive (+) terminal, and connect the negative (−) cable to a suitable body ground point (such as a strut tower bolt or engine bracket), not directly to the battery.
• Ensure that the jumper cables are kept clear of moving engine components and that the clamps do not touch each other or any unintended metal surfaces.

5. Start the engine of the booster vehicle and allow it to idle for a few minutes to stabilize the electrical supply.

6. Increase the engine speed of the booster vehicle to approximately 2,000 rpm, then attempt to start the Nissan Frontier engine.

CAUTION

Do not operate the starter motor for more than 10 seconds at a time. If the Nissan Frontier does not start immediately, switch the ignition OFF, wait a few seconds, and try again.

7. Once the Nissan Frontier engine starts, carefully disconnect the jumper cables in reverse order—first the negative cable, then the positive cable.

Push starting

CAUTION

• Do not attempt to push-start the Nissan Frontier. This may cause damage to the catalytic converter.
• Vehicles equipped with automatic transmission cannot be push-started or tow-started.

  Attempting to do so may result in serious transmission damage.

NOTE:

In Nissan Frontier models with automatic transmission, the Malfunction Indicator Light (MIL) may illuminate if low voltage is detected during the jump starting process.

This condition does not affect normal driving operation.

The MIL will turn off automatically once the system voltage returns to normal levels (above 12V) and the engine has been started several times.

If your vehicle overheats

WARNING

• Never continue driving your Nissan Frontier if the engine is overheating. Doing so may result in severe engine damage or even lead to a vehicle fire.
• To prevent serious burns, never remove the radiator cap or coolant reservoir cap while the engine is hot. The cooling system in the Nissan Frontier is pressurized, and opening it prematurely may cause boiling coolant to spray out forcefully.
• Do not open the hood if you see steam coming from the engine compartment of your Nissan Frontier.

If your Nissan Frontier begins to overheat—indicated by a high temperature gauge reading, reduced engine performance, or unusual noises—take immediate action by following these steps.

1. Carefully steer the Nissan Frontier off the road to a safe location, apply the parking brake, and shift the transmission into P (Park).

Do not immediately turn off the engine.

2. Switch off the air conditioning system. Open all windows, set the heater to maximum heat, and adjust the fan to the highest speed. This helps draw heat away from the engine and may assist in lowering the temperature.

3. Exit the Nissan Frontier and carefully check for signs of steam or coolant leaks around the radiator area before opening the hood. If steam or coolant is visible, turn off the engine immediately.

Do not attempt to open the hood until all visible steam has dissipated.

4. Once it is safe, carefully open the engine hood of the Nissan Frontier.

WARNING

If steam or hot coolant is still escaping, keep a safe distance to avoid burns or injury.

5. Inspect the engine components visually. Check drive belts for signs of damage, looseness, or breakage. Verify that the cooling fan is operating correctly. Also inspect the radiator and hoses for any visible leaks.

If you notice coolant leakage, a missing or loose drive belt, or if the cooling fan is not functioning, turn off the engine immediately to prevent further damage to your Nissan Frontier.

WARNING

Keep hands, hair, clothing, and jewelry away from moving engine components such as belts and the cooling fan. The fan in the Nissan Frontier may activate unexpectedly at any time.

6. After the engine has cooled sufficiently, check the coolant level in the reservoir tank while the engine is running. If necessary, carefully add coolant to bring it to the proper level.

If overheating persists or the issue cannot be identified, have your Nissan Frontier inspected and repaired as soon as possible. It is strongly recommended to visit an authorized Nissan dealer for professional service and diagnosis.

Towing your vehicle

Basic information

When towing your Nissan Frontier, it is essential to comply with all local laws and regulations governing vehicle towing. Using incorrect towing methods or equipment can result in serious damage to your vehicle’s drivetrain, suspension, or steering components. For this reason, towing procedures should always be performed with care and in accordance with manufacturer recommendations.

Detailed towing guidelines for the Nissan Frontier are available through authorized Nissan dealers. In most cases, professional towing service providers are familiar with proper handling techniques and legal requirements. To ensure maximum safety and avoid costly repairs, Nissan strongly recommends that your vehicle be transported by a qualified towing operator.

Before towing begins, it is advisable that the service operator carefully reviews the following precautions specific to the Nissan Frontier.

WARNING

• Never allow passengers to remain inside the Nissan Frontier while it is being towed.
• Never position yourself underneath the Nissan Frontier after it has been lifted by a tow truck, as this can result in serious injury.

CAUTION

• Before towing the Nissan Frontier, ensure that critical systems such as the transmission, axles, steering, and drivetrain are in proper working condition.

  If any of these systems are damaged or inoperable, always use a flatbed truck or towing dollies to prevent further damage.

• Always secure safety chains properly before towing the Nissan Frontier to provide additional stability and safety.

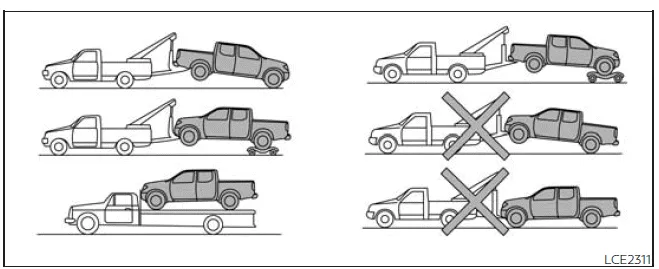

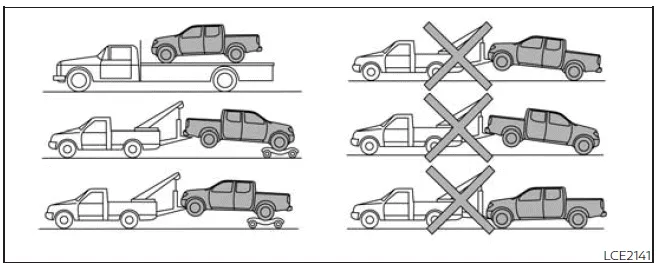

Towing recommended by NISSAN

Basic information

Nissan provides specific towing recommendations for the Nissan Frontier depending on the drivetrain configuration. It is important to follow the illustrated guidelines in this section to ensure safe transport and avoid mechanical damage.

Four-Wheel Drive (4WD) models with automatic transmission

For Nissan Frontier models equipped with four-wheel drive and an automatic transmission, the recommended towing method is to use towing dollies or transport the vehicle entirely on a flatbed truck. This prevents unnecessary stress on the transfer case and drivetrain components.

CAUTION

Never tow a Nissan Frontier 4WD model with any of its wheels in contact with the ground. Doing so can result in severe and costly damage to the transmission and transfer case.

NOTE:

If the battery in the Nissan Frontier is completely discharged, the transmission may not be able to shift out of its current position manually.

Two-Wheel Drive models with automatic transmission

For Nissan Frontier vehicles with two-wheel drive and automatic transmission, it is recommended to tow the vehicle with the rear (drive) wheels lifted off the ground. Alternatively, the safest method is to place the vehicle on a flatbed truck.

CAUTION

• Never tow Nissan Frontier automatic transmission models with the rear wheels on the ground or with all four wheels in contact with the road, whether forward or backward. This can lead to severe transmission damage.
• If towing with the front wheels raised, always use towing dollies under the rear wheels to protect the drivetrain components.
• When towing the Nissan Frontier with the front wheels on the ground or supported by dollies:
  • Place the ignition switch in the OFF position and secure the steering wheel in a straight-ahead position using a strap or similar device to prevent unintended movement.

Never secure the steering wheel of the Nissan Frontier by turning the ignition switch to the LOCK position. Doing so may damage the steering lock mechanism (on models equipped with this feature) and lead to costly repairs.

NOTE:

If the battery in the Nissan Frontier is fully discharged, the transmission may not be able to shift manually into other positions. In such cases, proper recovery procedures or professional assistance will be required.

Vehicle recovery (freeing a stuck vehicle)

Basic information

When your Nissan Frontier becomes stuck in conditions such as sand, snow, mud, or loose terrain, there are two primary recovery methods: pulling the vehicle out or rocking it free. Each method should be used carefully depending on the situation and terrain conditions.

Pulling a stuck vehicle

WARNING

To prevent damage to your Nissan Frontier and avoid serious injury or fatal accidents during recovery, observe the following safety precautions:

• If you are unsure about the recovery process, contact a professional towing service to safely recover your Nissan Frontier.
• Always attach recovery straps or equipment only to designated recovery points or solid structural components of the Nissan Frontier.
• Never use tie-down hooks or transport securing points for pulling or recovery purposes.
• Use only high-quality recovery straps, cables, or equipment specifically designed for vehicle recovery, and strictly follow the manufacturer’s instructions.
• Ensure that the recovery strap is aligned straight with the front of the Nissan Frontier.

  Avoid pulling at angles, as this may cause damage or equipment failure.

• Route all recovery equipment so that it does not come into contact with any part of the Nissan Frontier except the designated attachment points.

If your Nissan Frontier is stuck, use a proper tow strap or recovery device intended for such situations. Carefully follow all safety guidelines to minimize risk and ensure effective recovery.

Rocking a stuck vehicle

WARNING

• Always stand clear of the Nissan Frontier while attempting to free it from a stuck position.
• Avoid spinning the tires at high speeds.

  Excessive wheel spin may cause tire failure or overheating of drivetrain components, potentially leading to serious injury or damage to the Nissan Frontier.

If your Nissan Frontier is stuck in loose terrain such as sand, snow, or mud, follow this step-by-step procedure:

1. Turn off the Vehicle Dynamic Control (VDC) system to allow more wheel movement.

2. Ensure that the area in front of and behind the Nissan Frontier is clear of obstacles.

3. Turn the steering wheel from side to side to create a path and clear space around the front tires.

4. Gently rock the Nissan Frontier back and forth to build momentum.

• Shift alternately between R (Reverse) and D (Drive).
• Apply the accelerator pedal lightly to maintain controlled movement.
• Release the accelerator before shifting between gears to avoid transmission damage.
• Do not allow the tires to spin faster than 34 mph (55 km/h).

5. If the Nissan Frontier cannot be freed after several attempts, stop the procedure and contact a professional towing service to safely recover the vehicle.
