Volkswagen ID.3: Vehicle-specific paintwork information. Contrasting colours

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / Vehicle-specific paint information / Vehicle-specific paintwork information. Contrasting colours

Contrasting colours, roof

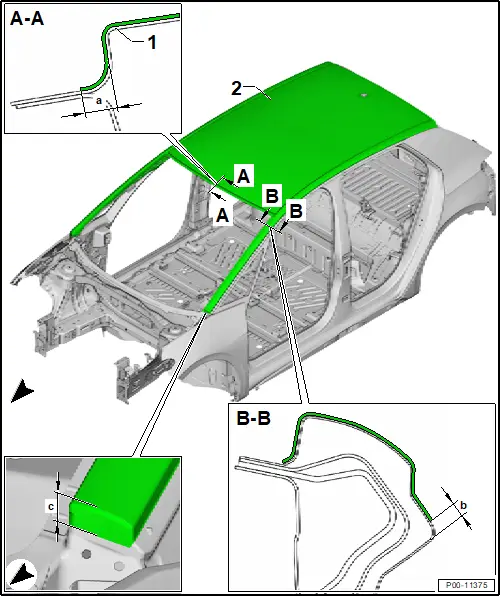

Contrasting colours, roof

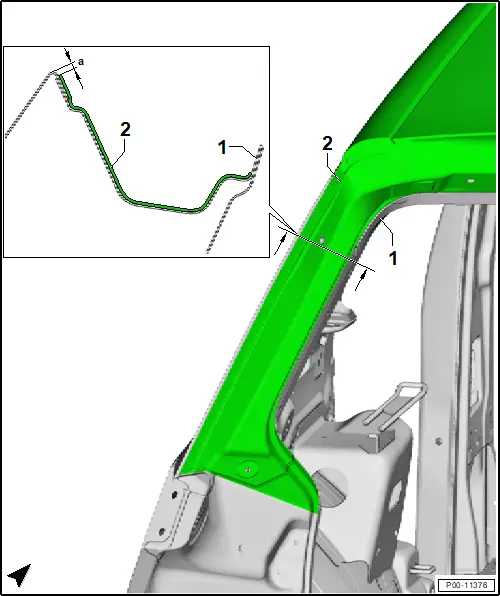

Detailed view, front roof

Contrasting colour black L-041-1-

Contrasting colour black L-041-2-

Apply in area of window flange -A-A- according to dimension -a- = 7 mm.

Apply in area of front roof side member -B-B- according to dimension -a- = 7 mm.

Apply in area of A-pillar according to dimension -c- = 25 mm.

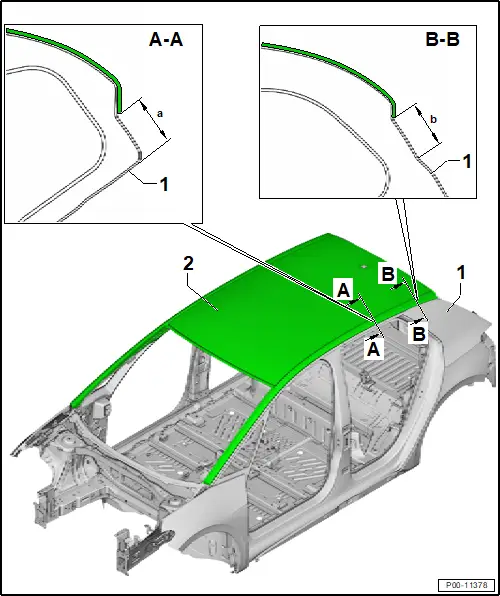

Detailed view, rear roof

Production colour -1- is not painted.

Contrasting colour black L-041-2-

Apply in area of rear roof side member -A-A- according to dimension -a- = 17 mm.

Apply in area of C-pillar -B-B- according to dimension -a- = 13 mm.

Contrasting colours, rear cross panel

Contrasting colours, rear cross panel

Production colour -1- is not painted.

Contrasting colour black L-041-2-

Apply evenly from top to bottom in area of C-pillar according to dimension -a- = 3 ±3 mm.
