Volkswagen ID.3: Vehicle-specific paintwork information. Cavity sealing

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / Vehicle-specific paint information / Vehicle-specific paintwork information. Cavity sealing

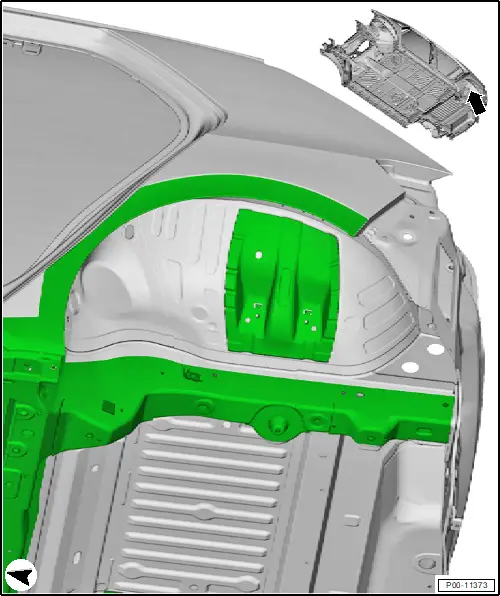

Cavity sealing, rear body

Cavity sealing, rear body

The overview is shown for the left side of vehicle as an example.

Rear wheel housing

The marked areas have been treated with cavity sealant and must be resealed following repairs.

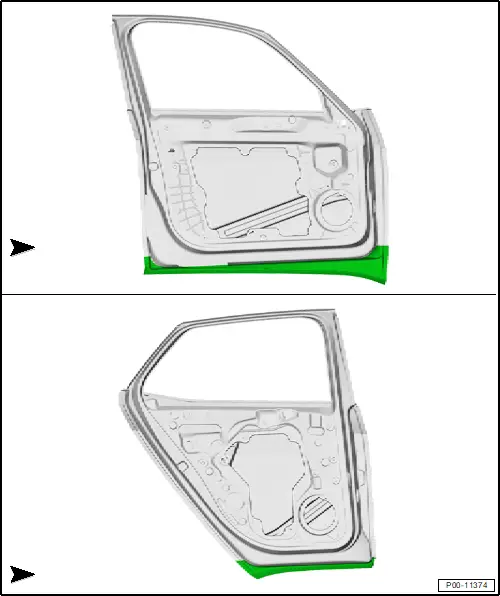

Cavity sealing, doors

Cavity sealing, doors

The overview is shown for the left side of vehicle as an example.

Front and rear door

The marked areas have been treated with cavity sealant and must be resealed following repairs.

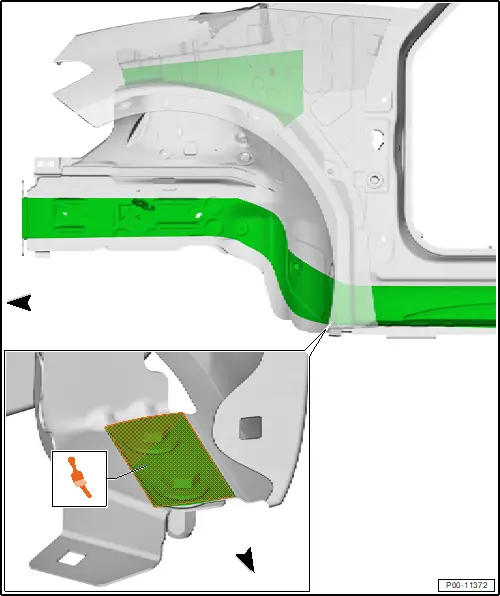

Cavity sealing, front body

Cavity sealing, front body

The overview is shown for the left side of vehicle as an example.

Front wheel housing

The marked areas have been treated with cavity sealant and must be resealed following repairs.

Brush on cavity sealant in area of bracket and wing; spray wax may be used alternatively.

Cavity sealant/spray wax in the marked area must be brushed following application.

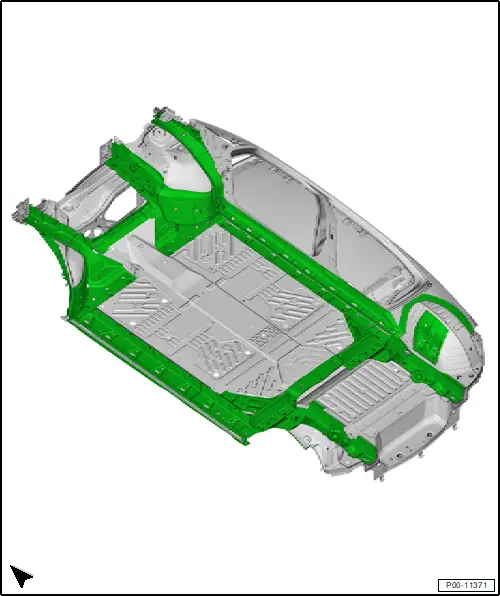

Cavity sealing, body – overview

Cavity sealing, body – overview

The marked areas have been treated with cavity sealant and must be resealed following repairs.
