Volkswagen ID.3: Passenger protection. Seat belts

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Passenger protection. Seat belts

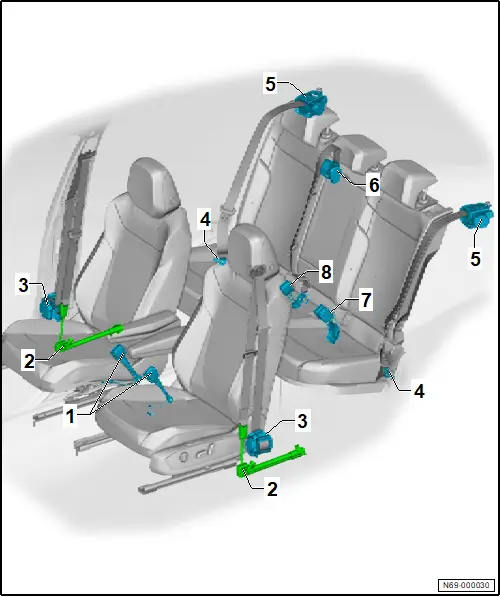

Overview of fitting locations – seat belts and anchorage points

Overview of fitting locations – seat belts and anchorage points

1 - Front belt buckles

❏ With driver side belt switch -E24-/front passenger side belt switch -E25-

❏ → Rep. gr.69; Assembly overview – front belt buckle

❏ → Rep. gr.69; Removing and installing front belt buckle

2 - Front belt end fitting

❏ With igniter for driver side seat belt tensioner 2 -N297-/igniter for front passenger side seat belt tensioner 2 -N298-

❏ → Rep. gr.69; Assembly overview – front three-point seat belt

❏ → Rep. gr.69; Removing and installing front three-point seat belt

3 - Front three-point seat belt

❏ Front left seat belt -NX10- with driver seat belt tensioner igniter 1 -N153-/front passenger seat belt tensioner igniter 1 -N154-

❏ With control unit for front left belt tensioner -J854-

❏ Front right seat belt -NX11- with driver seat belt tensioner igniter 1 -N153-/front passenger seat belt tensioner igniter 1 -N154-

❏ With control unit for front right belt tensioner -J855-

❏ → Rep. gr.69; Assembly overview – front three-point seat belt

❏ → Rep. gr.69; Removing and installing front three-point seat belt

4 - Rear outer belt end fitting

❏ → Rep. gr.69; Assembly overview – rear outer three-point seat belt

❏ → Rep. gr.69; Removing and installing rear outer belt end fitting

5 - Outer rear three-point seat belt

❏ With rear belt tensioner igniter on driver side -N196-/rear belt tensioner igniter on passenger side -N197-

❏ → Rep. gr.69; Assembly overview – rear outer three-point seat belt

❏ → Rep. gr.69; Removing and installing rear outer three-point seat belt

6 - Rear centre three-point seat belt

❏ → Rep. gr.69; Assembly overview – rear centre three-point seat belt

❏ → Rep. gr.69; Removing and installing rear centre three-point seat belt

7 - Twin belt buckle -FX4-

❏ Left-hand drive vehicles with belt switch for seat row 2, driver side -F390- and belt switch for seat row 2, middle -F391-

❏ Right-hand drive vehicles with belt switch for seat row 2, passenger side -F392- and belt switch for seat row 2, middle -F391-

❏ → Rep. gr.69; Assembly overview – rear belt buckle

❏ → Rep. gr.69; Removing and installing rear belt buckle

8 - Belt buckle

❏ Left-hand drive vehicles: belt switch for seat row 2, passenger side -F392-

❏ Right-hand drive vehicles: belt switch for seat row 2, driver side -F390-

❏ → Rep. gr.69; Assembly overview – rear belt buckle

❏ → Rep. gr.69; Removing and installing rear belt buckle

Assembly overview – front three-point seat belt

Assembly overview – front three-point seat belt

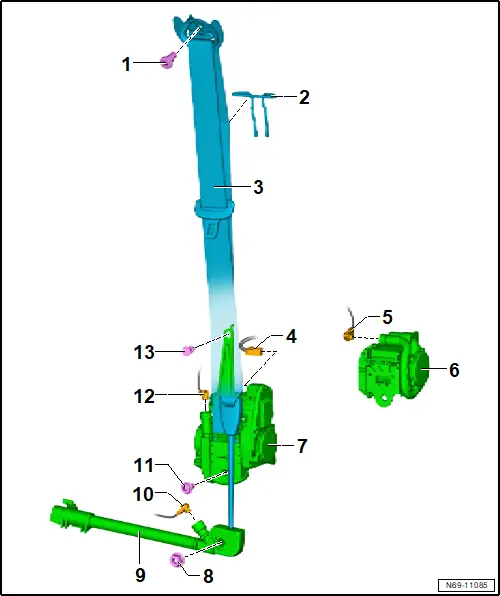

Overview shown for left side of vehicle as an example

1 - Bolt

❏ 40 Nm

2 - Front belt guide

❏ → Rep. gr.69; Removing and installing front belt guide

3 - Belt webbing

4 - Electrical connector

5 - Electrical connector

6 - Front three-point seat belt, basic version

❏ Depending on equipment/version

❏ With driver seat belt tensioner igniter 1 -N153- or front passenger seat belt tensioner igniter 1 -N154-

❏ → Rep. gr.69; Removing and installing front three-point seat belt

7 - Front three-point seat belt, electrically reversible version

❏ Depending on equipment/version

❏ Front left seat belt -NX10- or front right seat belt -NX11-

❏ With control unit for front left belt tensioner -J854- or control unit for front right belt tensioner -J855-

❏ With driver seat belt tensioner igniter 1 -N153- or front passenger seat belt tensioner igniter 1 -N154-

❏ → Rep. gr.69; Removing and installing front three-point seat belt

8 - Nut

❏ 40 Nm

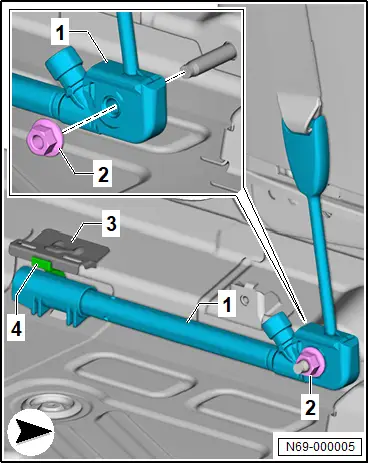

9 - Front belt end fitting

❏ With igniter for driver side seat belt tensioner 2 -N297- or igniter for front passenger side seat belt tensioner 2 -N298-

❏ → Rep. gr.69; Removing and installing front belt end fitting

10 - Electrical connector

11 - Bolt

❏ 40 Nm

12 - Electrical connector

13 - Spreader rivet

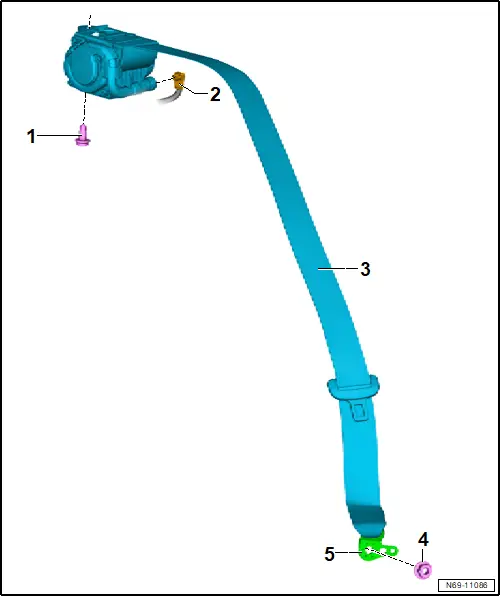

Assembly overview ? rear outer three-point seat belt

Assembly overview ? rear outer three-point seat belt

The overview is shown for the left side of vehicle as an example.

1 - Bolt

❏ 40 Nm

2 - Electrical connector

3 - Outer rear three-point seat belt

❏ Depending on equipment/version

❏ With rear belt tensioner igniter on driver side -N196- or rear belt tensioner igniter on passenger side -N197-

❏ → Chapter „Removing and installing rear outer three-point seat belt“

4 - Nut

❏ 40 Nm

5 - Rear outer belt end fitting

❏ → Rep. gr.69; Removing and installing rear outer belt end fitting

Assembly overview – rear centre three-point seat belt

Assembly overview – rear centre three-point seat belt

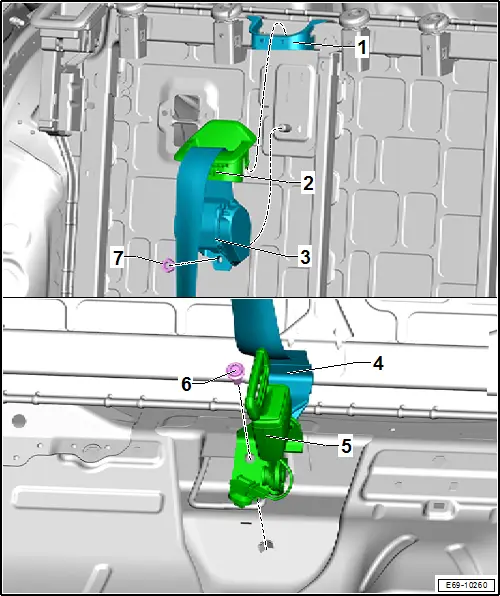

1 - Frame, rear seat backrest

2 - Rear belt guide

❏ → Rep. gr.69; Removing and installing rear belt guide

3 - Rear centre three-point seat belt

❏ → Rep. gr.69; Removing and installing rear three-point seat belt

4 - Rear centre belt end fitting

❏ → Rep. gr.69; Removing and installing rear three-point seat belt

5 - Front right belt buckle

❏ Depending on equipment/version

❏ Left-hand drive vehicles: belt switch for seat row 2, passenger side -F392-

❏ Right-hand drive vehicles: belt switch for seat row 2, driver side -F390-

❏ → Rep. gr.69; Removing and installing rear right belt buckle

6 - Bolt

❏ 40 Nm

7 - Nut

❏ 40 Nm

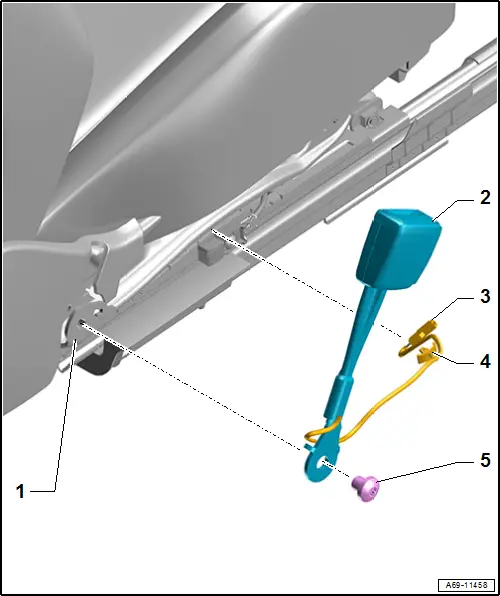

Assembly overview ? front belt buckle

Assembly overview ? front belt buckle

The overview is shown for the left side of vehicle as an example.

1 - Front seat

❏ → Rep. gr.72; Assembly overview – front seat

2 - Front belt buckle, with driver side belt switch -E24- or front passenger side belt switch -E25-

❏ → Rep. gr.69; Removing and installing front belt buckle

3 - Electrical connector

4 - Bracket

5 - Bolt

❏ 40 Nm

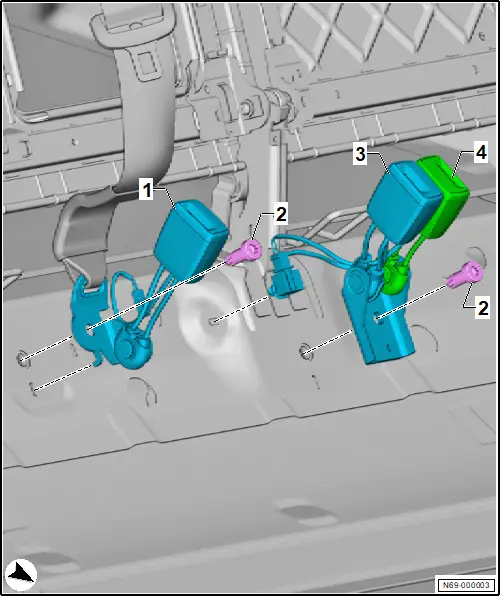

Assembly overview – rear belt buckle

Assembly overview – rear belt buckle

1 - Front right belt buckle

❏ Left-hand drive vehicles: belt switch for seat row 2, passenger side -F392-

❏ Right-hand drive vehicles: belt switch for seat row 2, driver side -F390-

❏ → Rep. gr.69; Removing and installing rear right belt buckle

2 - Bolt

❏ 40 Nm

3 - Rear centre belt buckle

❏ Depending on equipment/version

❏ With belt switch for seat row 2, middle -F391-

❏ → Rep. gr.69; Removing and installing rear centre belt buckle

4 - Rear left belt buckle

❏ Left-hand drive vehicles: belt switch for seat row 2, driver side -F390-

❏ Right-hand drive vehicles: belt switch for seat row 2, passenger side -F392-

❏ → Rep. gr.69; Removing and installing rear belt buckle

Removing and installing front three-point seat belt [NX10]/[NX11]

Removing and installing front three-point seat belt [NX10]/[NX11]

Front left seat belt -NX10- and front right seat belt -NX11- are referred to hereafter as three-point seat belt.

Removing

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove front belt guide → Rep. gr.69; Removing and installing front belt guide.

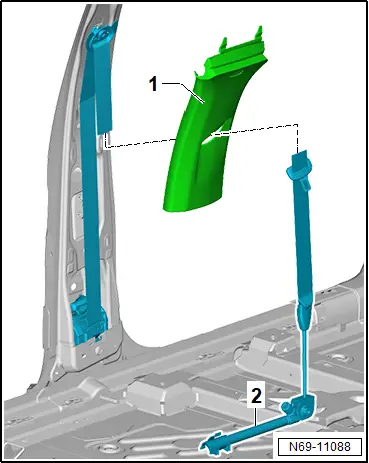

– Remove front belt end fitting → Rep. gr.69; Removing and installing front belt end fitting.

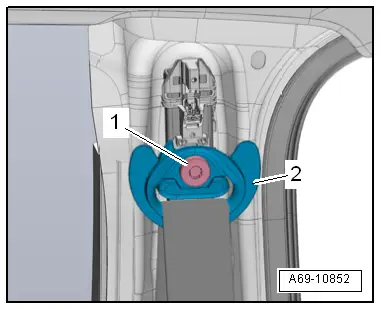

– Unscrew bolt -1-.

– Remove belt guide fitting -2- with belt webbing.


Basic version

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

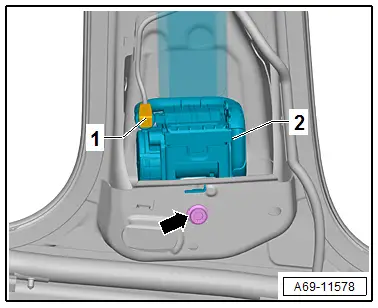

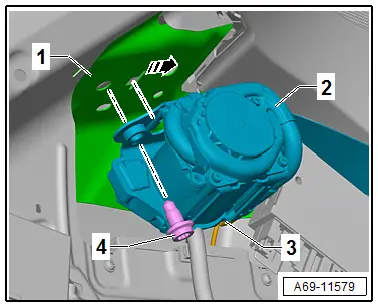

– Disconnect electrical connector -1-.

– Unscrew bolt -arrow-.

– Remove front three-point seat belt -2-.


All vehicles (continued)

Electrically reversible version

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

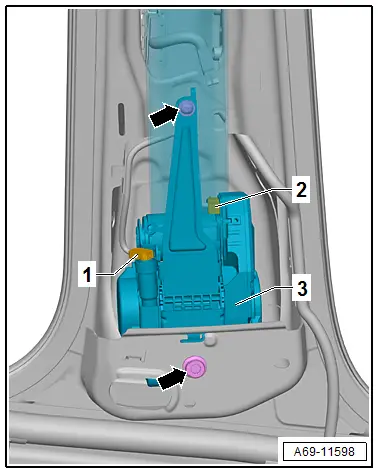

– Disconnect electrical connectors -1- and -2-.

– Remove spreader rivet -upper arrow-.

– Unscrew bolt -lower arrow-.

– Remove front three-point seat belt -3-.


All vehicles (continued)

Installing

Install in reverse order of removal, observing the following:

If parts of the belt system are removed because of an accident:

– Renew all bolts of belt system → Rep. gr.69; Assembly overview - front three-point seat belt.

All vehicles (continued)

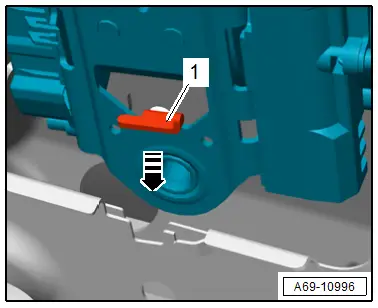

– Insert front seat belt with anti-twist protection -1- in direction of -arrow- into mounting and tighten bolt.

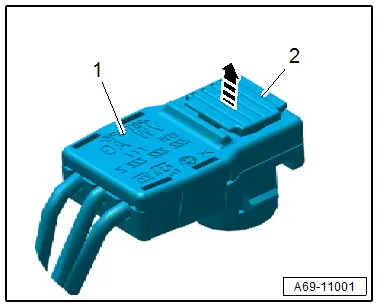

Electrical connector must engage audibly.

– Connect electrical connector.

Continued

– Connect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

CAUTION

Pyrotechnic components can trigger unintentionally.

Risk of injury.

– Keep far away from pyrotechnic components when switching on ignition.

– Switch on ignition.

In event of renewal of front three-point automatic seat belt, electrically reversible version:

– Carry out function “Adapt” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.

Continued

Tightening torques

♦ → Rep. gr.69; Assembly overview – front three-point seat belt

Removing and installing rear outer three-point seat belt

Removing and installing rear outer three-point seat belt

Rear three-point seat belt with rear belt tensioner igniter on driver side -N196- or rear belt tensioner igniter on passenger side -N197- is referred to hereafter as rear three-point seat belt.

Removal and installation are described for left side of vehicle as an example.

Removing

– Remove C-pillar trim → Rep. gr.70; Removing and installing C-pillar trim.

– Remove rear outer belt end fitting → Rep. gr.69; Removing and installing rear outer belt end fitting.

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Unscrew bolt -4-.

– Detach rear outer three-point seat belt -2- in direction of -arrow- from mounting bracket -1-.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

– Disconnect electrical connector -3-.


Installing

Install in reverse order of removal, observing the following:

If parts of the belt system are removed because of an accident:

– Renew all bolts of belt system → Rep. gr.69; Assembly overview - rear outer three-point seat belt.

All vehicles (continued)

Connect electrical connectors until they engage audibly.

– Fit electrical connectors.

Continued

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

– Stay as far back as possible from pyrotechnic components when switching on the ignition.

– Switch on ignition.

Tightening torques

♦ → Rep. gr.69; Assembly overview – rear outer three-point seat belt

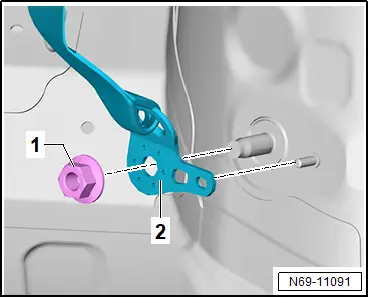

Removing and installing rear centre three-point seat belt

Removing and installing rear centre three-point seat belt

Removing

– Remove bench seat → Rep. gr.72; Removing and installing bench seat/individual seats.

– Remove rear right belt buckle → Rep. gr.69; Removing and installing rear belt buckle.

– Remove cover and padding of rear seat backrest → Rep. gr.74; Removing and installing cover and padding of rear seat backrest.

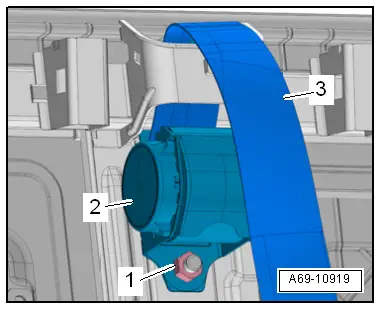

– Unscrew nut -1-.

– Detach rear centre three-point seat belt -2-, and remove it.

– Guide out belt webbing -3-.


Installing

Install in reverse order of removal, observing the following:

– Insert rear centre three-point seat belt ensuring that anti-twist protection engages in mounting, and tighten nut.

Tightening torques

♦ → Rep. gr.69; Assembly overview – rear centre three-point seat belt

Removing and installing rear right belt buckle

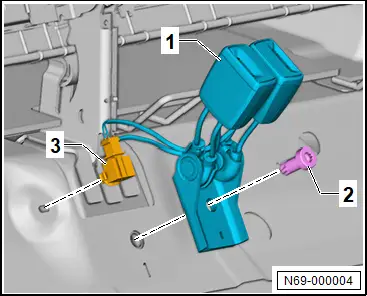

Removing and installing rear right belt buckle

Rear right belt buckle with belt switch for seat row 2, driver side -F390- or belt switch for seat row 2, passenger side -F392- is referred to hereafter as rear right belt buckle.

Removing

– Remove bench seat → Rep. gr.72; Removing and installing bench seat/individual seats.

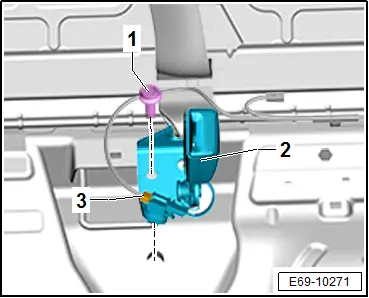

– Disconnect electrical connector -3-, and move it aside.

– Unscrew bolt -1-.

– Remove rear right belt buckle -2-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.69; Assembly overview – rear belt buckle

Removing and installing rear belt guide

Removing and installing rear belt guide

Removing

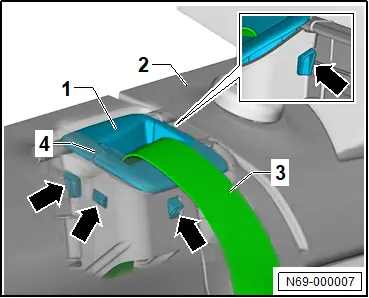

– Push cover and padding downwards in area of rear belt guide -1-.

– Using a screwdriver, release locking devices -arrows-.

– Unclip rear belt guide -1- upwards.

– Guide out belt webbing -3- through opening -4-, and detach rear belt guide -1- from rear seat backrest -2-.


Installing

Install in reverse order of removal.

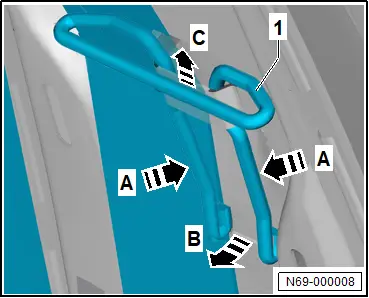

Removing and installing front belt guide

Removing and installing front belt guide

Removing

– Remove upper B-pillar trim → Rep. gr.70; Removing and installing upper B-pillar trim.

– Remove lower B-pillar trim → Rep. gr.70; Removing and installing lower B-pillar trim.

– Press together front belt guide -1- in direction of -arrow A-.

– At the same time, pull out front belt guide -1- in direction of -arrow B-.

– With bars pressed together -arrows A-, pull out front belt guide -1- in direction of -arrow C-.

– Guide out belt webbing, and remove front belt guide -1-.


Installing

Install in reverse sequence of removal.

Removing and installing front belt end fitting

Removing and installing front belt end fitting

Removing

Front belt end fitting with igniter for driver-side seat belt tensioner 2 -N297- or igniter for front passenger-side seat belt tensioner 2 -N298- will henceforth be referred to as “belt end fitting”.

– Disconnect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

– Remove front sill panel moulding → Rep. gr.70; Removing and installing front sill panel moulding.

– Remove upper B-pillar trim → Rep. gr.70; Removing and installing upper B-pillar trim.

– Remove lower B-pillar trim → Rep. gr.70; Removing and installing lower B-pillar trim.

– Remove front seat → Rep. gr.72; Removing and installing front seat.

– Push floor covering in area of front belt end fitting towards vehicle centre.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury

– Discharge static electricity by briefly touching door striker plate.

– Using a small screwdriver, release connector lock -2- in direction of -arrow-, and disconnect electrical connector -1-.


– Unscrew nut -2-.

– Position a screwdriver between clip -4- and body flange -3-.

– Press clip -4- downwards slightly, and detach front belt end fitting -1- inwards.


– Guide out front belt end fitting -2- through opening in upper B-pillar trim -1-.


Installing

Install in reverse order of removal, observing the following:

– Connect electrical connectors until they engage audibly.

– Connect battery earth cable → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.

CAUTION

It is possible to trigger pyrotechnic components unintentionally.

Risk of injury.

– Stay as far back as possible from pyrotechnic components when switching on the ignition.

– Switch on ignition.

Tightening torques

♦ → Rep. gr.69; Assembly overview – front three-point seat belt

Removing and installing rear outer belt end fitting

Removing and installing rear outer belt end fitting

Removing

– Remove rear sill panel moulding → Rep. gr.70; Removing and installing rear sill panel moulding.

– Unscrew nut -1-.

– Detach rear outer belt end fitting -2-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.69; Assembly overview – rear outer three-point seat belt

Removing and installing front belt buckle

Removing and installing front belt buckle

The front belt buckle with driver side belt switch -E24- or front passenger side belt switch -E25- will henceforth be referred to as “front belt buckle”.

Removing

– Remove front seat → Rep. gr.72; Removing and installing front seat.

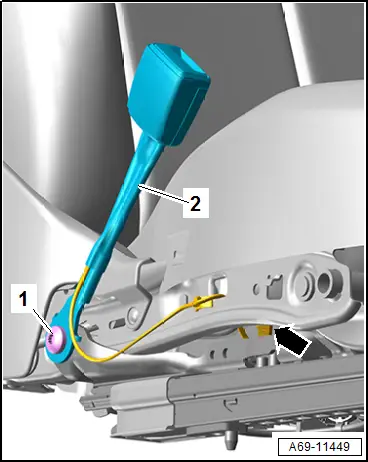

– Disconnect and move aside electrical connector -arrow-.

– Unscrew bolt -1-.

– Remove front belt buckle -2-.


Installing

Install in reverse order of removal, observing the following:

– Position belt buckle in such a way that anti-twist protection engages in recess in seat frame.

Tightening torques

♦ → Rep. gr.69; Assembly overview – front belt buckle

Removing and installing rear centre belt buckle

Removing and installing rear centre belt buckle

Twin belt buckle -FX4- with belt switch for seat row 2, middle -F391- and belt switch for seat row 2, driver side -F390- or belt switch for seat row 2, passenger side -F392- is referred to hereafter as rear centre belt buckle.

Removing

– Remove bench seat → Rep. gr.72; Removing and installing bench seat/individual seats.

– Disconnect electrical connector -3-, and move it aside.

– Unscrew bolt -2-.

– Remove rear centre belt buckle -1-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.69; Assembly overview – rear belt buckle

© 2020-2024 Copyright www.vw-id3.com
