Volkswagen ID.3: Passenger protection. Child seat anchors

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Passenger protection. Child seat anchors

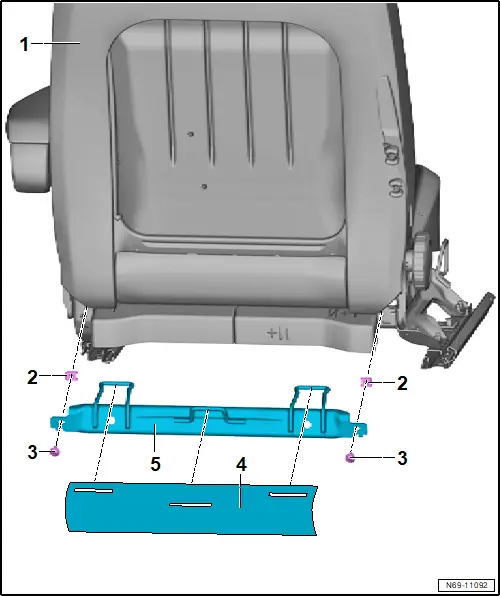

Assembly overview ? front child seat anchors

Assembly overview ? front child seat anchors

1 - Front passenger seat

2 - Speed nut

❏ Inserted into seat pan.

❏ Qty. 2

❏ Renew after removing

3 - Bolt

❏ Qty. 2

❏ Renew after removing

❏ 8 Nm

4 - Top tether fabric cover

5 - Front child seat anchor

❏ Fitted on front passenger seat

❏ → Rep. gr.69; Removing and installing front child seat anchors

Assembly overview – rear child seat anchors

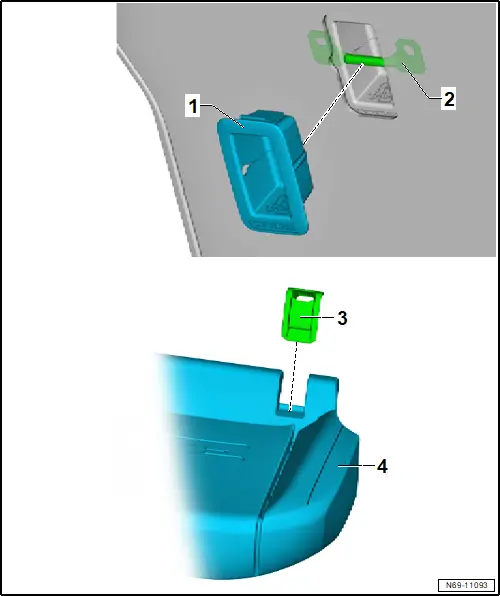

Assembly overview – rear child seat anchors

1 - Child seat anchor cover in rear seat backrest

❏ Qty. 2

❏ → Rep. gr.72; Removing and installing back panel trim

2 - Upper child seat anchor

❏ Cannot be replaced individually

❏ Qty. 2

3 - Child seat anchor guide in bench seat

❏ Qty. 4

❏ → Rep. gr.74; Removing and installing cover and padding of rear bench seat

4 - Bench seat

❏ → Rep. gr.72; Assembly overview – bench seat/individual seats

❏ → Rep. gr.72; Removing and installing bench seat/individual seats

Removing and installing front child seat anchors

Removing and installing front child seat anchors

Removing

– Remove front passenger seat → Rep. gr.72; Removing and installing front seat.

– Remove inner seat trim → Rep. gr.72; Removing and installing inner seat trim.

– Remove outer seat trim → Rep. gr.72; Removing and installing outer seat trim.

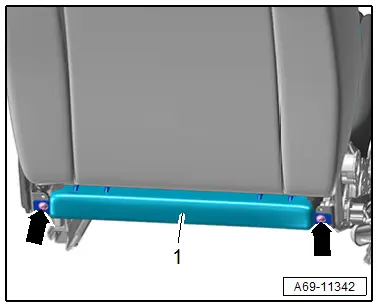

– Unscrew bolts -arrows-.

– Pull “top tether” fabric cover off front child seat anchor -1-. To do this, detach beading at top and bottom.

– Detach front child seat anchor -1- towards rear.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.69; Assembly overview – front child seat anchors
