Assembly overview – interior mirror

Assembly overview – interior mirror

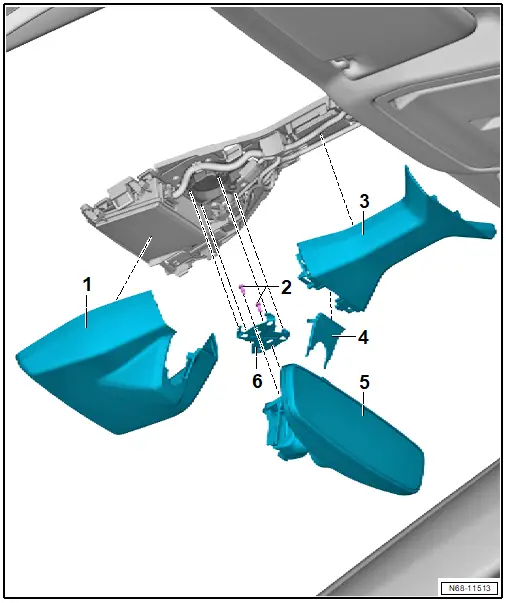

1 - Cover for front camera

2 - Bolt

❏ Qty. 2

❏ 1.5 Nm

3 - Upper cover

4 - Cover

5 - Interior mirror

❏ → Rep. gr.68; Removing and installing interior mirror

6 - Spring clip

❏ Renew after removing

Removing and installing interior mirror

Removing and installing interior mirror

Removing

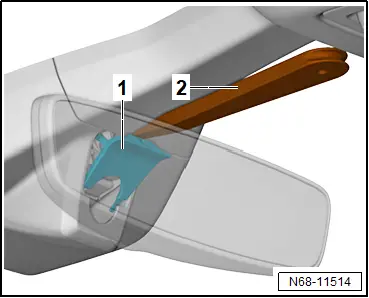

– Unclip cover -1- using commercially available plastic wedge -2-.

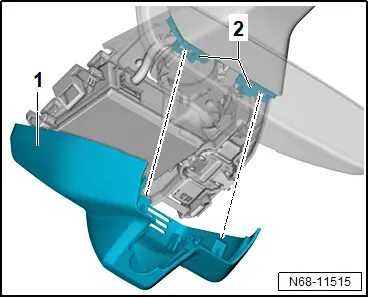

– Detach cover -1-.

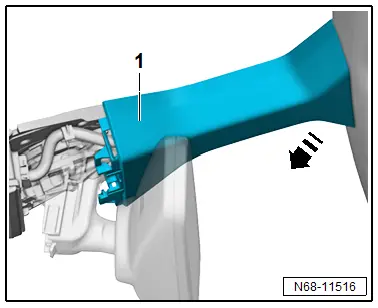

– Unclip cover -1- from mountings in cable duct cover -2-.


– Unclip cover -1- in -direction of arrow-.

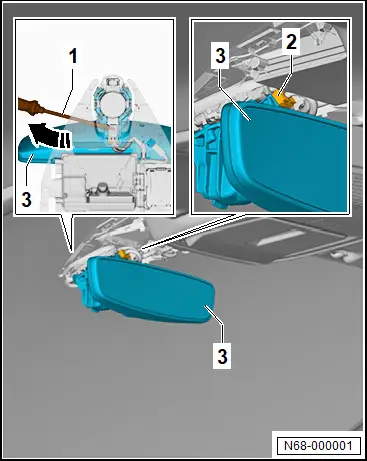

– Disconnect electrical connector -2-.

– Insert screwdriver -1- into gap.

– Turn interior mirror -3- at mirror base approx. 20° in direction of -arrow-, and pull it off downwards.


Installing

Reusing interior mirror

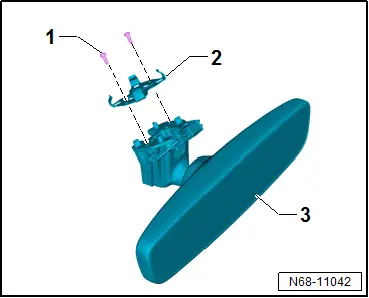

– Unscrew bolts -1-.

– Renew spring clip -2-.

– Screw in bolts -1- and tighten them.


All vehicles (continued)

– Make sure that the interior mirror is aligned parallel with the retaining plate.

– Fit interior mirror, turn in anti-clockwise direction and mount on retaining plate.

– Turn interior mirror clockwise until it can be heard to engage.

Tightening torques

Further installation is carried out in reverse order of removal. Observe the following when doing this:

♦ → Rep. gr.68; Assembly overview – interior mirror
