Volkswagen ID.3: Passenger protection. Airbag system

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Passenger protection. Airbag system

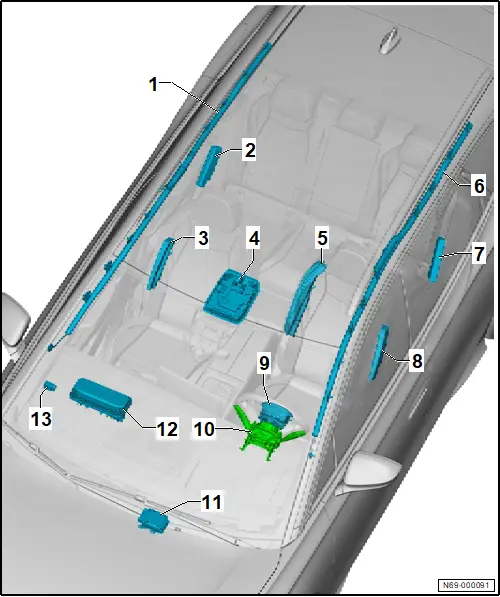

Overview of fitting locations – airbag system

Overview of fitting locations – airbag system

The overview shows a left-hand drive vehicle as an example. For right-hand drive vehicles, the layout is a mirror image.

1 - Head airbag, front passenger side

❏ Left-hand drive vehicles: with front passenger side curtain airbag igniter -N252-

❏ Right-hand drive vehicles: with driver side curtain airbag igniter -N251-

❏ → Rep. gr.69; Assembly overview – curtain airbag

❏ → Rep. gr.69; Removing and installing curtain airbag with igniter

2 - Rear side airbag, front passenger side

❏ Left-hand drive vehicles: with rear side airbag igniter on passenger side -N202-.

❏ Right-hand drive vehicles: with rear side airbag igniter on driver side -N201-.

❏ Depending on model

3 - Front side airbag, front passenger side

❏ Left-hand drive vehicles: with side airbag igniter on front passenger side -N200-

❏ Right-hand drive vehicles: with side airbag igniter on driver side -N199-

❏ → Rep. gr.69; Assembly overview - front outer side airbag

❏ → Rep. gr.69; Removing and installing front outer side airbag

4 - Front passenger airbag deactivated warning lamp -K145-

❏ Renew only together with front interior light -WX1-

❏ → Electrical system; Rep. gr.96; Controls; Removing and installing front interior light/reading light

5 - Front side airbag on driver side with igniter for central airbag for occupant collision protection, driver side -N737-

❏ → Rep. gr.69; Assembly overview - front inner side airbag

❏ → Rep. gr.69; Removing and installing front inner side airbag

6 - Head airbag, driver side

❏ Left-hand drive vehicles: with driver side curtain airbag igniter -N251-

❏ Right-hand drive vehicles: with front passenger side curtain airbag igniter -N252-

❏ → Rep. gr.69; Assembly overview – curtain airbag

❏ → Rep. gr.69; Removing and installing curtain airbag with igniter

7 - Rear side airbag, driver side

❏ Left-hand drive vehicles: with rear side airbag igniter on driver side -N201-.

❏ Right-hand drive vehicles: with rear side airbag igniter on passenger side -N202-.

❏ Depending on model

8 - Front side airbag, driver side

❏ Left-hand drive vehicles: with side airbag igniter on driver side -N199-

❏ Right-hand drive vehicles: with side airbag igniter on front passenger side -N200-

❏ → Rep. gr.69; Assembly overview - front outer side airbag

❏ → Rep. gr.69; Removing and installing front outer side airbag

9 - Airbag unit on driver side with airbag igniter on driver side -N95-

❏ → Rep. gr.69; Assembly overview – front airbag, driver side

❏ → Rep. gr.69; Removing and installing airbag unit with airbag igniter on driver side [N95]

10 - Steering column electronics control unit -J527-

❏ → Electrical system; Rep. gr.94; Steering column switch module; Removing and installing steering column electronics control unit [J527]

11 - Airbag control unit -J234-

❏ → Rep. gr.69; Assembly overview – airbag control unit

❏ → Rep. gr.69; Removing and installing airbag control unit [J234]

12 - Airbag unit on front passenger side

❏ With front passenger side airbag igniter 1 -N131-.

❏ With front passenger airbag unit -NX3-, inc. airbag igniter 1 on front passenger side -N131- and airbag igniter 2 on front passenger side -N132-

❏ → Rep. gr.69; Assembly overview – front passenger airbag

❏ → Rep. gr.69; Removing and installing front passenger airbag unit with igniter

13 - Key-operated switch to deactivate airbag on front passenger side -E224-

❏ Depending on equipment/installation period

❏ → Rep. gr.69; Removing and installing key-operated switch to deactivate airbag on front passenger side [E224]
