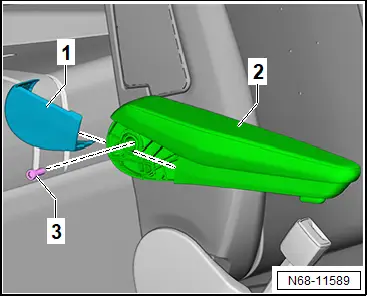

Assembly overview ? front centre armrest

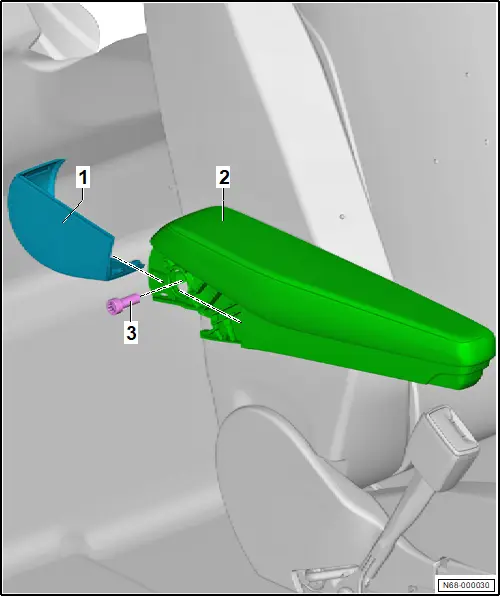

Assembly overview ? front centre armrest

The overview is shown for the left side of vehicle as an example.

1 - Trim

2 - Front centre armrest

❏ → Rep. gr.68; Removing and installing front centre armrest

3 - Bolt

❏ 20 Nm

Removing and installing front centre armrest

Removing and installing front centre armrest

Removal and installation are described for the left side of vehicle as an example.

Removing

– Using commercially available plastic wedge, unclip trim -1-.

– Unscrew bolt -3-.

– Remove front centre armrest -2-.


Installing

Install in reverse order of removal, observing the following:

– Make sure that the cover is not trapped.

Tightening torques

♦ → Rep. gr.68; Assembly overview – front centre armrest
