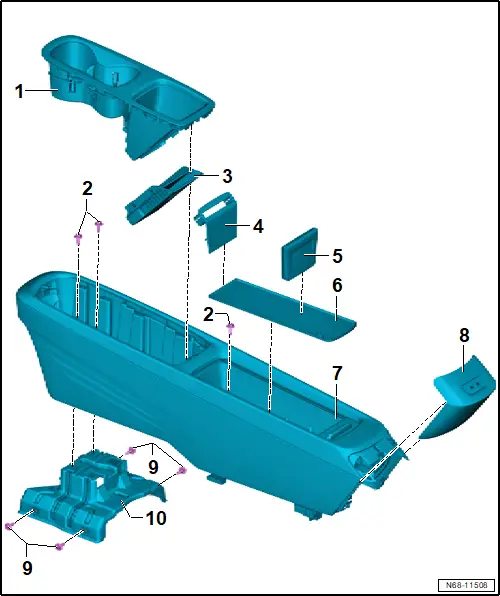

Assembly overview – centre console

Assembly overview – centre console

1 - Centre console insert

❏ → Rep. gr.68; Removing and installing centre console insert

2 - Bolt

❏ Qty. 3

❏ 6 Nm

3 - Storage compartment insert

4 - Trim

5 - Centre console insert

6 - Lining mat

7 - Centre console

❏ → Rep. gr.68; Removing and installing centre console

8 - Rear centre console trim

❏ → Rep. gr.68; Removing and installing rear centre console trim

9 - Bolt

❏ Qty. 4

❏ 6 Nm

10 - Centre console bracket

❏ → Rep. gr.68; Removing and installing centre console bracket

Removing and installing rear centre console trim

Removing and installing rear centre console trim

For reasons of clarity, front seats are not shown in illustration.

Removing

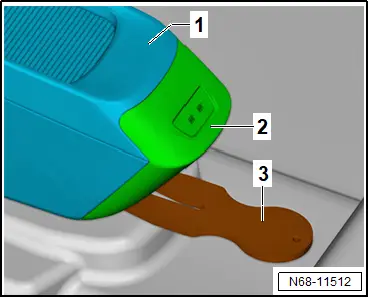

– Using commercially available plastic wedge -3-, unclip rear centre console trim -2- upwards from fasteners in centre console -1-.

– If fitted, disconnect electrical connector:


Installing

Install in reverse order of removal, observing the following:

– Press on rear centre console trim until retaining tabs engage audibly.

Tightening torques

♦ → Rep. gr.68; Assembly overview – centre console

Removing and installing centre console insert

Removing and installing centre console insert

Removing

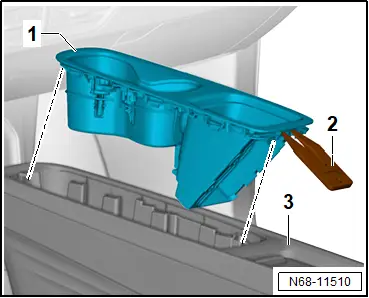

– Using commercially available plastic wedge -2-, unclip centre console insert -1- from fasteners in centre console -3-.


Installing

Install in reverse order.

Removing and installing centre console

Removing and installing centre console

For reasons of clarity, front seats are not shown in illustration.

Removing

– Remove centre console insert → Rep. gr.68; Removing and installing centre console insert.

– Remove rear centre console trim → Rep. gr.68; Removing and installing rear centre console trim.

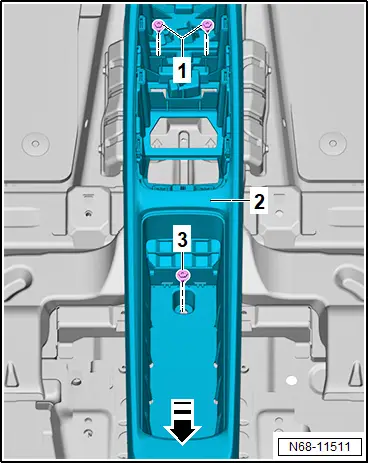

– Unscrew bolts -1- and -3-.

– Push centre console -2- backwards slightly in direction of -arrow- and remove.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview – centre console

Removing and installing centre console bracket

Removing and installing centre console bracket

Removing

– Remove front seats → Rep. gr.72; Removing and installing front seat.

– Remove front sill panel mouldings → Rep. gr.70; Removing and installing front sill panel moulding.

– Remove lower A-pillar trims → Rep. gr.70; Removing and installing lower A-pillar trim.

– Remove tunnel support cover → Rep. gr.70; Removing and installing tunnel support cover.

– Remove centre console → Rep. gr.68; Removing and installing centre console.

– Fold back floor covering in the middle.

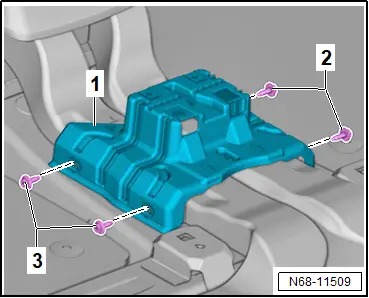

– Unscrew bolts -2- and -3-.

– Remove front centre console bracket -1-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.68; Assembly overview – centre console
