Volkswagen ID.3: Interior equipment. Equipment

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Interior equipment. Equipment

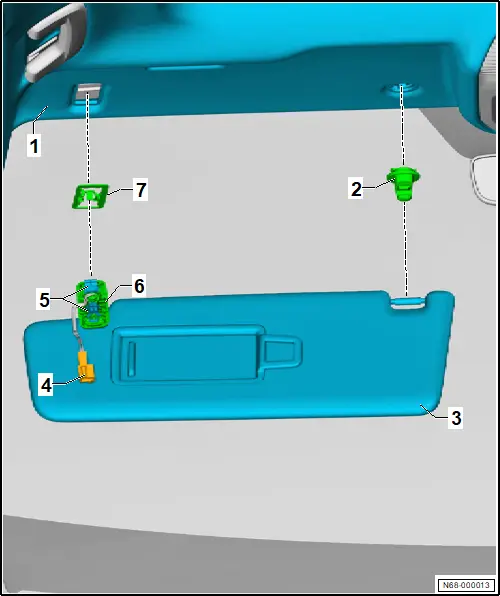

Assembly overview ? sun visors

Assembly overview ? sun visors

The overview is shown for the left side of vehicle as an example.

1 - Moulded headliner

❏ → Rep. gr.70; Removing and installing moulded headliner

2 - Sun visor centre mount

❏ → Rep. gr.68; Removing and installing sun visor centre mount

3 - Sun visor

❏ → Rep. gr.68; Removing and installing sun visor

4 - Electrical connector

5 - Retaining clip

❏ qty. 2

6 - Cap

❏ qty. 2

7 - Clamping plate

Removing and installing sun visor

Removing and installing sun visor

Special tools and workshop equipment required

♦ pliers -T10558A-

Removing

Removal and installation are described for the left side of vehicle as an example.

– Swing sun visor towards front.

– Remove illuminated vanity mirror [W20]/[W14]. → Electrical system; Rep. gr.96; Lights; Removing and installing illuminated vanity mirror [W20]/[W14].

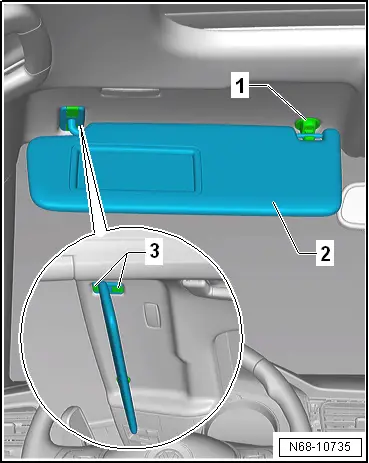

– Detach sun visor -2- from sun visor centre mount -1-, and fold it aside.

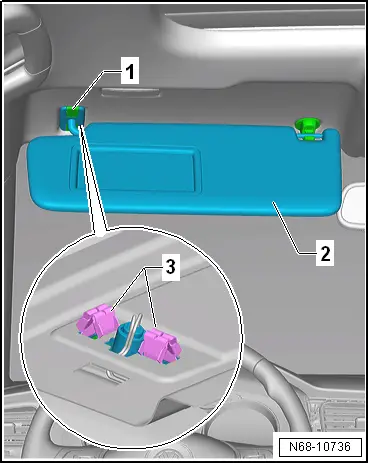

– Lever off caps -3- using a small screwdriver.


– Position pliers -T10558A- centrally in retaining clips -3-.

– Detach foremost (when seen in direction of travel) retaining clip -3- in sun visor bracket -1- using pliers -T10558A-.

– Pull sun visor -2- lightly downwards to prevent foremost retaining clip -3- from re-engaging.

– Detach rearmost (when seen in direction of travel) retaining clip -3- in sun visor bracket -1- using pliers -T10558A-.

– Pull sun visor -2- downwards.


NOTICE

Risk of damage to electrical wiring by pulling too forcefully.

– Carefully pull electrical wiring out of opening.

– Disconnect electrical connector.

– Remove clamping plate.

– Remove sun visor.

Installing

Install in reverse order of removal, observing the following:

– Wrap electrical connector with one layer of foam tape.

– Grasp with one finger into recess in vanity mirror light.

– Pull moulded headliner slightly downwards.

– Position electrical connector between moulded headliner and roof cross member.

– Engage foremost (when seen in direction of travel) retaining clip.

– Engage rearmost (when seen in direction of travel) retaining clip.

– Make sure that both retaining clips are properly engaged.

Removing and installing sun visor centre mount

Removing and installing sun visor centre mount

Removing

Removal and installation are described for the left side of vehicle as an example.

– Detach sun visor and fold it aside.

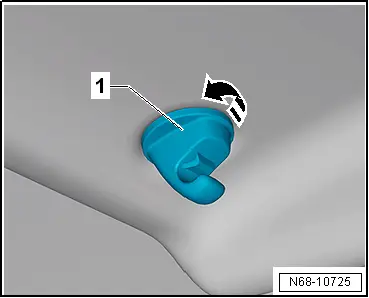

– Turn sun visor centre mount -1- in direction of -arrow-.

– Remove sun visor centre mount -1- downwards.


Installing

Install in reverse order of removal.

Removing and installing roof grab handle

Removing and installing roof grab handle

Special tools and workshop equipment required

♦ release tool -T10518A-

Removing

Removal and installation are described for the left side of vehicle as an example.

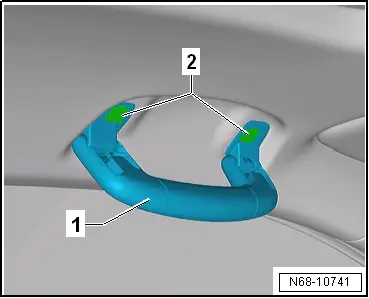

– Fold roof grab handle -1-.

– Unclip caps -2- using commercially available plastic wedge.


– Fold roof grab handle -1- downwards, and hold it there.

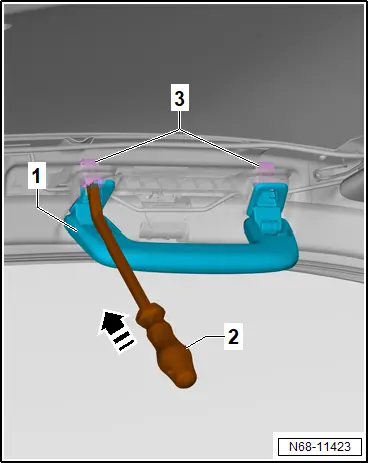

– Push release tool -T10518A--2- in direction of -arrow- until retaining clip -3- is released.

– Pull release tool -T10518A--2- with roof grab handle -1- in opposite direction of -arrow-.

– Repeat procedure for remaining retaining clip -3-while holding roof grab handle -1- under tension to prevent retaining clip -3- from engaging again.

– Detach roof grab handle -1-.


Installing

Install in reverse order of removal, observing the following:

Important

● It is compulsory to install a spacer.

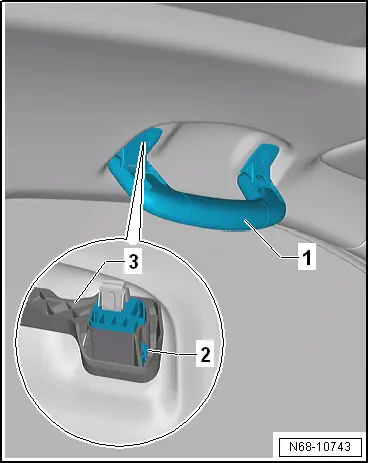

– Engage roof grab handle -1- in spacer -3-.

Important

● Locking devices -2- must engage.

– Position roof grab handle -1- properly, and push it into body until it can be heard to engage.
