Volkswagen ID.3: Trim, noise insulation. Rear door trims

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Trim, noise insulation. Rear door trims

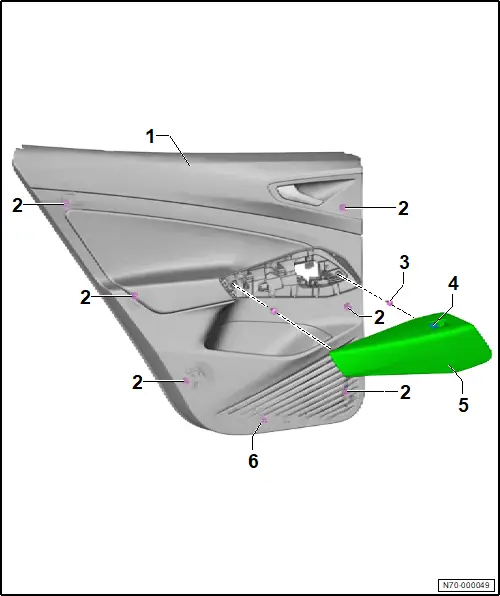

Assembly overview ? rear door trim

Assembly overview ? rear door trim

The overview is shown for the left side of vehicle as an example.

1 - Rear door trim

❏ → Rep. gr.70; Removing and installing rear door trim

2 - Clip

❏ qty. 6

3 - Bolt

❏ qty. 2

❏ 4.5 Nm

4 - Rear window regulator button

❏ Left-hand drive vehicles: with rear driver side window regulator button -E711-

❏ Right-hand drive vehicles: with rear passenger side window regulator button -E713-

❏ → Electrical system; Rep. gr.96; Controls; Removing and installing rear window regulator [E711]/[E713]

5 - Button trim

❏ → Rep. gr.70; Removing and installing button trim

6 - Rotary clip

Removing and installing button trim

Removing and installing button trim

Special tools and workshop equipment required

♦ wedge -T10383-

The rear driver side window regulator button -E711- and rear passenger side window regulator button -E713- will henceforth be referred to as “buttons”.

Removal and installation are described for the left side of vehicle as an example.

Removing

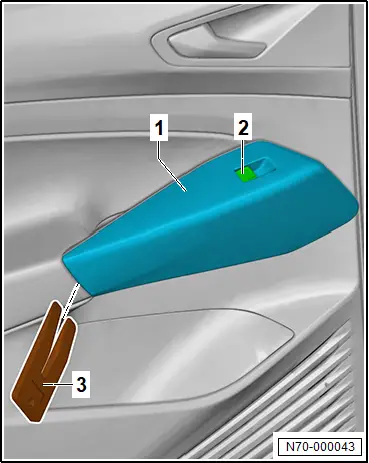

– Unclip button trim -1- together with button -2- using wedge -T10383- -3-.


– Disconnect electrical connectors.

Installing

Install in reverse order of removal, observing the following:

– Renew any damaged securing elements.

Removing and installing rear door trim

Removing and installing rear door trim

Special tools and workshop equipment required

♦ Wedge -T10383-

Removal and installation are described for left side of vehicle as an example.

Removing

– Remove button trim → Rep. gr.70; Removing and installing button trim.

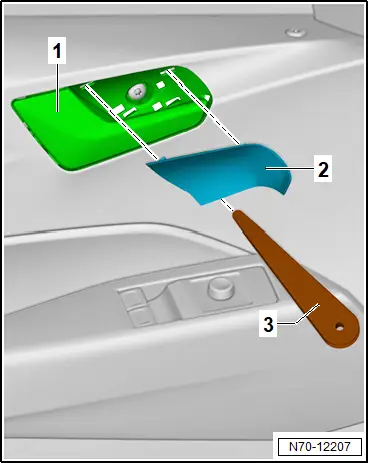

– Lever trim -2- out of interior door handle -1- using commercially available plastic wedge -3-.

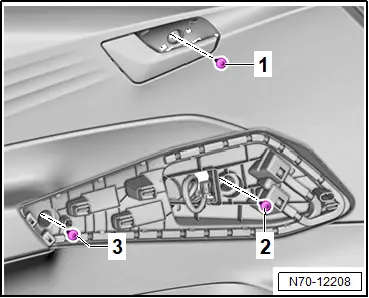

– Unscrew bolts -1-, -2- and -3-.

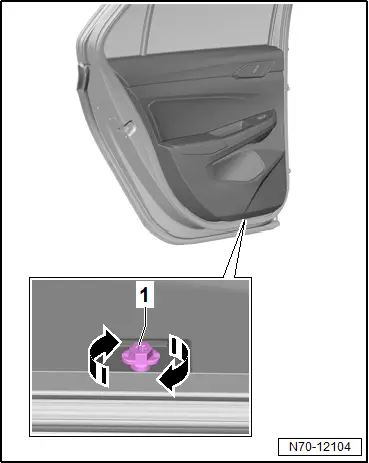

– Turn rotary clip -1- by 90° in direction of -arrow-, and release it.

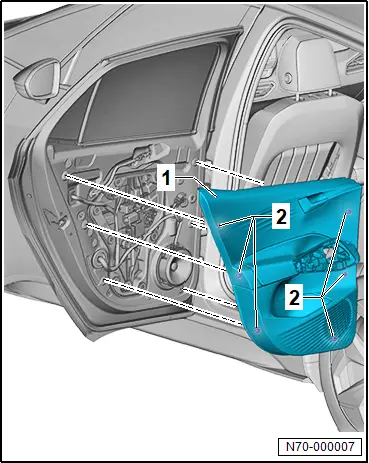

– Release clips -2- of rear door trim -1- using wedge -T10383-.

– Pull rear door trim -1- upwards out of window slot seal.

– Disconnect electrical connector.


NOTICE

Risk of damage to the Bowden cable due to deformation.

– Do not bend or kink the Bowden cable.

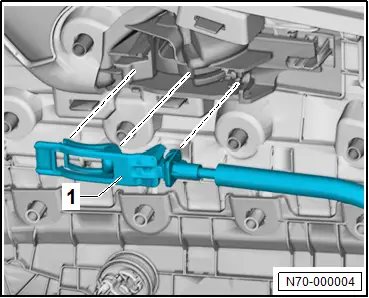

– Detach Bowden cable -1-.


Installing

Install in reverse order of removal, observing the following:

NOTICE

Risk of damage to the locking mechanism.

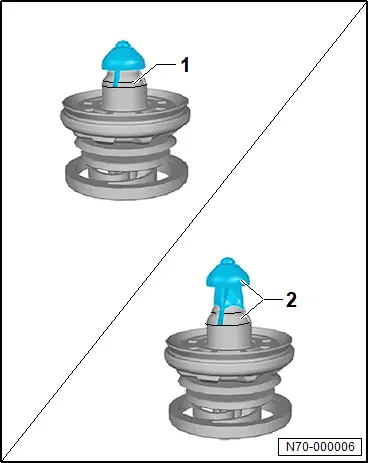

– Always turn the locking mechanism from position -2- to position -1-.

– The door trim can only be installed when the locking mechanism is in position -1-.

– Insert clips into rear door trim.


Tightening torques

♦ → Rep. gr.70; Assembly overview – rear door trim
