Volkswagen ID.3: Trim, noise insulation. Front door trims

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, interior / Trim, noise insulation. Front door trims

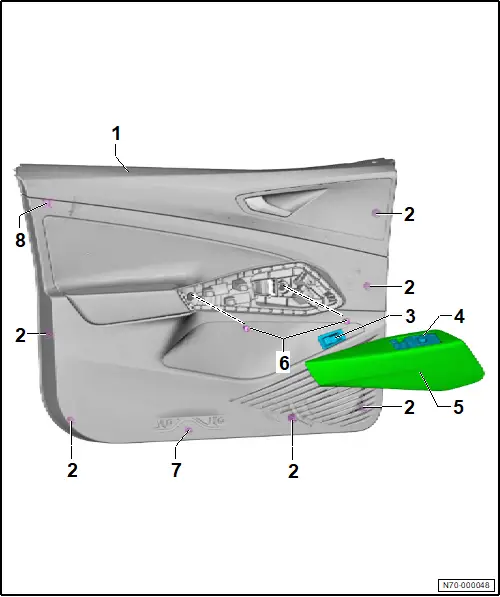

Assembly overview – front door trim

Assembly overview – front door trim

The overview is shown for the left side of vehicle of a left-hand drive vehicle as an example.

1 - Front door trim

❏ → Rep. gr.70; Removing and installing front door trim

2 - Fastener

❏ Qty. 6

3 - Rear lid remote release button -E233-

❏ Depending on model

4 - Operating unit for window regulator in driver door -EX36-

❏ → Electrical system; Rep. gr.96; Controls; Removing and installing operating unit for window regulator in driver door [EX36]

5 - Button trim panel

❏ → Rep. gr.70; Removing and installing button/switch trim

6 - Bolt

❏ Qty. 2

❏ 4.5 Nm

7 - Rotary clip

8 - Crash clip

Removing and installing front door trim

Removing and installing front door trim

Special tools and workshop equipment required

♦ Wedge -T10383-

Removal and installation are described for the left side of vehicle as an example.

Removing

– Remove button trim → Rep. gr.70; Removing and installing button trim.

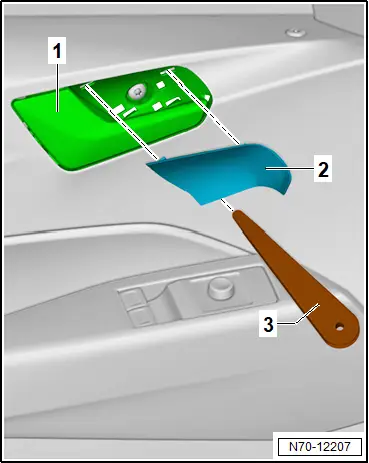

– Lever trim -2- out of interior door handle -1- using commercially available plastic wedge -3-.

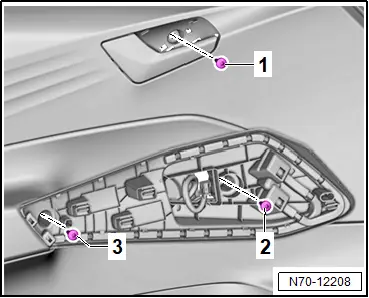

– Unscrew bolts -1-, -2- and -3-.

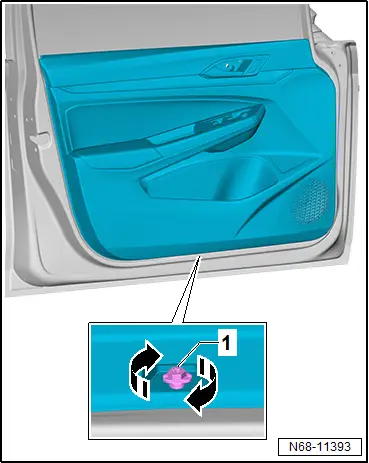

– Turn rotary clip -1- by 90° in direction of -arrow-, and release it.


Note

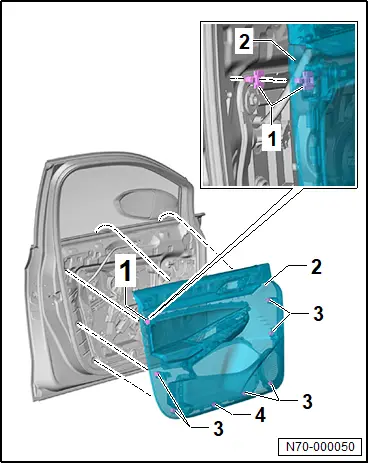

The upper left crash clip -1- is automatically released as soon as the front door trim -2- is lifted out of window slot inner seal.

– Release clips -3- of front door trim -2- using wedge -T10383-.

– Pull front door trim -2- upwards out of window slot seal.

– Separate electrical connectors.


NOTICE

Risk of damage to the Bowden cable due to deformation.

– Do not bend or kink the Bowden cable.

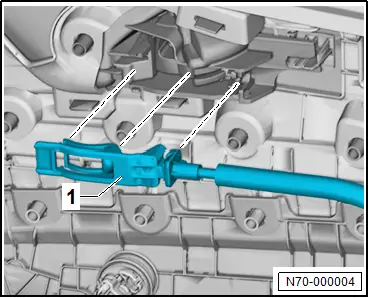

– Detach Bowden cable -1-.


Installing

Install in reverse order of removal, observing the following:

NOTICE

Risk of damage to the locking mechanism.

– Always turn the locking mechanism from position -2- to position -1-.

– The door trim can only be installed when the locking mechanism is in position -1-.

– Insert clips into front door trim.


Tightening torques

♦ → Rep. gr.70; Assembly overview – front door trim

Removing and installing button trim

Removing and installing button trim

Special tools and workshop equipment required

♦ Wedge -T10383-

The operating unit for window regulator in driver door -EX36-, front passenger side window regulator button -E716- and front passenger side interior locking button for central locking system -E309- will henceforth be referred to as “operating unit”.

Removal and installation are described for the left side of vehicle as an example.

Removing

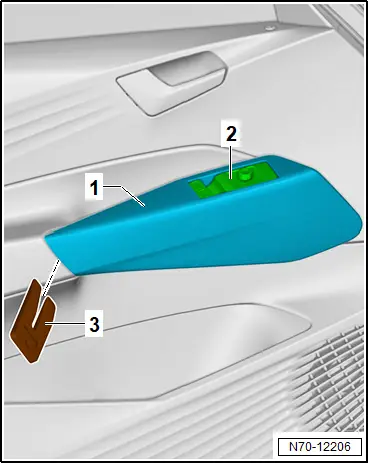

– Unclip button trim -1- together with operating unit -2- using wedge -T10383- -3-.


– Disconnect electrical connectors.

Installing

Install in reverse sequence of removal.

Removing and installing mirror cover trim

Removing and installing mirror cover trim

Removal and installation are described for left side of vehicle as an example.

Removing

– Remove front door trim → Rep. gr.70; Removing and installing front door trim.

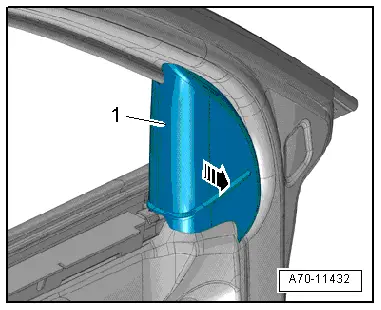

– Using commercially available plastic wedge, unclip cover -1- from door -arrow-.


Installing

Install in reverse order.
