Volkswagen ID.3: Exterior equipment. Spoiler

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, exterior / Exterior equipment. Spoiler

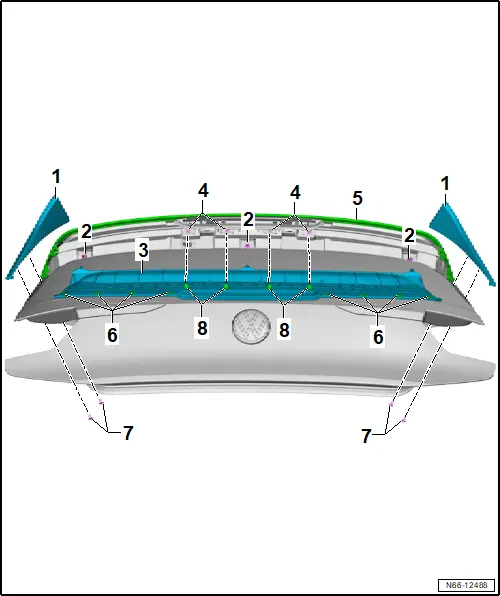

Assembly overview – spoiler

Assembly overview – spoiler

1 - Side spoiler

2 - Grommets

❏ Qty. 3

3 - Trim for rear spoiler

4 - Clip

❏ Qty. 4

5 - Rear spoiler

❏ Can only be renewed along with rear lid

6 - Locking lug

❏ Can only be renewed along with trim for rear spoiler

❏ Qty. 8

7 - Bolts

❏ Qty. 4

❏ 4 Nm

8 - Locking lug

❏ Can only be renewed along with rear lid

❏ Qty. 4

Removing and installing trim for rear spoiler

Removing and installing trim for rear spoiler

Trim for rear spoiler is referred to hereafter as trim.

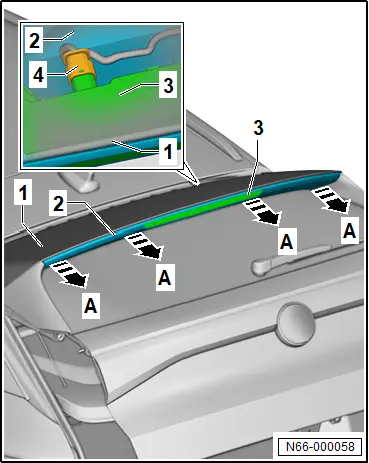

Removing

– Remove side spoiler → Rep. gr.66; Removing and installing side spoiler.

– Pull trim -2- in direction of -arrow A- off spoiler -1-.

– Pull off hose for washer fluid -4- → Electrical system; Rep. gr.92; Window washer system; Removing and installing spray jet.

– Disconnect electrical connector -4- for high-level brake light bulb -M25- -3-.

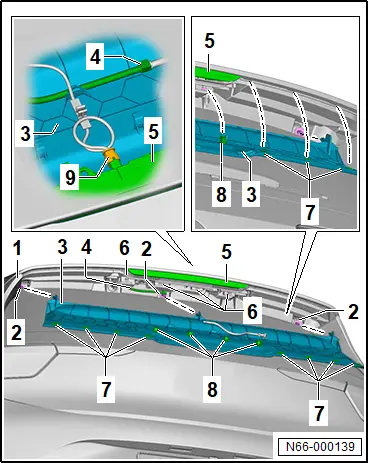

Installing

– Connect electrical connector -9- for high-level brake light bulb -M25- -5-.

– Fit hose for washer fluid -4- → Electrical system; Rep. gr.92; Rear window washer system; Removing and installing spray jet.

– Mount trim -3- on spoiler -1-.

– Push centring pin of trim -3- into grommets -2- on spoiler -1-.

– At same time, push locking devices -8- into clips -6- and locking devices -7- into openings on spoiler.

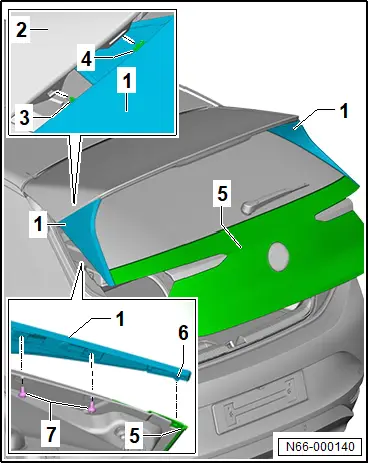

Removing and installing side spoiler

Removing and installing side spoiler

Removal and installation are described for the left side of vehicle as an example.

Removing

– Unscrew bolts -7-.

– Press together locking devices -6- while simultaneously pulling side spoiler -1- slightly off rear lid -5-.

– Pull side spoiler -1- with guides -3- and -4- out of rear spoiler -2-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.66; Assembly overview – spoiler
