Volkswagen ID.3: Glazing & window mechanism. Door windows

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General body repairs, exterior / Glazing & window mechanism. Door windows

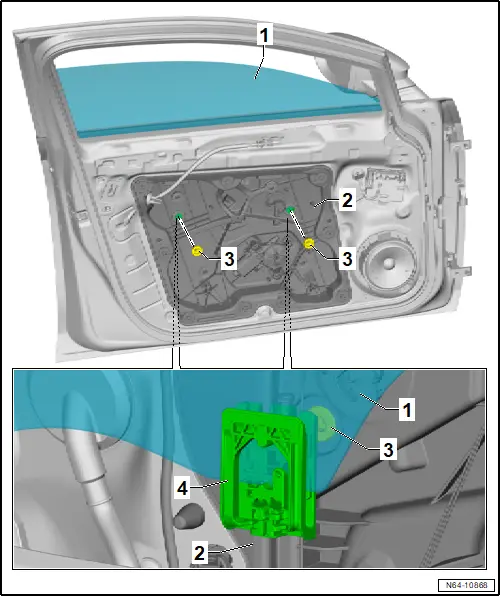

Assembly overview - front door window

Assembly overview - front door window

Overview shown for left side of vehicle as an example

1 - Front door window

❏ → Rep. gr.64; Removing and installing front door window

2 - Door subframe

❏ → Rep. gr.57; Assembly overview – assembly carrier

❏ → Rep. gr.57; Removing and installing assembly carrier

3 - Cover

❏ Qty. 2

4 - Clamping bracket

❏ Qty. 2

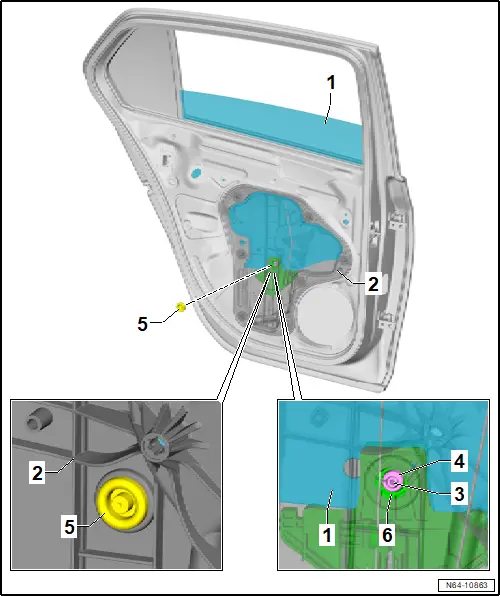

Assembly overview - rear door window

Assembly overview - rear door window

Overview shown for left side of vehicle as an example

1 - Rear door window

❏ → Rep. gr.64; Removing and installing rear door window

2 - Door subframe

❏ → Rep. gr.58; Assembly overview – assembly carrier

❏ → Rep. gr.58; Removing and installing assembly carrier

3 - Spreader rivet

4 - Spreader plug

5 - Cover

6 - Window regulator guide

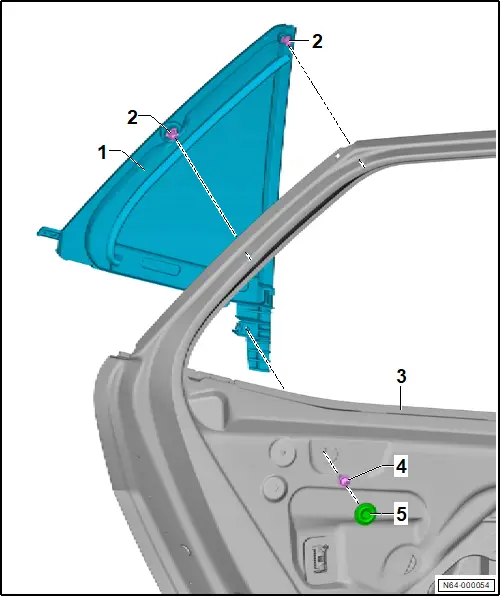

Assembly overview – fixed rear door window

Assembly overview – fixed rear door window

Overview is shown for left side of vehicle as an example

1 - Fixed rear door window

❏ Shape varies depending on model

❏ → Rep. gr.64; Removing and installing fixed rear door window

2 - Clip

❏ Qty. 2

3 - Rear door

4 - Bolt

❏ 8 Nm

5 - Cap

Removing and installing front door window

Removing and installing front door window

Special tools and workshop equipment required

♦ Release tool -T10612-

Removal and installation are described for left side of vehicle as an example.

The assembly carrier will henceforth be referred to as “carrier”.

Driver side window regulator motor -V147-/front passenger side window regulator motor -V148- is referred to hereafter as window regulator motor.

Front door window is referred to hereafter as door window.

Removing

– Remove front door trim → General body repairs interior; Rep. gr.70; Front door trims; Removing and installing front door trim.

– Lever caps -3- out of carrier -2- using commercially available plastic wedge.

– Lower door window -1- far enough for clamping jaws of carrier -5- to become accessible through opening in carrier -2-.

Important

● If work step is not possible owing to a fault in window regulator motor, window regulator motor must be removed → Rep. gr.57; Removing and installing window regulator motor and door window -1- pushed into required position.

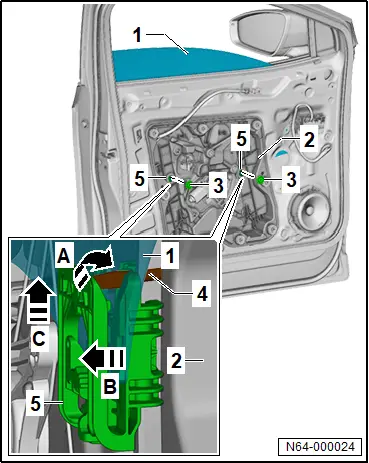

– Guide release tool -T10612- -4- through openings in assembly carrier -2- and door window -1- towards clamping jaw of assembly carrier -5-.

– Turn release tool -T10612- -4- 90° in direction of -arrow A-, and press it in direction of -arrow B- into locking devices on clamping jaws of carrier -5- until locking devices on clamping jaws are released.

– To ensure that door window -1- does not fall back into locking devices, lift door window -1- in direction of -arrow C-.

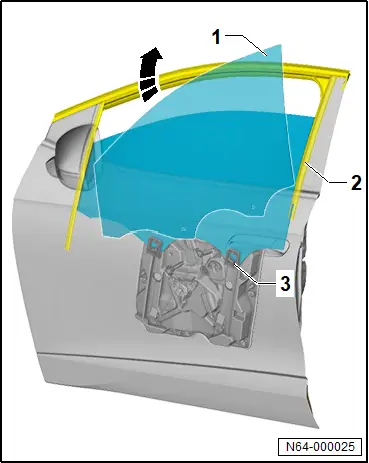

– Pull door window -1- upwards out of clamping jaws of carrier -3-.

– Lift door window -1- at rear, and swing it out of window channel -2- in direction of -arrow-.


Installing

Install in reverse order of removal, observing the following:

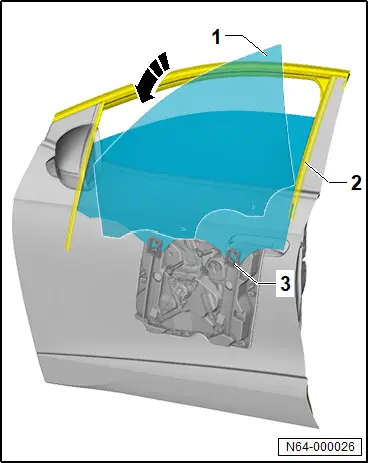

– Swing door window -1- in direction of -arrow- into window channel -2-.

Important

● Make sure that door window -1- is properly inserted in window channel -2-.

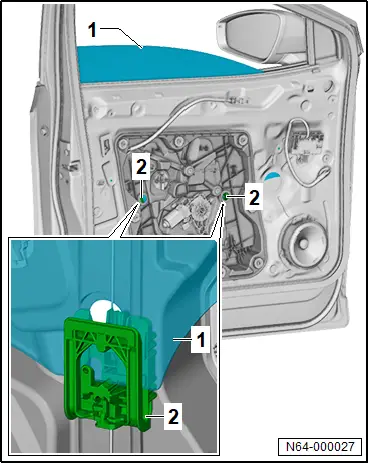

– Guide door window -1- without force into clamping jaws of carrier -3-.

– Align door window -1- with rear window frame.


– Push door window -1- into clamping jaws of carrier -2- until door window -1- can be heard to engage.


– Test function before installing front door trim.

Removing and installing rear door window

Removing and installing rear door window

Special tools and workshop equipment required

♦ Release tool -T10615-

♦ commercially available plastic wedge

Removal and installation are described for left side of vehicle as an example.

The assembly carrier will henceforth be referred to as “carrier”.

Rear driver side window regulator motor -V471-rear passenger side window regulator motor -V472- is referred to hereafter as window regulator motor.

Rear door window is referred to hereafter as door window.

Removing

– Remove rear door trim → General body repairs, interior; Rep. gr.70; Rear door trim; Removing and installing rear door trim.

– Remove outer window slot seal → Rep. gr.58; Removing and installing outer window slot seal.

– Remove B-pillar trim on rear door → Rep. gr.66; Removing and installing B-pillar trim on rear door.

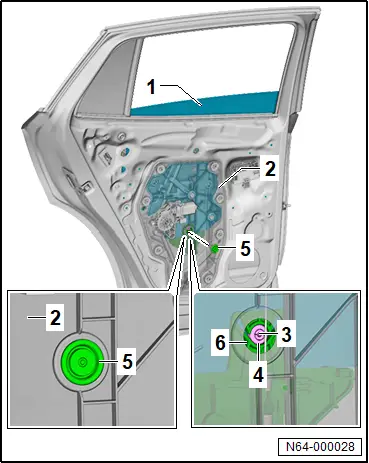

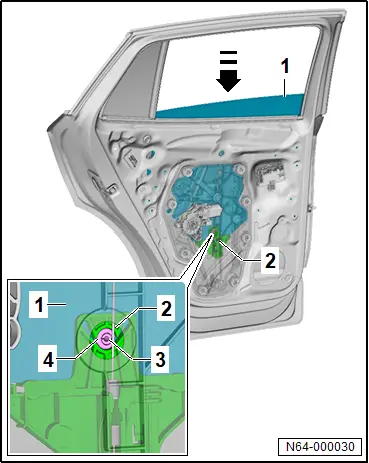

– Lever cap -5- out of carrier -2- using commercially available plastic wedge.

– Lower door window -1- until spreader rivet -3- and spreader plug -4- become accessible through opening in carrier -2-.

Important

● If work step is not possible owing to a fault in window regulator motor, window regulator motor must be removed → Rep. gr.58; Removing and installing rear window regulator motor [V471]/[V472] and door window -1- pushed into required position.

– Use release tool -T10615- to pull spreader rivet -3- out of spreader plug -4-.

– Use release tool -T10615- to pull spreader plug -4- out of window regulator guide -6-.

Note

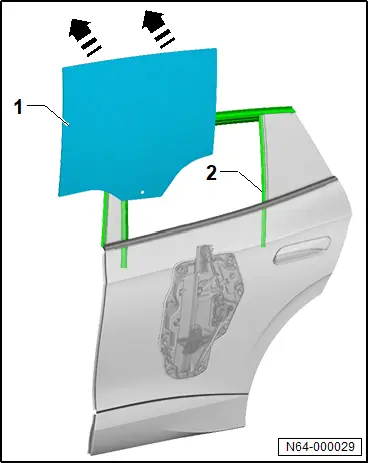

– Pull front section of window channel -2- out of mounting.

– Pull door window -1- in direction of -arrow- towards vehicle exterior and out of window slot.


Installing

Install in reverse order of removal, observing the following:

– With door window -1- removed, insert spreader plug -4- making sure it is centred properly.

– Press spreader rivet -3- into spreader plug -4- so it is flush.

– Insert door window -1- in direction of -arrow- into door, and push it into slot of window regulator guide.

– Press door window -1- into window regulator guide -2- until door window -1- engages audibly.


– Test function before installing rear door trim.

Removing and installing fixed rear door window

Removing and installing fixed rear door window

Special tools and workshop equipment required

♦ release tool -T10236-

Removal and installation are described for left side of vehicle as an example.

Fixed rear door window is referred to hereafter as door window.

Removing

– Remove door trim panel → General body repairs, interior; Rep. gr.70; Rear door trim panels; Removing and installing rear door trim panel.

– Remove window guide → Rep. gr.58; Removing and installing window guide.

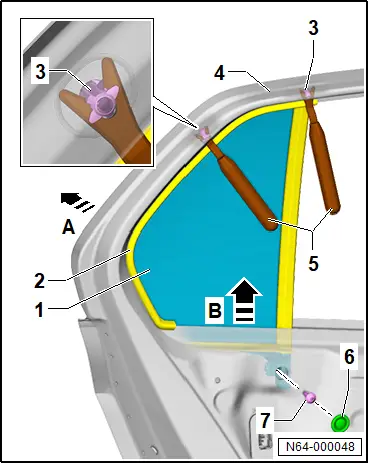

– Lever off cap -6-.

– Unscrew bolt -7-.

– Pull seal -2- of fixed rear door window -1- off door flange.

– Push fixed rear door window -1- slightly in direction of -arrow A- and use release tool -T10236- -5- to detach clips -3- one after other.

– Pull door window -1- in direction of -arrow B- out of door -4-.


Installing

Install in reverse order of removal, observing the following:

– Press on fixed rear door window until it can be heard to engage.

Important

● Make sure seal is seated correctly.

Tightening torques

♦ → Rep. gr.64; Assembly overview – fixed rear door window
