• Determining the correct wheel and tyre combinations according to WLTP
• 7.5 J X 18 offset 50
• 7.5 J X 19 offset 50
• 7.5 J x 20 offset 44

Determining the correct wheel and tyre combinations according to WLTP

Determining the correct wheel and tyre combinations according to WLTP

Procedure

1 - Glean type approval number from vehicle registration certificate part 1 under “K”.

2 - Search for displacement under “P1” from nominal power under “P2” from registration certificate part 1.

3 - Using type approval number, search for corresponding chapter “Possible wheel and tyre combinations” in Wheels and Tyres Guide → Chapter.

4 - Search for relevant wheel and tyre combinations. Depending on equipment, “Breakdown of version key (D2)” may be necessary when doing this.

5 - Using type approval number, search for corresponding chapter “Breakdown of version key (D2)” in Wheels and Tyres Guide → Chapter.

6 - Search for relevant wheel and tyre combinations for the vehicle.

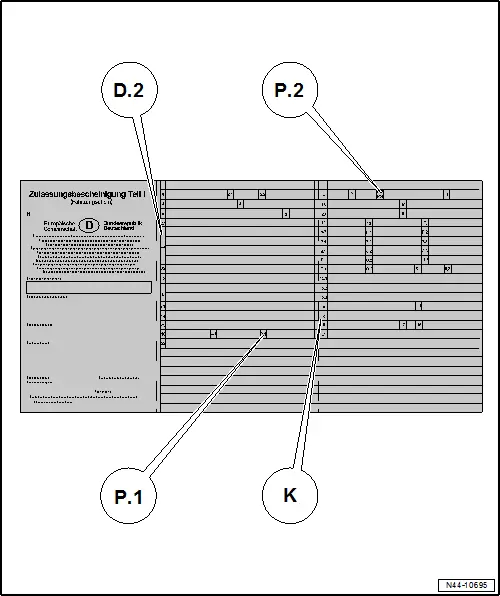

D.2 - Comprises the model key and the version key

K - Comprises type approval number

P.1 - Not assigned

P.2 - Rated output in kW

Example:

D.2 - C 0 M 4 1A A

K - e1*2007/46*2033*00

P.2 - 150 kW

7.5 J X 18 offset 50

7.5 J X 18 offset 50

Note

Always observe the allocation of wheels/tyres to the respective engines as listed in the overview table.Explanation of information on wheels: → Rep. gr.44; Useful information about passenger car wheels, specifications on wheelsSpecified torque for wheel bolts: → Chapter „Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of wheel bolt holes:5

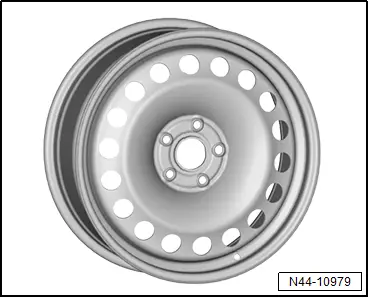

1EA.601.027 - steel rim

Dimensions:7.5 J x 18Wheel offset in mm:50Wheel load in kg:635

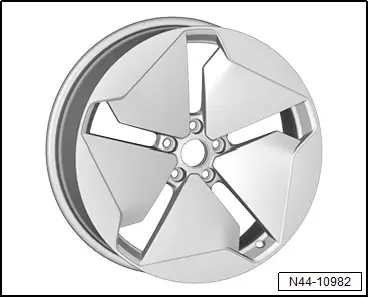

10A.601.025.C; 10A 601 025 G – aluminium wheel “EAST DERRY”

Dimensions:7.5 J x 18Wheel offset in mm:50Wheel load in kg:630

7.5 J X 19 offset 50

7.5 J X 19 offset 50

Note

Always observe the allocation of wheels/tyres to the respective engines as listed in the overview table.Explanation of information on wheels: → Rep. gr.44; Useful information about passenger car wheels, specifications on wheelsSpecified torque for wheel bolts: → Chapter „Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of wheel bolt holes:5

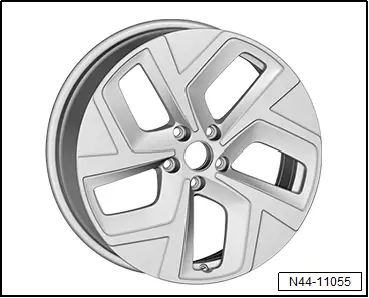

10A.601.025; 10A 601 025 H – aluminium wheel “ANDOYA”

Dimensions:7.5 J x 19Wheel offset in mm:50Wheel load in kg:630

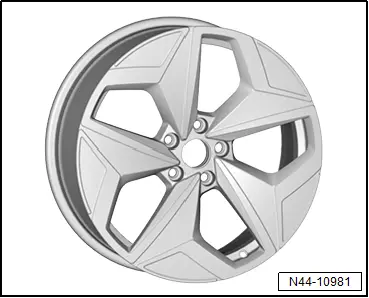

10A.601.025.K; 10A.601.025.L – aluminium wheel “WELLINGTON”

Dimensions:7.5 J x 19Wheel offset in mm:50Wheel load in kg:640

7.5 J x 20 offset 44

7.5 J x 20 offset 44

Note

Always observe the allocation of wheels/tyres to the respective engines as listed in the overview table.Explanation of information on wheels: → Rep. gr.44; Useful information about passenger car wheels, specifications on wheelsSpecified torque for wheel bolts: → Chapter „Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of wheel bolt holes:5

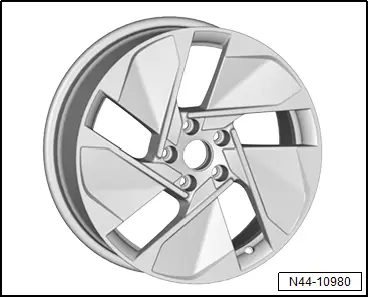

10A.601.025.B – aluminium wheel “SANYA”

Dimensions:7.5 J x 20Wheel offset in mm:44Wheel load in kg:630
