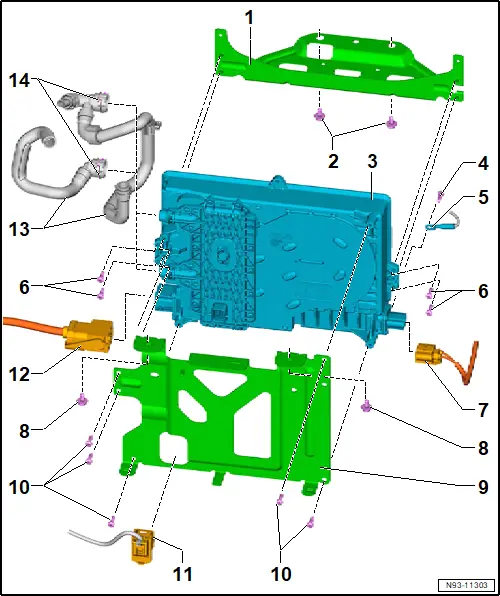

Assembly overview – charging unit for high-voltage battery
1 - Bracket for charging unit 1 for high-voltage battery -AX4-
2 - Bolt
❏ Qty. 2
❏ 20 Nm
3 - Charging unit 1 for high-voltage battery -AX4-
❏ With control unit for high-voltage battery charger -J1050-
❏ → Rep. gr.93; Removing and installing charging unit 1 for high-voltage battery [AX4]
4 - Bolt
❏ 8 Nm
5 - Potential equalisation line with additional external PE conductor
6 - Bolt
❏ Qty. 4
❏ 8 Nm
7 - High-voltage electrical connector
8 - Bolt
❏ Qty. 2
❏ 20 Nm
9 - Bracket for charging unit 1 for high-voltage battery -AX4-
10 - Bolt
❏ Qty. 5
❏ 8 Nm
11 - Electrical connector for electrical system
12 - High-voltage electrical connector
13 - Coolant hose
14 - Retaining clip for coolant hose

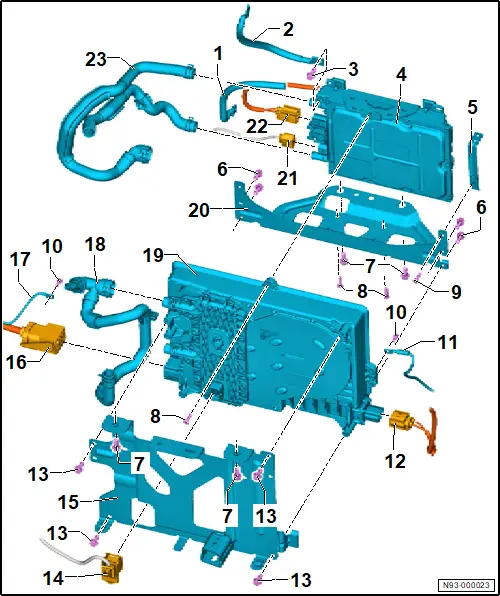

Assembly overview – charging unit for high-voltage battery
1 - 12 V voltage supply
❏ Positive terminal
2 - 12 V voltage supply
❏ Negative terminal
3 - Bolt
❏ 20 Nm
4 - Voltage converter -A19-
❏ → Rep. gr.93; Removing and installing voltage converter [A19]
5 - Bracket
6 - Bolt
❏ Qty. 4
❏ 8 Nm
7 - Bolt
❏ Qty. 4
❏ 20 Nm
8 - Bolt
❏ Qty. 3
❏ 8 Nm
9 - Bolt
❏ 8 Nm
10 - Bolt
❏ Qty. 2
❏ 8 Nm
11 - Potential equalisation line
12 - High-voltage electrical connector
13 - Bolt
❏ Qty. 4
❏ 8 Nm
14 - Electrical connector for electrical system
15 - Bracket for charging unit 1 for high-voltage battery -AX4-
16 - High-voltage electrical connector
17 - Potential equalisation line
18 - Coolant hose
19 - Charging unit 1 for high-voltage battery -AX4-
❏ With control unit for high-voltage battery charger -J1050-
❏ → Rep. gr.93; Removing and installing charging unit 1 for high-voltage battery [AX4]
20 - Bracket for voltage converter -A19-
21 - Electrical connector for electrical system
22 - High-voltage electrical connector
23 - Coolant hose
Removing and installing charging unit 1 for high-voltage battery AX4
Special tools and workshop equipment required
♦ drip tray -VAS 6208-
♦ hose clamps up to 25 mm -3094-
Charging unit 1 for high-voltage battery -AX4- is referred to hereafter as charging unit.
Removing
DANGER
High voltage can cause fatal injury.
Danger of severe or fatal injuries from electric shock or electric arcs.
– Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.
– → Rep. gr.93; De-energise high-voltage system.
If the charging unit is renewed, perform the test plan for renewal of the control unit:
– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Continued
– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.
– Remove rear underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing rear underbody cladding.
– Remove rear centre underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing rear centre underbody cladding.
– Remove skid plate → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing skid plate.
– Place drip tray -VAS 6208- under rear section of vehicle.

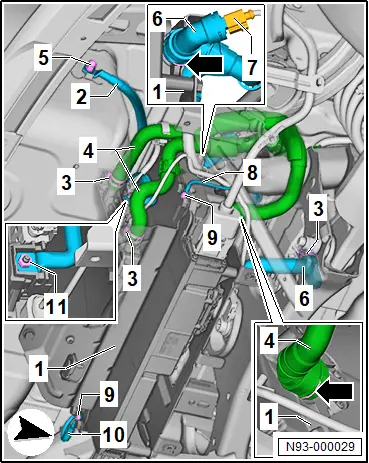

– Clamp off coolant hoses -2- and -4- using hose clamps up to 25 mm -3094-.
– Open clamp -3-, and pull coolant hose off power and control electronics for electric drive -JX1-.
– Pull out retaining clip -arrow-, and pull coolant hose -4- off charge unit -1-.
– Loosen anti-roll bar → Running gear, axles, steering; Rep. gr.42; Anti-roll bar; Removing and installing anti-roll bar.

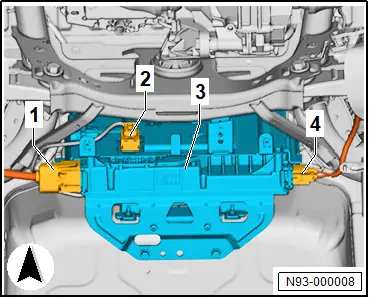

– Disconnect electrical connector -1- from charging unit -2-.
– Disconnect electrical connector -2-, -3- and -4-.
– Unscrew potential equalisation line.
– Protect connector receiver and coolant connections to prevent the ingress of dirt.

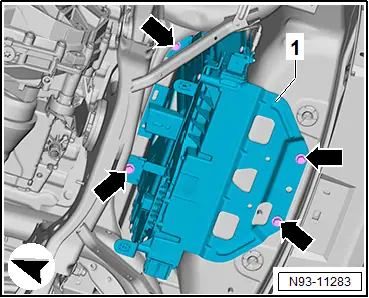

– Unscrew bolts -arrows-.
– Remove charging unit -1- with bracket downwards.
– Place charging unit -1- on a clean surface.

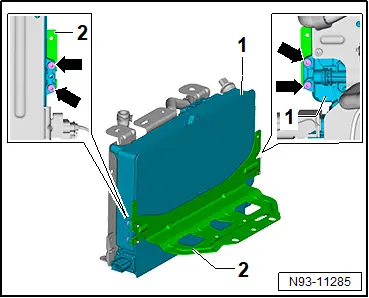

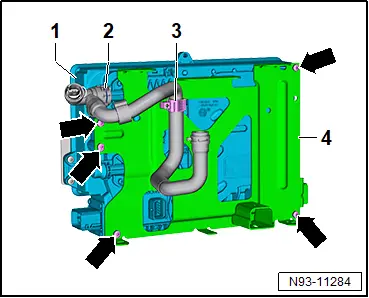

– Unscrew bolts -arrows-.
– Remove bracket -4- from charging unit -1-.
– Unscrew bolts -arrows-.
– Remove bracket -2- from charging unit -1-.
Installing
Install in reverse order of removal, observing the following:
– → Rep. gr.19; Cooling system/coolant; Filling cooling system
If the charging unit has been renewed, perform the test plan for renewal of the control unit:
– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Continued
WARNING
High voltage can cause fatal injury.
Danger of severe or fatal injuries from electric shock or electric arcs.
– Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.
– → Rep. gr.93; Re-energise high-voltage system.
Tightening torques
♦ → Rep. gr.93; Assembly overview - charging unit for high-voltage battery
Removing and installing charging unit 1 for high-voltage battery AX4
Special tools and workshop equipment required
♦ drip tray -VAS 6208-
The charging unit 1 for high-voltage battery -AX4- will henceforth be referred to as “charging unit”.
Removing
DANGER
High voltage can cause fatal injury.
Danger of severe or fatal injuries from electric shock or electric arcs.
– Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energise the high-voltage system.
– → Rep. gr.93; De-energise high-voltage system.
If the charging unit is renewed, perform the test plan for renewal of the control unit:
– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Continued
– Disconnect battery → Electrical system; Rep. gr.27; Battery; Disconnecting and connecting battery.
– → Rep. gr.19; Drain coolant.
– Remove rear underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing rear underbody cladding.
– Remove rear centre underbody cladding → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing rear centre underbody cladding.
– Remove skid plate → General body repairs, exterior; Rep. gr.66; Underbody cladding; Removing and installing skid plate.
– Loosen anti-roll bar → Running gear, axles, steering; Rep. gr.42; Anti-roll bar; Removing and installing anti-roll bar.
– Place drip tray -VAS 6208- under rear section of vehicle.

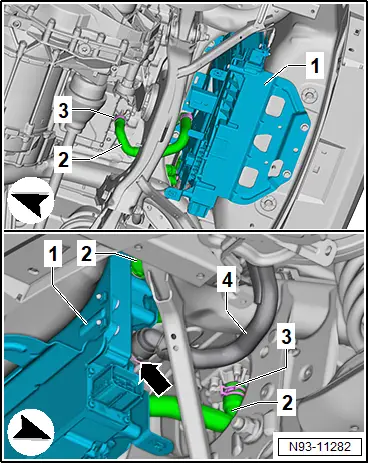

– Open clamps -3-, and pull coolant hoses -4- off battery charger -1- and coolant hose -6- off rear motor.
– Unscrew nut -5-.
– Unscrew nut -11-.
– Unscrew bolts -9-.

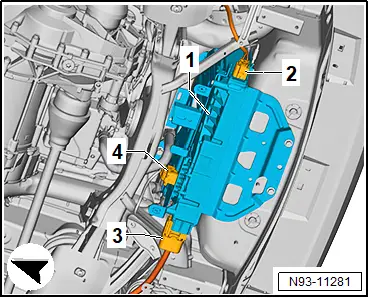

– Disconnect electrical connector -7-.
– Disconnect electrical connector -1-, -2- and -4-.
– Unscrew potential equalisation line.
– Protect connector receiver and coolant connections to prevent the ingress of dirt.

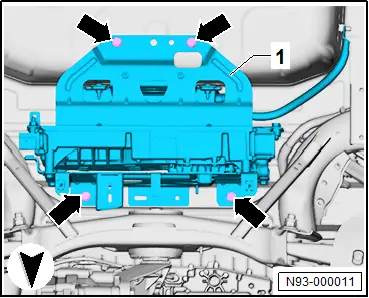

– Unscrew bolts -arrows-.
– Remove charging unit -1- with bracket downwards.
– Place charging unit -1- on a clean surface.
– Unscrew bolts -1-.
– Detach bracket -2- with voltage converter -A19-.
– Unscrew bolts -arrows-.
– Remove bracket -4- from charging unit -1-.

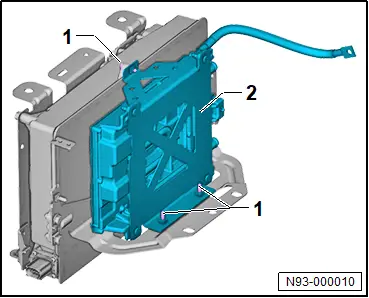

– Unscrew bolts -arrows-.
– Remove bracket -2- from charging unit -1-.
Installing
Install in reverse order of removal, observing the following:
– → Rep. gr.19; Filling cooling system
If the charging unit has been renewed, perform the test plan for renewal of the control unit:
– Carry out function “Renew control unit” using → Vehicle diagnostic tester → Rep. gr.00; Access to diagnoses.
Continued
WARNING
High voltage can cause fatal injury.
Danger of severe or fatal injuries from electric shock or electric arcs.
– Have a high-voltage technician (HVT) or a high-voltage expert (HVE) re-energise the high-voltage system.
– → Rep. gr.93; Re-energise high-voltage system.
Tightening torques
♦ → Rep. gr.93; Assembly overview - charging unit for high-voltage battery
