Volkswagen ID.3: Illustrated table of contents

• Air bags, seat belts and child restraints
• Exterior front
• Exterior rear
• Passenger compartment
• Instrument panel
• Engine compartment check locations
• Warning and indicator lights

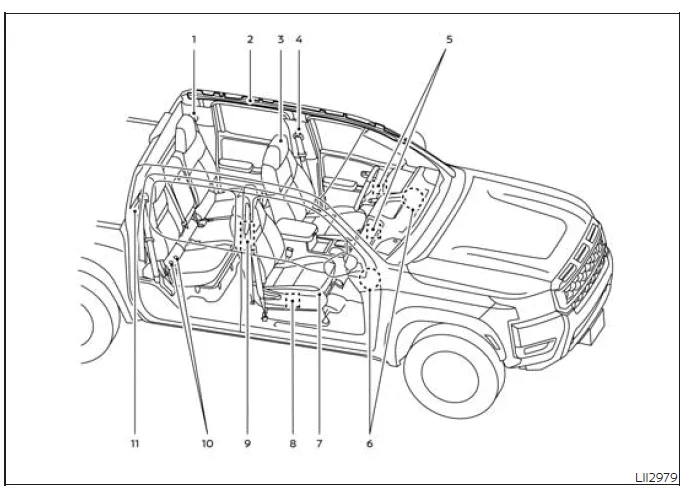

Air bags, seat belts and child restraints

1. Rear outboard seat belts equipped with advanced pretensioner systems for improved passenger protection in the Nissan Frontier
2. Roof-mounted curtain side-impact and rollover supplemental air bag system designed to enhance safety during side collisions
3. Adjustable head restraints/headrests to provide optimal neck support and reduce injury risk
4. Front outboard seat belts with adjustable shoulder height and integrated pretensioner technology
5. Supplemental front-impact air bags engineered to deploy in severe frontal collisions
6. Driver supplemental knee air bag
   Front passenger supplemental knee air bag designed to protect lower body areas in the Nissan Frontier
7. Ergonomically designed seats for comfort and safety during long drives
8. Occupant classification sensor (weight sensor) to intelligently manage air bag deployment
9. Front seat-mounted side-impact supplemental air bags for enhanced torso protection
10. LATCH (Lower Anchors and Tethers for Children) system for secure child seat installation
11. Top tether strap anchor for additional child restraint stability

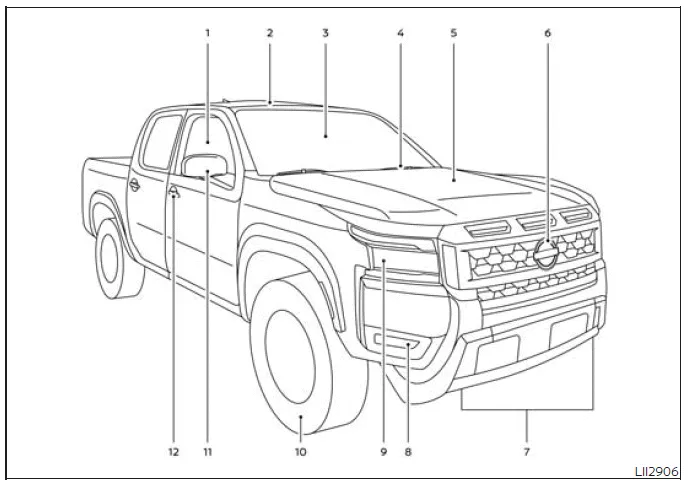

Exterior front

1. Windows designed for optimal visibility and durability
2. Moonroof (if so equipped) adding comfort and ventilation to the Nissan Frontier cabin
3. Windshield engineered for strength and clear forward visibility
4. Wiper and washer switch for maintaining a clean windshield in all conditions
5. Engine hood providing access to the Nissan Frontier engine compartment
6. Front view camera (if so equipped) assisting in parking and maneuvering
7. Front recovery hooks (if so equipped) for off-road capability
8. Fog light switch (if so equipped) improving visibility in poor weather
9. Headlight and turn signal switch
   LED Daytime Running Lights (DRL) system (if so equipped)
   Replacing bulbs and maintenance guidance
10. Tire pressure monitoring
    Flat tire handling
    Tire chains compatibility information
11. Mirrors
    Side view camera (if so equipped) enhancing driver awareness
12. Door locks
    NISSAN Intelligent Key system for convenient vehicle access

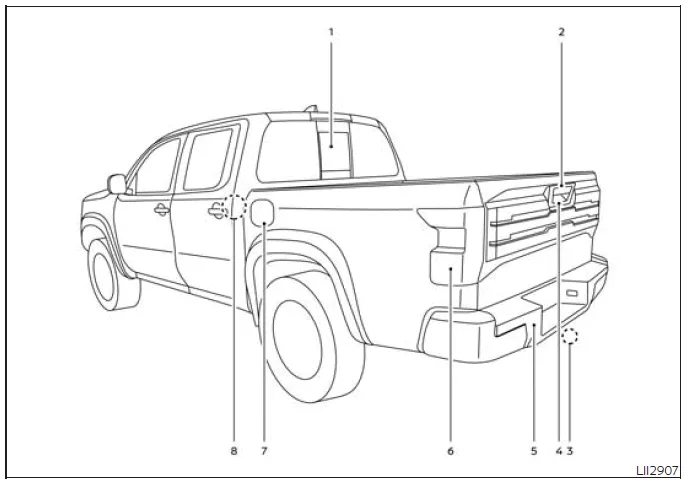

Exterior rear

1. Rear sliding window improving cabin airflow and usability
2. Vehicle loading
   Tailgate functionality
   Truck box cargo management features specific to Nissan Frontier
3. Towing (if so equipped) including hitch and towing guidelines
4. Rearview camera for safer reversing operations
5. Rear sonar sensors assisting with parking and obstacle detection
6. Replacing bulbs and rear lighting maintenance
7. Fuel-filler cap
   Fuel recommendation for optimal Nissan Frontier performance
8. Child safety rear door lock for enhanced passenger safety

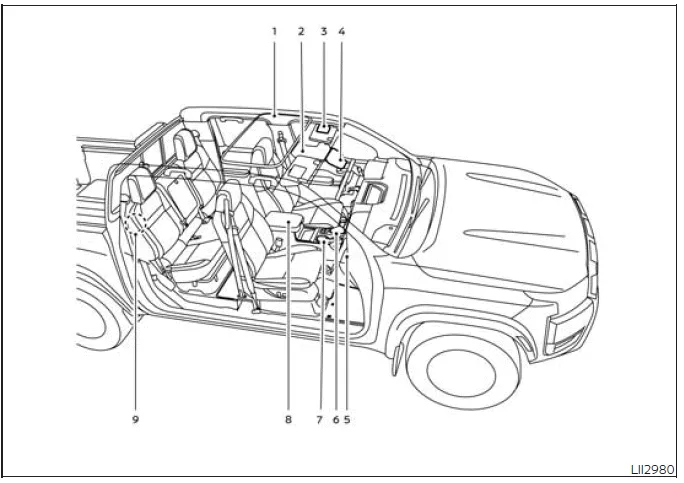

Passenger compartment

1. Power moonroof (if so equipped) for increased comfort and natural light
2. Map lights providing focused interior illumination
3. Sun visors for driver and passenger glare protection
4. Rearview mirror ensuring clear rear visibility
5. Glove box for convenient storage
6. Shift lever
   Cup holders designed for practicality in the Nissan Frontier
7. Wireless charger (if so equipped) for modern device charging
8. Console box for additional storage solutions
9. Spare tire tools location for emergency access

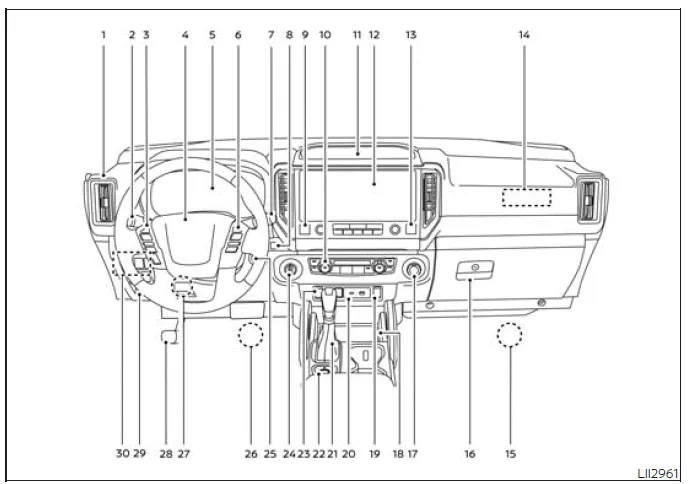

Instrument panel

1. Vents for efficient cabin airflow management
2. Headlight/fog lights (if so equipped)/turn signal switch controls
3. Bluetooth Hands-Free Phone System
   Audio system controls integrated into the Nissan Frontier steering interface
4. Driver supplemental air bag
   Horn functionality
5. Meters and gauges
   Warning and indicator lights
   Vehicle information display for real-time data
6. Intelligent Cruise Control (ICC) switches for adaptive driving
7. Wiper and washer switch
8. Idling stop OFF switch for engine management
9. Hazard warning flasher switch
10. Climate controls
    Outside mirror defroster switch (if so equipped)
11. Storage compartments
12. Audio system
13. Front passenger air bag status light
14. Front passenger supplemental air bag
15. Front passenger supplemental knee air bag
16. Glove box
17. Power outlet
18. Storage
    Wireless charger (if so equipped)
19. Heated seats (if so equipped)
20. USB connection port
    AUX input (if so equipped)
21. Shift lever
22. Terrain Mode Selector (if so equipped)
    Hill descent control switch (if so equipped)
23. Heated steering wheel switch (if so equipped)
    Parking Aids system switch (if so equipped)
24. 4WD shift switch (if so equipped)
25. Push-button ignition switch
26. Driver supplemental knee air bag
27. Tilt and telescopic steering wheel control
28. Parking brake
29. Hood release
30. Cargo lamp switch
    Electronic locking rear differential (E-Lock) system switch (if so equipped)
    Hill descent control switch (if so equipped)
    Power inverter switch (if so equipped)
    Tow mode switch (if so equipped)
    Warning systems switch
    Vehicle Dynamic Control (VDC) OFF switch

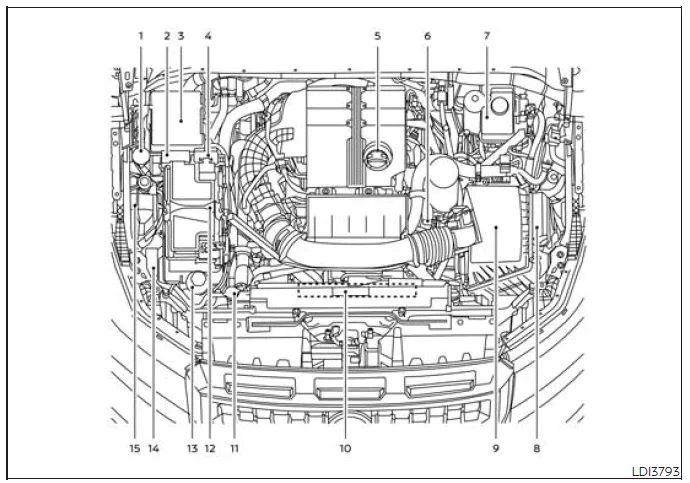

Engine compartment check locations

3.8L 6 cylinder (VQ38DD engine model)

1. Windshield-washer fluid reservoir for maintaining visibility
2. Fusible link and relay box controlling electrical systems
3. Fuse/Fusible link box for circuit protection
4. Fusible link
5. Engine oil filler cap for servicing the Nissan Frontier engine
6. Engine oil dipstick for oil level monitoring
7. Brake fluid reservoir ensuring proper braking performance
8. Relay box
9. Air cleaner for engine air filtration
10. Drive belt location
11. Radiator cap for cooling system access
12. Battery and battery cover
13. Power steering fluid reservoir
14. Relay box
15. Engine coolant reservoir maintaining optimal engine temperature

NOTE:

Your Nissan Frontier may vary depending on configuration, and some versions may not include an engine cover or certain optional equipment.

Warning and indicator lights

Warning/Indicator light (red)

Automatic Transmission Park warning light (4x4 model) indicating improper gear engagement in Nissan Frontier

or Brake warning light signaling potential brake system issues or low brake fluid level in Nissan Frontier

Charge warning light indicating a malfunction in the charging system of the Nissan Frontier

Electric shift control system warning light highlighting transmission control issues

Engine oil pressure warning light alerting to insufficient lubrication conditions

Master warning light indicating general system alerts that require driver attention

Seat belt warning light and chime reminding occupants to fasten seat belts

Security indicator light showing immobilizer or anti-theft system status

Supplemental air bag warning light indicating a possible issue in the airbag system

Warning/Indicator light (yellow)

or Anti-lock Braking System (ABS) warning light indicating reduced braking assistance functionality

Automatic Emergency Braking (AEB) with Pedestrian Detection system warning light indicating system limitations

Automatic Transmission check warning light alerting to transmission performance issues

Electronic locking rear differential (E-Lock) system ON indicator light (if so equipped) showing off-road mode engagement

Front passenger air bag status light indicating activation status

Hill descent control system ON indicator light (if so equipped) for enhanced off-road safety

Low tire pressure warning light indicating underinflated tires in Nissan Frontier

Malfunction Indicator Light (MIL) indicating engine or emission system issues

Master warning light providing additional system alerts

Rear Automatic Braking (RAB) system warning light indicating rear collision prevention system issues

Slip indicator light showing traction control system activity

Vehicle Dynamic Control (VDC) OFF indicator light indicating disabled stability system

Warning/Indicator light (other)

Front fog light indicator light (green) (if so equipped)

High Beam Assist indicator light (green) improving nighttime visibility

High beam indicator light (blue) showing active high beams

Side light and headlight indicator light (green)

TOW mode ON indicator light (green) (if so equipped) for towing performance optimization

Turn signal/hazard indicator lights (green)
