Volkswagen ID.3: Air conditioner. Other controlling and regulating components

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Heating, ventilation, air conditioning system / Heating, air conditioning system / Air conditioner. Other controlling and regulating components

Removing and installing external air quality and air humidity sensor G935
Removing and installing ambient temperature sensor [G17]
Removing and installing humidity sender for air conditioning system [G260]
Removing and installing left footwell vent temperature sender [G261]
Removing and installing right footwell vent temperature sender [G262]
Removing and installing vehicle interior temperature sensor [G1090]

Removing and installing external air quality and air humidity sensor G935

Removing

– Remove plenum chamber cover → General body repairs, exterior; Rep. gr.50; Bulkhead; Removing and installing plenum chamber cover.

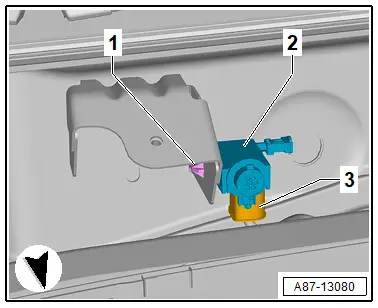

– Unplug electrical connector -3-.

– Release retaining tab -1-.

– Detach external air quality and air humidity sensor -G935- -2-.

Installing

Installation is carried out in reverse sequence.

Removing and installing ambient temperature sensor [G17]

Removing

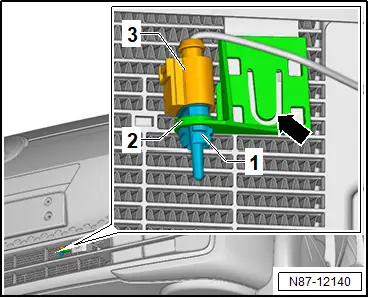

– Unclip ambient temperature sensor -G17- -1- with retainer -2- through air inlet in bumper.

– Disconnect electrical connector -3-.

– Unclip temperature sensor -1- from retainer -2-.

Installing

Install in reverse order of removal.

Removing and installing humidity sender for air conditioning system [G260]

The humidity sender for air conditioning system -G260- and sunlight penetration photosensor -G107- are an integral part of the rain and light sensor -G397-.

– Removing and installing humidity sender for air conditioning system -G260- → Electrical system; Rep. gr.92; Windscreen wiper system; Removing and installing rain and light sensor [G397].

Removing and installing left footwell vent temperature sender [G261]

Removing

Left-hand drive vehicles

– Remove footwell vent on driver side → Rep. gr.87; Removing and installing footwell vent on driver side.

All vehicles (continued)

Right-hand drive vehicles

– Remove footwell vent on front passenger side → Rep. gr.87; Removing and installing footwell vent on front passenger side.

All vehicles (continued)

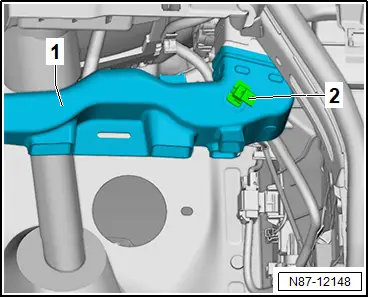

– Remove left footwell vent temperature sender -G261--2- using commercially available plastic wedge.

Installing

Install in reverse order.

Removing and installing right footwell vent temperature sender [G262]

Removing

Left-hand drive vehicles:

– Remove footwell vent on front passenger side → Rep. gr.87; Removing and installing footwell vent on front passenger side → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing glove compartment.

All vehicles (continued)

Right-hand drive vehicles:

– Remove footwell vent on driver side → Rep. gr.87; Removing and installing footwell vent on driver side → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing footwell vent on driver side.

All vehicles (continued)

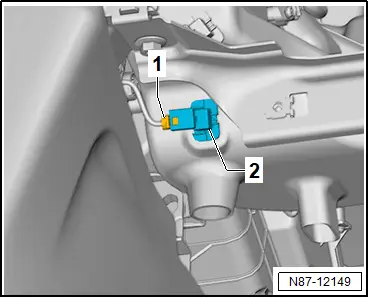

– Disconnect electrical connector -1-.

– Remove right footwell vent temperature sender -G262--2- using commercially available plastic wedge.

Installing

– Install in reverse order.

Removing and installing vehicle interior temperature sensor [G1090]

Removing

Vehicle interior temperature sensor -G1090- is referred to hereafter as temperature sensor.

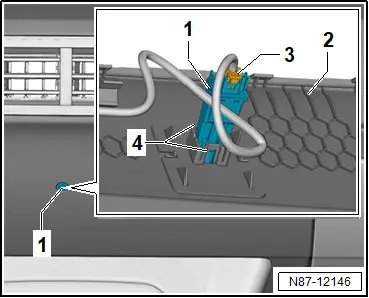

– Remove dash panel trim on front passenger side → General body repairs, interior; Rep. gr.68; Compartments/covers; Removing and installing dash panel trim on front passenger side.

– Disconnect electrical connector -3-.

– Release temperature sensor -1- at locking devices -4-.
