Volkswagen ID.3: Air conditioner. Air quality improvement system

• Overview of fitting locations - air quality improvement system
• Removing and installing ioniser control unit J897
• Removing and installing air conditioner sensor for fine particle concentration G930

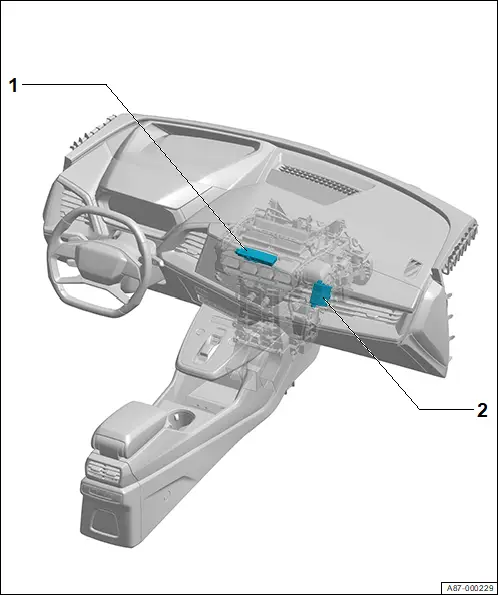

Overview of fitting locations - air quality improvement system

Overview of fitting locations - air quality improvement system

1 - Ioniser control unit -J897-

❏ → Rep. gr.87; Removing and installing ioniser control unit J897

2 - Air conditioner sensor for fine particle concentration -G930-

❏ → Chapter „Removing and installing air conditioner sensor for fine particle concentration G930“

Removing and installing ioniser control unit J897

Removing and installing ioniser control unit J897

Removing

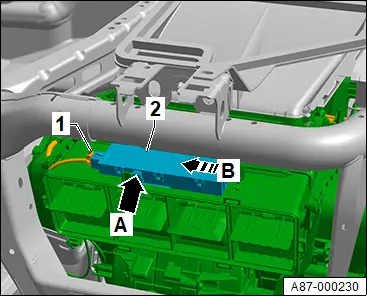

– Remove air duct for dash panel vent (centre) → Rep. gr.87; Removing and installing air duct for dash panel vent (centre).

– Unplug electrical connectors -1-.

– Release ioniser control unit -J897- -2- -arrow A- and push it in direction of -arrow B-.

– Detach control unit -2-.

Installing

Installation is carried out in reverse sequence.

Removing and installing air conditioner sensor for fine particle concentration G930

Removing and installing air conditioner sensor for fine particle concentration G930

Removing

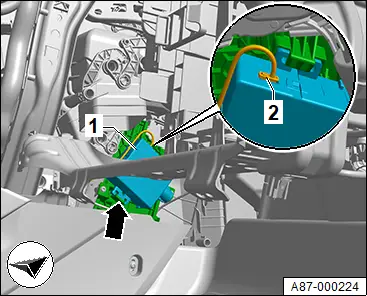

– Remove glove compartment → General body repairs, interior; Rep. gr.68; Storage compartments/covers/trim panels; Removing and installing glove compartment.

– Release fasteners -arrow- and detach air conditioner sensor for fine particle concentration -G930- -1-.

– Unplug electrical connector -2-.

Installing

Installation is carried out in reverse sequence.
