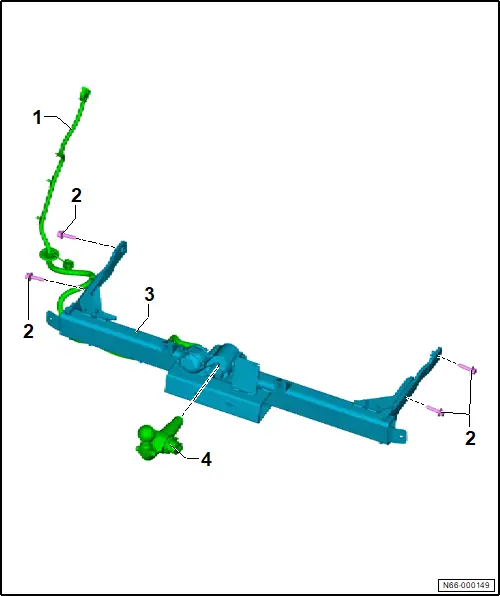

Assembly overview – bicycle carrier bracket

Assembly overview – bicycle carrier bracket

1 - Electrical wire

2 - Bolt

❏ Qty. 4

❏ Renew after removing

❏ 50 Nm + 180°

3 - Bicycle carrier mounting

4 - Removable ball head

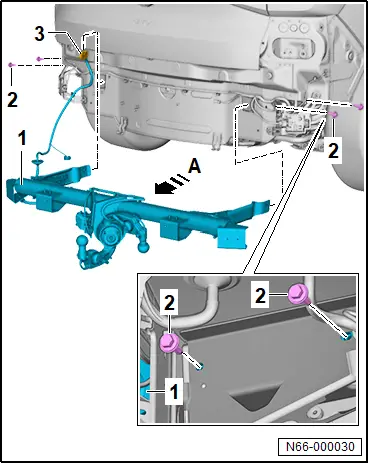

Removing and installing bicycle carrier bracket

Removing and installing bicycle carrier bracket

Removing

– Remove bumper cover → Rep. gr.63; Removing and installing bumper cover.

– Remove left luggage compartment side trim → General body repairs, interior; Rep. gr.70; Luggage compartment trims; Removing and installing luggage compartment side trim.

– Disconnect electrical connector -3-.

– Guide electrical wires out of vehicle.

– Unscrew bolts -2-.

– Pull out bicycle carrier bracket -1- parallel in direction of -arrow A-.


Installing

Install in reverse order of removal, observing the following:

Tightening torques

♦ → Rep. gr.66; Assembly overview – bicycle carrier bracket
