Volkswagen ID.3: Body front. Longitudinal member cross panel

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / Body repairs / Body front. Longitudinal member cross panel

Assembly overview – front longitudinal member end plate

Assembly overview – front longitudinal member end plate

Overview is shown for left side of vehicle as an example.

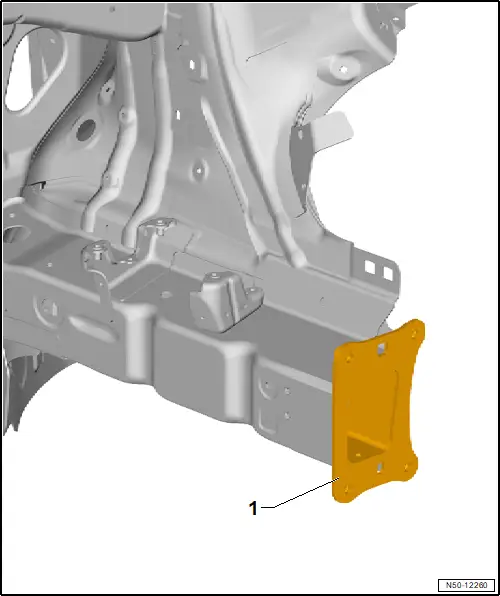

1 - Front longitudinal member end plate

❏ → Rep. gr.50; Renewing front longitudinal member end plate

Renewing front longitudinal member end plate

Renewing front longitudinal member end plate

WARNING

Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.

– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.

– Use an extraction system during work.

NOTICE

If adhesive is applied prematurely, bond could be impaired

– New part must be welded in within 90 minutes.

Observe safety notes → Rep. gr.00; Safety notes.

Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.

Removal and installation are described for left side of vehicle as an example.

Removing

– Separate original joint.

– Remove front longitudinal member cross panel -1-.


– Remove remaining material.

– Completely remove adhesive residue.

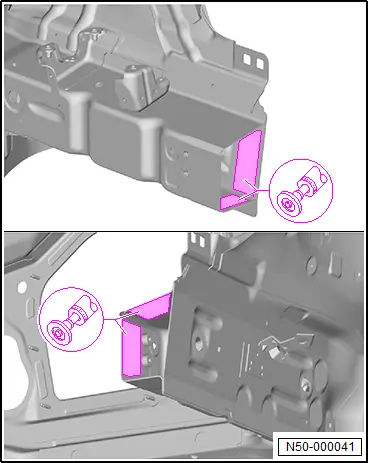

– Sand bonding and welding surfaces down to bare metal, and clean them.


Installing

Important

● New parts must be adapted and attached with the vehicle standing on the straightening bracket set.

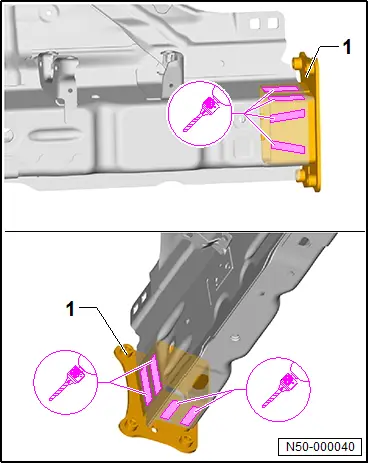

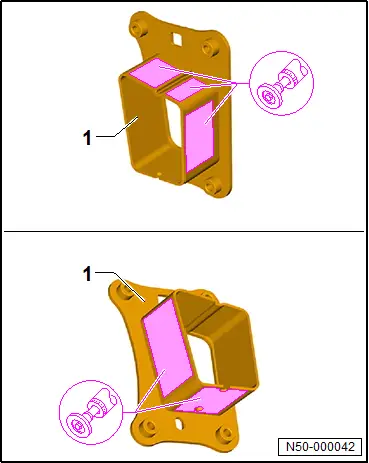

– Sand welding surfaces on new part -1- down to bare metal, and clean them.


– Adapt new part -1- to fit, and fix it in position.

– Check fit with attachments.

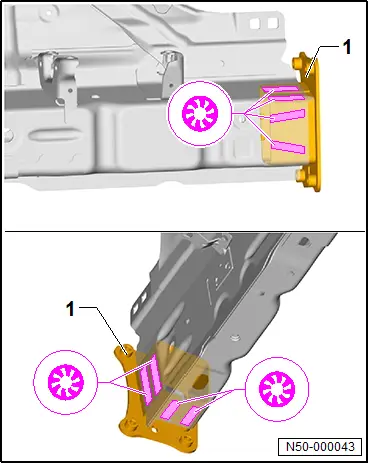

– Weld in new part -1- (SG plug weld seam).
