Volkswagen ID.3: General information, Body. Explanation of symbols

Volkswagen ID.3 (E11, E12) 2020-2024 Service Manual / Body / General information – body / General information, Body. Explanation of symbols

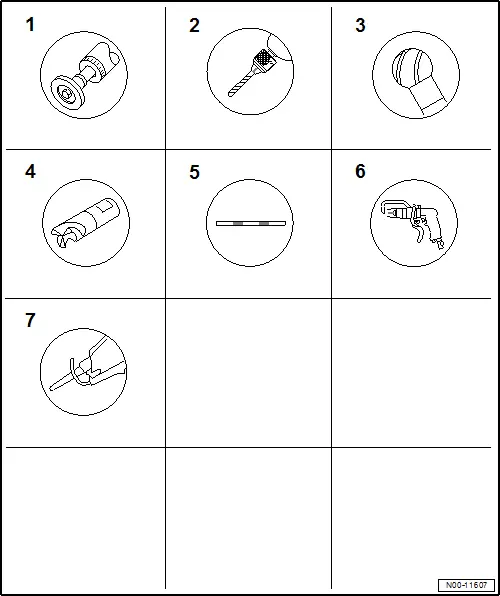

Symbols relating to procedures for separating components

Symbols relating to procedures for separating components

1 - Grinding / sanding (down to bare metal)

2 - Drilling

3 - Ball-nose cutter

4 - BTR cutter

5 - Separating cut

6 - Detaching spot weld

7 - Saw-cutting

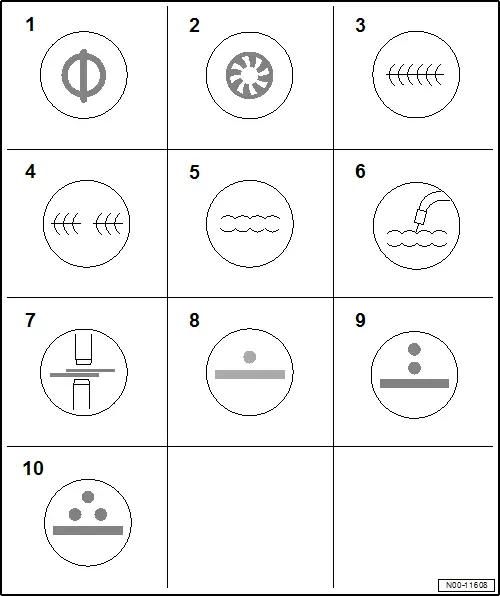

Symbols relating to welding, brazing and soldering

Symbols relating to welding, brazing and soldering

1 - Stepped weld seam

2 - SG plug weld seam

3 - SG continuous weld seam

4 - Staggered SG continuous weld seam

5 - Brazing

6 - MIG brazing

7 - Spot welding (RP spot), general

8 - RP spot, single-row

9 - RP spot, double-row

10 - RP spot, double-row, offset

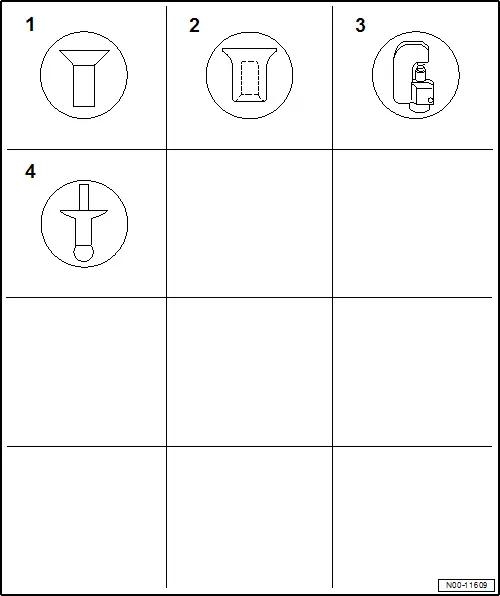

Symbols for rivets

Symbols for rivets

1 - Solid rivet

2 - Hollow punch rivet

3 - Use rivet tool

4 - Pop rivet

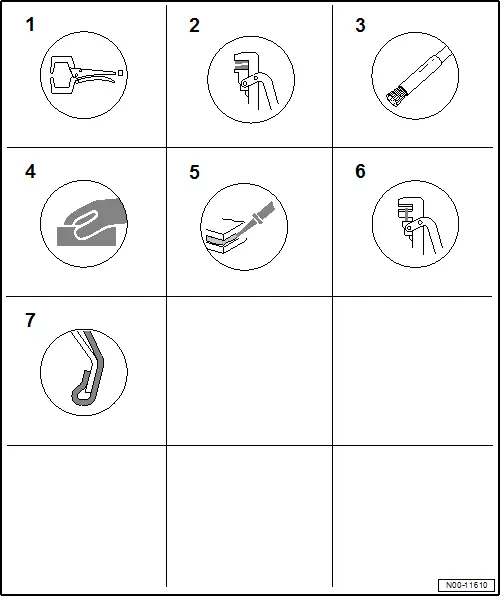

Symbols relating to preparations

Symbols relating to preparations

1 - Clamping

2 - Joggling

3 - Paint removal on surfaces difficult to access

4 - Grinding by hand

5 - Applying adhesive

6 - Piercing

7 - Flanging

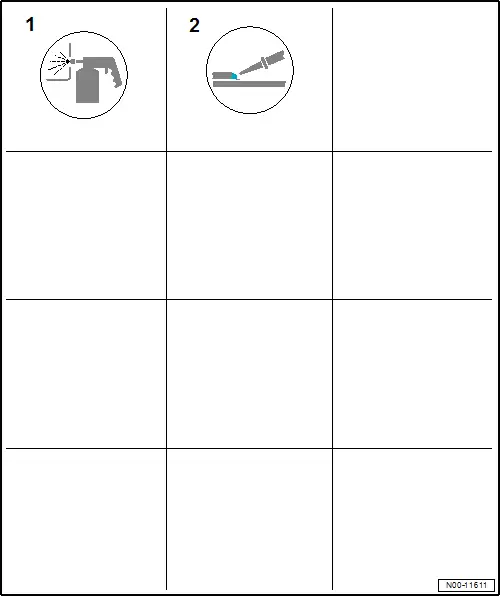

Symbols for corrosion protection

Symbols for corrosion protection

1 - Cavity sealing

2 - Sealing
