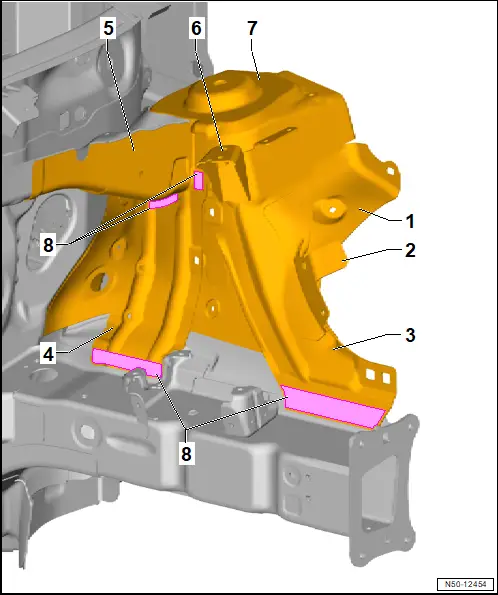

Assembly overview - front wheel housing
Overview is shown for left side of vehicle as an example.
1 - Front wheel housing
❏ → Rep. gr.50; Renewing front wheel housing
2 - Reinforcement for tensioning strap backing plate
3 - Reinforcement for tensioning strap support
4 - Reinforcement for front wheel housing
5 - Upper reinforcement
❏ Renew after removing
6 - Strut bracket
7 - Front suspension turret
8 - Bonded areas

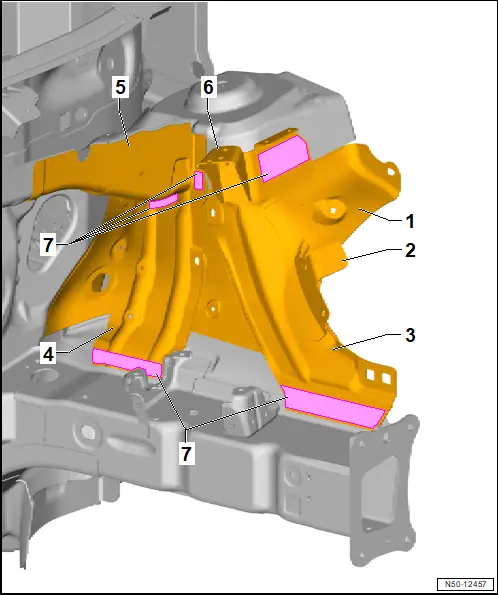

Assembly overview - front wheel housing (part section)
Overview is shown for left side of vehicle as an example.
1 - Front wheel housing
❏ → Rep. gr.50; Renewing front wheel housing (part section)
2 - Reinforcement for tensioning strap backing plate
3 - Reinforcement for tensioning strap support
4 - Reinforcement for front wheel housing
5 - Upper reinforcement
❏ Renew after removing
6 - Strut bracket
7 - Bonded areas
Renewing front wheel housing
WARNING
Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.
– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
– Use an extraction system during work.
NOTICE
Do not damage underlying reinforcements.
Rewelding of reinforcement is not permitted due to safety reasons.
NOTICE
If welds are positioned too far on outside, strength could be impaired
– RP weld points must be placed as far as possible from outer edge of welding flange.
NOTICE
If adhesive is applied prematurely, bond could be impaired
– New part must be welded in within 90 minutes.
Observe safety information → Rep. gr.00; Safety information
Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.
Removal and installation are described for left side of vehicle as an example.
Removing
Upper inner longitudinal member removed → Rep. gr.50; Renewing upper inner longitudinal member

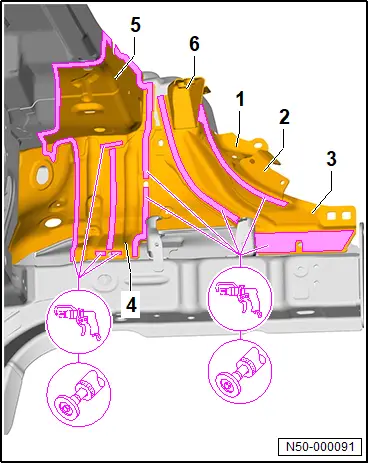

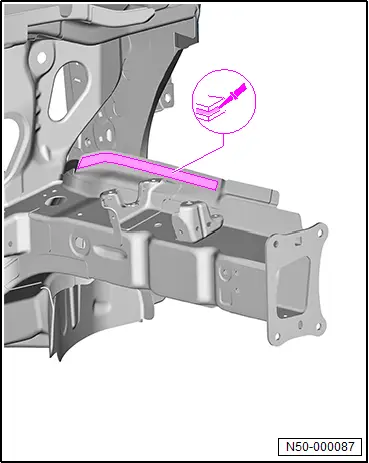

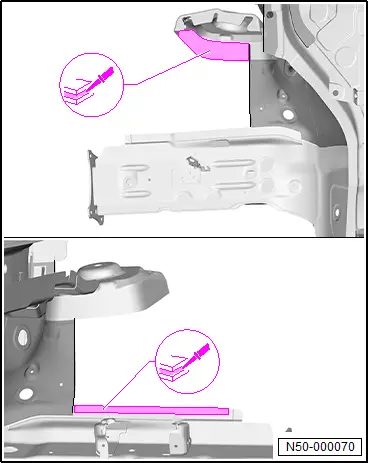

– Separate original joint of upper reinforcement -5- and remove.
– Separate original joint of reinforcement for front wheel housing -4- and remove.
– Separate original joint of reinforcement for tensioning strap backing plate -2- and remove.
– Separate original joint of reinforcement for tensioning strap support -3- and remove.
– Separate original joint on wheel housing -1- on outside and inside and remove.
– Remove remaining material.
– Completely remove adhesive residue.
– Sand bonding and welding surfaces down to bare metal, and clean them.
Installing
Replacement parts
♦ For allocation of 2-pack body adhesive, see → Electronic parts catalogue (ETKA)
Important
● New parts must be adapted and attached with the vehicle standing on the straightening bracket set.

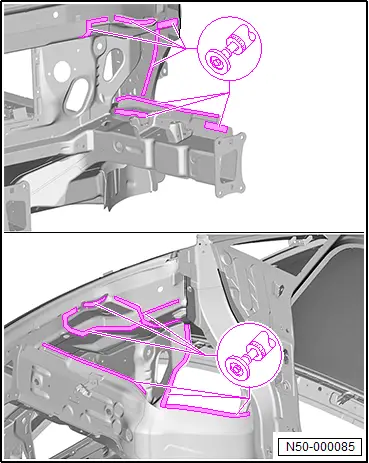

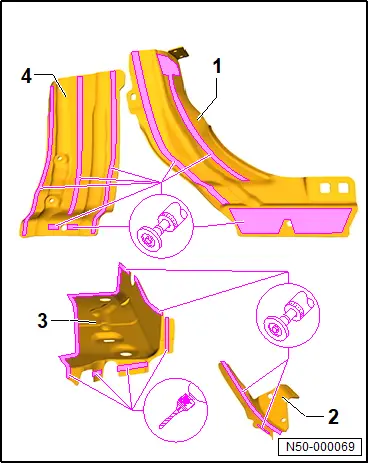

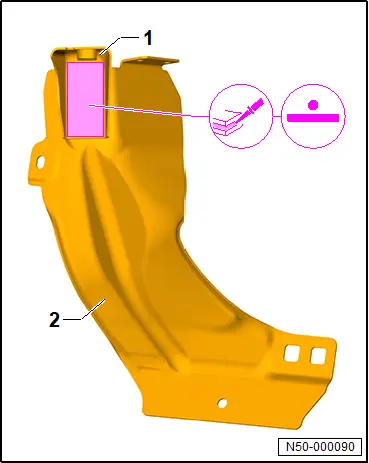

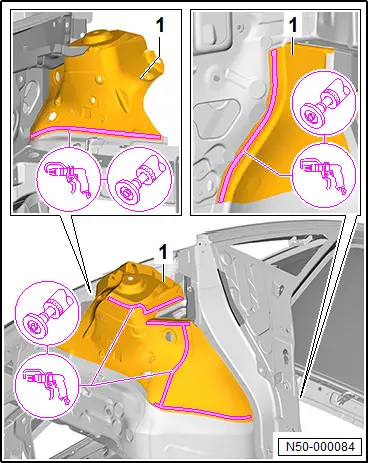

– Drill 8 mm diameter holes for SG plug weld seam in new part -1-.

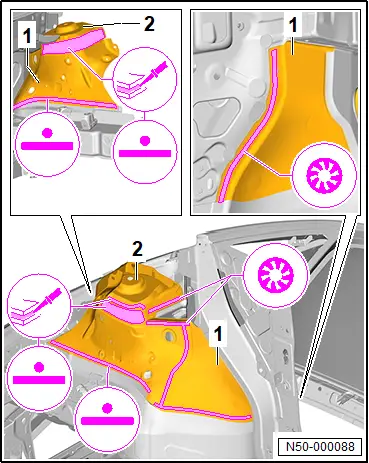

– Grind bonding surfaces and welding surfaces on new part -1- and -2- down to bare metal and clean.
– Sand bonding and welding surfaces on new part -1- down to bare metal, and clean them.

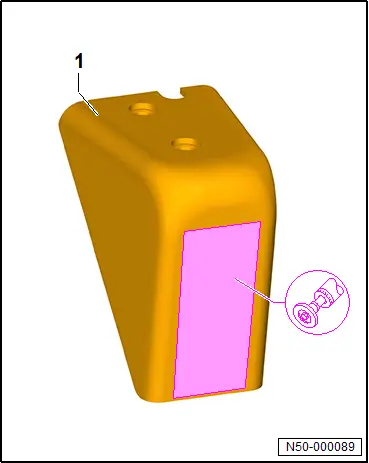

– Drill 8 mm diameter holes for SG plug weld seam in new part -3-.
– Grind bonding surfaces and welding surfaces on new part -1- to -4- down to bare metal and clean.

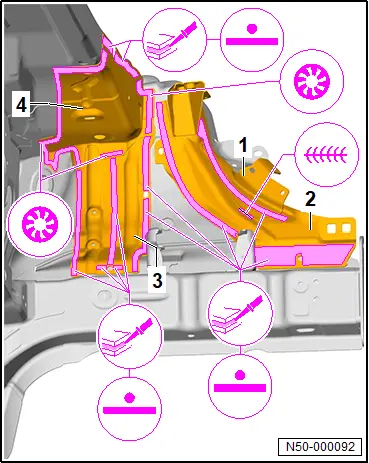

– Apply 2-component body adhesive to entire surface of new part -1-.

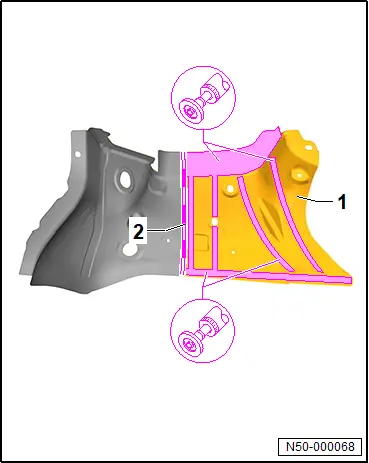

– Adapt new part -1- to new part -2-, and fix in position.
– Weld in new part -1- and -2-, RP spot weld seam.
– Apply 2-component body adhesive to entire surface.
– Adapt new part -1- to fit, and fix it in position.
– Apply 2-component body adhesive to entire surface.
– Adapt new part -2- to fit, and fix it in position.
– Check fit with attachments.
– Weld in new part -1- and -2-, SG plug weld seam and RP spot weld seam.
– Apply 2-component body adhesive to new part -2- and -3-.
– Adapt new part -2- and -3- to fit, and fix in position.
– Check fit with attachments.
– Weld in new part -2- and -3-, RP spot weld seam.

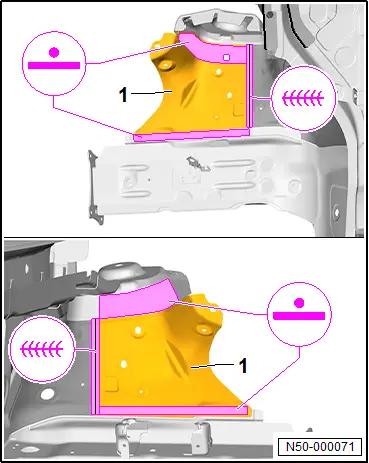

– Apply 2-component body adhesive to new part -1- and -4-.
– Adapt new part -1- and -4- to fit, and fix in position.
– Check fit with attachments.
– Weld in new part -1- and -4-, SG plug weld seam and RP spot weld seam.
– Upper inner longitudinal member of wheel housing already removed → Rep. gr.50; Renewing upper inner longitudinal member
Renewing front wheel housing (part section)
WARNING
Gases/ vapours hazardous to health are generated when welding, soldering or cutting using tools which produce sparks in foam-treated areas.
– Do not weld, solder or cut closer than 15 mm to moulded foam inserts.
– Use an extraction system during work.
NOTICE
Do not damage underlying reinforcements.
Rewelding of reinforcement is not permitted due to safety reasons.
NOTICE
If welds are positioned too far on outside, strength could be impaired
– RP weld points must be placed as far as possible from outer edge of welding flange.
NOTICE
If adhesive is applied prematurely, bond could be impaired
– New part must be welded in within 90 minutes.
Observe safety information → Rep. gr.00; Safety information
Only tools and workshop equipment authorised by Volkswagen AG may be used → Rep. gr.00; Tools.
Removal and installation are described for left side of vehicle as an example.
Upper inner longitudinal member of wheel housing removed → Rep. gr.50; Renewing upper inner longitudinal member
Removing
– Separate original joint of upper reinforcement -5- and remove.
– Separate original joint of reinforcement for front wheel housing -4- and remove.
– Separate original joint of reinforcement for tensioning strap backing plate -2- and remove.
– Separate original joint of reinforcement for tensioning strap support -3- and remove.
– Make separating cut -2- in a straight line as shown.
– Separate outer and inner original joints.
– Remove front wheel housing -1-.
– Remove remaining material.
– Completely remove adhesive residue.
– Sand bonding and welding surfaces down to bare metal, and clean them.
Installing
Replacement parts
♦ For allocation of 2-pack body adhesive, see → Electronic parts catalogue (ETKA)
Important
● New parts must be adapted and attached with the vehicle standing on the straightening bracket set.

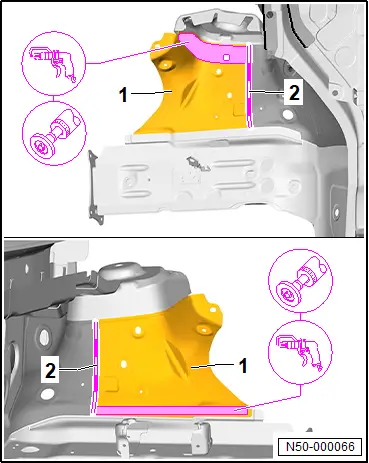

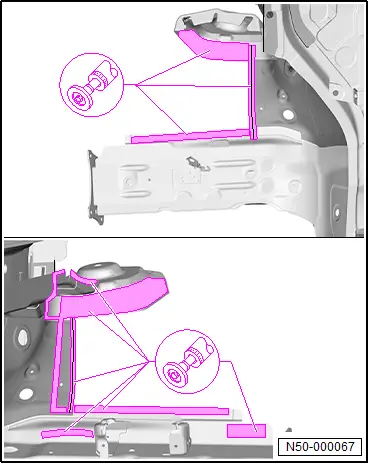

– Transfer separating cut -2- to new part -1-, and cut in a straight line.
– Sand bonding and welding surfaces on new part -1- down to bare metal, and clean them.
– Sand bonding and welding surfaces on new part -1- down to bare metal, and clean them.
– Drill 8 mm diameter holes for SG plug weld seam in new part -3-.
– Grind bonding surfaces and welding surfaces on new part -1- to -4- down to bare metal and clean.
– Apply 2-component body adhesive to entire surface of new part -1-.
– Adapt new part -1- to new part -2-, and fix in position.
– Weld in new part -1- and -2-, RP spot weld seam.
– Apply 2-component body adhesive to entire surface.
– Adapt new part -1- to fit, and fix it in position.
– Check fit with attachments.
– Weld in new part -1-, SG continuous weld seam and RP spot weld seam.
– Apply 2-component body adhesive to new part -2- and -3-.
– Adapt new part -2- and -3- to fit, and fix in position.
– Check fit with attachments.
– Weld in new part -2- and -3-, RP spot weld seam.
– Apply 2-component body adhesive to new part -1- and -4-.
– Adapt new part -1- and -4- to fit, and fix in position.
– Check fit with attachments.
– Weld in new part -1- and -4-, SG plug weld seam, SG continuous seam and RP spot weld seam.
– Upper inner longitudinal member of wheel housing already removed → Rep. gr.50; Renewing upper inner longitudinal member
