Volkswagen ID.3: Electric drive. High-voltage components, charging unit for high-voltage battery with integrated voltage converter

• Overview of fitting locations - high-voltage components
• Overview of fitting locations - high-voltage components

Overview of fitting locations - high-voltage components

Overview of fitting locations - high-voltage components

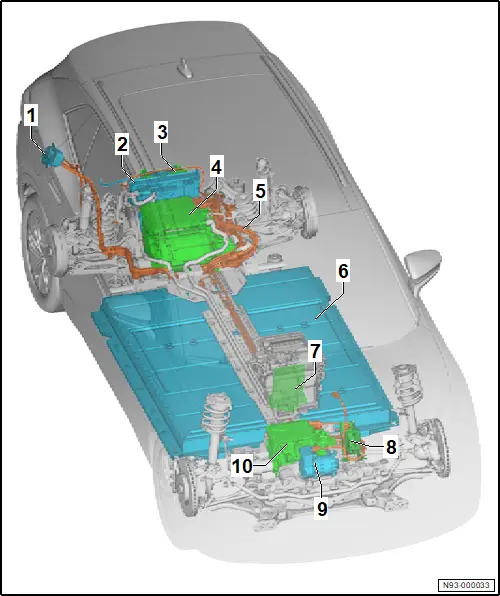

1 - High-voltage battery charging socket 1 -UX4-

❏ → Rep. gr.93; Assembly overview - charging socket

❏ → Rep. gr.93; Removing and installing high-voltage battery charging socket 1 [UX4]

2 - Comprised in charging unit 1 for high-voltage battery -AX4-

3 - Charging unit 1 for high-voltage battery -AX4-

❏ With voltage converter -A19-

❏ → Rep. gr.93; Assembly overview - charging unit for high-voltage battery

❏ → Rep. gr.93; Removing and installing charging unit 1 for high-voltage battery AX4

4 - Three-phase current drive -VX54-

❏ With power and control electronics for electric drive -JX1-

❏ → Rep. gr.10; Assembly overview - motor

❏ → Rep. gr.10; Removing motor

❏ → Rep. gr.10; Installing motor

❏ → Rep. gr.93; Removing and installing power and control electronics for electric drive

5 - High-voltage wire

6 - High-voltage battery 1 -AX2-

❏ → Rep. gr.93; Assembly overview - high-voltage battery (installed)

❏ → Rep. gr.93; Removing and installing high-voltage battery 1 [AX2]

7 - High-voltage heater (PTC) -ZX17-

❏ With high-voltage heater (PTC) control unit -J848-

❏ With high-voltage heater (PTC) -Z115-

❏ → Heating, air conditioning; Rep. gr.87; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

8 - PTC heater element 3 -Z132-

❏ → Heating, air conditioning; Rep. gr.87; Coolant circuit; Removing and installing PTC heater element 3 [Z132]

9 - Air conditioner compressor -VX81-

❏ With electrical air conditioner compressor -V470-

❏ With control unit for air conditioner compressor -J842-

❏ → Heating, air conditioning; Rep. gr.87; Air conditioner compressor; Assembly overview – air conditioner compressor

❏ → Heating, air conditioning; Rep. gr.87; Air conditioner compressor; Removing and installing electrical air conditioner compressor [VX81]

10 - Three-phase current drive 2 -VX97-

❏ With power and control electronics 2 for electric drive -JX4-

❏ → Rep. gr.10; Assembly overview - motor

❏ → Rep. gr.10; Removing motor

❏ → Rep. gr.10; Installing motor

❏ → Rep. gr.93; Removing and installing power and control electronics for electric drive

Overview of fitting locations - high-voltage components

Overview of fitting locations - high-voltage components

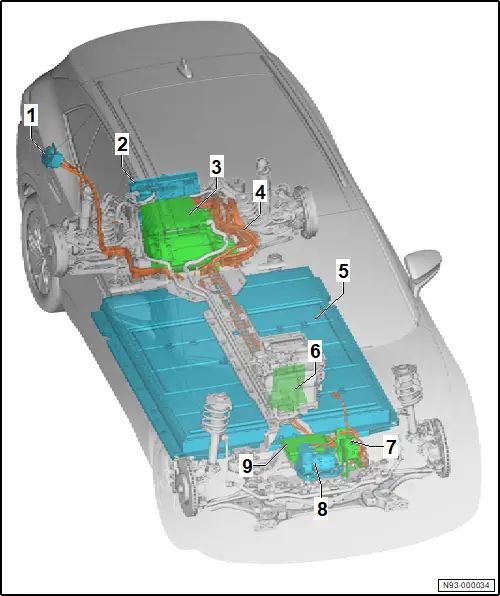

1 - High-voltage battery charging socket 1 -UX4-

❏ → Rep. gr.93; Assembly overview - charging socket

❏ → Rep. gr.93; Removing and installing high-voltage battery charging socket 1 [UX4]

2 - Charging unit 1 for high-voltage battery -AX4-

❏ With voltage converter -A19-

❏ → Rep. gr.93; Assembly overview - charging unit for high-voltage battery

❏ → Rep. gr.93; Removing and installing charging unit 1 for high-voltage battery AX4

3 - Three-phase current drive -VX54-

❏ With power and control electronics for electric drive -JX1-

❏ → Rep. gr.10; Assembly overview - motor

❏ → Rep. gr.10; Removing motor

❏ → Rep. gr.10; Installing motor

❏ → Rep. gr.93; Removing and installing power and control electronics for electric drive

4 - High-voltage wire

5 - High-voltage battery 1 -AX2-

❏ → Rep. gr.93; Assembly overview - high-voltage battery (installed)

❏ → Rep. gr.93; Removing and installing high-voltage battery 1 [AX2]

6 - High-voltage heater (PTC) -ZX17-

❏ With high-voltage heater (PTC) control unit -J848-

❏ With high-voltage heater (PTC) -Z115-

❏ → Heating, air conditioning; Rep. gr.87; Front heater and air conditioning unit; Removing and installing high-voltage heater (PTC) [ZX17]

7 - PTC heater element 3 -Z132-

❏ → Heating, air conditioning; Rep. gr.87; Coolant circuit; Removing and installing PTC heater element 3 [Z132]

8 - Air conditioner compressor -VX81-

❏ With electrical air conditioner compressor -V470-

❏ With control unit for air conditioner compressor -J842-

❏ → Heating, air conditioning; Rep. gr.87; Air conditioner compressor; Assembly overview – air conditioner compressor

❏ → Heating, air conditioning; Rep. gr.87; Air conditioner compressor; Removing and installing electrical air conditioner compressor [VX81]

9 - Comprised in charging unit 1 for high-voltage battery -AX4-
